JRready ST6295 Size 20 Solid-Pin DTM Male Contacts, Purple Stripe — 50 Pairs, 16–22 AWG, 7.5A

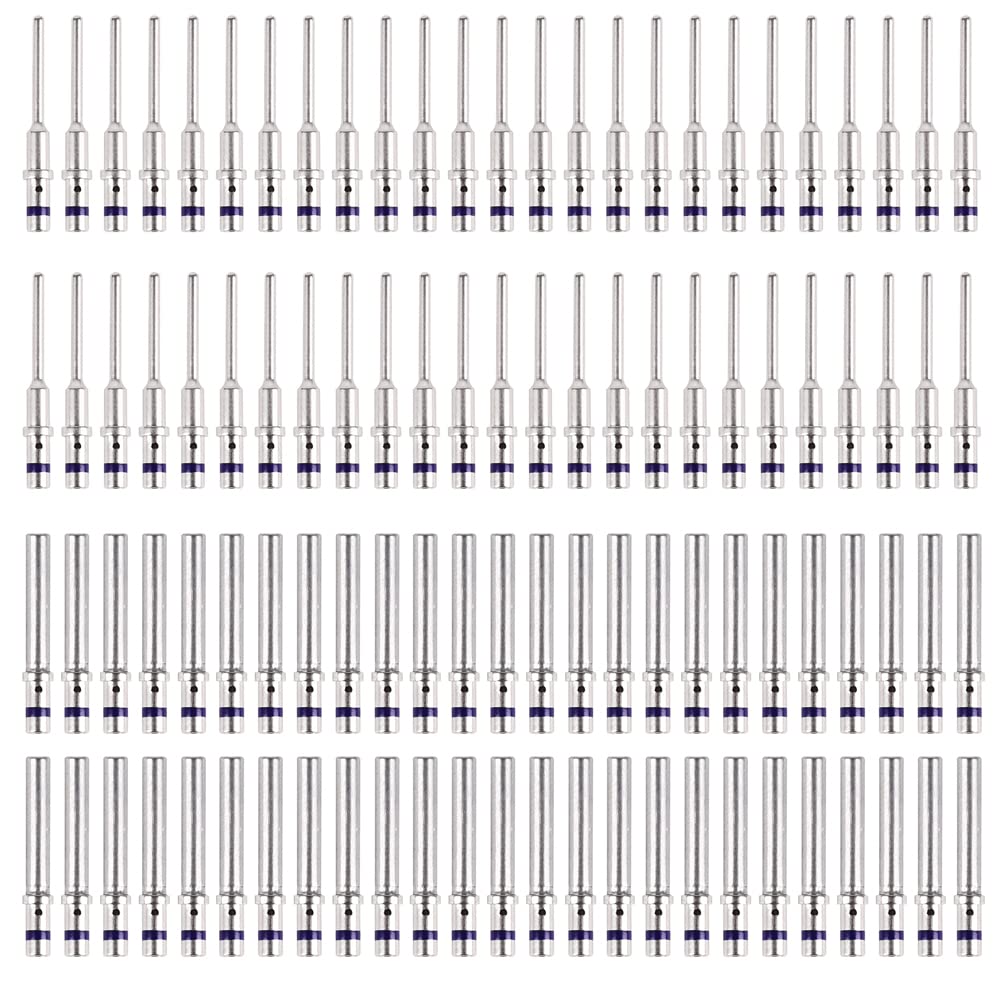

JRready ST6295 are size 20 solid-pin male contacts designed for DTM family connectors, supplied as 50 pairs with a purple stripe for quick identification.

These precision solid contacts are made for technicians and OEMs working with DTM/DTM-style connectors (HDP20, HD30, DRB, DRC series). Engineered from tin-bronze with nickel plating, they combine improved conductivity, corrosion resistance and mechanical durability. Each pack contains 50 pairs (100 individual contacts) sized for 16–22 AWG solid conductors and rated for up to 7.5 A, intended for professional crimping with a four-indent tool to achieve reliable tensile strength.

What connector series are these contacts compatible with?

The JRready ST6295 contacts are built to fit DTM-style multi-pin housings, including HDP20, HD30 and the DRB/DRC series. They follow the size 20 form factor used across these connectors for secure, precision mating.

• Designed for DTM/DTM-like housings (HDP20, HD30, DRB, DRC)
• Size 20 male solid pin geometry for standard mating
• Purple stripe aids fast visual matching during assembly

Which wire sizes and electrical loads do these solid contacts support?

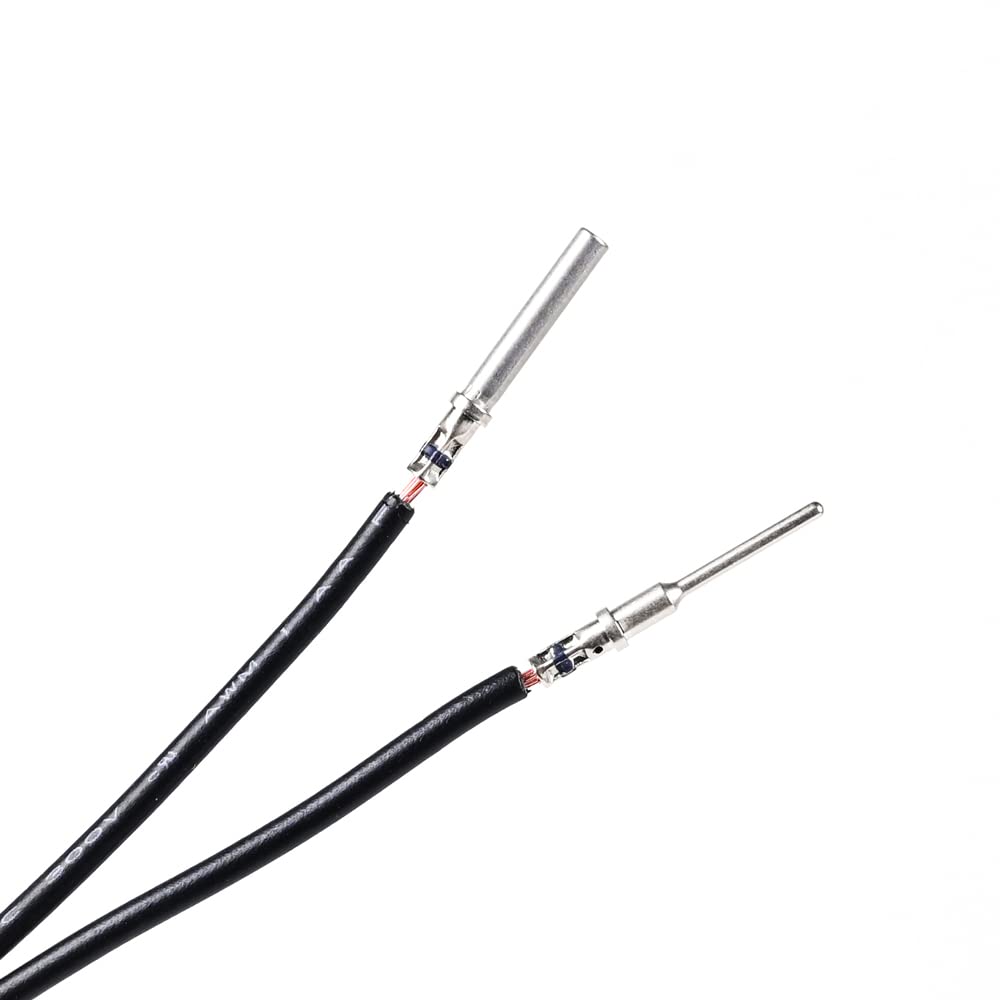

Each contact accepts 16–22 AWG solid conductors and is specified for a maximum continuous current of 7.5 A. That makes them suitable for many signal and low-to-moderate power circuits when used within connector system ratings.

• Crimp range: 16–22 AWG solid wire
• Maximum current rating: 7.5 A per contact
• Intended for signal and light power circuits in DTM systems

What materials and durability features do these terminals offer?

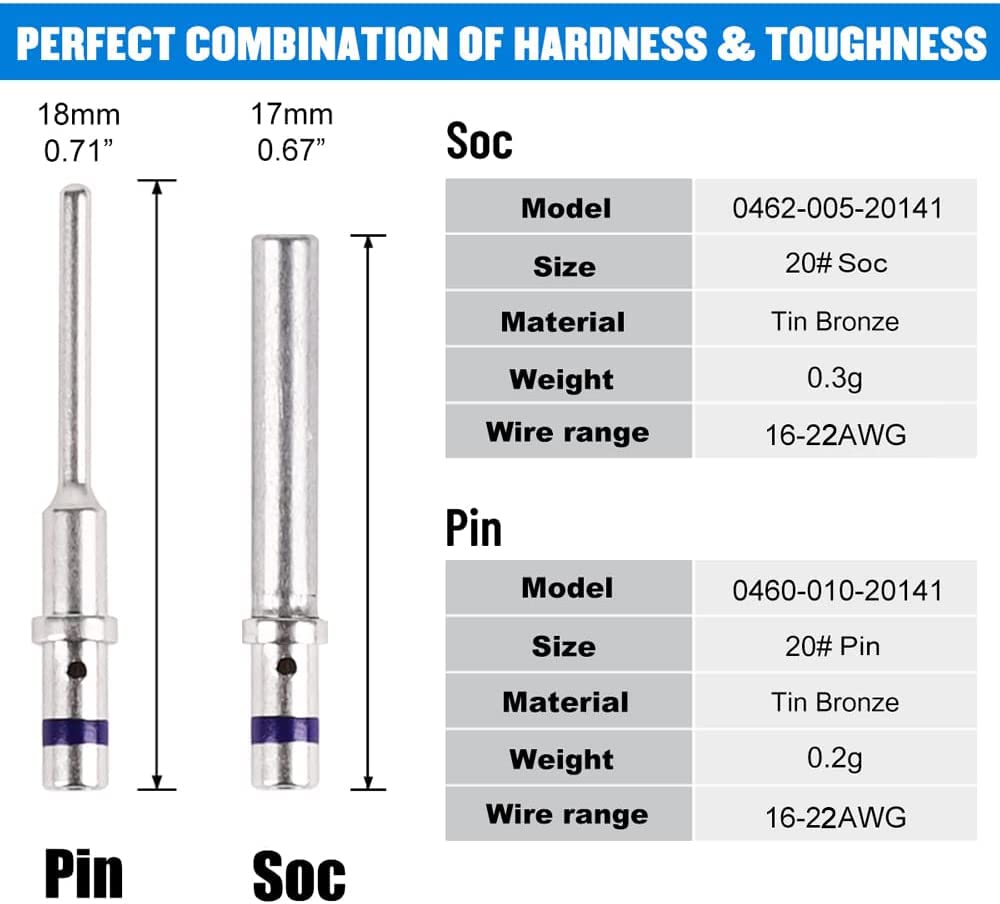

The contacts are manufactured from tin-bronze alloy for better conductivity and mechanical stability than typical brass, with nickel plating to resist corrosion and wear. They are tested for repeated mating cycles to ensure consistent electrical and mechanical performance.

• Tin-bronze base material for improved conductivity
• Nickel plating increases corrosion and wear resistance
• Validated for mechanical/electrical integrity after 100 mate cycles

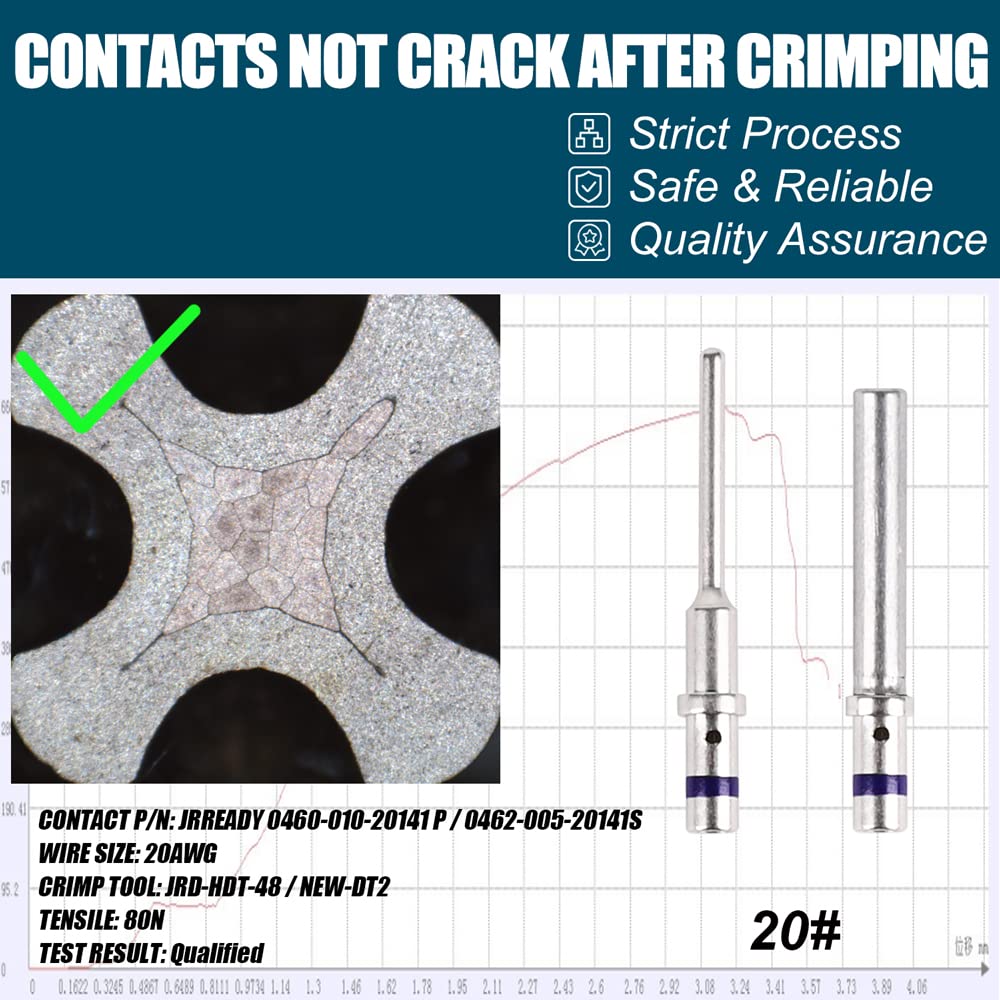

How should these contacts be crimped for reliable performance?

For dependable crimps and tensile strength, use a professional four-indent crimping tool designed for solid contacts. Proper crimp technique prevents loose connections and helps the contact meet electrical and mechanical requirements.

• Recommended tool: four-indent crimper for solid pins
• Use appropriate die set for size 20 terminals
• Inspect crimps visually and with a pull test when possible

Who this is for: JRready ST6295 size 20 solid-pin contacts are aimed at electricians, automotive and industrial harness assemblers, field technicians, and DIY professionals who repair or build DTM-based connector assemblies. Choose this 50-pair kit if you need a compact supply of durable, industry-compatible male terminals for reliable crimped connections in 16–22 AWG solid wiring scenarios.
