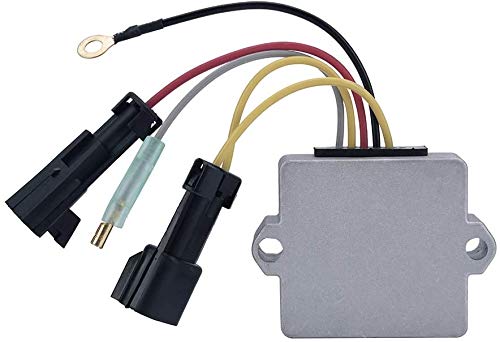

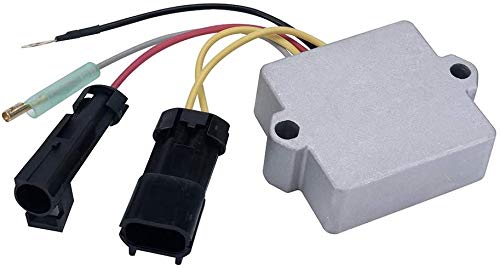

JSMANCAVE Voltage Regulator/Rectifier for Mercury 30–60HP (893640T01) — 12V Regulated, Heat‑Sink Waterproof

JSMANCAVE 893640T01 is a direct-fit voltage regulator/rectifier engineered to restore reliable 12V charging and protect the electrical system on Mercury 4-stroke 30–60HP outboard engines.

If your Mercury outboard is experiencing dimming lights, inconsistent charging, or battery drain, a worn or failed regulator/rectifier is often the culprit. This replacement unit is built to match OEM fitment for multiple Mercury part numbers and several 2002 electrical component variants, providing a practical repair option to avoid expensive dealer parts while keeping your boat’s charging circuit stable.

How does this regulator/rectifier improve my boat's charging system?

The JSMANCAVE regulator converts AC output from the stator into steady 12V DC, while regulating voltage to the battery and onboard electronics. It includes thermal management to help prevent overheating and reduce the risk of overcharging.

• Output: regulated DC 12V with minimum charging ~14.5V ±0.5V

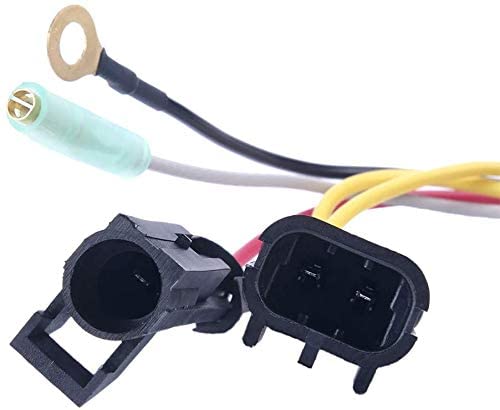

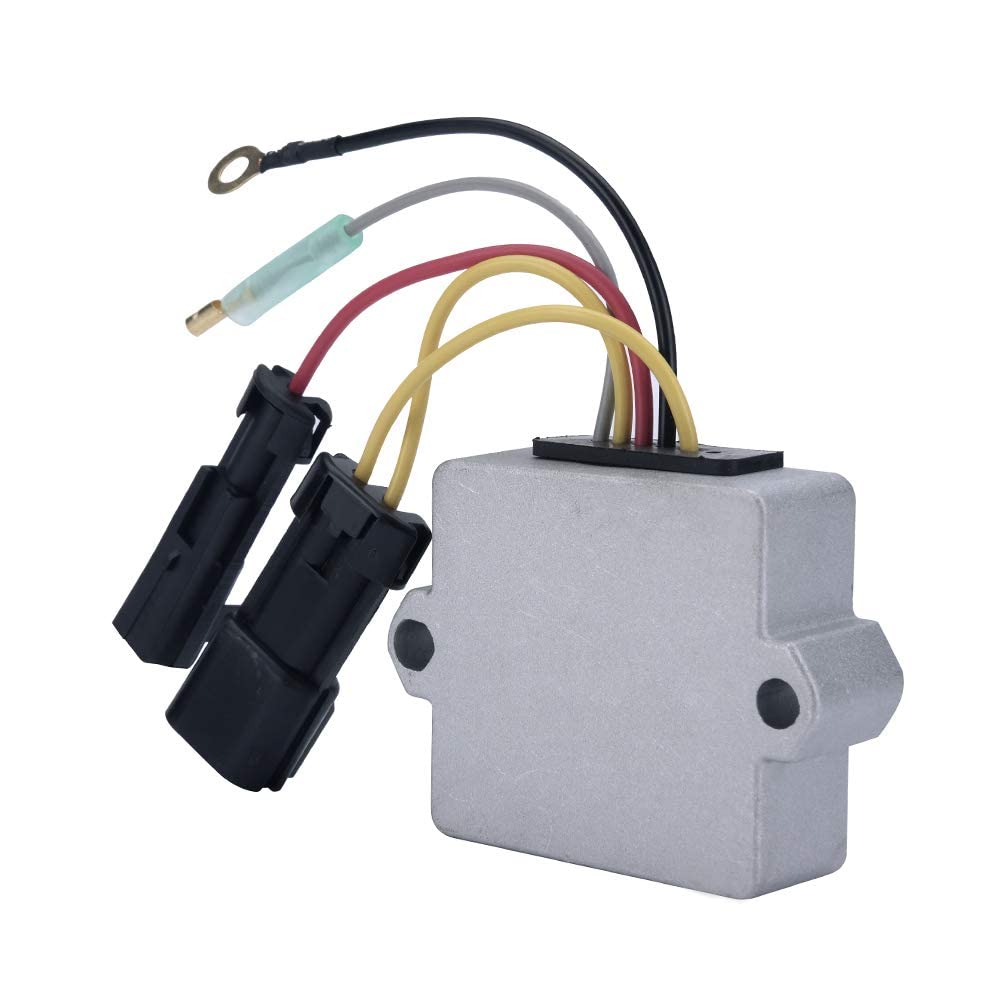

• 5-wire configuration for straightforward connection to compatible Mercury wiring
• Heat sink design to dissipate excess heat and improve longevity
• Waterproof and shock-resistant construction for marine environments

Will this part fit my Mercury 4-stroke engine?

This replacement is designed specifically for Mercury Marine 4-stroke outboards from 30HP up to 60HP and matches numerous OEM references. Check the listed compatible electrical component codes and model-year variants to confirm fitment before ordering.

• Compatible with Mercury 30, 40, 50, 60 HP 4-stroke models
• Replaces OEM numbers such as 893640T01, 893640001, 893640-002 and others
• Matches many 2002 electrical component codes (see product listing for full set)
• Direct-fit replacement for commonly failing regulator/rectifier assemblies

What performance and protection features are included?

The unit offers basic overheat protection and voltage regulation to protect batteries and electrical components from spikes or undercharging. While not a factory-branded part, it’s built to restore charging performance and improve electrical stability when installed correctly.

• Overheat protection to reduce thermal damage during heavy loads
• Helps prevent overcharging and stabilizes headlight and ignition performance
• Shockproof and sealed design suited to marine conditions
• May improve spark plug combustion and smoother engine response by stabilizing voltage

How do I install and verify this replacement works?

Installation typically involves unplugging the old regulator/rectifier and connecting the five wires of the new unit to the existing harness; secure mounting to the engine’s designated heat-sink area is recommended. After installation, measure charging voltage at the battery with the engine running to confirm the regulator maintains approximately 14.5V.

• Swap out old unit for the new 5-wire JSMANCAVE regulator
• Mount to a solid metal surface for proper heat dissipation
• Verify charging voltage at battery: target ~14.0–15.0V under charge
• Inspect seals and connectors for corrosion and proper fit

Who is this for: Boaters, marine mechanics, and DIY enthusiasts who need a cost-effective, OEM-compatible replacement for a failed Mercury regulator/rectifier on 30–60HP 4-stroke outboards. Ideal for owners looking to restore reliable battery charging and electrical stability without paying dealer markups—confirm compatibility with your engine’s part numbers and wiring before purchase.
