JUNRUO Alternator Pigtail with Inline Resistor — 96in 4‑Pin LS III Replacement, Plug‑and‑Play for 105A

This plug-and-play pigtail replaces the factory 4-terminal flat alternator connector on GM LS engines and adds an inline resistor that steps down a full 12V ignition feed to the voltage the alternator expects for its field/turn-on circuit. At 96 inches long, the lead gives extra reach for routing in custom installs, swaps, or older vehicles where the original wiring harness or engine control module (ECM) is not present or not used for alternator control. It's a practical solution for running alternators without dedicated alternator control wiring while preserving correct signal levels.

How does this pigtail make an alternator work without ECM control?

The inline resistor reduces the full 12V supply to a lower voltage that mimics the alternator's expected 'on' signal. This prevents over-voltage to the alternator's internal field circuit when the ECM or dedicated alternator control is absent. It effectively lets the alternator see the correct command voltage so it can begin charging and regulating as designed.

• Built-in resistor steps down 12V to safe alternator signal voltage.
• Compatible with alternators lacking a dedicated control module.
• Pre-wired for immediate connection—no soldering required in most installs.

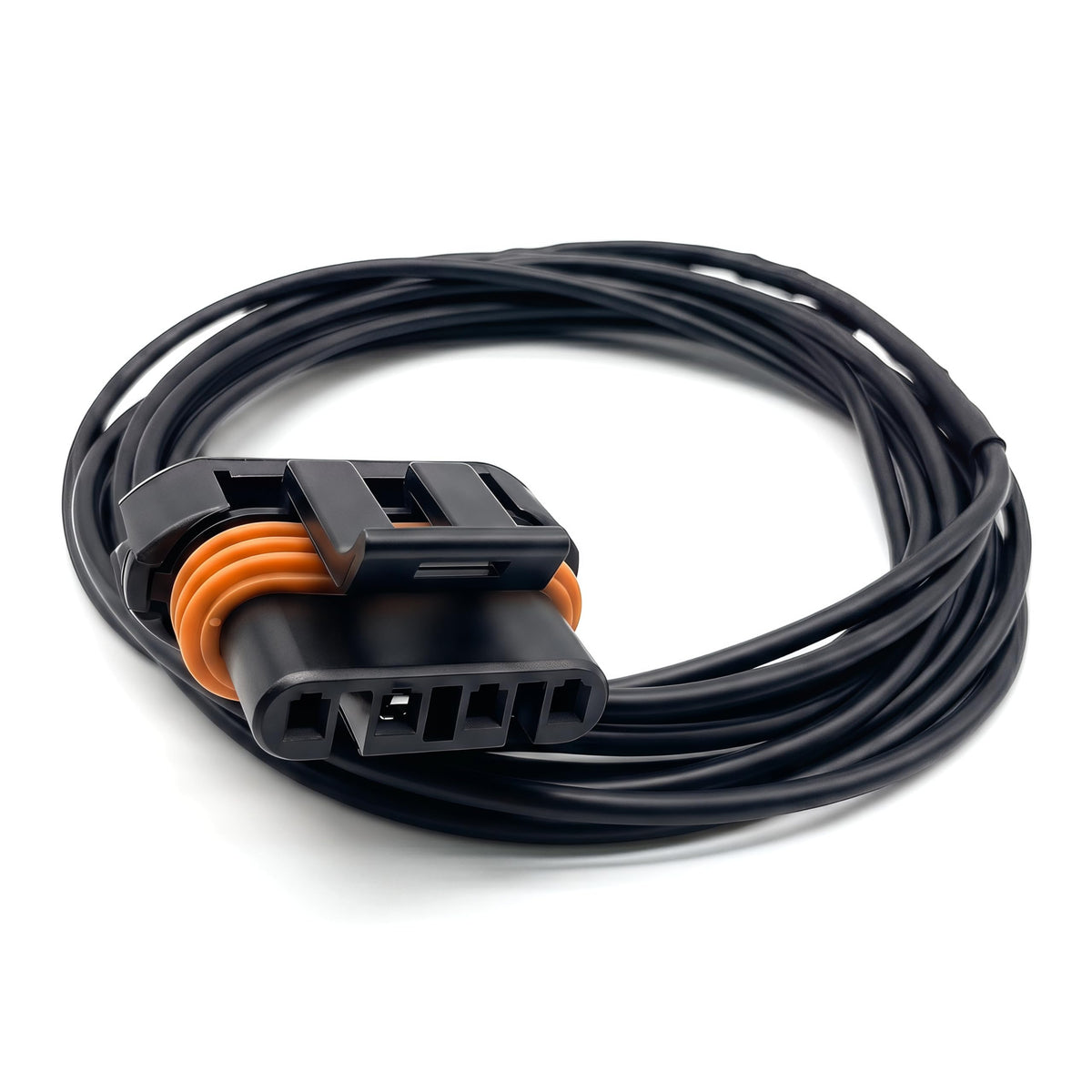

Will this fit my GM LS engine and 4-terminal alternator?

The pigtail is intended for 1999 and newer GM LS-series engines that use the 4-pin flat alternator connector. It matches the standard flat connector pattern used on many LS III generation alternators, including 105A units. Always confirm connector shape and pin count before ordering.

• Designed for 4-terminal flat alternator connectors common on LS engines.
• Specifically compatible with 1999+ GM LS-series alternators.
• Works with 105A capacity alternators and similar configurations.

Why choose a 96-inch lead instead of a shorter pigtail?

The extended 96" length gives flexibility when routing wiring across engine bays, swaps, or chassis where factory harnesses are modified or removed. It reduces the need for extension splices and lets you position the resistor and connector in a protected area away from heat or moving parts. Longer cable also simplifies custom projects and engine swaps where access to the alternator connector may be limited.

• Extra reach avoids additional extension splices during installation.
• Allows mounting the resistor in a cooler, safer location.
• Simplifies routing for swaps and custom engine bay layouts.

What are the practical installation considerations?

Installation is straightforward: plug the pigtail into the alternator's flat 4-pin connector and tie the other end into your 12V ignition or switched accessory circuit. Use proper cable routing, strain relief, and heat protection where needed, and ensure connections to battery and chassis grounds remain secure. For high-amperage systems, verify that wire gauges and fusing meet your vehicle's charging system requirements.

• Plug-and-play connector fits standard 4-pin alternator sockets.
• Connect to a switched 12V source (ignition/switched power).
• Protect wires from heat and secure with zip-ties or clamps.

Who is this for? JUNRUO's 96" resistor wire pigtail suits mechanics, hot-rodders, and DIY enthusiasts performing LS engine swaps, replacing damaged alternator connectors, or installing alternators in vehicles where the ECM does not provide an alternator turn-on circuit. It's ideal when you need a reliable, off-the-shelf wiring solution that preserves correct alternator signaling without complex control modules.
