JZYZQBX 6-piece 6in Oval LED Trailer Tail Lights — 10-LED, Red & White, IP67 Waterproof

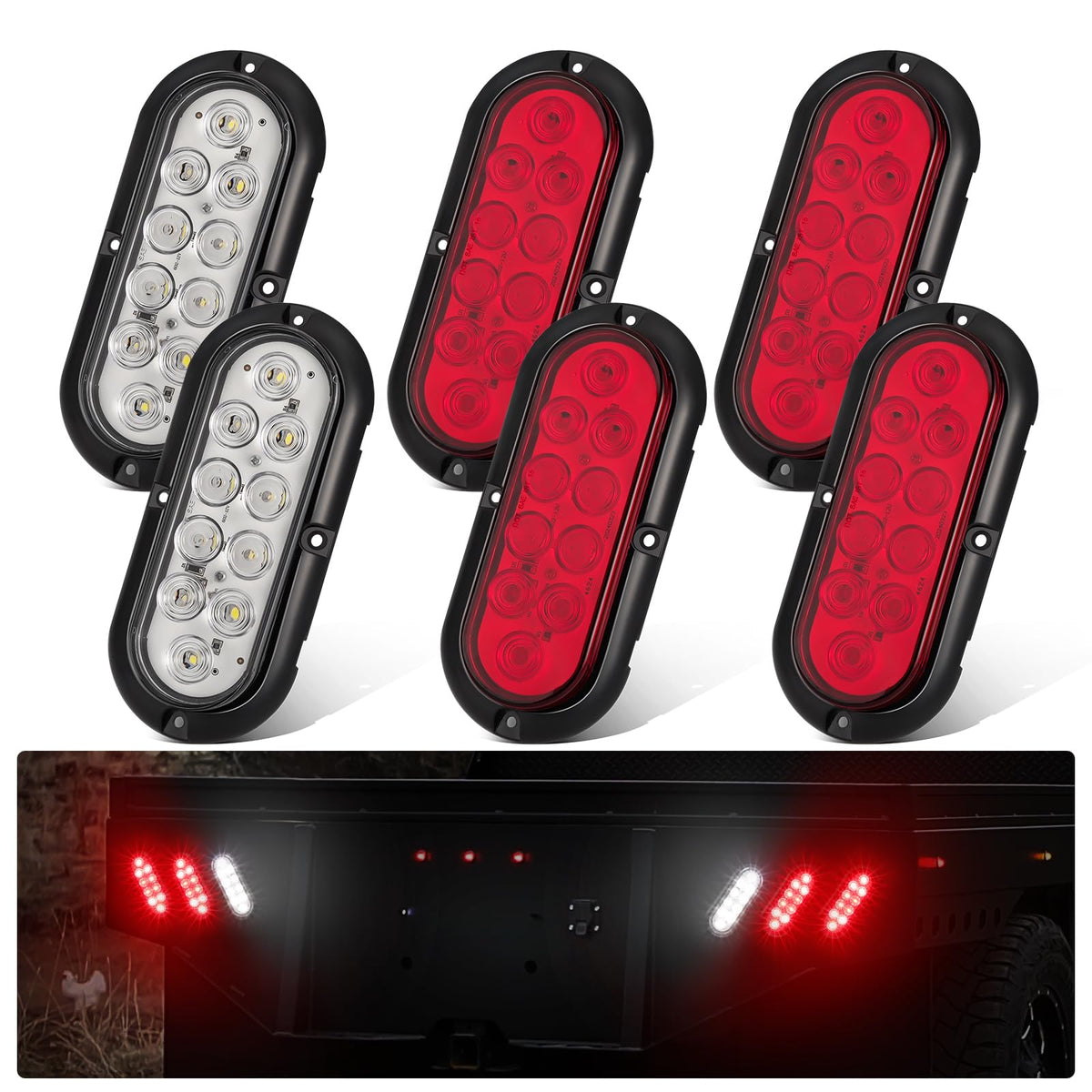

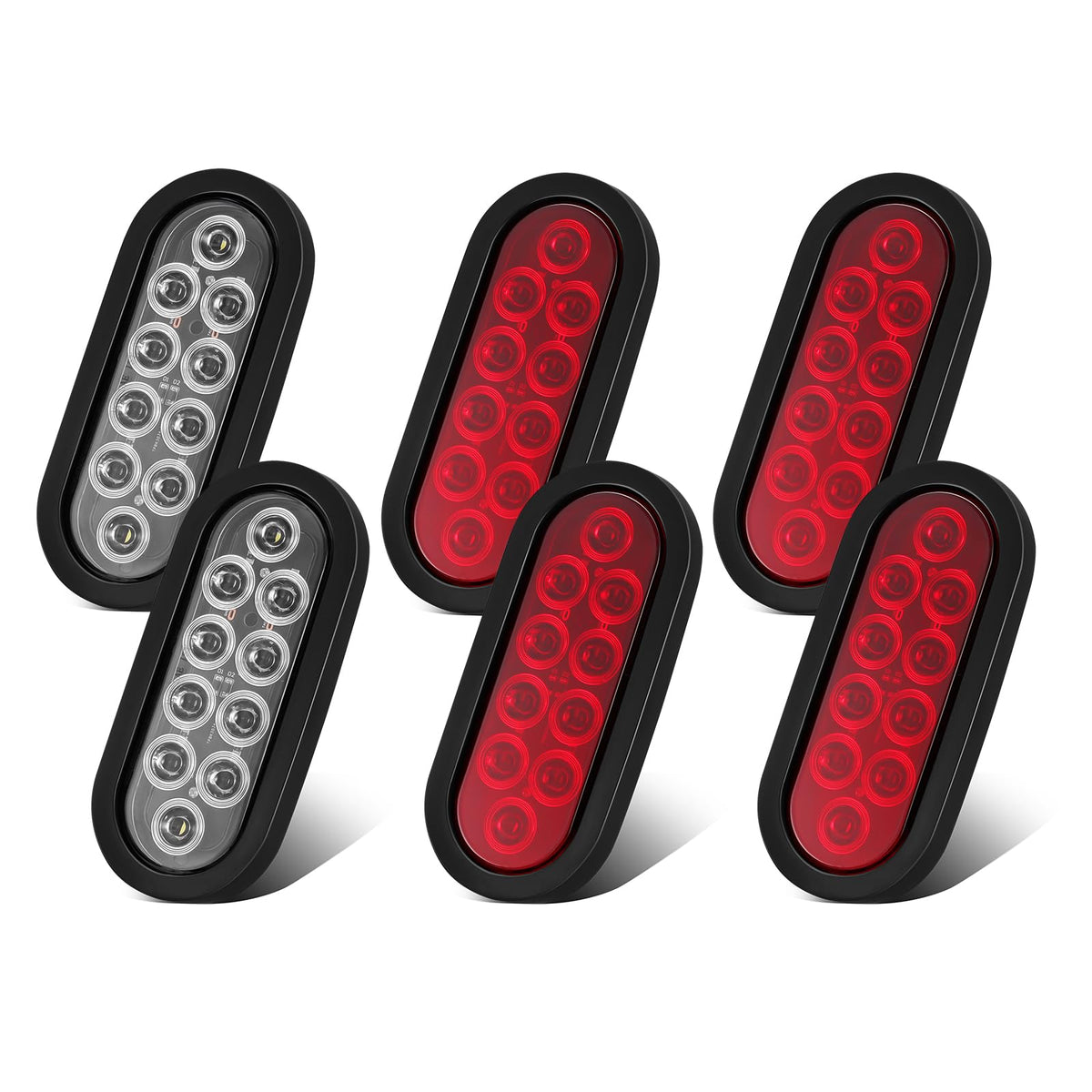

JZYZQBX's 6-piece 6-inch oval LED trailer tail light kit delivers stop, turn, tail and reverse lighting with 10 high-output LEDs per lamp for clearer signaling on 12V vehicles. These lights combine compact oval styling with durable sealing and a two-brightness design so you get visible brake and turn signals plus low-intensity running lights. The set includes four red stop/turn/tail lamps and two white reverse lamps, each pre-wired with a standard 3-prong pigtail and rubber grommet for flush-mount installation. Built to resist moisture and vibration, the fixtures are suited to trailers, trucks, RVs and other 12V platforms.

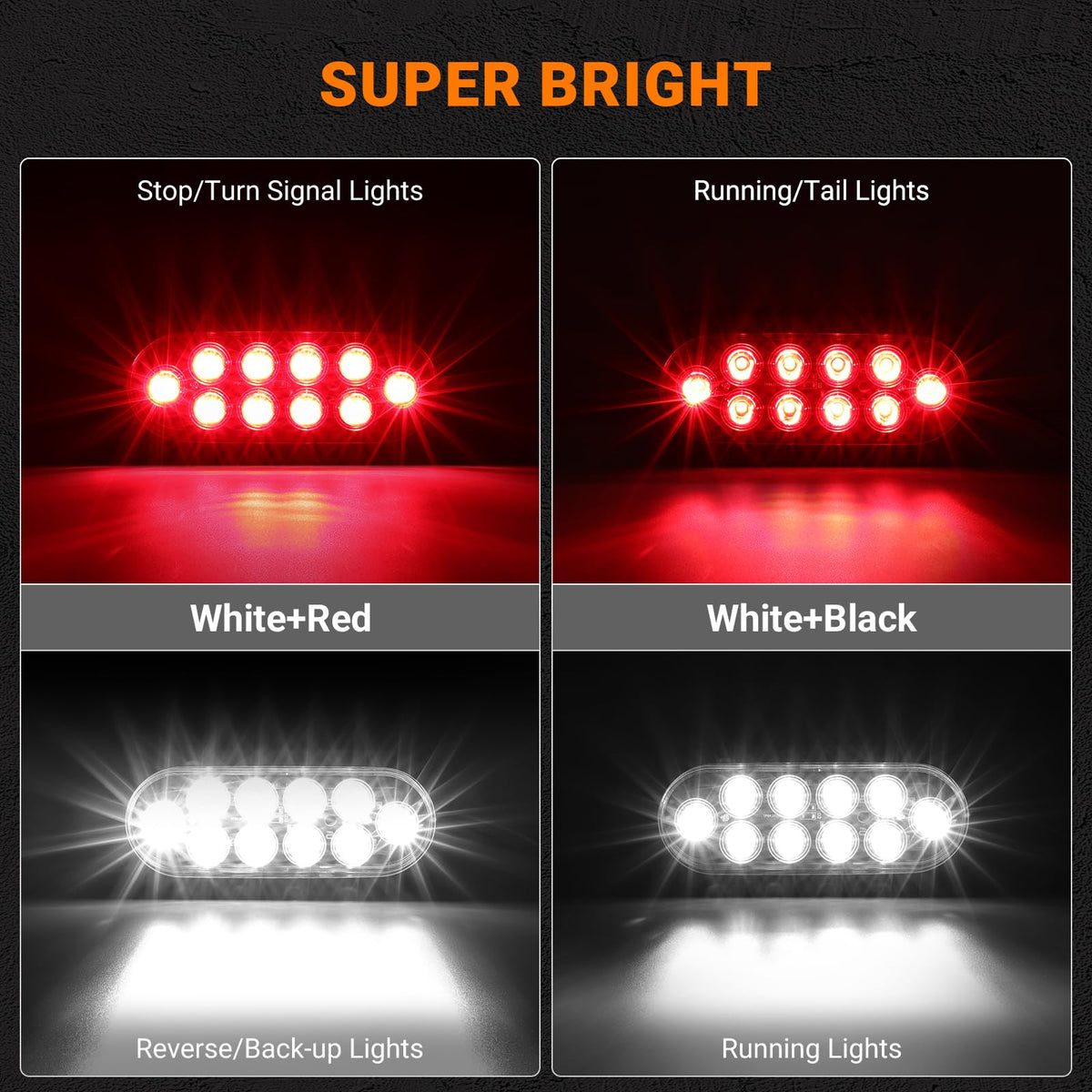

How bright are these lights and what modes do they use?

Each lamp uses ten 2835 SMD LEDs that produce intense red or white output. The circuit supports a high-brightness mode for stop, turn and reverse functions, and a low-brightness mode for tail/running illumination to preserve visibility without glare.

• 10 high-quality 2835 SMD LEDs per housing for consistent luminous output
• Two brightness levels: high for signaling, low for running lights
• Red lenses for stop/turn/tail, white lenses for reverse backup
• Works on 12V DC vehicle electrical systems

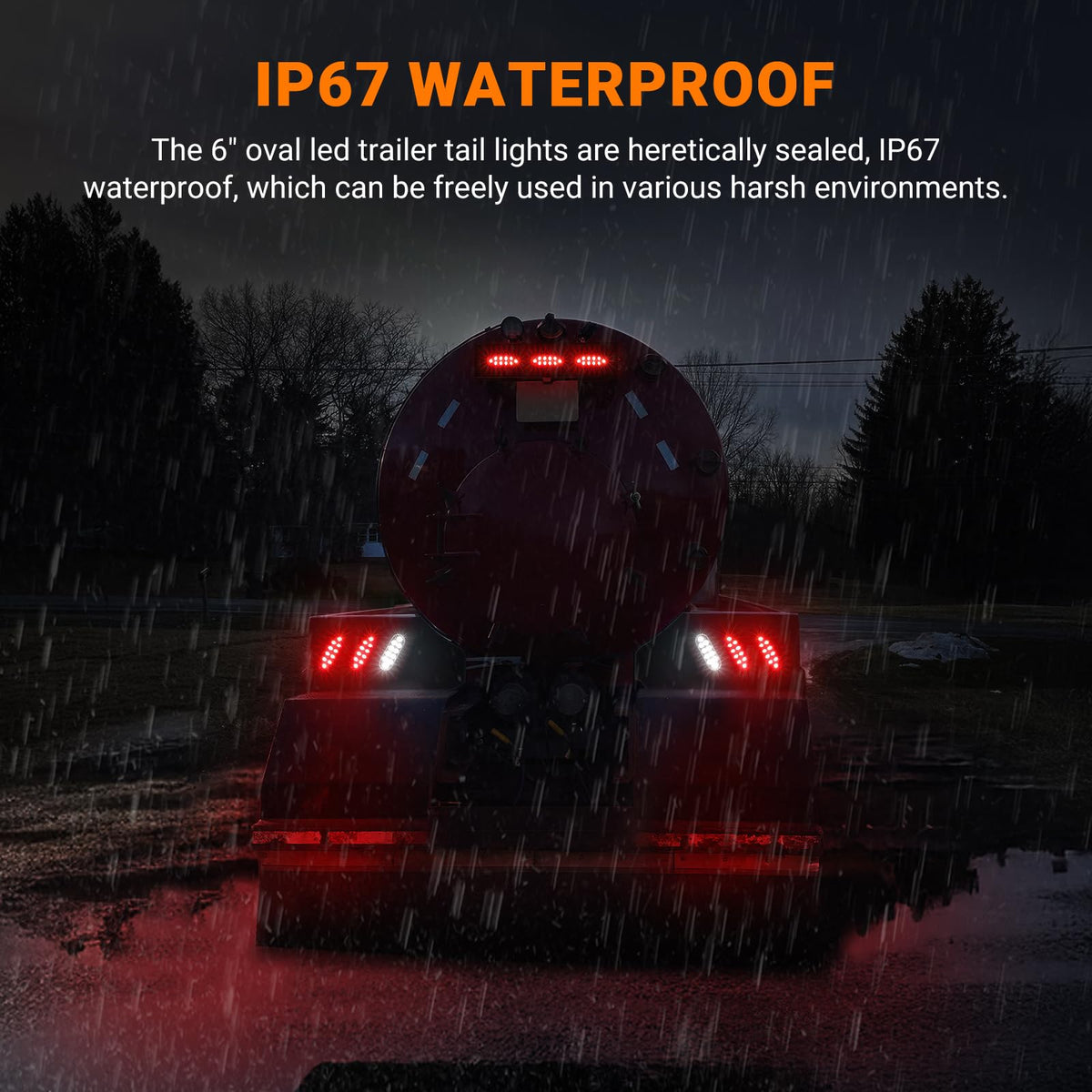

Are these lights weatherproof and rugged enough for trailers?

Yes — the fixtures are engineered to reach IP67-level protection using robust sealing methods. Epoxy seals, sonic-welded acrylic lenses and vulcanized silicone outlet seals reduce water intrusion and improve longevity under road vibration and moisture exposure.

• Epoxy glue between cover and base, not hot-melt adhesive
• Sonic-welded acrylic lens for stronger mechanical bond
• Vulcanized silicone used to seal the wiring outlet against moisture
• IP67-rated for water and dust resistance under normal use

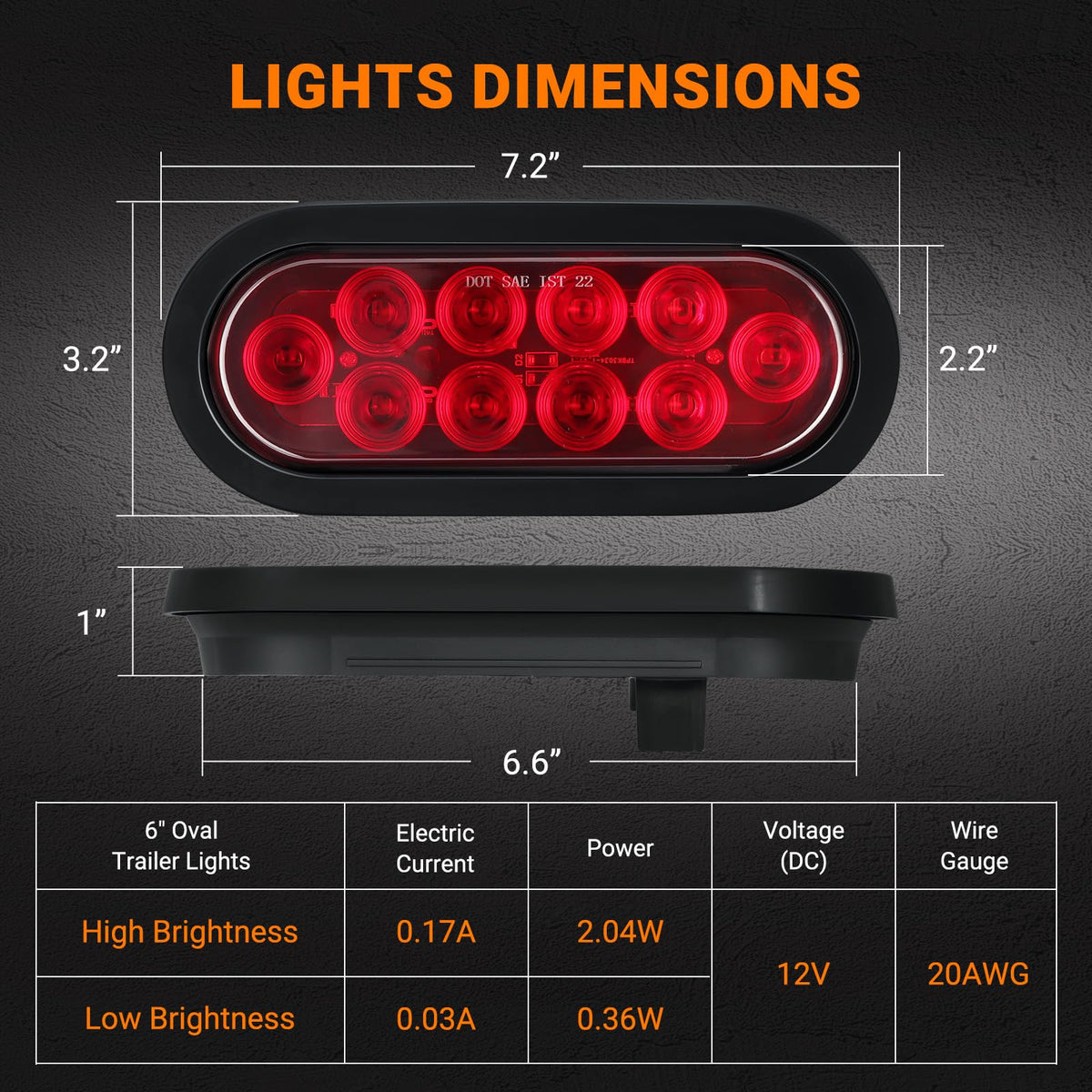

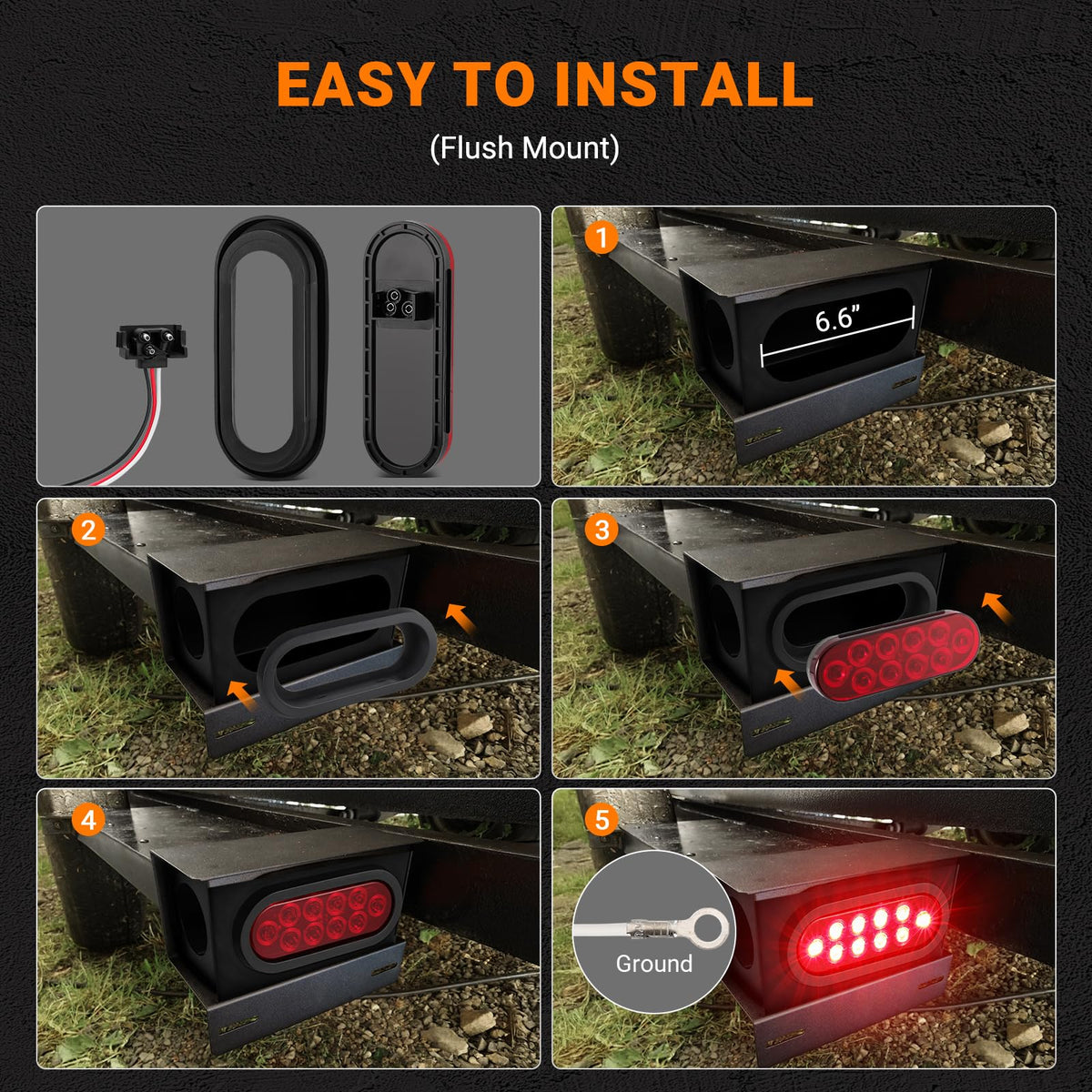

How simple is installation and what measurements should I check?

Installation is straightforward: each lamp mounts flush with a supplied rubber grommet and connects via a standard 3-prong wire pigtail. Drill a hole roughly 6.6 inches in diameter to accept the grommet; the light measures about 7.2 inches overall with a 6.3-inch inner diameter.

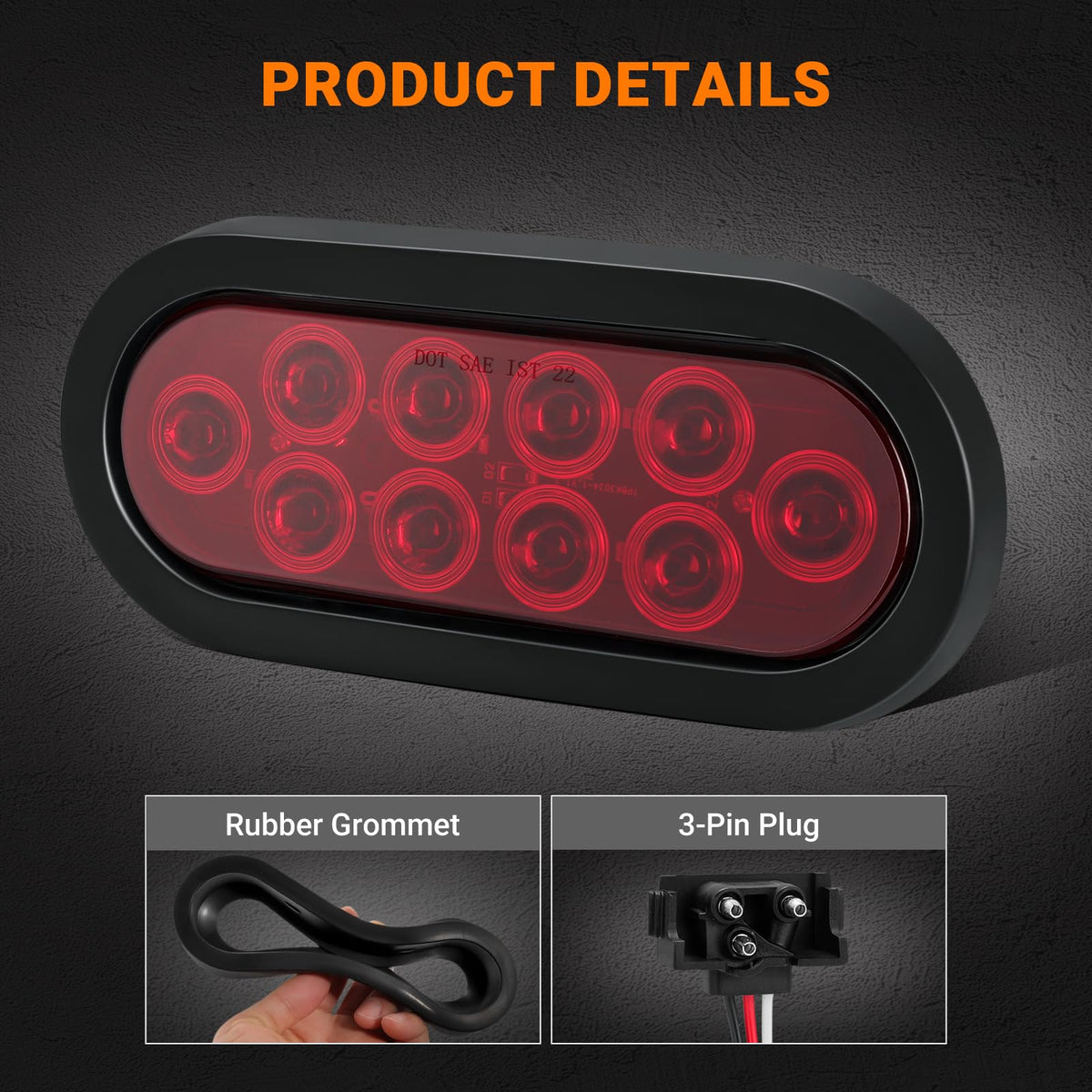

• Includes rubber grommets and 3-prong pigtails for quick fitment
• Approx. 7.2" outer diameter, 6.3" inner diameter—drill ≈6.6" hole
• Wiring: white = ground, red = high (stop/turn/reverse), black = low (tail)
• Designed for flush-mount use on metal or composite panels

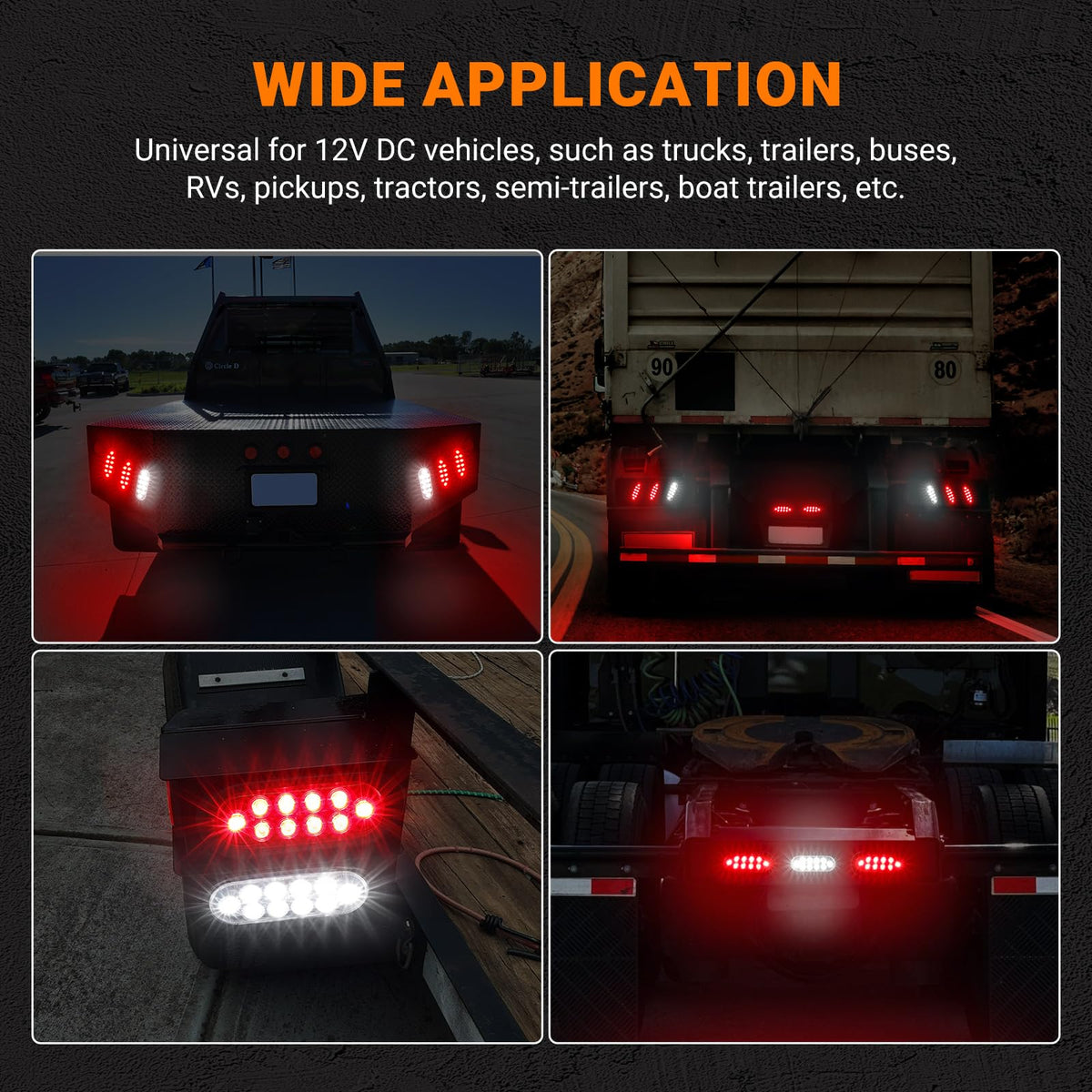

Which vehicles and applications are these lights compatible with?

The kit is universal across common 12V platforms—ideal for trailers and work vehicles where clear signaling and reverse illumination are required. Confirm panel hole size and electrical compatibility before installing.

• Fits trailers, trucks, RVs, pickups, utility trailers, boat trailers, tractors, and more
• Suitable for stop, turn, brake, tail, running and reverse functions
• 12V DC systems only; verify vehicle ground and wiring conventions
• Great for replacement or retrofit projects on older lighting fixtures

Who is this for? If you tow regularly, maintain a fleet, or need a durable trailer lighting upgrade that balances brightness, weather resistance and easy installation, this JZYZQBX 6-piece kit is a practical choice. It's aimed at DIY installers and professional technicians who want clear stop/turn signaling plus reliable reverse illumination without complicated wiring or bulky housings. For questions about fitment or wiring, customer support is available via email with a promised response within 24 hours.

FAQ

Q: Do these lights work on any 12V vehicle?

A: Yes, they are designed for 12V DC systems like trailers, trucks, RVs, and pickups; confirm the required hole size before installing.

Q: What wires control each function?

A: White is ground; red runs high-brightness for stop/turn/reverse; black provides low-brightness for tail/running lights.
