KAKO Complete Wiring Harness Kit for ATV Quad 150CC-250CC — Full Electrics with CDI, Stator, Rectifier

KAKO Complete Wiring Harness Kit is a full replacement electrics loom with CDI, stator, rectifier and ignition components designed for most Chinese-made 150CC–250CC 4-stroke ATVs, quads and dirt bikes.

This kit supplies an entire electrical system replacement—wiring harness, CDI, stator, rectifier, coil, switches and more—to restore or upgrade the electricals on many upright-engine 150CC, 200CC and 250CC four-wheelers. It is built for common Chinese engine platforms (Lifan, Loncin, Ducar, Shineray, Zongshen, YX and similar) and is intended as a like-for-like swap when your original components have failed or been damaged. Before ordering, compare the pictured parts to your current stator and CDI to confirm compatibility; this kit will not work with GY6 or smaller-displacement engines.

Which models and engines is this harness compatible with?

This wiring kit fits a wide range of Chinese-made automatic and semi-automatic upright four-stroke ATVs and quads from 150CC up to 250CC. It targets common engine families and aftermarket machines that use the same stator and CDI formats. It is not universal—double-check the physical shape and terminal layout of your existing parts.

• Covers many 150CC, 200CC, 250CC Chinese-built ATVs and dirt bikes.
• Works with engine makes such as Lifan, Loncin, Ducar, Shineray, Zongshen, YX.
• Not compatible with GY6 motorbikes or mini ATVs 49–125CC with different stators/CDIs.
• Compare photos and wiring diagram to original components before purchase.

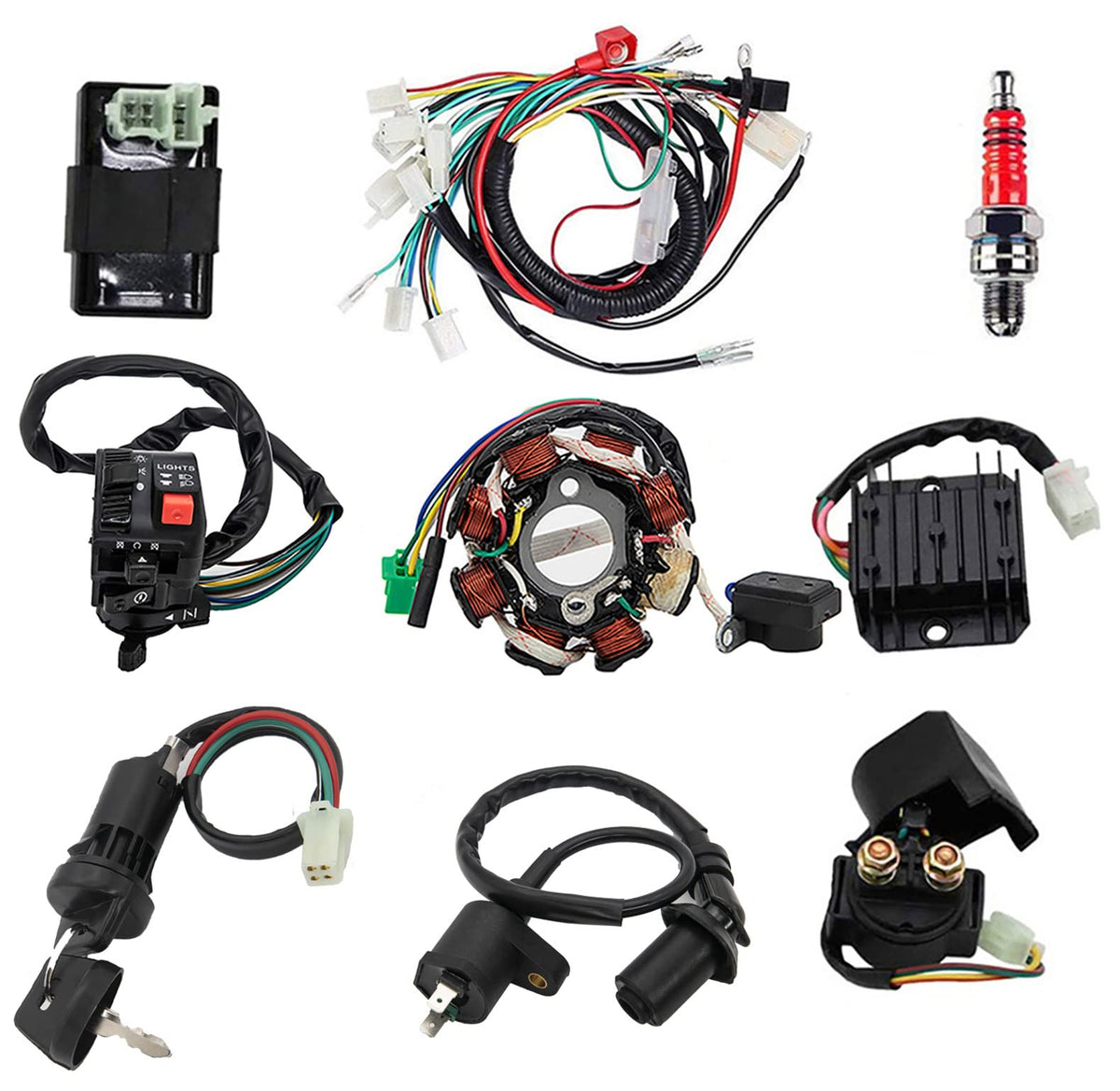

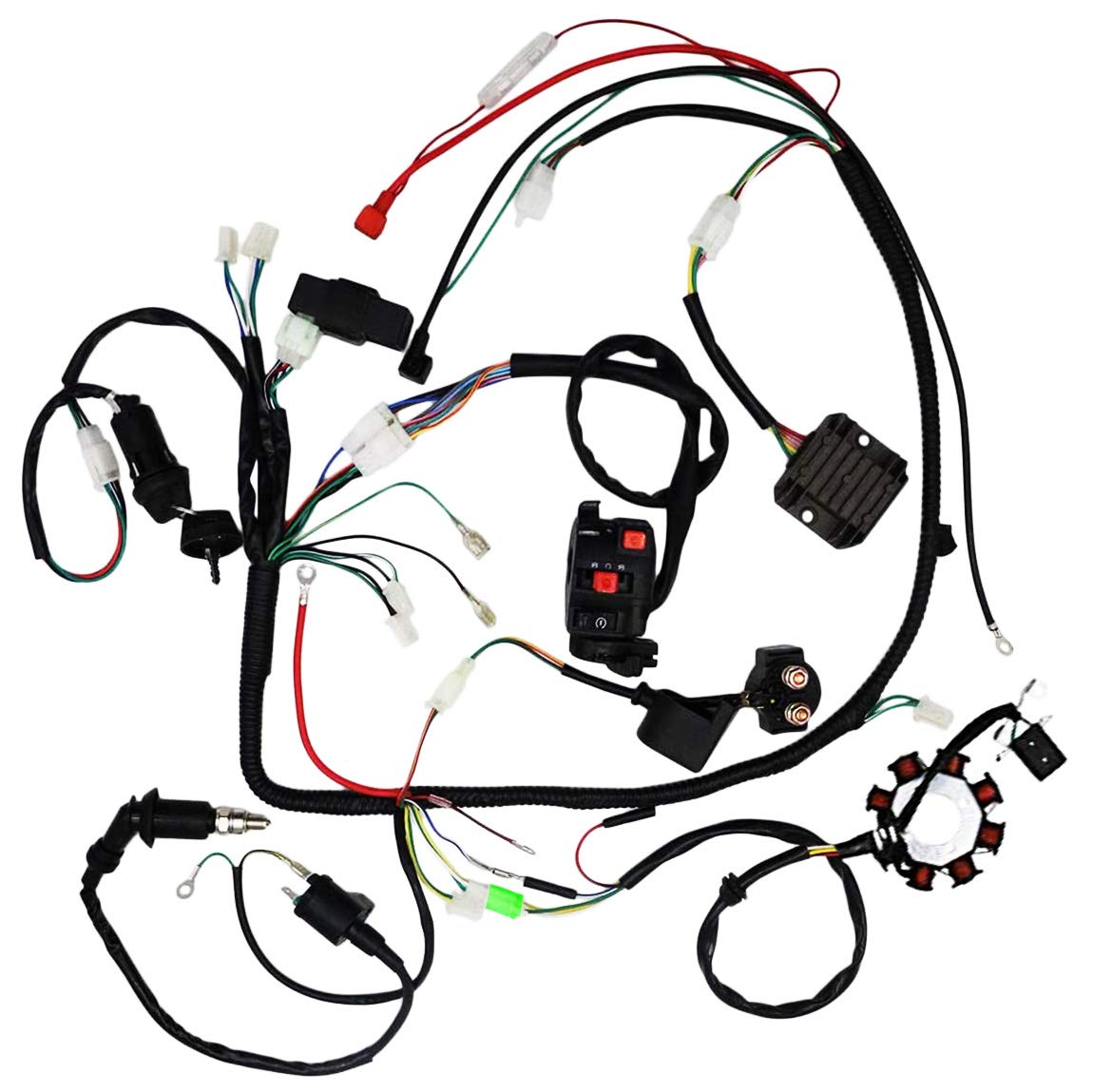

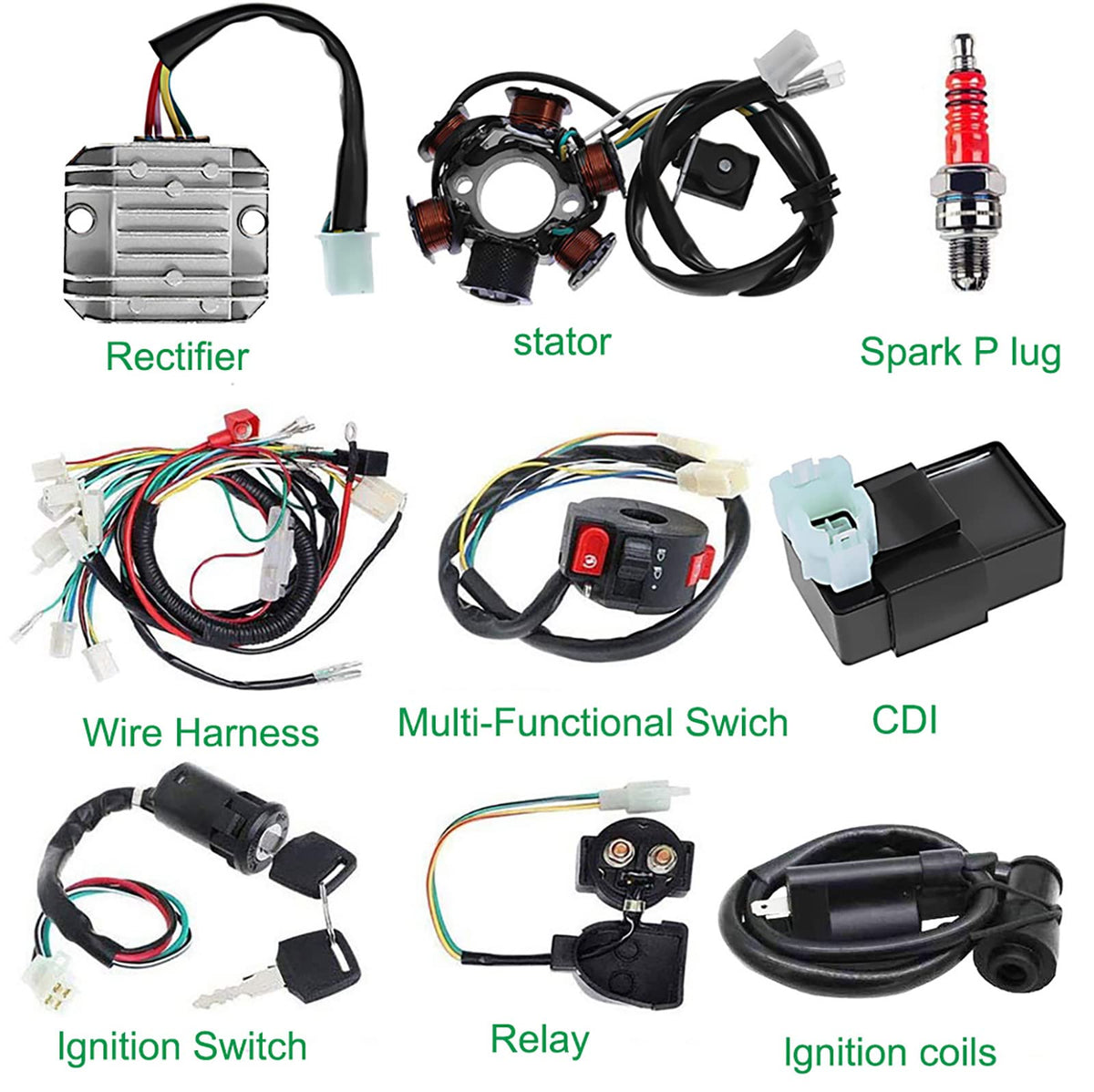

What components are included in the KAKO complete electrics kit?

The kit is supplied as a complete set of replacement electrical parts so you can swap an entire loom and related components without sourcing single items separately. Each piece is selected to match common OEM layouts for the supported engine families, simplifying repairs and rebuilds.

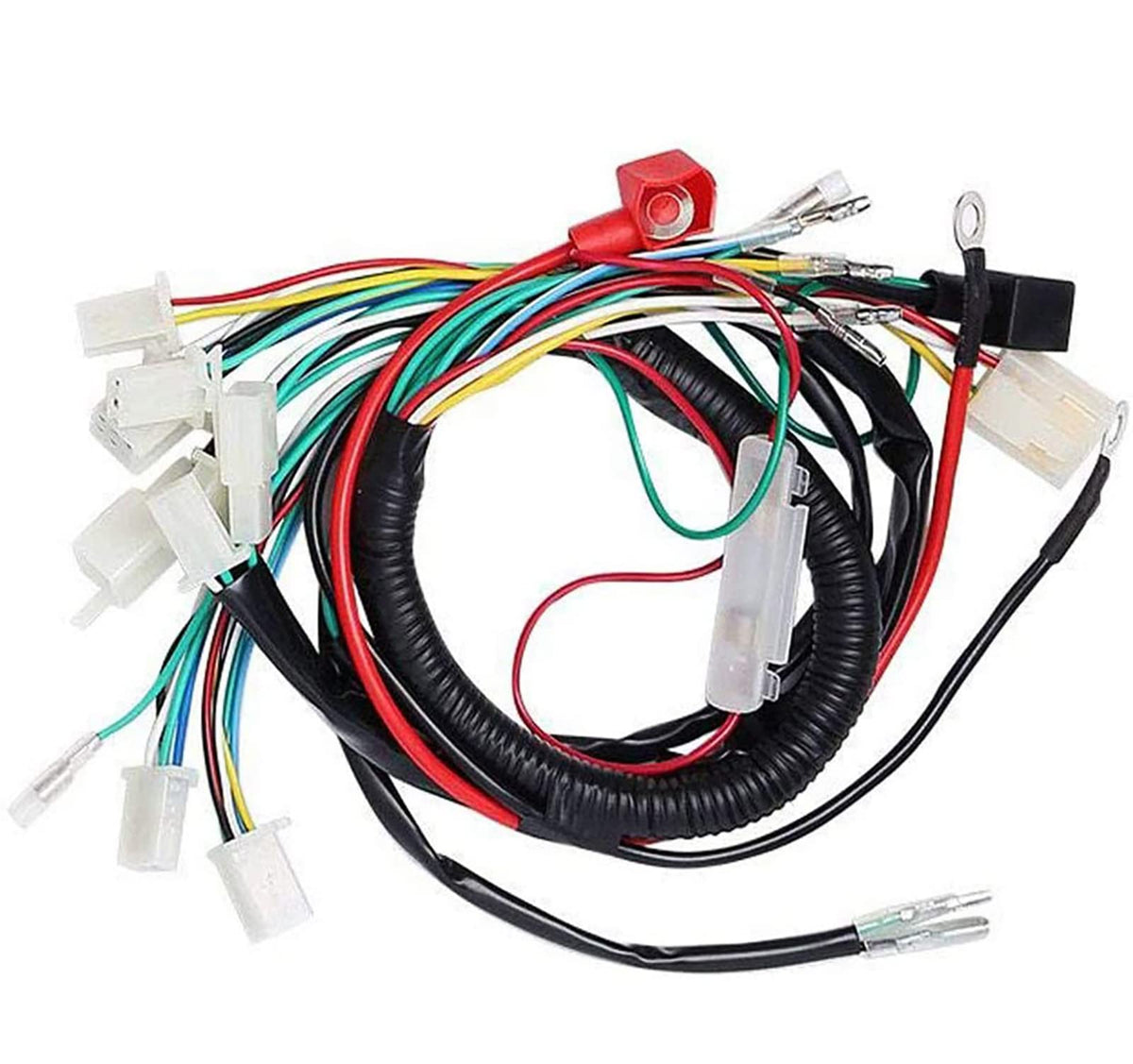

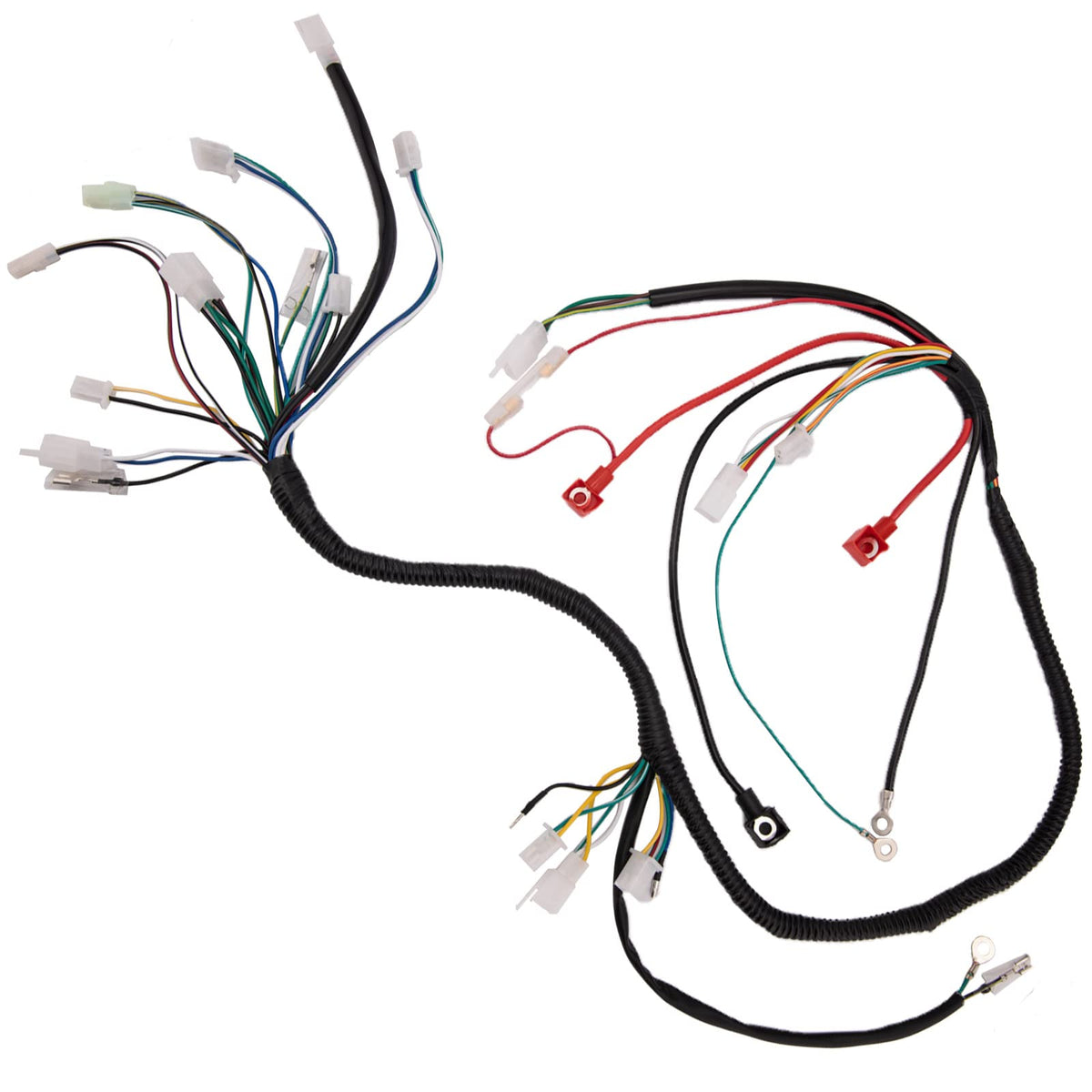

• Complete wiring harness with thickened copper conductors for durability.

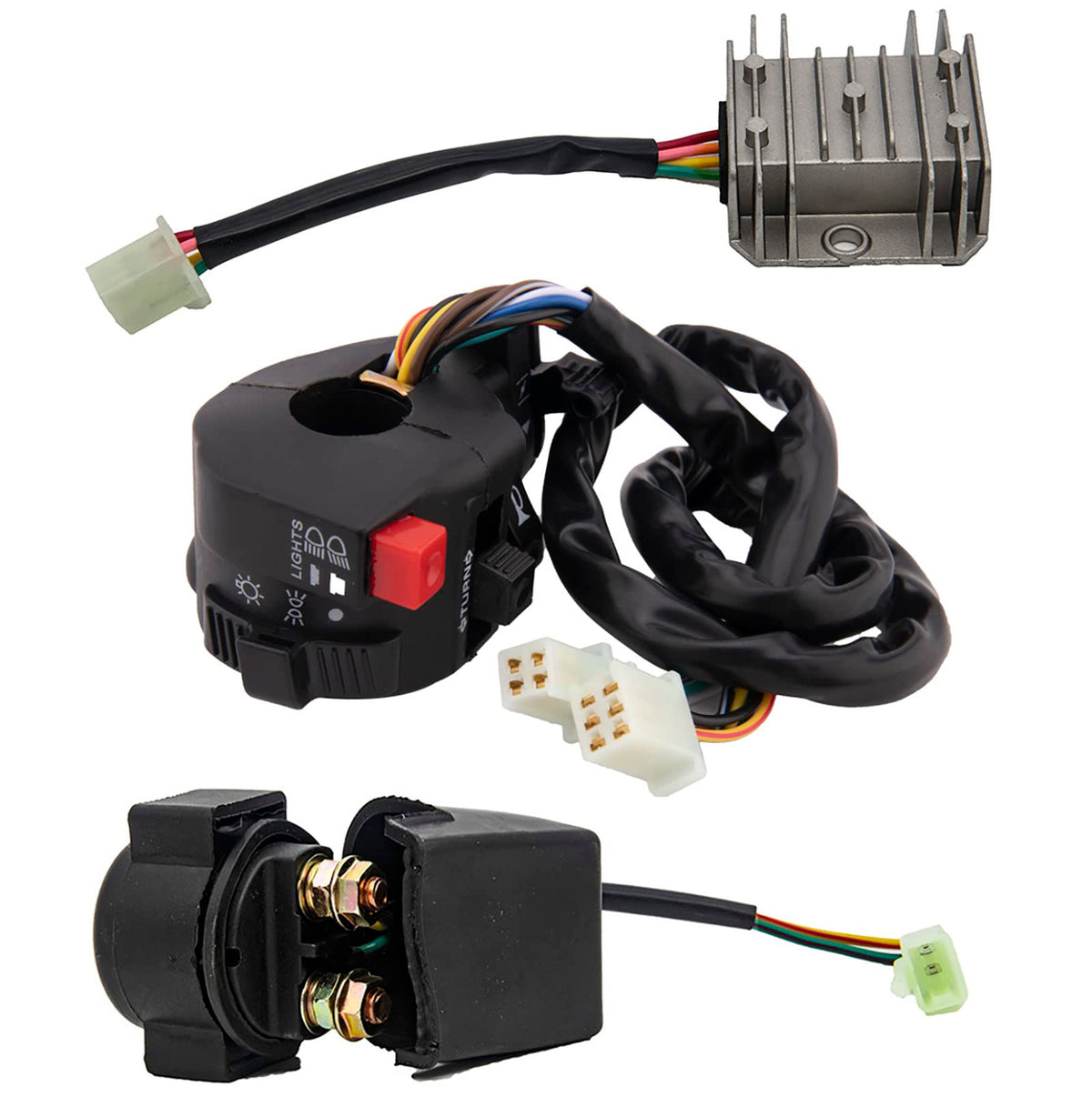

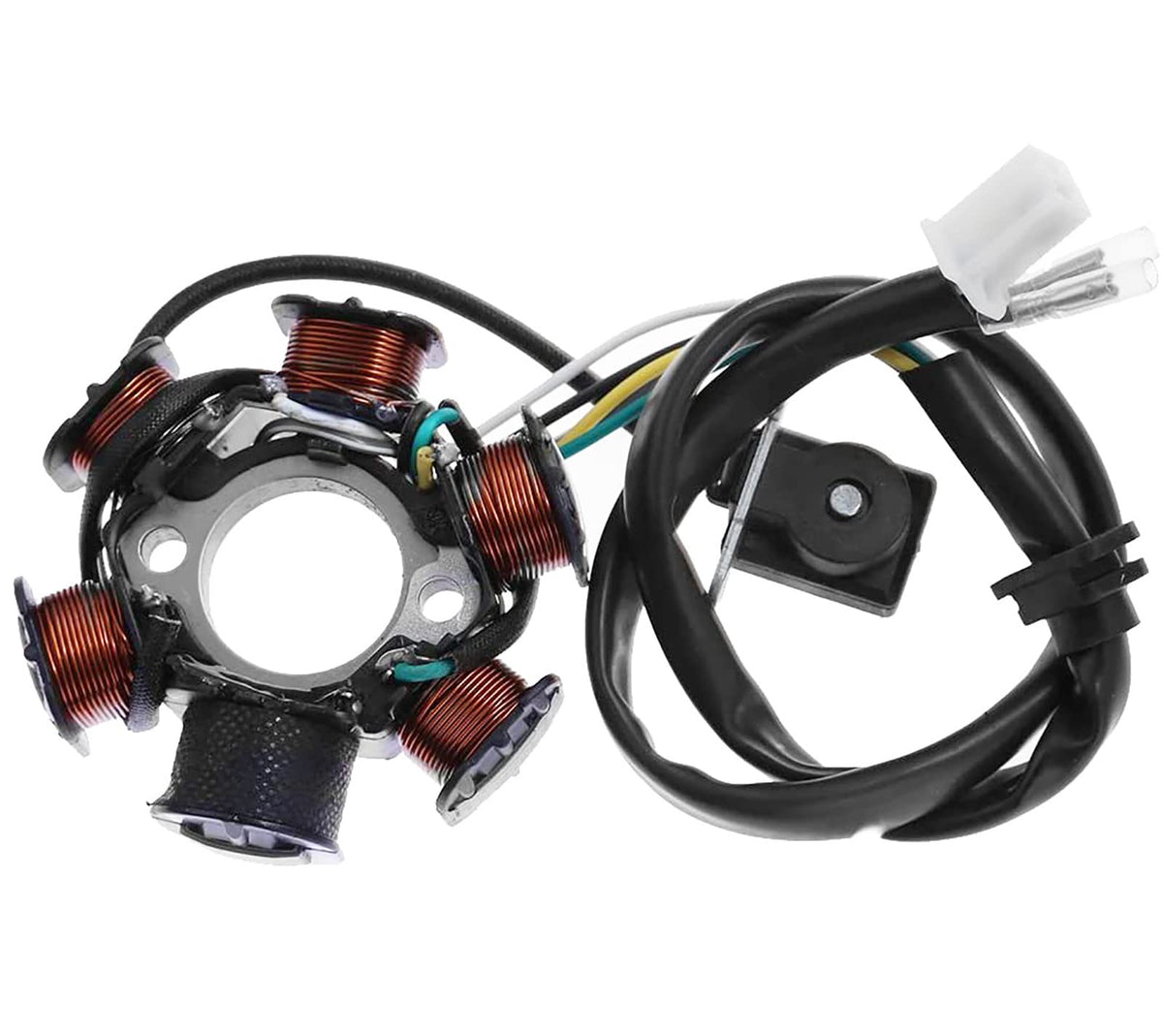

• CDI, rectifier, solenoid relay and stator for charging and ignition control.

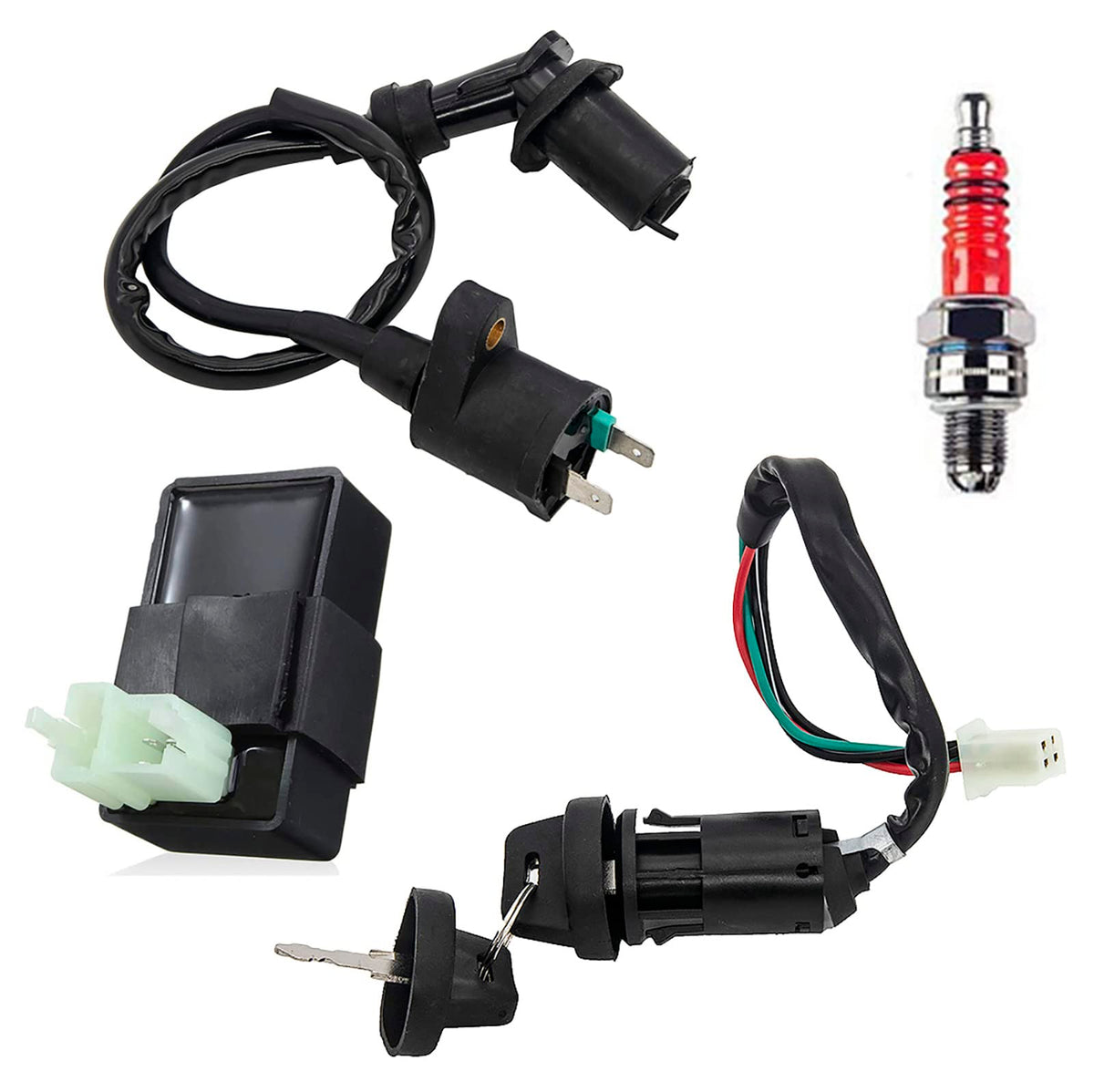

• Ignition coil with lead, spark plug, ignition switch with two keys.
• Multifunction handlebar switch and necessary connectors for installation.

How should this harness be installed and what precautions should I take?

Professional installation is recommended because incorrect wiring or assembly can lead to electrical faults or fire. Inspect the wiring diagram and compare connector shapes and pinouts first; only proceed if the kit matches your machine’s existing components. Secure connections, route wires away from heat and moving parts, and test the system methodically after installation.

• Check the included wiring diagram before you start work.
• Verify stator and CDI shape and terminals against your original parts.
• Use a qualified mechanic if you are unsure—incorrect wiring risks damage or fire.
• Test charging and ignition circuits after fitting, before full use.

What performance or quality features should I expect from this replacement kit?

The harness and components are designed for robustness and longevity compared with worn OEM wiring. Copper-thickened wiring and standard-format electrical parts aim to reduce heat and connection failures when installed correctly. While designed for reliability, it is still a replacement assembly and should be maintained like any electrical system.

• Heavy-gauge copper wiring for improved durability and conductivity.
• Standardized CDI and rectifier to replace failed charging/ignition parts.
• Complete kit format reduces compatibility headaches during rebuilds.
• 30-day satisfaction window for returns or exchanges if not suitable.

Who is this for: This KAKO Complete Wiring Harness Kit is intended for ATV owners, mechanics and hobbyists repairing or restoring Chinese-made 150CC–250CC four-wheelers who need a full electrical replacement rather than individual parts. It’s suitable when your stator, CDI or harness is damaged or corroded and you want a single kit that contains all the common electrical components for like-for-like installation. If your machine uses a GY6 or a smaller-displacement stator/CDI format, this kit is not the correct match.
