kalageen 287298 RV In-Wall Slide-Out Motor 12V 500:1 High-Torque Direct Replacement for Lippert/LCI

The kalageen 287298 RV in-wall slide-out motor is a direct-fit, 12V, 500:1 high-torque replacement designed to operate Lippert/LCI Schwintek electric in-wall slide systems reliably.

If your RV slide-out is sluggish, noisy, or nonfunctional, this motor offers a straightforward swap to restore smooth extension and retraction. Built for compatibility with popular models such as the 2014 Grey Wolf 26dbh, 2016 Coachman Prism LE 2200, and select 2018 Montana units, the unit replaces part number 287298 and is engineered to match factory mounting and electrical connections. It combines a low-speed, high-torque gearbox with upgraded external protection for long-term durability while keeping installation simple for DIYers and technicians alike.

Will this motor fit my Lippert/LCI Schwintek in-wall slide system?

Yes — the kalageen 287298 is made to be a direct replacement for the common Lippert/LCI Schwintek 287298 configuration. It replicates the spindle, mounting points, and connector layout so the swap requires minimal modification.

• Direct replacement for part number 287298 used in many Lippert/LCI in-wall systems.
• Physical dimensions and spindle receptacle match original factory parts.

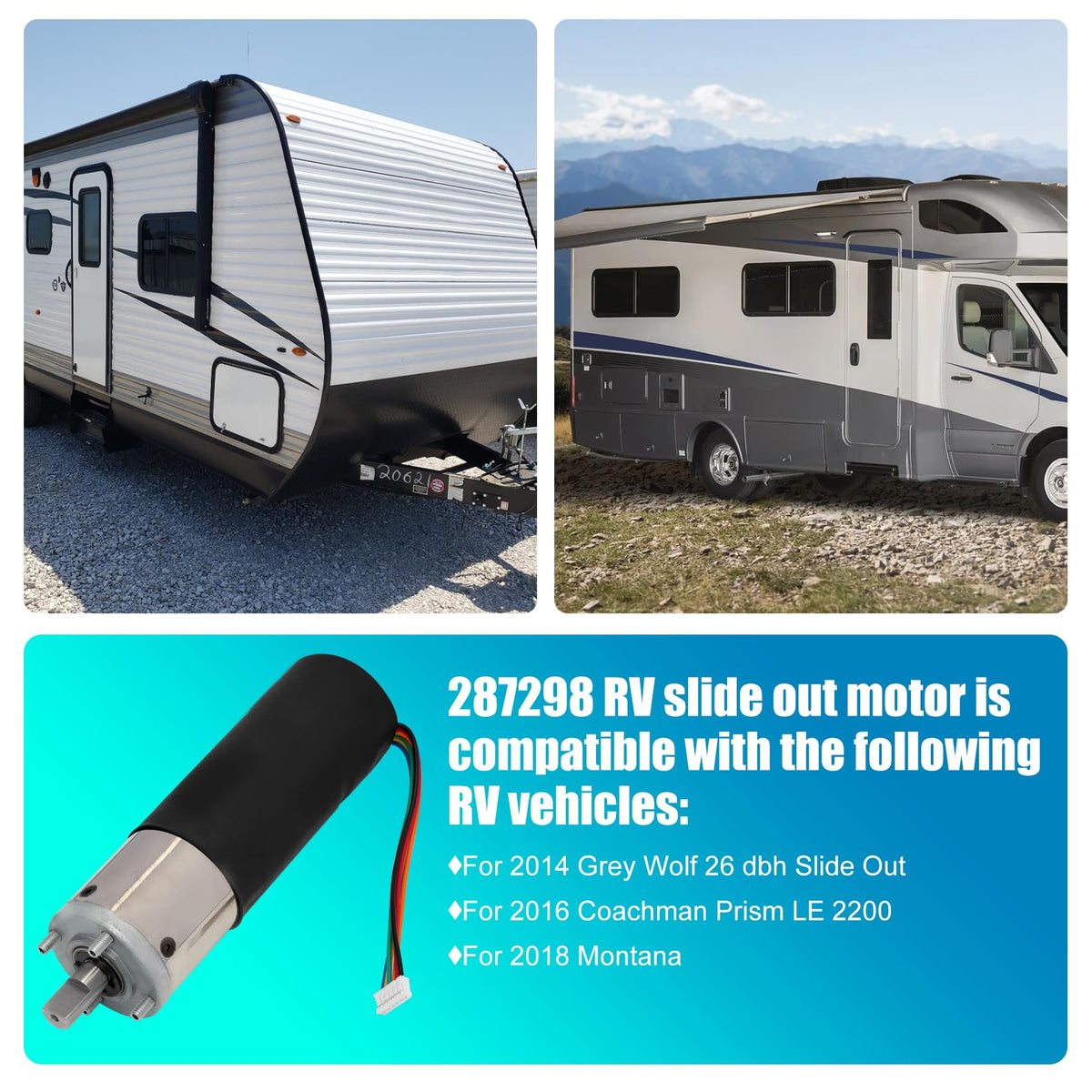

• Compatible with specific RV models: e.g., 2014 Grey Wolf 26dbh, 2016 Coachman Prism LE 2200, 2018 Montana.
• Encoder wire must be connected properly for position sensing and safe operation.

How powerful and efficient is the 500:1 gearbox for slide operation?

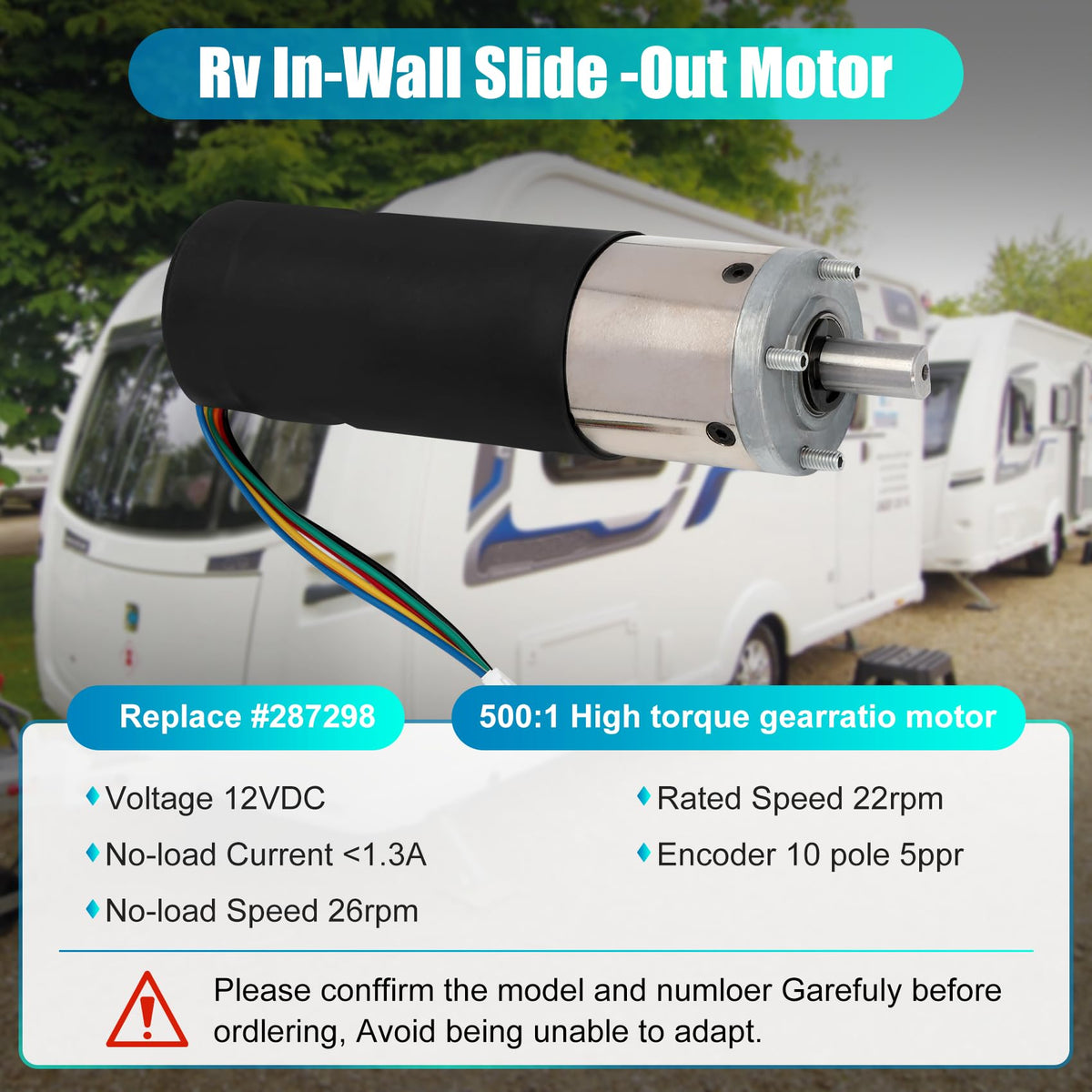

The 500:1 high-torque gear ratio provides substantial mechanical advantage at a controlled output speed, ideal for moving heavy slide-room assemblies. With a rated speed around 22 rpm and low no-load current, it balances torque and electrical efficiency for reliable cycle performance.

• High-torque 500:1 gearbox to move heavy slide assemblies with reduced strain.
• Rated speed approximately 22 rpm, no-load speed ~26 rpm for controlled motion.
• Operates on 12V systems; no-load current under 1.3A helps limit battery draw.
• Encoder interface preserves position feedback when correctly connected.

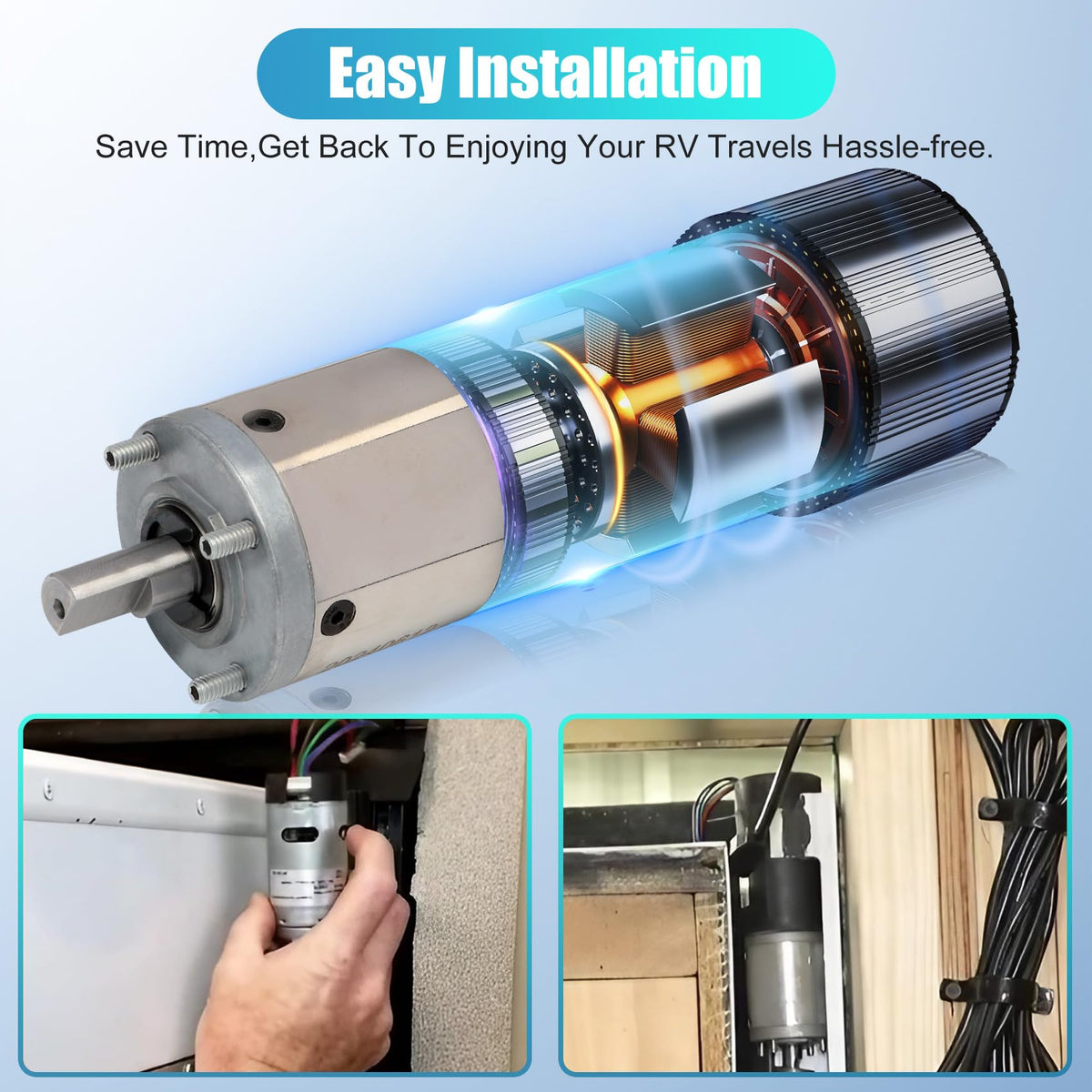

What are the installation steps and do I need extra parts?

Installation is intentionally simple: the motor arrives pre-assembled so you plug the wiring into the original connector and secure the spindle bolts to the slide mechanism. Most swaps require no additional hardware, but confirm the encoder cable is routed and attached exactly as the original to maintain safe slide control.

• Pre-assembled unit — no gearbox or housing assembly required.
• Wires match original connector for plug-and-play replacement.
• Spindle bolts and receptacle designed for tight, stable fitment.
• Double-check encoder wire connection for position sensing and limits.

How durable is the motor and what support does kalageen provide?

This motor includes an upgraded external rubber compartment to shield internal circuitry from dirt and vibration, improving resistance to environmental stress. kalageen backs the product with a three-year warranty and customer support to address fitment or performance questions after purchase.

• External rubber compartment protects internal circuits and reduces wear.
• Built for prolonged service in RV vibration and temperature conditions.
• Three-year warranty gives extended coverage beyond typical aftermarket parts.
• Responsive customer support for installation or compatibility help.

Who is this for: RV owners and technicians who need a reliable, factory-compatible replacement motor for Lippert/LCI Schwintek in-wall slide-outs. It’s suited to DIYers comfortable checking electrical connectors and encoder wiring, service shops performing quick replacements, and travelers who want durable parts backed by a multi-year warranty to avoid unexpected slide failure on the road.
