KASLIGHT H4/9003 LED Headlight Relay Harness for H6054 — H4 plug-and-play, fused dual-headlight kit

The KASLIGHT H6054 H4 LED headlight relay harness routes fused battery power straight to your H4 (9003) LED headlights to stop dimming, flicker, and beam failures caused by factory wiring.

If your vehicle’s H4/9003 headlights are dim, flicker, only run one beam, or overload the stock headlight switch after upgrading to LED or swapping lamps, this plug-and-play relay harness is designed to restore proper brightness and reliability. It converts problematic ground-switched systems to positive-switched operation, supplies a stable fused feed to each headlight, and isolates the factory switch from heavy current so your lights perform as intended.

How does this relay harness improve light output and eliminate dimming?

The harness bypasses thin factory wiring and feeds battery power directly to the headlight bulb via a fused relay. That removes voltage drop and ensures the LEDs receive their full rated voltage, increasing brightness and consistency.

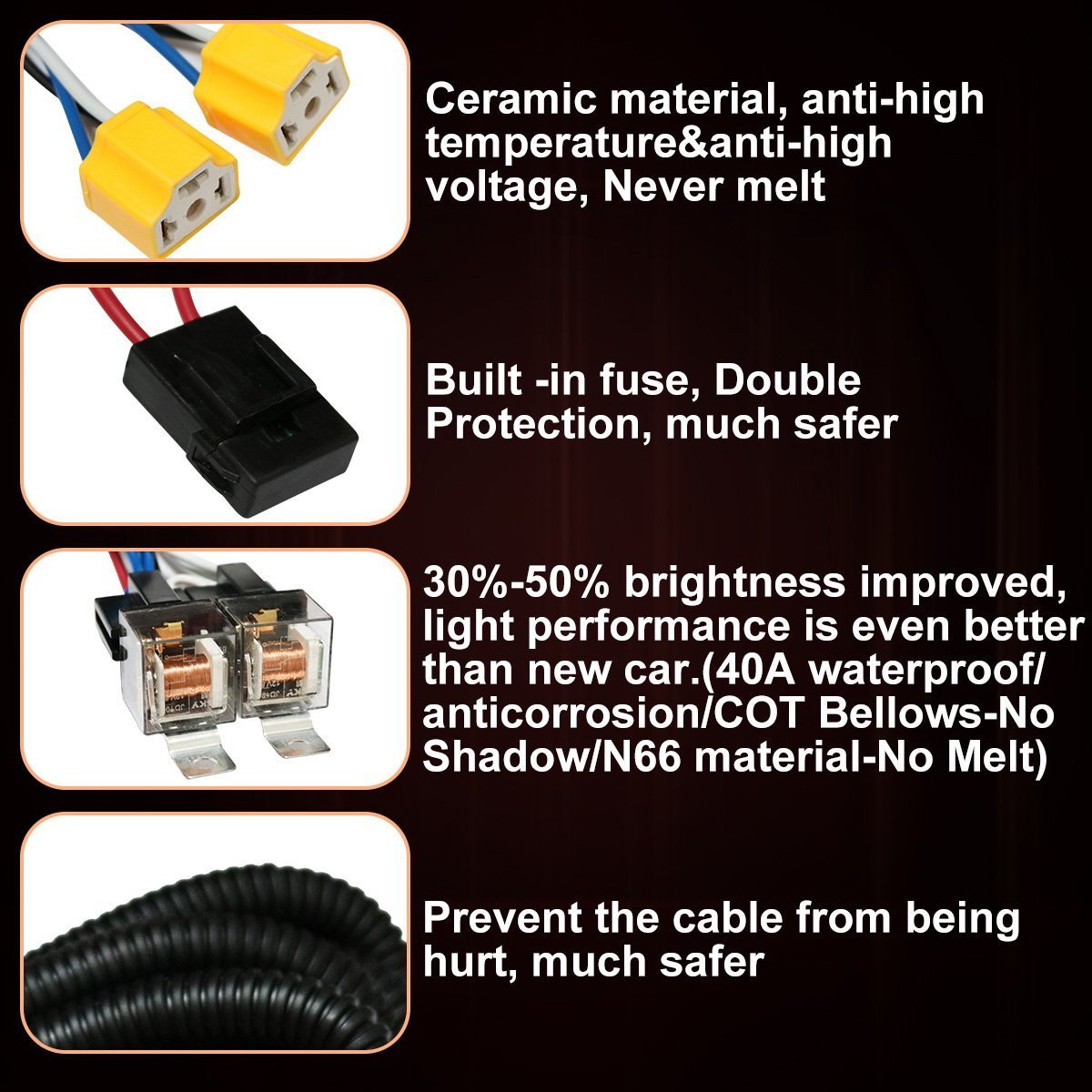

• Fused relay supplies clean battery power to each H4/9003 headlight
• Reduces voltage drop and overheating at original connectors
• Stops flicker and weak high/low beam performance caused by thin wiring

Will this fix headlight issues specific to Toyota pickup/Tacoma double-ground systems?

Yes — certain Toyota models use a double-ground wiring method that can make one beam fail or prevent headlights from working with LED upgrades. The KASLIGHT harness converts that ground-switched layout into a positive-switched configuration so both beams operate correctly.

• Addresses dual-ground sockets that cause beam failure
• Converts to 2 switched hots + 1 constant ground wiring pattern
• Plug-and-play for H4/9003 compatible sockets when using standard pins

What problems will this harness prevent when installing LED headlights?

Upgrading to LEDs can expose weak points in the factory wiring like overloaded switches, overheating plugs, and backfeeding. This harness protects the stock circuit and provides the higher current path LEDs need without stressing original components.

• Prevents overloading the headlight switch and overheating at plugs
• Stops backfeeding power that causes odd electrical behavior
• Works with common H4-format headlights: 7x6, 5x7, 4x6, 5-3/4 and similar

How easy is installation and what hardware is included?

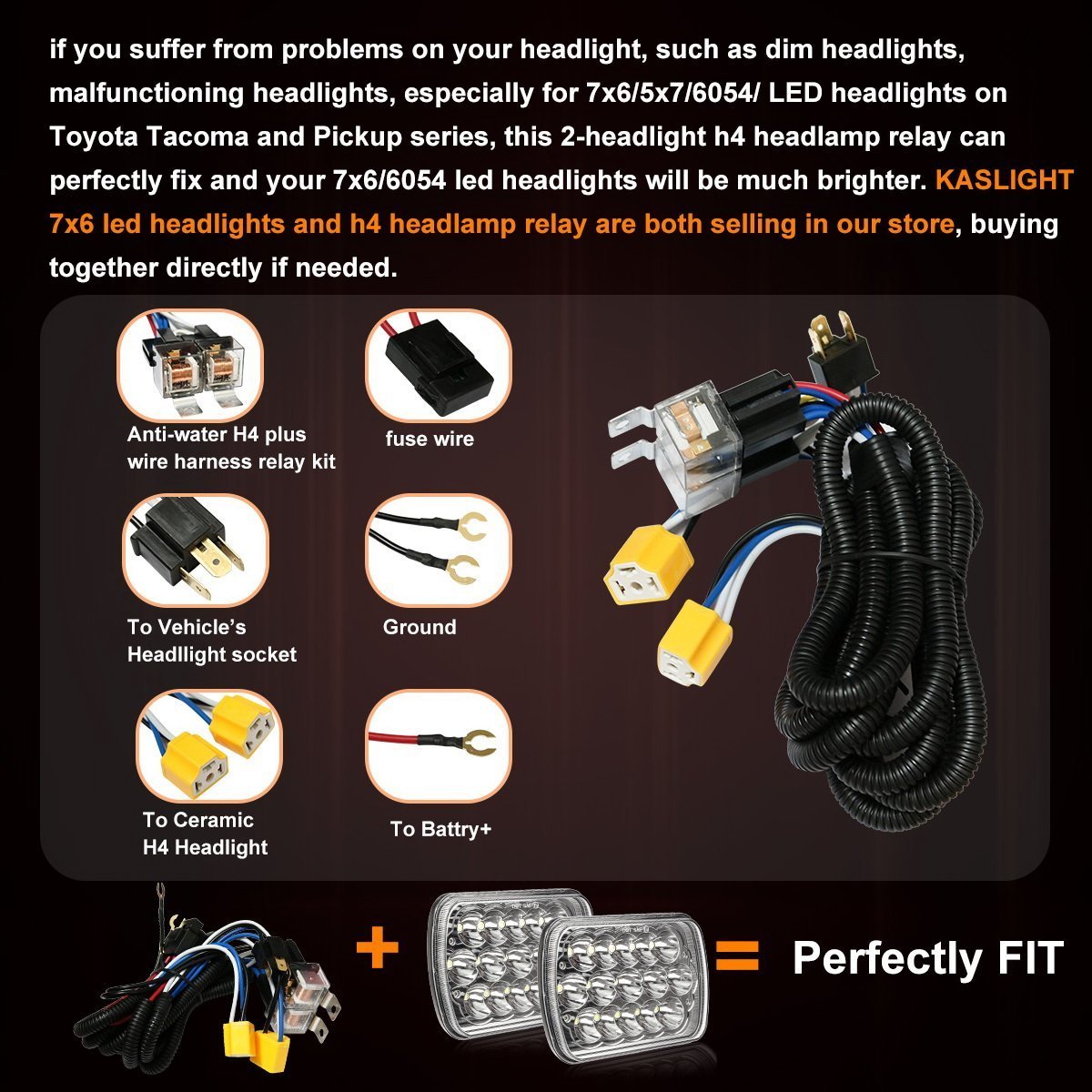

Installation is straightforward for anyone comfortable with automotive connectors: plug the factory H4 socket into the harness, secure the fused relay to a chassis ground and battery feed, then connect to the LED lamp. The kit includes everything needed for two headlights.

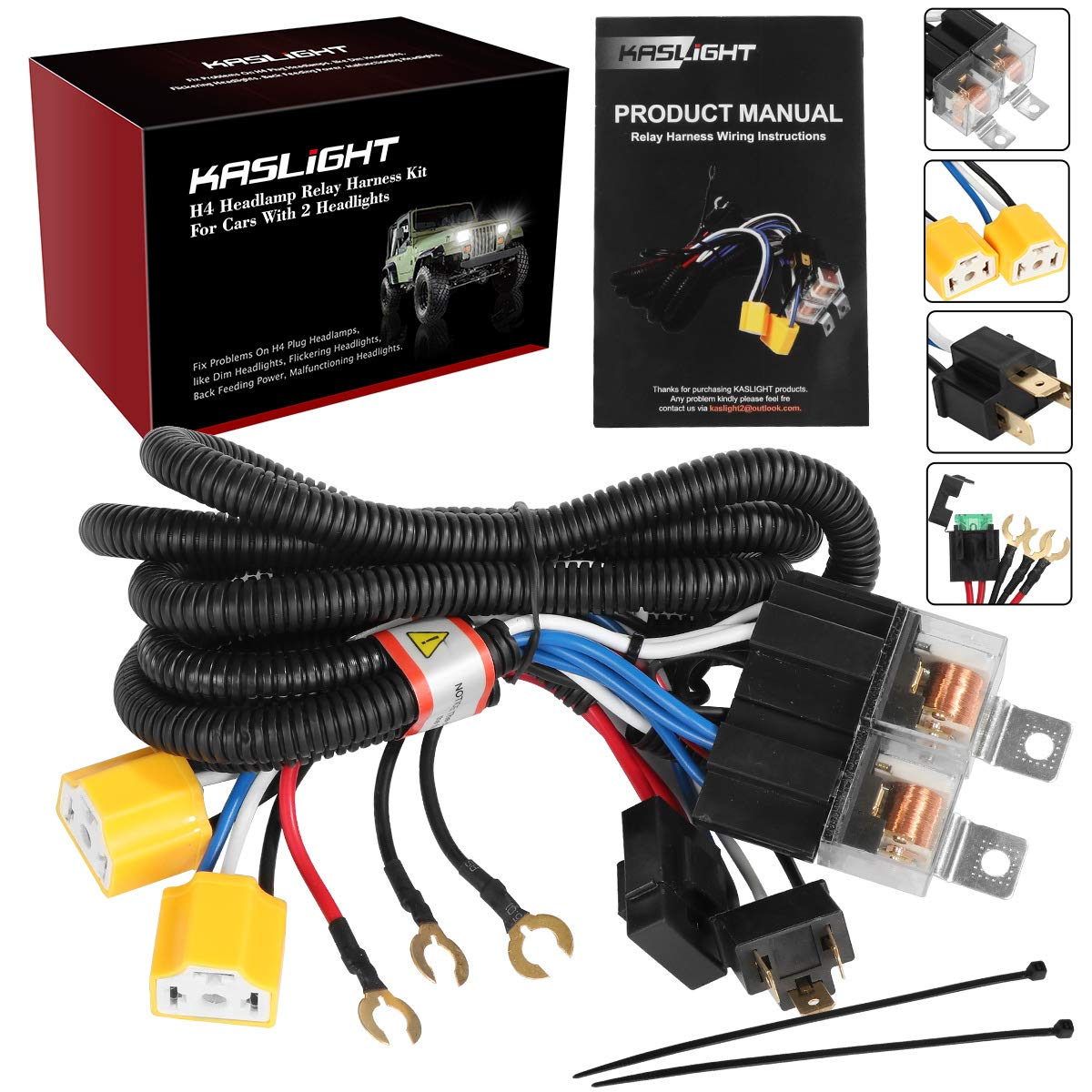

• One set (two harnesses) for both headlight assemblies
• Pre-wired fused relay and H4/9003 sockets for plug-and-play hookup
• Simple ground and battery connections; no cutting of factory loom required

Who is this for? The KASLIGHT H6054 H4 relay harness is intended for drivers upgrading to H4/9003 LED or higher-draw bulbs, owners of Toyota pickup/Tacoma and other vehicles with H4 sockets experiencing partial beam operation or dimming, and DIYers who want a reliable, fused feed to prevent switch overload and connector overheating. Avoid this harness only if your vehicle uses a non-standard H4 pin layout — in that case seek the matching KASLIGHT H4 9003 HB2 wiring harness for compatibility. This kit is a practical, affordable way to restore proper headlight performance and extend the life of both bulbs and vehicle wiring without complex modifications.
