Kawish OBD2 Breakout Box 16‑Pin OBDII Tester (LCD + LED) — 12V/24V CAN/J1939 Protocol Detector with Banana‑Plug Output

The KAWISH OBD2 Breakout Box is a 16‑pin diagnostic adapter that reveals OBDII protocol, power and ground signals via an LCD and LED indicators for fast vehicle ECU and communication troubleshooting.

If you work on automotive diagnostics, retrofit wiring, or ECU communication issues, this tester gives direct, visible access to every OBDII pin so you can quickly verify protocol presence, power, and grounding without guessing. It supports common communication standards (CAN, ISO, J1850, K/L lines and SAE J1939), works with both 12V and 24V systems, and adds a banana‑plug output and 128 cm lead for use with scopes or multimeters.

How does the KAWISH breakout box help me identify communication protocols?

The unit monitors the vehicle’s DLC and lights dedicated LEDs when data activity is present on protocol pins, while the LCD reports voltage status. That instant visual feedback makes it easy to tell whether the scanner and ECU are exchanging messages or a specific bus is inactive. You can then attach diagnostic tools for deeper signal analysis.

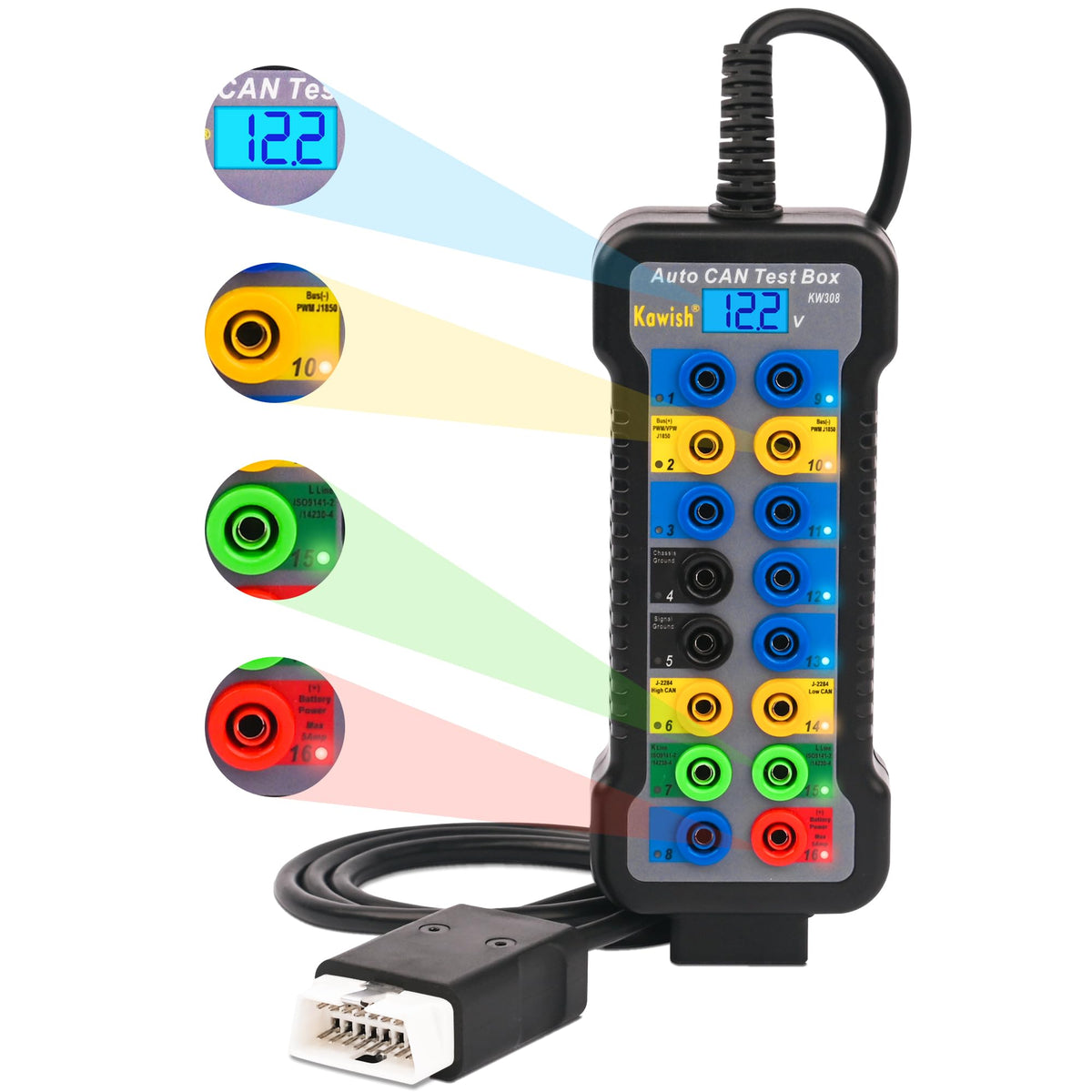

• LED indications for protocol activity on pins used by CAN, J1850, ISO 9141‑2 and K/L lines

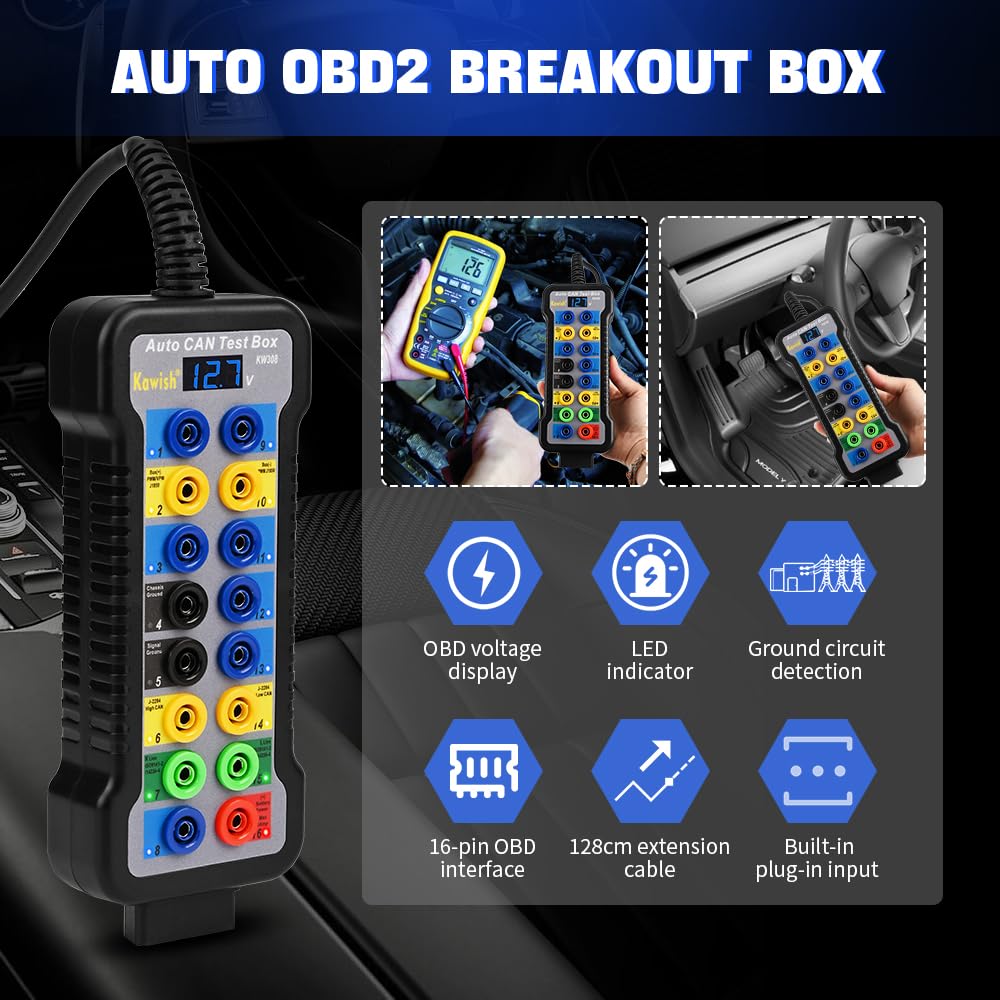

• LCD shows port voltage to confirm proper power supply
• Compatible with both 12V car and 24V diesel networks (SAE J1939)

What electrical checks can I perform quickly with this tester?

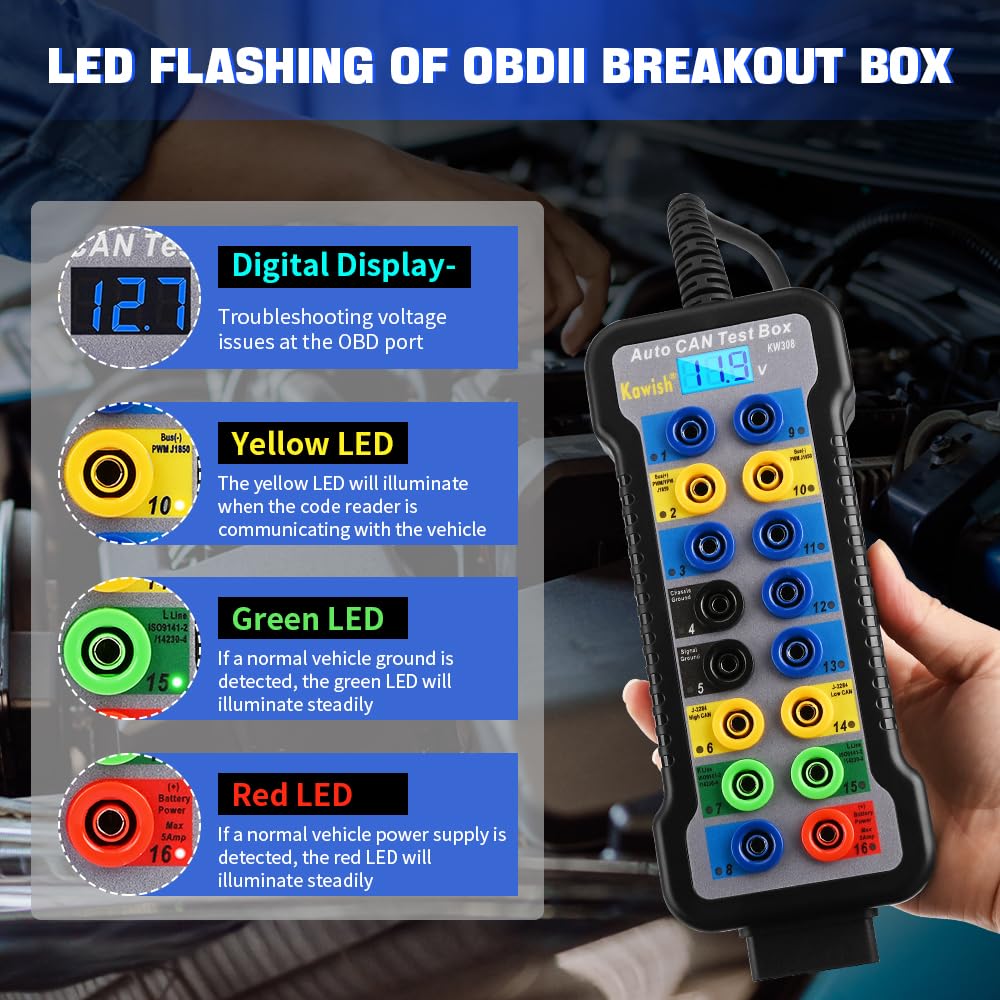

The breakout box verifies key electrical conditions at the OBDII connector: battery power, chassis ground, and signal waveforms. A steady red LED confirms pin 16 power, a solid green shows correct ground on pins 4/5, and pulsing yellow LEDs indicate data pulses on communication lines. This helps isolate whether faults are wiring, power, or ECU related.

• Pin 16 power detection with audible alert on reverse polarity
• Pin 4/5 ground verification via green LED
• Yellow LEDs visualize real‑time signal activity for targeted pins

Can I use it alongside scopes and multimeters for deeper testing?

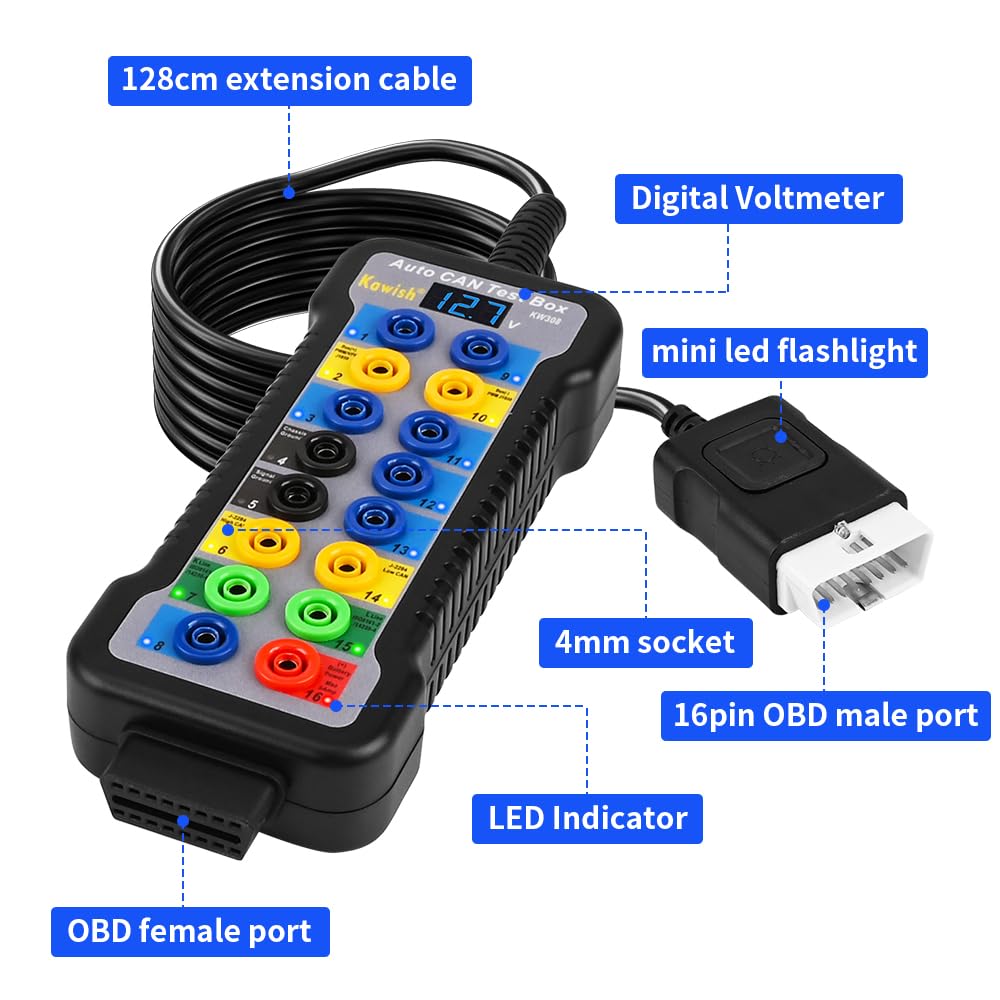

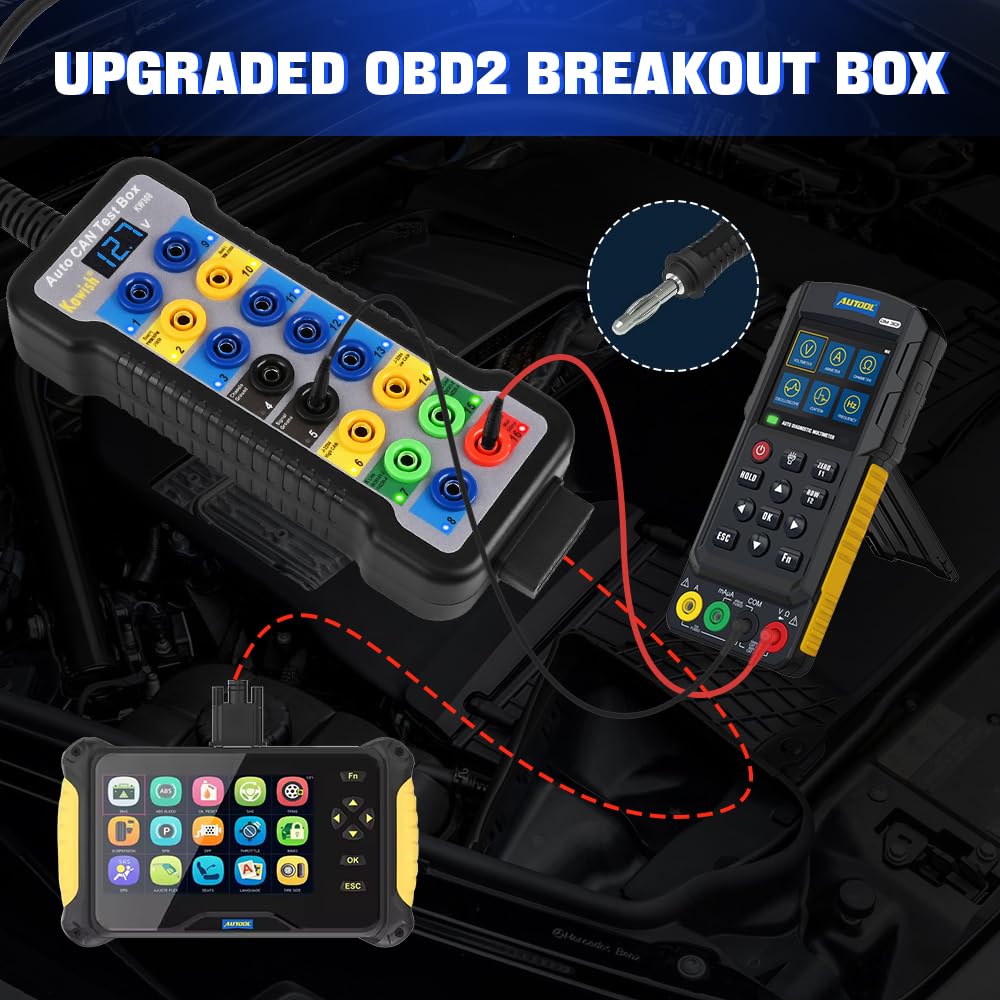

Yes—KAWISH added a safety 4mm banana socket to let you route signals to oscilloscopes or meters without probing the connector pins directly. The 128 cm integrated cable gives enough slack to work comfortably around the vehicle’s DLC, and the breakout exposes each pin so you can measure or inject signals as needed. This setup speeds up waveform capture and makes correlation between symptoms and signals straightforward.

• 4mm banana socket accepts standard scope or meter leads

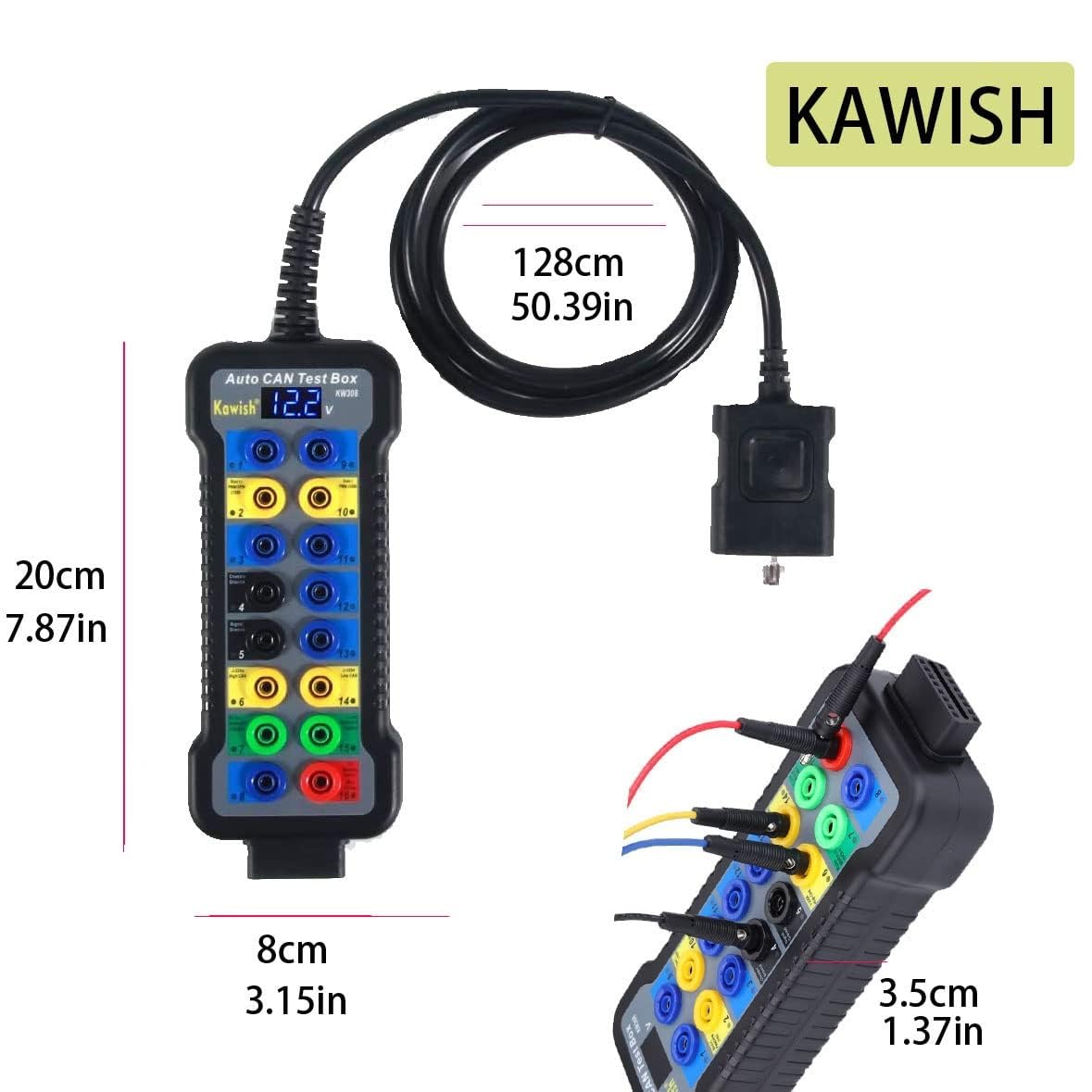

• Long 128 cm cable for easy access in cramped engine bays

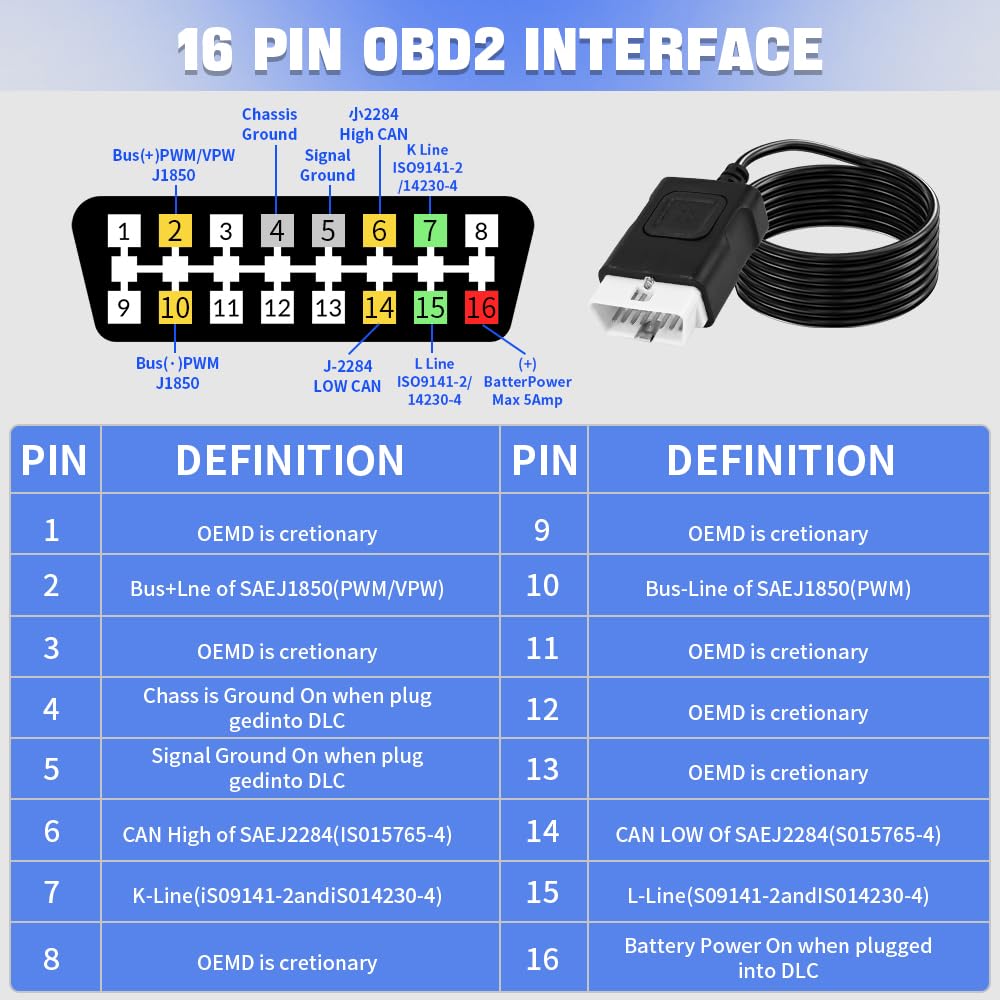

• Full 16‑pin break‑out lets you monitor any desired pin simultaneously

What safety features protect my tools and vehicle?

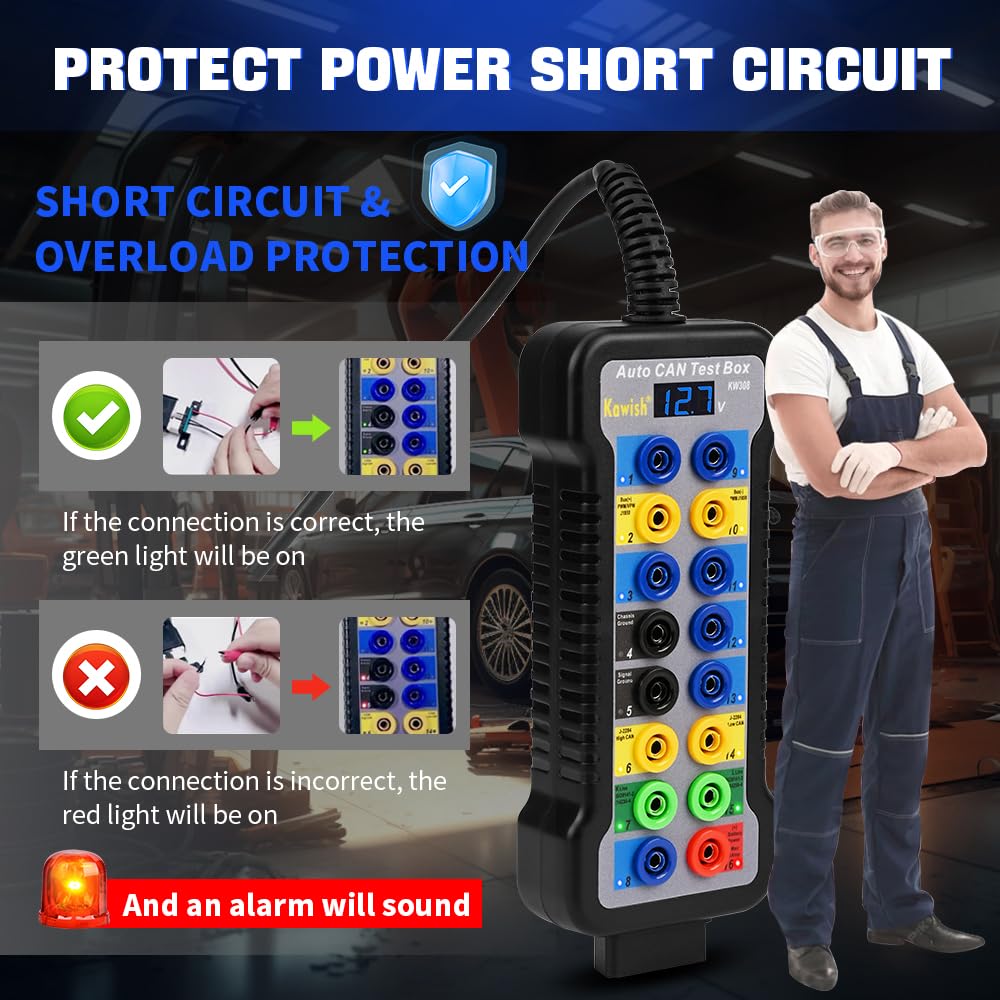

The device includes reverse‑polarity protection that sounds an alarm if the connector is miswired, reducing the risk of damaging scanners or vehicle electronics. It also prevents accidental shorting while you work on the DLC and ships with a small LED flashlight to simplify port connection in low light. Note: do not jumper pins unless you fully understand the vehicle circuits.

• Audible warning on reversed power connection
• Protection against power shorts during testing
• Compact flashlight included for easier port access in the dark

Who is this for: The KAWISH OBD2 Breakout Box is aimed at automotive technicians, ECU tuners, fleet mechanics, and advanced DIYers who need a fast, reliable way to inspect OBDII connector signals and power. It’s especially useful when isolating communication faults, verifying retrofit wiring, or capturing waveforms with a scope on 12V cars and 24V trucks. If you frequently troubleshoot vehicle networks or perform in‑depth diagnostics, this tool reduces guesswork and gives clear visual confirmation before you apply further testing.
