KeyLine Chargers Dual Battery Isolator Kit 12V 140A VSR — Compact IP65 Solid-State Relay for Vehicles

KeyLine Chargers Dual Battery Isolator Kit is a compact 12V, 140A voltage-sensitive relay system that automatically manages charging between two batteries to prevent drain while maintaining full starting battery capacity.

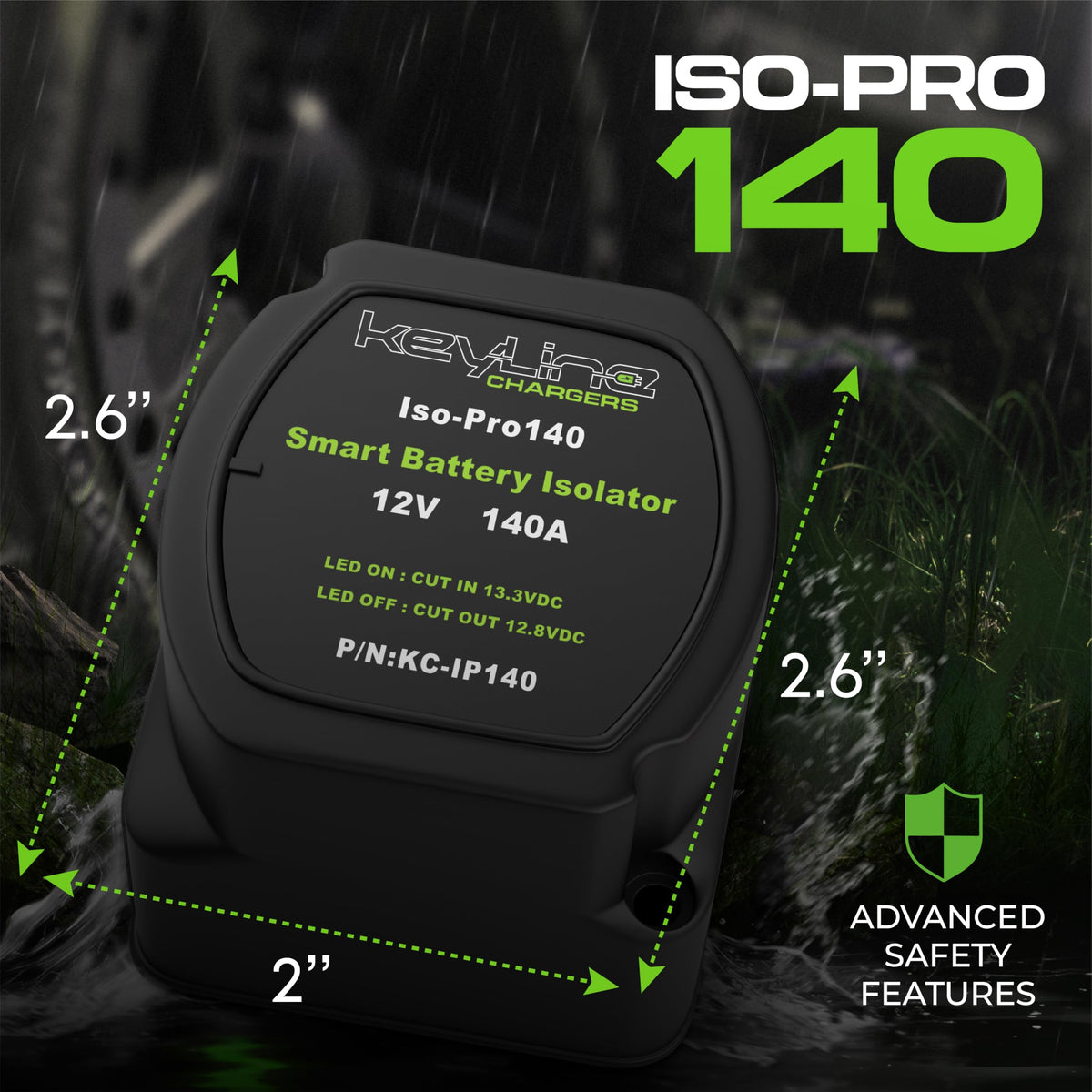

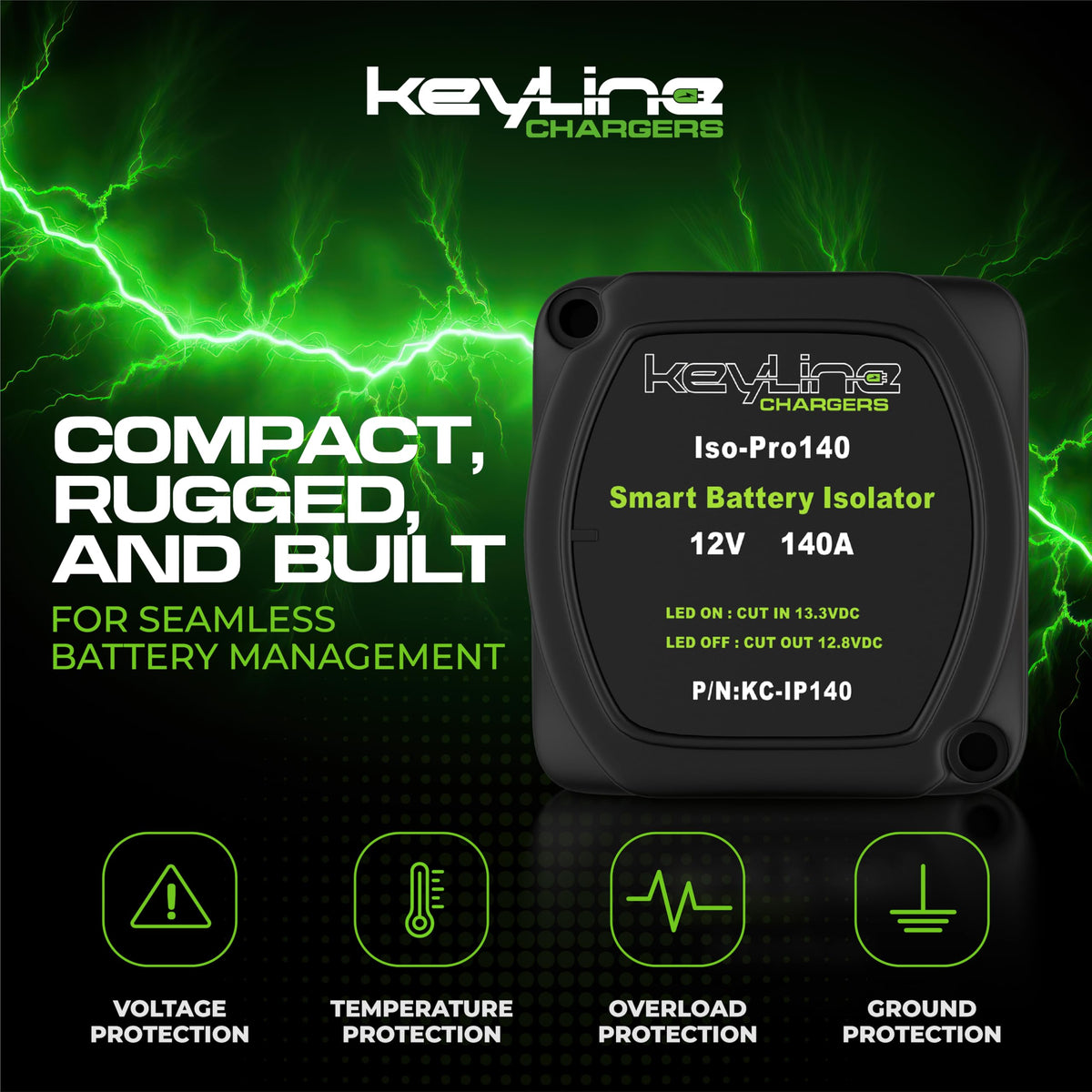

This complete dual battery wiring kit is built for vehicles, boats, RVs and off-grid setups where dependable power sharing matters. The solid-state voltage sensitive relay (VSR) engages at 13.3V and disengages at 12.8V so the starter battery stays prioritized while the auxiliary battery charges only when the alternator is producing sufficient voltage. At 2.6” x 2.6” x 2”, the module fits tight engine bays and battery relocation boxes; IP65-rated protection and rugged construction make it suitable for marine, off-road and everyday driving conditions.

How does this kit keep my starter battery from draining?

The VSR monitors system voltage and connects the auxiliary battery only when charging voltage is present, isolating it when voltage falls. This automatic operation prevents accessories from drawing down your starting battery overnight or when the engine is off.

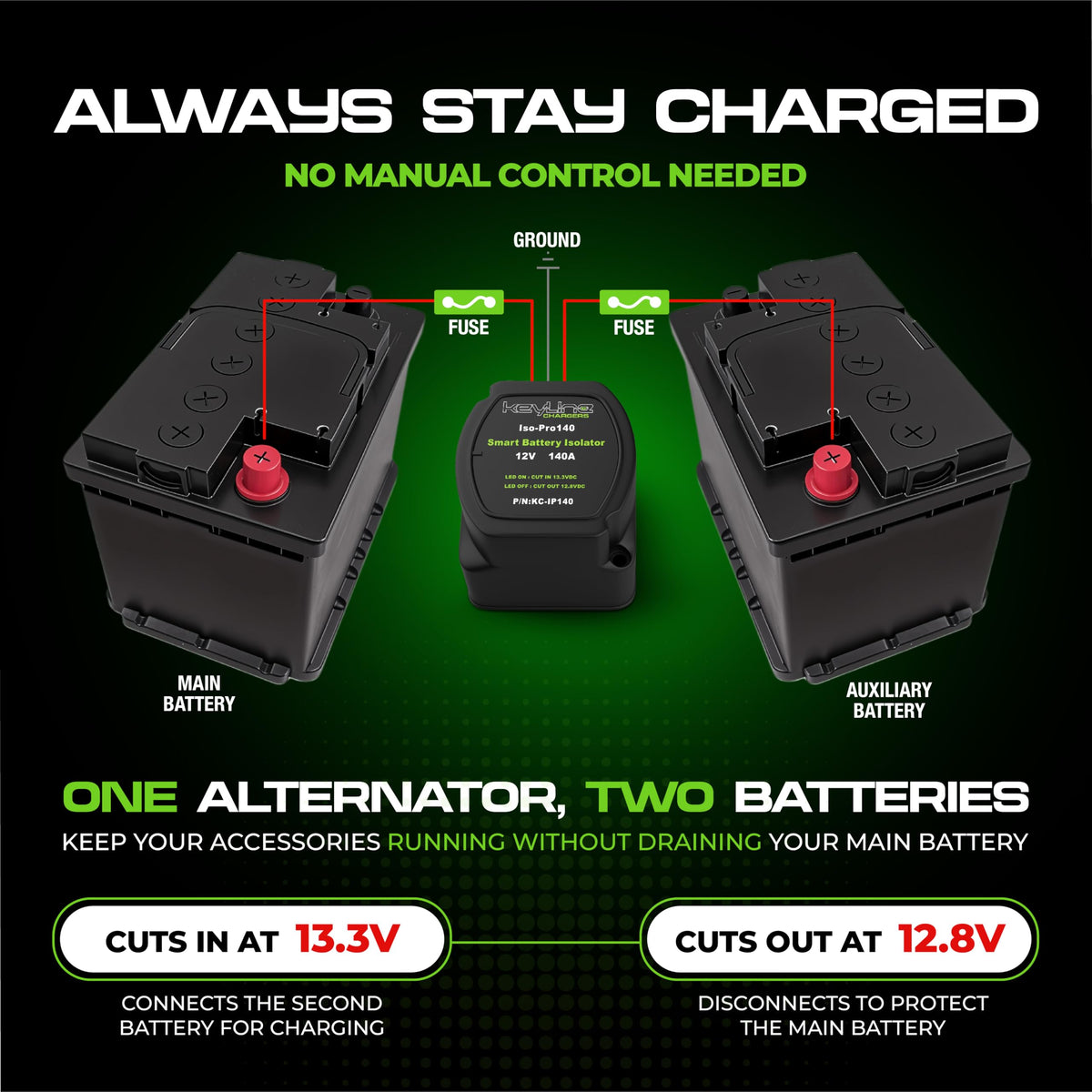

• Automatic connect at 13.3V and disconnect at 12.8V
• Solid-state relay avoids voltage drop common to diode isolators
• Prioritizes starter battery health without manual switches

What comes in the dual battery wiring kit and is installation difficult?

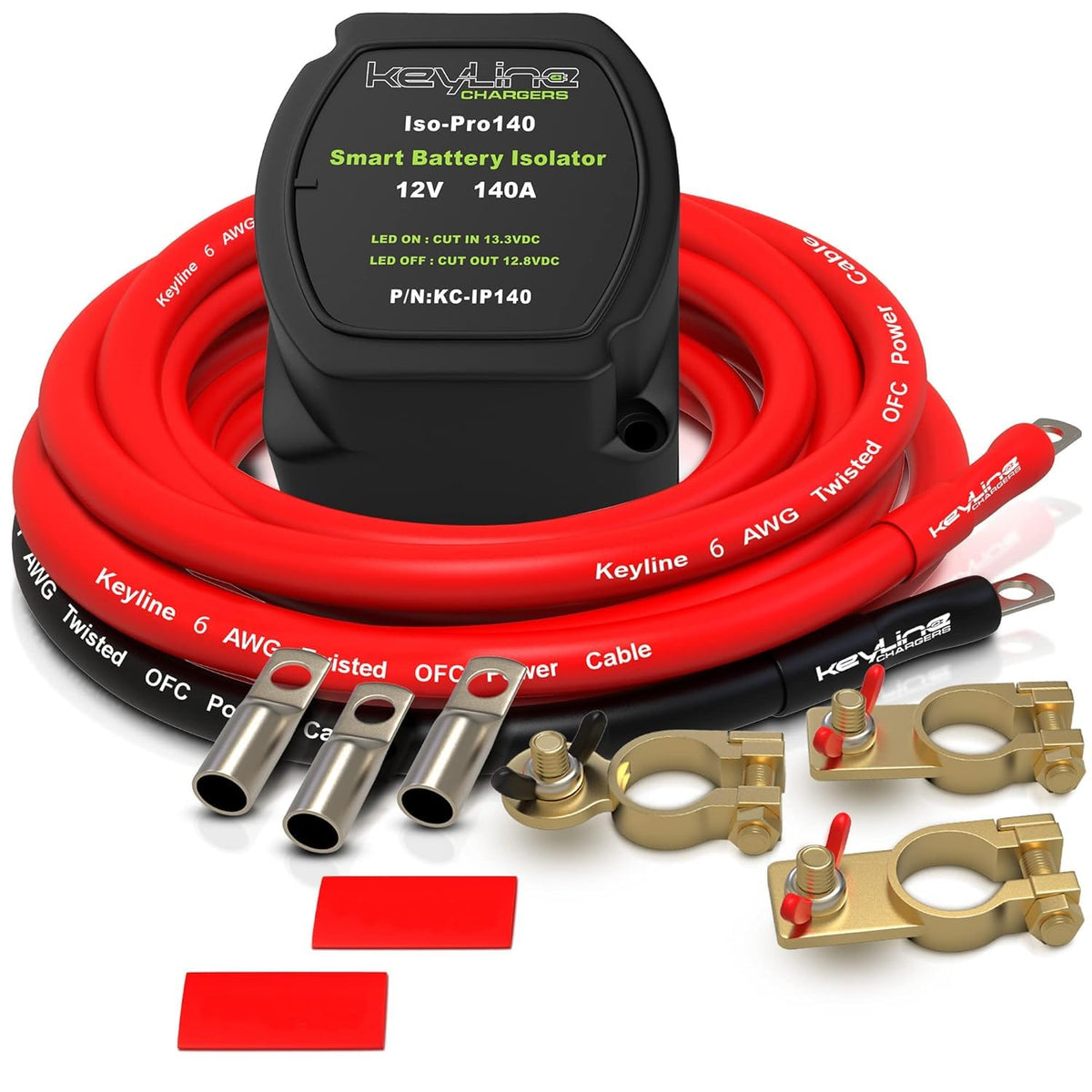

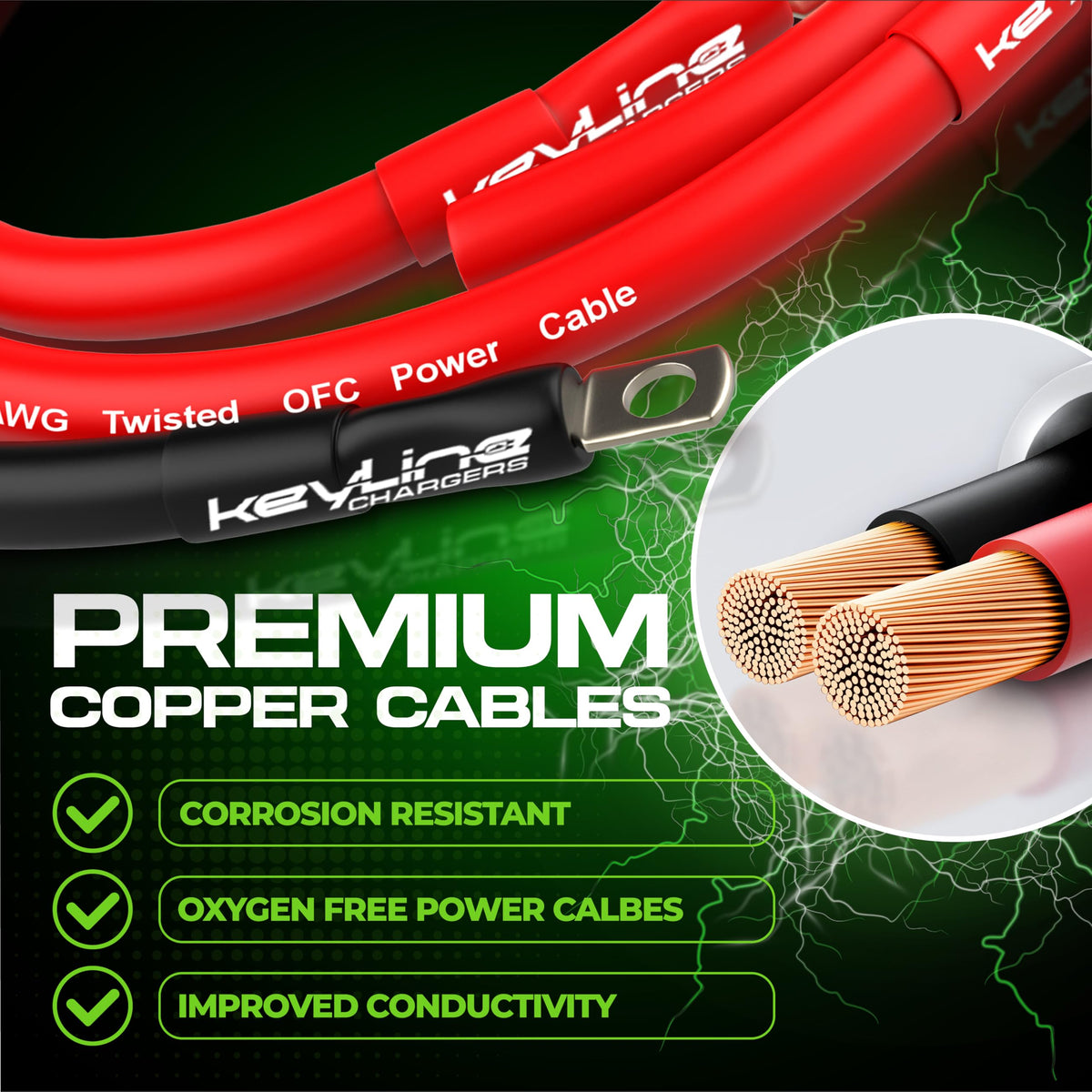

The kit includes the 140A VSR, power and ground cables, brass battery terminals, tinned copper lugs, heat shrink, cable ties and clear instructions. It’s designed for DIY installation with straightforward connections: power in, power out and ground.

• 1x 140A voltage sensitive relay (compact footprint)
• 20-ft red power cable, 2-ft black ground cable, battery terminals
• Step-by-step guide ideal for home mechanics and installers

Will this unit survive marine or off-road conditions?

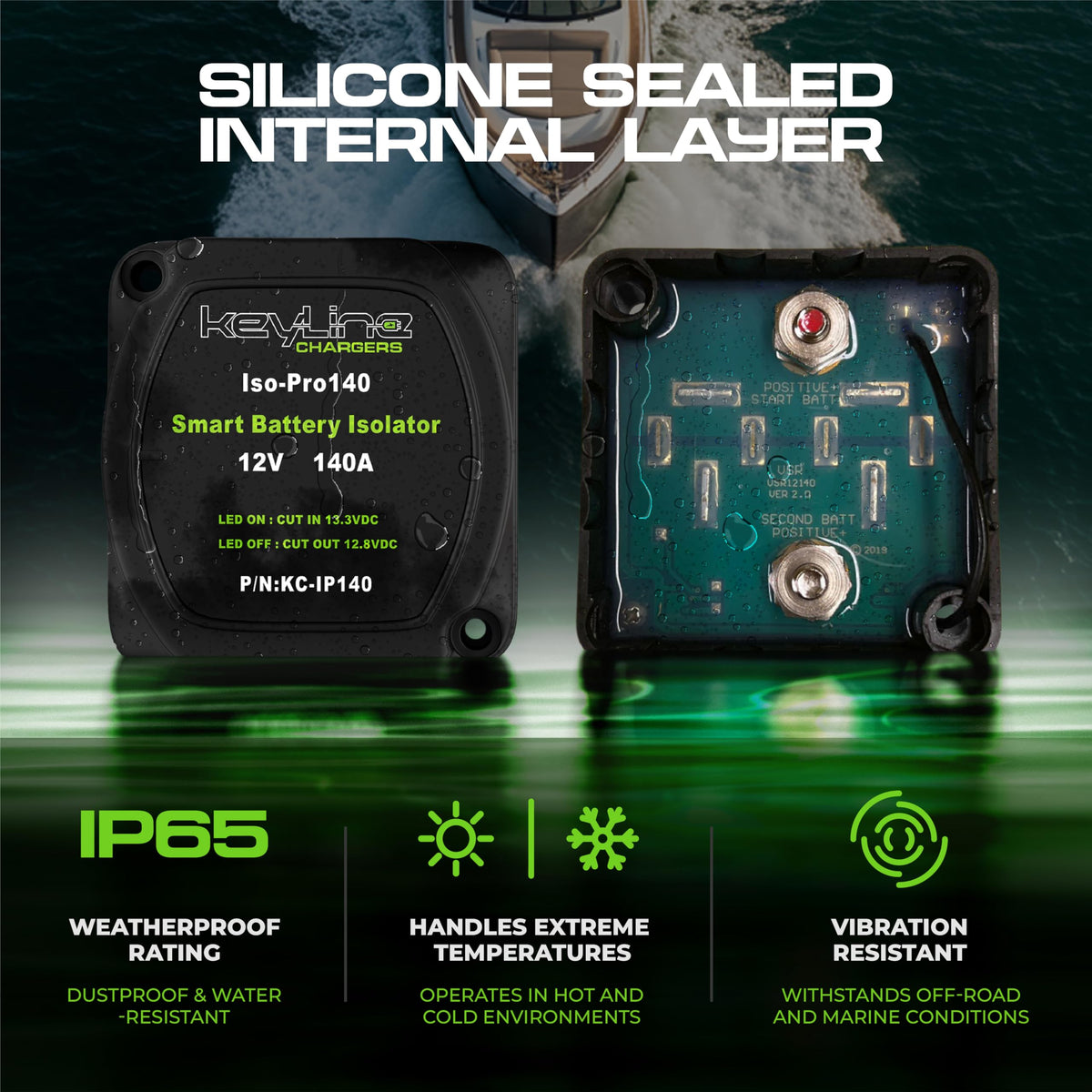

Yes—the isolator is IP65-rated and built to withstand dust, water spray and vibration frequently encountered on boats and trails. The robust housing and solid-state internals reduce failure points when compared with mechanical relays or diode packs.

• IP65 protection vs dust and water spray
• Vibration-resistant design for rough roads and off-road use
• Solid-state construction for long-term reliability

Which systems and battery types are compatible with this VSR?

The 12V, 140A capacity is suitable for most automotive, marine and RV dual-battery setups using lead-acid, AGM or many lithium auxiliary batteries when paired with appropriate charging profiles. Always confirm the alternator and battery specifications match your intended setup.

• Suitable for 12V systems up to 140A continuous load
• Works with common starter and auxiliary battery chemistries
• Use with higher-end lithium setups after verifying charging compatibility

Who is this product for? If you run accessories, fridges, winches or electronics that could drain your starter battery—or if you need a dependable marine or RV power solution—this KeyLine Chargers Dual Battery Isolator Kit is built for you. It’s aimed at DIY installers, fleet operators, boat owners and overlanders who want automatic, maintenance-free battery isolation without the voltage loss of diode systems. Backed by a 12-month warranty and a 30-day money-back guarantee, it offers a practical upgrade for any 12V dual-battery installation that needs reliable, automatic power management.
