KMHGD RV Power Converter 55A WF-8955-MBA — 3-Stage Intelligent Charging, 5-Year Warranty

The KMHGD WF-8955-MBA is a 55-amp RV power converter board that replaces WF-8955 series units and delivers intelligent three-stage charging with multi-layer protection and a five-year warranty.

If you own an RV, camper, travel trailer or truck that used a WF-8955 PEC converter, this upgraded motherboard is built to be a drop-in replacement that restores charging, power distribution, and battery maintenance. The unit supports lead-acid, AGM and gel batteries while converting 105–130 VAC input to a regulated DC output up to 55 amps, and it adds automatic detection plus eight protective functions to safeguard both the converter and the battery bank.

How does this converter manage different battery states?

The WF-8955-MBA uses an intelligent three-stage charging profile — fast, standard, and float — to adapt to battery condition and state-of-charge. That staged approach reduces overcharge risk while supporting quicker replenishment when needed.

• Fast charge: 14.4 VDC for rapid replenishment.
• Standard charge: 13.6 VDC for regular daily charging.
• Trickle/float: 13.2 VDC to maintain charge and minimize stress.
• Automatic detection switches between stages based on battery voltage and load.

What electrical specs and performance can I expect?

This converter accepts a standard 105–130 VAC, 60 Hz supply and produces a stable DC output in the three programmed voltages. With a continuous DC output of 55 amps and peak power near 959 watts, it handles typical RV loads such as lights, pumps, and small appliances.

• Input: 105–130 VAC, 60 Hz.
• Output voltages: 14.4 / 13.6 / 13.2 VDC selectable by charging stage.
• Output current: up to 55 A continuous; maximum power about 959 W.
• Works with lead-acid, AGM and gel battery chemistries.

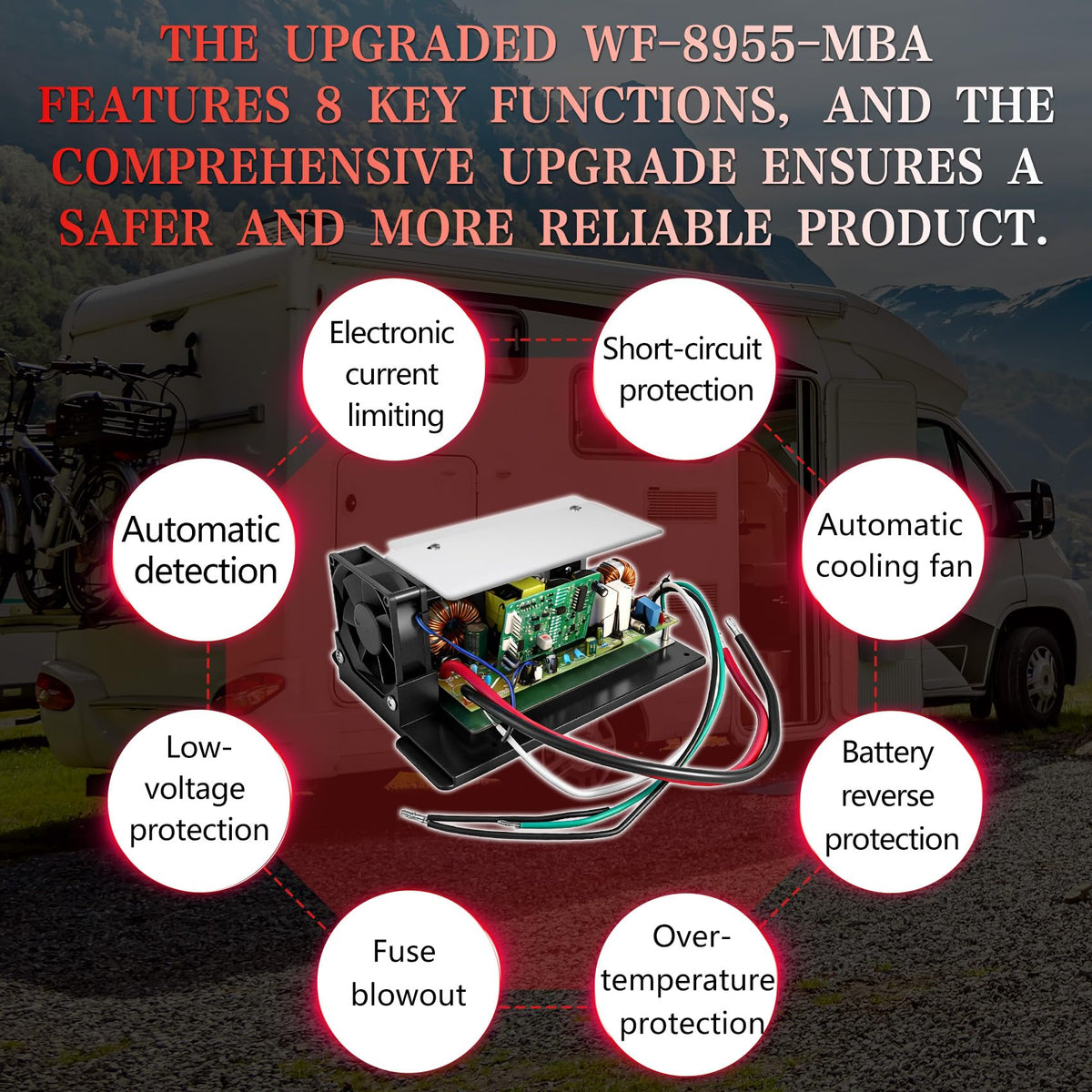

What protections are built into the WF-8955-MBA?

The redesigned motherboard includes eight distinct protection features to reduce failure modes and prolong battery life. These protections help prevent damage from electrical faults and thermal stress while prompting cooling when required.

• Automatic detection of battery/load conditions for safe charging.
• Low-voltage and battery reverse protection to prevent damage.
• Short-circuit and electronic current limiting to protect wiring and components.
• Over-temperature protection and an automatic cooling fan to manage heat.

Is installation difficult and what support is provided?

Installation is designed to be straightforward for users familiar with RV converter replacements. Wire colors and connections match original WF-8955 conventions, typically allowing completion in about 15 minutes. KMHGD backs the unit with a five-year warranty and responsive support if issues arise.

• Wire colors and terminals mirror the original WF-8955 family for easy swap-in.
• Typical installation time: ~15 minutes for experienced DIYers or technicians.
• Five-year parts warranty and email support with 24-hour response for troubleshooting.

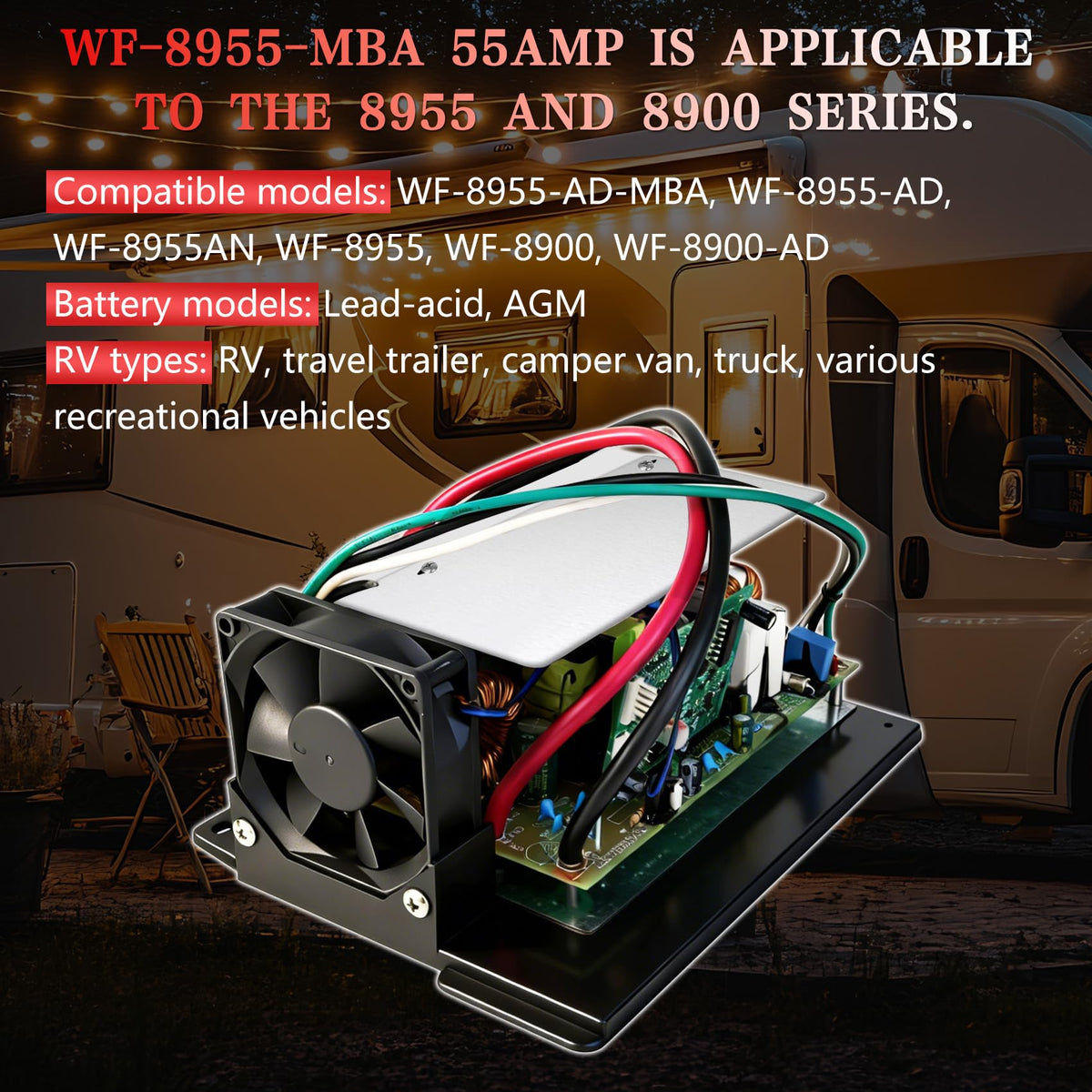

Who is this for: The KMHGD WF-8955-MBA is aimed at RV owners, fleet operators, and service technicians who need a reliable, feature-rich replacement for WF-8955-series converters. It’s especially useful if you want improved charging control, robust electrical protections, and a long warranty to reduce downtime and maintenance costs. If your vehicle uses lead-acid, AGM or gel batteries and you require a 55A DC charging source with proven compatibility to WF-8955-AD, WF-8955AN, WF-8900 and similar boards, this unit provides a direct, supported upgrade.
