KUNOANZ 586767 Power Tilt Trim Relay for Johnson Evinrude 15–300HP — 12V OEM-Style Sealed

KUNOANZ 586767 is a direct OEM-style 12V power tilt trim relay assembly designed to restore reliable tilt and trim operation on Johnson, Evinrude E-TEC and OMC 4-stroke outboards (15–300 HP).

If your outboard tilt/trim is slow, clicks when actuated, or won’t move at all, the relay is a frequent culprit. This KUNOANZ replacement matches the fit and electrical function of original part numbers 586767 / 0586767, providing a sealed, marine-grade unit built to resist saltwater, vibration, and moisture. It’s intended as a plug-and-play fix for compatible 2004–2011 engines so you can avoid lengthy downtime and mechanic fees.

How will this relay improve my boat’s tilt and trim response?

Replacing a worn or corroded relay restores full current flow to the tilt/trim motor, which removes sluggish movement, erratic clicking, and intermittent operation. The heavy-duty internal contacts and robust case eliminate common failure modes linked to salt and vibration.

• Restores 12V electrical continuity to the tilt/trim circuit
• Replaces corroded contacts that cause clicking or no movement

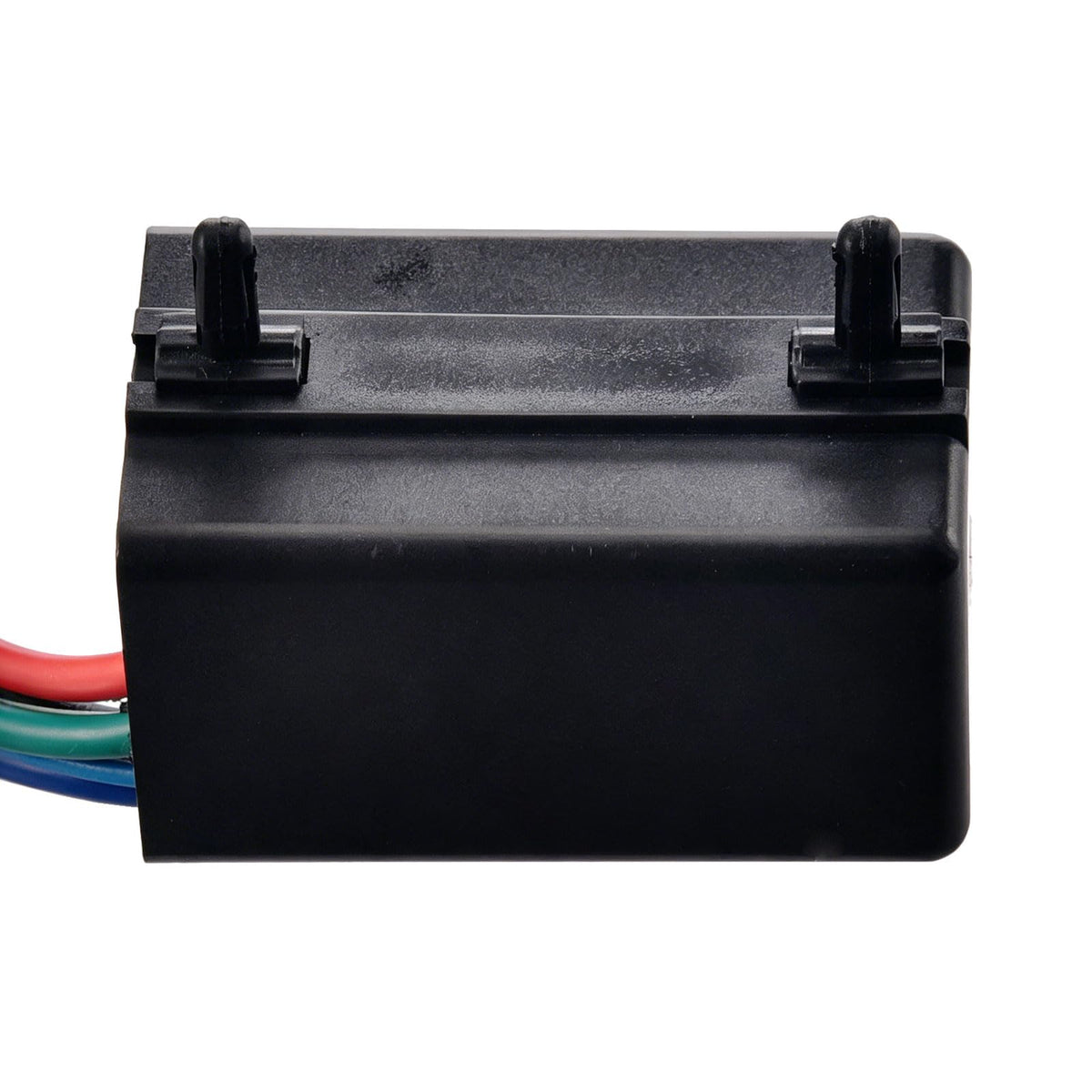

• Sealed housing prevents moisture-related shorts
• Reduces repeated trips to the dock for tilt/trim troubleshooting

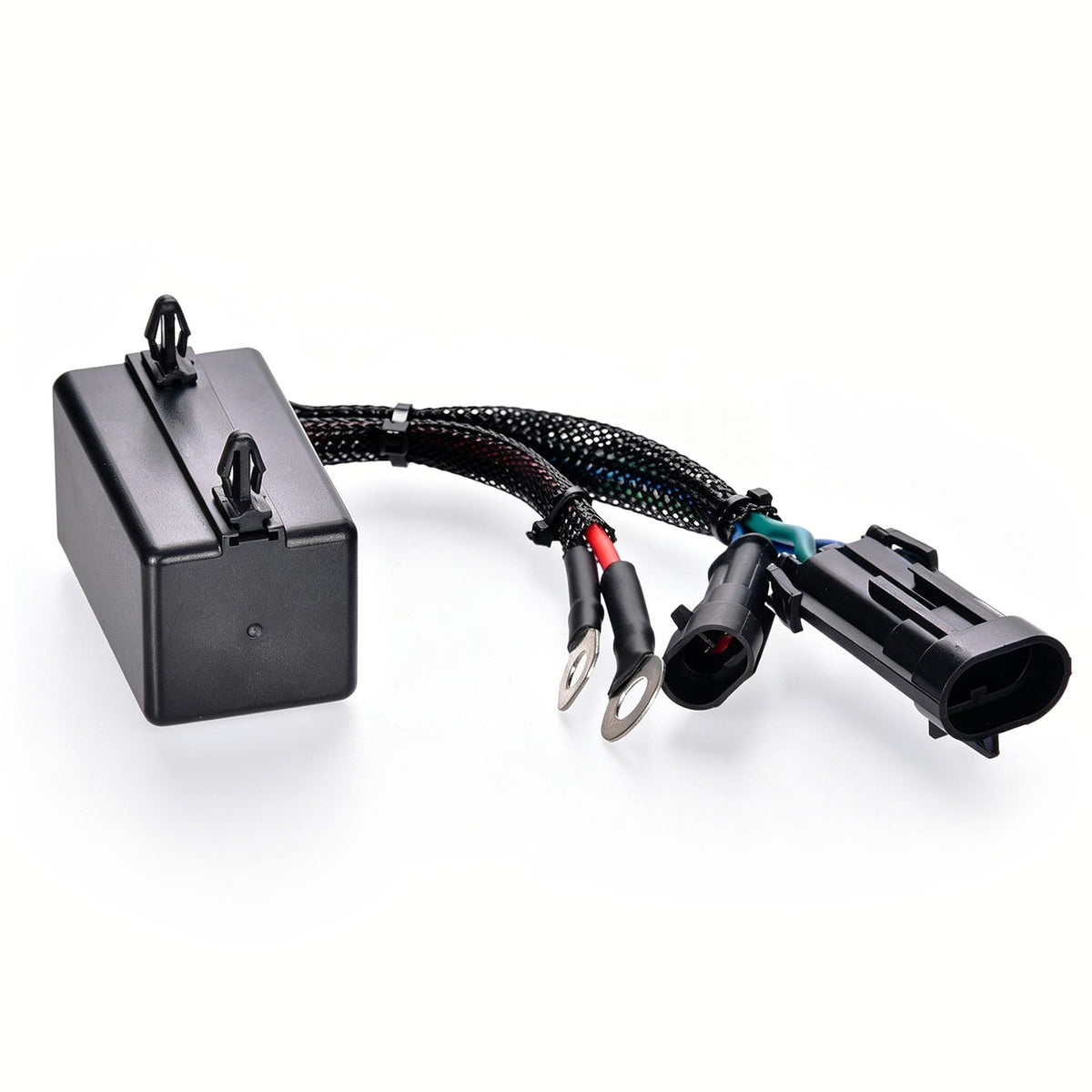

Is this a direct replacement for part numbers 586767 and 0586767?

Yes — the KUNOANZ 586767 is engineered to match those OEM specifications, providing the same connector layout and mounting footprint. It’s manufactured to meet the electrical and mechanical tolerances of the original relay so it installs without modification.

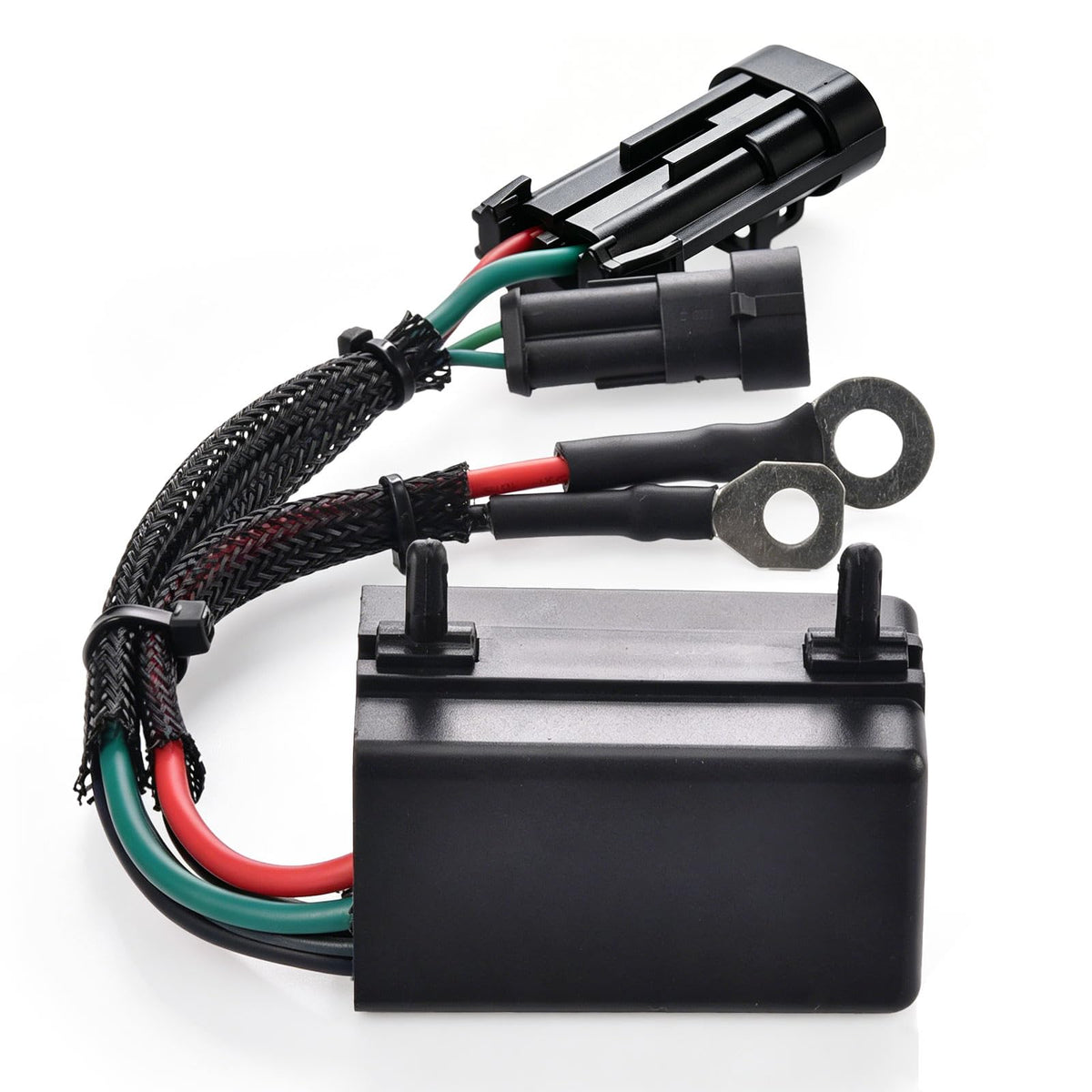

• Plugs into the original connector—no splicing required
• Same 12V rating and contact arrangement as OEM
• Mounting points align with factory bracket locations
• Intended for Evinrude/Johnson/OMC 2004–2011 models

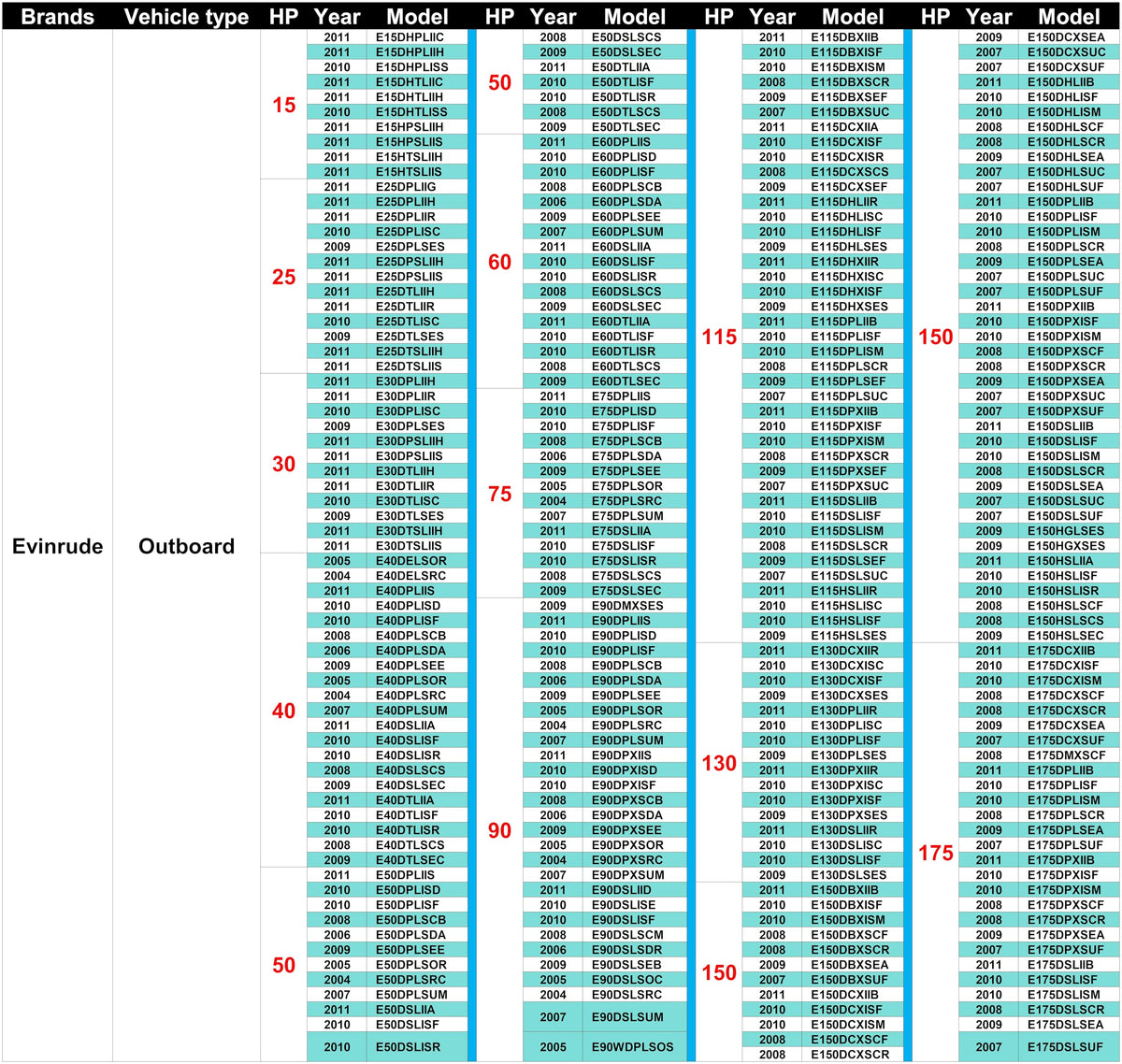

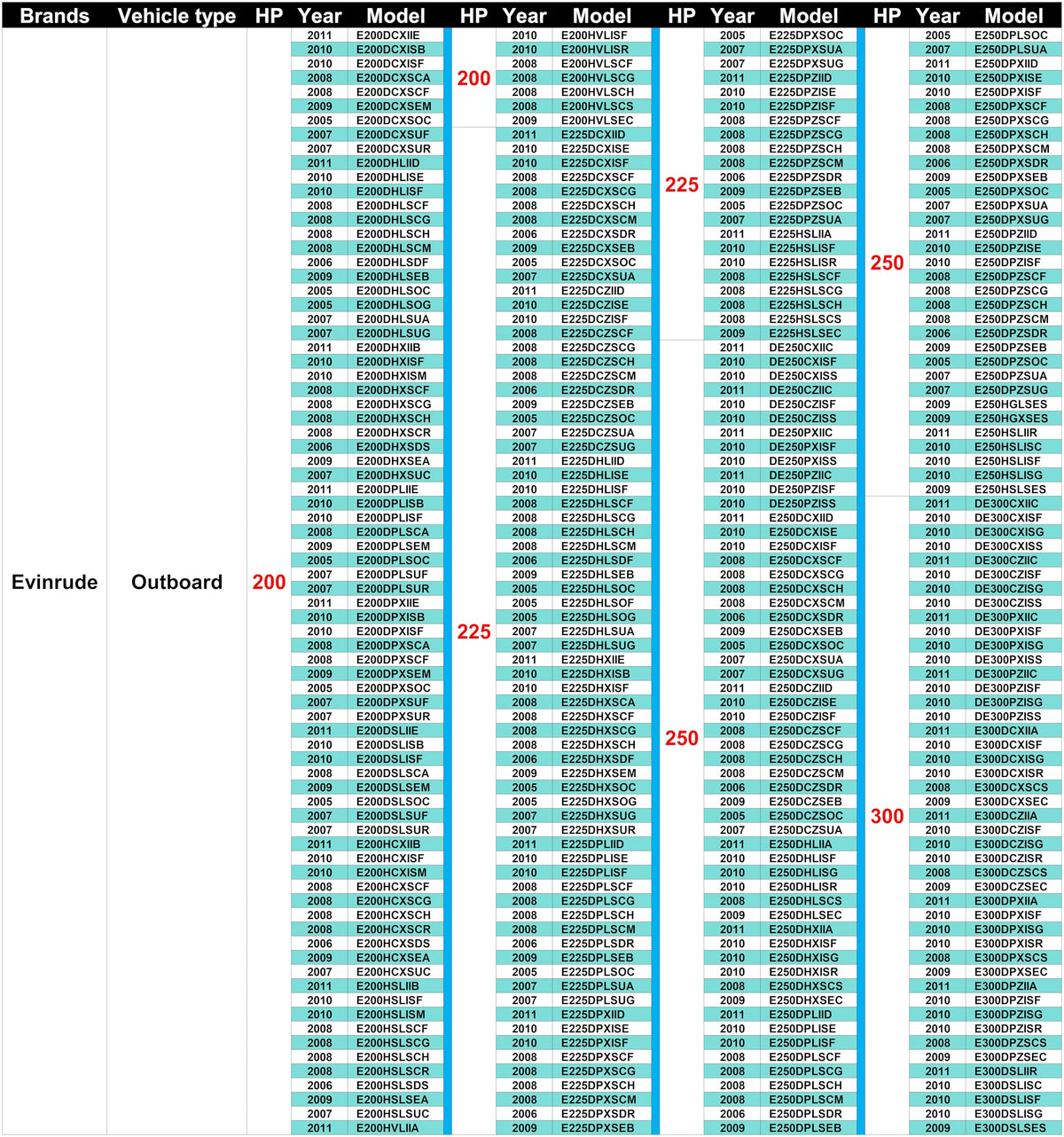

Which engines and years will this relay fit?

This relay covers a broad range of 4-stroke Evinrude E-TEC, Johnson and OMC outboards from 15 to 300 HP produced between 2004 and 2011. Before ordering, verify the engine nameplate for exact HP, model year and the OEM part number to ensure perfect compatibility.

• Fits E15 through E300 series (15–300 HP)
• Compatible with engine families listed in the full fitment chart
• Works on designated 2004–2011 E-TEC 4-stroke models
• Check nameplate for your OEM part number before purchase

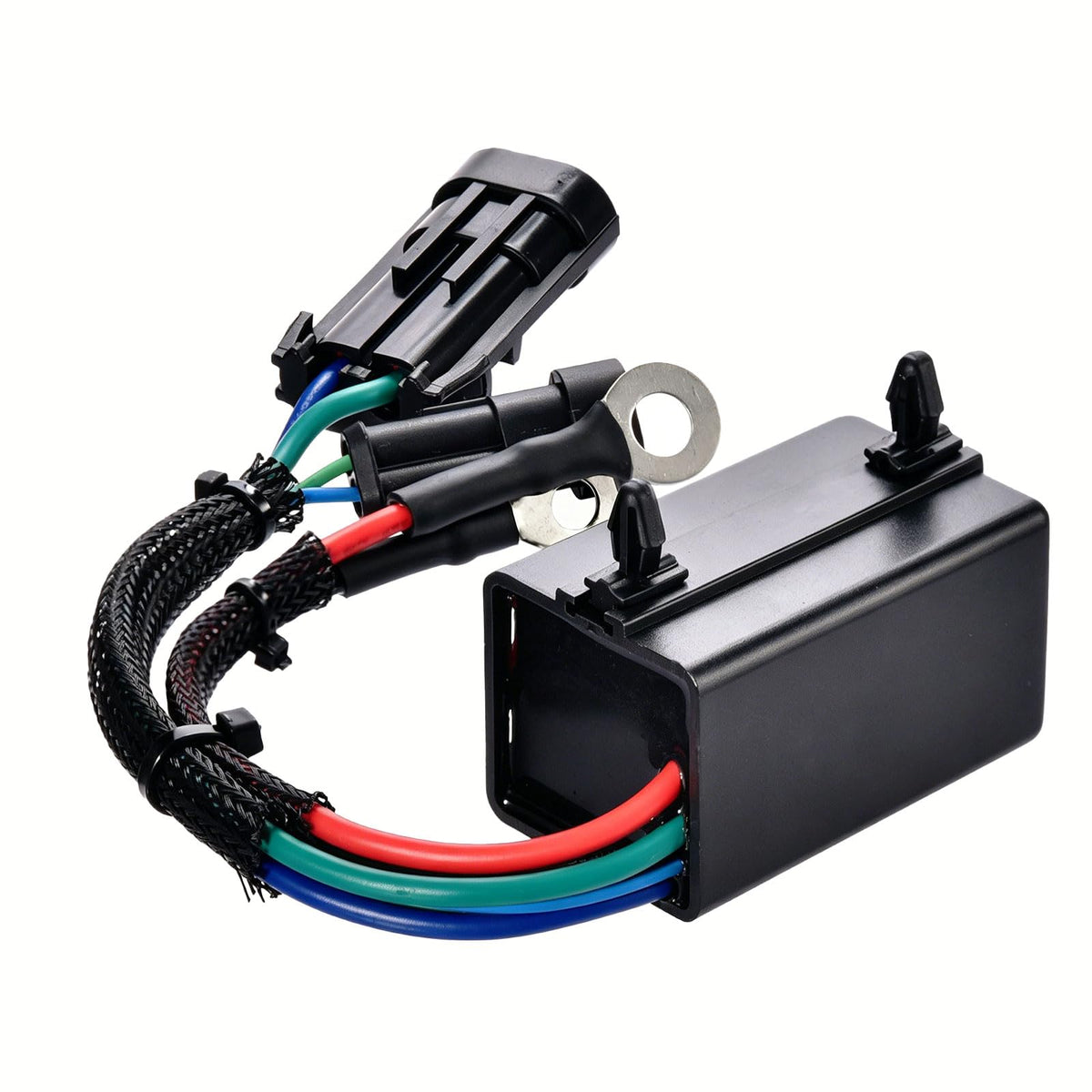

What should I expect during installation and maintenance?

Installation is intentionally simple: remove the faulty relay, plug in the new assembly, and secure it in place. Routine visual inspection for corrosion and keeping connectors clean will extend service life, but no specialist tools or wire cutting are required for the swap.

• Plug-and-play design—no wire splicing or complex wiring
• Basic hand tools typically sufficient for removal and replacement
• Inspect connectors and mounting area for corrosion before install
• Periodic checks help prevent future electrical issues

Who this is for: boat owners, DIY marine technicians, and service shops that operate Johnson, Evinrude E-TEC or OMC 4-stroke outboards from 15–300 HP (2004–2011) who need a reliable, OEM-compatible 12V power tilt trim relay. If your tilt/trim motor behaves inconsistently, or you want a sealed, marine-rated replacement that installs quickly without rewiring, this unit is built for that purpose. Always confirm your engine’s HP, model year and OEM part number on the nameplate before purchasing to ensure fitment.
