KUSATEC Wheel Hub Bearing Assembly 513288 — Front/Rear 5-Lug No-ABS, Pre-Assembled Corrosion-Resistant

KUSATEC 513288 is a ready-to-install front or rear wheel hub and bearing assembly built to replace OEM 513288-fit units on compatible GM and Saab models.

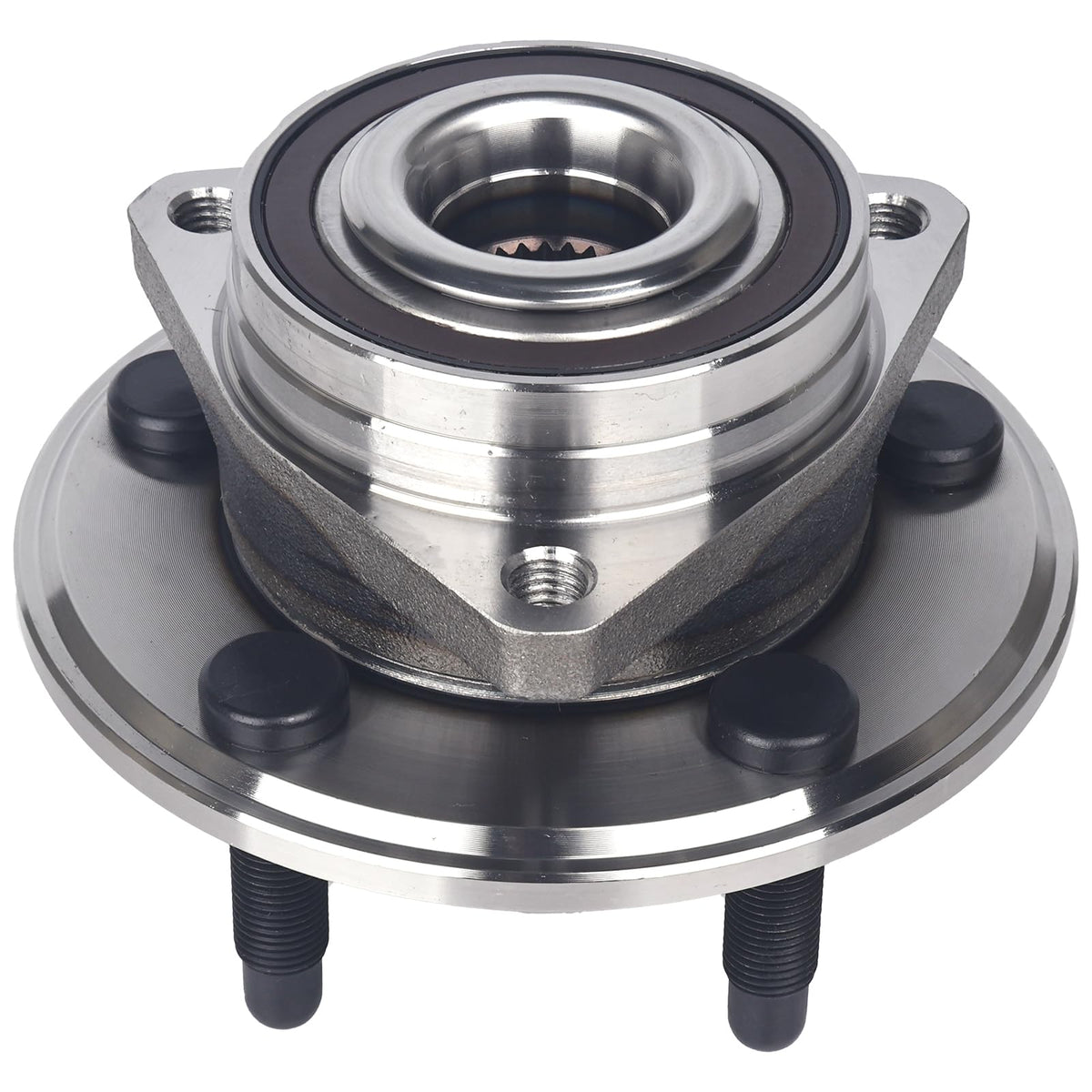

This complete hub-and-bearing unit combines a multi-stud hub, integrated bearing, and corrosion-resistant hardware so you can restore wheel rotation accuracy and load support without sourcing separate parts. It matches the form, fit and key dimensions of common OE references and is supplied without an ABS sensor, making it a direct substitute where that configuration is required.

Which vehicles and model years does this hub assembly support?

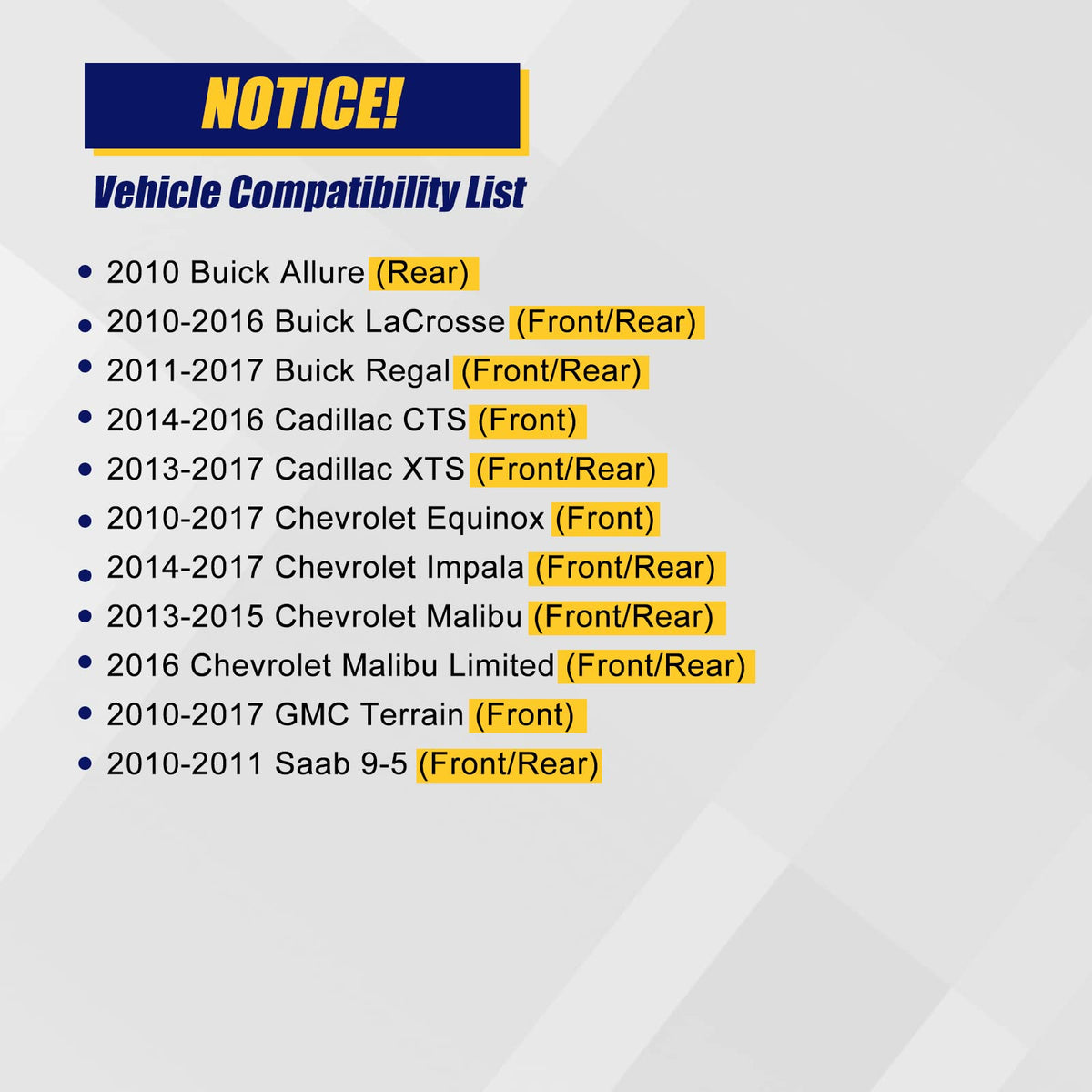

The 513288 assembly is engineered to fit a range of Buick, Cadillac, Chevrolet, GMC and Saab models across several production years. Confirm vehicle compatibility by cross-referencing part numbers or consulting fitment lists before purchase.

• Buick: Allure 2010; LaCrosse 2010–2016; Regal 2011–2017
• Cadillac: CTS 2014–2016 (AWD 3.6L V6; sedan), XTS 2013–2017 (exceptions apply)
• Chevrolet: Equinox 2010–2017, Impala 2014–2017 & 2020, Malibu 2013–2015, Malibu Limited 2016
• GMC: Terrain 2010–2017; Saab: select 2010–2011 models

What are the key specifications and OE cross-reference numbers?

This assembly follows precise hub geometry and spline counts to ensure correct drivetrain engagement and proper wheel mounting. Use the listed part numbers to verify interchangeability with your vehicle’s original component.

• Part references: 513288, 13502785, 13502886, 13504970, 13504972 and others

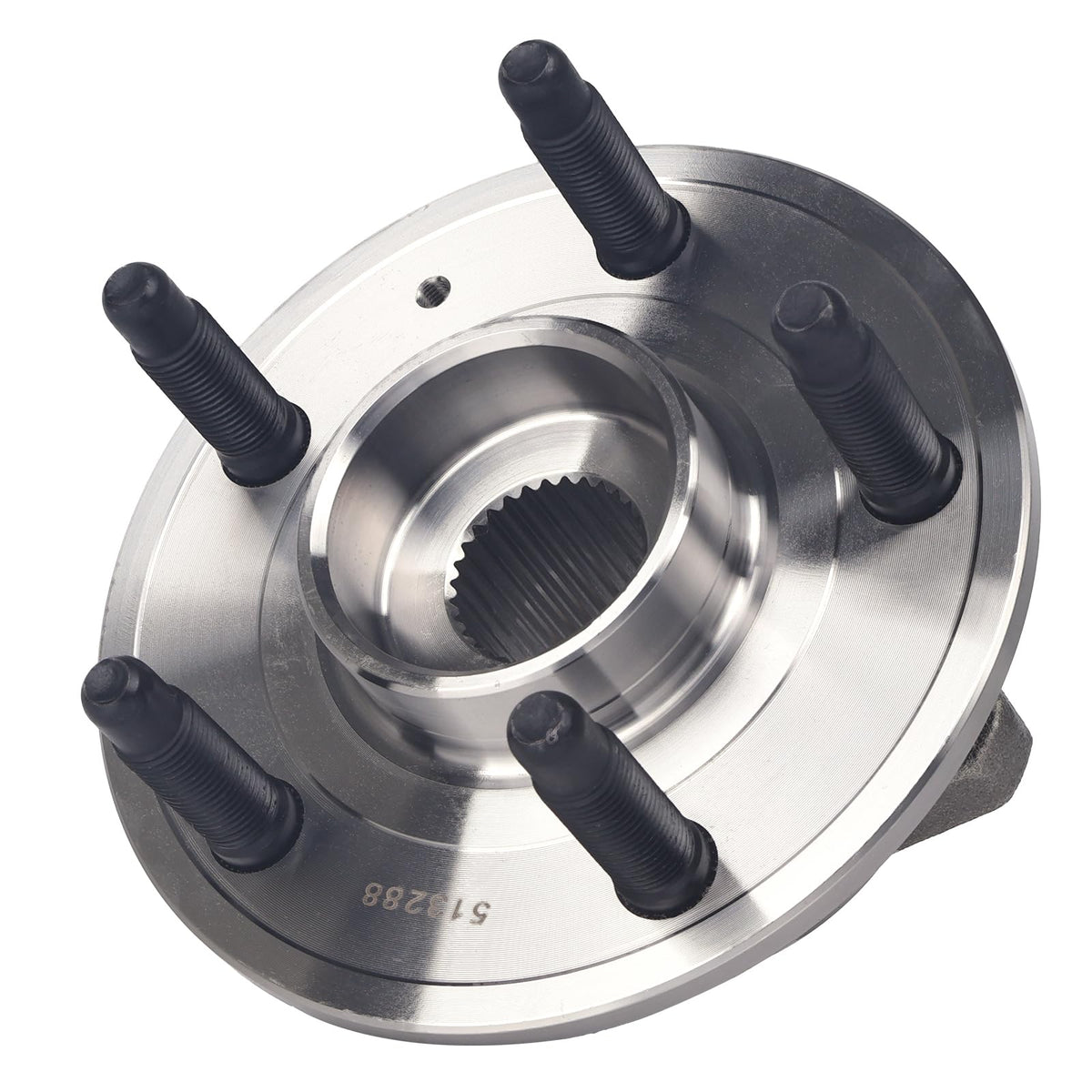

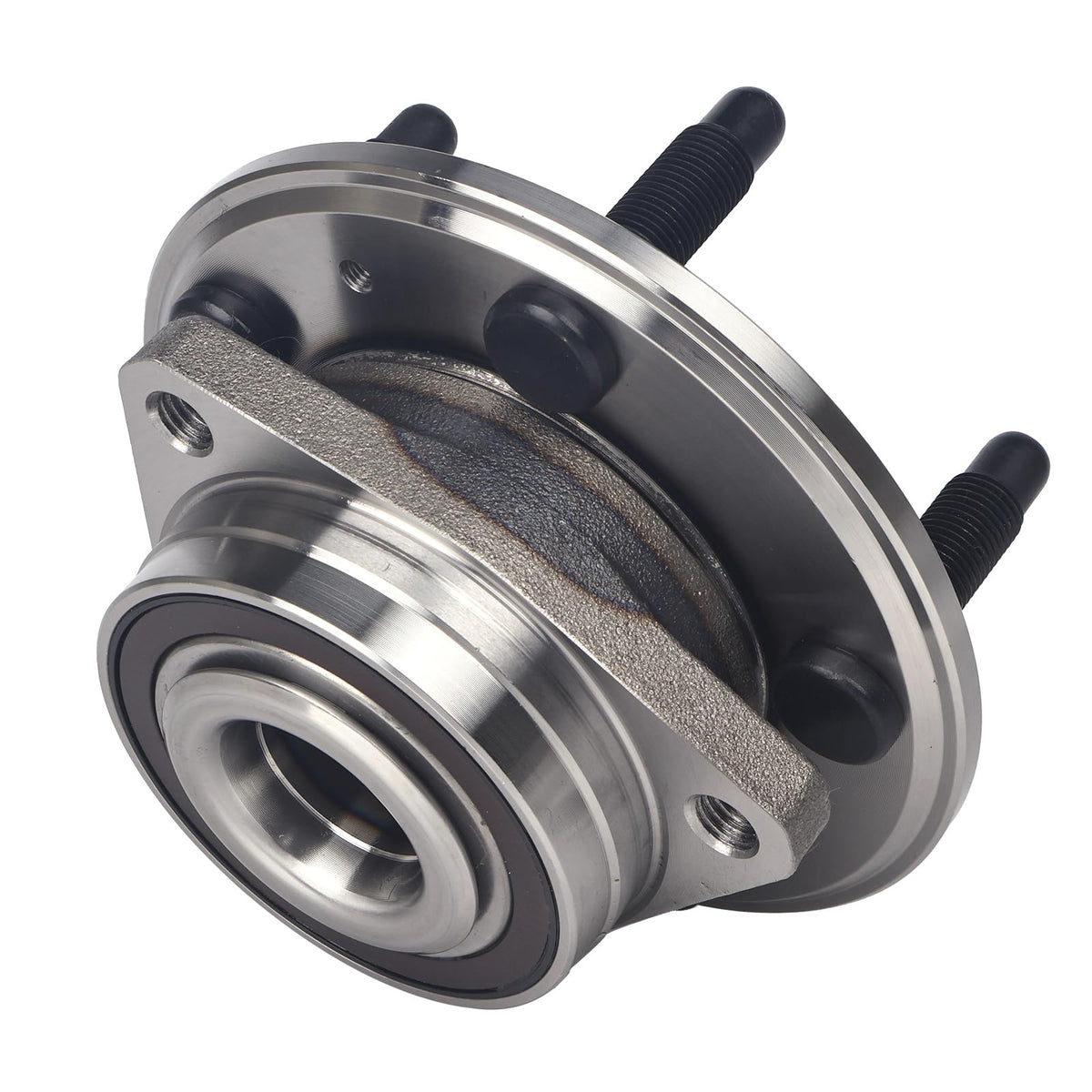

• Configuration: fits front or rear, 5 wheel studs, 3 flange bolt holes, 30 splines
• Dimensions: 91.2 mm hub pilot diameter; 156.9 mm flange diameter; supplied without ABS sensor

How does installation and durability compare to OEM units?

KUSATEC supplies this hub fully assembled so installation is simplified—no press-fit bearing work is needed. The unit uses coated hub bolts and improved seals to resist corrosion, reduce noise and limit vibration under normal driving conditions.

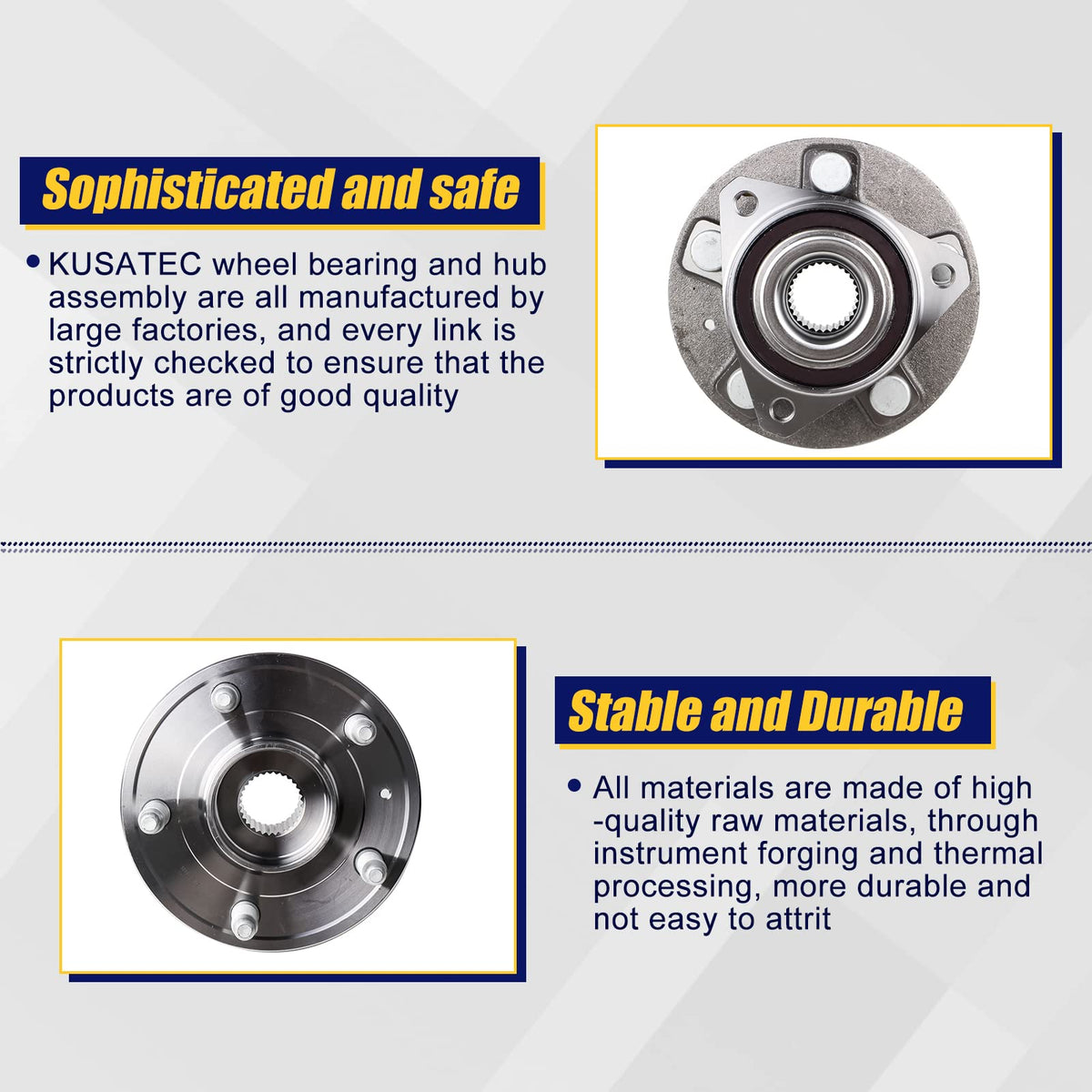

• Factory-inspected to match OEM production tolerances
• Protective coating on hub bolts for corrosion resistance and easier torqueing

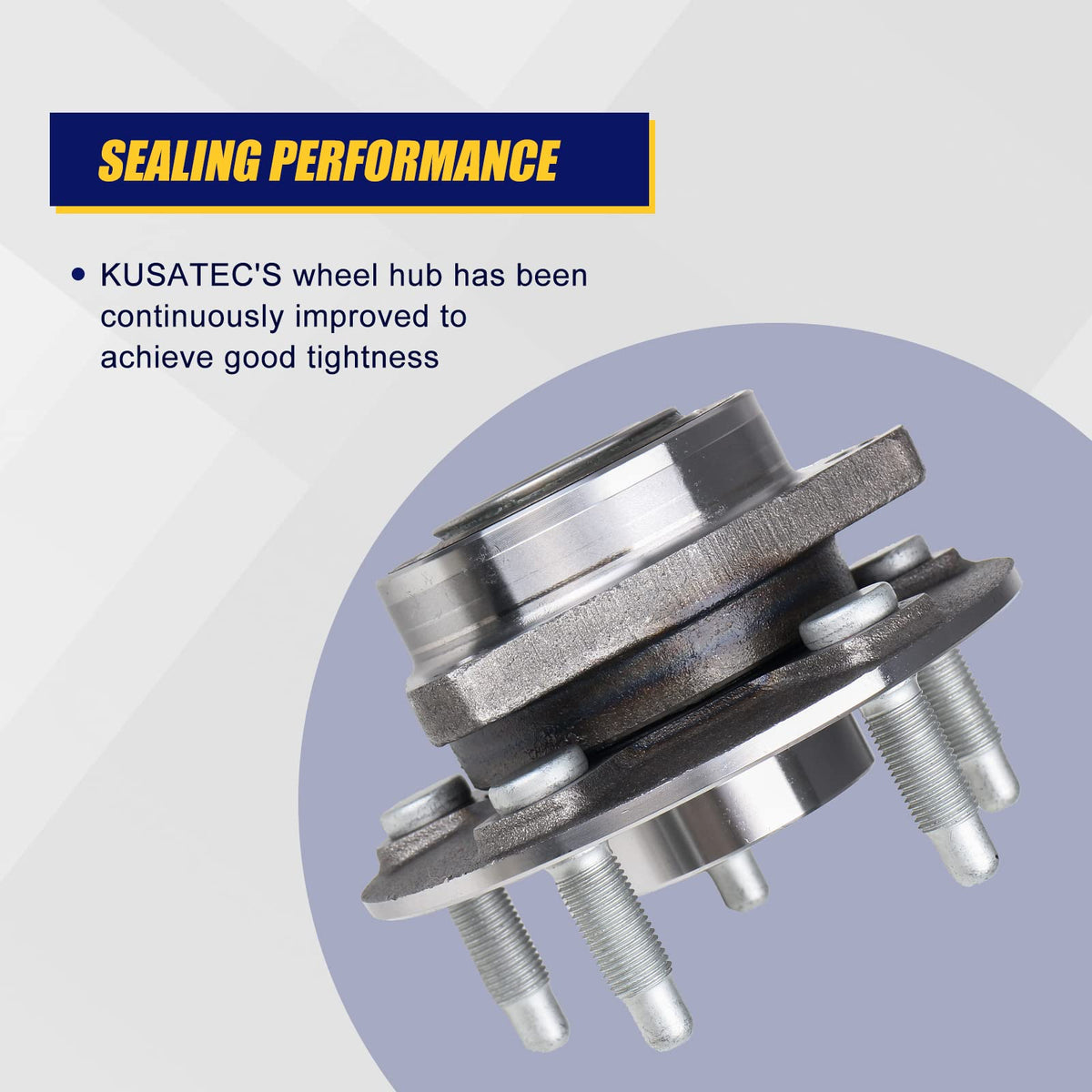

• Enhanced seal design to help prolong service life and minimize road noise

Can I expect a direct replacement if my vehicle originally had an ABS sensor?

This assembly is supplied without an ABS sensor. If your vehicle relies on an integrated ABS tone ring or sensor within the hub, verify whether a non-ABS hub is appropriate or if an additional sensor/clip is required when replacing the original component.

• Supplied without ABS sensor or tone ring
• Confirm sensor requirements for your axle position before installation
• Works as a direct swap where non-ABS fitment is specified

Who this is for: The KUSATEC 513288 hub and bearing assembly is aimed at professional mechanics and DIY enthusiasts restoring wheel performance on compatible Buick, Cadillac, Chevrolet, GMC, and Saab models. Choose this unit when you need a complete, OE-dimension replacement hub with reliable sealing, corrosion-resistant hardware, and clear cross-reference numbers to ensure correct fitment.
