Kylazer Laser Alignment Tool for Pulley and Belt Drive Systems — Red Magnetic Base, Compact Durable Design

Kylazer Laser Alignment Tool is a compact magnetic laser gauge designed to quickly detect and quantify pulley and belt displacement in belt drive systems. The Kylazer unit combines a bright red, durable housing with magnetic feet and a recessed base to make pulley alignment checks fast and repeatable on industrial and light-commercial machinery. Calibrated at the factory and built for field use, it helps technicians identify offset, angular misalignment, and lateral displacement so belts and pulleys run more reliably.

How does this tool show pulley displacement clearly?

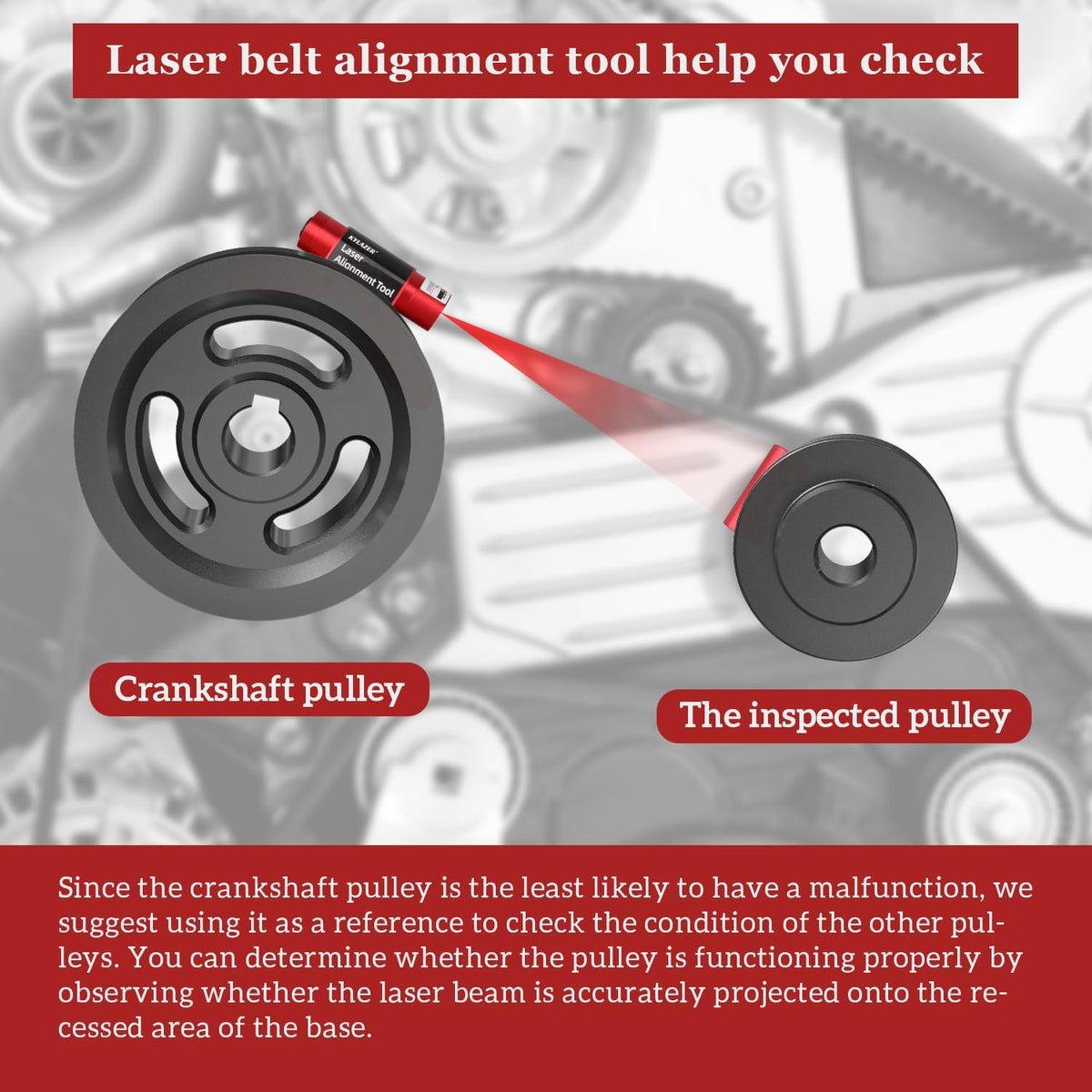

The tool projects a straight laser reference line across the pulley faces so you can visually compare the true centerline of two pulleys. By placing the magnetic base on one pulley and the laser emitter on the other, misalignment becomes obvious at a glance and measurable against pulley edges.

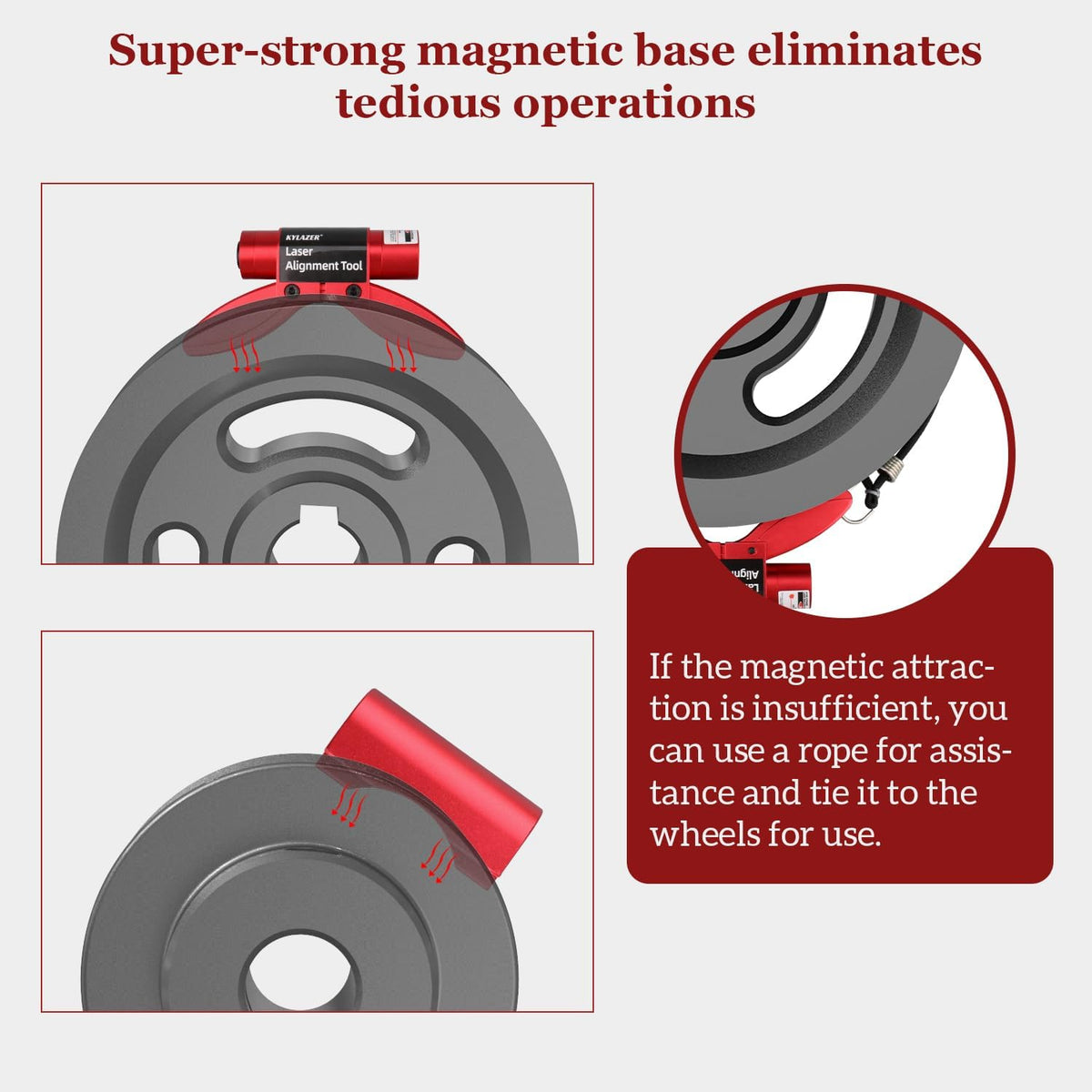

• Magnetic feet secure the base and laser to metal pulley flanges for a stable reference.

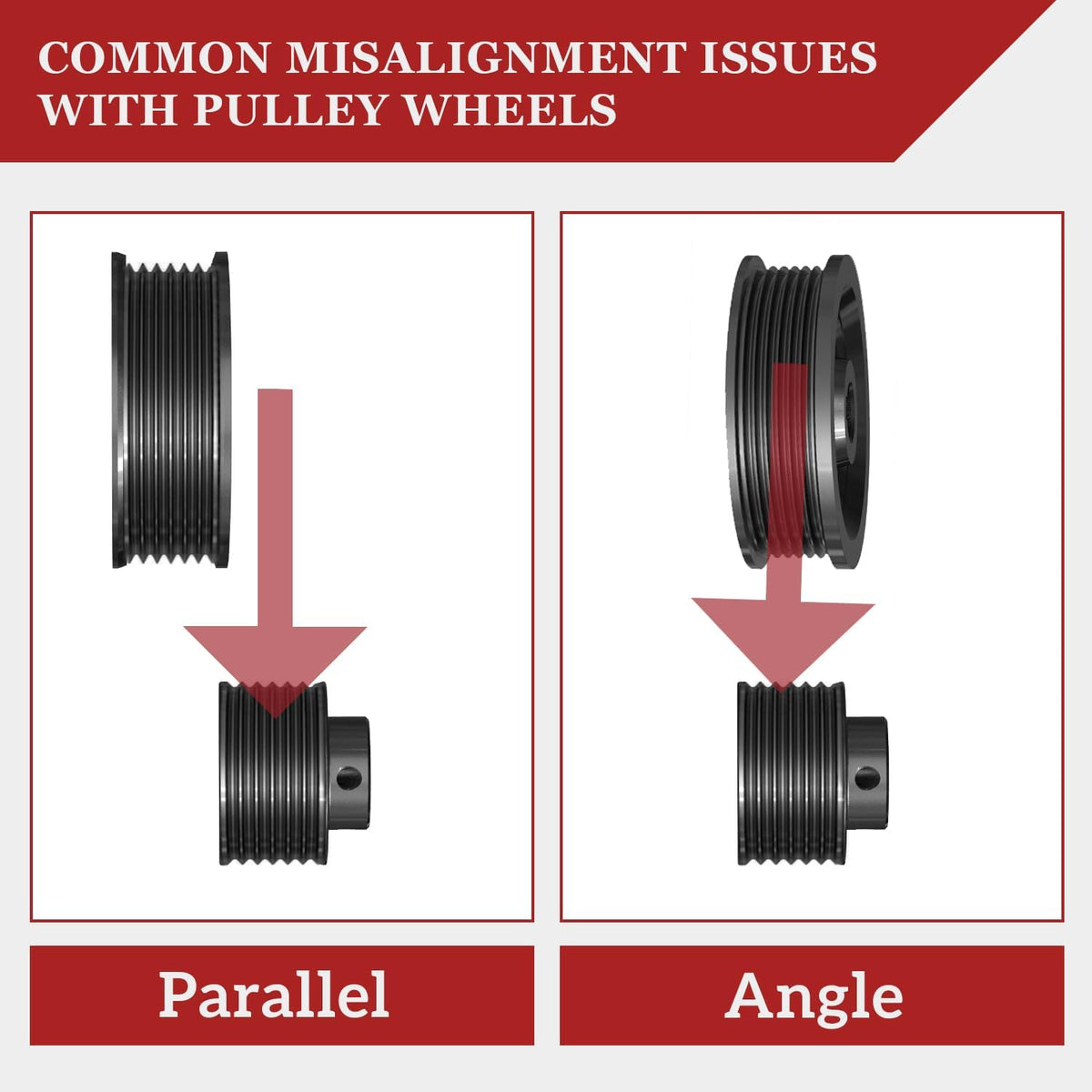

• Laser line reveals lateral offset and angular skew between pulleys.

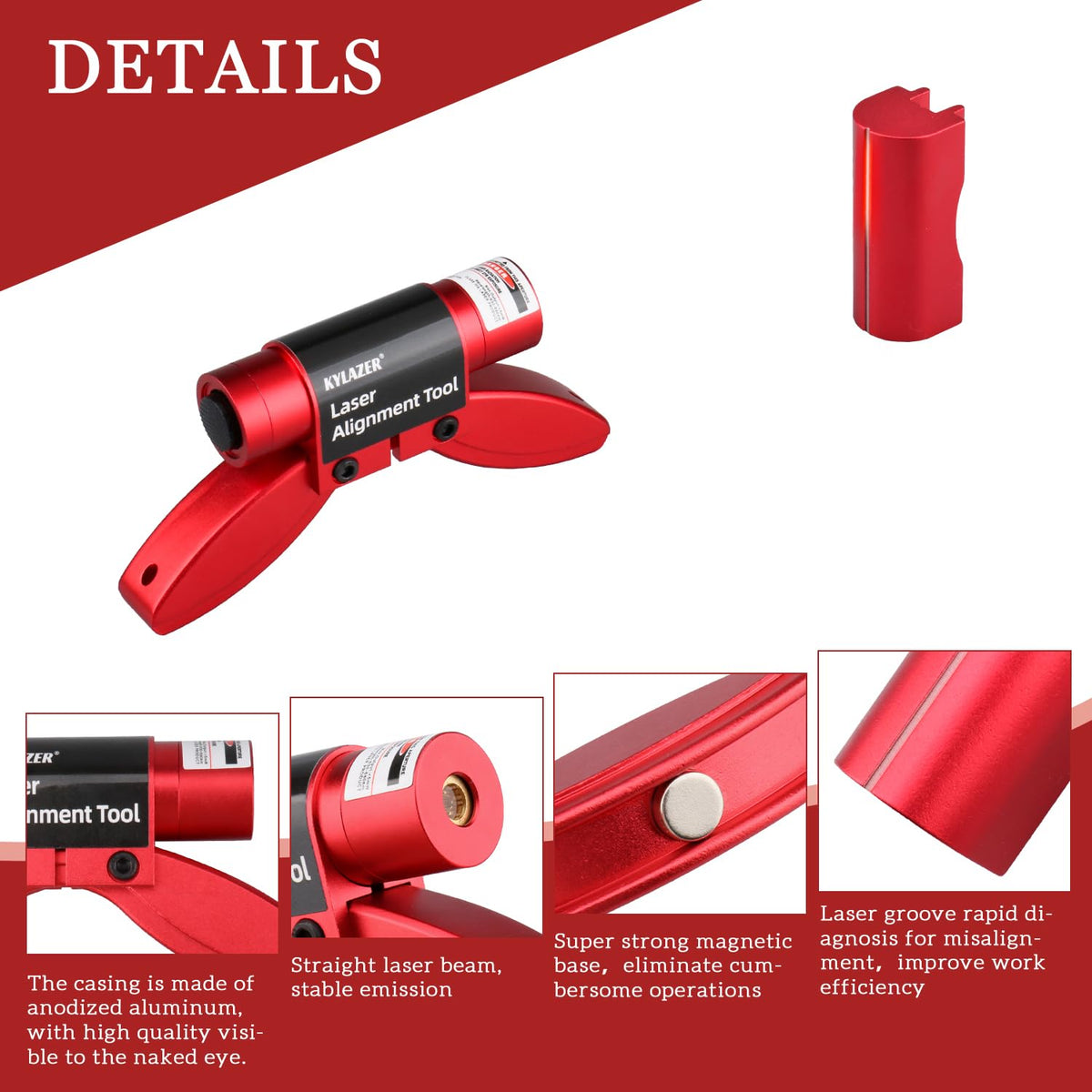

• Recessed base design helps seat the device on smaller pulleys without slipping.

What makes this Kylazer model durable and suitable for workshop use?

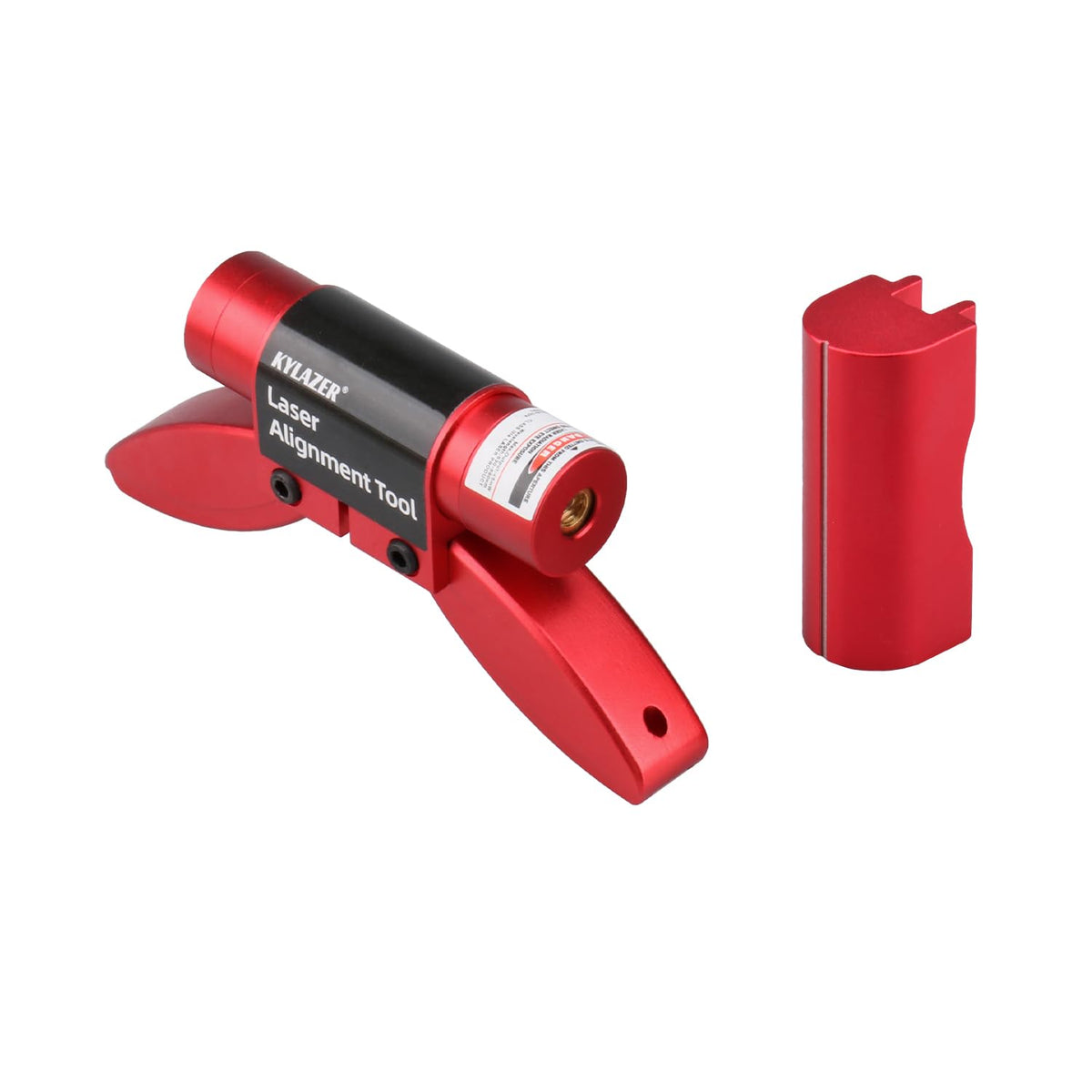

The housing and internal laser components are manufactured for durability and field stability, resisting everyday bumps and vibrations common during maintenance tasks. Its compact size and vivid red color reduce the chance of misplacing it in busy shops while the magnetic attachment minimizes the need for extra clamps.

• Rugged casing protects the laser diode and electronics during routine handling.

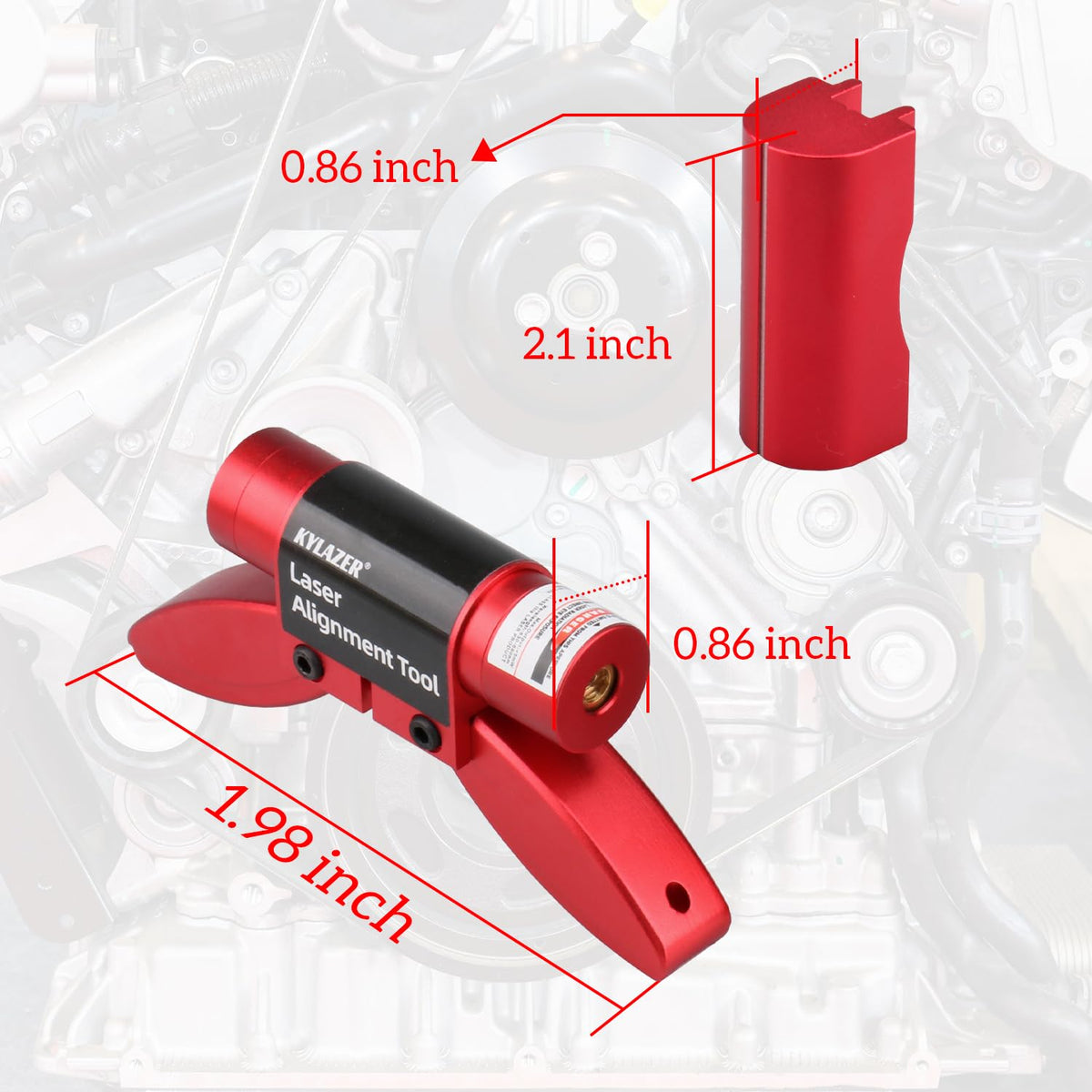

• Compact footprint fits into tight pulley grooves and keeps work areas uncluttered.
• Magnetic mounts eliminate temporary fastening tools and speed setup.

How long will the laser run, and what batteries should I use?

This alignment tool runs on replaceable batteries and is designed for extended operating periods between changes. For longer continuous use and dependable startup in cold or heavy-use environments, high-quality lithium batteries are recommended as backup to avoid downtime.

• Compatible with standard replaceable batteries for easy field swaps.
• Lithium cells are suggested for longer run time and better cold-temperature performance.
• Quick battery replacement avoids interrupting alignment and diagnosis workflows.

What should I do if the laser seems off after shipping?

Units are calibrated before leaving the factory, but transport shock can occasionally shift the alignment. If the beam does not line up as expected, follow the included calibration steps or the online troubleshooting guide to realign the laser before use.

• Check the quick-start manual for simple in-field calibration instructions.
• If needed, perform the recommended factory re-check procedure after mounting the device.
• Contact Kylazer support for assistance; a two-year warranty covers quality issues.

Who is this for? This Kylazer Laser Alignment Tool is aimed at maintenance technicians, small-facility engineers, and DIY professionals who service belt drive systems and need a fast, reliable way to detect misalignment. It suits anyone working on conveyors, industrial machinery, HVAC fan belts, or light manufacturing equipment who wants to reduce belt wear, vibration, and unplanned downtime without investing in complex instrumentation.

FAQ

Q: Can I use the Kylazer on non-metal pulleys?

A: The magnetic feet require metal contact; for non-metal pulleys use a metal adapter or stable clamp to mount the unit.

Q: Is calibration required before first use?

A: No—units are factory-calibrated, but check alignment after shipping and follow the manual if adjustments are needed.
