LDMINDA Fuel Filler Neck & Hose Assembly for Ford Ranger 1993–1997 and Mazda B2300/B3000/B4000 1994–1997 — Stainless, Reinforced H

LDMINDA fuel filler neck and hose assembly replaces worn filler tubes on 1993–1997 Ford Ranger and 1994–1997 Mazda B2300/B3000/B4000 (108" or 125" wheelbase; not for Flareside or Splash models).

If your truck’s gas pump clicks off constantly or fuel leaks around the filler area, this replacement filler neck and hose from LDMINDA is built to restore correct refueling performance. Designed to match OEM fit and function, the assembly uses stainless steel components, a reinforced rubber hose, and adjustable stainless clamps to provide a durable aftermarket solution for older Ford Ranger and Mazda B-series models.

Will this LDMINDA filler neck fit my Ford Ranger or Mazda B-series truck?

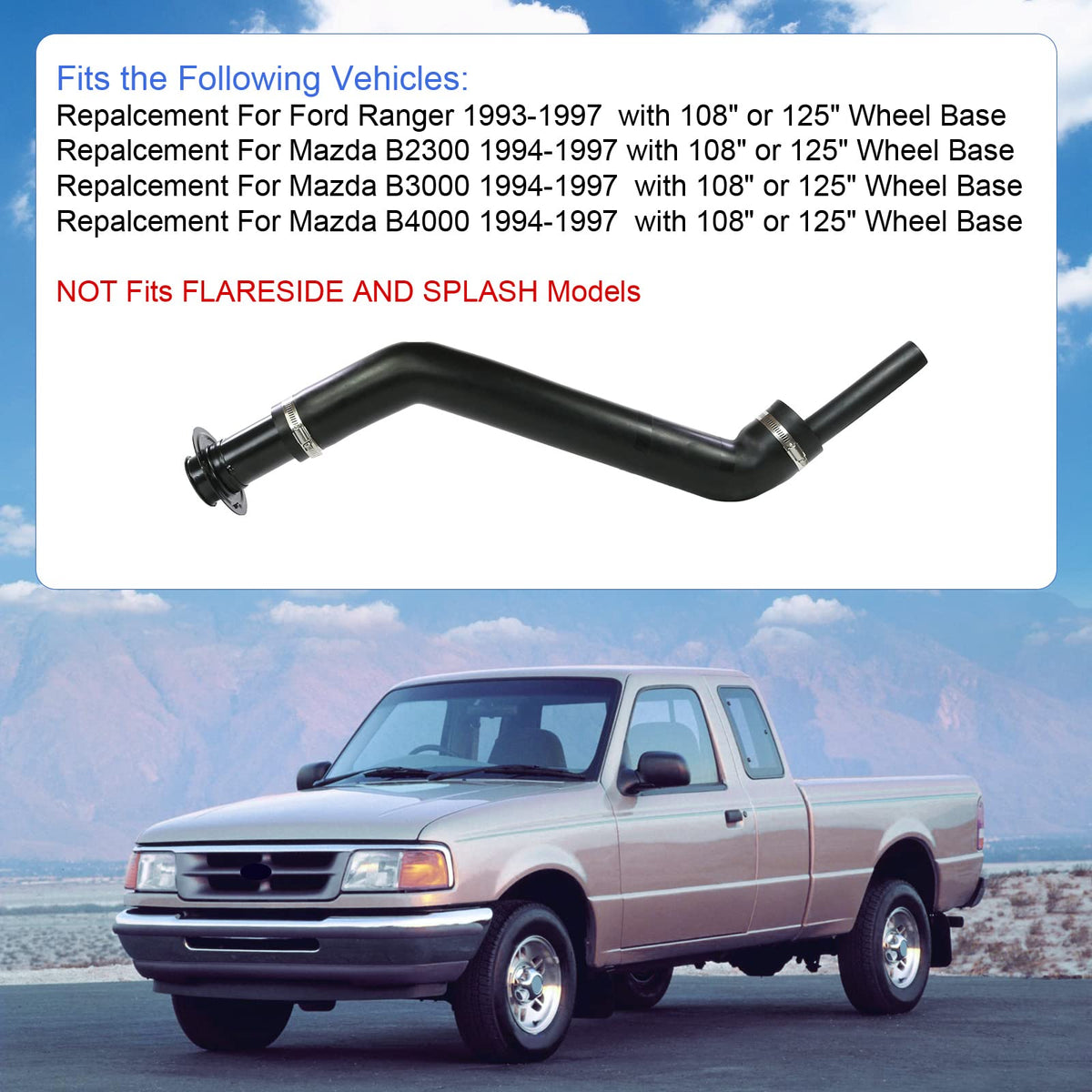

Compatibility is specific to wheelbase and bed style—check your vehicle details before ordering. This part fits Ford Rangers from 1993 through 1997 and Mazda B2300, B3000, B4000 trucks from 1994 through 1997 with a 108" or 125" wheelbase. It does not fit Flareside or Splash bed models.

• Fits Ford Ranger 1993–1997 (108" or 125" wheelbase)
• Fits Mazda B2300/B3000/B4000 1994–1997 (108" or 125" wheelbase)
• Not compatible with Flareside or Splash models

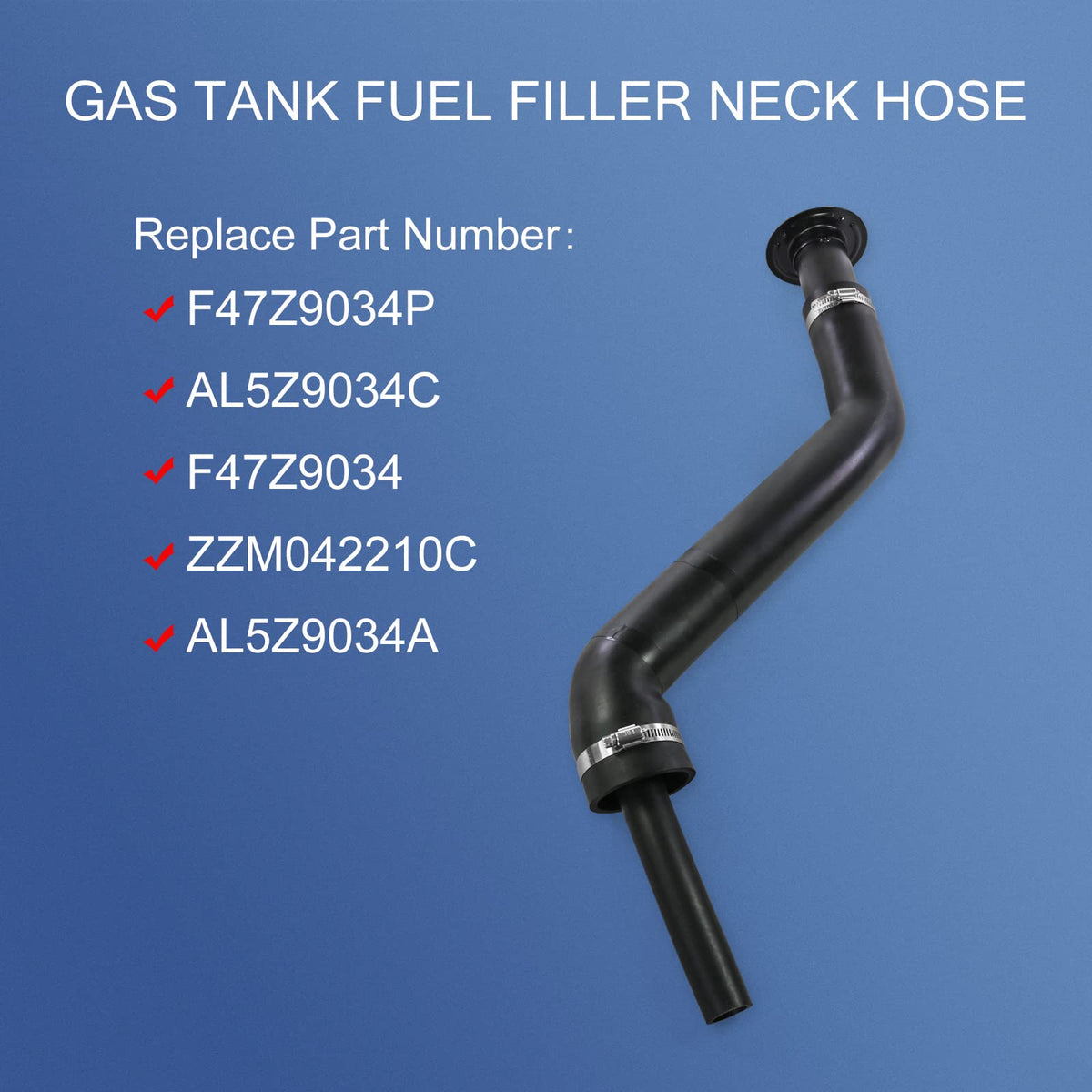

• Replaces OEM numbers F47Z9034P, AL5Z9034C, F47Z9034, ZZM042210C and variants

How does installation work and what tools will I need?

Installation is straightforward for anyone comfortable working under the vehicle or in the wheelwell; basic hand tools are usually sufficient. The assembly comes with stainless steel hose clamps and a reinforced hose to attach to the tank and filler neck. If existing mounting brackets or fasteners are corroded, you may need replacement hardware.

• Typical tools: ratchet, sockets, screwdrivers, pliers
• Includes stainless clamps for secure hose connections
• Designed to follow OEM mounting points for a direct fit
• Allow time to remove rusted bolts or corroded brackets if present

What materials and features improve durability and performance?

The LDMINDA filler neck assembly combines stainless steel with a reinforced rubber hose and a powder-coated finish for corrosion resistance. Stainless clamps resist rust and maintain a tight seal, while the hose material withstands fuel exposure and movement. Built to OEM specifications, the assembly reduces fuel spillage and prevents pump shut-off issues caused by venting or misaligned tubes.

• Stainless steel tube for rust resistance and strength
• Powder-coated finish for added corrosion protection
• Reinforced rubber hose resists fuel and flexing wear
• Stainless steel hose clamps provide firm sealing

What common problems does this replacement solve?

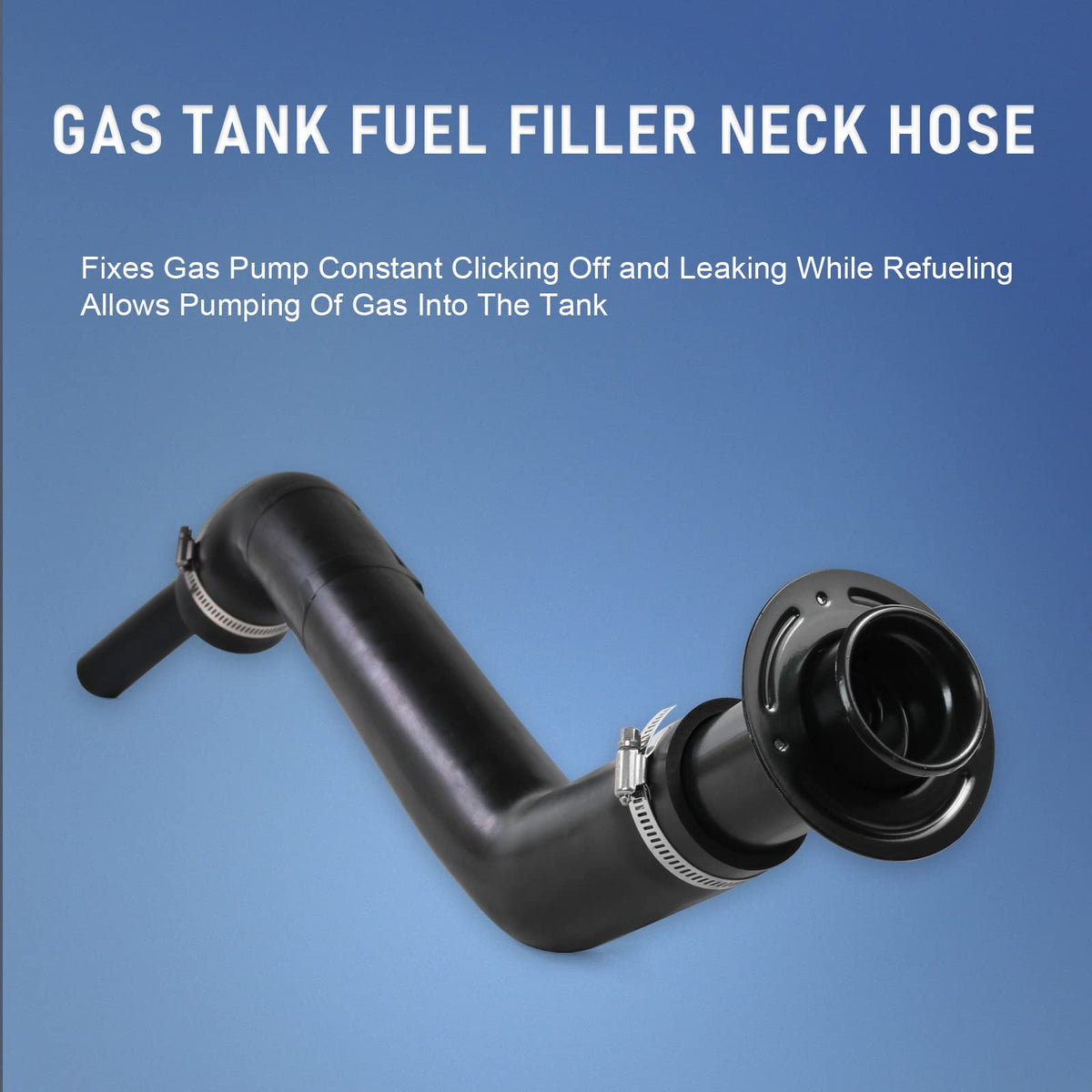

Worn or corroded filler necks can allow fuel to leak or create improper venting that trips the pump nozzle. Replacing the assembly restores correct alignment and gasketing, which helps eliminate leaks and repeated pump shut-offs while refueling. It also renews a secure connection to the tank to prevent odours and fuel loss.

• Stops leaking around the fuel inlet
• Prevents pump nozzle from shutting off prematurely
• Restores secure connection to the gas tank
• Helps reduce fuel vapour escape and odours

Who is this for: This LDMINDA fuel filler neck and hose kit is intended for owners and mechanics of 1993–1997 Ford Ranger and 1994–1997 Mazda B-series trucks (108" or 125" wheelbase) who need a long-lasting, OEM-style replacement. Choose this assembly if you want stainless components and reinforced hose material to avoid recurring leaks, restore reliable refueling, and extend the useful life of an older truck’s fuel inlet system.
