Leviton 50A EV Charging Receptacle NEMA 14-50R Black 1450R, Flush‑Mount Heavy‑Duty

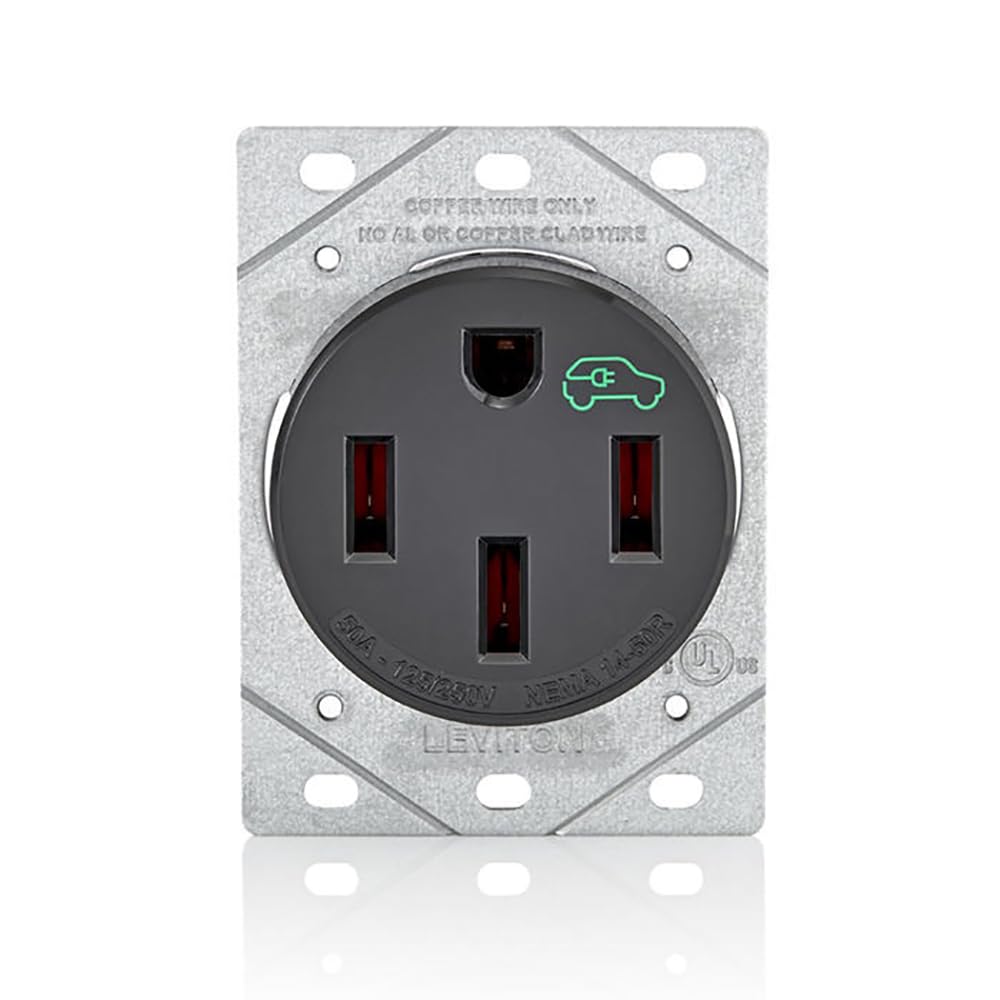

Leviton 1450R is a heavy-duty, flush-mount 50 amp NEMA 14-50R receptacle built for plug-in EV chargers and high-demand 125/250V circuits.

Engineered for residential and light-commercial EV charging setups, the Leviton 50 Amp 1450R delivers a durable, grounded outlet option when you prefer a corded, plug-in charger instead of a hardwired installation. Its industrial-grade construction and side-wired termination are intended to withstand frequent insertions and extended charging sessions, while providing a straightforward installation for electricians and experienced DIYers.

What makes this outlet suitable for EV charging?

The 1450R is designed specifically for plug-in electric vehicle charging, matching the common 125/250V, 50A requirement of many Level 2 chargers. It uses a straight-blade NEMA 14-50R configuration with four poles and a grounding connection, ensuring compatibility with standard EV charging cords.

• 50 Amp capacity for Level 2 charging at residential voltages
• NEMA 14-50R straight-blade pattern for broad charger compatibility
• 3-pole, 4-wire design including a dedicated ground
• Flush-mount style for neat wall or inlet installations

How durable and reliable is the Leviton 1450R under frequent use?

Built from high-impact nylon with an industrial-grade steel strap, this receptacle resists physical wear and maintains mechanical stability during repeated plug cycles. Pressure-wire terminal connections provide strong conductor contact and are specified to 75 in-lbs to secure wiring reliably.

• High-impact nylon body for crack and abrasion resistance
• Steel strap for secure mounting and long-term stability
• Pressure-wire terminals ensuring consistent electrical contact
• Terminals torqued to 75 in-lbs for dependable connections

Can I use this if I don’t want a hardwired EV charger?

Yes — the 1450R is an ideal choice for homeowners who prefer a plug-in charging unit instead of a permanently hardwired charger. The outlet accepts standard NEMA 14-50 plugs, allowing you to connect a portable charger or use a detachable charging cable for flexibility and easier replacement or upgrades.

• Supports plug-in Level 2 chargers for flexible charging locations
• Side-wired termination simplifies installation in confined spaces
• Flush-mount profile keeps the outlet tidy and accessible

What should an installer know before wiring the receptacle?

Installers must match the receptacle to a 125/250V, 50A circuit and follow local electrical code and manufacturer instructions. Side-wired terminals require the correct conductor sizes and proper torque to ensure safe operation and long-term reliability.

• Requires 50A breaker and correctly sized conductors per code
• Side-wire terminals accommodate standard stranded or solid conductors
• Torque terminals to 75 in-lbs for secure electrical contact
• Flush-mount installation may require a compatible electrical box depth

Who is this for: The Leviton 1450R is aimed at homeowners, property managers, and installers who want a robust, grounded receptacle for plug-in EV charging. It suits anyone who prefers the convenience of a detachable Level 2 charger rather than a hardwired unit, and professionals seeking an industrial-grade outlet with secure pressure-wire terminals and durable construction.
