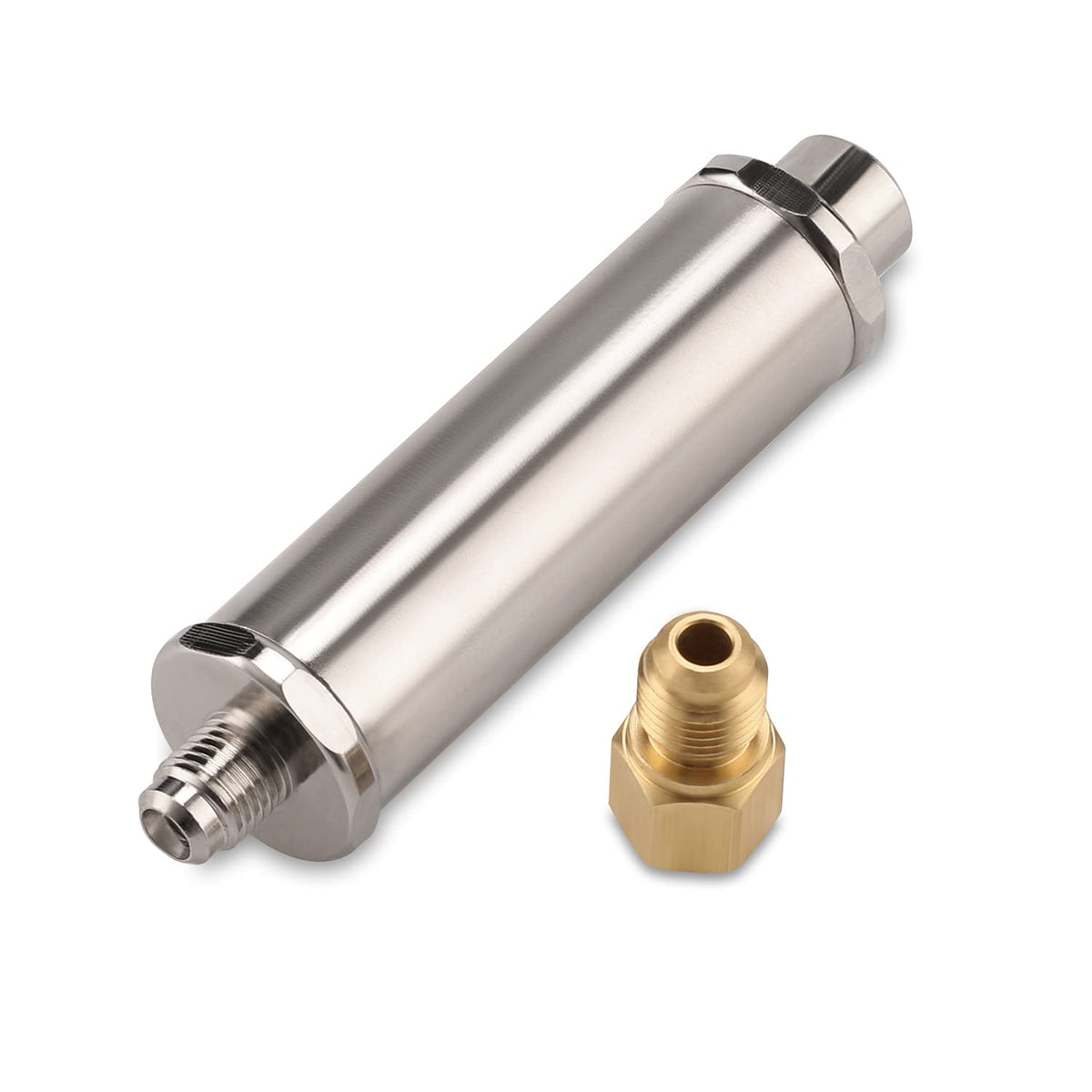

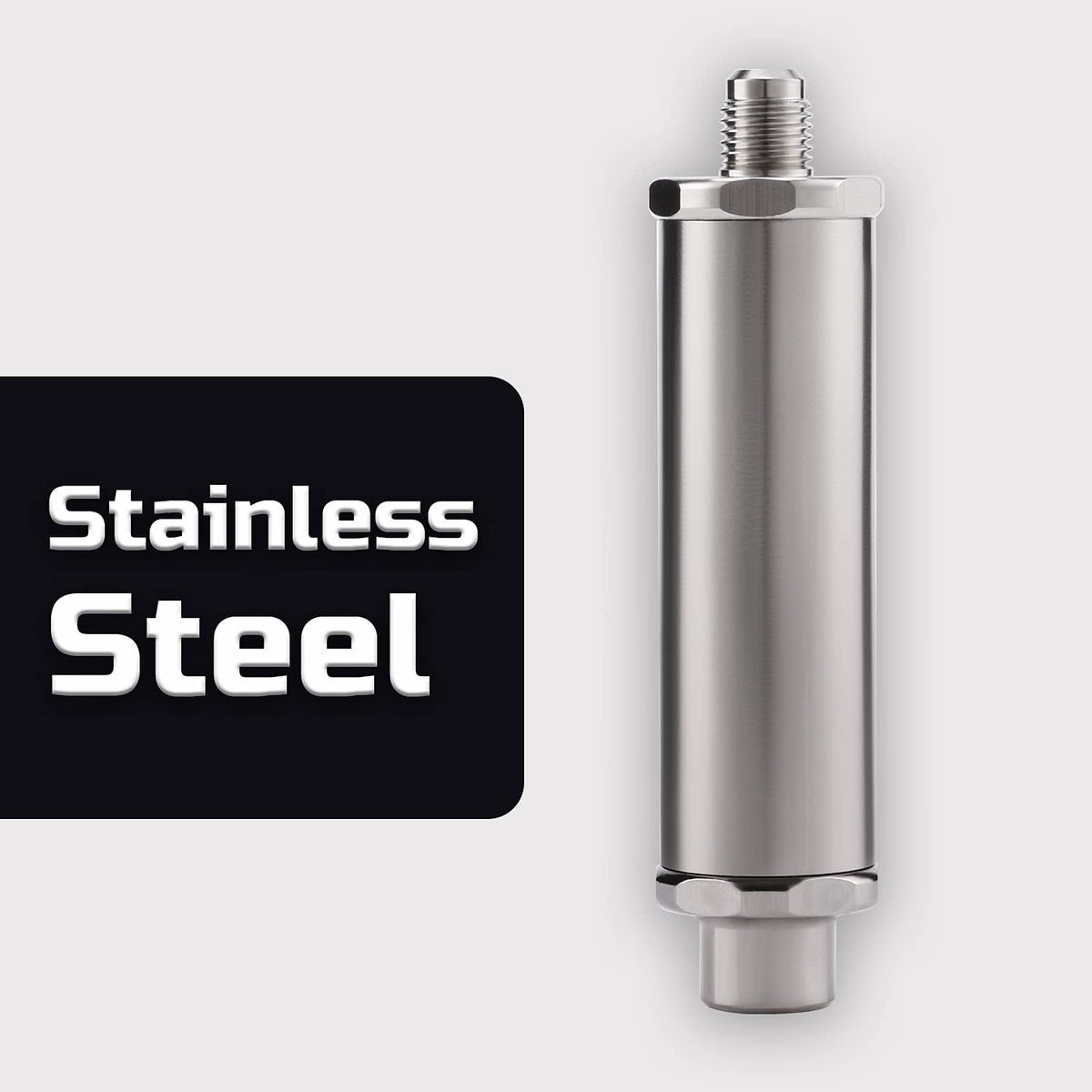

Lichamp Liquid Vaporizer for HVAC R410A Refrigerant Vapor

The Lichamp Liquid Vaporizer converts R410A refrigerant from liquid to vapor on the low side, enabling faster, controlled charging of air-conditioning systems without preheating the cylinder.

Designed for HVAC technicians and service shops, this compact low-side vaporizer attaches to the blue (low-pressure) gauge port and transforms liquid R410A into gas through an engineered orifice. The device speeds up evaporation compared with standard liquid charging methods, incorporates an automatic check valve for vacuum handling, and fits standard 1/4-inch service fittings for straightforward installation.

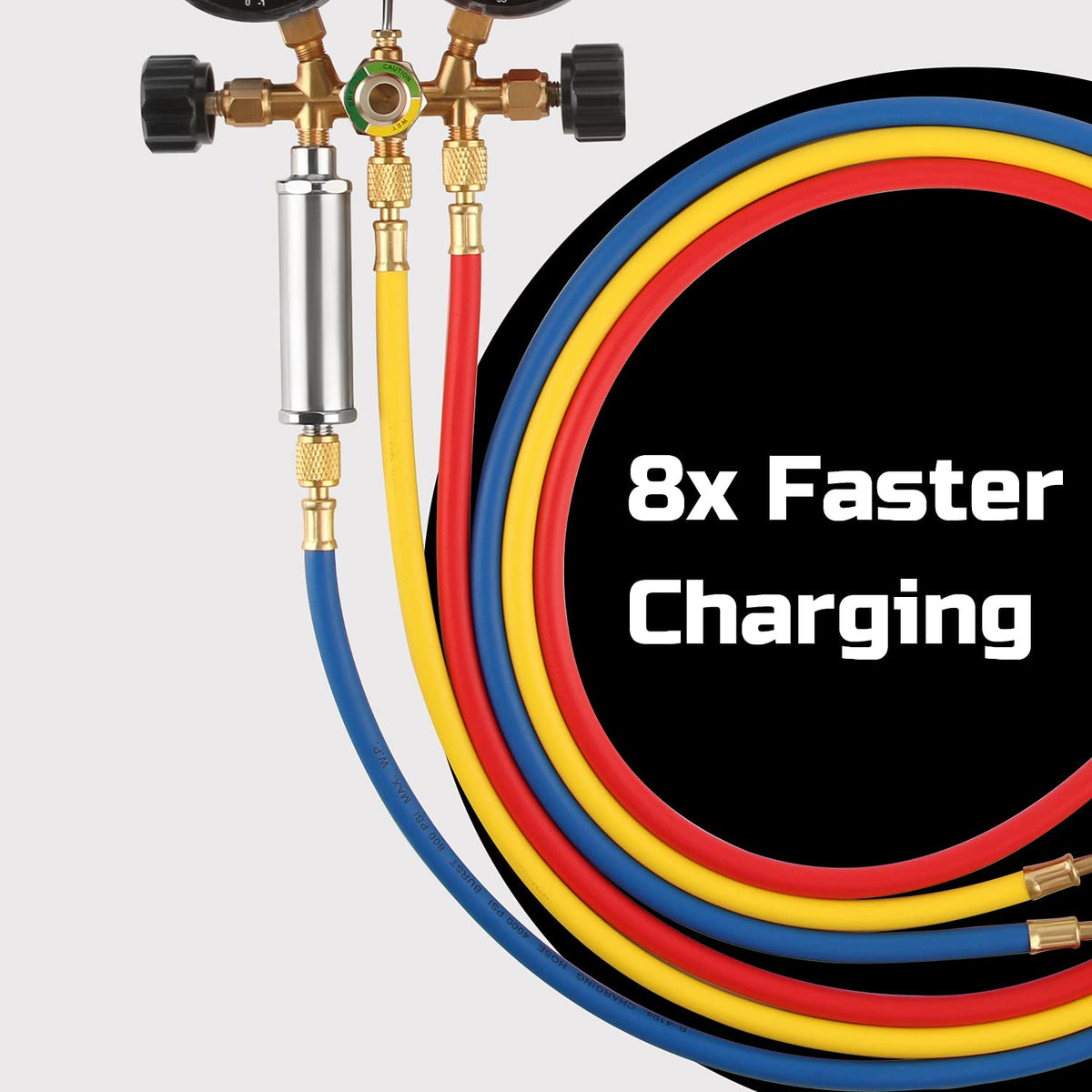

How does the vaporizer speed up R410A charging?

The unit forces refrigerant through a pressure orifice that promotes rapid phase change from liquid to gas. Applying heat via built-in thermal transfer paths helps vaporize the refrigerant more quickly than passive charging methods, reducing overall service time.

• Pressure-orifice design encourages immediate vaporization
• Heat exchange accelerates evaporation compared to slow liquid feed
• Designed for continuous charging on systems 1/2 ton and larger

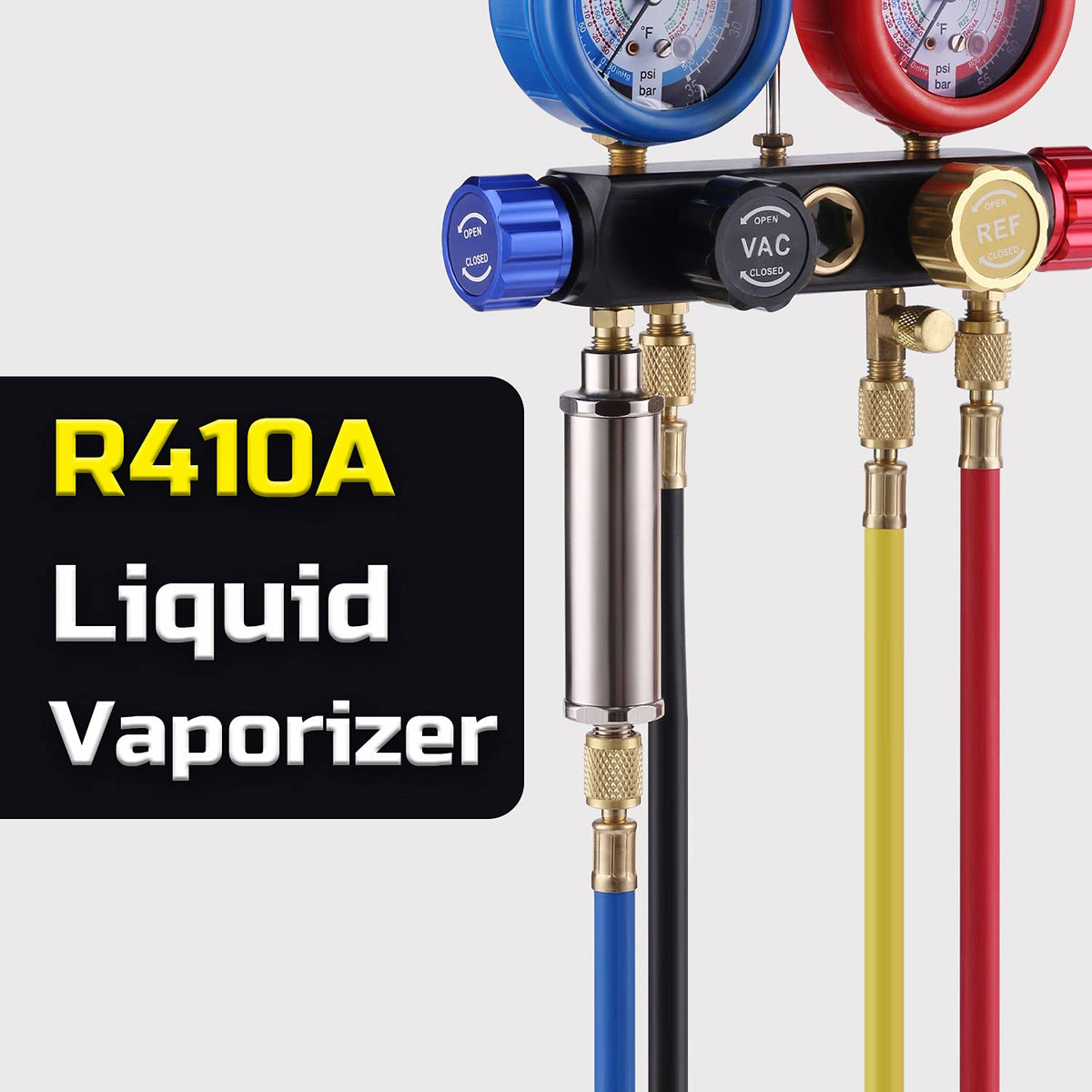

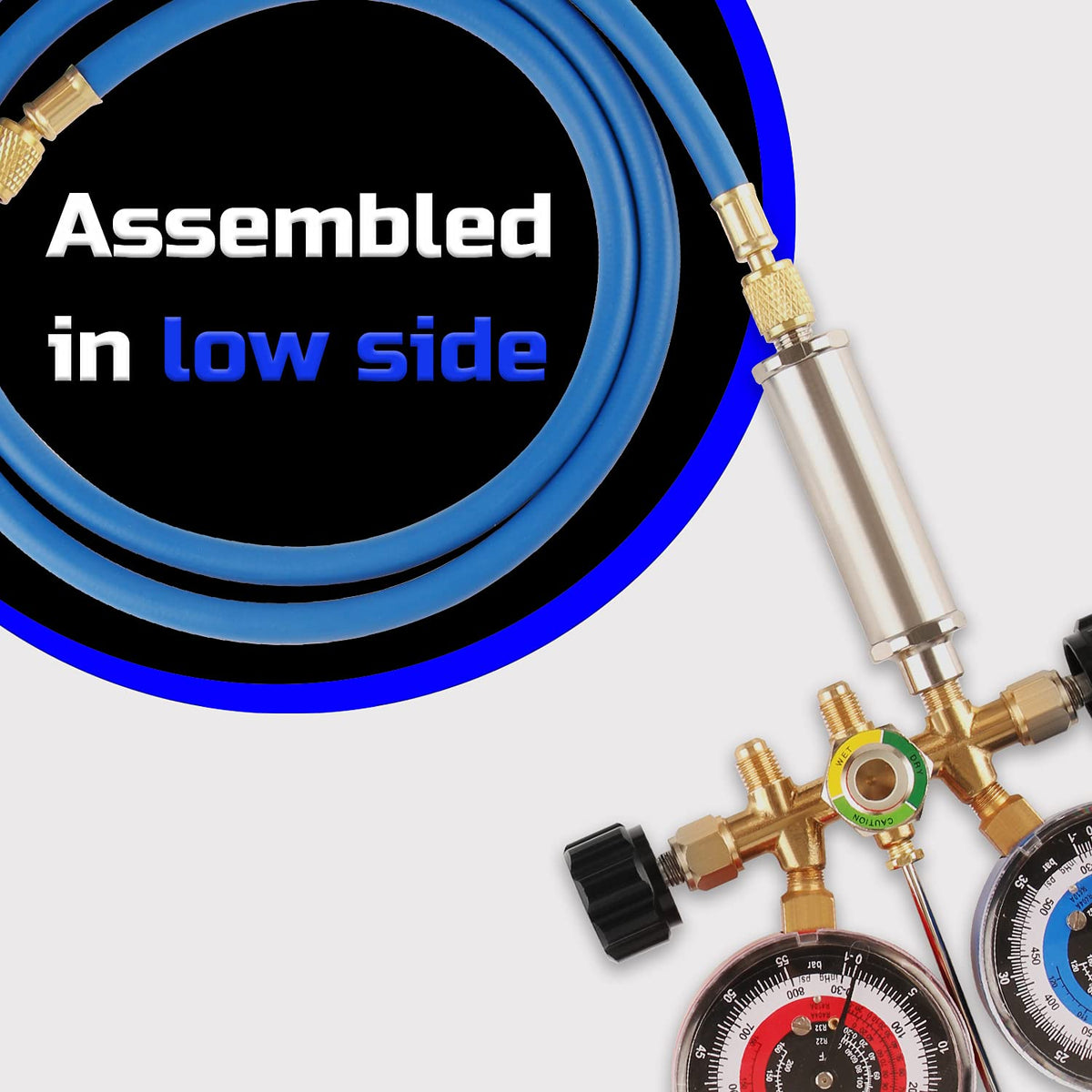

How do I install and operate it safely on the low (blue) side?

Mount the vaporizer onto the HVAC low-side gauge port using the 1/4-inch fitting, purge the service hoses, and invert the refrigerant cylinder above the gauge to remove air. Close the red valve on your manifold, open the blue low-side valve and the tank valve to initiate vapor charging; follow regular safety and PPE procedures for refrigerant handling.

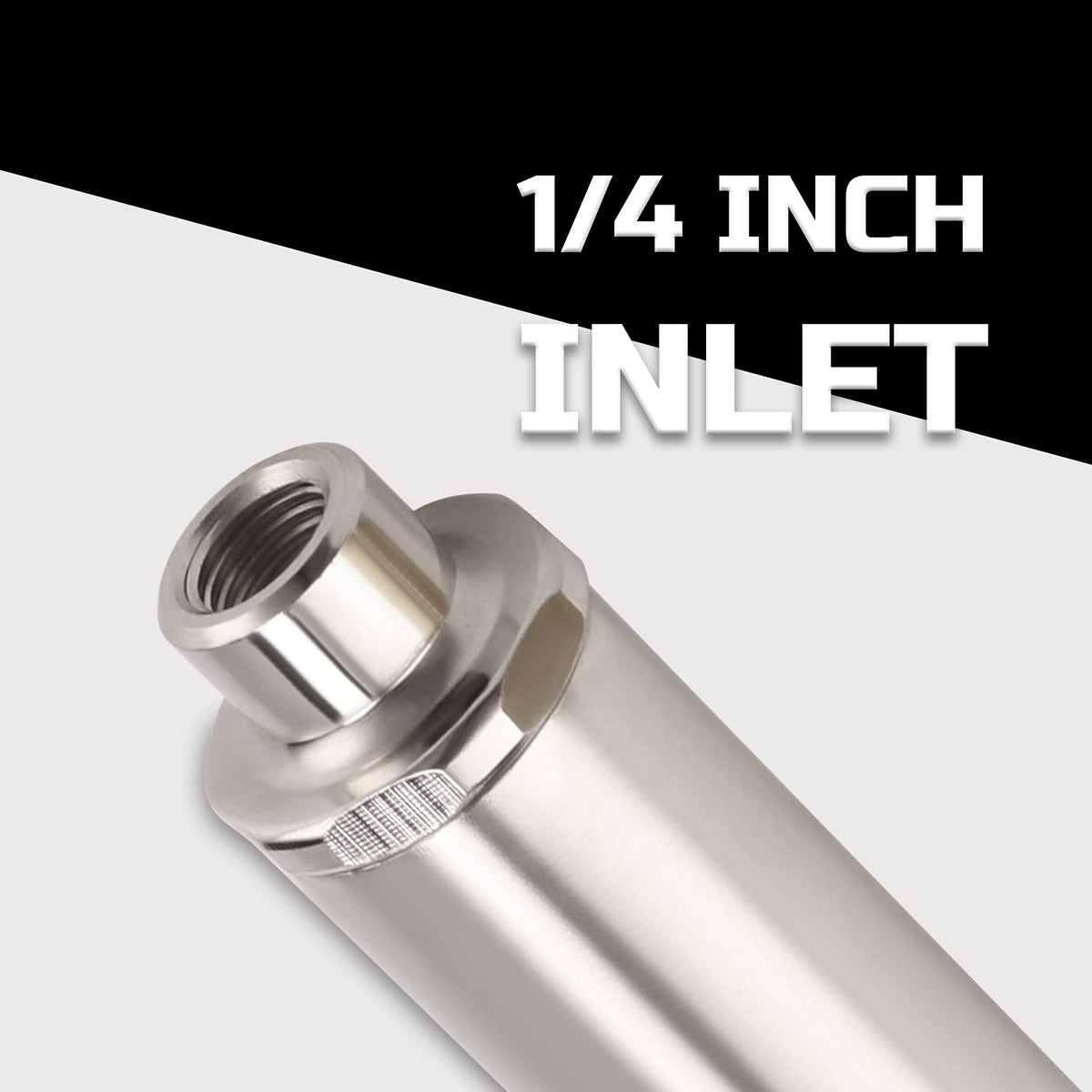

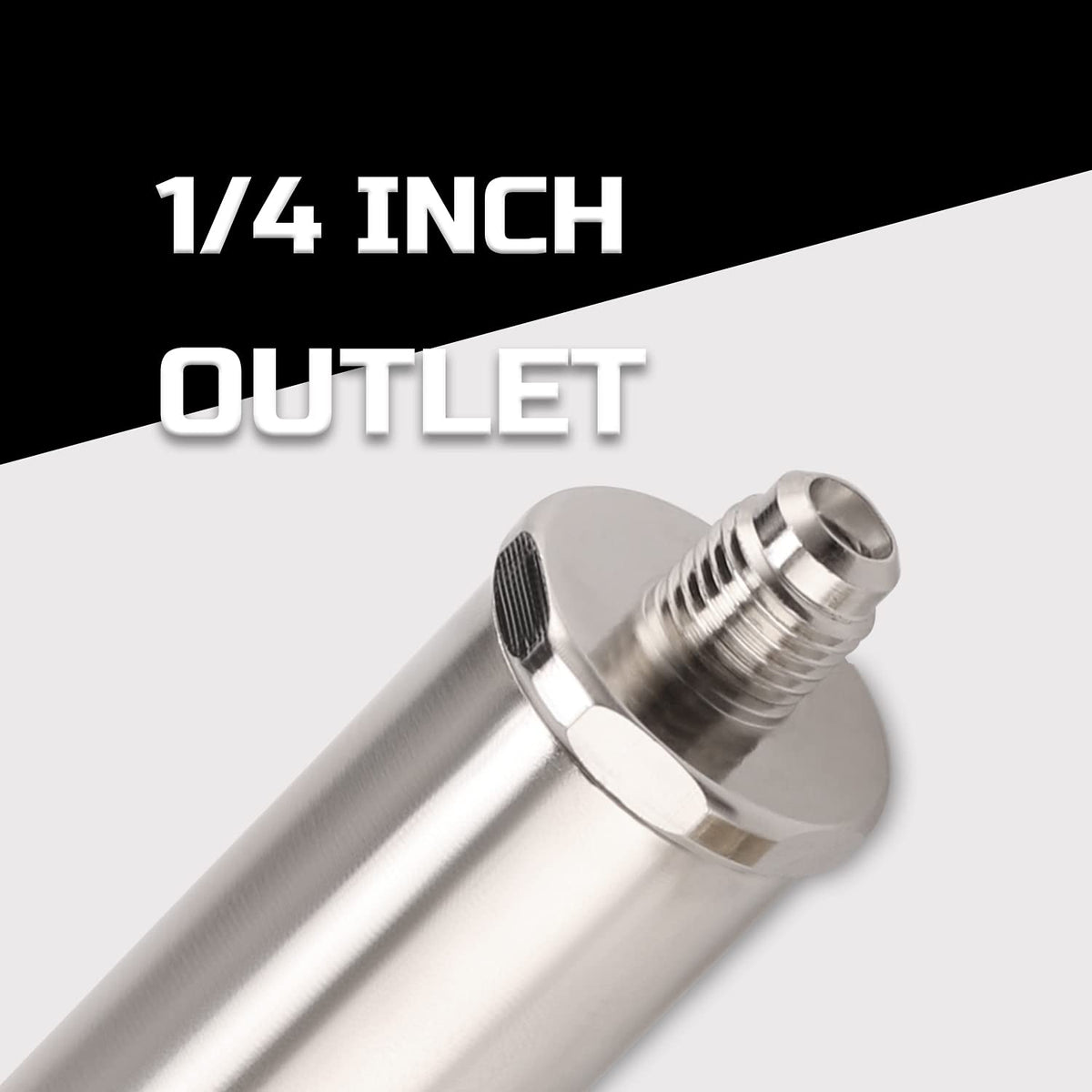

• Attach to the blue low-side gauge with 1/4-inch fittings
• Fully purge lines and invert the cylinder for accurate flow
• Sequence: close high-side, open low-side and tank valves to begin

What features support vacuum and cylinder protection?

An integrated automatic check valve prevents backflow and allows vacuum pulling without removing the adapter. The check mechanism protects the service manifold and helps maintain cylinder pressure stability during charging—expect a light rattling noise from the valve during operation, which is normal.

• Automatic check valve enables safe vacuum operations
• Reduces risk of backflow into the refrigerant cylinder
• Designed to maintain cylinder pressure without preheating

Will this work without preheating the refrigerant cylinder?

Yes — the Lichamp vaporizer is intended for direct charging without preheating the cylinder. Its internal vaporization method eliminates the need to warm the source cylinder, helping maintain cylinder pressure and simplifying field service on most residential and commercial units.

• No exterior cylinder heating required for effective vaporization
• Minimizes pressure loss in the refrigerant tank during charging
• Suitable for units one-half ton and larger when charging R410A

This vaporizer is built for HVAC technicians, maintenance teams, and contractors who need a reliable, portable solution for R410A low-side charging. It’s best for professionals who regularly service split systems, air handlers, and rooftop units where efficient vapor charging and vacuum capability save time and reduce operational steps. Not a substitute for mandated refrigerant-handling training—operators must follow local regulations and safe refrigerant practices.
