LIMICAR 7-Way Trailer Wire 25ft 14 AWG — Color-Coded CCA, PVC Jacket

LIMICAR 25-foot 14 AWG 7-way trailer wire is a pre-measured, color-coded roll designed to speed up and simplify wiring for short trailers and small RV builds.

This 25-foot spool from LIMICAR supplies seven individually insulated conductors following SAE J1128 color conventions, built with copper-clad aluminum (CCA) conductors and a durable PVC jacket rated for typical towing and marine environments. It’s aimed at owners and builders who need the right length for trailers under about 20 feet — enough to route, cut and terminate without excess waste from oversized rolls.

How does this wiring make a short trailer build easier?

The roll is pre-measured to reduce scrap and simplify planning: you get enough length for most single-axle utility trailers, small boat trailers, and compact campers while keeping coil bulk manageable. The color-coded insulation follows common pin assignments so connections are faster and less error-prone.

• 25-foot length fits trailers under ~20 feet with minimal leftover
• Seven distinct colors matching SAE J1128 wiring conventions
• Ready to cut, strip and route — no need to join multiple runs

What electrical performance can I expect from 14 AWG CCA conductors?

14 AWG copper-clad aluminum balances conductivity and weight: it carries 12V trailer signals and auxiliary circuits reliably when properly terminated, and is lighter and more flexible than the equivalent solid copper. Use quality crimp or soldered terminals and corrosion-resistant connectors to maintain good long-term contact.

• CCA offers solid 12V signal performance for lights and brake controllers
• Suitable for LED tail lights, turn signals, reverse and auxiliary power
• Best practice: use corrosion-inhibiting terminals and heat-shrink seals

Is the cable durable enough for outdoor and marine use?

The outer jacket is a heavy-duty PVC rated from -20°C to 105°C and resists abrasion, making it suitable for typical road and trailer exposures. While not a lifetime marine compound, it holds up well against chafing, vibration and routine weather when routed and protected correctly.

• Thick PVC jacket resists wear along frame rails and through grommets
• Operating temperature range covers most towing climates
• Recommended routing: inside conduits or secured to frame with clamps

Which vehicles and systems will this wire work with?

Designed for universal 12V trailer wiring, the LIMICAR 7-way roll is compatible with standard 7-pin connectors used on boat trailers, campers, cargo trailers, and utility trailers. It supports electric brake controllers, turn signals, tail lights, reverse circuits and an auxiliary 12V feed when installed per your vehicle’s pinout.

• Fits RVs, horse trailers, food trucks, and small utility trailers
• Works with electric brake controllers and LED lighting systems

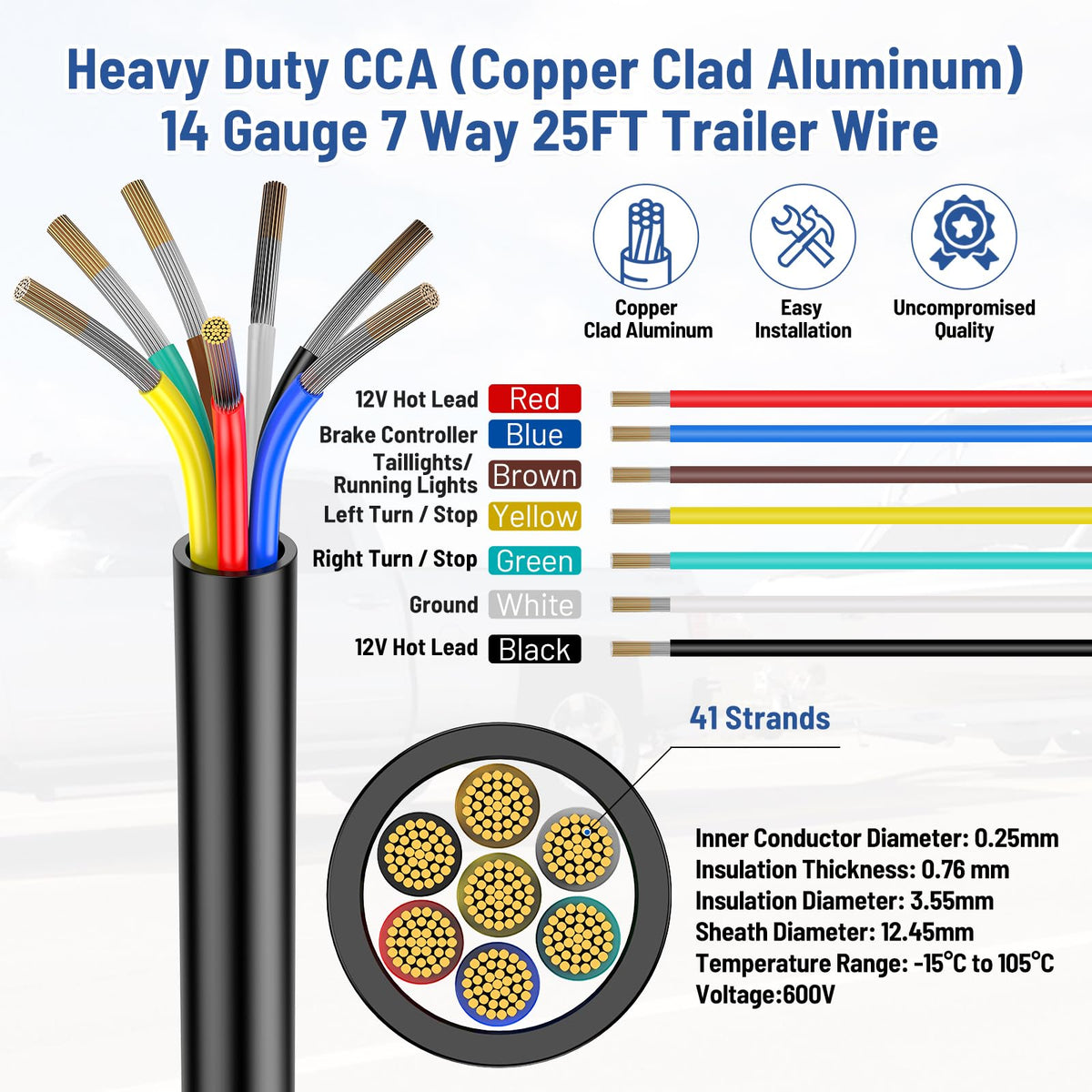

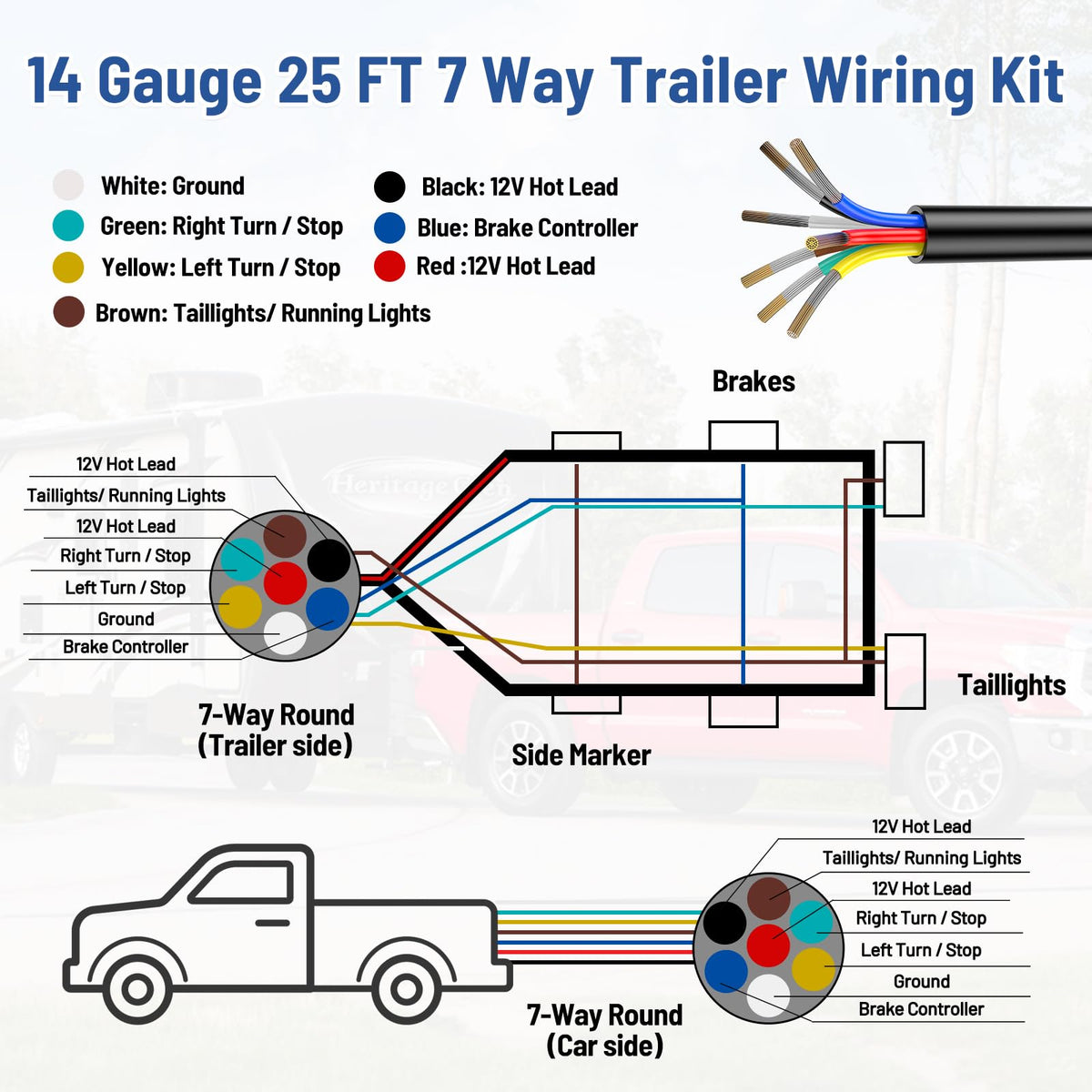

• Color key included: Red aux, White ground, Blue brakes, Yellow left, Green right, Brown tail, Black reverse

Who is this for: LIMICAR’s 25FT 14 AWG 7-way trailer wire is ideal for DIYers, trailer fabricators and small-fleet operators building or repairing trailers under 20 feet. Choose this roll if you want a manageable length, clear color coding to reduce wiring mistakes, and a lightweight conductor that’s easier to route than solid copper. If your project needs longer runs or higher current capacity, consider larger spool lengths or heavier gauge wire.
