LIMICAR Trailer Lights Kit 13.7-inch Light Bar + 6 Marker Lights, IP67 Waterproof, Welded Brackets

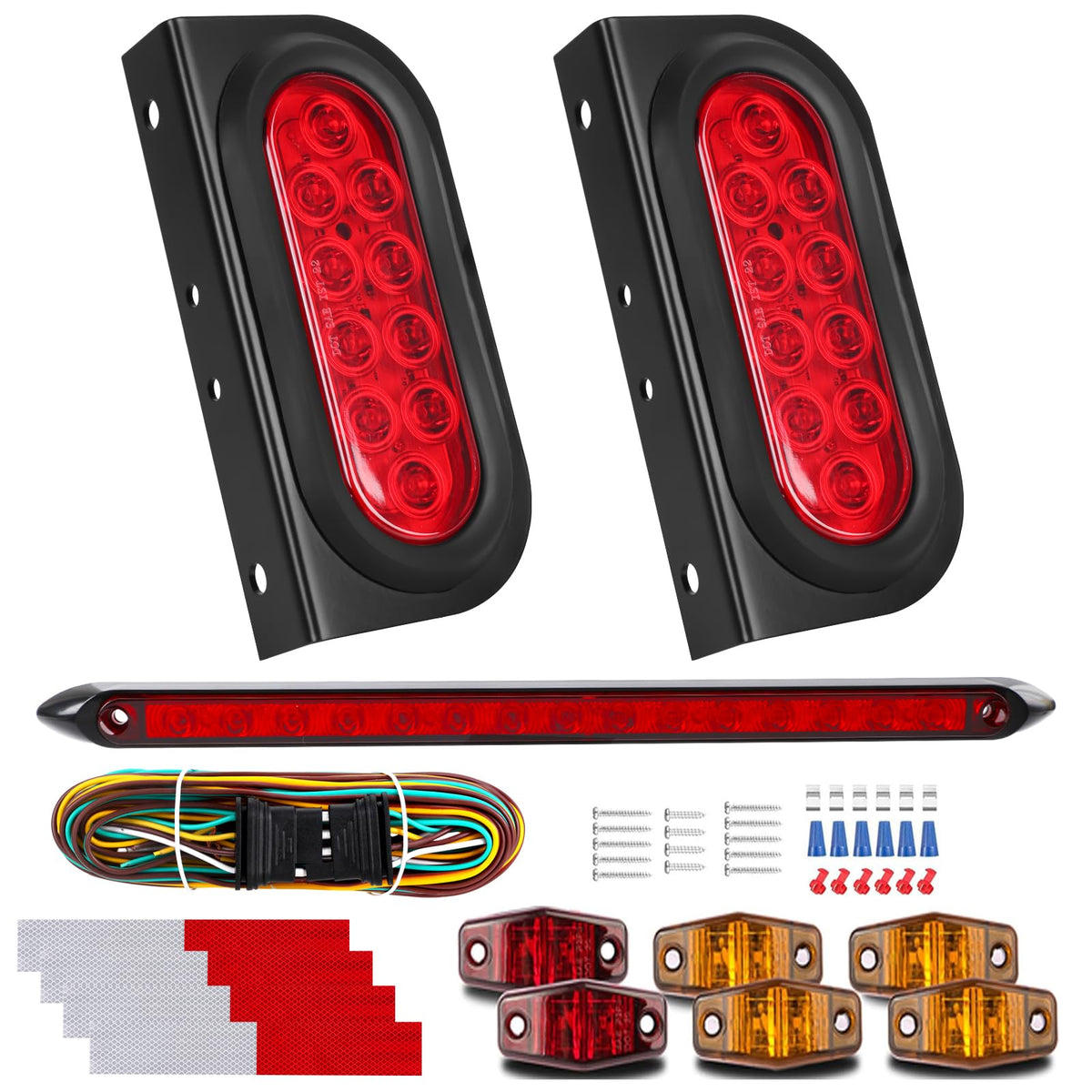

The LIMICAR Trailer Lights Kit is a complete LED lighting set that combines a 13.7-inch high-output light bar with six sealed marker/oval lights for brake, turn, tail and license illumination on trailers and utility vehicles.

This kit is engineered for visibility and weather resistance: high-density LED arrays deliver bright, energy-efficient output while IP67 sealing and stainless-fit mounting hardware protect the system from water, dust and road grime. It includes clearly labeled wiring for high/low modes, molded grommet plugs and welded mounting brackets so you can replace or upgrade trailer lighting with minimal fuss.

How bright is the LIMICAR light bar and marker set for nighttime driving?

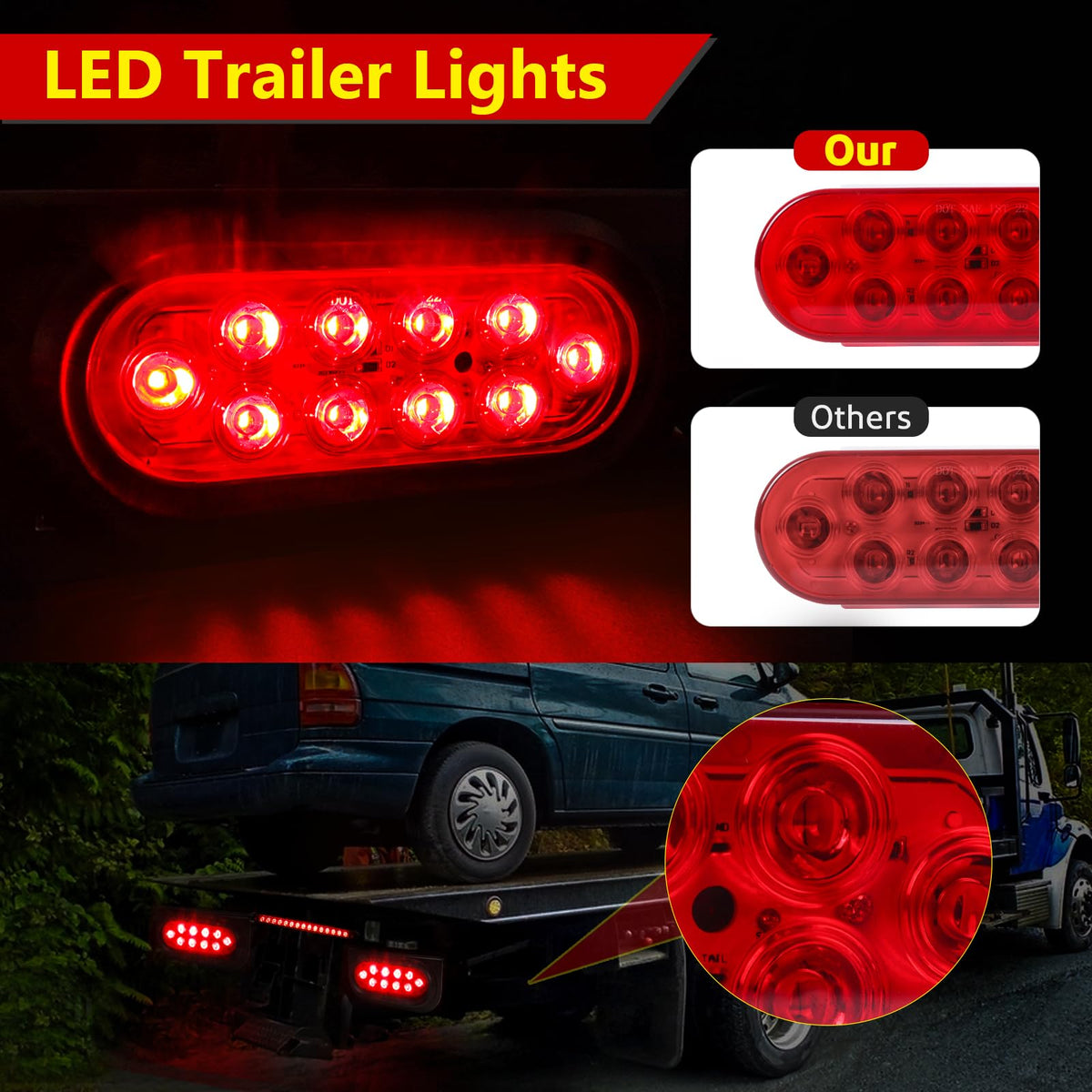

The kit uses multiple LED diodes arranged for wide-angle and forward-facing visibility. The driver side and passenger side oval lights each have dedicated front, side marker and license LEDs, while the 13.7-inch bar concentrates 15 diodes for strong centerline visibility.

• Driver-side oval: 34 diodes (21 front, 4 side, 9 license)
• Passenger-side oval: 25 diodes (21 front, 4 side)
• Light bar: 13.7 inches with 15 diodes for long-range visibility
• LEDs run cooler and consume less power than halogen equivalents

Will these lights survive rain, road salt and daily use?

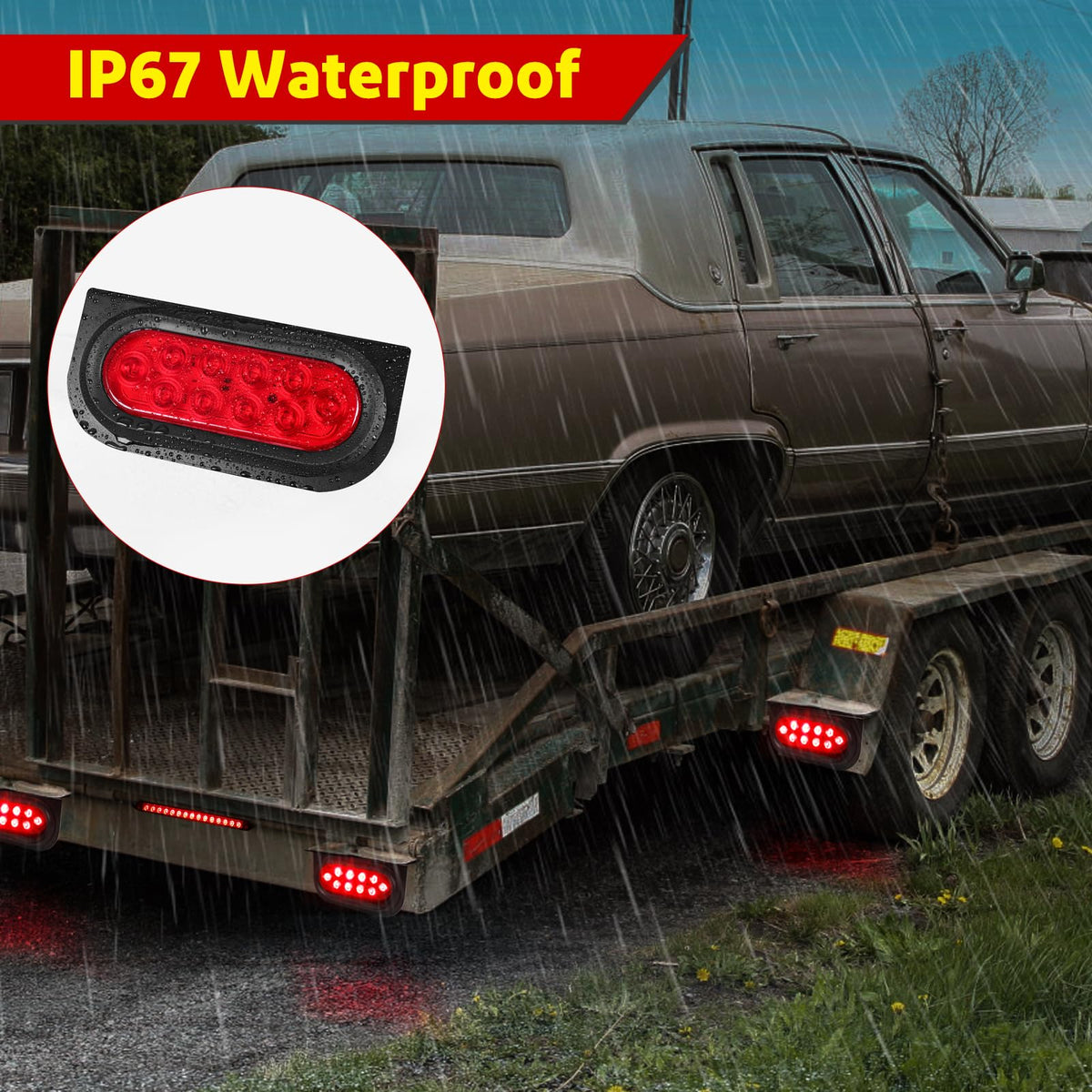

Yes — the lights are IP67-rated and assembled with sealed housings and integrated grommets to prevent moisture and debris ingress. Corrosion-resistant design and welded brackets extend service life in harsh conditions, from wet highways to dusty job sites.

• IP67 waterproof rating for protection against immersion and dust
• Sealed lens and housing to block sand, snow and salt spray
• Welded mounting brackets for durable attachment under vibration
• Long-lasting LEDs reduce filament failure risks

How is this kit wired and installed on typical trailers?

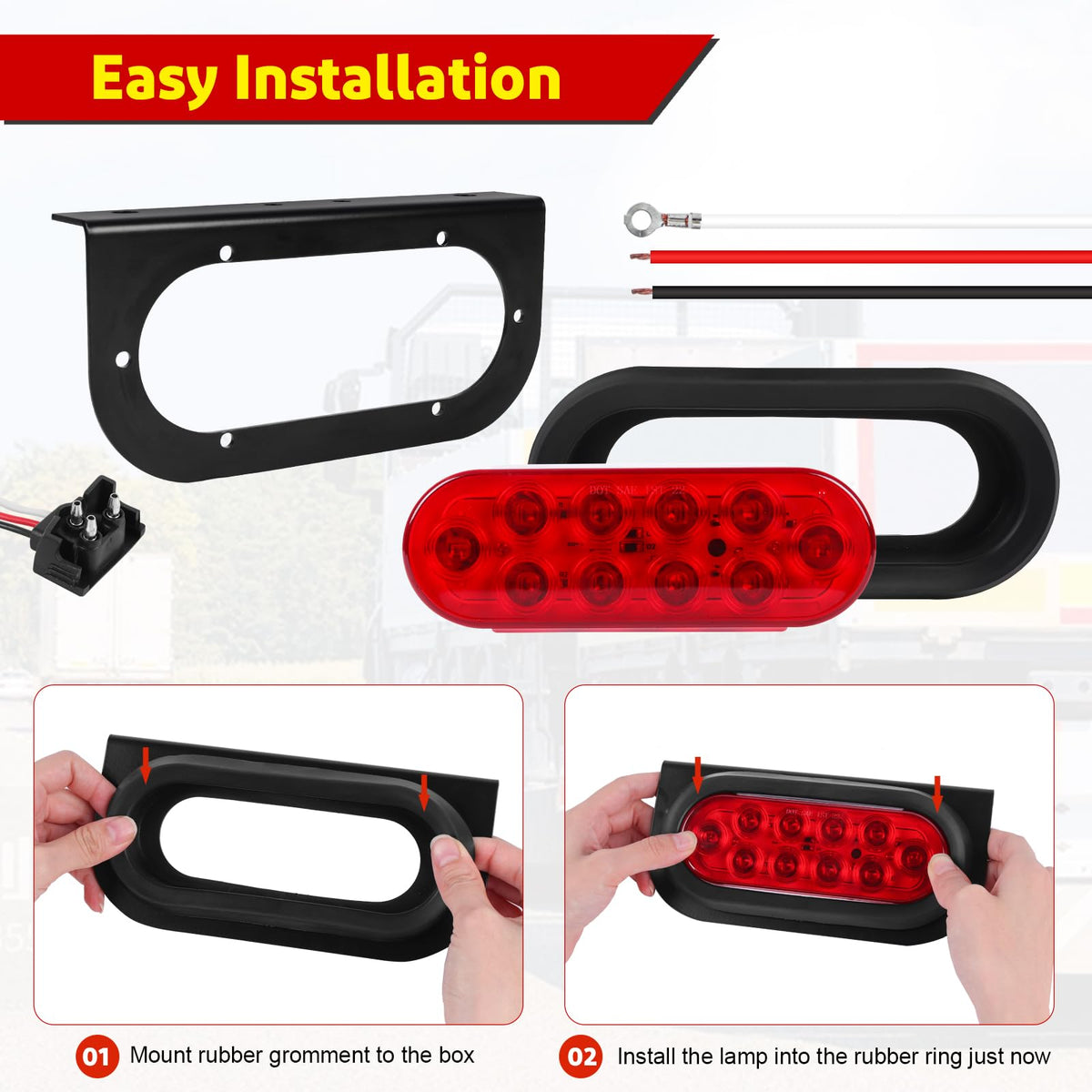

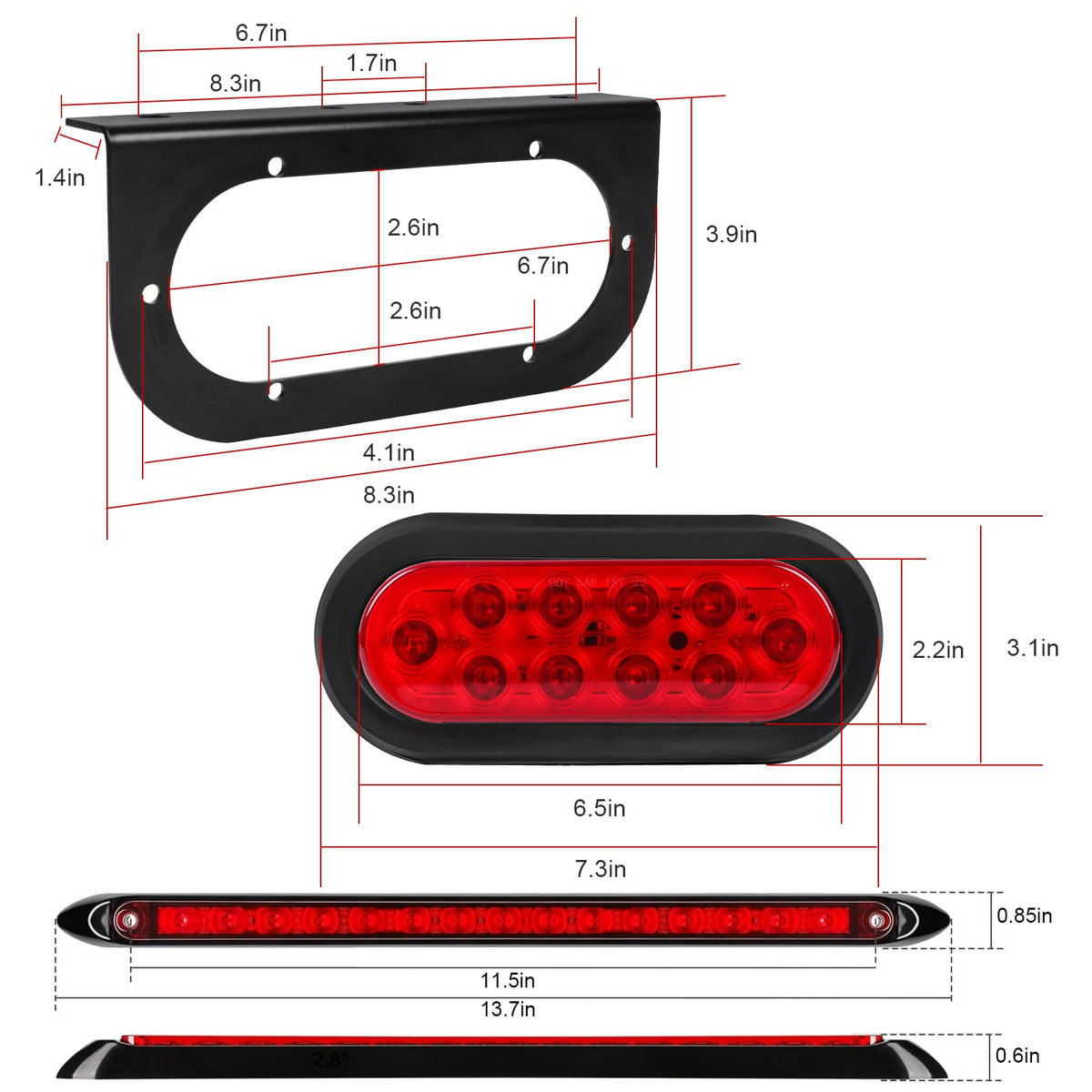

Installation is straightforward: each oval lamp uses three colored wires for high/low functions, and the light bar features simple two-wire control for run versus stop/turn modes. Rubber grommets and 3-prong plugs align with common trailer cutouts, and the bracket holes match a 0.39" round mounting diameter.

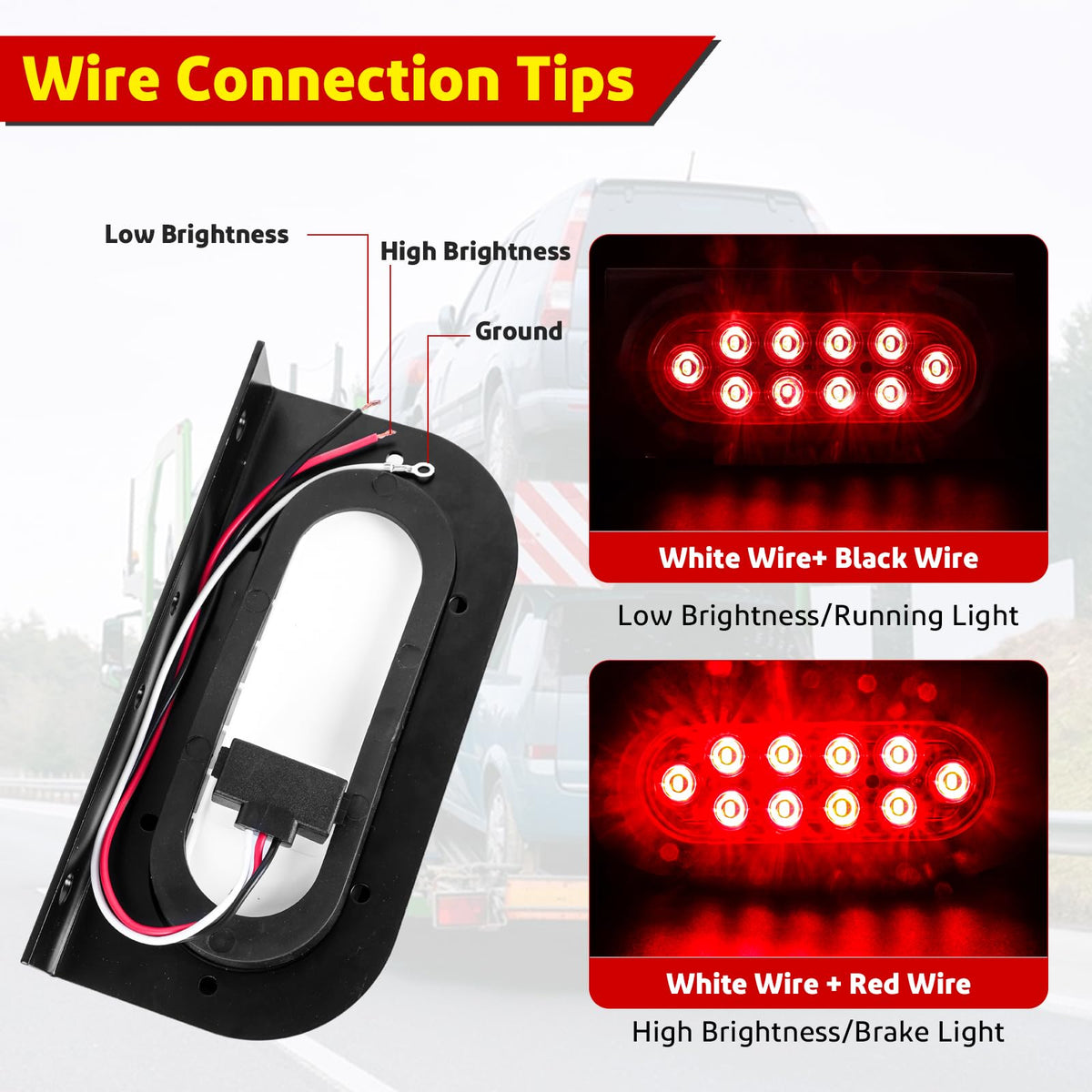

• Oval wiring: red+white = high (turn/brake); black+white = low (tail/running)
• Light bar wiring: white = ground; white+red = stop/turn; white+black = running
• Use supplied grommets and bracket holes; tighten nuts to secure
• Compatible with standard 3-prong trailer wiring harnesses

What vehicles and applications fit the LIMICAR Trailer Lights Kit?

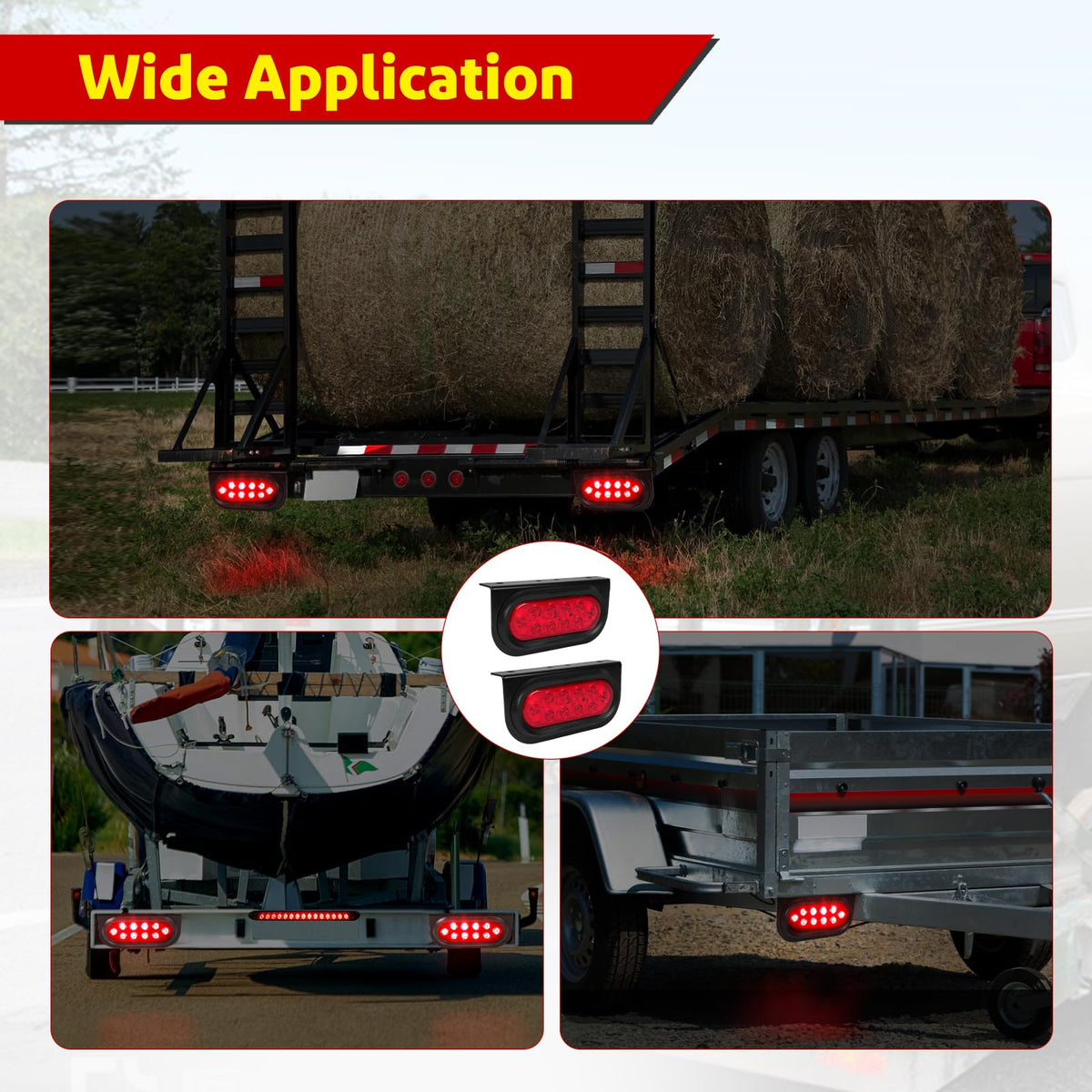

This kit was designed for universal trailer use and suits a broad range of vehicles where durable rear signaling and running lights are required. It’s commonly used on utility and cargo trailers, campers, agricultural equipment, and specialty vehicles.

• Utility trailers, box trailers and transport trailers
• Travel trailers, horse trailers and campers
• Dump trucks, tractors, boats and semi-trailer applications
• Any vehicle needing sealed, multi-function LED rear lights

Who is this for: The LIMICAR Trailer Lights Kit is a practical upgrade for trailer owners, fleet managers and DIY mechanics who need reliable, energy-efficient rear lighting that stands up to weather and heavy use. Choose this set if you want a sealed LED solution with clear wiring, welded mounting hardware and a compact 13.7-inch bar to supplement standard oval marker lights.
