Linkstyle 12V 2-Gang PWM Dimmer — 60W Per Channel, Aluminum Rotary ON/OFF Stepless 0–100% Control for LED Strips

The Linkstyle 12V 2-gang PWM dimmer is a compact rotary ON/OFF controller that smoothly adjusts brightness for single-color 12V LED strips, puck lights and cabin lighting up to 60W per gang.

Built for mobile and small-space lighting, this dimmer combines aluminum construction with pulse-width modulation (PWM) to deliver quiet, stepless dimming from 0% to 100%. Its compact footprint and included mounting hardware make it suitable for RVs, vans, boats and trucks where reliable, flicker-free control is needed for single-color LED and conventional 12V lamps.

How does this dimmer improve LED lighting in an RV or boat?

The Linkstyle PWM electronics provide stable, noiseless brightness control that avoids buzzing and flicker common with inferior controllers. Smooth adjustment helps set precise ambiance while reducing visible seams between light levels.

• Stepless 0–100% rotary control for precise mood setting
• PWM method preserves LED efficiency and reduces flicker
• Aluminum case dissipates heat for longer-lasting performance

What lights and systems is this dimmer compatible with?

This unit supports 12V single-color LED strip lights, puck lights and traditional 12V halogen or incandescent lamps within its 60W (5A) per channel limit. It is not suitable for fans, motors or lamps with built-in constant-current drivers.

• Works with single-color 12V LED strips and puck lights
• Compatible with 12V halogen and incandescent bulbs
• Not for speed control of motors, fans or constant-current fixtures

How do you install and wire the Linkstyle 12V dimmer?

Installation is straightforward: mount the dimmer with the included screws, then connect the supply and load wires as labeled. Ensure power is off during wiring and observe the polarity markings to avoid damage.

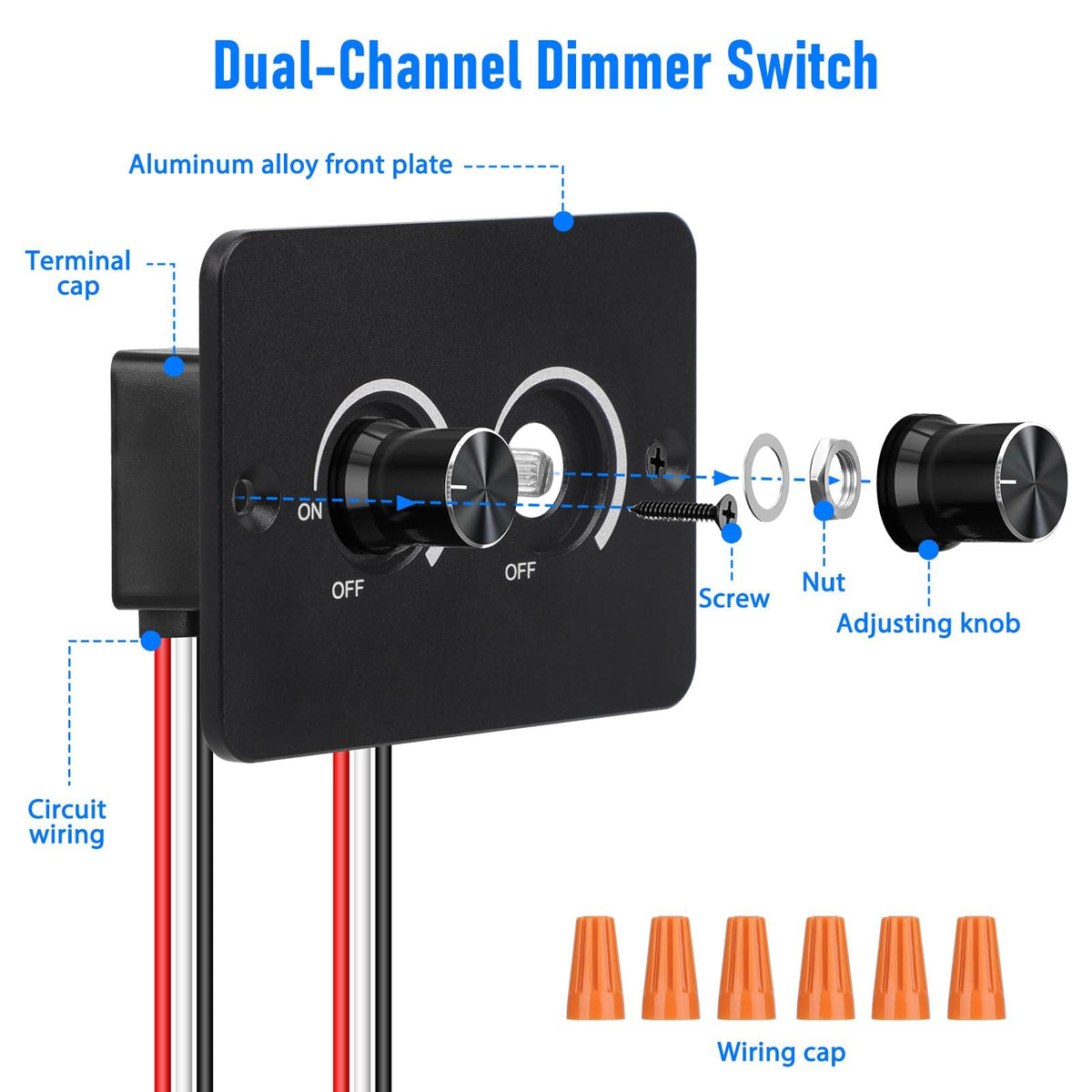

• Includes screws for quick panel mounting

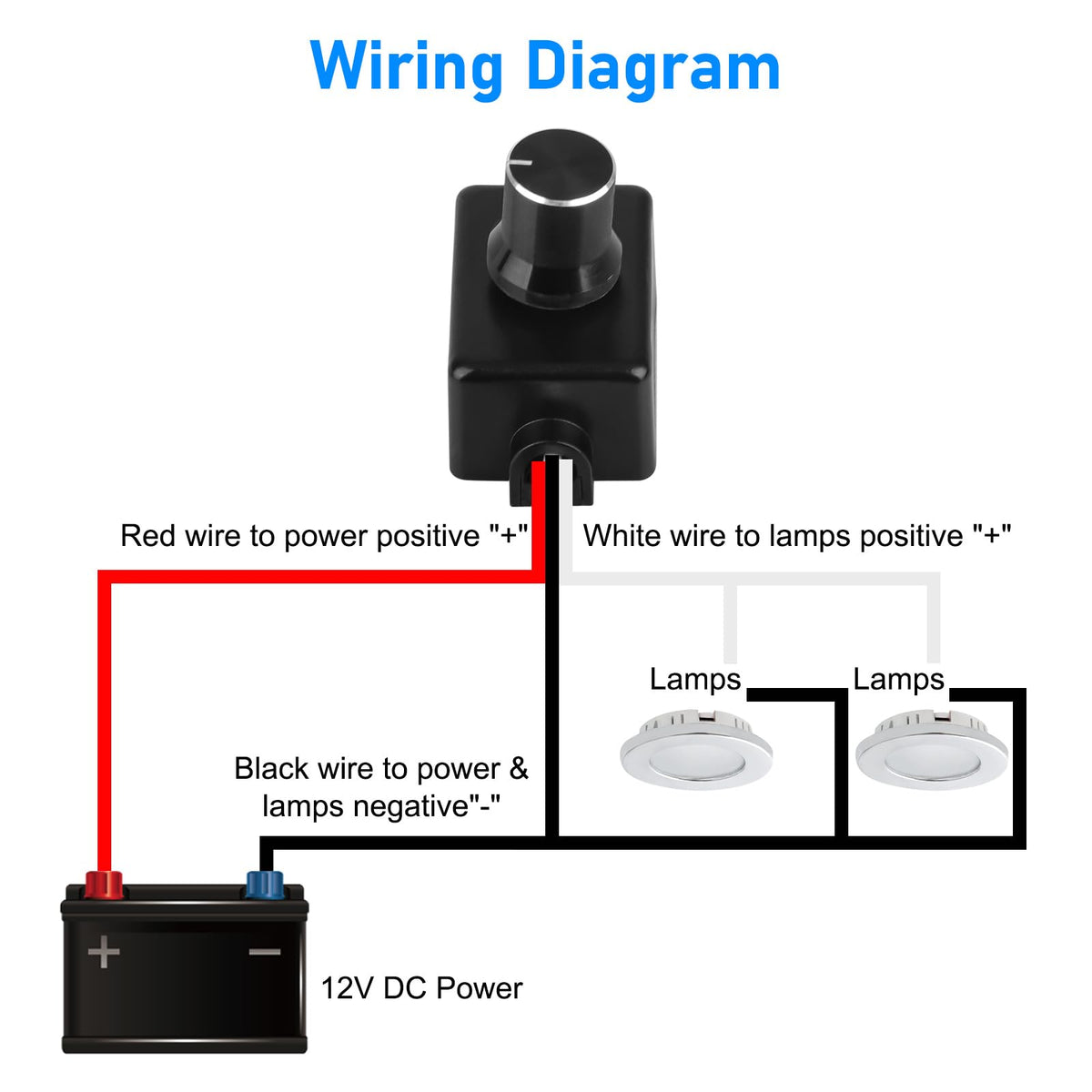

• Wire connections: red to "+", black to "-", white to "+" as labeled
• Rated for up to 60W (5A) per channel at 12V DC

Will this dimmer get hot or make noise during use?

The aluminum housing improves heat dissipation so the unit runs cooler under normal loads. PWM operation minimizes audible noise compared with many analog dimmers, delivering quiet brightness transitions.

• Durable aluminum casing for effective heat management
• PWM dimming reduces buzzing and audible interference
• Designed for continuous use within rated current limits

Who this is for: the Linkstyle 12V 2-gang dimmer is aimed at DIYers, vanlifers, RV owners, boaters and tradespeople who need a small, reliable rotary dimmer for single-color 12V lighting. If you require flicker-free, stepless control for cabin lights, accent strips or puck fixtures and your setup stays within the 60W (5A) per channel rating, this dimmer offers a compact, easy-to-install solution that blends performance with durable construction.
