Lisle Broken Plug Remover for Ford Triton 3-Valve Engines — Compact Kit with Porcelain Pusher & Left‑Hand Extractor

The Lisle 65600 Broken Plug Remover is a compact kit that safely extracts broken spark plug tips from 2004-and-newer Ford Triton 3-valve-per-cylinder engines without leaving porcelain debris in the cylinder.

When a spark plug fractures at the porcelain insulator the remaining tip can be difficult to remove and can damage the cylinder if handled incorrectly. The Lisle 65600 set combines a porcelain pusher and a tapered left-hand thread extractor designed to create clearance and then bite into the stainless-steel plug tip so it can be withdrawn cleanly. Packaged in a blow-molded storage case and protected with an oil film after the black oxide finish, this kit is sized for convenient storage and repeated use on the common Triton 3-valve failure.

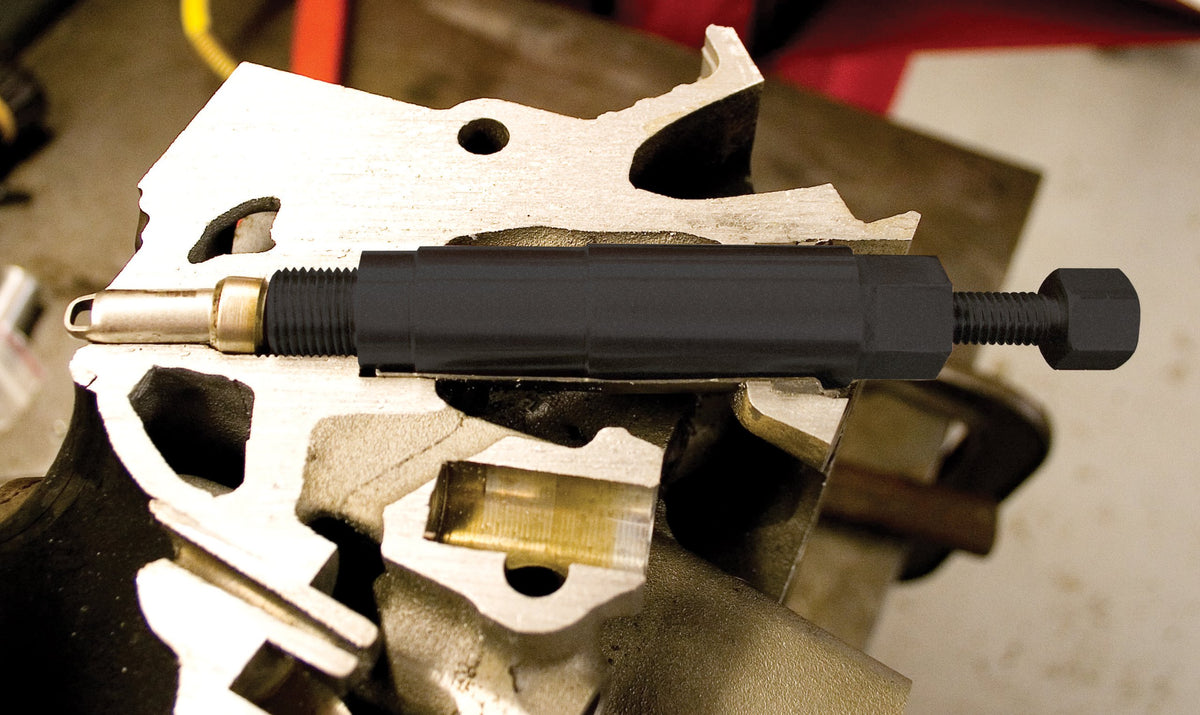

How does the porcelain pusher prevent additional cylinder damage?

The porcelain pusher applies controlled pressure to the broken insulator, moving the fragile porcelain farther into the tip without shattering it. This clears room for the extractor to engage the metal plug tip and avoids creating loose porcelain shards inside the combustion chamber.

• Designed to press porcelain intact rather than crush it
• Creates predictable clearance for the left-hand extractor
• Reduces risk of contaminating the cylinder with ceramic fragments

Why use a tapered left-hand thread remover instead of standard extractors?

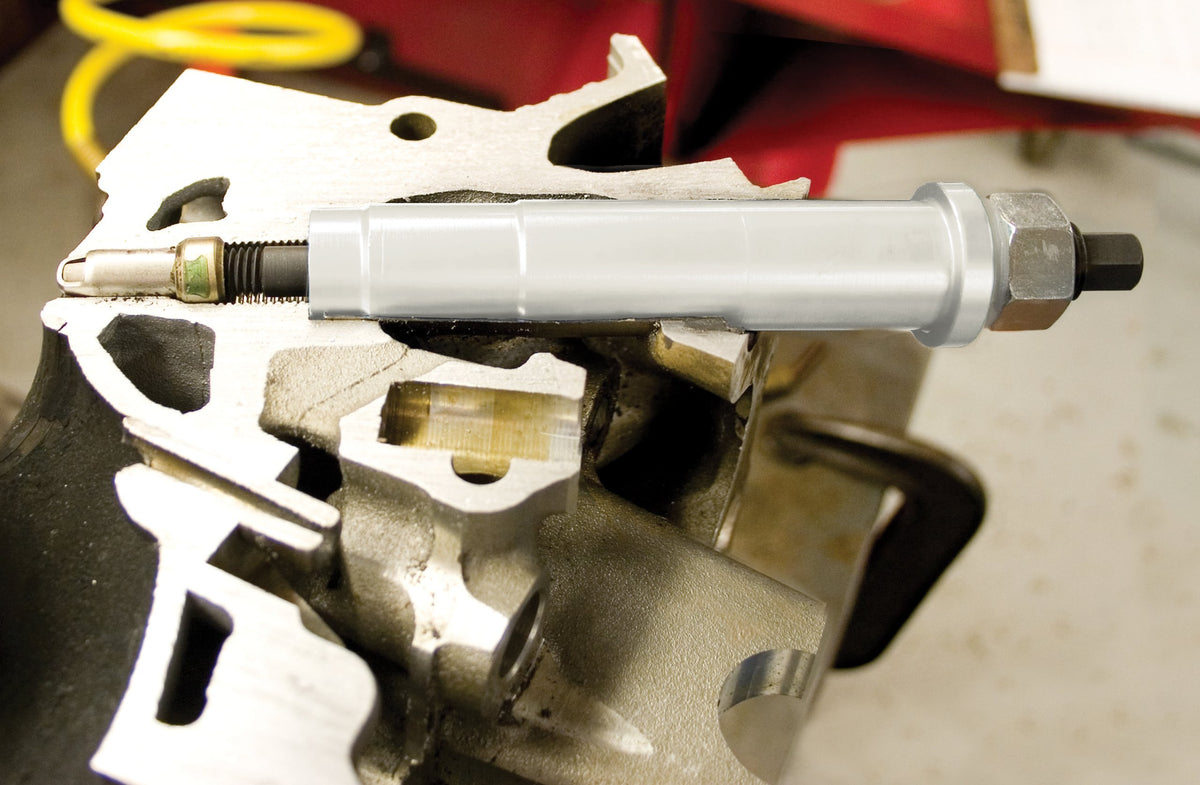

The left-hand taper bites into the stainless-steel plug tip as it is turned counterclockwise, so the extractor itself drives inward and grips the broken piece. That biting action combined with the created clearance lets you back out the tip without re-drilling or further enlarging the plug hole.

• Tapered design ensures progressively tighter grip when turned left-hand
• Works on stainless steel plug tips commonly found in Triton engines
• Avoids more invasive removal methods like drilling or retapping

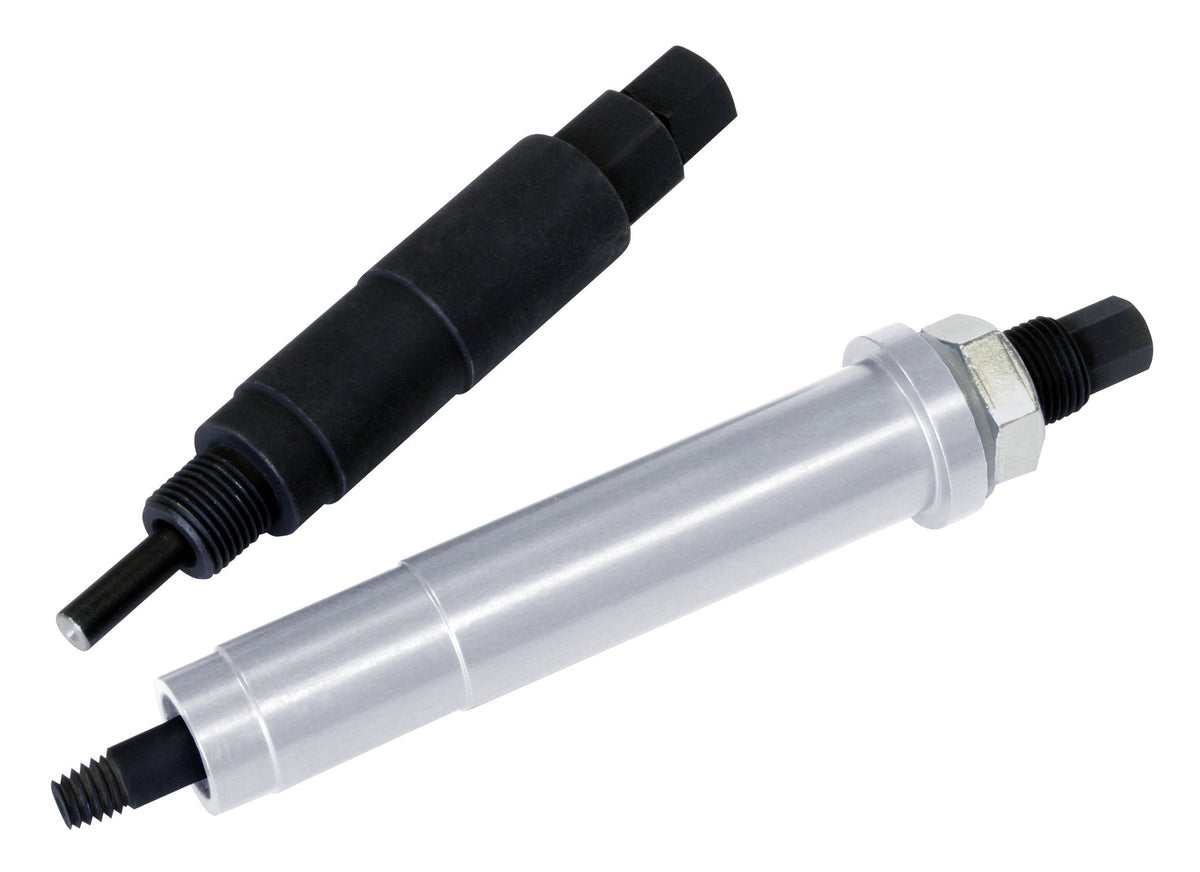

What comes with the kit and how is it stored?

The Lisle 65600 arrives in a blow-molded storage case sized for shop or toolbox placement, keeping both tools secure and ready. The package dimensions (approx. 5.38" W × 8.56" H × 2.13" D) make it compact enough to store near other spark plug service items.

• Porcelain pusher sized for controlled application
• Tapered left-hand thread remover engineered for stainless tips
• Durable blow-molded case for organized transport and storage

Is there any corrosion protection or finish on the tools?

The components undergo a black oxide process and are left with a light protective oil film to slow surface rust during storage. This finish prolongs shelf life and preserves fit and function until the kit is needed.

• Black oxide finish for moderate corrosion resistance
• Light oil film applied post-finishing to prevent rust
• Tools remain service-ready in the blow-molded case

Who is this for: The Lisle 65600 is aimed at professional technicians and experienced DIY mechanics who service Ford Triton 3-valve-per-cylinder engines from 2004 onward and need a reliable, non-destructive way to remove broken spark plug tips. If you regularly work on Ford trucks or SUVs with the Triton engine family and want a compact, purpose-built solution for this common failure, this kit addresses that need without resorting to drilling or cylinder removal.
