Litime 12V 40A DC-to-DC Charger for LiFePO4 & Lead‑Acid — Multi‑Stage Smart Charger, 20A Low‑Current Port

Designed for mobile power and home backup, this LiTime converter/charger adapts its charging algorithm to match the chemistry of the connected battery. It supports full 40A high-current charging for larger service battery banks and offers a low-current port to limit output to 20A when needed. Safety features including over/under voltage protection, reverse-polarity and temperature safeguards keep both charger and batteries protected, while the compact rugged chassis fits tight installation spaces.

How does this charger manage different battery types?

The charger automatically selects an appropriate charging profile based on battery chemistry. For LiFePO4 it uses a two-stage CC/CV approach; for lead-acid styles (AGM, gel, SLA, calcium) it applies a three-stage bulk/absorption/float routine to optimize charge and preserve battery life.

• Auto-detect or manual selection of battery type
• LiFePO4: constant-current then constant-voltage (CC/CV)
• Lead-acid: bulk, absorption, float stages
• Low-current port limits output to 20A when required

Can it charge large battery banks and run DC loads directly?

Yes — the LiTime unit delivers up to 40 amps of charging current, making it suitable for sizable 12V battery banks and direct DC loads. It can rapidly restore service batteries and supply power to DC systems in RVs, campers, trailers, and off-grid setups.

• Maximum continuous output: 40A for fast recharge
• Low-current option for sensitive systems (20A limit)
• Suitable for service batteries and powering DC appliances
• Useful in solar hybrid and vehicle-to-battery scenarios

What protections and certifications keep the system safe?

This charger includes multiple electronic protections to prevent damage to batteries and the unit itself. It also holds common safety and environmental certifications to meet compliance needs and reduce installation risk.

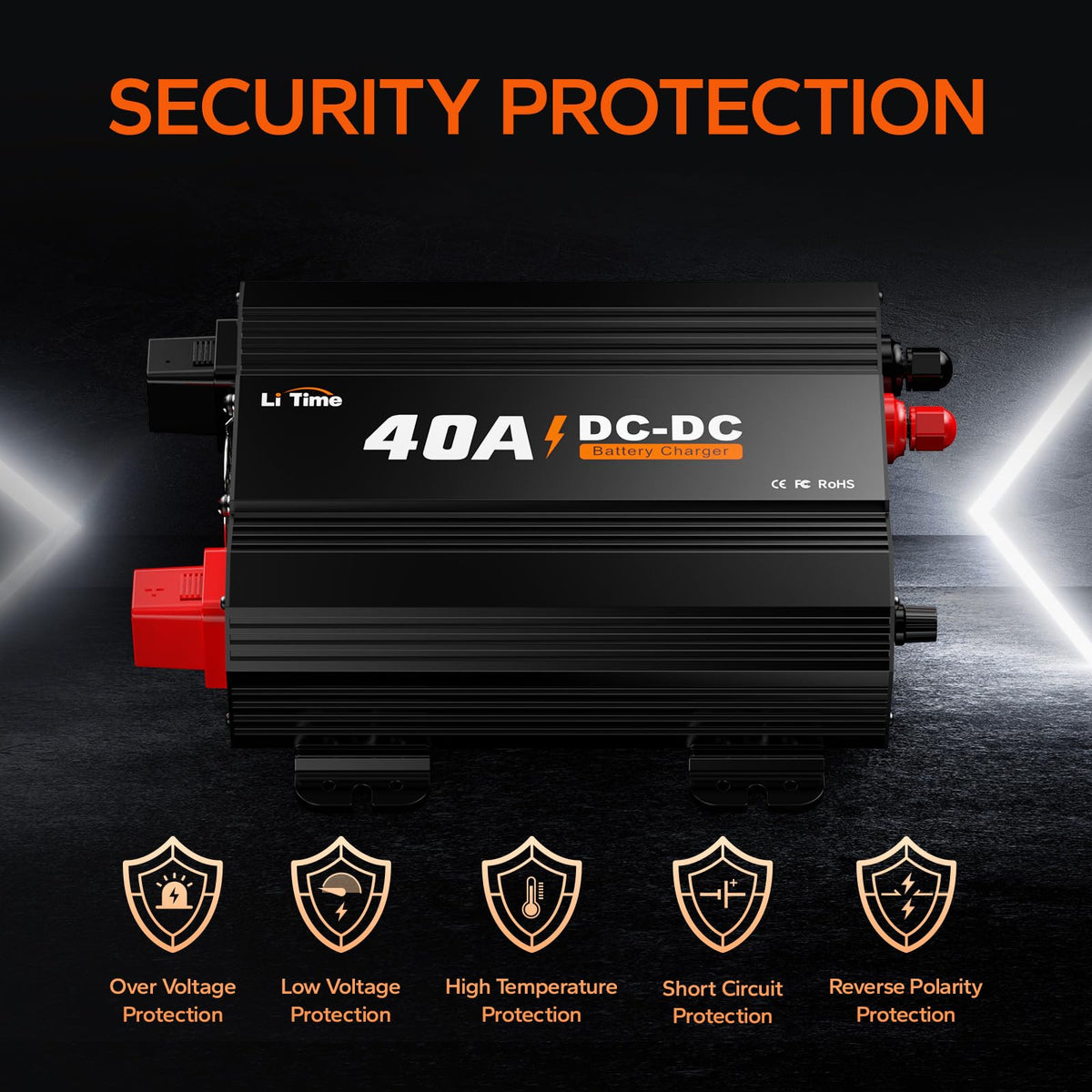

• Protections: over-voltage, under-voltage, short-circuit, reverse polarity, over-temperature
• Can reactivate lithium batteries after BMS shutdown
• Certifications: FCC, CE, RoHS for safer, eco-friendlier operation
• Covered by AIG Product Liability Insurance (effective May 22, 2026)

Where should this charger be installed and what are its limits?

The compact design suits tight installations inside vehicle compartments, garages, or battery cabinets, but this unit is not rated for marine exposure. Avoid installing where it could be directly wet; it is not waterproof and should not be used on boats or in continuously wet environments.

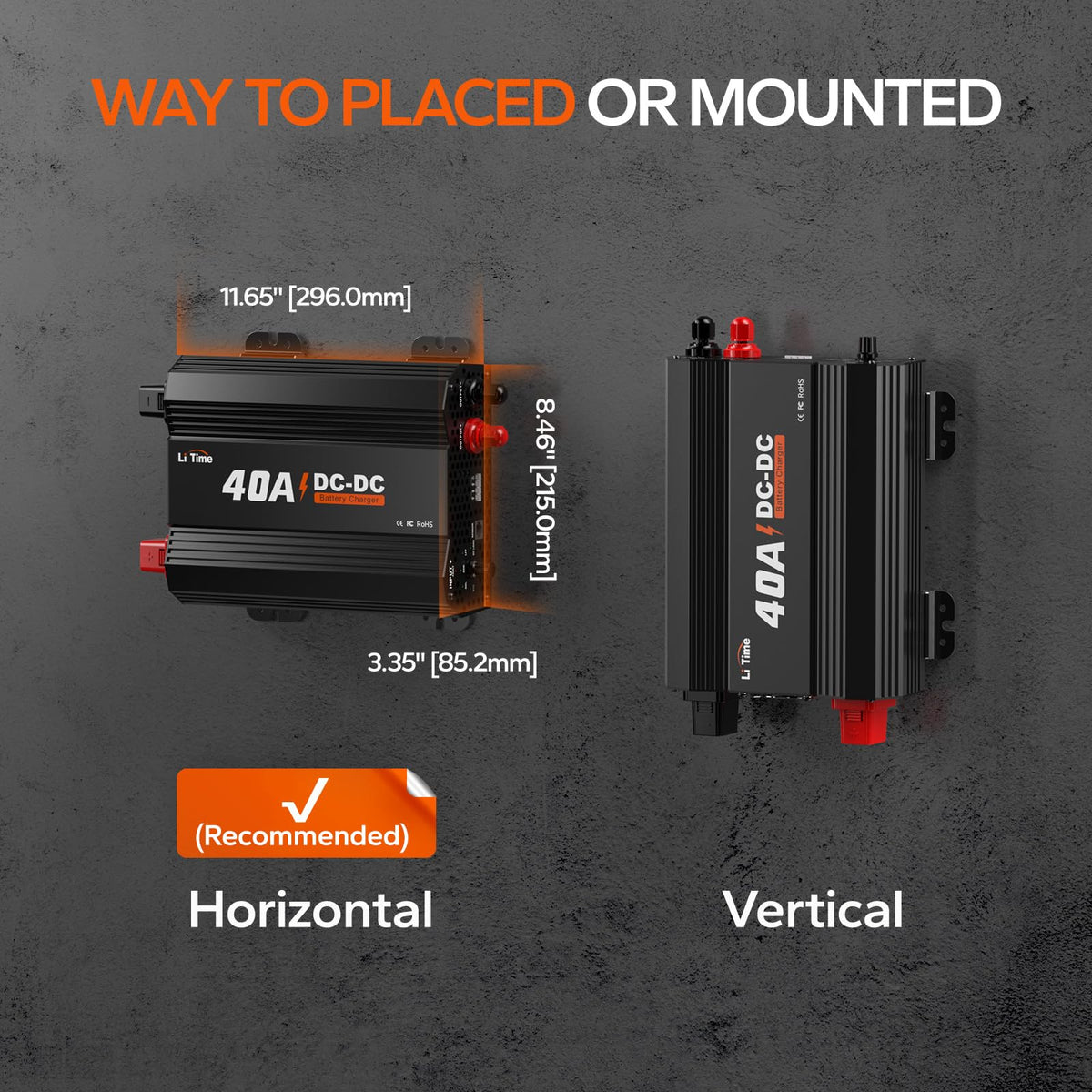

• Compact, rugged chassis for limited spaces
• Not waterproof — avoid marine/boat installations
• Works well in RVs, campers, trailers, solar systems, home backup
• Follow manufacturer wiring and ventilation recommendations

Who is this for: The LiTime 12V 40A DC to DC Charger is aimed at RV owners, overlanders, vanlifers, trailer and tiny-home residents, and homeowners building compact solar or backup battery systems who need reliable high-current charging and multi-chemistry support. Choose this unit if you want a space-saving charger that handles large 12V battery banks, offers a low-current option for delicate setups, and includes multiple safety protections and certifications. Note: avoid marine use due to lack of waterproof rating.
