LiTime 2-Bank LiFePO4 Battery Charger 12V/24V 10A — Dual 10A Outputs, IP65 Marine-Ready

The LiTime 2-Bank 10A charger is a dual-output, IP65-rated smart charger that simultaneously charges 12.8V and 25.6V LiFePO4 batteries with adjustable voltage and built-in safety protections.

This compact, marine-ready charger from LiTime delivers two independent 10A channels for faster charging of auxiliary battery systems. Designed for LiFePO4 chemistry but compatible with NCM and lead-acid settings, it supports automatic CC/CV/float profiles, a battery-activation feature for BMS-protected cells, and rugged weather resistance for use on boats, RVs, and outdoor equipment.

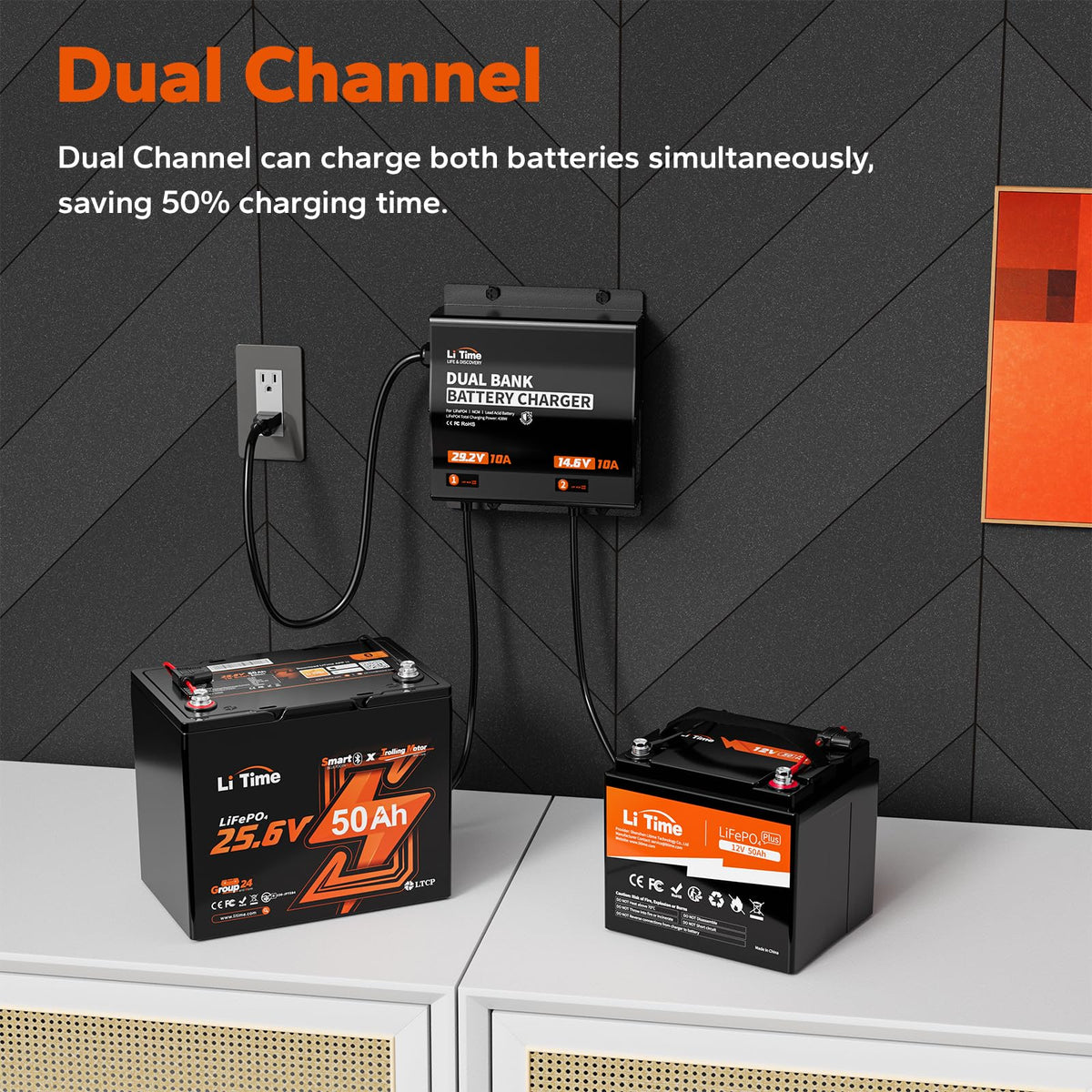

How does the two-bank design speed up charging for multiple batteries?

The charger provides two fully independent outputs so you can charge two batteries at once without reducing current per channel. Each bank delivers up to 10A and the unit manages voltage and current for each output separately to optimize charge time and battery health.

• Two channels: 10A per bank for concurrent charging.
• Outputs: configurable 14.6V for 12.8V systems and 29.2V for 25.6V systems.
• Saves time by charging two batteries simultaneously instead of serially.
• M8 terminal connectors for secure high-current connections.

Which battery chemistries and voltages are supported?

LiTime is preset for LiFePO4 (LFP) charging profiles but also offers settings compatible with NCM and lead-acid batteries. The charger’s maximum output voltages adjust per chemistry to match recommended charge parameters while preventing over-voltage conditions.

• LFP: 14.6V (12.8V) and 29.2V (25.6V) outputs.
• NCM: up to 16.8V and 29.4V output options.
• Lead-acid: compatible with 14.7V and 29.4V settings as needed.
• Automatic CC/CV and float/cutoff transition to protect battery life.

What safety and protection features does the charger include?

The charger integrates multiple protective layers to guard both the unit and connected batteries. It includes temperature and over-current safeguards, reverse-polarity detection, short-circuit protection, and over-voltage prevention to minimize risk during charging sessions.

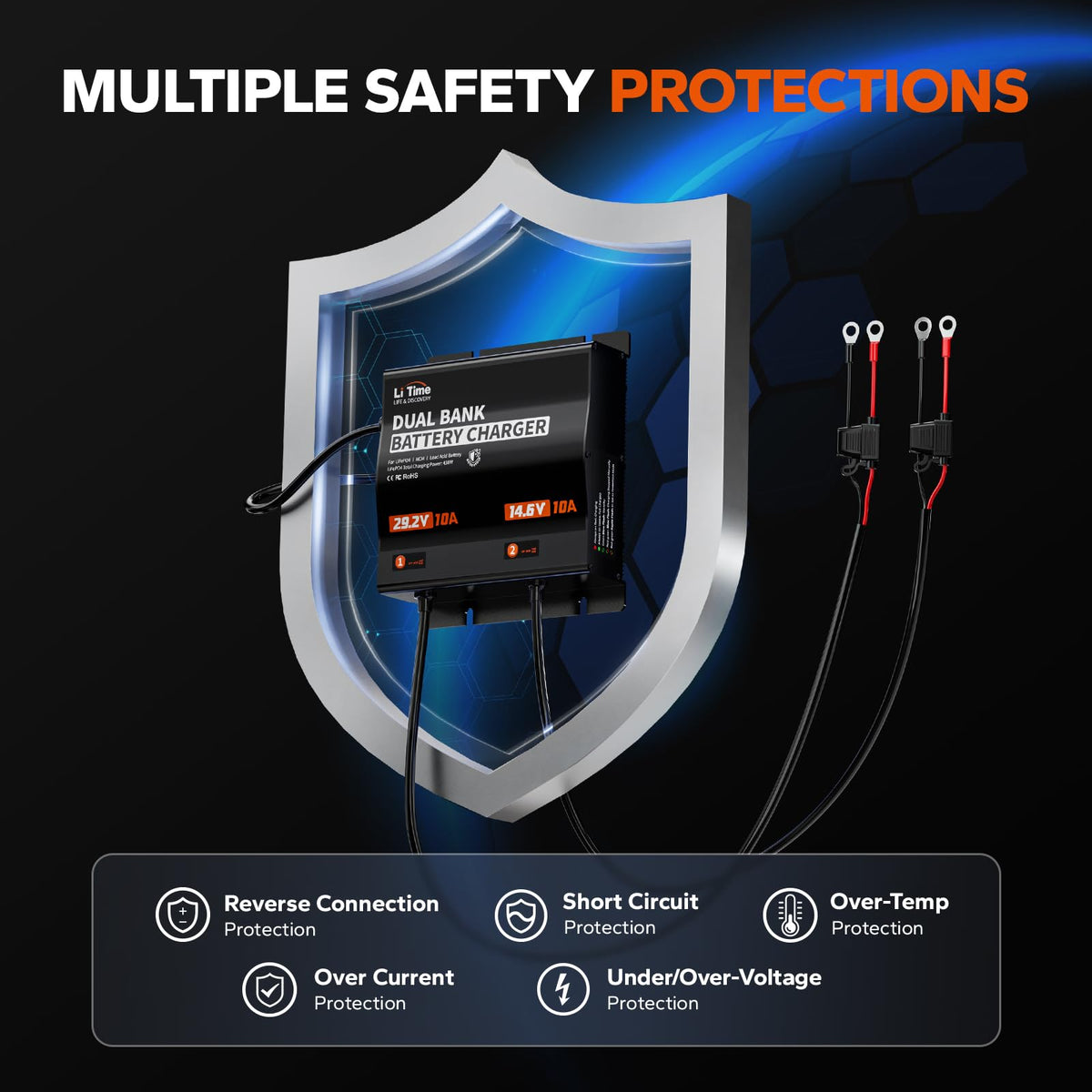

• Five protections: over-temperature, over-current, reverse polarity, short-circuit, over-voltage.

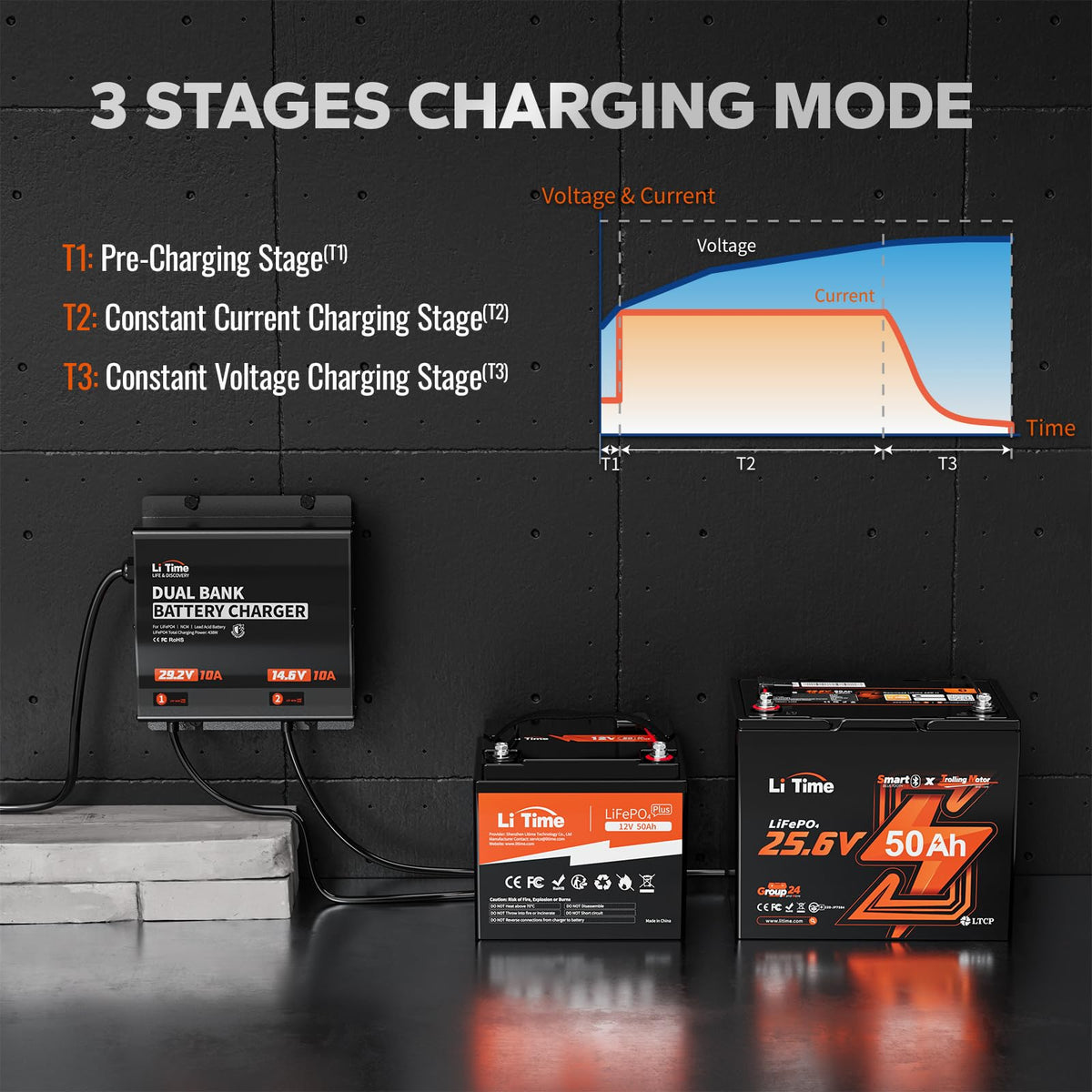

• Automatic charge stage switching: constant current, constant voltage, and float/cutoff.

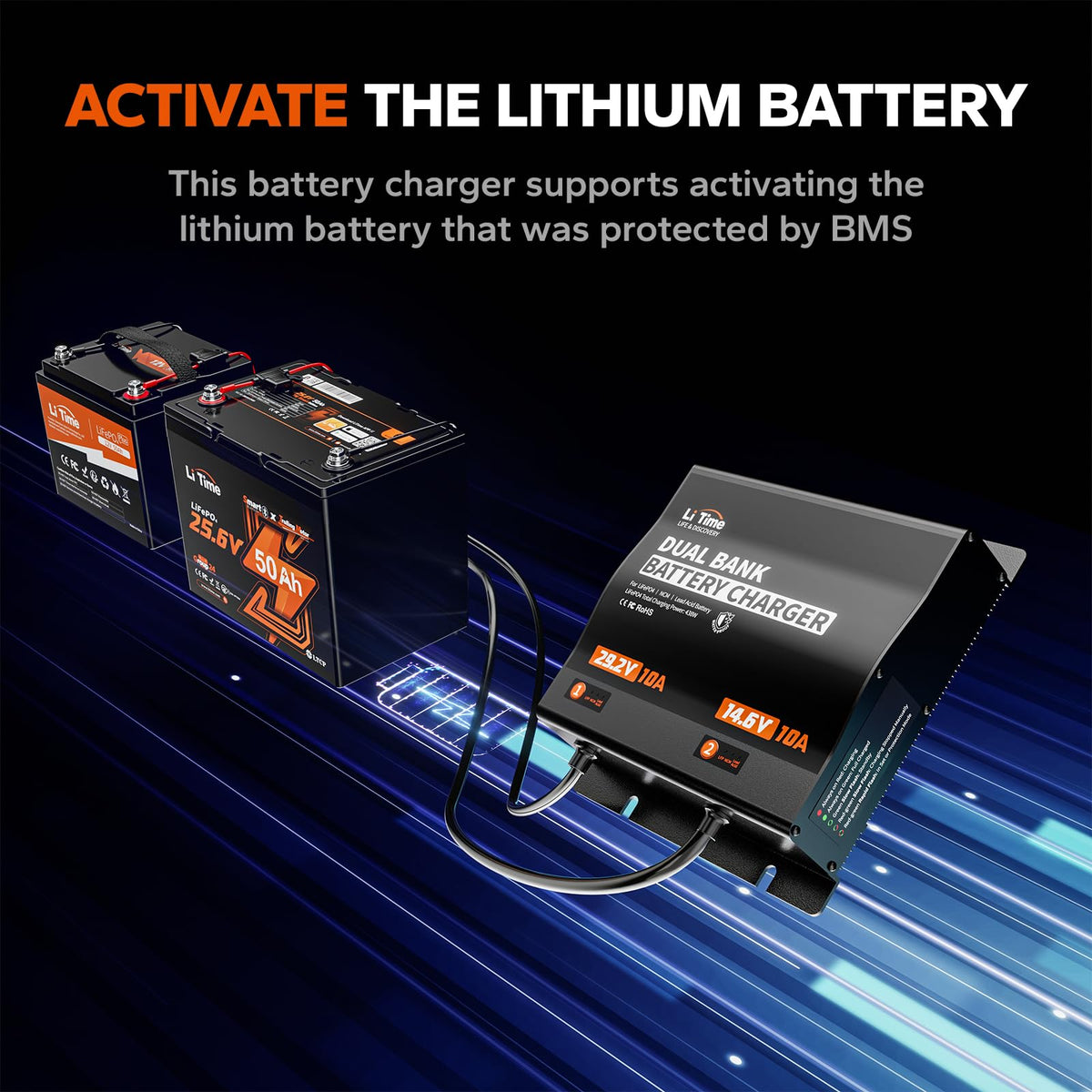

• Battery activation mode to recover BMS-protected lithium batteries with low voltage.
• CE, FCC and RoHS conformity and AIG product liability coverage.

Is the charger built to withstand marine and outdoor conditions?

Yes — the housing and connectors are designed for damp and splash-prone environments with an IP65 protection rating. The waterproof connector and sealed enclosure let you install this charger where exposure to rain or spray is likely, such as on boats or utility trailers.

• IP65 rating: dust-tight and splash-resistant for outdoor use.
• Waterproof connector ensures a sealed DC connection during charging.
• Durable construction and M8 terminals for reliable power transfer.
• Ideal for applications near water, in garages, or on RV exteriors.

Who is this for? If you manage multiple 12.8V or 25.6V battery banks — on a boat, RV, trolling motor system, backup generator, or utility vehicle — and need a robust charger that handles LiFePO4 chemistry with independent outputs, the LiTime 2-Bank 10A charger is tailored to that use. It’s suited to electricians, marine technicians, and DIY owners who want a weatherproof, safety-minded charger that shortens total recharge time and supports battery activation after BMS cutout. The unit’s multiple chemistry settings and M8 terminals make it practical for installers seeking a durable, versatile charger for residential and mobile power systems.
