LLYZFED Speedometer Multifunction Gauge Cluster for Polaris Sportsman/ATP 2004-2012 — Direct-Fit Replacement, Odometer & Fuel Gaug

LLYZFED’s multifunction speedometer gauge cluster is a direct-fit replacement instrument panel that restores speed, odometer, hour meter, fuel, and warning indicators for compatible Polaris Sportsman and ATP ATVs from 2004–2012.

If your original instrument cluster is cracked, dim, or failing to report mileage, fuel level, or engine warnings, this LLYZFED assembly provides a plug-and-play replacement designed to match factory functions. Built to fit multiple Polaris Sportsman and ATP models, the unit consolidates digital and analog readouts into one compact housing so you can ride with confidence and accurate monitoring.

Which Polaris models will this gauge cluster fit?

This cluster is engineered to be compatible with a wide range of Polaris Sportsman and ATP models across model years 2004–2012. It replaces OEM part numbers 3280431, 3280528, and 3280482, and matches both HO and EFI variants listed by Polaris.

• Sportsman 800 Twin (2005–2008) including HO and standard versions.
• Sportsman 700 Twin and 700 EFI (2004–2007).
• Sportsman 600 Twin, Sportsman 500 HO, Sportsman 500 6x6 (2004–2008).
• Sportsman 450, Sportsman 400, and ATP 500 HO across specified years.

What functions and displays are included on this replacement panel?

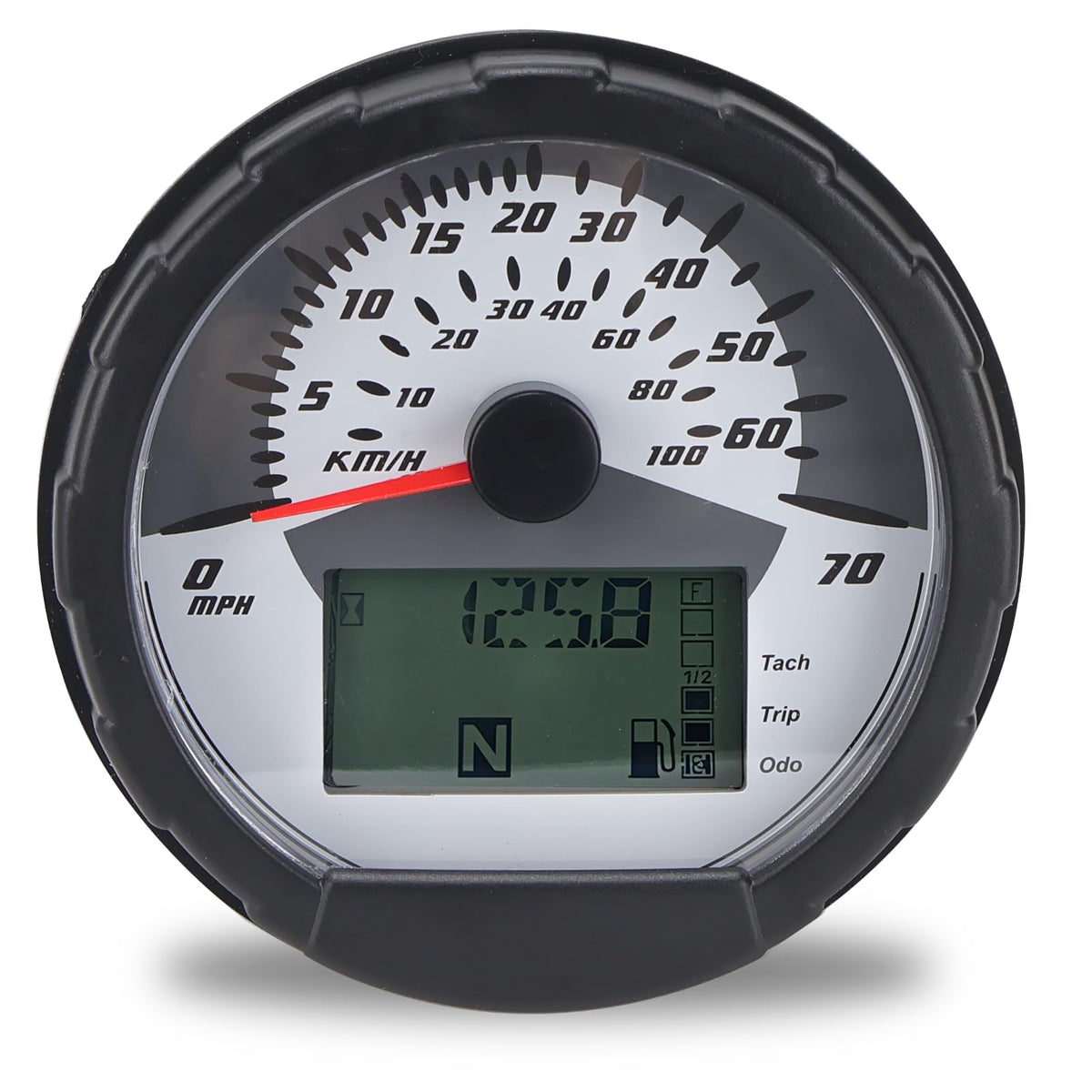

The LLYZFED cluster combines analog-style speed readout with several digital meters and indicator lights so you get a full picture of vehicle status at a glance. It covers ride-critical readouts without adding aftermarket complexity.

• Speedometer with clear numeric display for current speed readings.
• Odometer and trip meter for total and trip mileage tracking.
• Hour meter to track engine run time for service intervals.
• Fuel gauge, diagnostic/warning lights, and adjustable display backlighting.

How difficult is installation and what will I need?

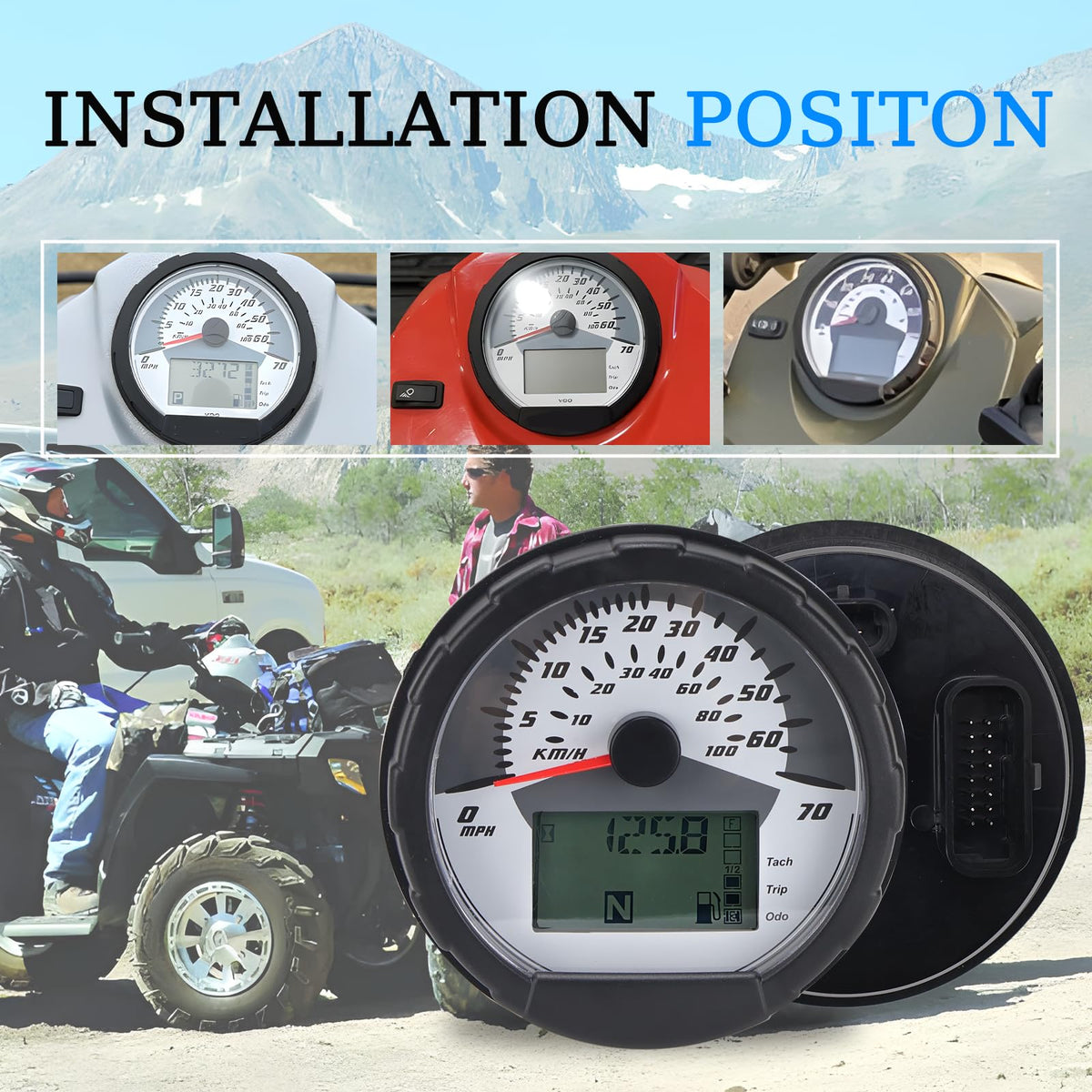

Installation is designed to be straightforward: the assembly is a direct replacement that uses the factory mounting points and electrical connector layout. Basic hand tools are typically all that’s needed, and no permanent modifications should be required.

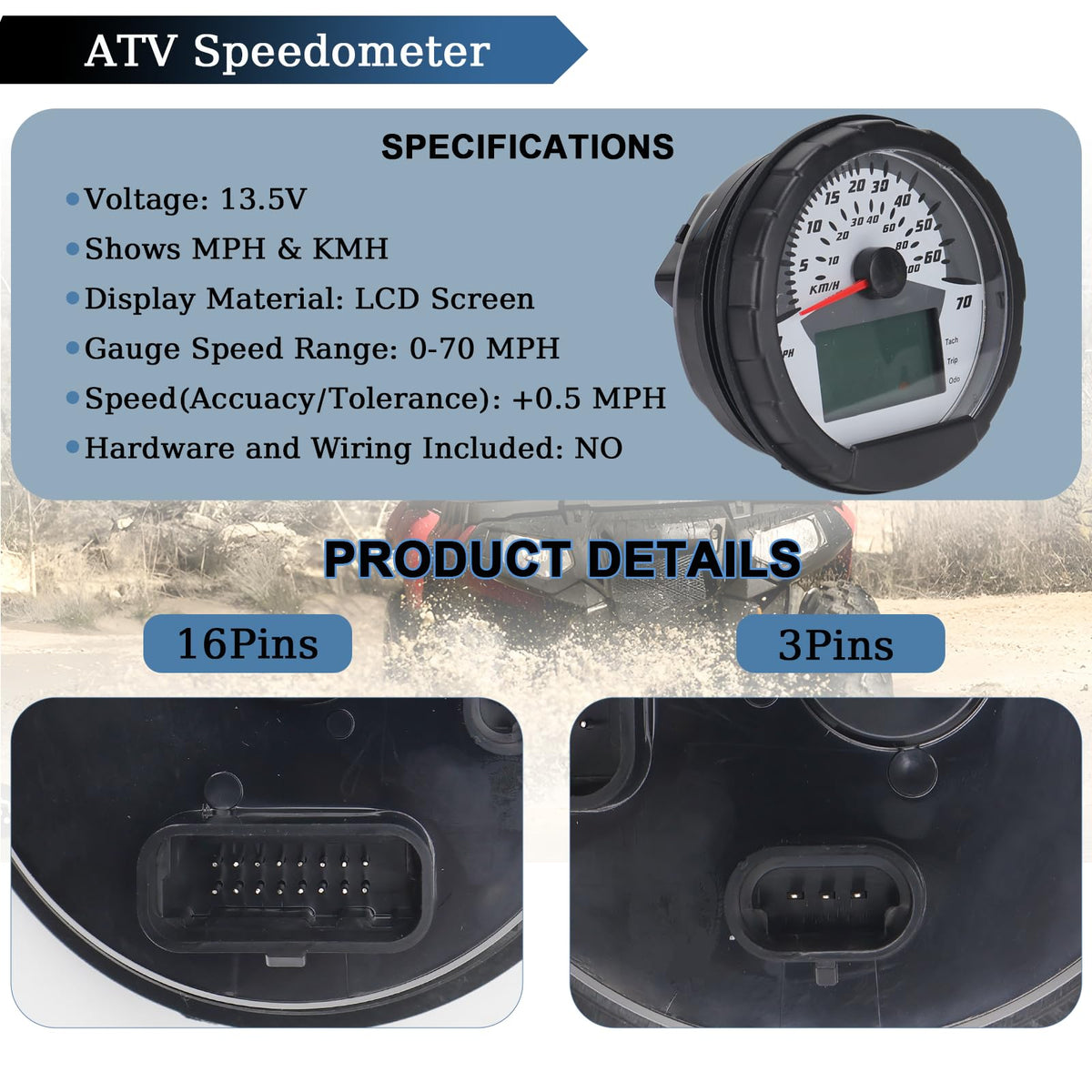

• Direct-fit connectors reduce wiring changes—plug-and-play where compatible.
• Standard hand tools (screwdriver, socket set) for dash removal and mounting.
• Verify OEM part numbers and connector pinouts before installing.
• Professional installation recommended if you’re unsure about wiring or diagnostics.

Is the cluster durable enough for off-road use and bright daylight?

The housing and display are built for ATV conditions, with shock resistance and adjustable backlighting for visibility in varied lighting. It is optimized to resist vibrations and maintain legible readouts on trail or field work.

• Shock-resistant construction to withstand typical off-road jolts.
• Adjustable backlight for daytime and low-light readability.
• Weather-tolerant design intended for exposed dash locations.
• Engine diagnostic lights integrated to alert on common faults.

Who this product is for: This LLYZFED speedometer multifunction gauge cluster is for Polaris Sportsman and ATP owners who need an OEM-style replacement for faded, cracked, or nonfunctional dash electronics. It suits DIY mechanics who want a plug-and-play swap using factory mounts and connectors, fleet operators seeking consistent instrument performance across machines, and riders restoring older models to reliable monitoring. Before buying, verify your ATV’s model year and OEM replacement numbers (3280431, 3280528, 3280482) to ensure compatibility.
