LUTIFIX OBD2 Breakout Box OBDII 16-Pin Diagnostic Adapter — 17.7" TPU Cable, 4mm Banana Jacks

The LUTIFIX OBD2 Breakout Box is a compact diagnostic interface that exposes all 16 OBDII pins, monitors CAN/K-Line/PWM signals, and provides power/ground access for troubleshooting vehicle electronics.

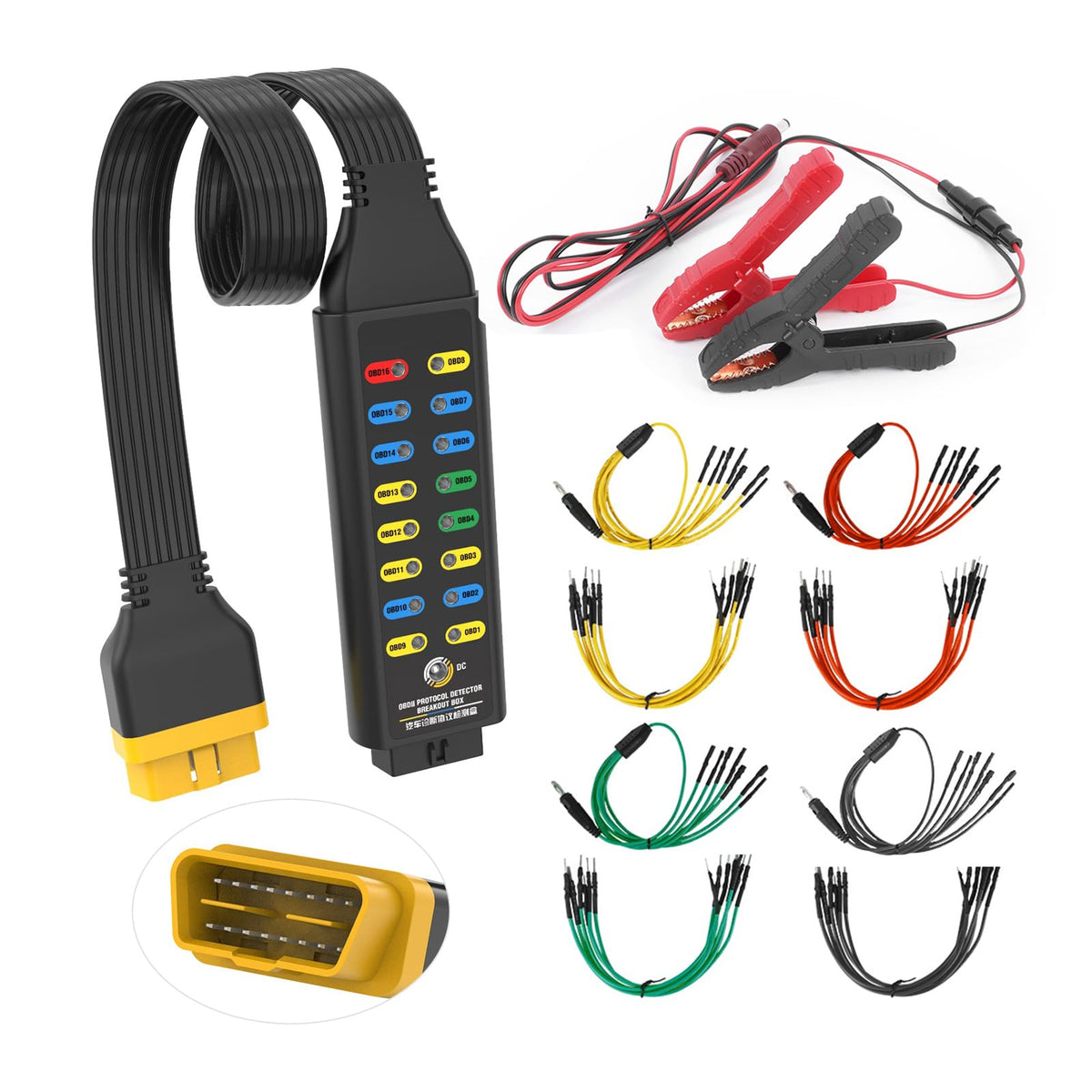

This breakout box turns the vehicle OBDII connector into a workbench-friendly test point so you can safely probe communication lines, feed power to an ECU, and attach multiple scan tools simultaneously. Built with a full 16-pin replica, 4mm banana jack inputs, a flexible 17.7-inch TPU cable, and a long alligator clip power lead, it streamlines fault isolation and bench testing for technicians and advanced DIY mechanics.

How does the breakout box help find communication faults?

By making every OBDII pin visible and giving you secure test jacks, the LUTIFIX unit simplifies signal tracing and protocol verification. It lets you attach oscilloscopes, multimeters, or multiple scan tools without repeatedly unplugging connectors.

• Access to all 16 pins for quick continuity and voltage checks
• 4mm banana jacks for oscilloscope/multimeter hookup
• Supports CAN, K-line, L-line, and PWM protocol checks

Can I power or bench-test ECUs with this tool?

Yes — the breakout box can feed DC power into the vehicle data link when connected to an appropriate DC source (8–30V). This is useful for powering an ECU during bench work or when swapping batteries, but you should observe the current limits in the safety notes.

• External DC input compatible with 8–30V supplies
• 5-foot alligator clip cable for remote battery or bench power
• Not designed for loads above 1 amp; observe warnings to prevent damage

What makes this kit flexible for different diagnostic workflows?

The package includes four universal wire jumpers and a robust 17.7-inch TPU cable that resists kinking during repeated use. Those jumpers plus the built-in banana jacks let you route signals to several instruments at once, enabling simultaneous logging, scanning, and live-signal comparison.

• Four jumper leads for parallel connections to multiple tools
• Durable TPU cable length balances reach and durability at 17.7 inches
• Universal 16-pin OBDII layout works with standard vehicle connectors

What safety and warranty support comes with the LUTIFIX breakout box?

The device includes clear usage cautions—do not exceed 1 amp on load devices and avoid direct shorts across key pins. LUTIFIX backs the product with a three-year warranty against non-human damage and offers responsive support for replacement parts.

• Three-year limited replacement warranty for non-user damage
• Manufacturer guidance to stop use if unsure about consequences
• Do not directly short pins 4, 5, and 16; follow safe wiring practices

Who this is for: The LUTIFIX OBD2 Breakout Box suits professional automotive technicians, electronics repair specialists, and experienced DIYers who need a reliable, multi-tool access point to a vehicle’s OBDII connector. If you frequently bench-test ECUs, capture waveforms, compare CAN bus traffic, or require safe multi-device hookups during diagnostics, this kit reduces connector wear and speeds up fault isolation.
