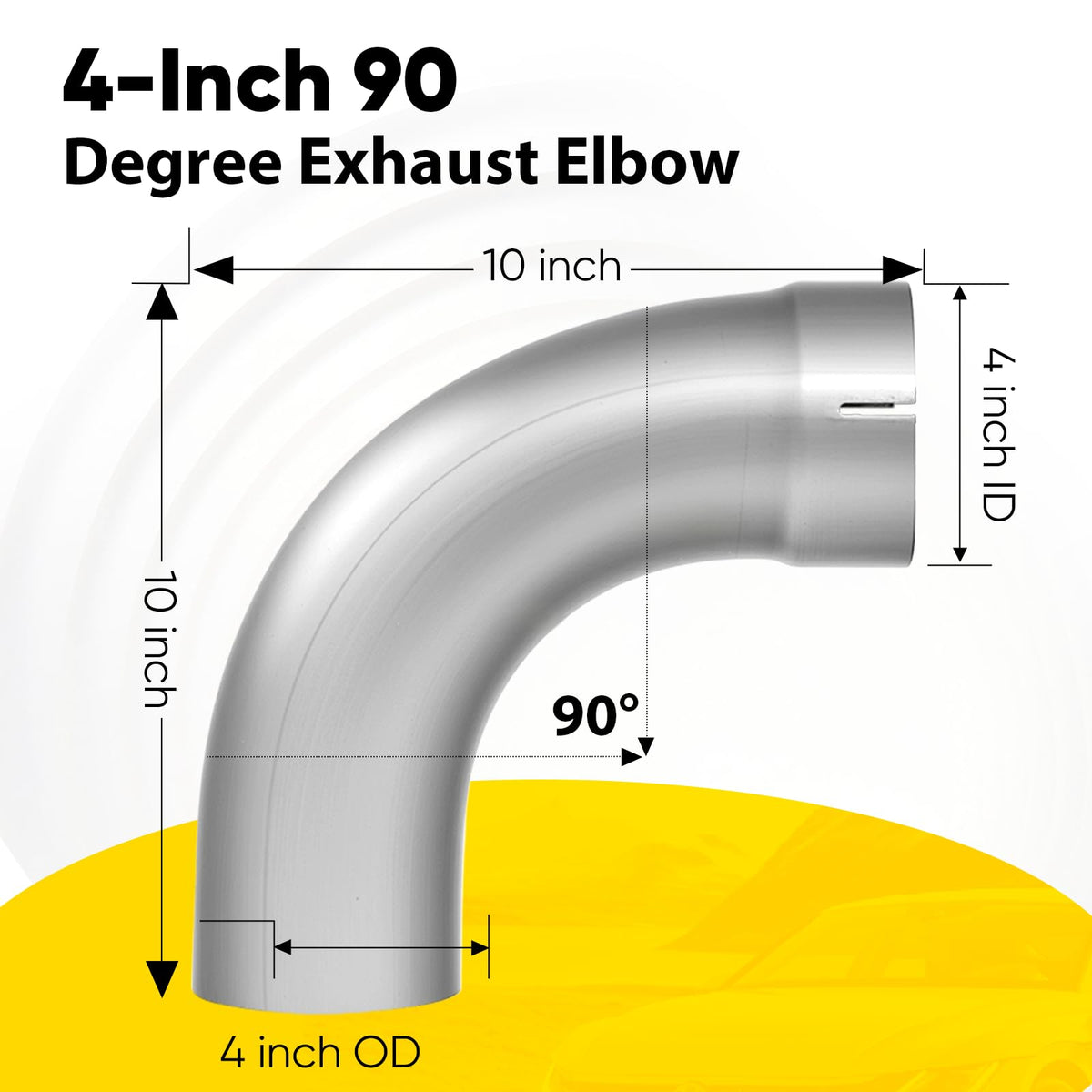

LYLCDDP 90° Mandrel-Bent Exhaust Elbow 4" Diameter — 10" Legs, Aluminized Steel, Flared Slotted End

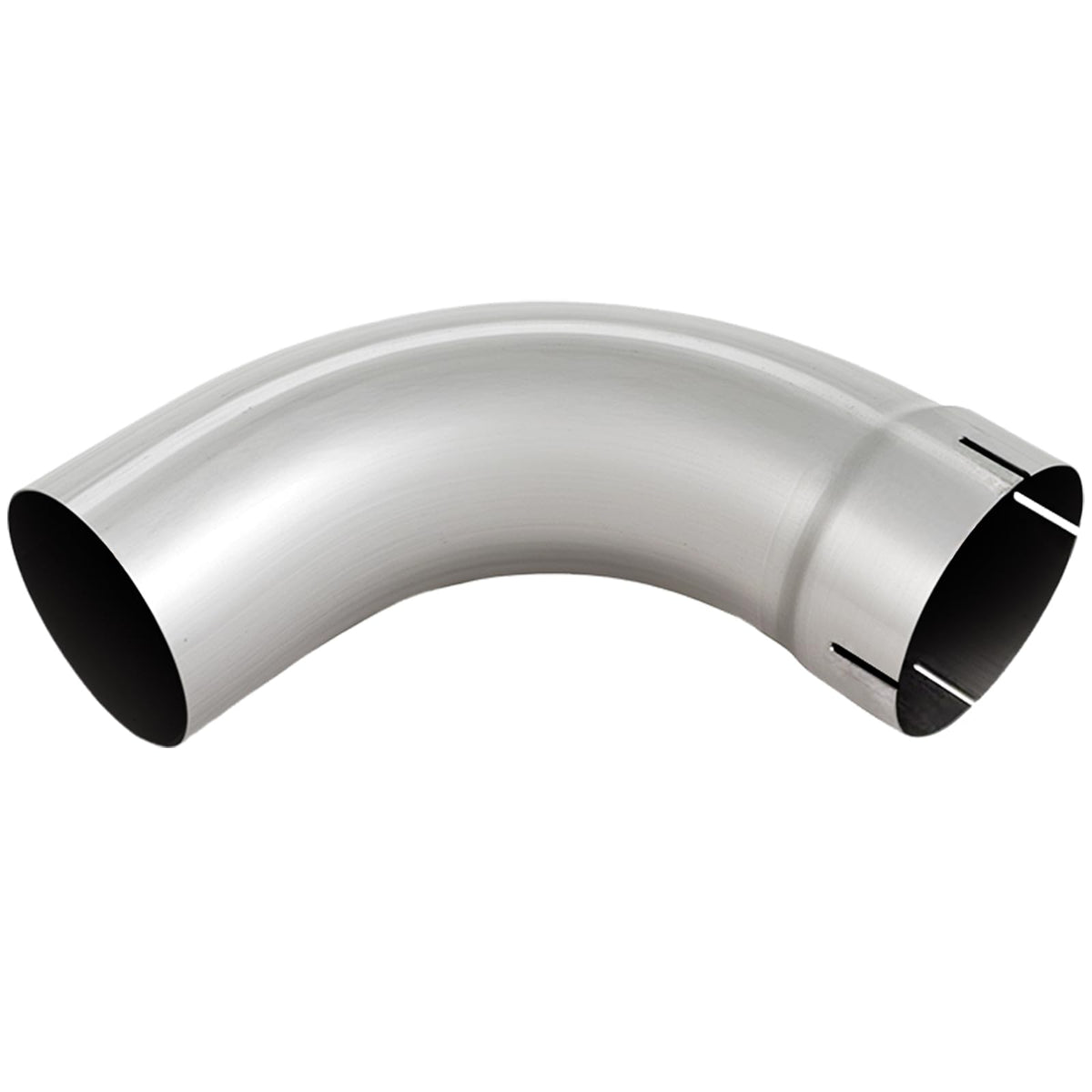

LYLCDDP’s 90° aluminized steel exhaust elbow is a mandrel-bent 4" diameter tube with 10" legs, built for routing exhaust or ventilation runs where a compact, durable 90-degree turn is required.

This elbow is an engineered ducting component for exhaust and ventilation systems, combining aluminized steel corrosion resistance with a one-end flare and slot for fast installation. It keeps flow losses low with a mandrel-style bend and fits systems designed around a 4" diameter run. Use it where space requires a neat right-angle turn while preserving as much airflow as possible.

How will this 90° elbow affect airflow and fit?

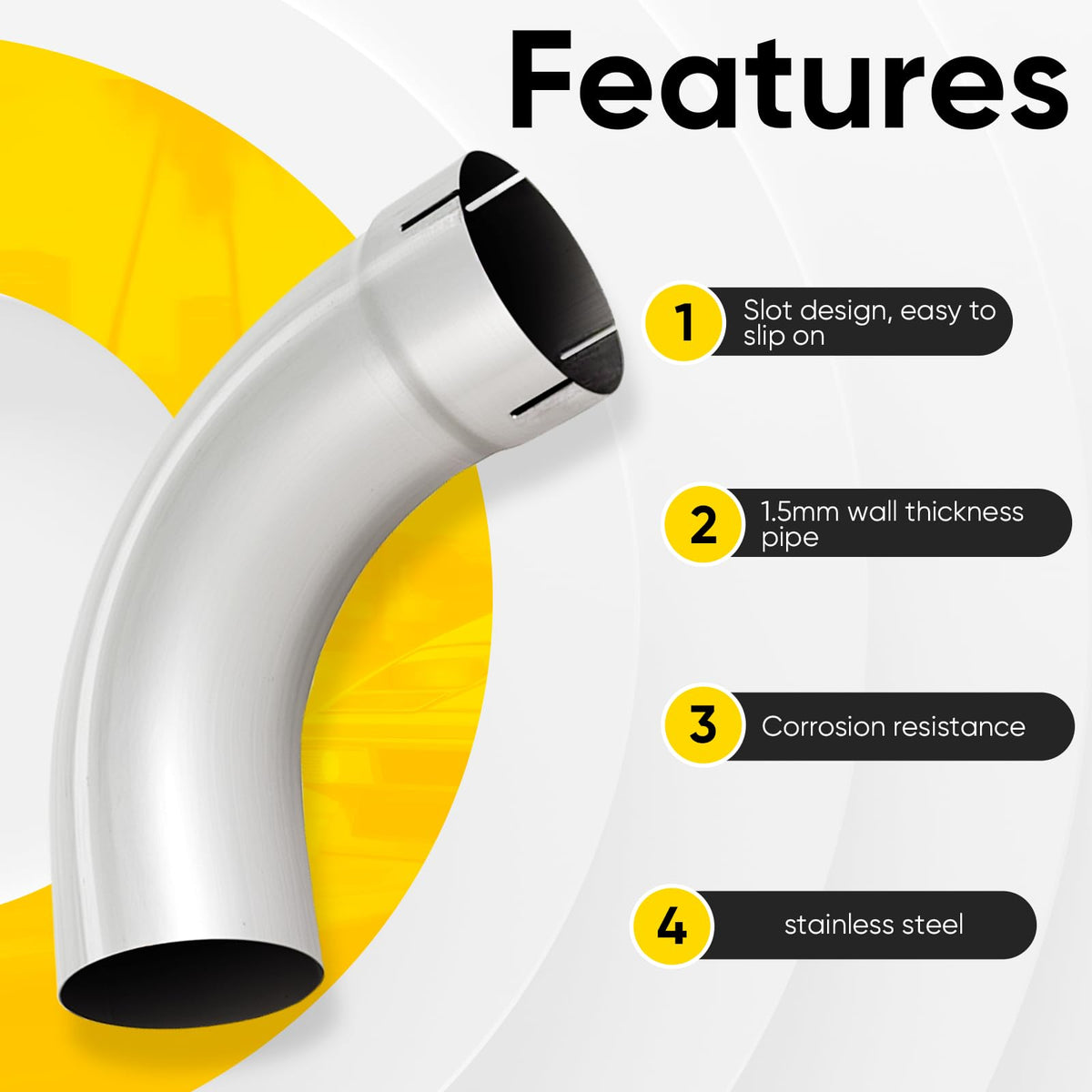

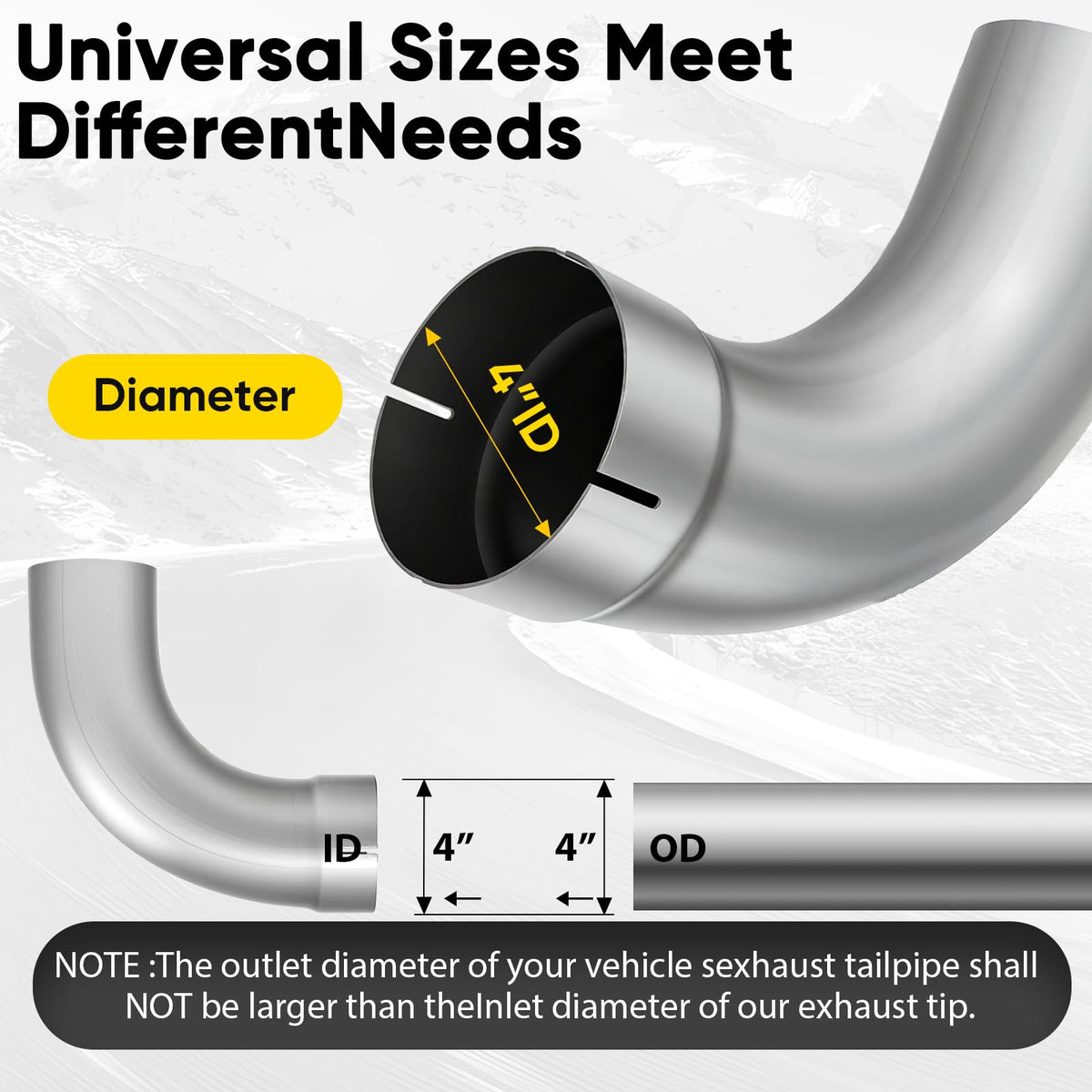

The mandrel bend minimizes throat restriction compared with crush-bent elbows, so it preserves airflow better in tight routing situations. The 4" inner/outer diameter specification ensures compatibility with standard 4" ducts and exhaust piping when matched correctly.

• Mandrel-formed curve reduces turbulence and pressure drop.
• 4" ID/OD dimension aligns with common 4" ducting fittings.
• 10" legs provide room for secure overlaps and clamps.
• One end flared and slotted for easier insertion and fastening.

What materials and construction qualities can I expect?

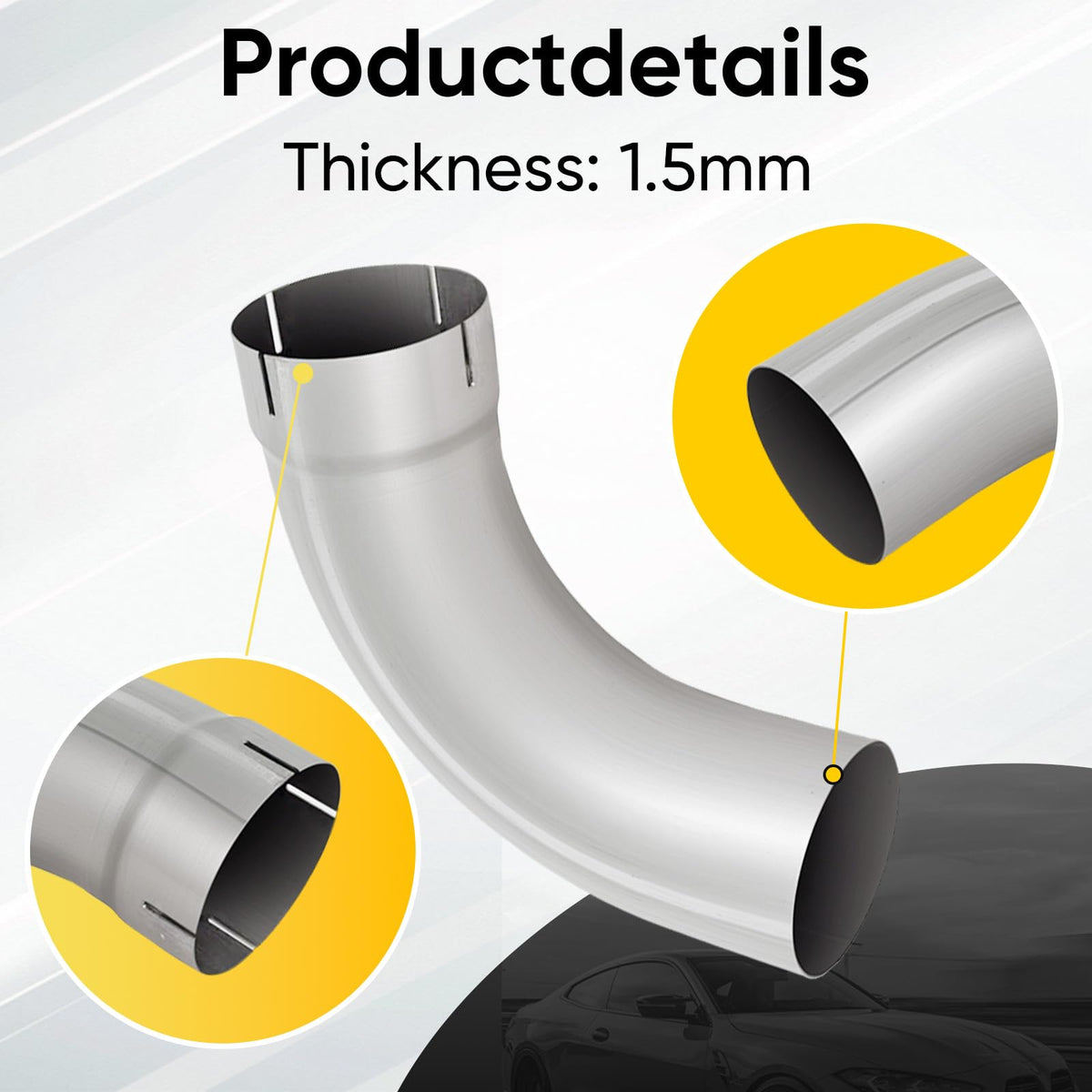

The elbow is made from aluminized steel, offering a balance of strength and oxidation resistance in exhaust environments. Construction is intended for longevity in automotive or light industrial exhaust and ventilation applications.

• Aluminized steel resists rust and high temperatures better than plain steel.
• Mandrel bending preserves wall thickness through the radius.
• Spot-flared end reduces installation time and secures clamps reliably.
• Slotting allows for minor size adjustments during fit-up.

How do I install and secure this elbow in my system?

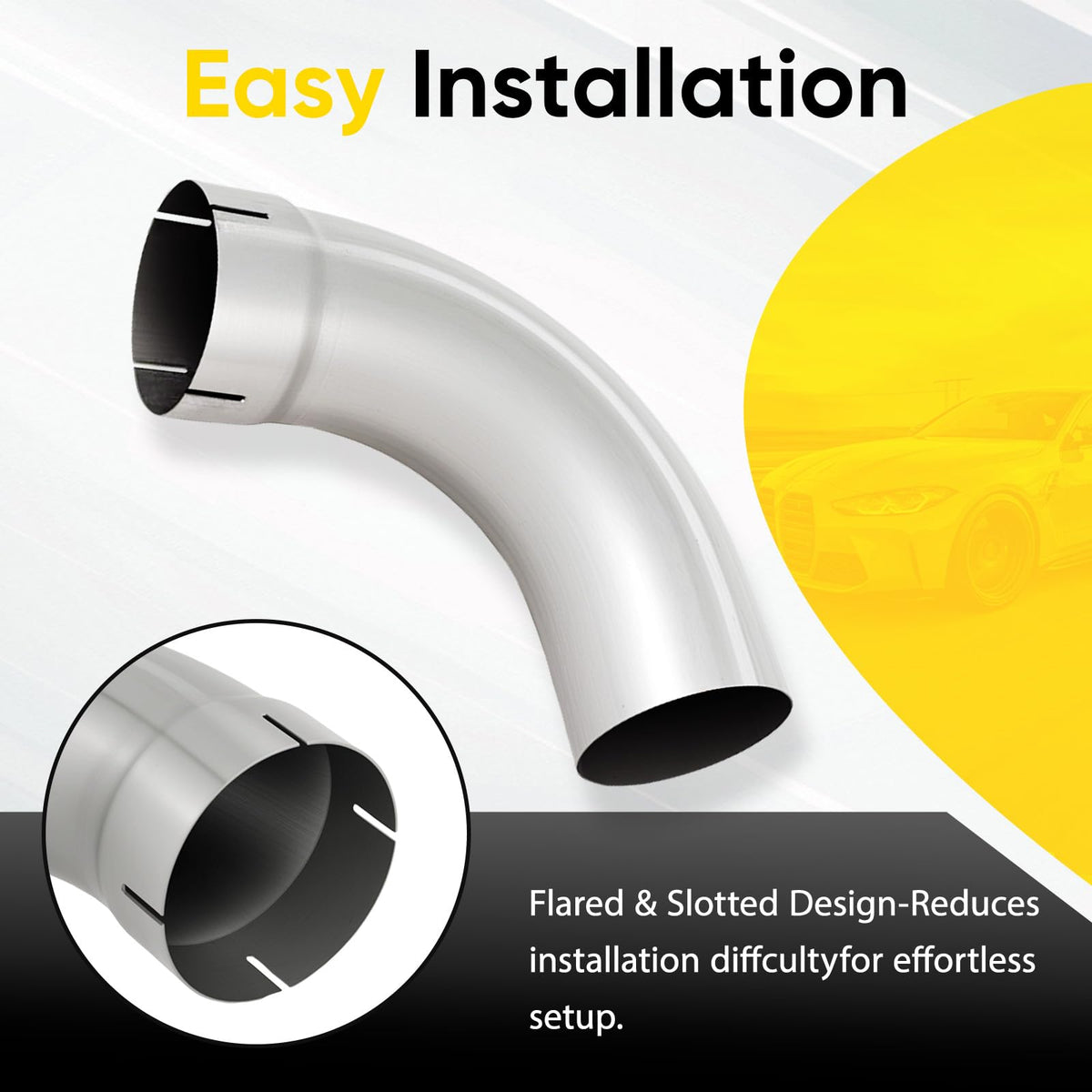

Installation uses the flared, slotted end to slide over or into mating 4" pipe and then clamp down with standard exhaust or duct clamps. The 10" leg length gives enough overlap for a secure joint while allowing trimming for tight spaces.

• Measure mating pipe to confirm 4" compatibility before fitting.
• Slide flared end over or into the adjoining pipe and align the slot.
• Use a worm-gear clamp or exhaust band clamp to tighten the joint.
• Trim leg length if necessary to achieve the desired routing.

Where is this elbow best used and what should I check before buying?

This elbow is suited for automotive exhaust repairs, custom exhaust fabrication, HVAC outlet transitions, and light industrial ducting runs where a sturdy right-angle is needed. Confirm you need a 4" diameter and that 10" leg lengths fit your routing requirements.

• Ideal for 4" exhaust or ventilation systems requiring a 90° turn.
• Verify clearance and leg length before purchase to reduce trimming.
• Not intended for sealed high-pressure systems without proper gaskets.
• Suitable for shop fabrication, replacement parts, or prototype builds.

Who is this for: the LYLCDDP 4" 90° exhaust elbow is aimed at mechanics, fabricators, HVAC technicians, and DIYers who need a reliable, mandrel-bent elbow that balances airflow performance and corrosion resistance. If you work with 4" exhaust or ducting and want a ready-to-fit elbow with a flared/slot end for straightforward clamping, this component is made to simplify routing while keeping the assembly robust and serviceable.
