Magorfas Electronic Throttle Body 68mm for Ford & Lincoln 3.5L–3.7L, 6‑Pin Aluminum

The Magorfas electronic throttle body is a direct-fit 68 mm aluminum replacement that restores throttle control on compatible Ford and Lincoln 3.5L–3.7L naturally aspirated engines.

This throttle body (inner diameter 68 mm, outer 80.5 mm, 6-pin) is designed to replace factory units such as S20068, TB1049, 977-328 and several OEM Ford part numbers. Built from high-temperature aluminum, it manages intake airflow via an electronic actuator and is intended for a wide range of models including Explorer, Edge, Mustang, F-150, Transit, Taurus, Flex and multiple Lincoln vehicles across 2011–2017 model years. The unit requires a simple initialization sequence after installation so the vehicle’s ECU can relearn throttle positions.

Which vehicles does this Magorfas throttle body fit?

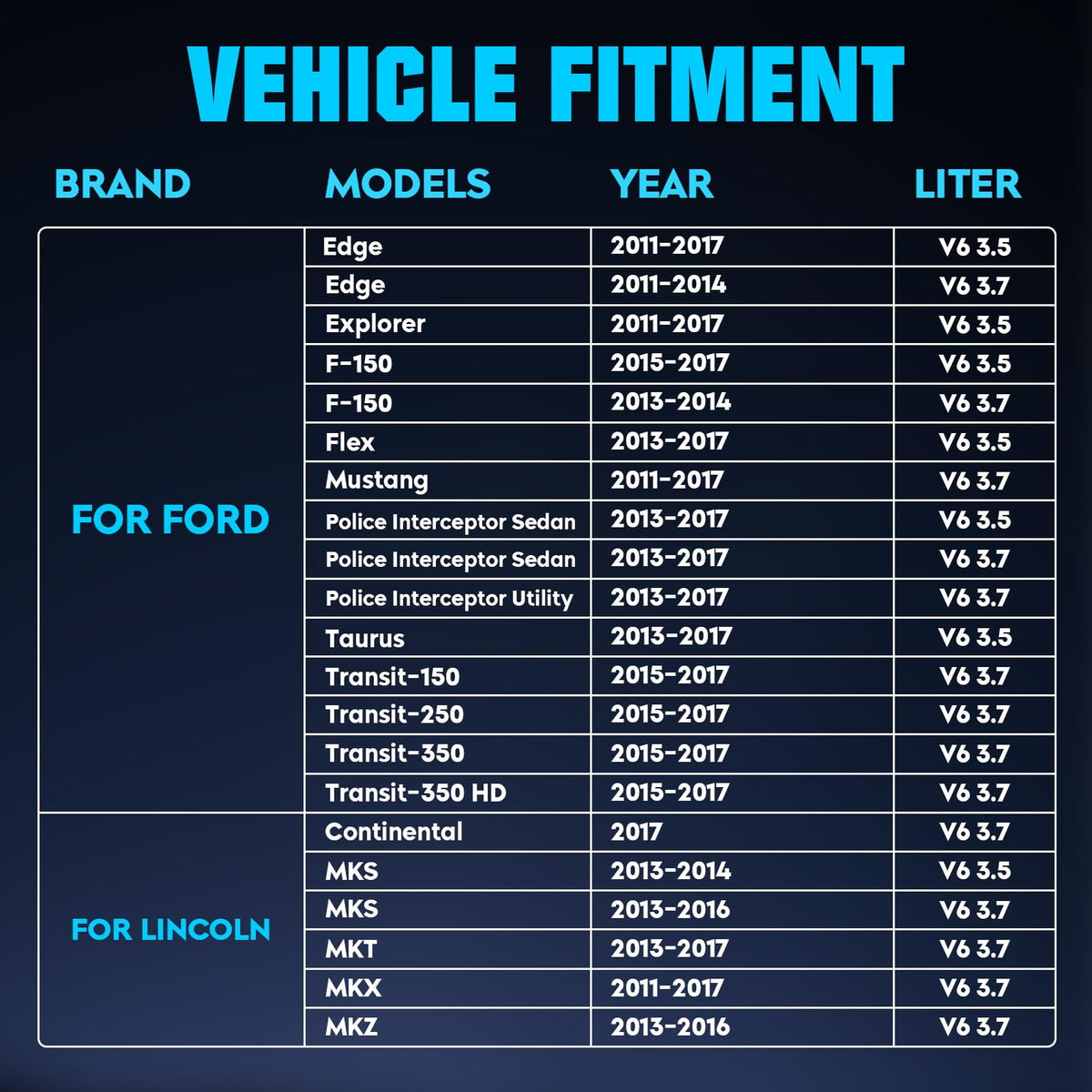

This throttle body fits many naturally aspirated 3.5L and 3.7L Ford and Lincoln engines from 2011 to 2017. It is compatible with specific model-year ranges and engine types—confirm fitment by matching engine displacement and production year.

• Ford F-150 3.7L (2013–2014), F-150 3.5L (2015–2017) — not for 3.5L EcoBoost
• Explorer 3.5L (2011–2017), Edge 3.5L/3.7L (2011–2017 depending on year)
• Mustang 3.7L (2011–2017), Transit-150/250/350 3.7L (2015–2017)
• Taurus, Flex 3.5L (2013–2017) and Lincoln MKS/MKT/MKX/MKZ/Continental variants listed in product fitment

What are the key specifications and OEM replacements?

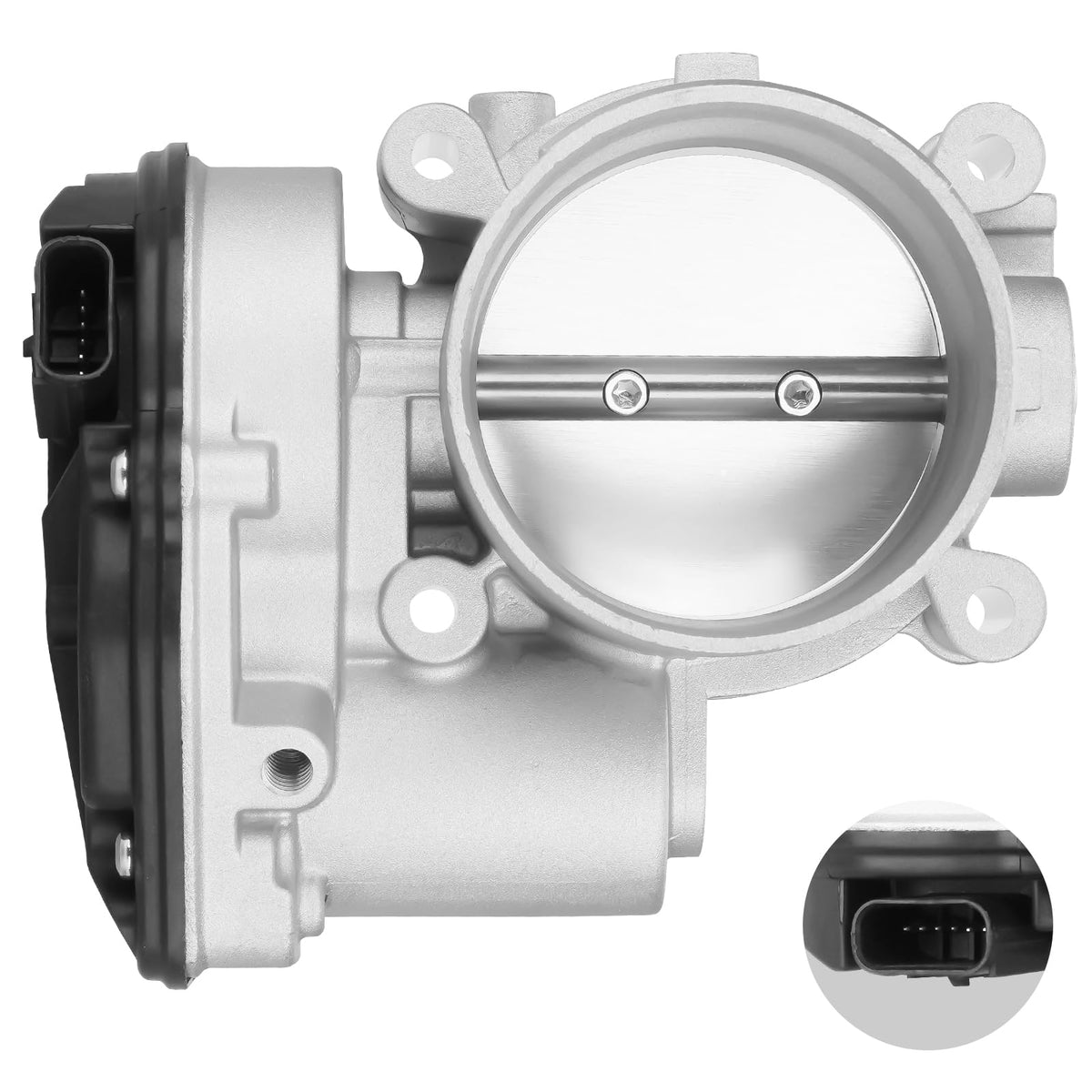

The Magorfas unit measures an inner diameter of 68 mm with an 80.5 mm outer diameter and uses a six-pin electrical connector for communication with the vehicle’s engine control system. It replaces several common part numbers used by OEMs.

• Inner Ø: 68 mm | Outer Ø: 80.5 mm | Connector: 6-pin
• Replaces: S20068, TB1049, 977-328, 67-6018 and AT4Z/AT4E series OEM numbers
• Construction: high-temperature aluminum body for corrosion and wear resistance

How is installation and initialization performed?

Installation follows standard throttle-body replacement steps; electrical connector and intake mounting must be secure. After swapping in the new unit, the throttle body needs an electronic initialization so the vehicle’s ECU can calibrate the closed and open throttle positions.

• Mount and torque the throttle body to intake manifold per vehicle specs
• Reconnect vacuum lines, sensors and the 6-pin electrical connector

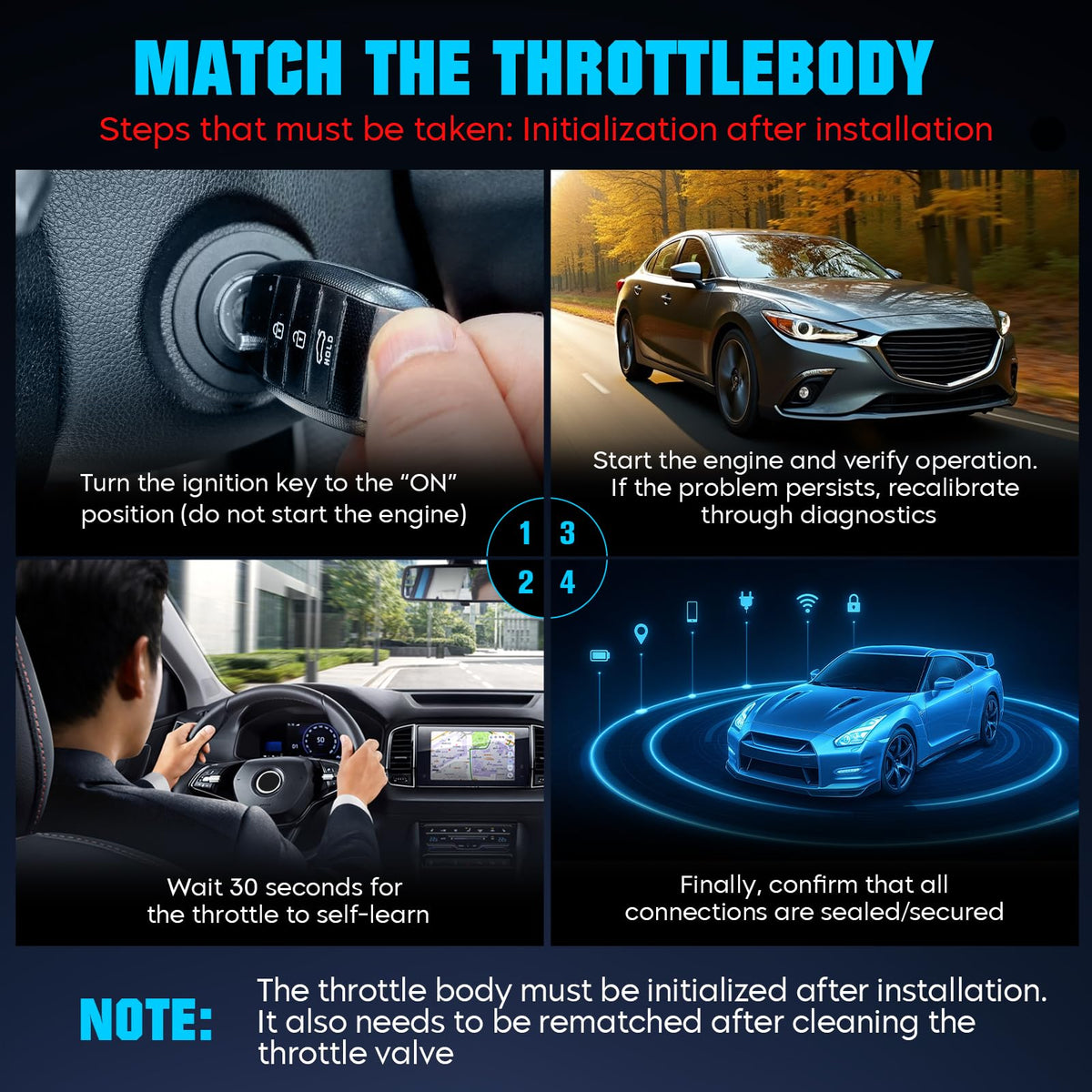

• Initialization: turn key to ON (do not start), wait 30 seconds for self-learning; battery voltage must remain above 11.5V

What performance and durability features should I expect?

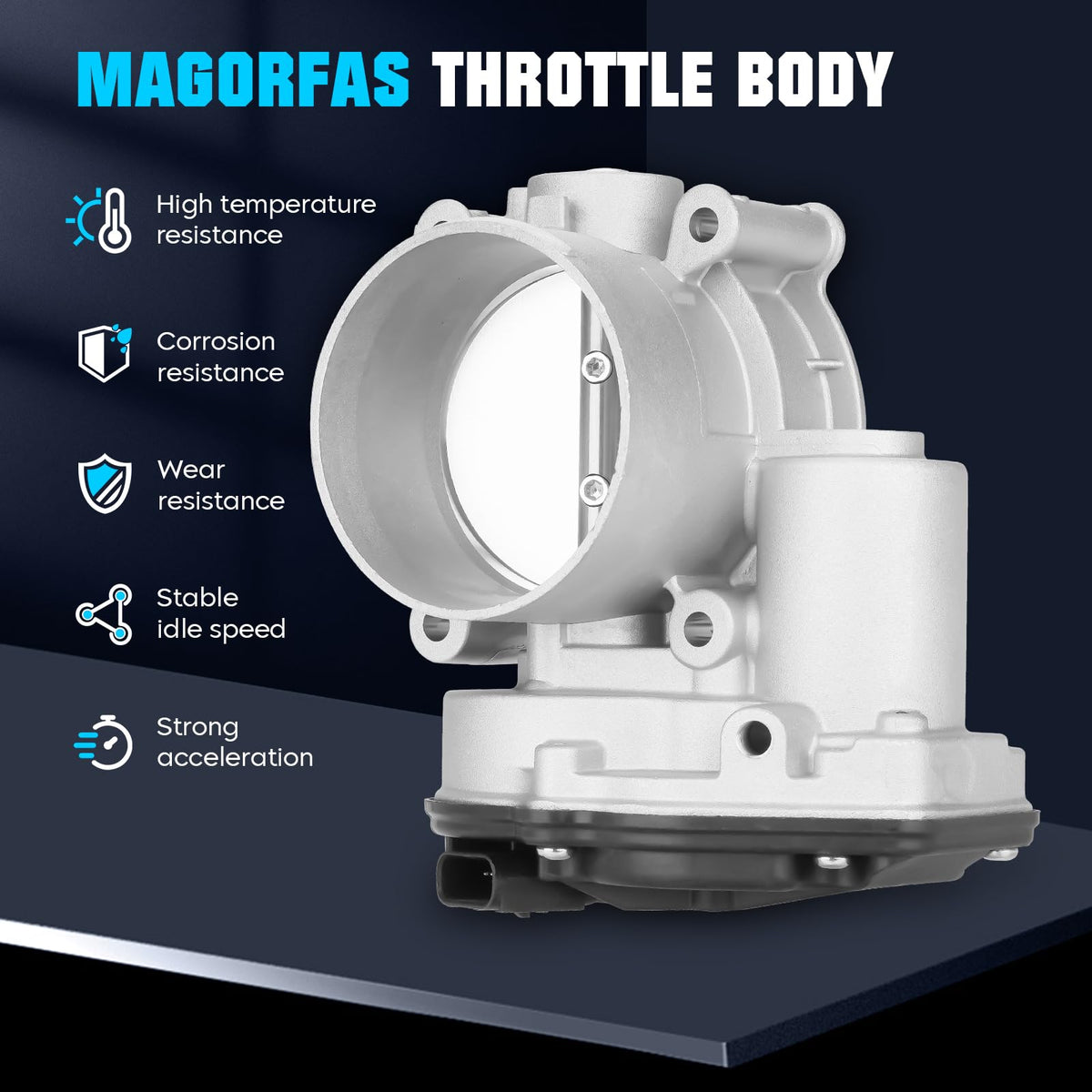

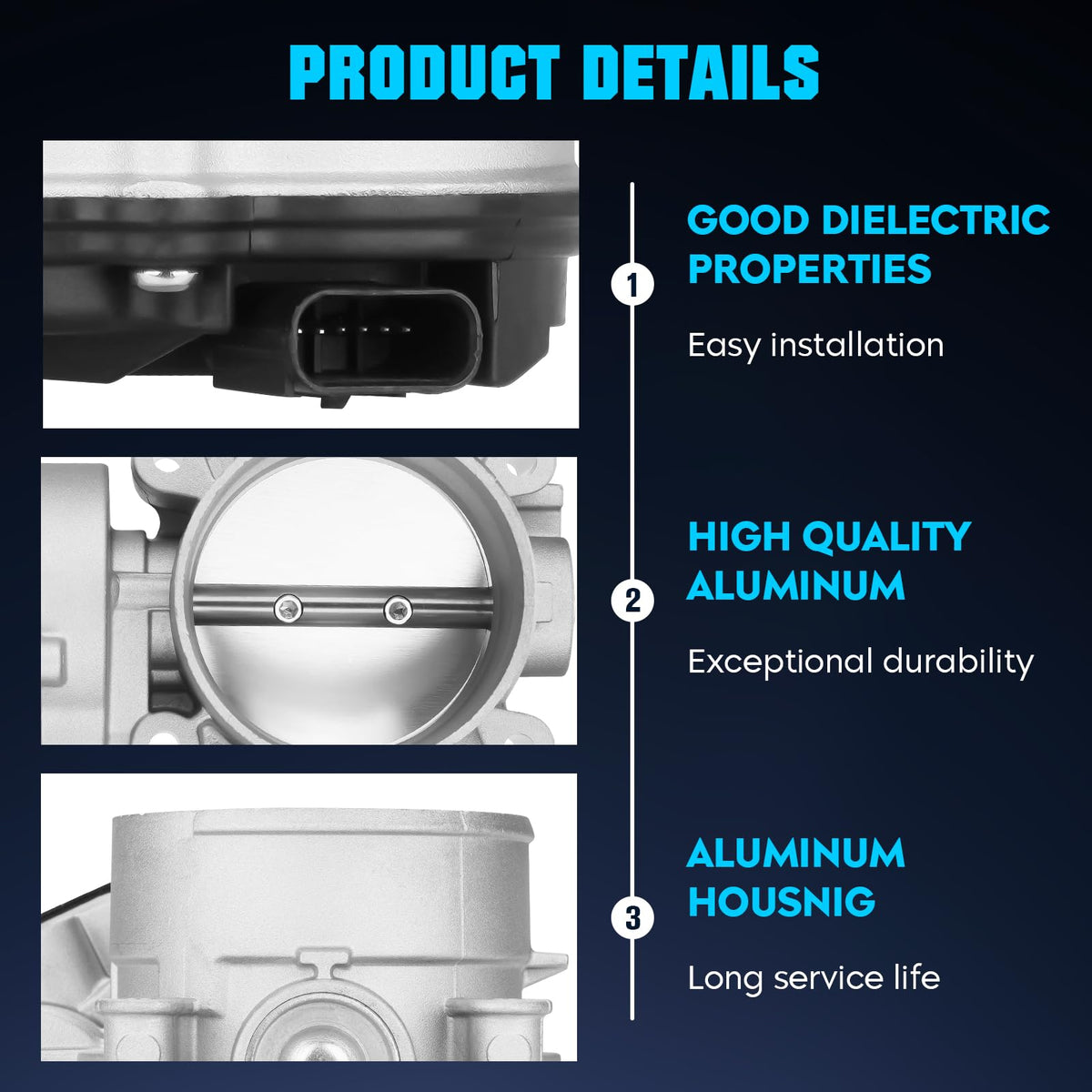

Magorfas designed this throttle body to withstand engine bay heat and contaminants while delivering reliable electronic control of intake airflow. The aluminum housing and precision actuator reduce wear and improve longevity versus lower-quality alternatives.

• Aluminum construction resists high temperature, corrosion and abrasion
• Precision actuator for repeatable throttle positioning and response
• Manufactured to match OEM mounting and electrical interfaces for straightforward replacement

Who is this for: This Magorfas throttle body is aimed at owners and technicians who need a direct-fit replacement for failing or worn electronic throttle bodies on compatible Ford and Lincoln naturally aspirated 3.5L and 3.7L engines. It's suitable for DIY mechanics comfortable with basic intake removal and ECU initialization as well as professional repair shops seeking an OEM-equivalent part number alternative for mid-2010s Ford/Lincoln models.
