Mastercool R134a Valve Core Remover/Installer Kit — 58490 Compact Case, Works Under Pressure, Brass/Stainless Shutoff

The Mastercool 58490 is a professional R134a valve core remover/installer kit that lets you remove and fit valve cores while the system stays pressurized, preventing refrigerant loss and saving service time.

This compact, technician-focused kit is built around Mastercool’s patented shutoff valve and includes all connectors, shafts, and adapters needed to work across most R134a automotive platforms. Rather than evacuating refrigerant, you can replace defective or leaking cores quickly and accurately on the vehicle. The set organizes components inside a molded carrying case for mobile work or bench use, and the brass-and-stainless construction is specified for repeated field use.

How does this kit prevent refrigerant escape during service?

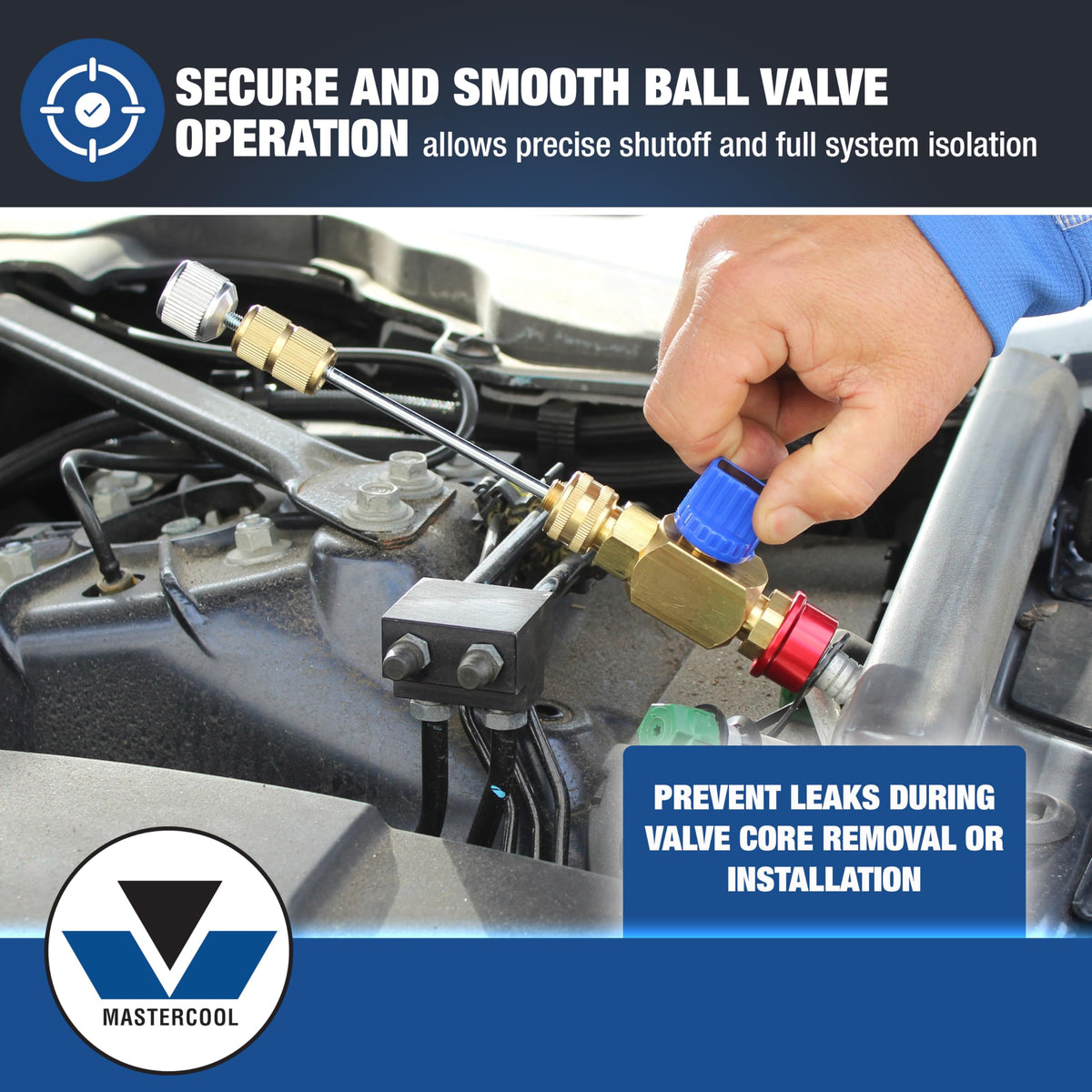

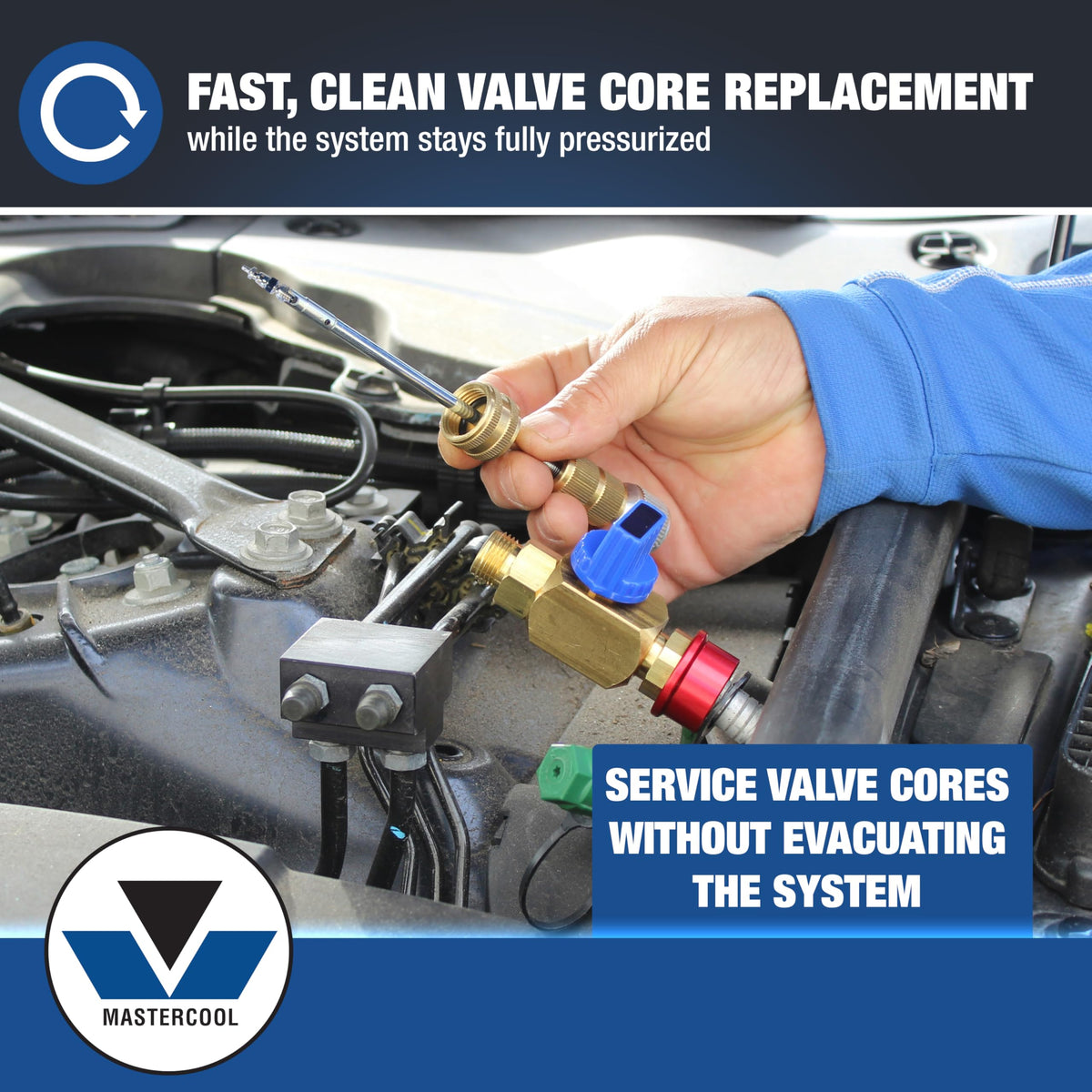

The 58490 uses an integrated shutoff/ball valve and precision sealing connections so you can break into a Schrader valve without discharging the system. You attach the adapter, close the internal valve, remove or install the core, then reopen for a leak-free return to service. This reduces refrigerant loss and avoids time-consuming evacuations when a core change is the only required repair.

• Patented shutoff valve control for pressure isolation
• Brass body and stainless valve for durable sealing
• High- and low-side connectors match vehicle service ports
• Operation allows core change with system intact

Which valve core types and vehicle fittings are supported?

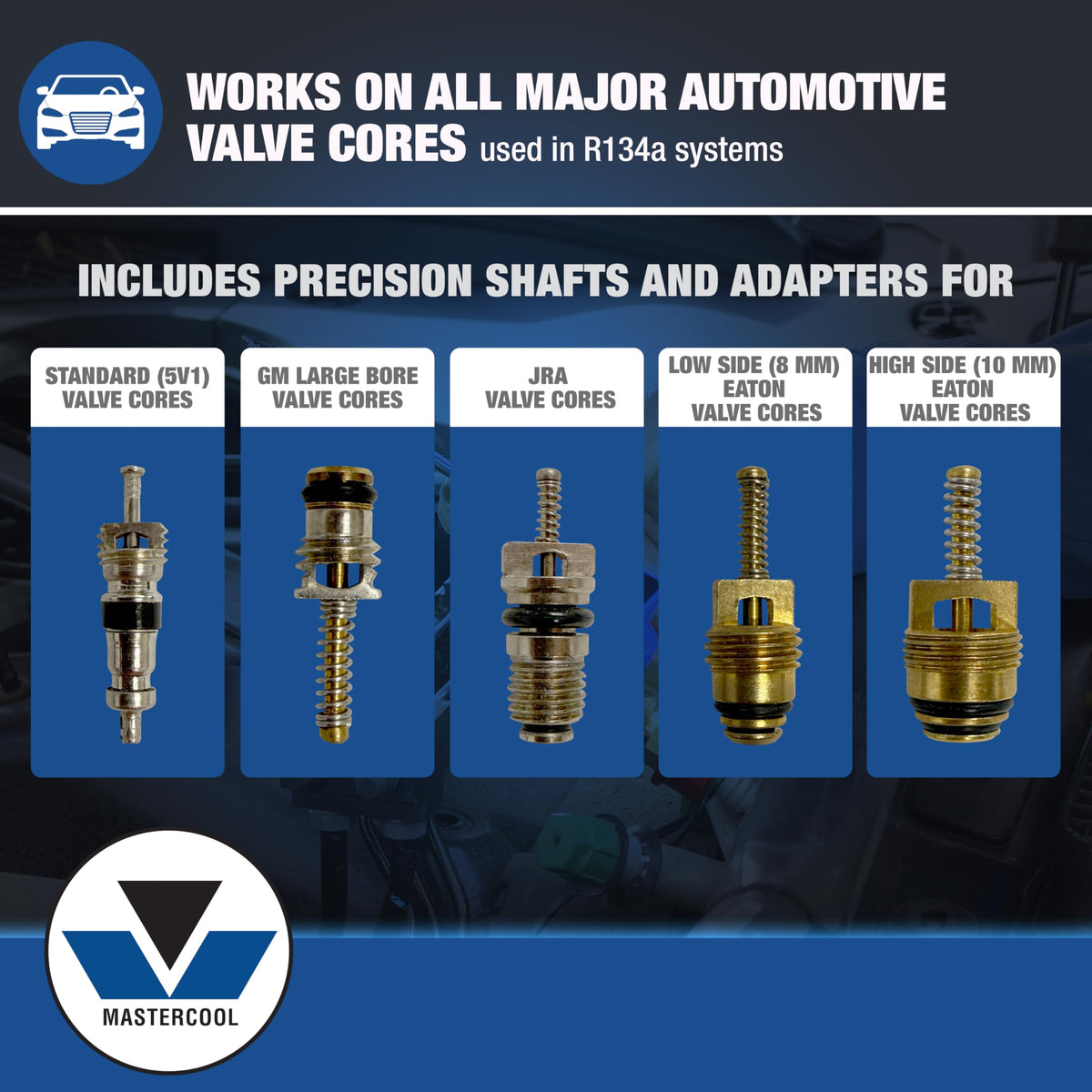

Mastercool designed this kit to cover the most common R134a valve core varieties and the specific thread types used by different manufacturers. Included shafts and adapters handle standard 0.210-36 cores, JRA M6x0.75 cores, and Eaton-style cores with 8mm and 10mm threads. The kit also supplies both 13mm low-side and 16mm high-side R134a connectors plus GM/Ford high-side adapter fittings for broad compatibility.

• Standard valve core shaft (0.210-36) included
• JRA shaft for M6 x 0.75 cores
• Eaton shafts for 8mm and 10mm applications
• R134a high (16mm) and low (13mm) side connectors plus swivel

What components come in the case and how are they organized?

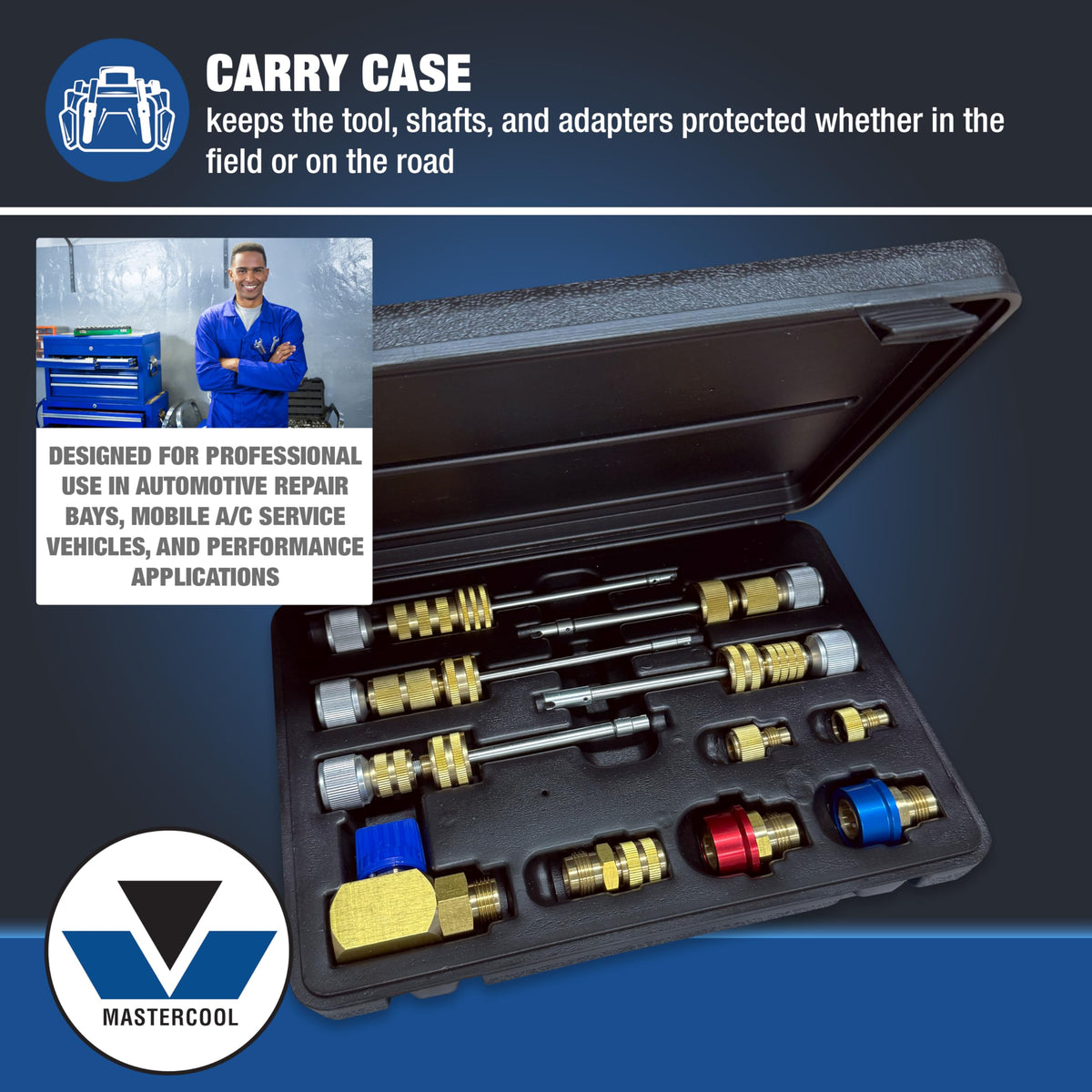

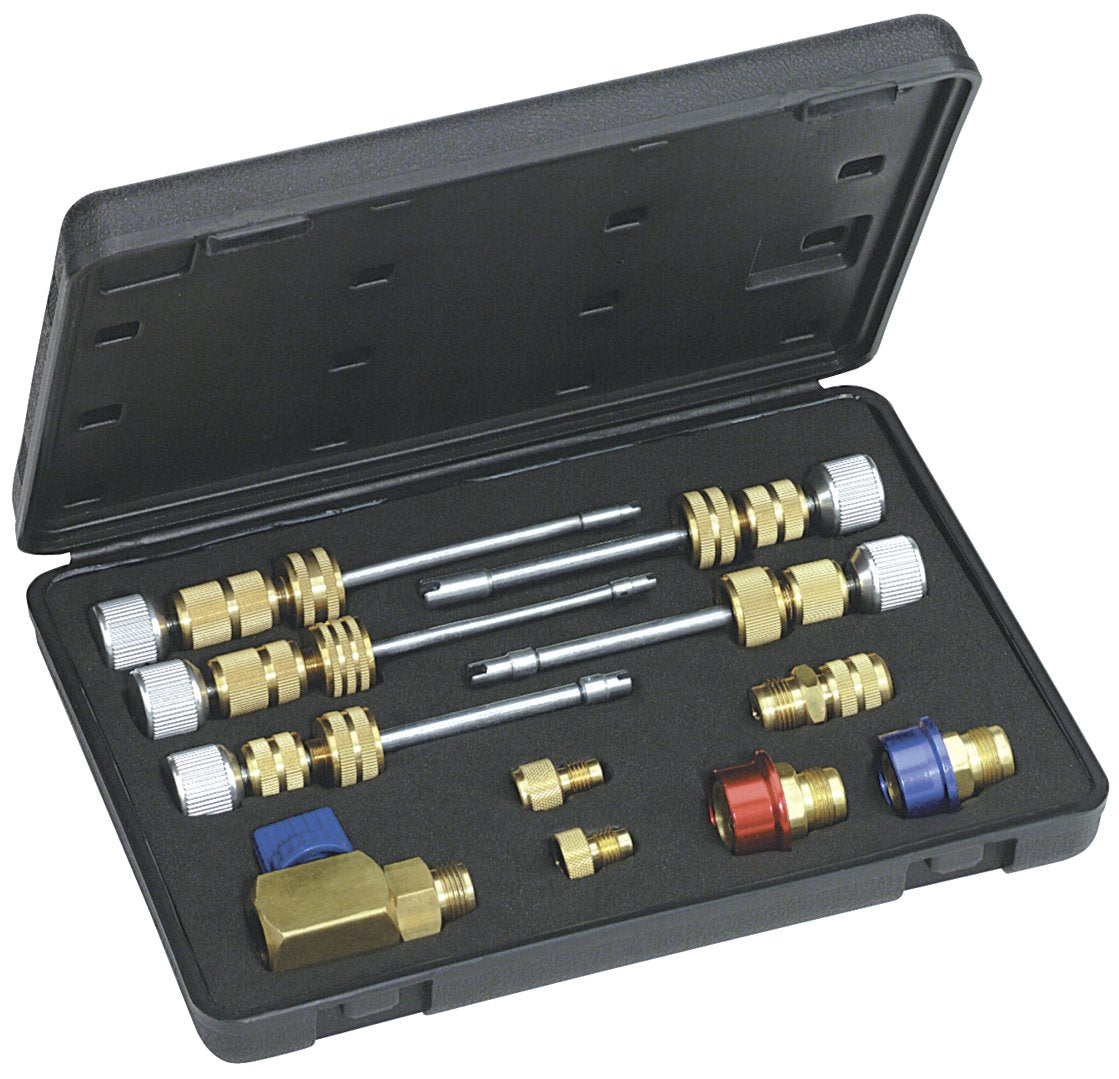

The molded carrying case holds the remover/installer with its shutoff valve, multiple interchangeable shafts, R134a high- and low-side connectors, a 1/4" FL swivel connector, and several vehicle-specific adapter fittings. Everything snaps into dedicated cutouts so technicians can inventory the set quickly and keep parts protected during transport. The format supports both shop storage and on-vehicle service calls.

• Remover/installer assembly with shutoff valve
• Interchangeable core shafts for all listed core types
• High- and low-side connectors, swivel, and GM/Ford adapters
• Durable molded case with secure storage layout

How durable and serviceable is the tool for daily shop use?

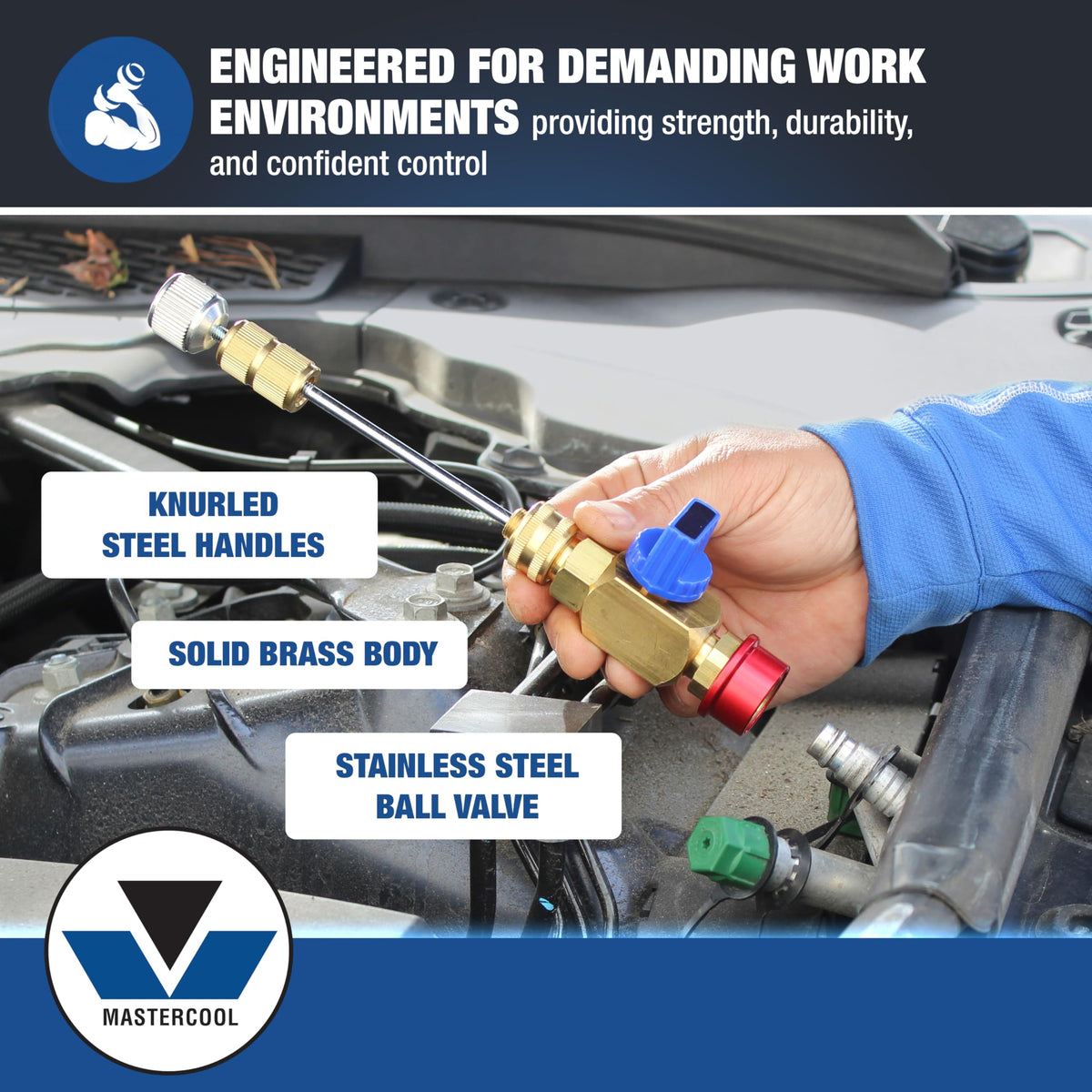

Materials and manufacture are chosen for repeated professional use: the main body is brass for corrosion resistance, the ball valve is stainless steel for long wear, and shafts are hardened steel to withstand repeated threading and torque. Mastercool has over four decades of A/C tool development behind this design, and U.S.-based support is available if you need replacement parts or troubleshooting.

• Brass body resists corrosion from refrigerant exposure
• Stainless steel ball valve for long life and reliable shutoff
• Hardened steel shafts resist wear from frequent use
• Backed by Mastercool’s technical support and parts network

Who is this for: The Mastercool 58490 is intended for professional automotive HVAC technicians, mobile A/C service providers, and well-equipped fleet maintenance shops that service R134a systems. It’s ideal when valve core servicing is needed quickly and you want to avoid unnecessary refrigerant recovery steps—especially useful for busy shops that value speed, part coverage, and durable, repairable tools.
