maXpeedingrods High Torque Mini Starter 19695 — 12V PMGR for Chevy SBC/BBC 262–454

The maXpeedingrods High Torque Mini Starter 19695 is a compact 12V PMGR starter built to deliver reliable cranking power for Chevy Small and Big Block V8 and V6 engines with 153 or 168-tooth flywheels.

This replacement starter is engineered for direct-fit applications on a wide range of Chevrolet models and aftermarket builds that use Small Block (SBC) or Big Block (BBC) engines from 262 up to 454 cubic inches. It combines a small physical footprint with a 1.4 kW output and permanent-magnet gear reduction (PMGR) design so you get higher torque from fewer amps, making it suitable for tight engine bays, older restorations, and custom swaps where space and starter-to-flywheel alignment matter.

Will this starter fit my Chevy engine and vehicle?

Yes, the 19695 is designed to fit Chevy Small & Big Block engines that use a 153- or 168-tooth ring gear. It supports both automatic and manual transmissions when the correct ring gear tooth count is present.

• Fits Chevy engines: SBC/BBC 262–454 cu in
• Compatible flywheel tooth counts: 153 or 168
• Applications include Astro, Bel Air, Biscayne, Blazer and many classic trucks
• Direct-fit replacement when using the listed bolt pattern and tooth count

How much power and torque does this starter provide?

The maXpeedingrods 19695 produces about 1.4 kW (1.88 HP) of power and uses a PMGR reduction gearset to deliver higher torque at the pinion while drawing less current than a comparable direct-drive unit. This improves cranking reliability, particularly on higher-compression or older engines.

• Rated output: 1.4 kW / 1.88 HP
• Gear reduction yields stronger torque for the 10-tooth pinion
• Clockwise (CW) rotation for correct engagement with specified flywheels
• Lower current draw compared with many conventional starters

What are the key specifications I should check before ordering?

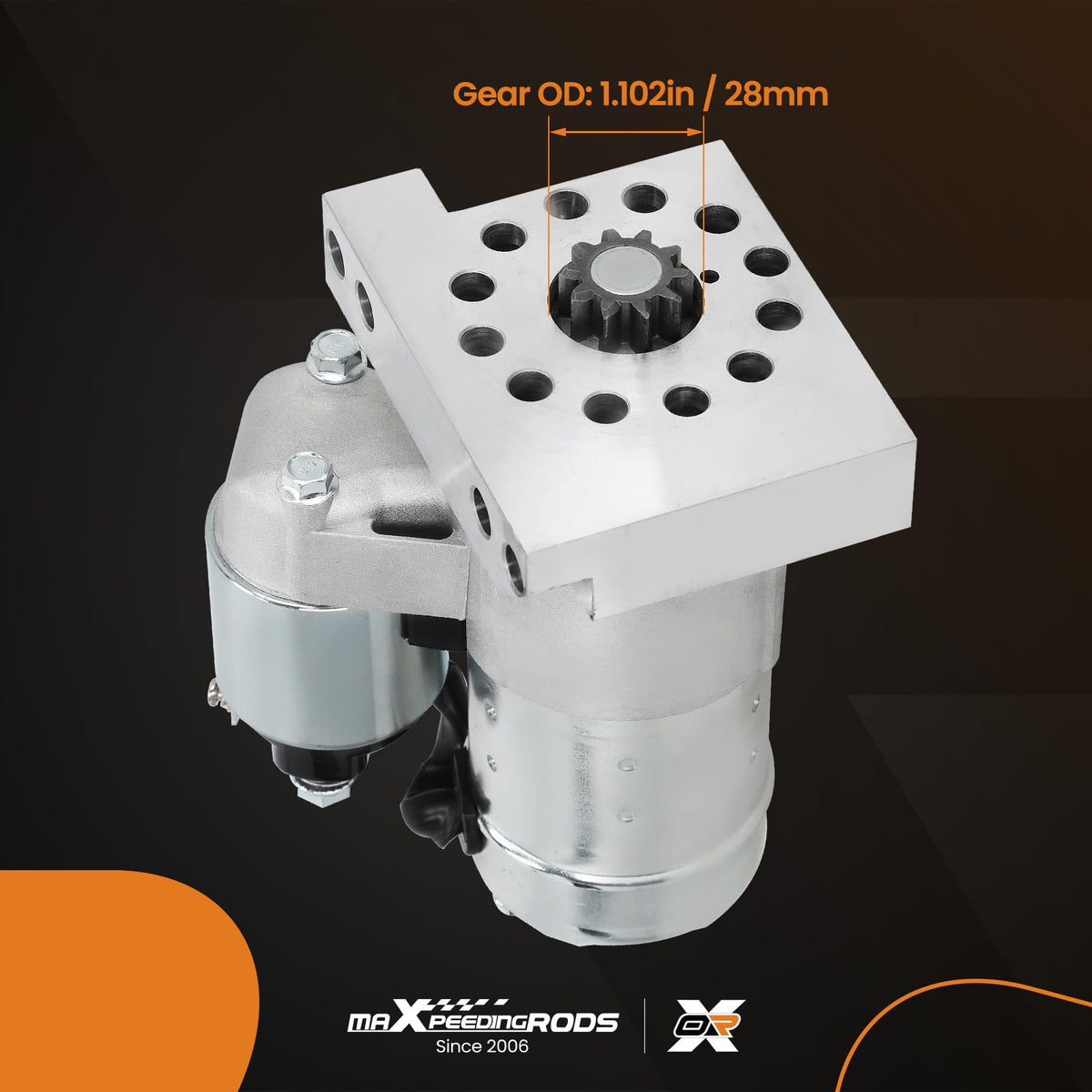

Confirm the ring gear tooth count, starter bolt pattern, pinion teeth, and rotation direction before purchase. The 19695 has a 10-tooth pinion with a 28 mm (1.102 in) gear outside diameter and clockwise rotation.

• Voltage: 12V — standard automotive electrical systems
• Pinion teeth: 10; gear OD: 28 mm / 1.102 in
• Rotation: CW (clockwise)
• Starter type: PMGR (permanent-magnet gear reduction)

How does this unit compare to OEM options and other aftermarket starters?

maXpeedingrods starters are tested to meet or exceed OEM specifications, offering a balance of compact size and high cranking torque. The PMGR design typically yields improved starting performance versus older direct-drive starters while maintaining a lower-profile housing for tight installations.

• Tested for reliability, durability and performance by the manufacturer
• Matches OEM fitment where bolt pattern and tooth count align

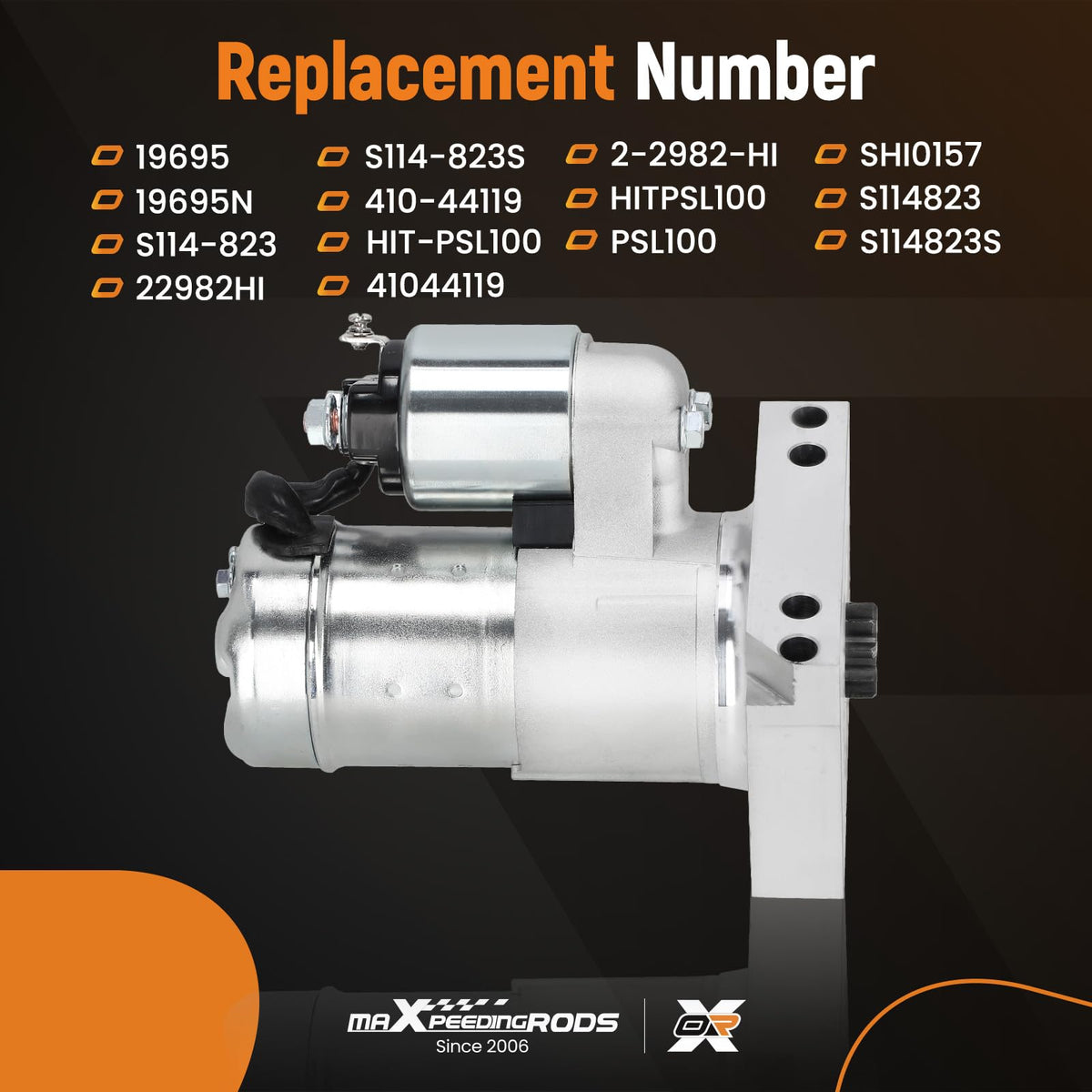

• Multiple equivalent part numbers ensure cross-compatibility with many listings
• Good option for restorations, performance swaps, and replacement needs

Who is this for: The maXpeedingrods High Torque Mini Starter 19695 is aimed at owners and mechanics restoring classic Chevrolets, performing engine swaps, or replacing worn starters on SBC and BBC engines that use a 153 or 168-tooth flywheel. If you need a compact, tested PMGR starter with a 10-tooth pinion, clockwise rotation, and 12V electrical compatibility, this model is a practical, cost-effective replacement option.
