MAXXHAUL 12V Square 28-LED Combination Tail Light 2-Pack — Universal Fit, Weatherproof

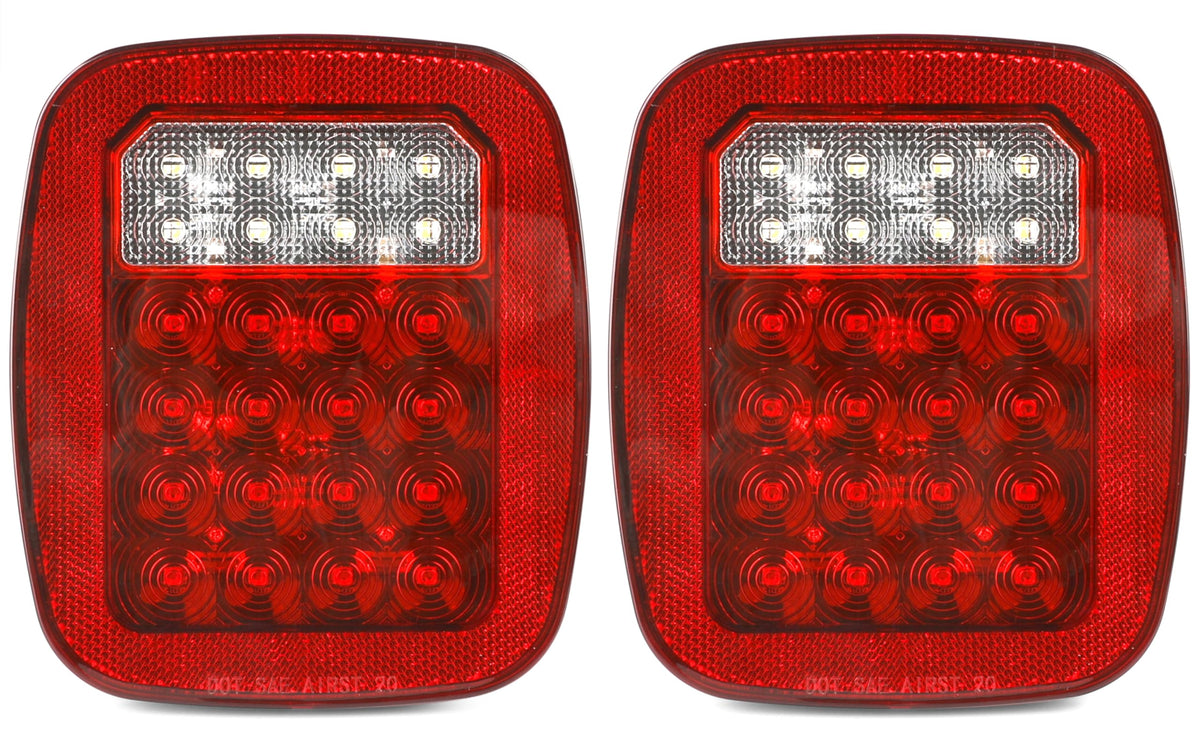

MAXXHAUL 80685 is a rugged, universal 12V square combination tail light with 28 LEDs designed to replace incandescent fixtures on trucks, trailers, RVs, vans and boats.

This two-pack of square combination tail lights blends durable construction with a straightforward universal fit to provide stop, turn, tail, and reverse illumination for a wide range of 12V vehicles. Built from impact-resistant ABS housings and PMMA/acrylic lenses, the assemblies are sonic-welded and sealed to resist moisture, vibration, and corrosion. One of the lamps includes integrated license plate illumination; wiring is hardwired into four color-coded leads for simple connections during installation.

How does this tail light handle harsh outdoor conditions?

The MAXXHAUL 80685 is engineered to stand up to road, marine, and off-road environments. Robust materials and sealed assembly reduce water ingress and protect circuitry from dirt and shock.

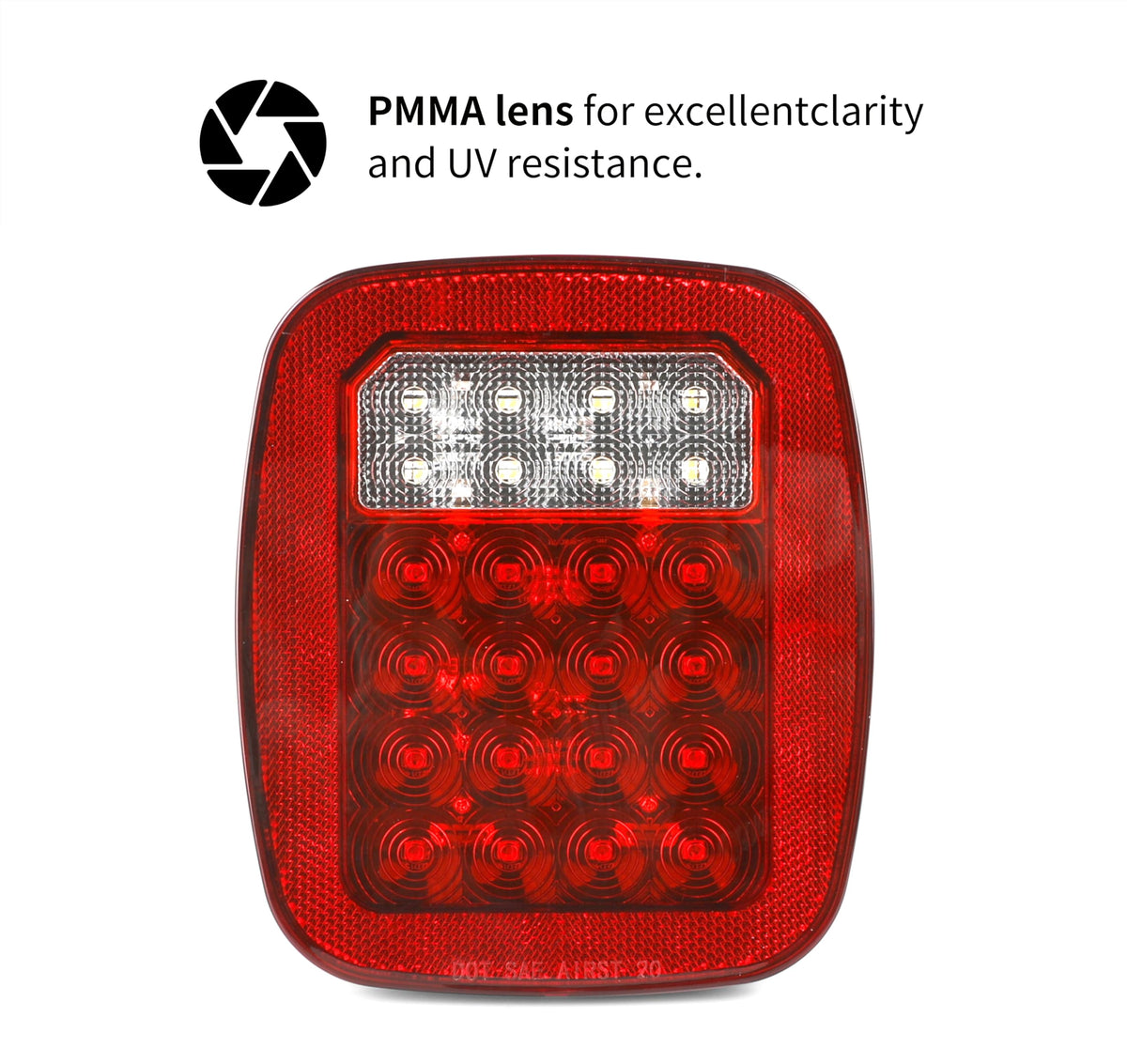

• PMMA/acrylic lenses for UV resistance and clarity
• ABS housing sonic-welded to prevent leaks
• Stainless steel front screws to limit corrosion
• Resists vibration and impact typical of trailers and trucks

Will these lights fit my vehicle and how easy is installation?

These lights are made as a universal 3-stud mount to fit most 12V vehicles, reducing the need for brand-specific housings. Installation is generally straightforward but may require splicing or minor modifications depending on your vehicle’s wiring and mounts.

• 3-stud mounting pattern for broad compatibility
• Four color-coded hardwired leads for clear hookup (White=Ground; White+Yellow=Backup; White+Black=Low-beam Red + License; White+Red=High-beam Red)
• Bolt holes slightly larger than stock to adapt to different surfaces
• Wiring harness not included; splicing may be necessary

What kind of lighting performance can I expect from the LEDs?

The assemblies use multiple LEDs arranged for distinct stop/turn/tail and reverse functions, offering brighter, longer-lasting output than incandescent bulbs. LED modules draw less current and provide instant-on illumination for safety and visibility.

• 28 LED total per unit for clear signaling and reversing light
• Dedicated red LEDs for stop/turn/tail functions and white LEDs for reverse and license illumination
• Longer service life and lower power consumption than traditional bulbs
• DOT-compliant output suitable for street-legal use

Who this is for: The MAXXHAUL 80685 two-pack is aimed at vehicle owners and fleet managers who need a durable, widely compatible tail light replacement for trailers, pickup trucks, RVs, vans, buses, flatbeds and boats. It’s especially useful for those who prefer LED upgrades for improved visibility and lower maintenance, and for installers comfortable with basic wiring tasks like splicing or adapting a mount. Note that one unit includes license plate lighting and Wrangler YJ/CJ owners may need small modifications for a perfect fit.
