MAXXHAUL 50248 Dual Hitch Extension 2" Receiver — Single-Post, 5,000 lb GTW, 6.5" Offset

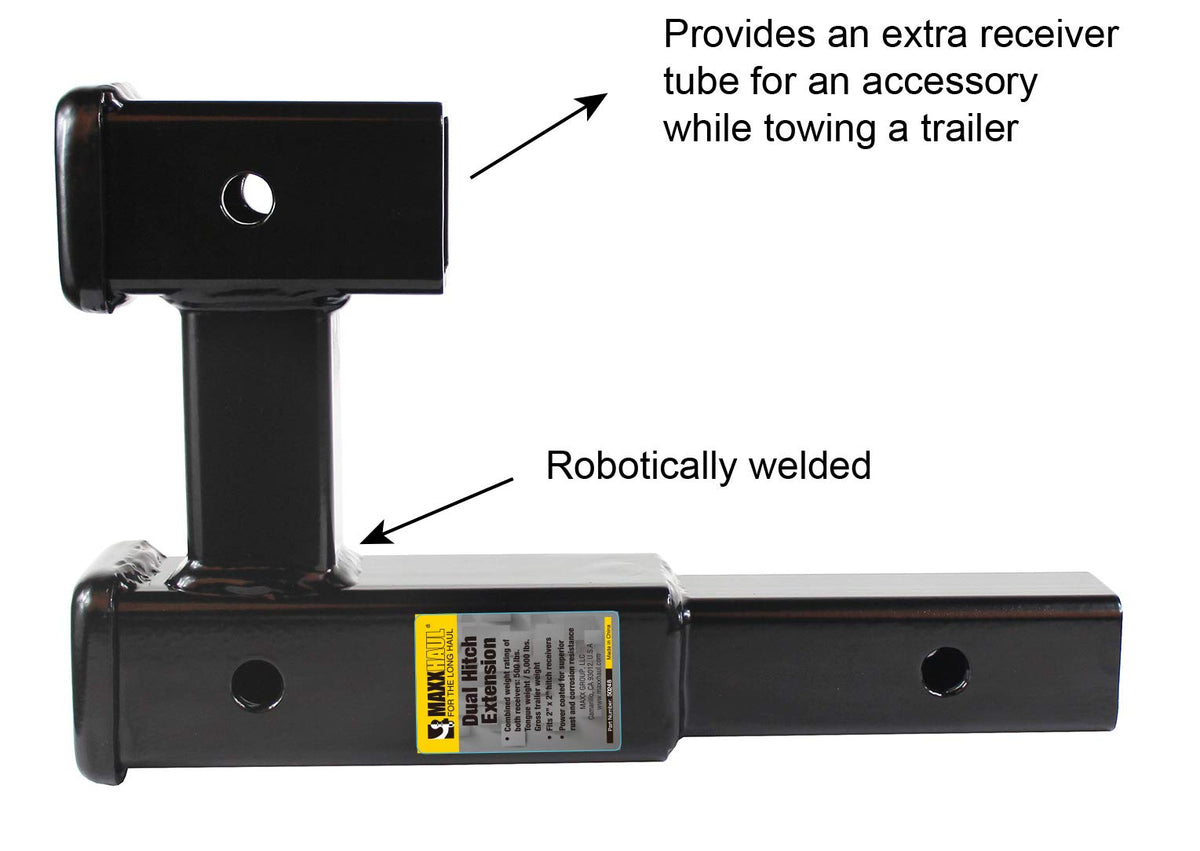

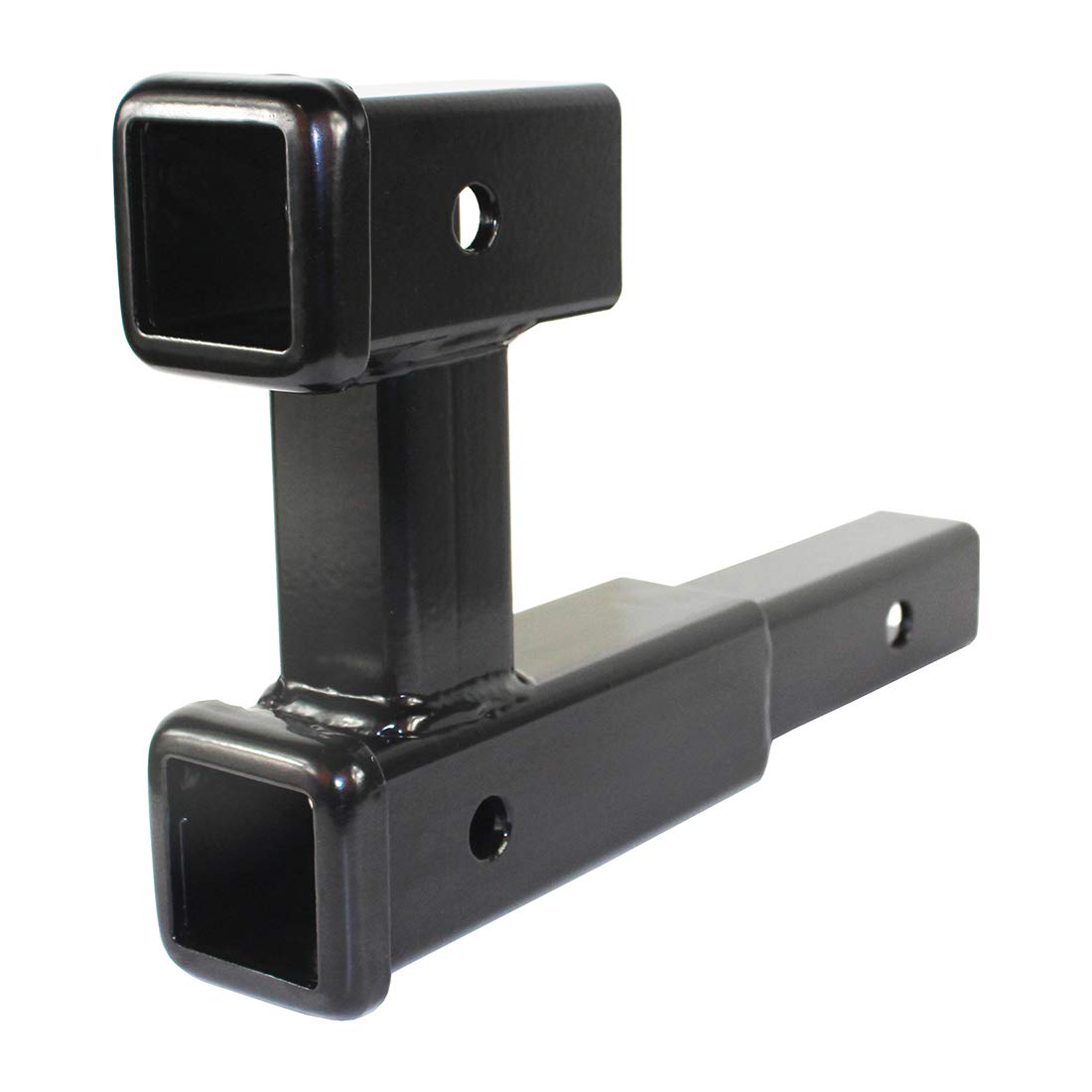

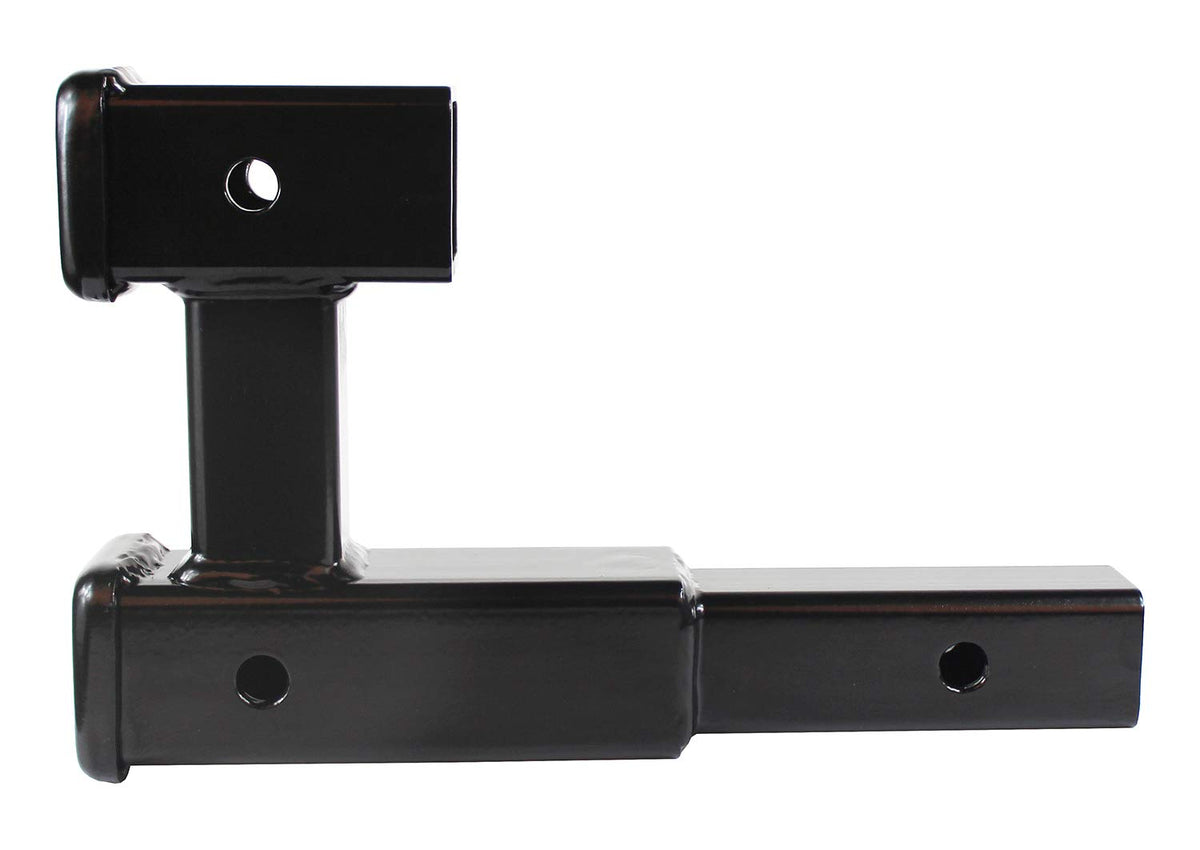

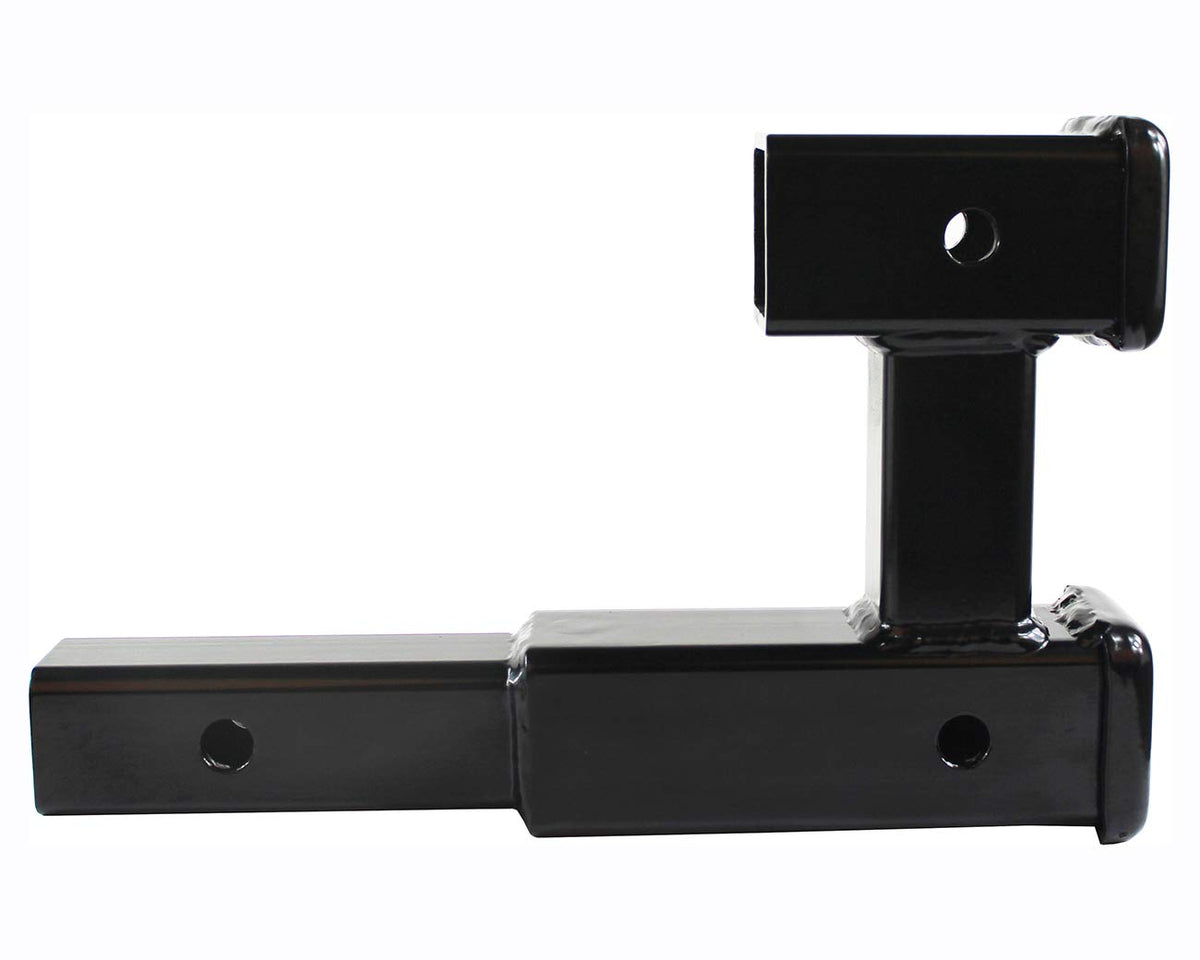

The MAXXHAUL 50248 Dual Hitch Extension converts a single 2" trailer hitch into two usable receivers so you can tow with the lower receiver while keeping an upper receiver free for hitch-mounted accessories.

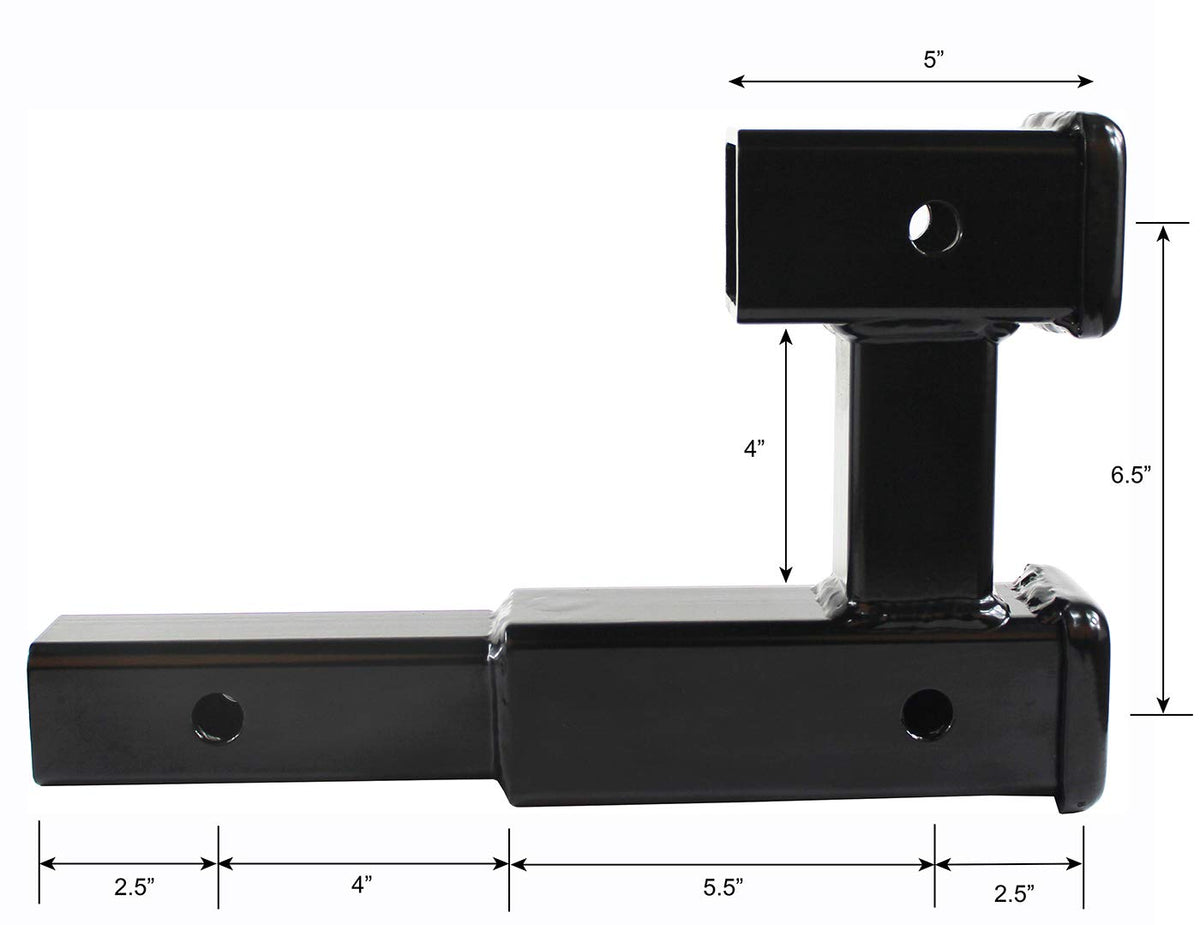

This heavy-duty dual hitch extension uses a single-post design to fit most vehicles with nonstandard bumpers, giving you the flexibility to tow a trailer and still use a bike rack, hitch step, cargo carrier or other accessories on top. Built from alloy steel with a durable powder-coat finish, the 50248 is rated for up to 5,000 lbs gross trailer weight and 500 lbs tongue weight when used according to the product guidance. The extension creates a clear 6-1/2" vertical separation between the two pin holes and extends approximately 9-1/2" from the vehicle hitch to the bottom receiver pin hole for improved clearance and accessory positioning.

How does the dual receiver help when I need to tow and carry gear at the same time?

The design places the towing connection on the lower receiver while providing an upper receiver for non-towing accessories. This lets you keep a bike rack, cargo tray, or hitch step installed without removing them each time you hook up a trailer.

• Lower receiver reserved for towing only — preserves safe trailer connection.
• Upper receiver intended for accessories such as bike racks and cargo carriers.
• 6-1/2" vertical offset reduces interference between trailer and mounted accessories.
• 9-1/2" forward extension improves clearance from the vehicle body.

Is the MAXXHAUL 50248 compatible with my vehicle and hitch?

It fits standard 2" x 2" Class III and Class IV hitch receivers only; it will not fit smaller or non-standard receiver types. Always verify your vehicle’s hitch class and weight ratings before installation so the extension is used within safe limits.

• Compatible with standard 2" x 2" receiver openings only.
• Not for use in smaller or custom receivers — check fit before purchase.
• Using an extension can reduce the hitch system’s total rated capacity; use lowest-rated component limits.
• Follow the vehicle and hitch manufacturer’s load and installation guidelines.

What are the load limits and important safety notes to follow?

The 50248 is rated up to 5,000 lbs gross trailer weight (GTW) and 500 lbs tongue weight (TW), but adding an extension may reduce capacity by up to 50%. Always use the lowest-rated element in the hitch chain (vehicle hitch, extension, ball mount, and trailer) to determine safe working loads.

• Maximum GTW: 5,000 lbs and maximum TW: 500 lbs as labeled.
• Extensions can lower the system capacity — recalculate allowable loads when using this product.
• Upper receiver must NOT be used for towing — only accessories.
• Inspect for wear, rust, and secure hitch pins before each trip.

How does the construction and finish affect durability and maintenance?

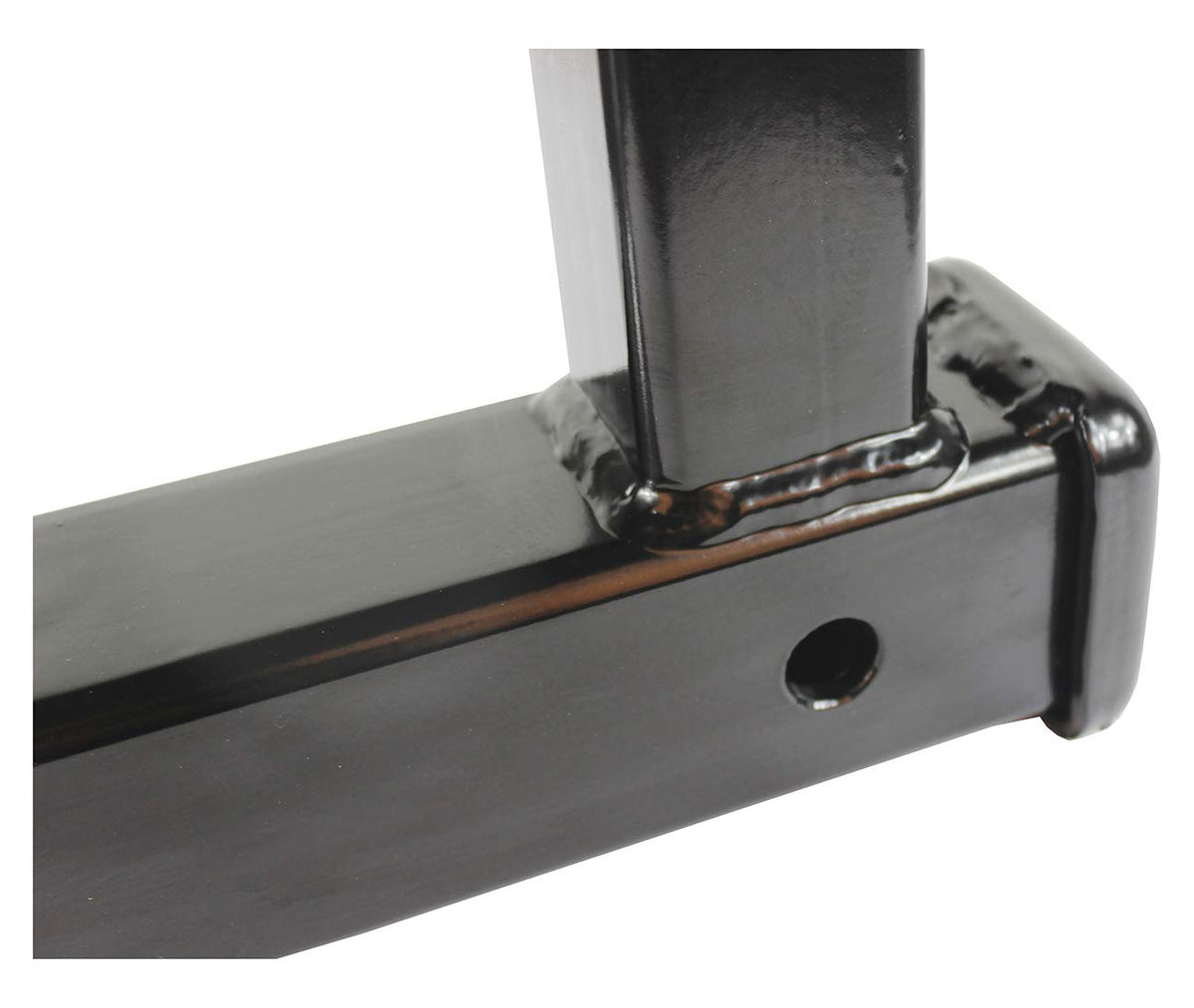

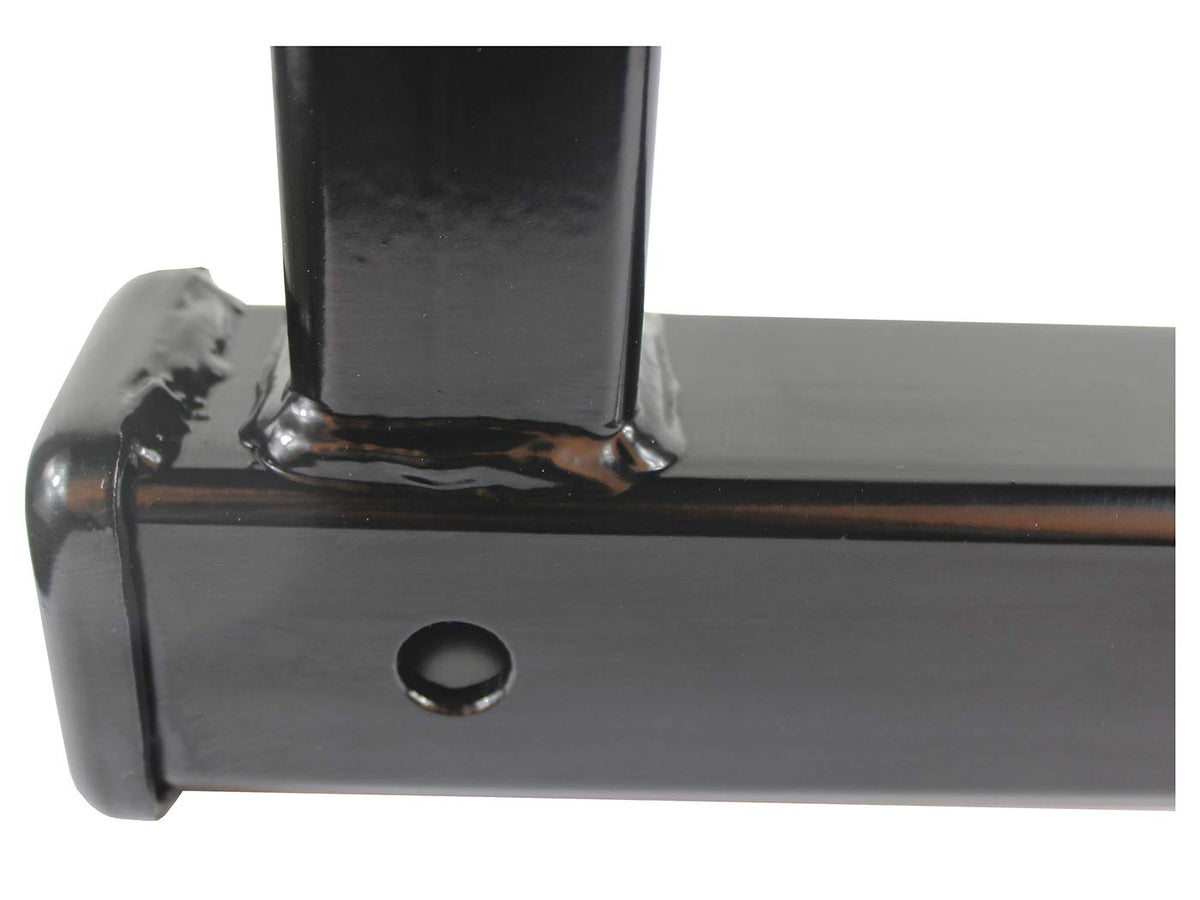

Constructed from heavy-duty alloy steel and finished with a protective powder coat, the extension resists corrosion and stands up to road use. Regular inspection and cleaning will extend service life and help maintain secure connections.

• Alloy steel body for strength under towing and accessory loads.
• Powder-coat finish reduces rust and cosmetic wear.
• Single-post design fits vehicles with unusual bumper shapes or limited clearance.
• Periodic inspection recommended; replace if excessive wear or damage is found.

Who this is for: The MAXXHAUL 50248 Dual Hitch Extension is ideal for drivers who tow trailers but also rely on hitch-mounted accessories — cyclists, weekend campers, and tradespeople who need to keep a cargo carrier or step in place while towing. It suits vehicles with standard 2" x 2" Class III/IV receivers and owners who understand hitch capacity limits and follow loading and safety recommendations. If you require added clearance and a convenient way to keep accessories mounted while towing, this dual receiver provides a practical, heavy-duty solution.
