MECMO 3-to-2 Wire Trailer Tail Light Converter 56236 — LED-Compatible, Powered 4-Way Flat Splice-In

MECMO 56236 is a powered 3-to-2-wire splice-in tail light converter that lets vehicles with separate turn and stop circuits drive standard 2-wire trailer lights, and it is built for LED compatibility and weather resistance.

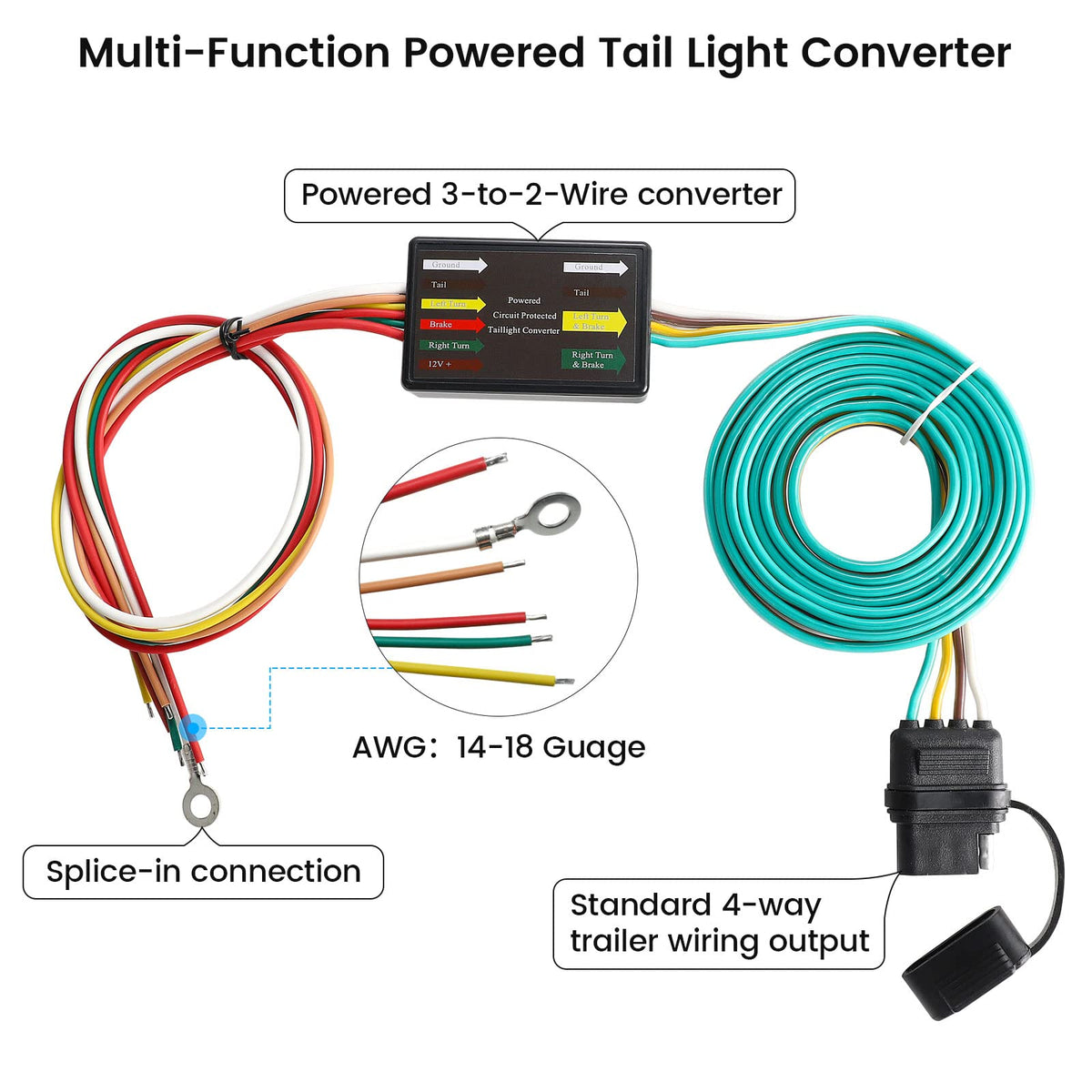

If your tow vehicle uses separate turn and stop signals but your trailer expects a combined brake/taillight circuit, this MECMO converter (model 56236) translates signals cleanly and reliably. It’s a powered, potted module with a 4-way flat socket and color-coded pigtails so you can splice into existing wiring quickly. The unit supports LED systems and is rated per circuit for typical trailer loads, giving you a simple splice-in solution without re-wiring the trailer harness.

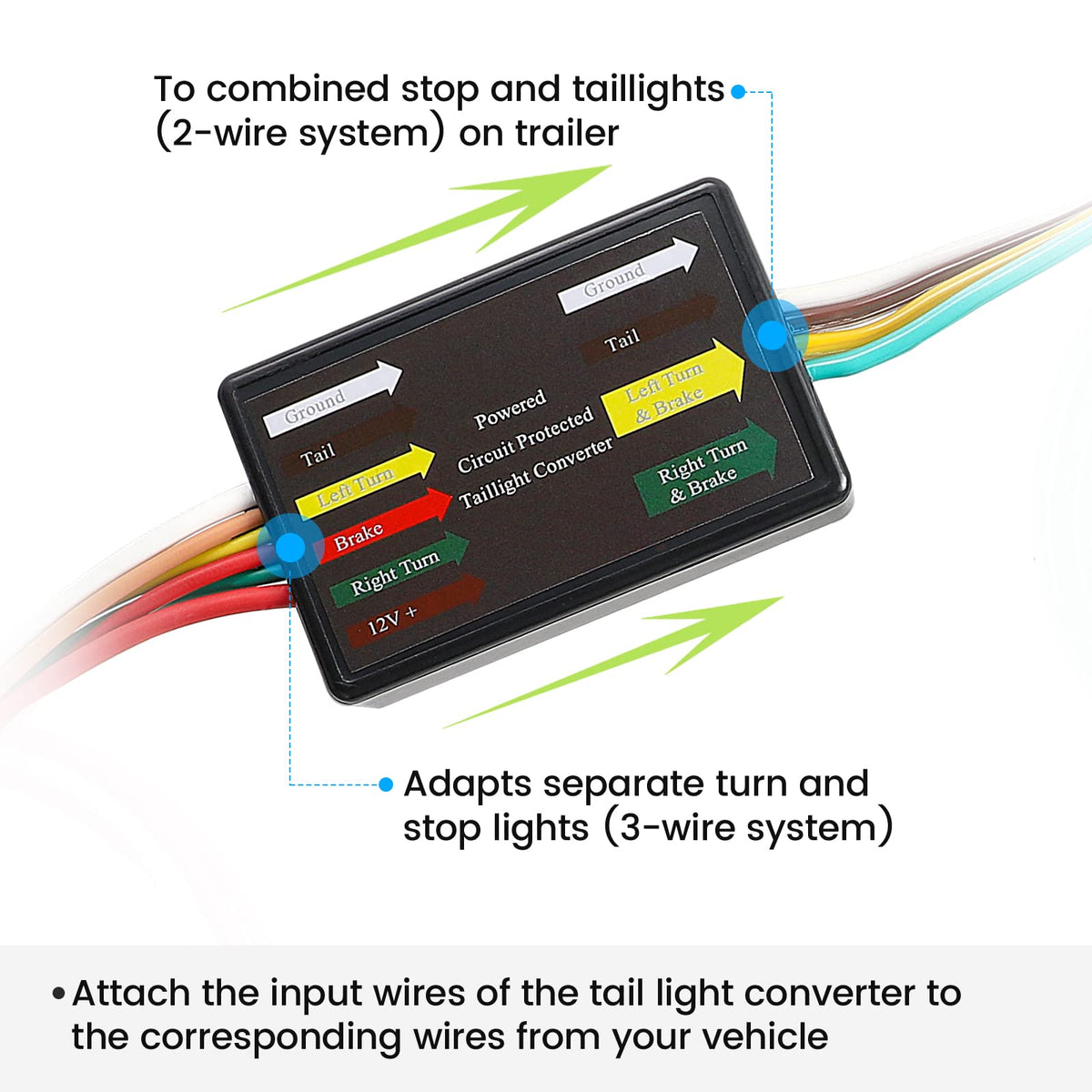

How does this converter make separate turn and stop lights work with a 2-wire trailer?

The MECMO 56236 receives individual turn and stop inputs from the tow vehicle and internally combines them into one taillight/stop circuit for the trailer while still powering the vehicle’s lights. Its powered design ensures the trailer gets sufficient current and correct signal prioritization. Surface-mount circuitry and a potted enclosure maintain reliable performance under road conditions.

• Combines separate turn/brake inputs into a standard 2-wire output for trailers
• Powered output maintains proper brightness for LED and incandescent trailer lamps

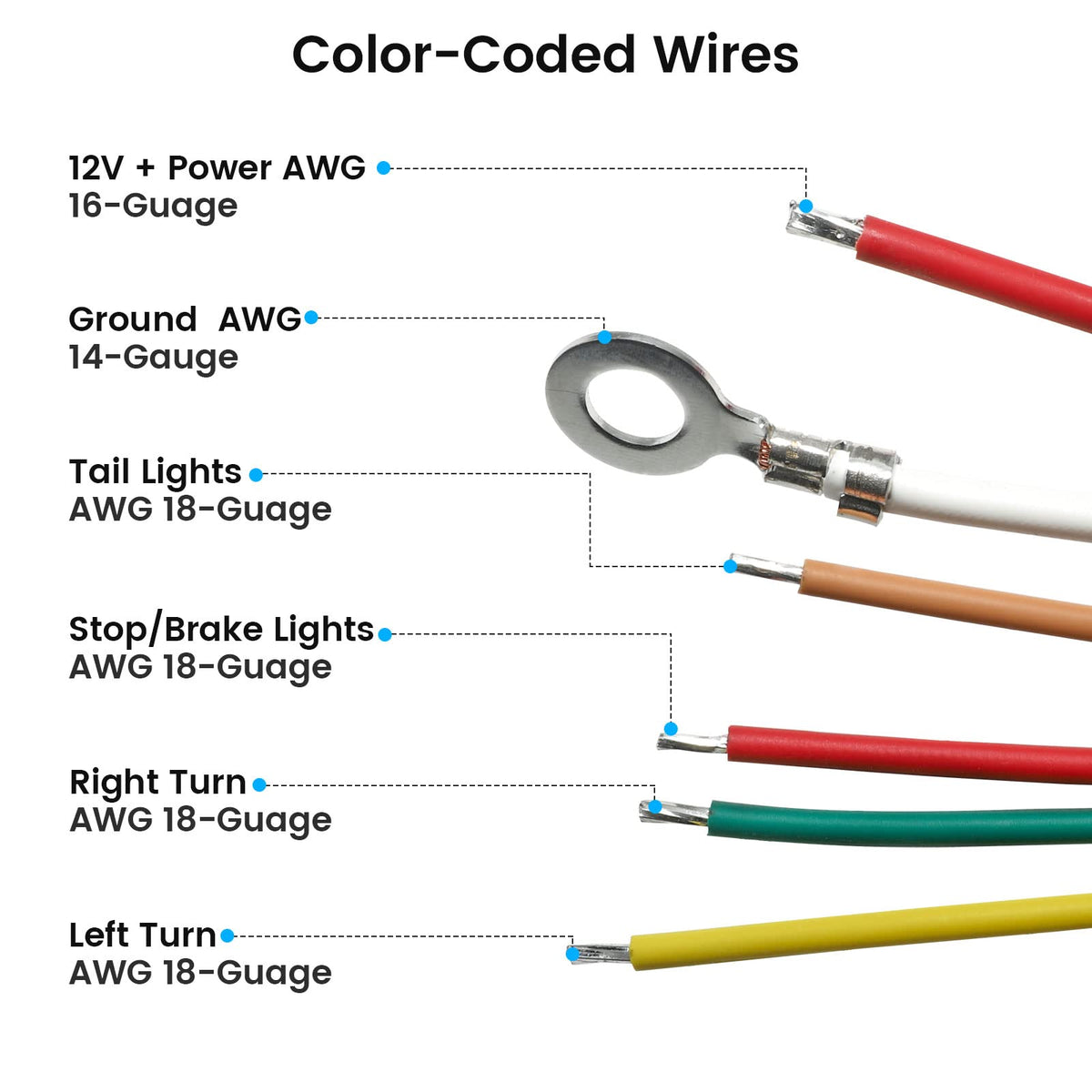

• Color-coded, ready-to-splice pigtails simplify matching vehicle wires

Will this work with LED tail lights and modern PWM signals?

Yes—the MECMO converter is LED-compatible and accepts PWM (pulse-width modulation) signals used by many modern vehicles. It’s designed to handle low-current LED circuits on the signal side while supplying adequate power on the taillight circuit. That reduces hyper-flashing or dim trailer lights that can occur when devices aren’t matched correctly.

• LED-compatible circuitry to prevent flicker and dimming
• Signal circuit rated to 3.0 amps; taillight circuit rated to 6.0 amps
• Built-in signal conditioning for PWM systems

How durable and weatherproof is the MECMO 56236 converter?

The converter is housed in a thick, potted enclosure engineered for high weather resistance and mechanical protection. Its heavy-duty shell withstands road grime, salt, vibration, and impact to protect internal SMT circuitry. The enclosed design helps keep moisture out so the unit lasts longer when mounted near the hitch or under the vehicle.

• Potted module provides a watertight barrier for internal electronics
• Thick outer shell resists abrasion, salt, and road debris

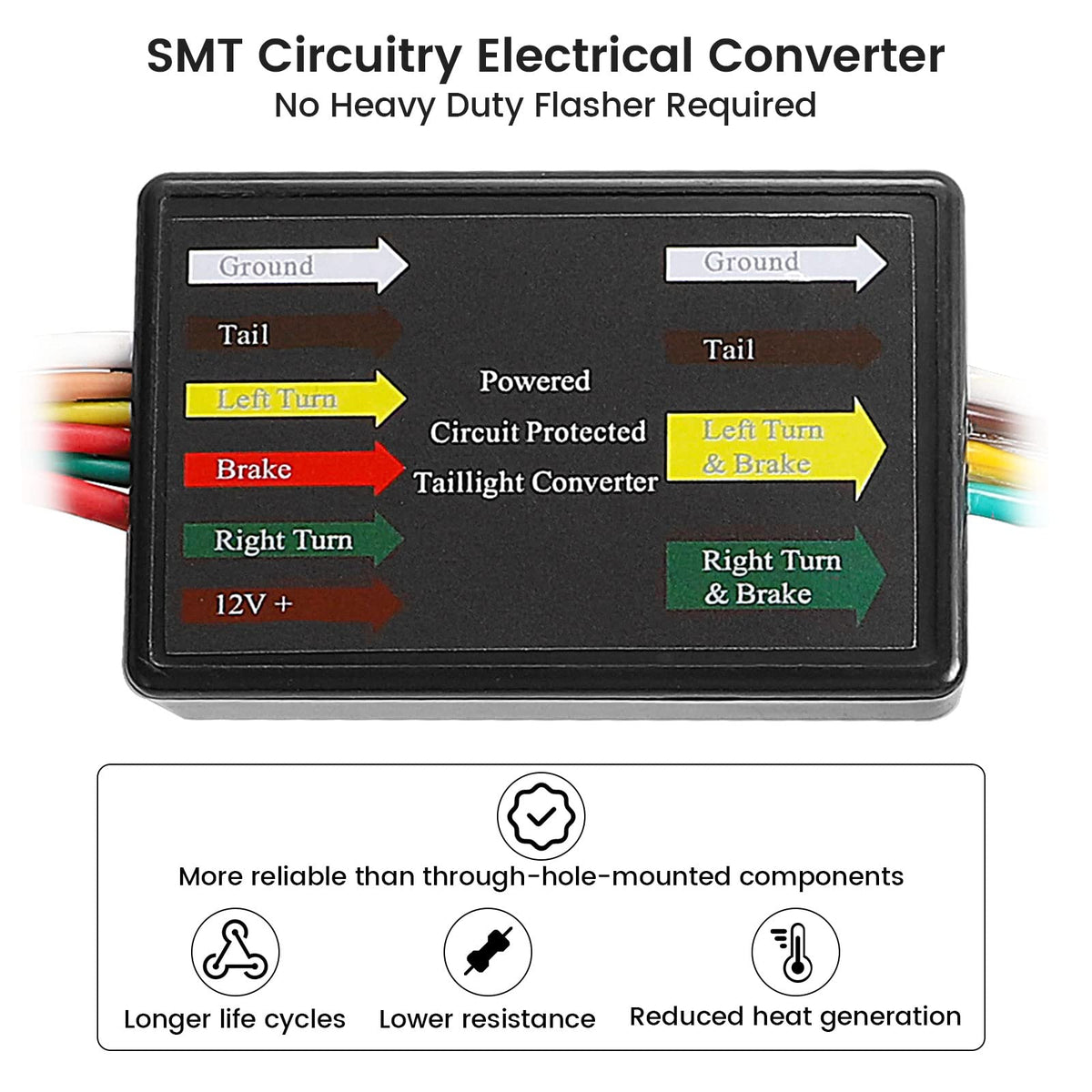

• SMT (surface-mount technology) circuit construction for improved reliability

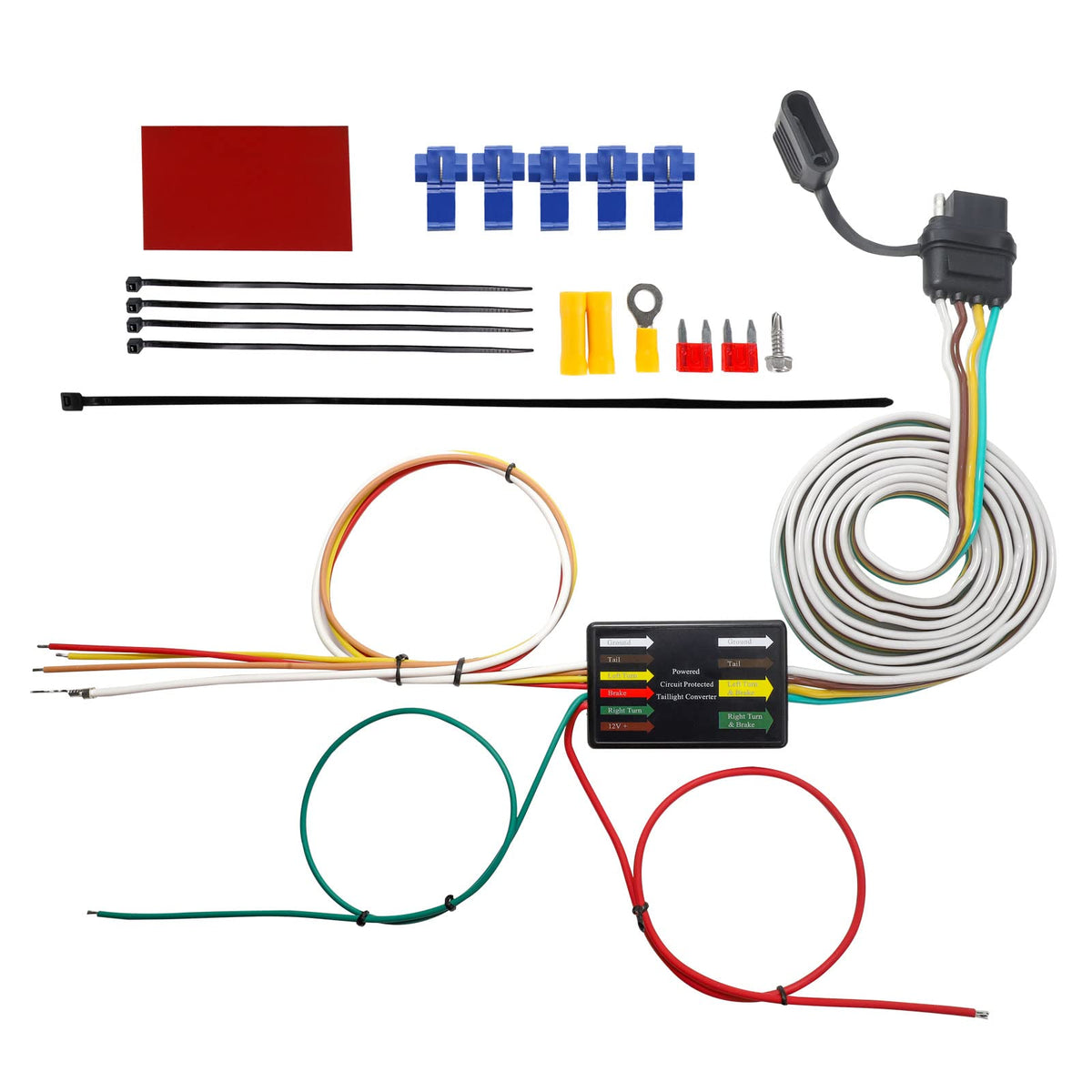

How easy is it to install and what does the package include?

Installation is straightforward for anyone comfortable with basic vehicle wiring and splicing. The harness comes with standard color-coded wires and a wiring guide that matches common trailer and vehicle colors. Snap-locks for fast splicing are included so you can secure connections cleanly without bulky connectors.

• Ready-to-splice pigtail wires in standard colors for easy matching

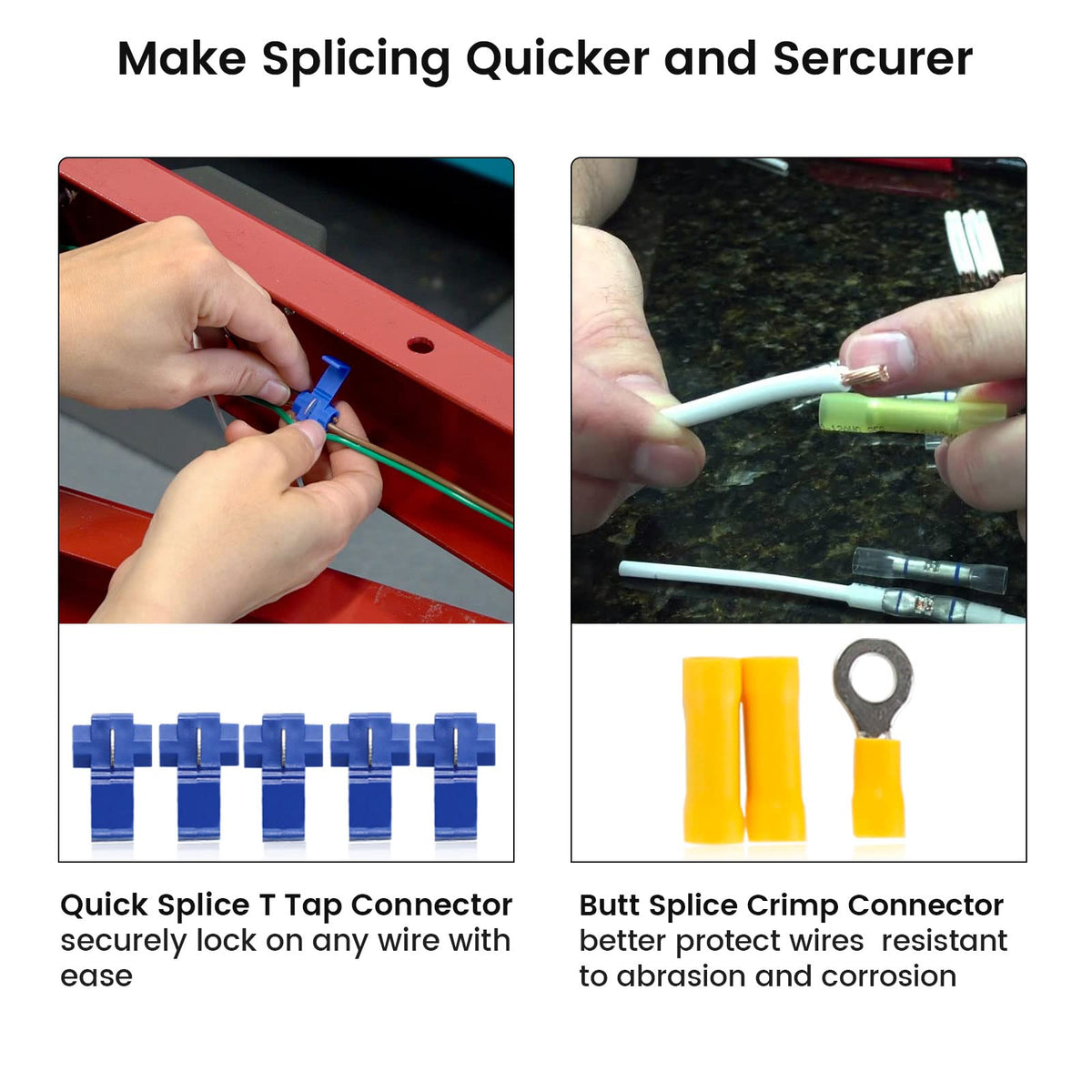

• Includes four snap locks to secure splices quickly and consistently

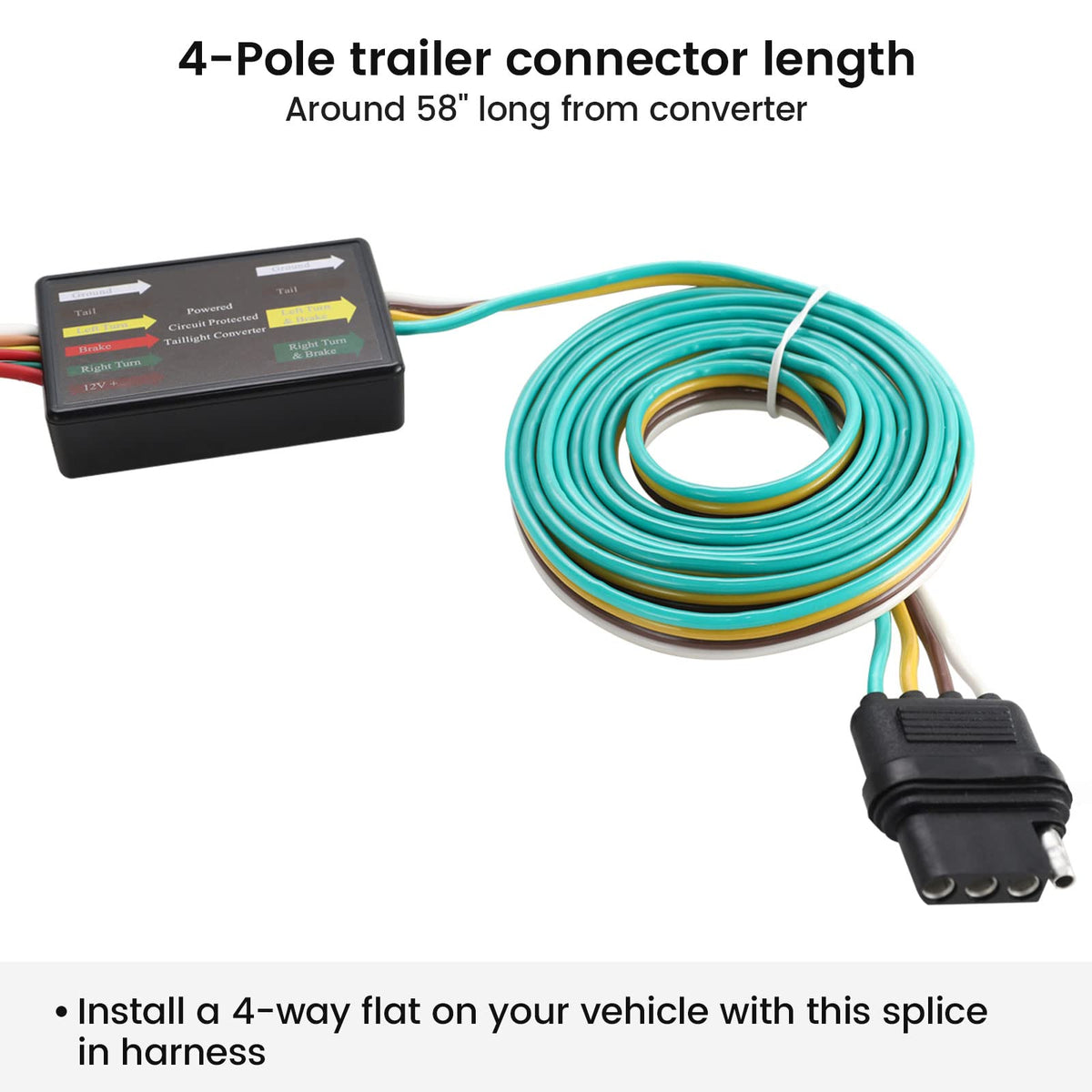

• 4-way flat socket plugs directly into trailer connector for compatibility

Who is this for? The MECMO 56236 is intended for trailer owners, tow vehicle owners, fleet operators, and installers who need a reliable, splice-in converter to adapt vehicles with separate turn/stop wiring to trailers wired for combined signals. It’s particularly useful when adding trailers to vehicles with LED or PWM lighting systems, or when you want a durable, weatherproof converter that requires minimal modification to existing wiring.
