Mekar 6.0L Powerstroke IPR Valve Socket & Oil Rail Adapter Kit — Brass/Steel Test Fittings, Air-Test Seal

Mekar’s 6.0 IPR valve socket and oil rail adapter kit is a complete testing and sealing solution for diagnosing high-pressure oil systems on 6.0L Powerstroke engines.

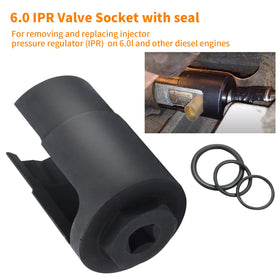

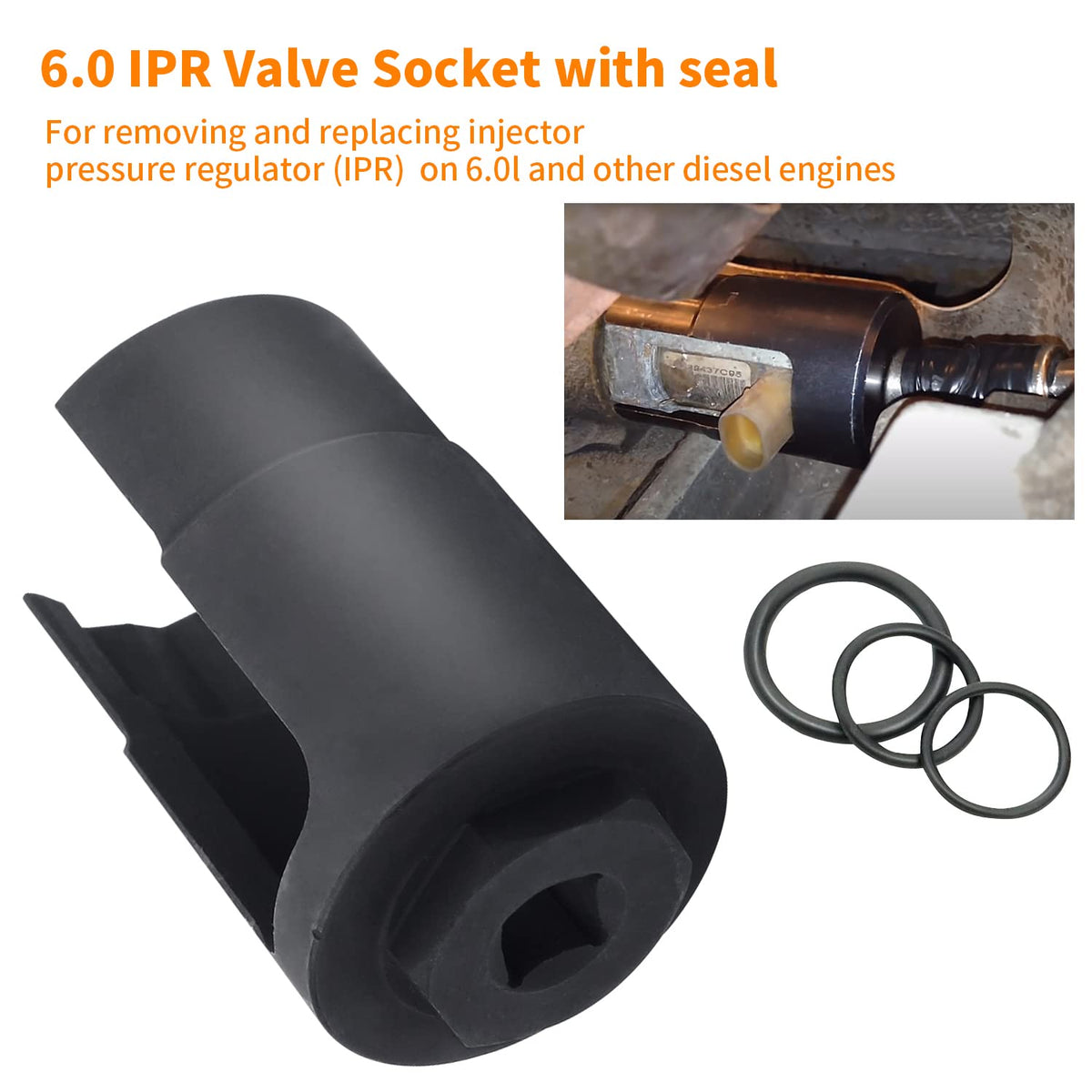

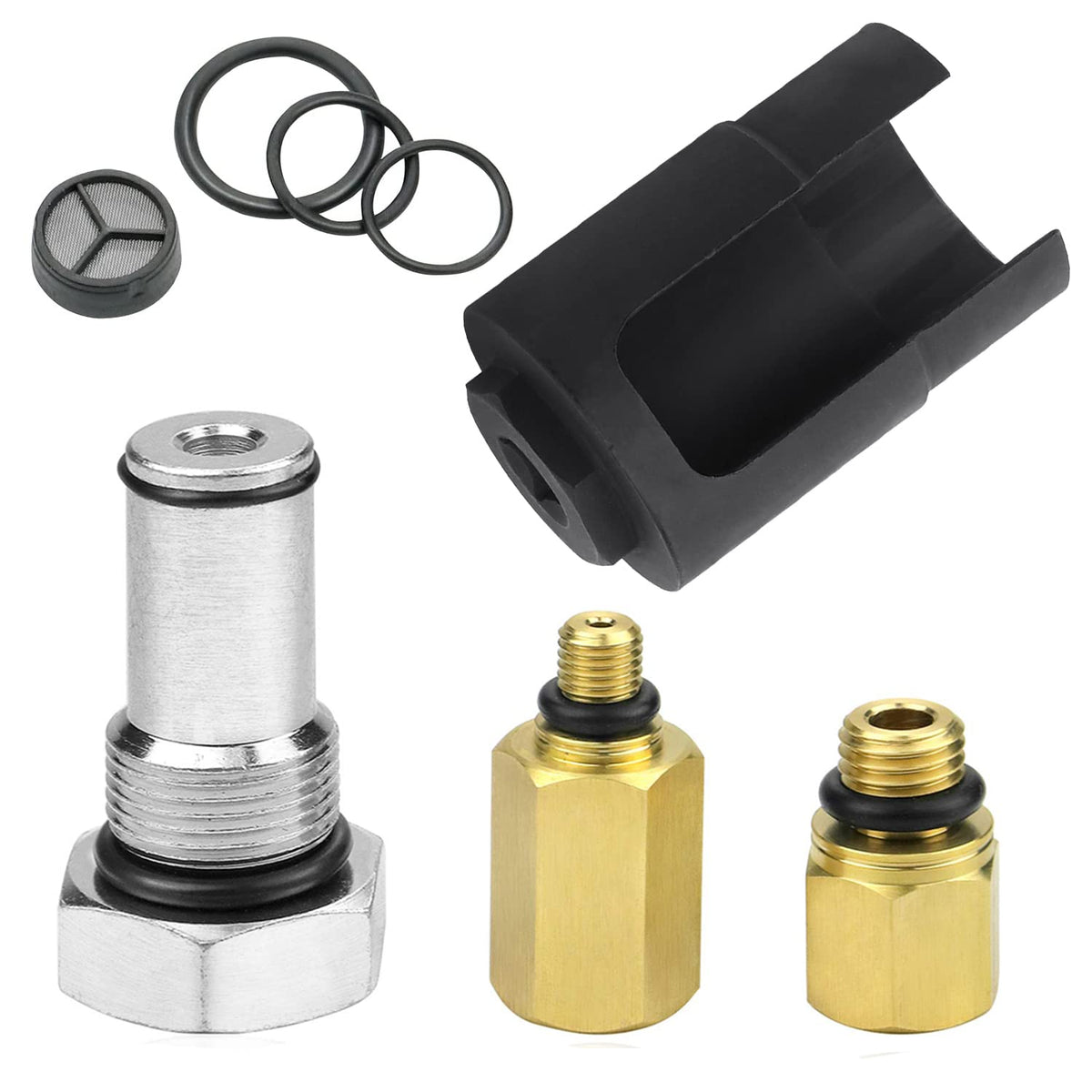

If you service 6.0L Powerstroke diesel engines (2003–2010 Excursion/F-Series/E-Series), this kit groups the IPR valve replacement socket, oil-rail adapters and an air-test fitting with seals to let you safely pressurize and inspect the high-pressure oil (HPO) system. The components are made from solid steel or brass so they resist corrosion and hold up under shop use; the kit replaces the IPR valve during testing, seals the system, and provides direct instrument access to read injector control pressure (ICP) and check for rail leaks.

How does the kit let me test injector control pressure (ICP)?

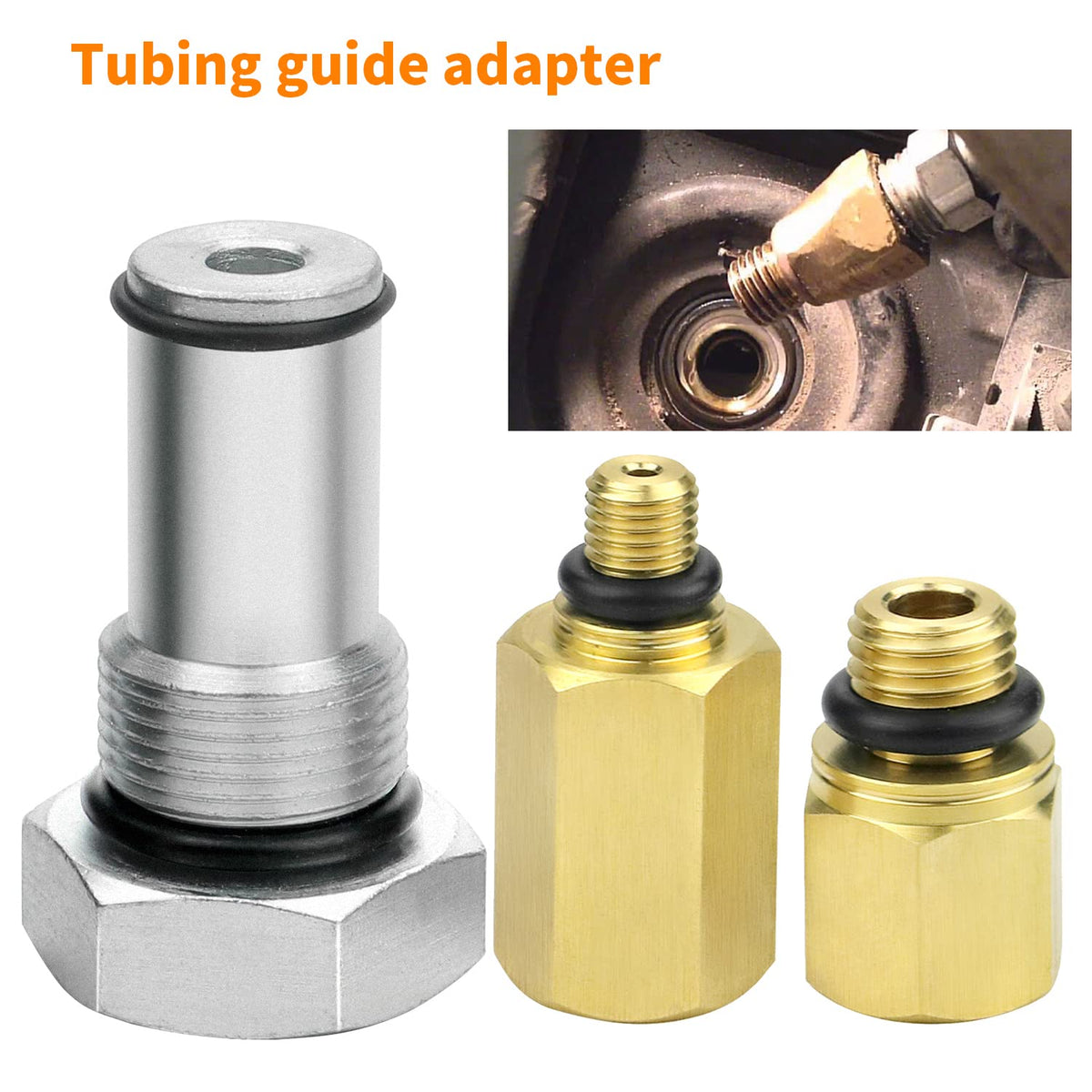

Use the included oil rail adapters to connect a pressure gauge directly to the fuel rail. The adapters provide a sealed port that accepts standard instrumentation so you get a true ICP reading without routing through the IPR valve.

• Direct adapter ports for instrument connection
• Solid brass/steel fittings to withstand test pressures
• Works with common shop pressure gauges and hoses
• Replaces IPR for accurate ICP measurement

Can I use this kit to perform an IPR valve air test to find leaks?

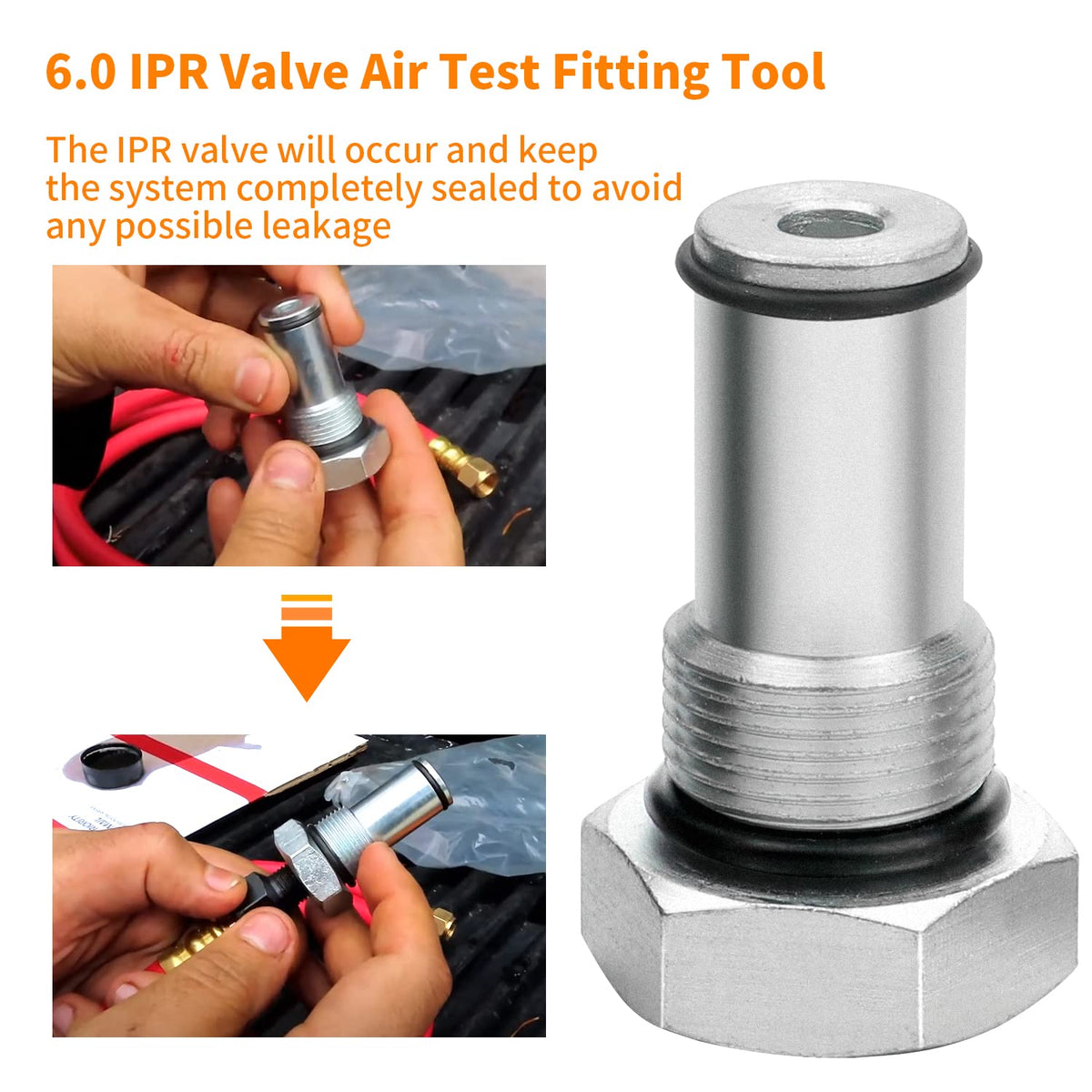

Yes — the kit includes a 1/4" pipe-thread air-test fitting that threads into the IPR location and seals the system so you can apply workshop air safely. This lets you isolate leaks on the high-pressure oil rail, injector sockets, or fittings without running the engine.

• 1/4" pipe-thread fitting fits standard shop air lines
• Seals the IPR port to prevent false readings
• Enables pressurization and soap-bubble leak checks
• Eliminates need to run engine for basic diagnostics

What vehicles and engines are these adapters compatible with?

This Mekar kit is engineered for Ford 6.0L Powerstroke V8 diesel applications from 2003–2010. It fits Excursion and Super Duty (F-250 through F-550) models, plus E-Series vans that use the 6.0L turbo diesel and the factory HPO system.

• Excursion 6.0L V8 Diesel Turbocharged 2003–2010
• E-350/E-450 6.0L Diesel 2004–2010
• F-250/F-350/F-450/F-550 Super Duty 6.0L 2003–2010

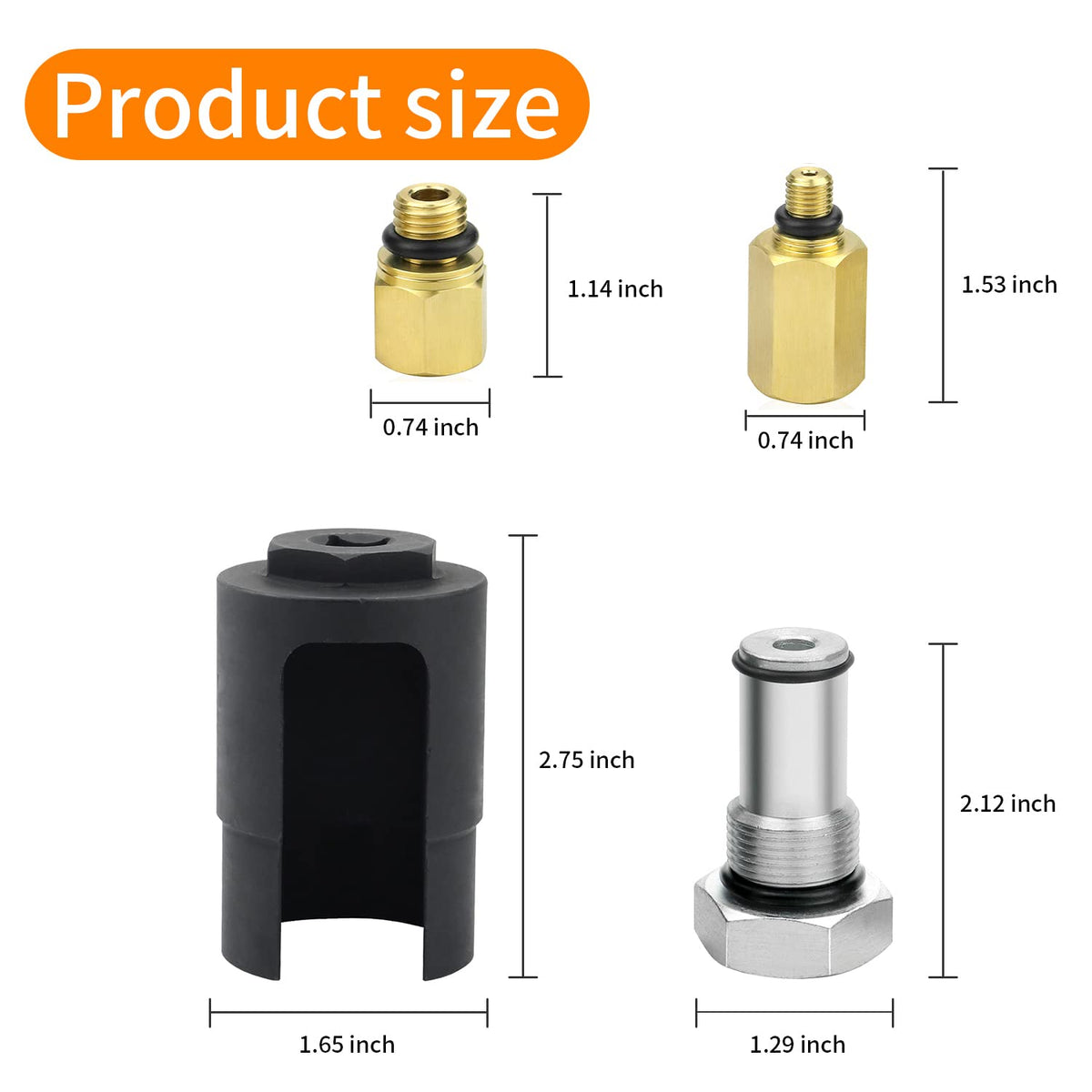

• Direct-fit threads and sizes for factory rail and IPR port locations

What materials and build quality should I expect from this test kit?

The adapters and fittings are machined from robust solid steel or brass, chosen for mechanical strength and corrosion resistance under shop conditions. Threads are finished for reliable sealing and to stand up to repeated install/remove cycles during diagnostics.

• Solid steel or brass construction for durability
• Smooth-machined threads to reduce galling and leaks

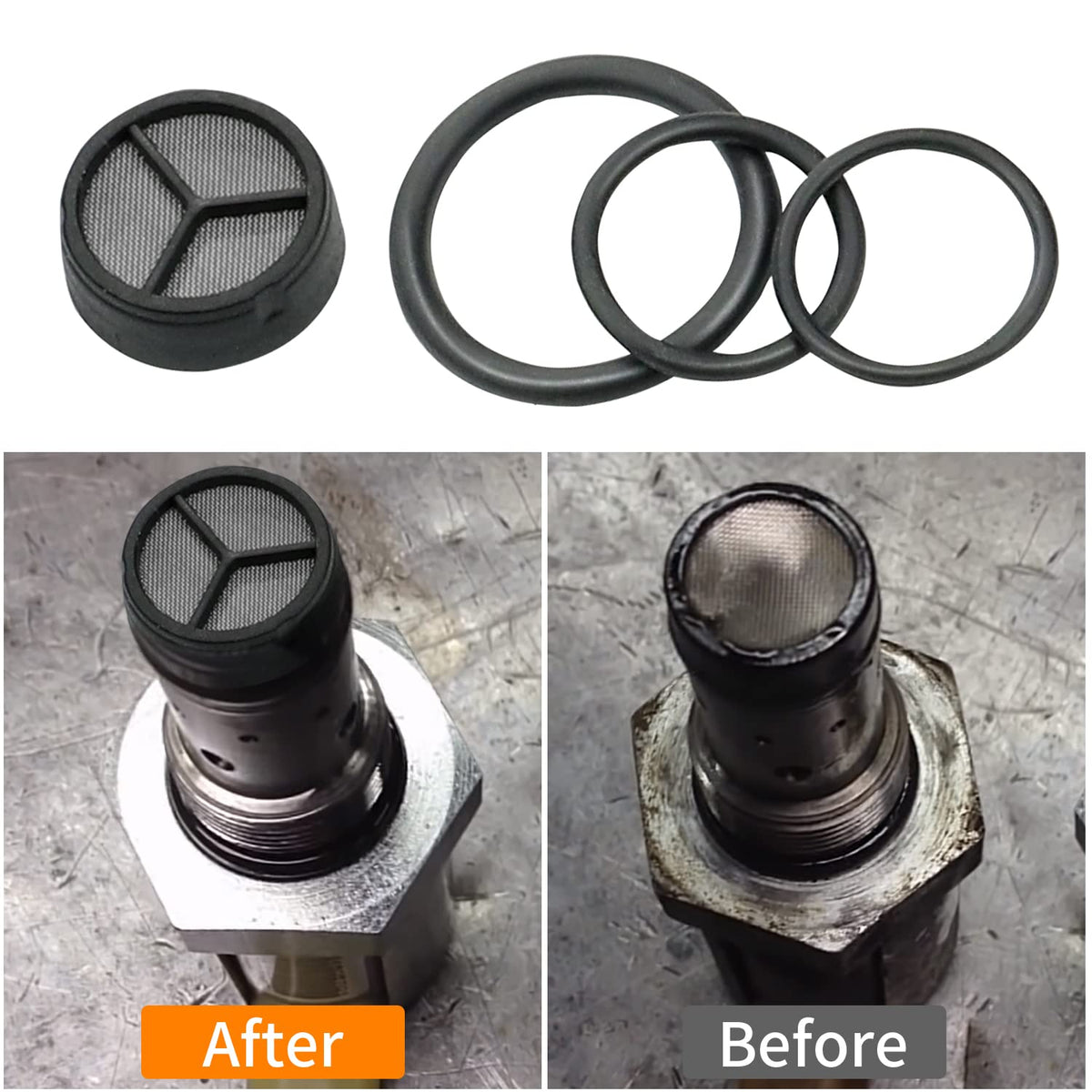

• Includes replacement seals to restore a tight seal
• Designed for repeated use in a professional shop or home garage

Who is this for? If you perform fuel/engine diagnostics, repair high-pressure oil systems, or troubleshoot a 6.0L Powerstroke’s ICP or IPR behavior, this Mekar kit is built to simplify testing and leak isolation. It’s suited for professional techs and knowledgeable DIYers who need accurate pressure access, durable test fittings, and a simple air-test solution that fits the factory rail and IPR locations. The included seals and the supplier’s satisfaction guarantee let you replace worn components and keep the system sealed while you diagnose or repair the high-pressure oil circuit.
