micrl Battery Quick Connect/Disconnect 50A IP68 Waterproof Plug for 6–8 AWG with Locking Shell

This quick-disconnect plug is engineered for demanding outdoor and marine use, combining an IP68-rated waterproof housing with silver-plated copper terminals and a locking shell to prevent accidental separation. It simplifies power wiring for boats, ATVs, RVs, winches and trailer systems while protecting electrical contacts from water, corrosion and mechanical stress.

How does this connector keep water and corrosion away from my battery terminals?

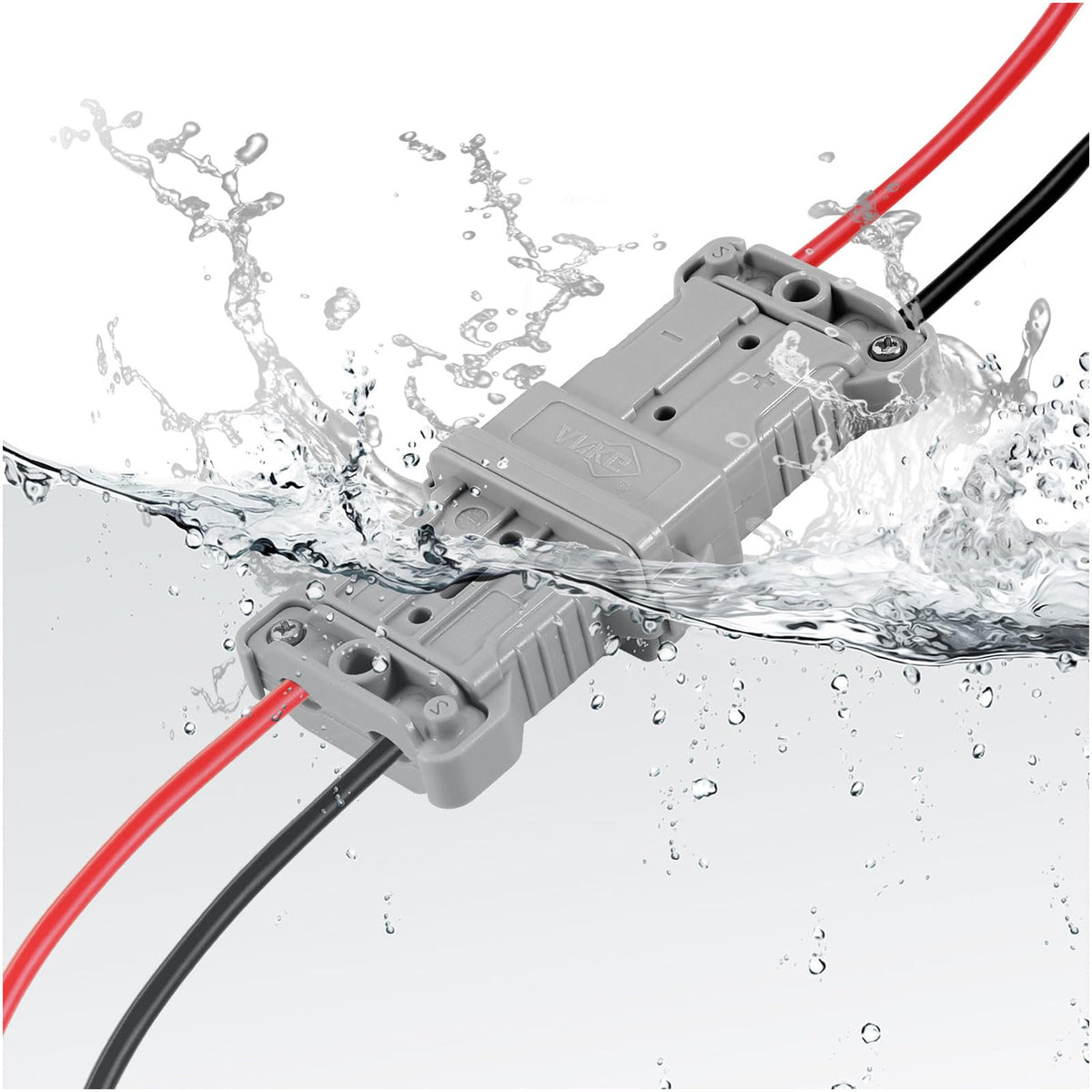

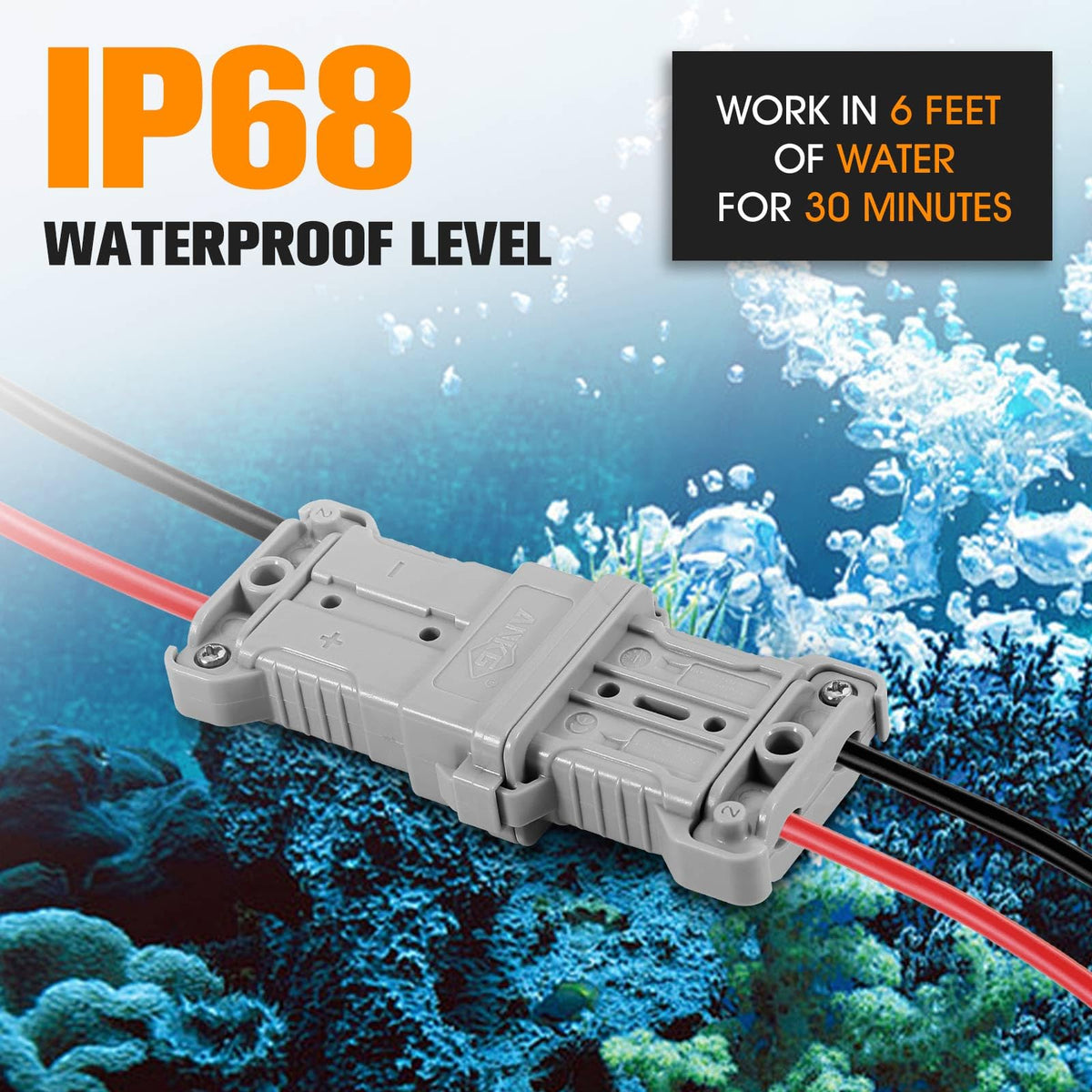

The micrl connector uses an IP68-rated sealed housing and a protective cover that resists immersion up to 6 feet for 30 minutes. Stainless steel spring tabs and corrosion-resistant plating on the terminals further prevent rust and maintain consistent conductivity over time.

• IP68 casing and cover for temporary submersion protection
• Stainless steel spring tabs to resist rust
• Silver-plated copper terminals for long-term conductivity
• Sealed design keeps dirt and salt spray out

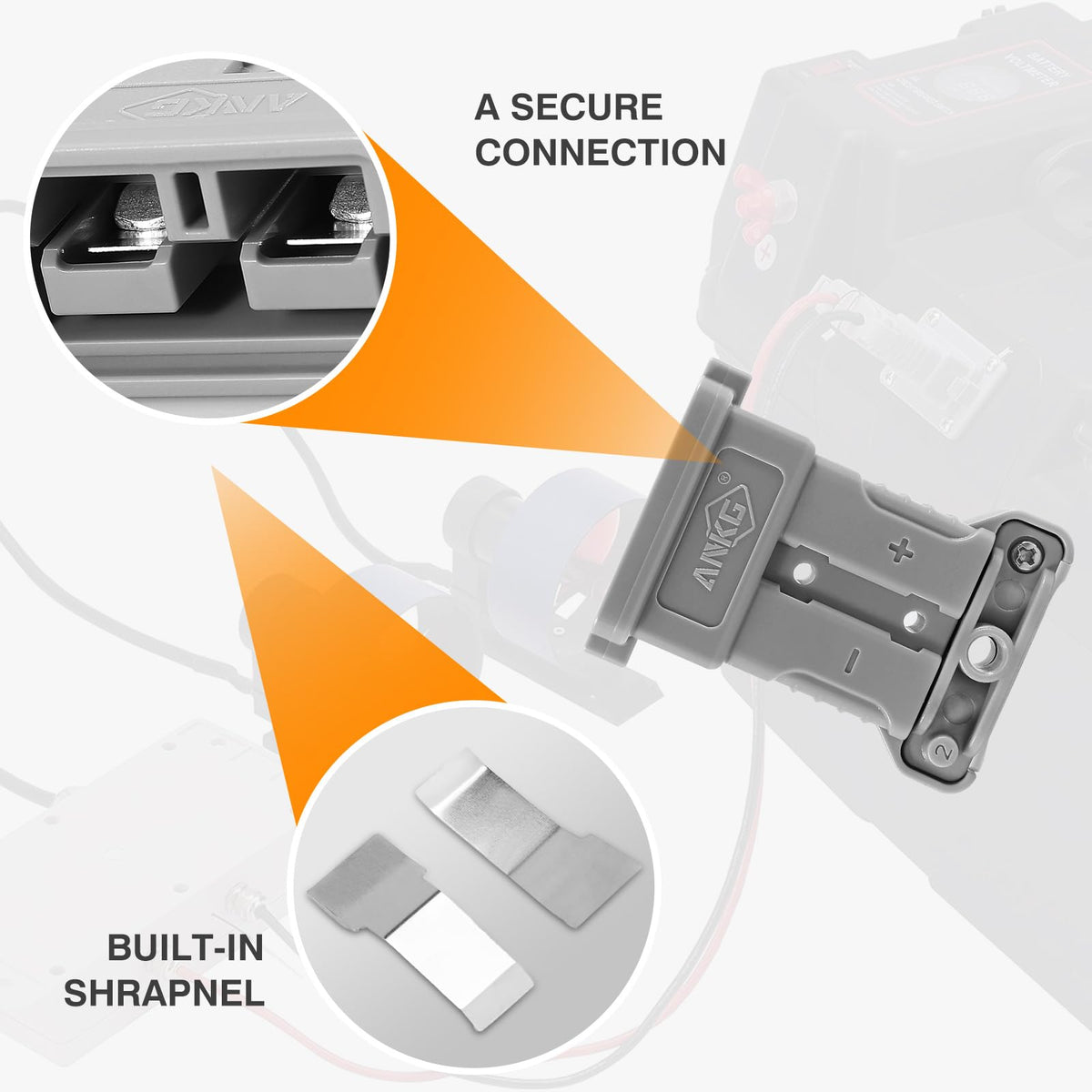

Will it stay connected when my vehicle vibrates or moves?

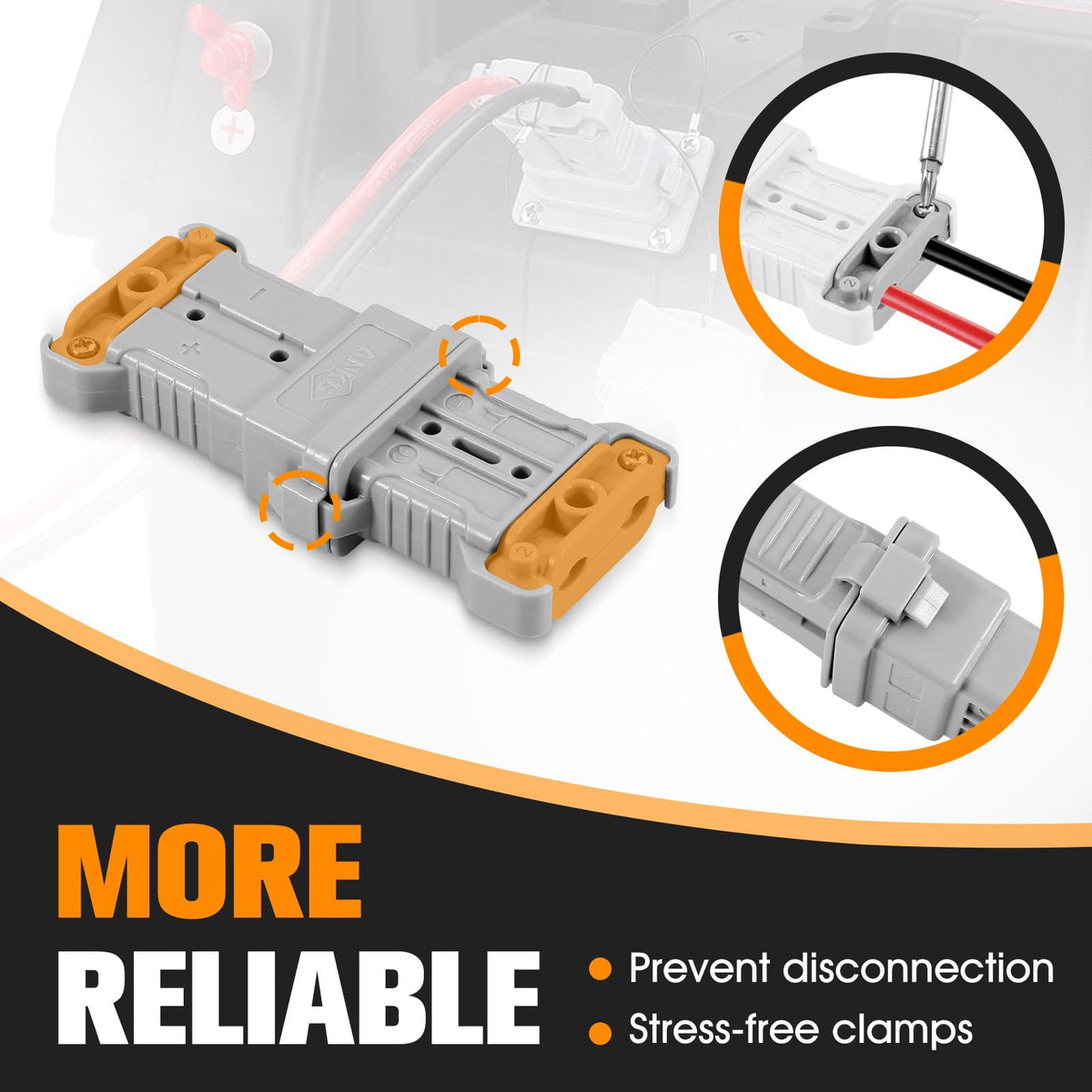

Yes. The quick-disconnect shell features a locking mechanism that prevents accidental separation under vibration or shock. A built-in cable clamp reduces strain on the crimped joints and routes movement away from the terminal crimps to lower failure risk.

• Positive shell lock prevents accidental unplugging
• Cable clamp offsets cable pull and movement
• Durable housing withstands mechanical stress
• Works well on trailers, winches and off-road vehicles

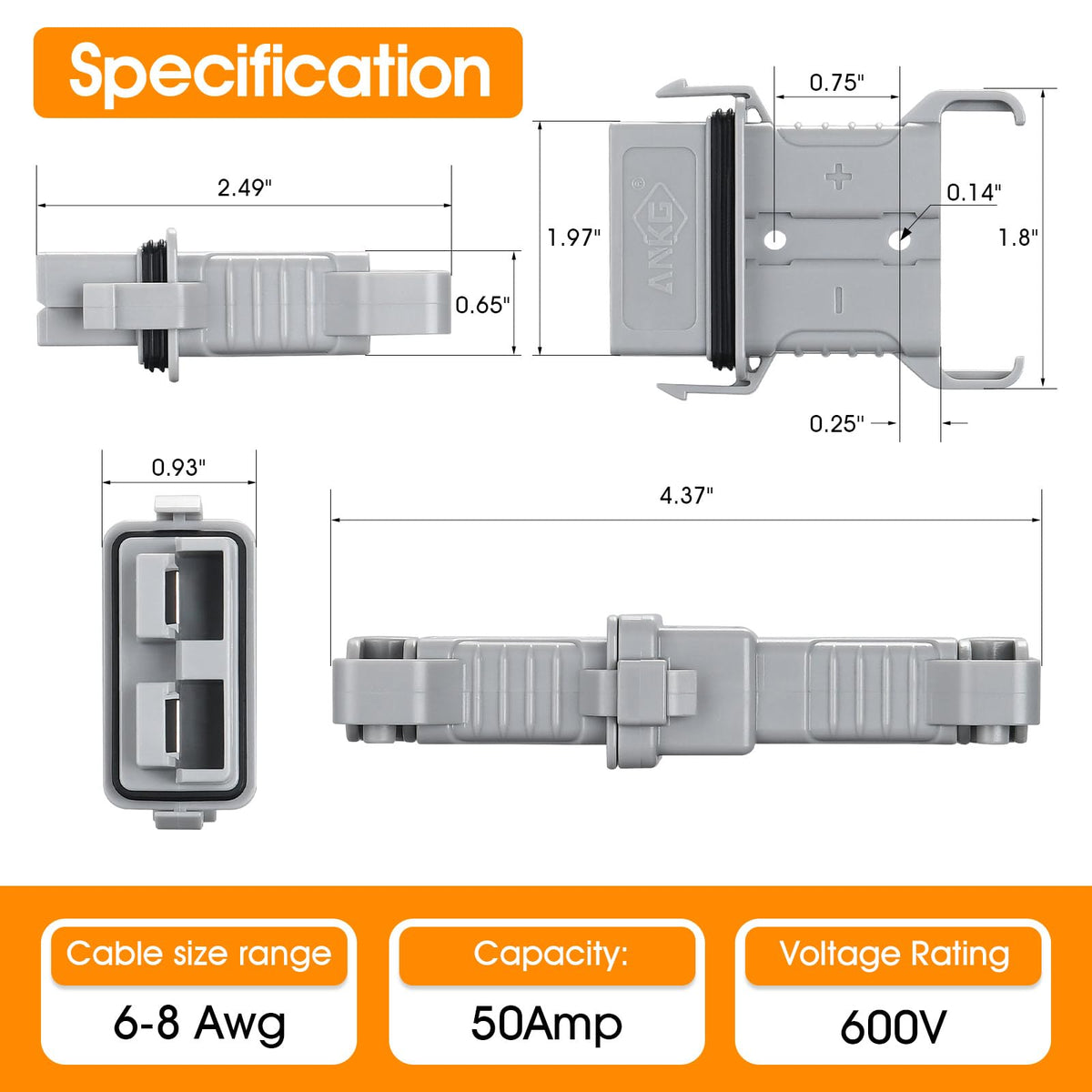

What electrical performance and wire sizes does it support?

This connector is rated for 50 amps and designed for 6–8 AWG (ga) cable sizes, making it suitable for medium-current battery circuits like winches, thrusters and auxiliary power runs. The silver-plated copper contacts provide low resistance for stable voltage under load.

• 50A continuous current rating for medium-duty systems
• Compatible with 6–8 gauge battery cables
• Silver-plated copper terminals for better conductivity
• Contacts treated to resist cracking during crimping

How simple is it to install and use on boats or vehicles?

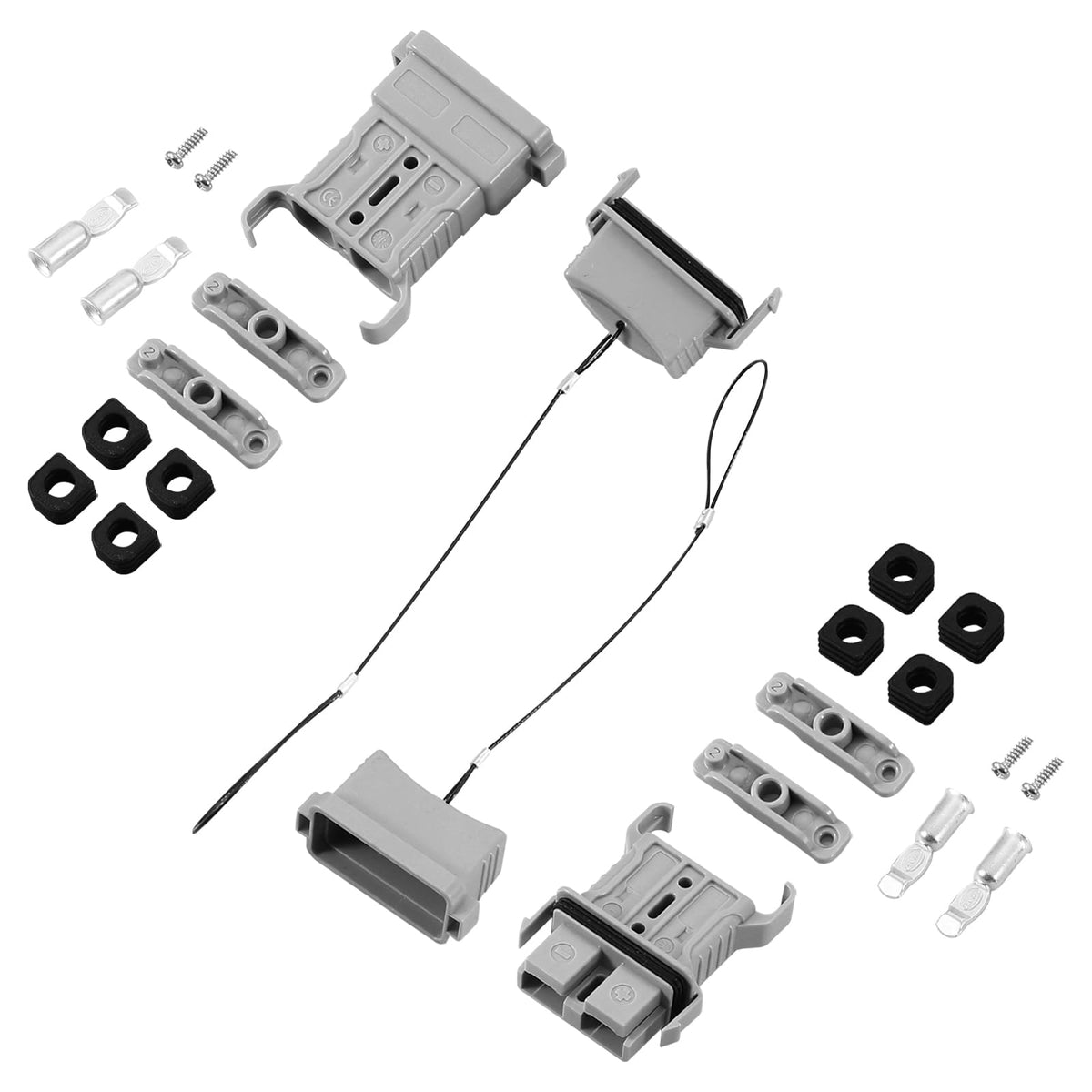

Installation is straightforward: crimp the terminals to your battery cable, secure the cable with the integrated clamp, and screw the halves together. The protective cover and keyed shell make everyday connection and disconnection easy, even with gloves or in wet conditions.

• Crimp-style terminals for reliable cable termination
• Integrated cable clamp for strain relief
• Tool-friendly assembly with clear shell engagement
• Protective cover for exposed connection when unplugged

Who is this for: The micrl IP68 50A waterproof quick connect is aimed at boat owners, trailer and RV installers, off-road and utility vehicle users, and anyone needing a dependable, weatherproof battery connection for medium-current applications. It’s useful when you want a compact, rugged disconnect that resists water, vibration and corrosion without complex wiring changes.
