Mudder 7 Pcs Air Conditioning Refrigerant Compact Ball

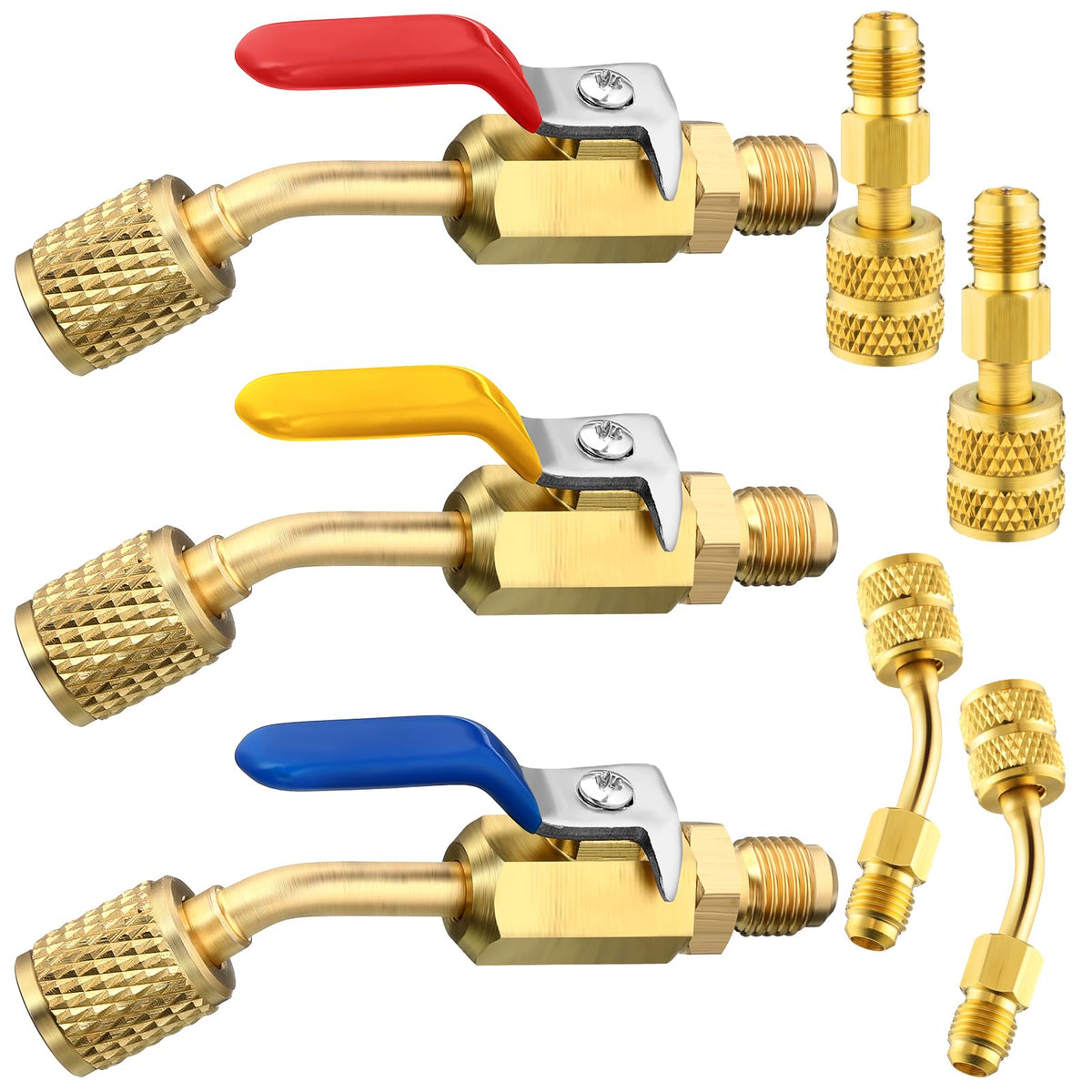

Mudder's 7-piece refrigerant valve kit provides three 45° compact ball valves and four 1/4"-to-5/16" adapters designed to make charging, testing, and servicing mini-split and HVAC systems faster and more leak-resistant.

This compact set bundles heavy-duty copper/brass fittings that adapt modern R410A-style ports to standard 1/4" gauge hoses while giving you quick shut-off control at the hose end. The components are built for field use — knurled nuts for finger-tight connections, protective thimbles to avoid core damage, and corrosion-resistant alloy for repeated service. Use the kit when you need an easy, one-handed shutoff and reliable conversion between 5/16" vacuum/charging ports and 1/4" gauges.

How do these angled compact ball valves speed up charging and recovery?

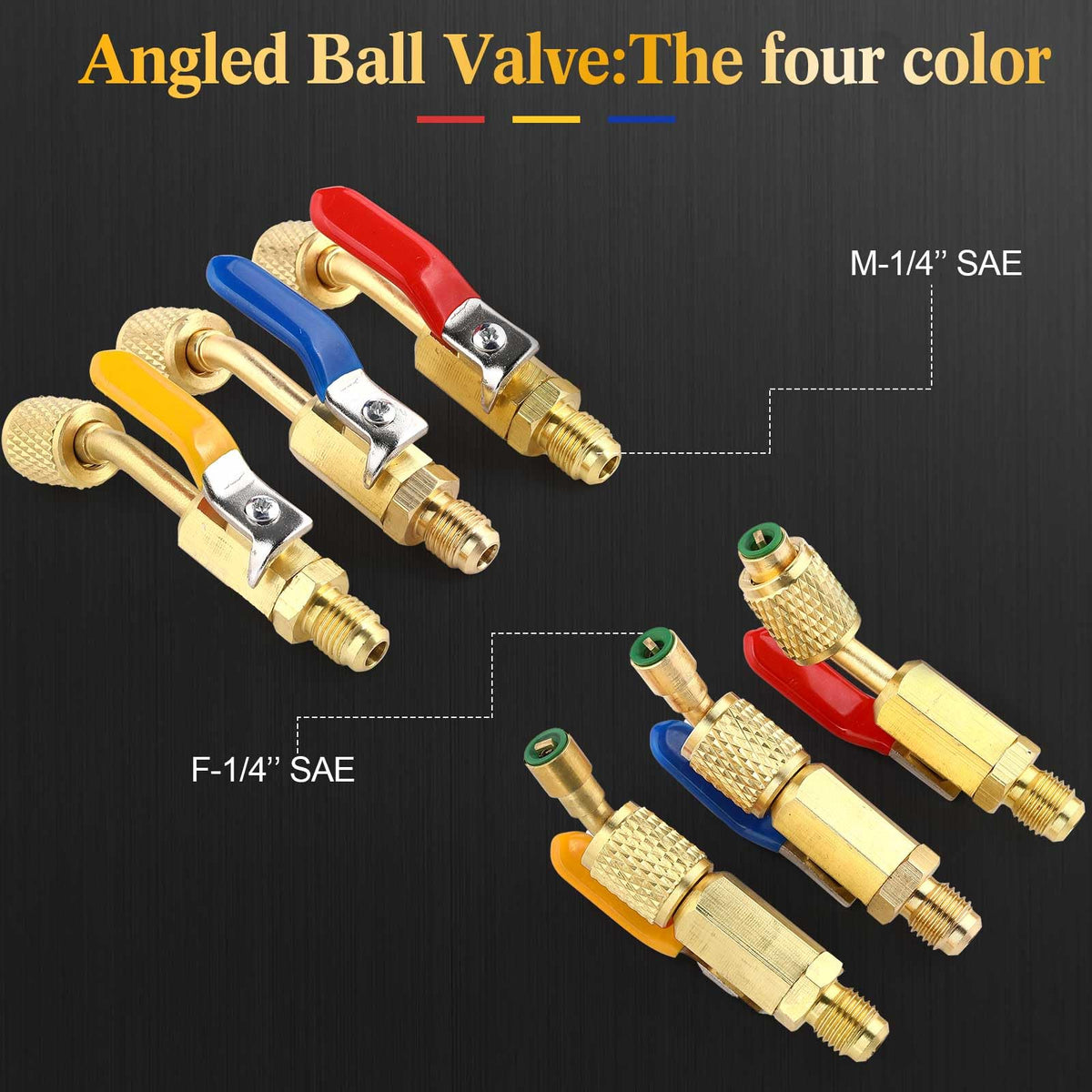

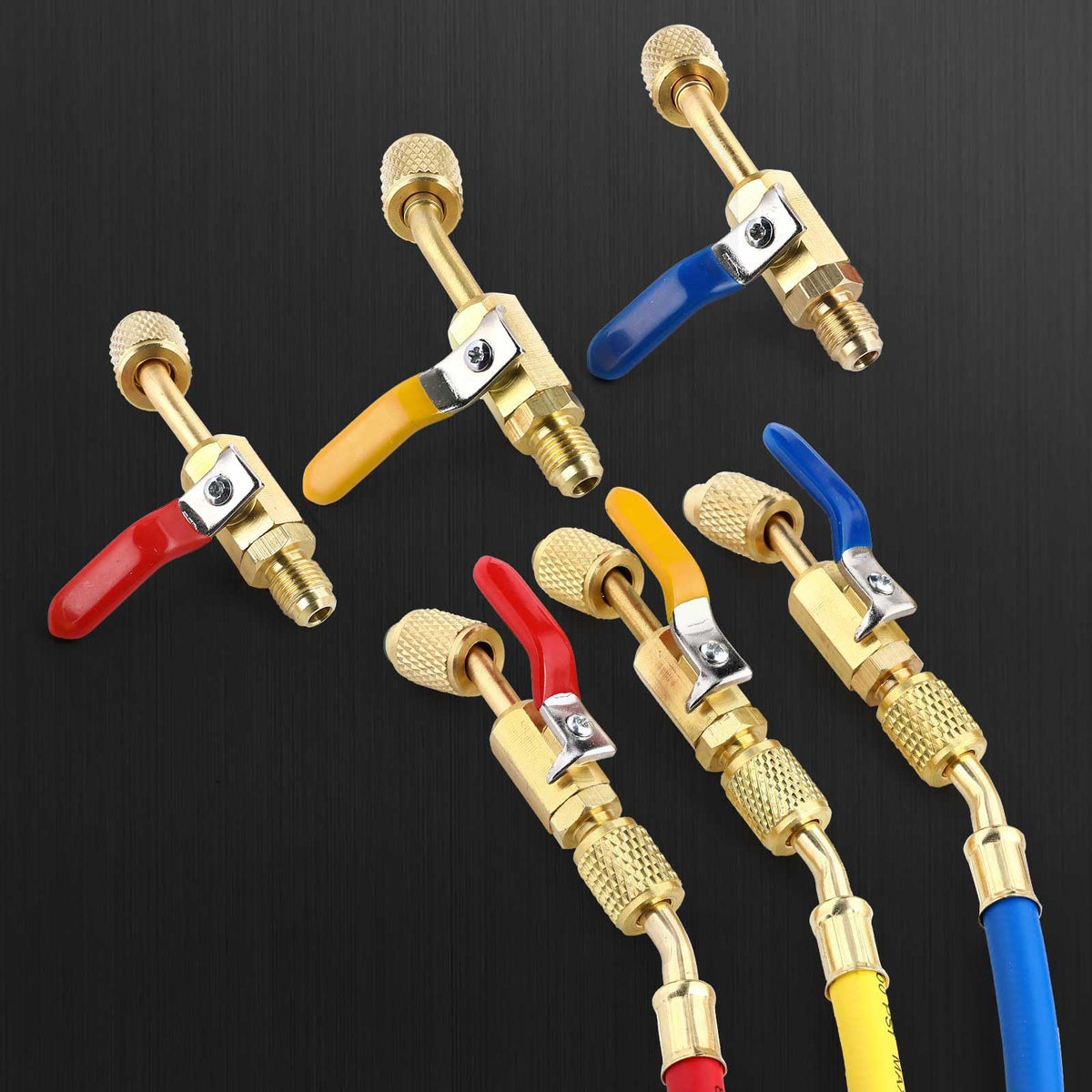

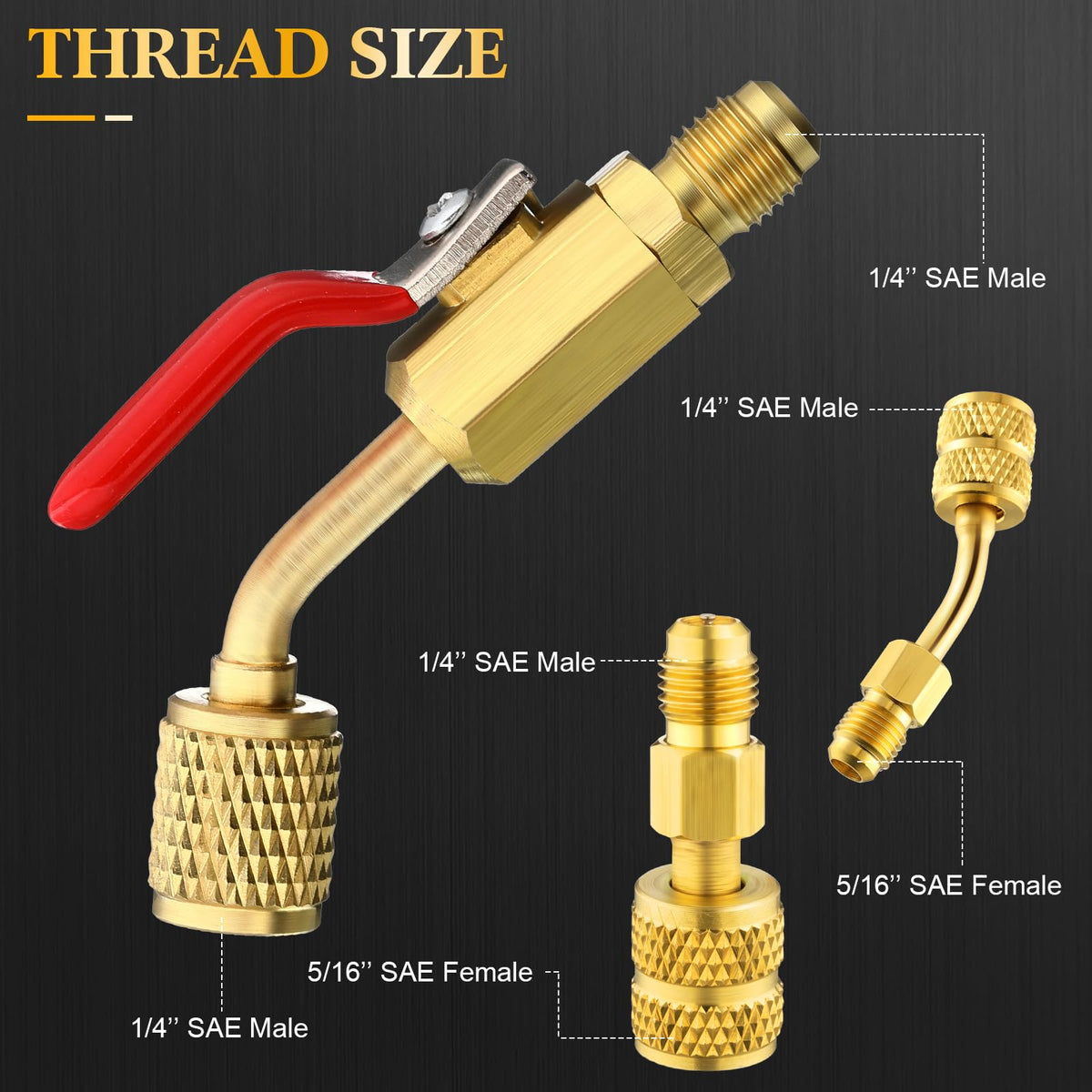

The included 45° angled ball valves screw directly onto a 1/4" refrigerant hose and let you stop or start flow without returning to the manifold. Their compact shape fits tight spaces found on mini-splits and automotive systems, and the knurled coupler nuts let you tighten by hand for quick changes.

• Three color-coded angled valves for organization during multi-line work
• One-handed operation reduces time and improves safety
• Rated for high working pressure with a robust metal construction
• Compact profile clears crowded valve panels and tight access points

What does the 1/4" male x 5/16" female adapter do for R410A mini-splits?

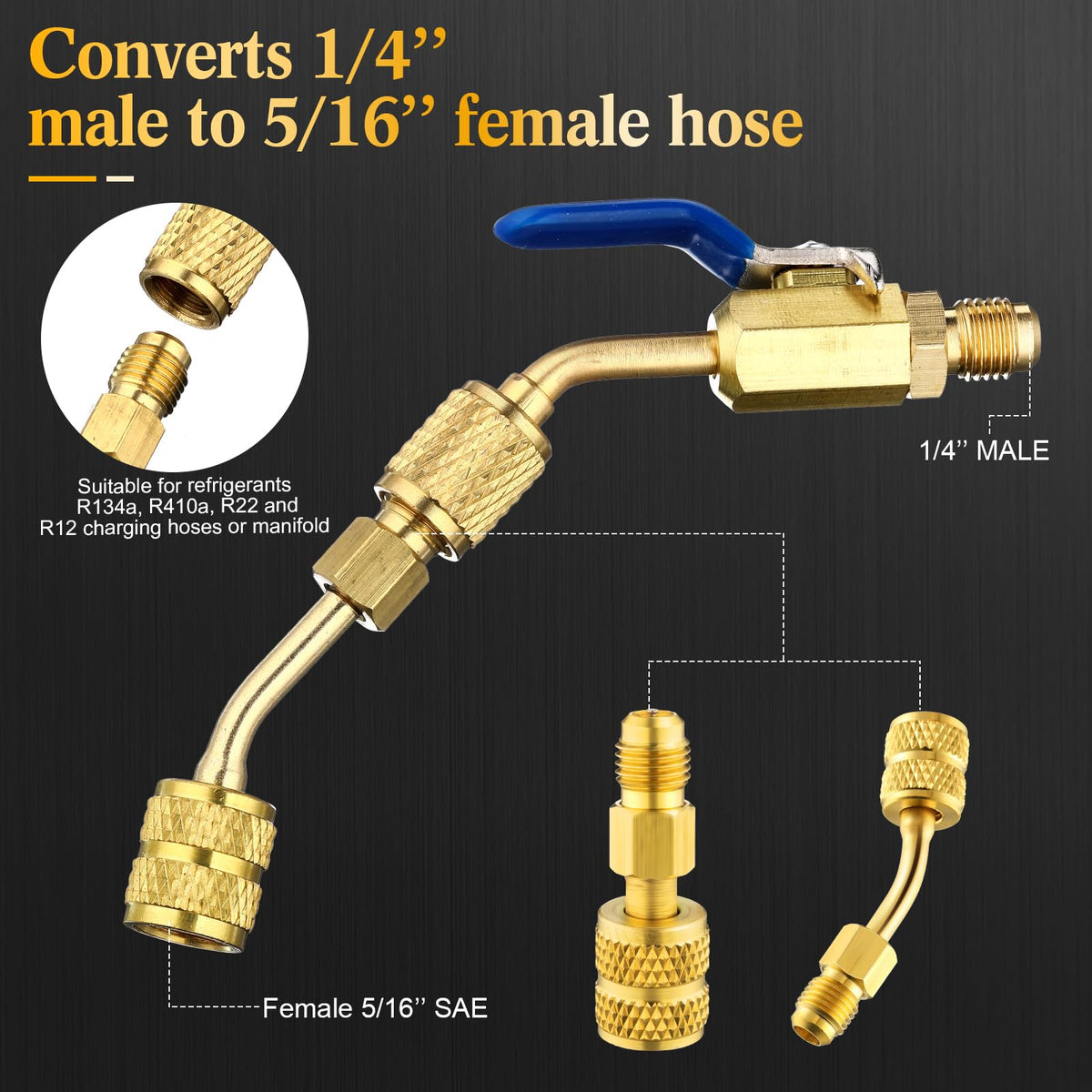

The adapters convert R410A-style 5/16" charging/vacuum ports to accept standard 1/4" gauge hose fittings, eliminating the need for specialty hoses. A built-in thimble protects the system’s Schrader core and reduces the chance of opening the core while attaching or detaching the connector.

• Fits common mini-split and HVAC R410A ports for easy compatibility
• Brass alloy body resists corrosion for long service life
• Thimble design prevents core damage and reduces leakage risk
• Quick to install — finger-tightening possible with knurled nut

Are these fittings durable and safe for repeated field use?

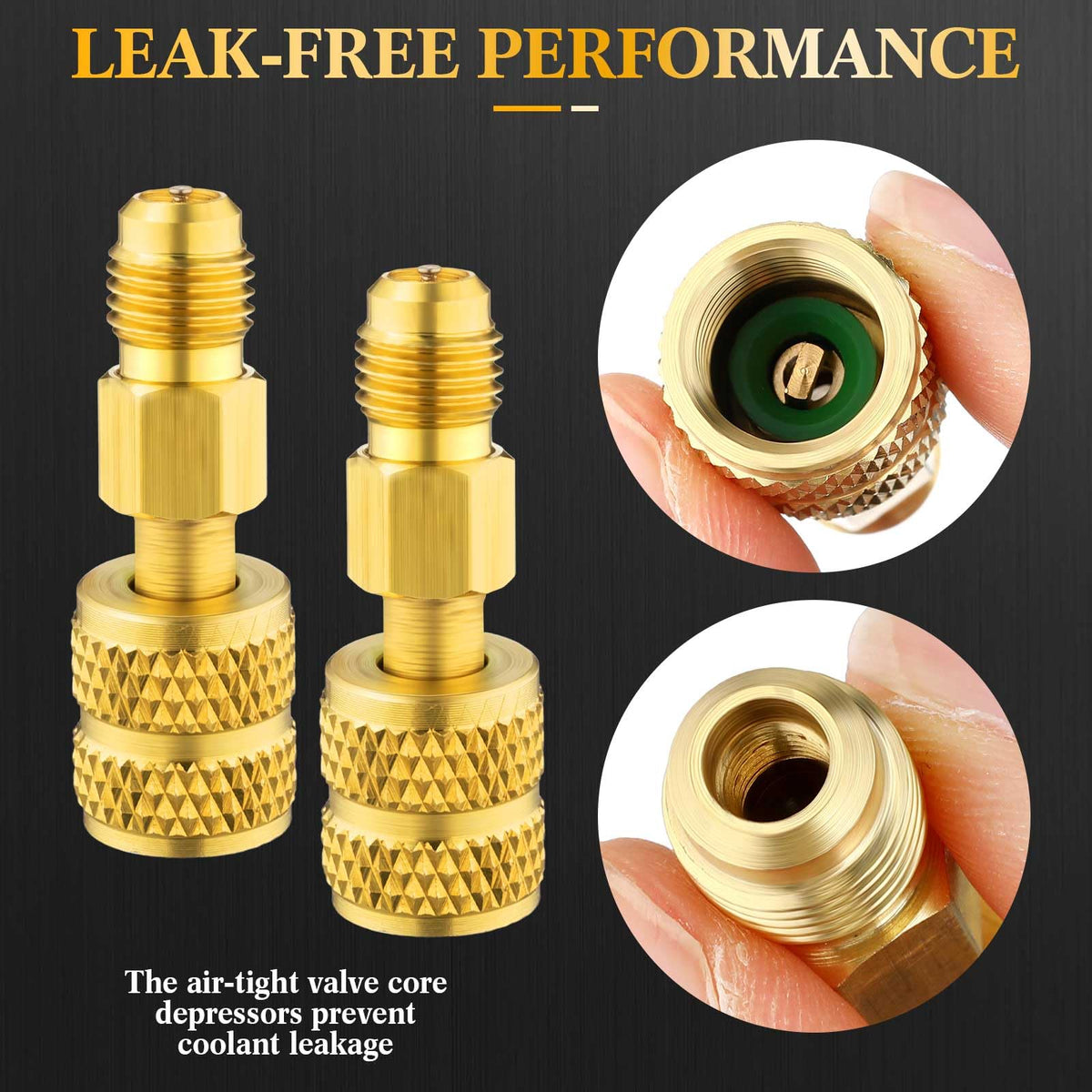

Yes — the valves and adapters are made from solid copper/brass alloys, selected for tensile strength and corrosion resistance in refrigerant environments. Sealing is supported by a built-in rubber gasket and careful machining tolerances, so when installed correctly they maintain a secure connection under typical HVAC pressures.

• Quality brass/copper materials for longevity and corrosion resistance
• Gaskets and precise threads to minimize leakage

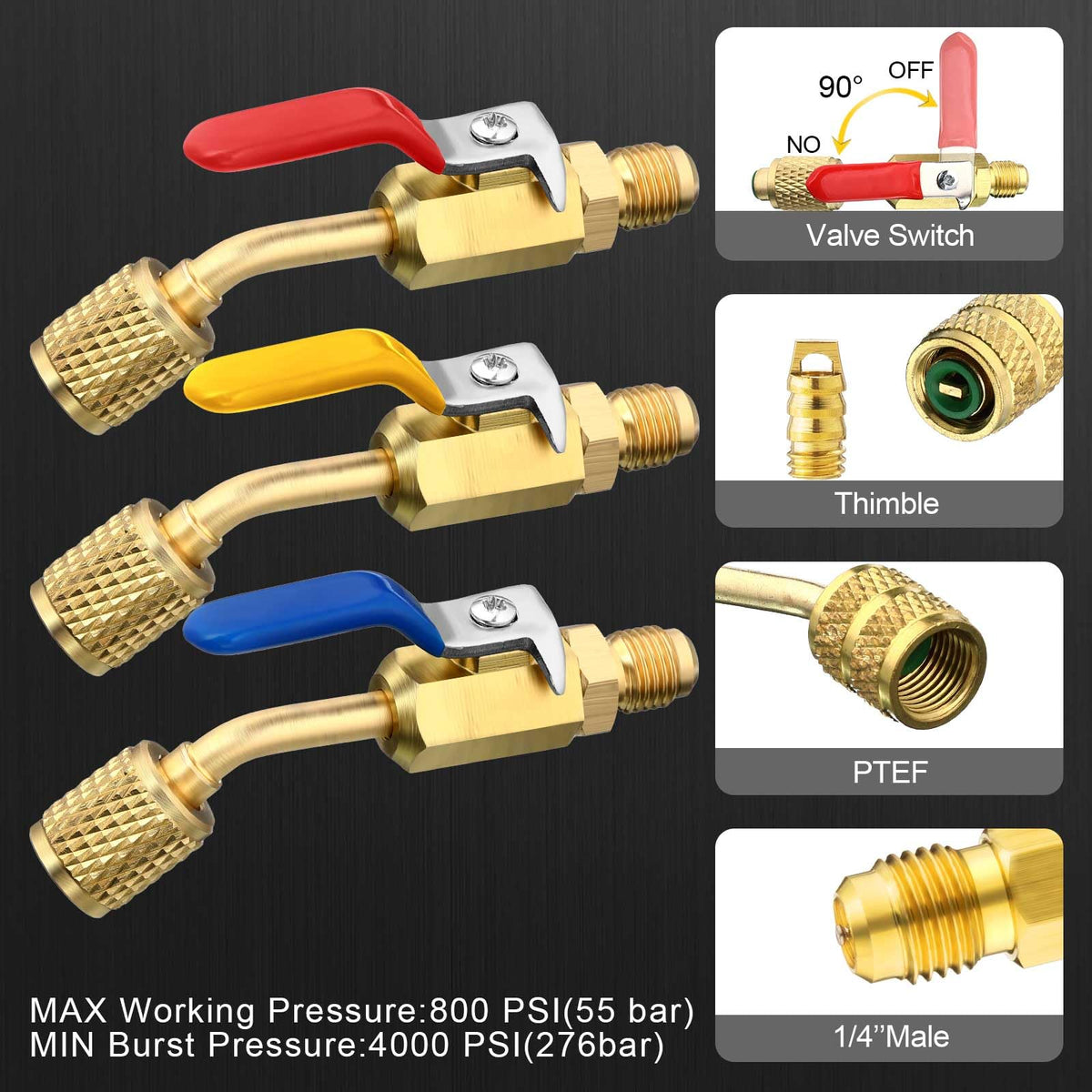

• High burst and working pressure specifications for safety
• Compact construction for frequent handling and field portability

Who is this kit intended for? This Mudder 7-piece set is aimed at HVAC technicians, service professionals, and experienced DIYers who work on mini-split systems, car air conditioners, and refrigeration units. It’s especially useful when you need to convert 5/16" R410A ports to 1/4" gauge hoses, add quick shutoffs to hose runs, or perform charging and recovery in cramped access areas. If you regularly handle refrigerants R410A, R134a, R22, or R12 and want a compact, durable set of connectors and shut valves, this kit provides a practical, field-ready solution.
