Mudder R134a Refrigerator Recharge Kit — Dark Blue 19" Hose with Gauge, 3 BPV-31 Piercing Valves

Mudder R134a Refrigerator Recharge Kit is a complete metal piercing-valve recharge set that lets you tap R134a cans, read pressures, and retrofit older R-12 ports safely and reliably.

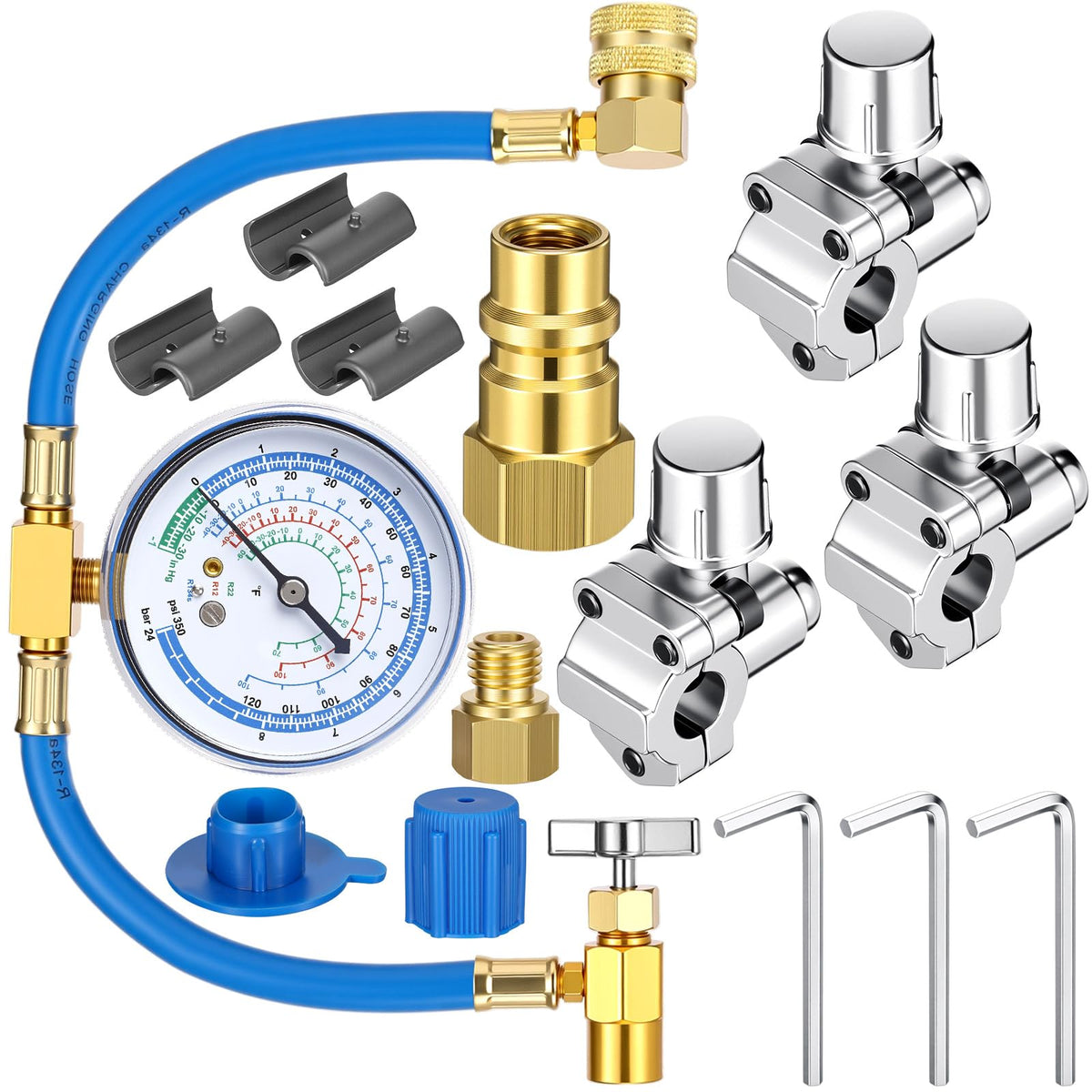

This kit bundles three BPV-31 bullet piercing valves, a 19-inch R134a charging hose with an integrated gauge and can tap, plus a universal retrofit valve — all built from corrosion-resistant metal and finished in dark blue. It's designed for do-it-yourself refrigeration and vehicle A/C topping-up where R134a is the correct refrigerant. The components are engineered for a tight seal, easy installation with the included hex key, and compatibility with common service port sizes.

How does the BPV-31 piercing valve work for recharging?

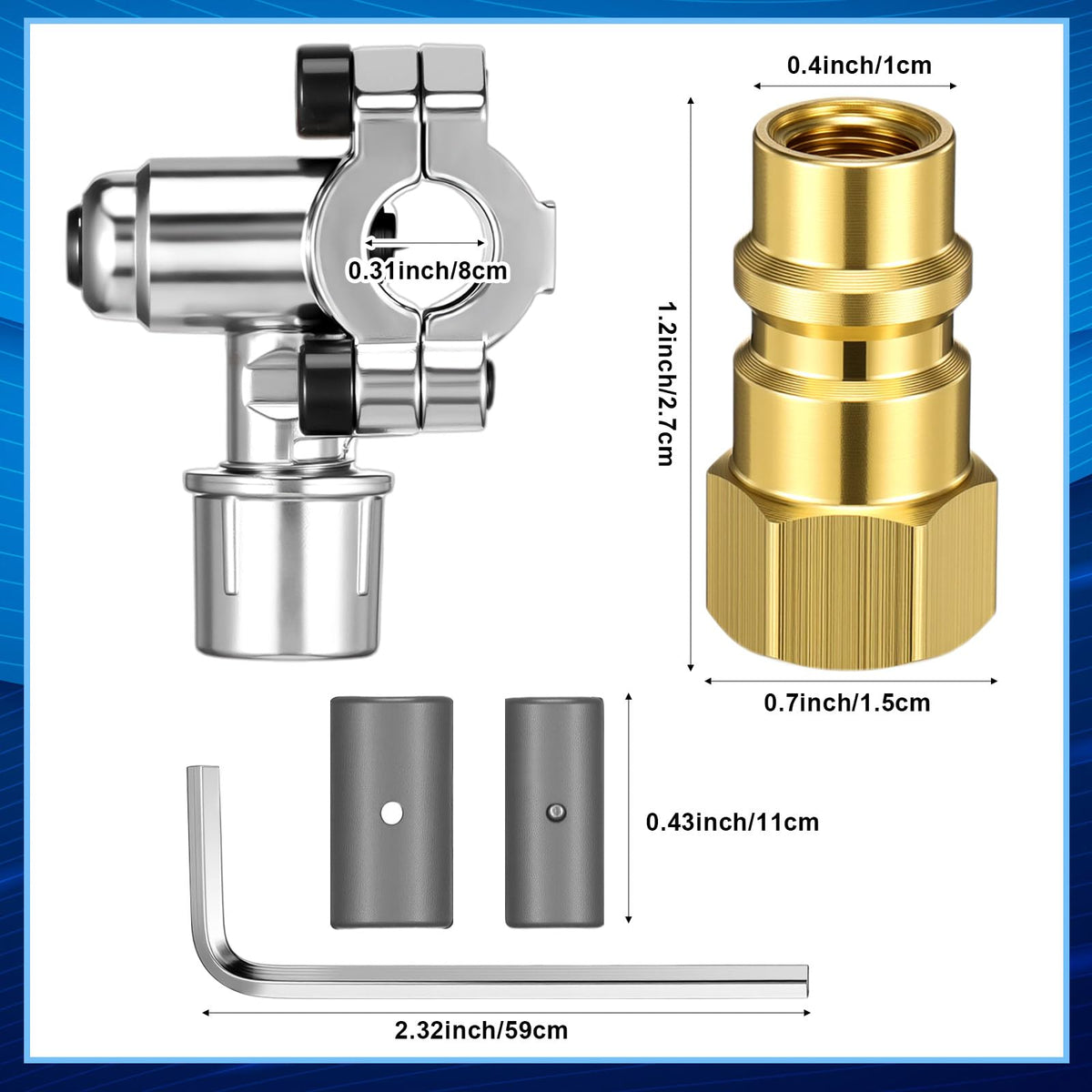

The BPV-31 piercing valve punctures a refrigerant can or line to create a secure service point without soldering or complex tools. Once installed, the valve provides a controlled flow path for charging while minimizing leaks thanks to an enlarged sealing surface and strong torque-tested construction.

• Includes three bullet-style BPV-31 valves with hex key and adapters for quick installs.
• Sealing area larger than standard O-rings for improved leak resistance.
• Torque-tested and pressure-rated components to withstand typical service conditions.

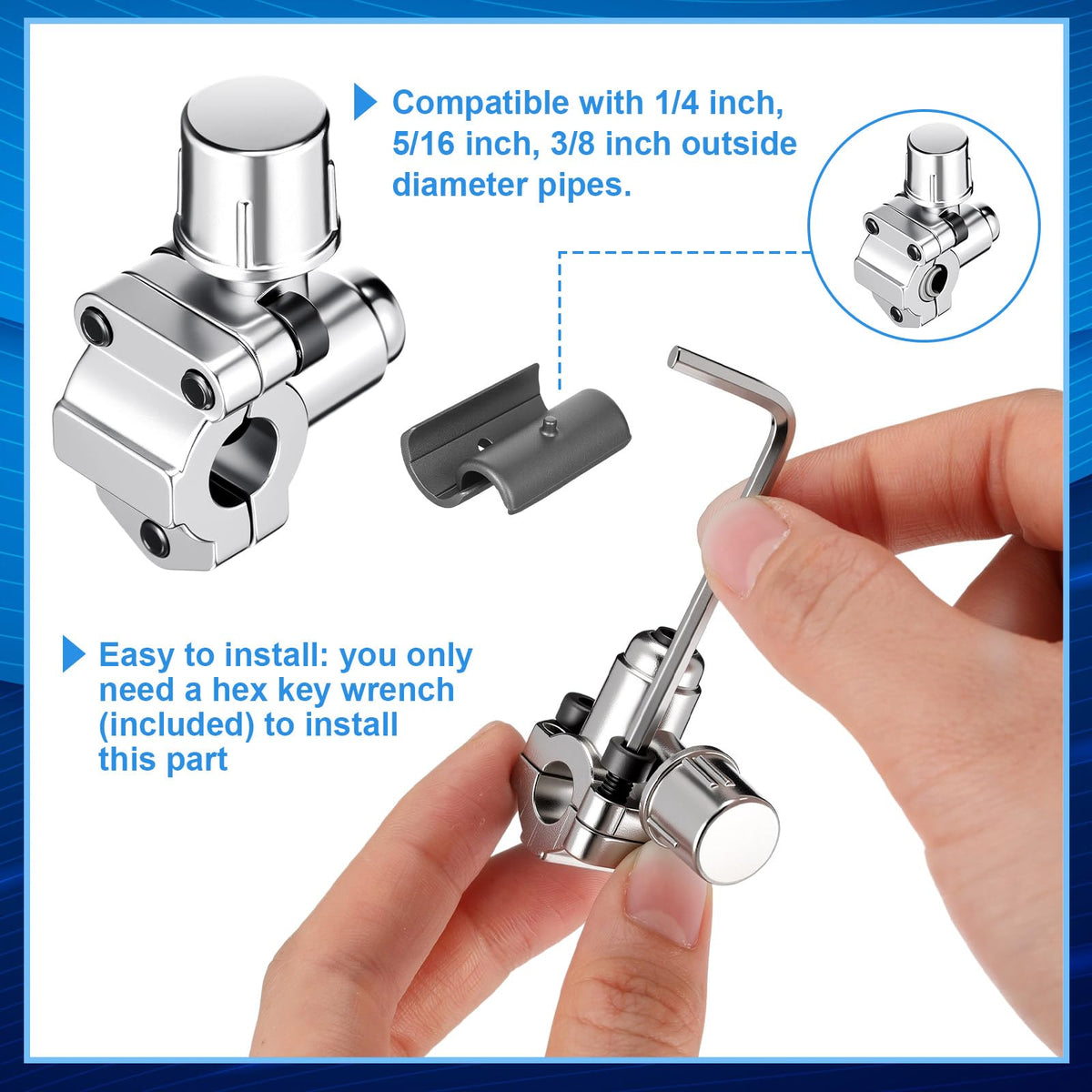

• Compatible with 1/4", 5/16" and 3/8" outside-diameter tubing.

Can I read pressures and charge different systems with the included gauge?

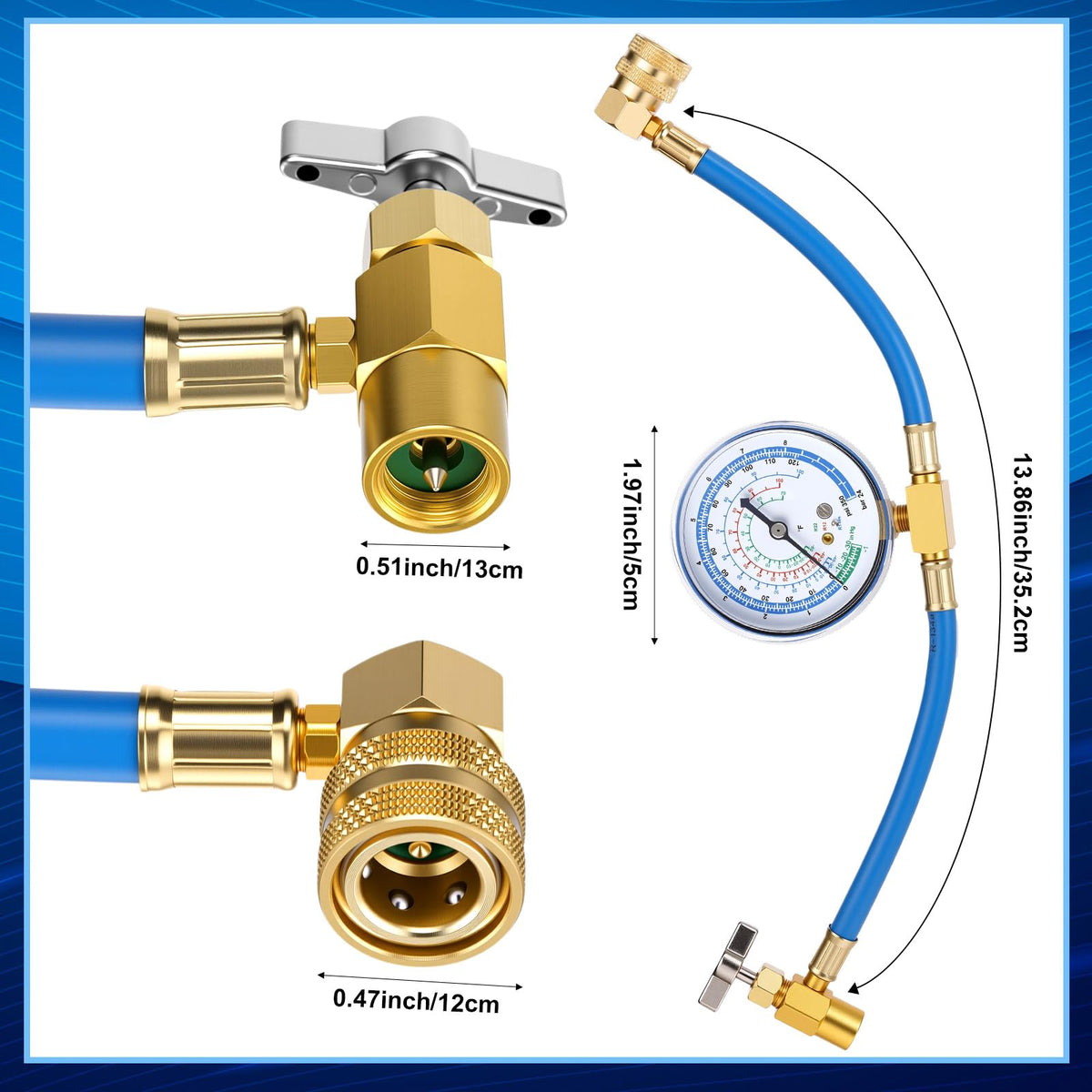

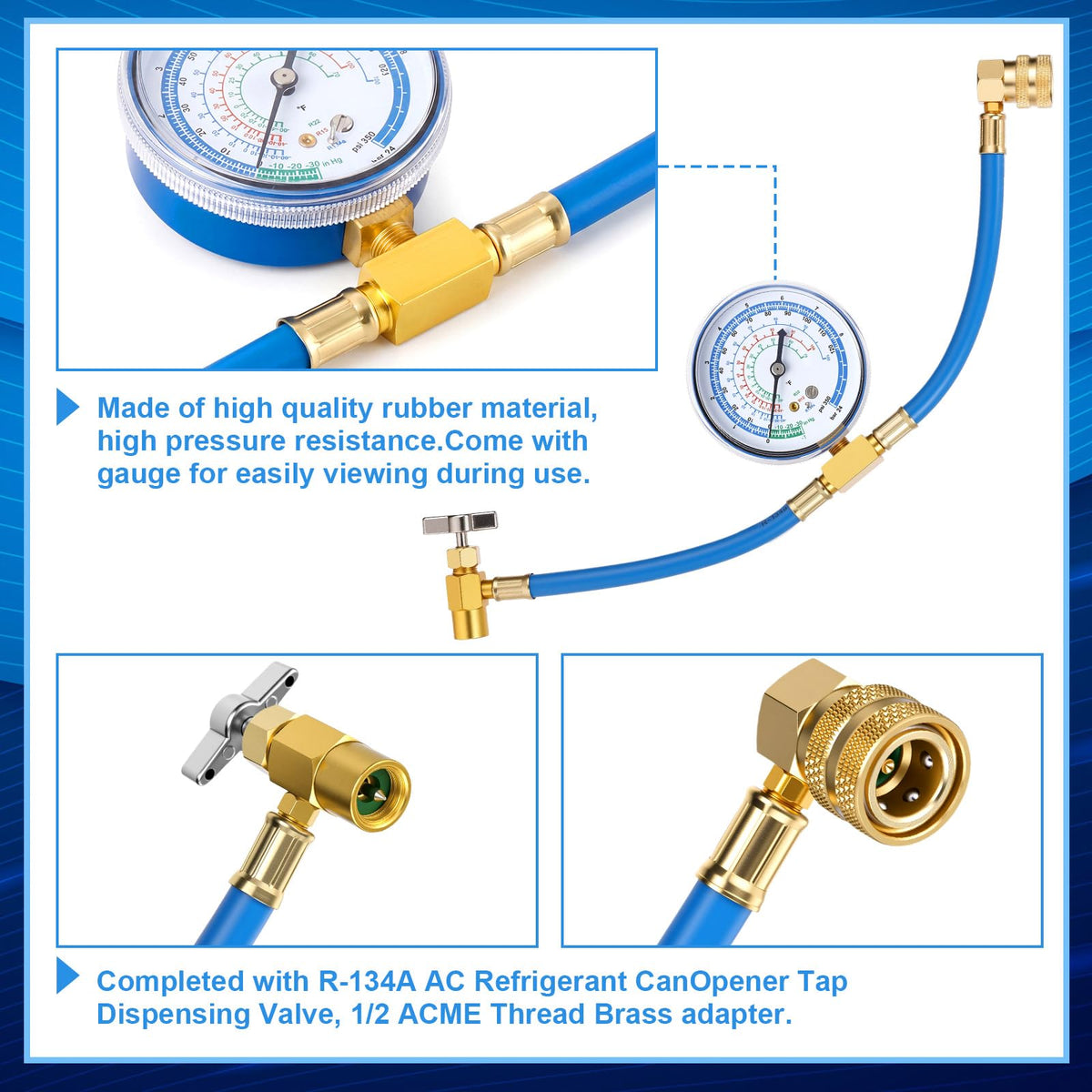

Yes — the 19-inch charging hose has an integrated gauge calibrated to R134a plus markings for R12 and R22, enabling basic pressure checks and controlled topping-up. The 90-degree push-and-lock coupler provides a firm connection to common service ports and an auto shut-off feature for cleaner operation.

• Gauge displays R134a, R12 and R22 pressure scales for quick reference.
• 19-inch hose length offers reach for cramped engine bays or refrigerators.
• Half-inch fitting end fits R12, R22 and 502 service connections.
• Push-lock coupler with auto shut-off reduces refrigerant loss during connect/disconnect.

What does the universal retrofit valve do and when should I use it?

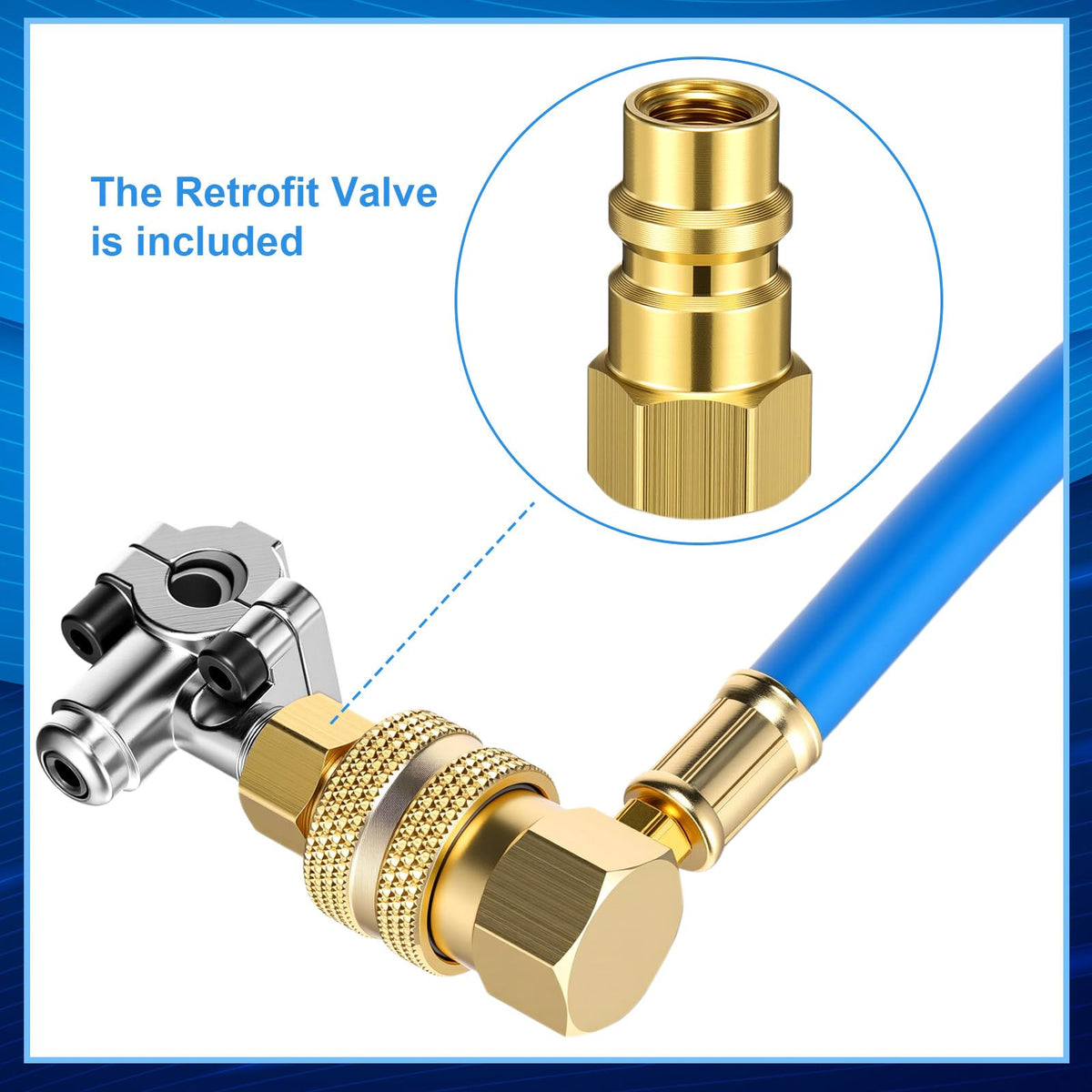

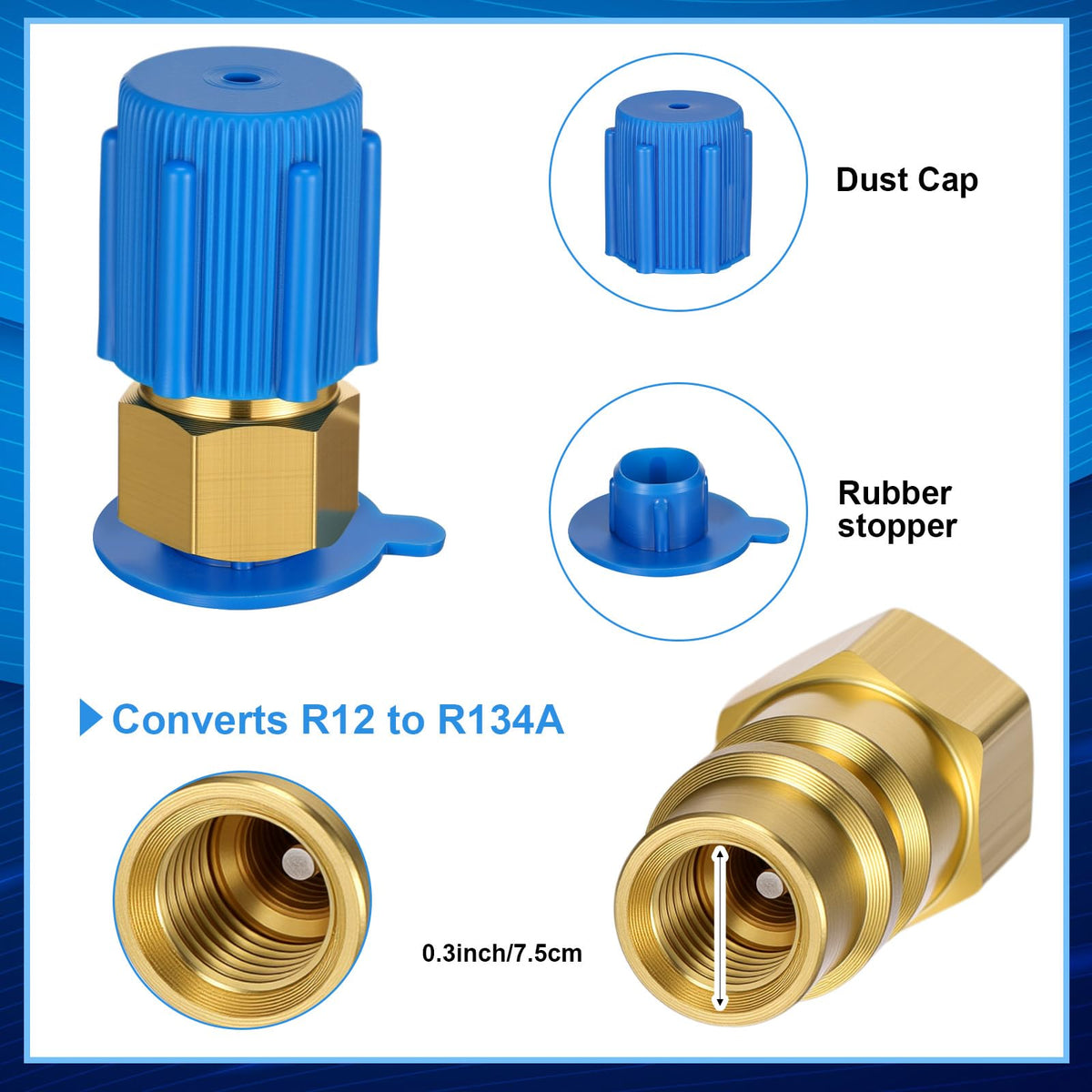

The included retrofit valve converts older R-12 low-side ports to accept R134a service fittings, allowing safe refills of pre-1994 vehicle A/C systems and other legacy equipment. It installs on a 7/16" low-side port and supplies an R134a-compatible access point with a dust cap to keep contaminants out.

• Designed for 7/16" low-side ports found on older vehicles and some refrigeration units.
• Provides a durable metal retrofit fitting to accept R134a recharge hoses.
• Includes dust cap to protect the port between uses.
• Useful when attaching the gauge directly to a system that originally used R-12 fittings.

What should I know before using this kit?

Do not use this kit with R-410A refrigerant — it’s built for R134a applications and retrofitting R-12 to R134a. Installation requires minimal clearance and basic hand tools; follow safety guidance, use proper protective equipment, and avoid charging pressurized systems without confirming refrigerant type and capacity.

• Not suitable for R-410A systems; only for R134a and retrofit to R-12 ports.
• Requires about 2 inches of clearance for the piercing valve installation.
• One hex key (included) is needed to install the piercing valves.
• If attaching the gauge to a piercing valve, use the retrofit valve as an adapter when necessary.

Who is this for? This Mudder kit is aimed at DIYers, independent mechanics, HVAC hobbyists, and fleet technicians who need a portable, durable, and affordable way to top up R134a refrigerant or convert older low-side fittings for R134a service. It's especially useful when you want corrosion-resistant metal fittings, multiple spare piercing valves, and a compact gauge-and-hose solution for occasional maintenance or emergency recharges.
