NeaLia Wireless Dump Trailer Remote Kit CT021 — 12V Hydraulic Control, 2 Remotes, IP67 Receiver

The NeaLia CT021 Wireless Dump Trailer Remote Kit is a 12V hydraulic control system that lets you lift, lower and operate your dump trailer from up to 100 feet away with two handheld remotes and a weatherproof receiver.

Designed for contractors, landscapers and fleet operators who need a simple, reliable way to control a dump trailer without leaving the cab, the CT021 combines plug-and-play convenience with rugged outdoor protection. The compact receiver accepts 3- or 4-wire hydraulic setups and includes a magnetic antenna base for quick installation, while the two remotes use replaceable batteries so you can swap power in the field.

How far will the remote reach and work reliably?

The CT021 system maintains a usable wireless connection up to approximately 100 feet in open conditions, giving you freedom to position your truck or stand at a safe distance while operating the trailer. Metal obstructions, heavy equipment or dense terrain can reduce range, so placement matters for best performance.

• Up to 100 ft nominal signal range in unobstructed environments
• Magnetic antenna for flexible receiver positioning to maximize reception

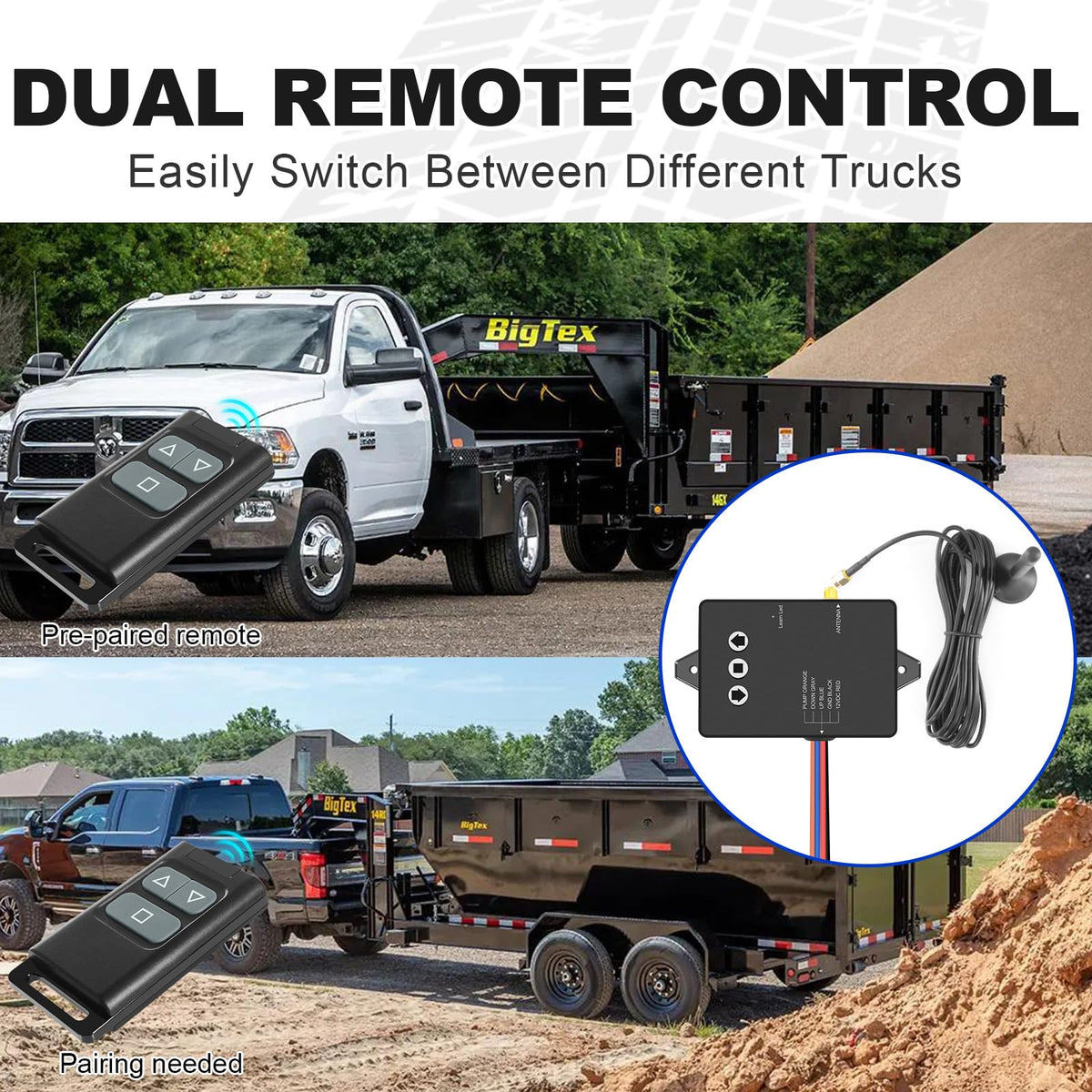

• Two remotes included for backups or sharing between trucks

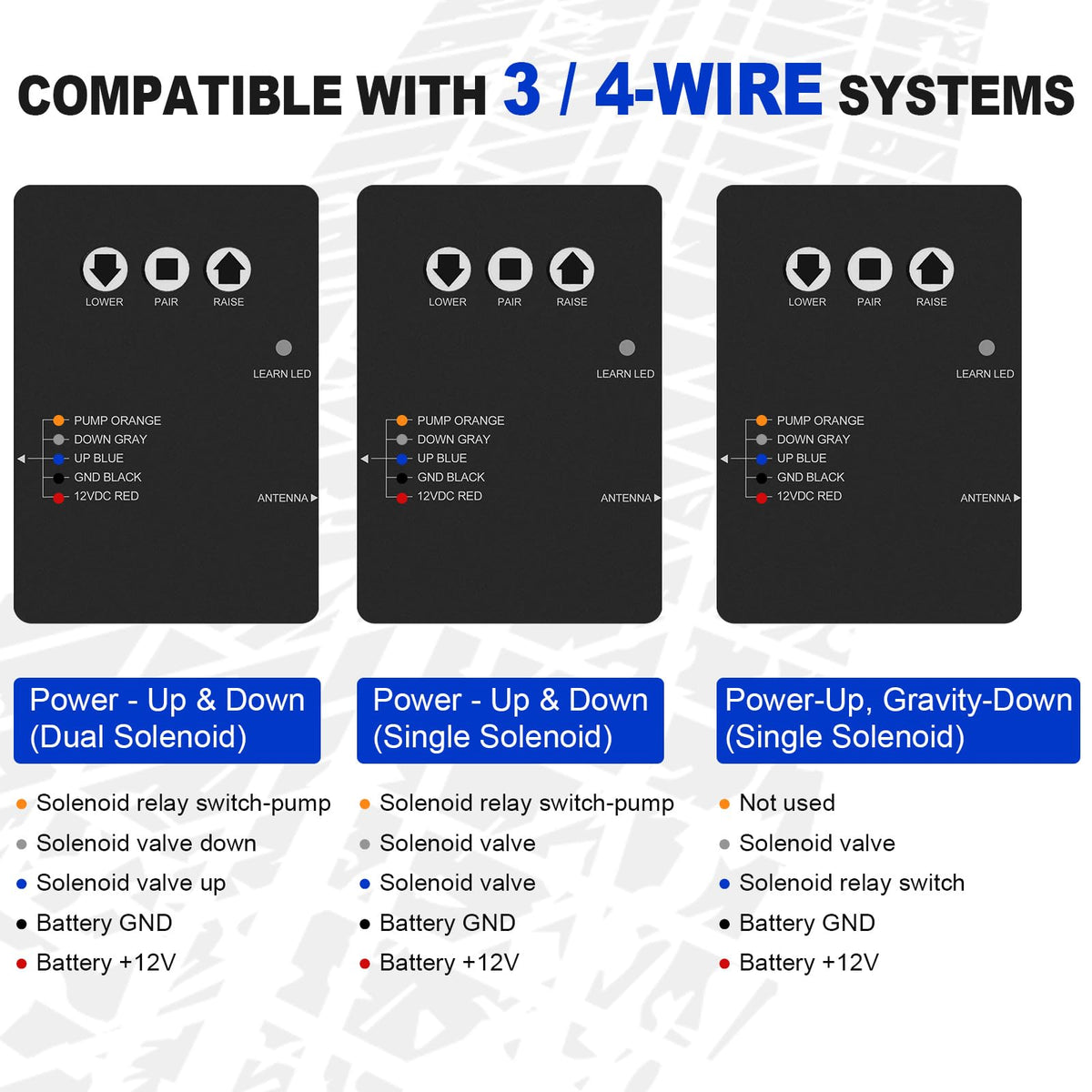

What wiring options and functions does the controller support?

The receiver is compatible with both 3-wire and 4-wire hydraulic systems thanks to color-coded leads for power, ground, lift, lower and pump on/off. This simplifies hookup to existing 12V hydraulic pumps and reduces installation time for technicians and DIY installers alike.

• Red = +12V power input
• Black = ground
• Blue = lift (up)
• Gray = lower (down)
• Orange = pump on/off (when used with helper pumps)

Is the kit easy to install and durable outdoors?

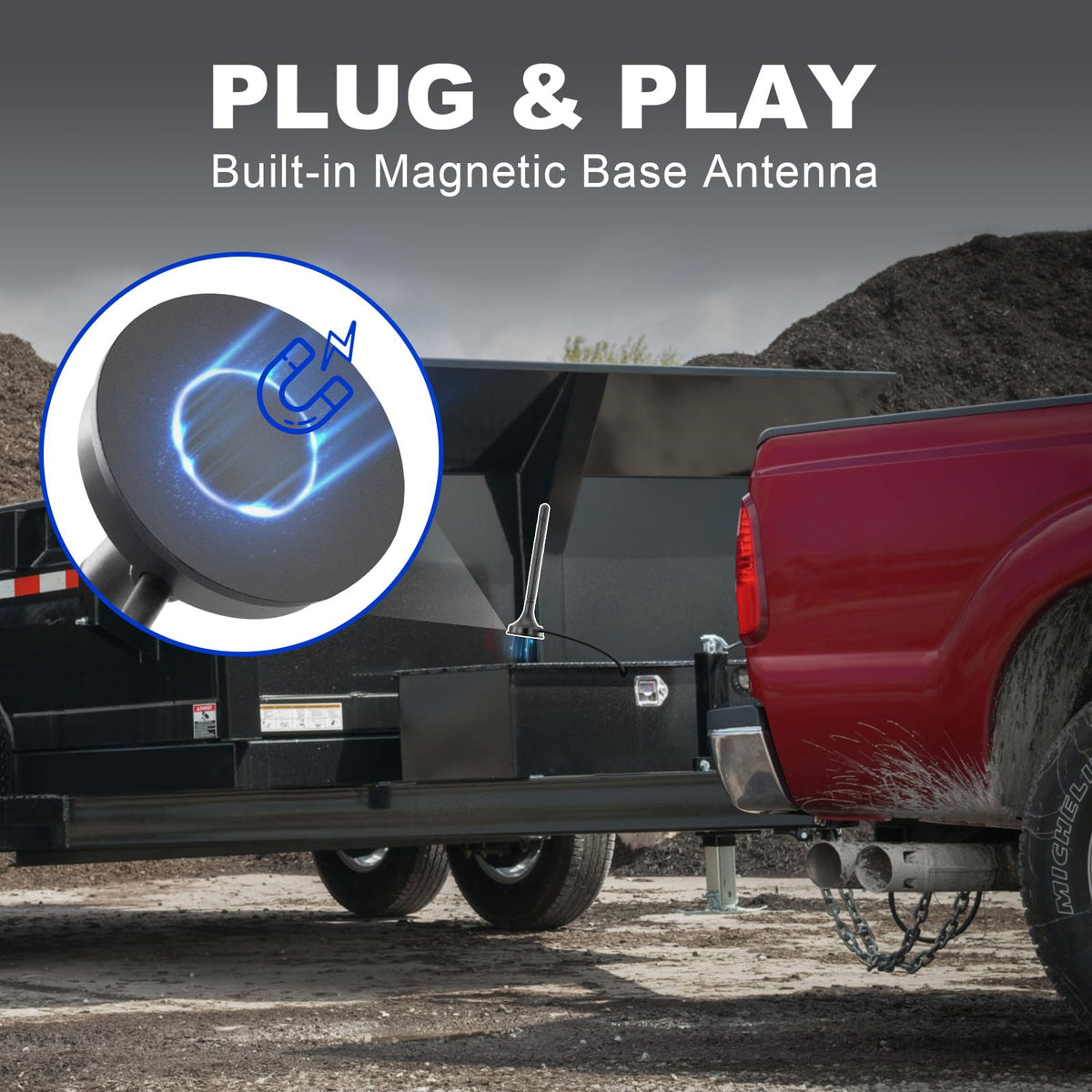

Yes — the CT021 emphasizes quick setup and weather resistance. The antenna uses a magnetic base so you can secure it to any ferrous surface in under a minute without tools, and the IP67-rated receiver housing resists dust and immersion-level water, making it suitable for demanding jobsite conditions.

• Magnetic antenna base for tool-free mounting
• IP67 waterproof/dustproof receiver for harsher environments

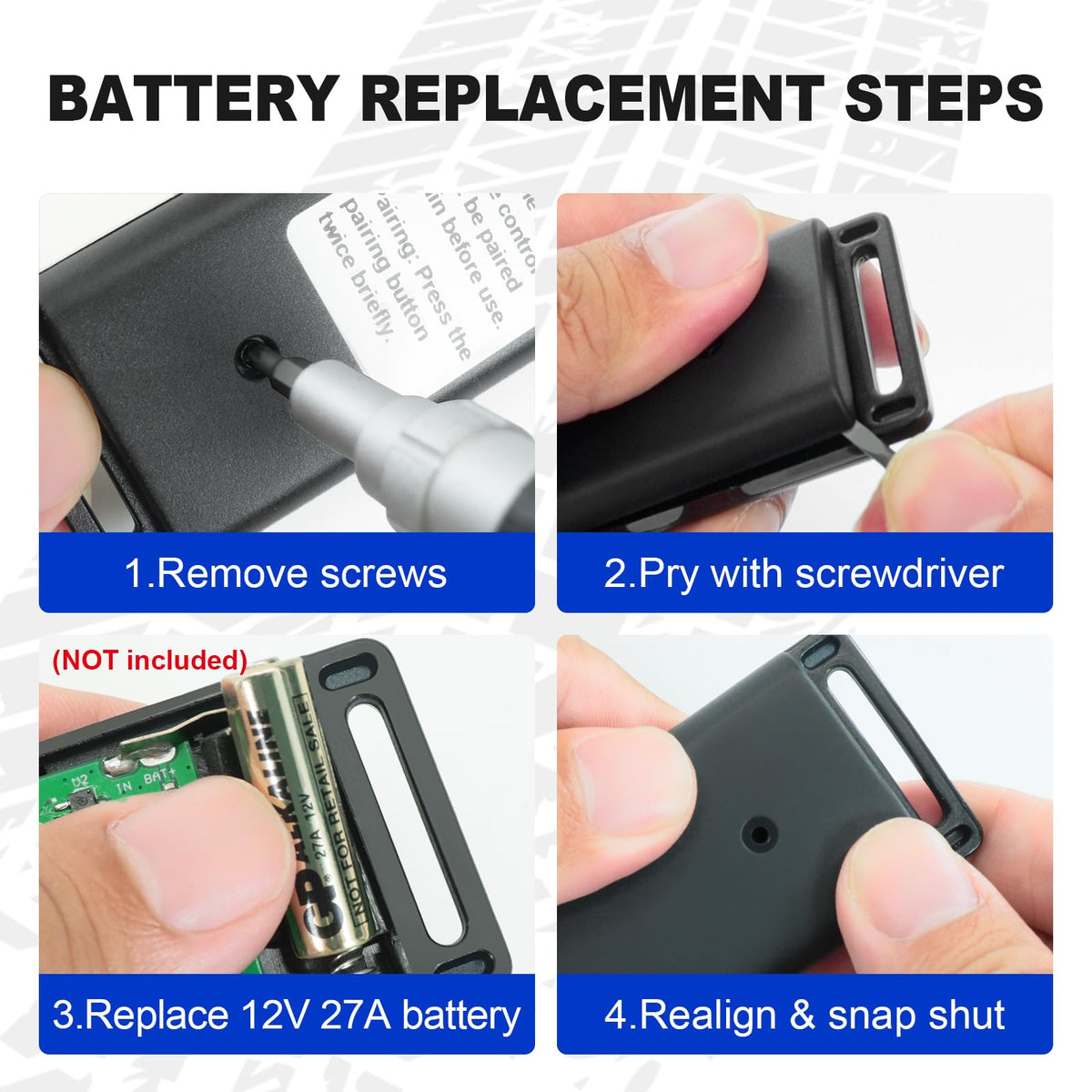

• Replaceable remote batteries to extend service life

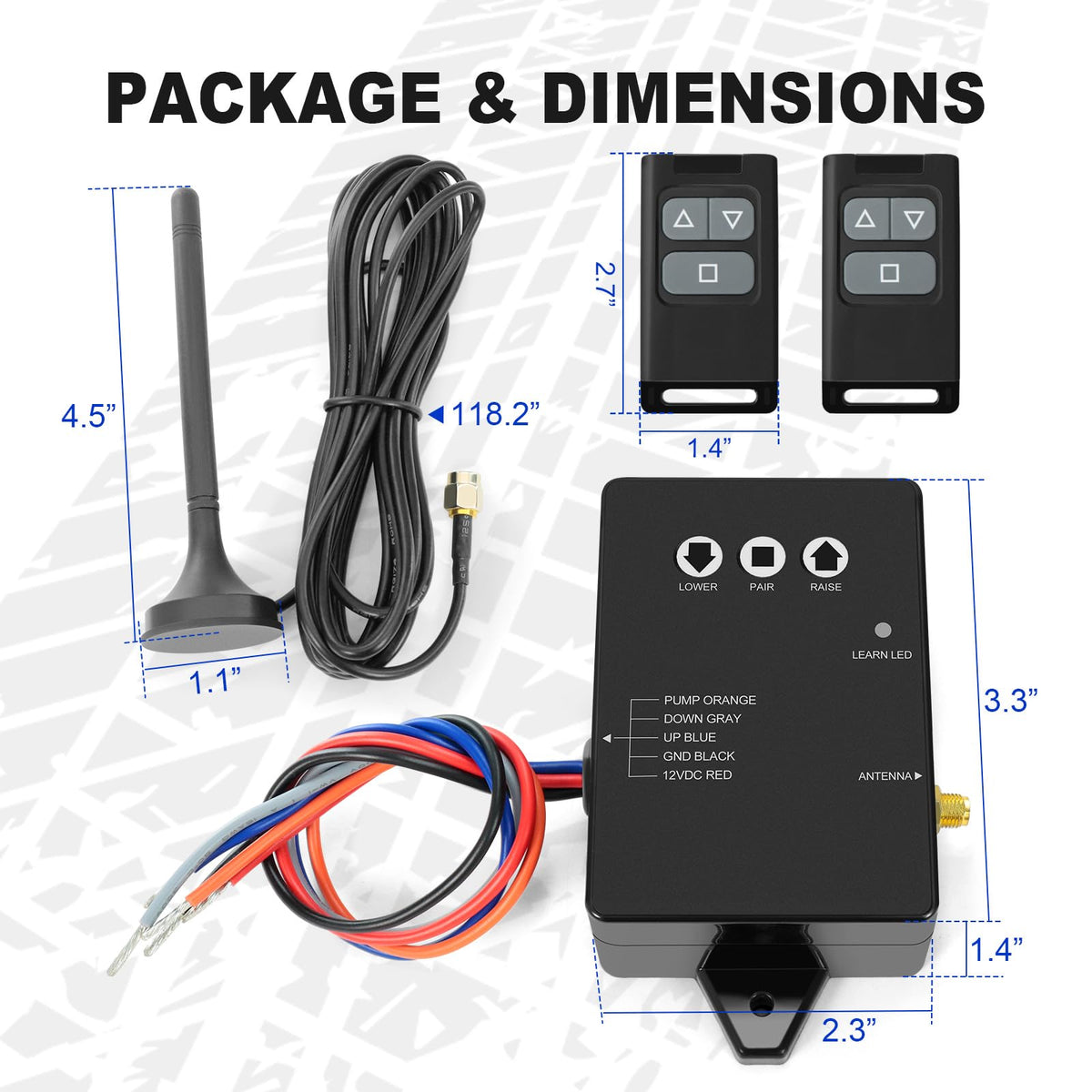

What comes in the package and how many remotes are included?

The kit ships ready for immediate use with everything needed to get a standard hydraulic dump trailer under remote control. Two handheld transmitters are supplied so a second operator or spare is available, and the package includes basic installation instructions to guide wiring and antenna placement.

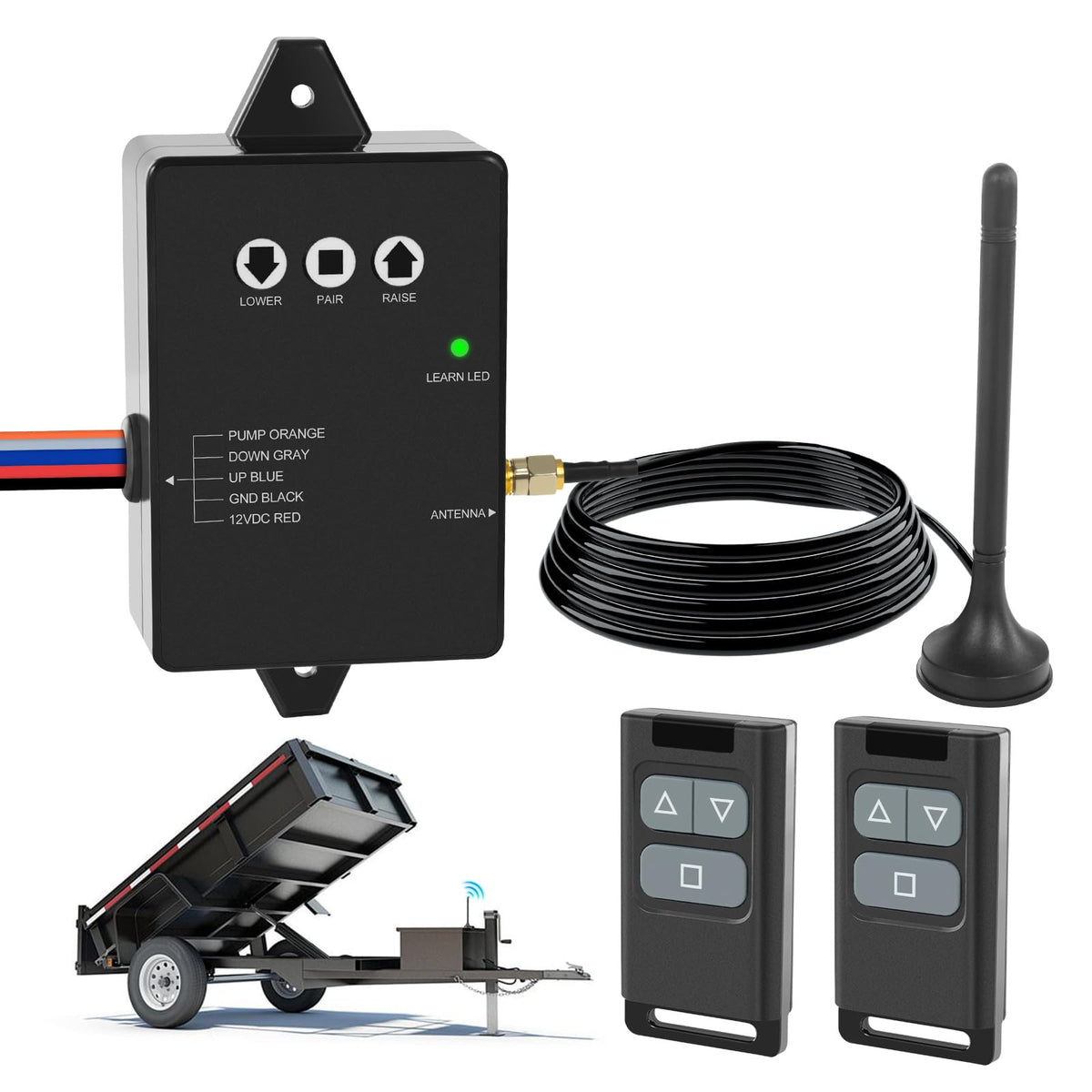

• Receiver unit x1
• Antenna with magnetic base x1
• Hand remotes x2 (replaceable batteries)
• User manual x1

Who this is for: The NeaLia CT021 is aimed at professionals and serious hobbyists who want a dependable, easy-to-install remote control solution for 12V hydraulic dump trailers. If you run a small fleet, work solo on landscaping or construction jobs, or need a portable controller to move between trucks, this kit delivers pragmatic features — like dual remotes, intuitive color-coded wiring and IP67 protection — without complex programming or specialty tools.
