NEIKO Handheld Battery Load Tester 100A / 50A for 12V & 6V Batteries — 40510A Analog CCA Checker with Copper Clamps

The NEIKO 40510A is a handheld load tester that applies a controlled 100A (12V) or 50A (6V) draw to automotive batteries to evaluate starting capacity and voltage under load.

Compact and built for mechanics, DIYers, and fleet technicians, this analog battery load tester simulates the heavy current a starter motor requires so you can quickly judge whether a battery can deliver adequate cold-cranking amps (CCA). It supports both 6V and 12V systems, provides a visible voltmeter with ±0.2V accuracy, and uses copper-clad clamps and anti-spark internal switchgear for safer, repeatable tests.

How does the NEIKO 40510A tell me if a battery can start my vehicle?

By placing the clamps on the battery terminals and holding the load switch, the tester draws a heavy, fixed current for up to 10 seconds to mimic starter demand. Watch the analog meter: if voltage stays within acceptable ranges for the battery’s CCA rating, the battery likely has sufficient starting power; a rapid voltage collapse indicates weakness.

• Applies 100 AMP load for 12V batteries up to 1,000 CCA.
• Applies 50 AMP load for 6V batteries up to 1,000 CCA.
• Hold load for 10 seconds; 10-second test cycle with 1-minute cool down.
• Meter accuracy rated to ±0.2V for reliable readings.

What safety and durability features are built into this tester?

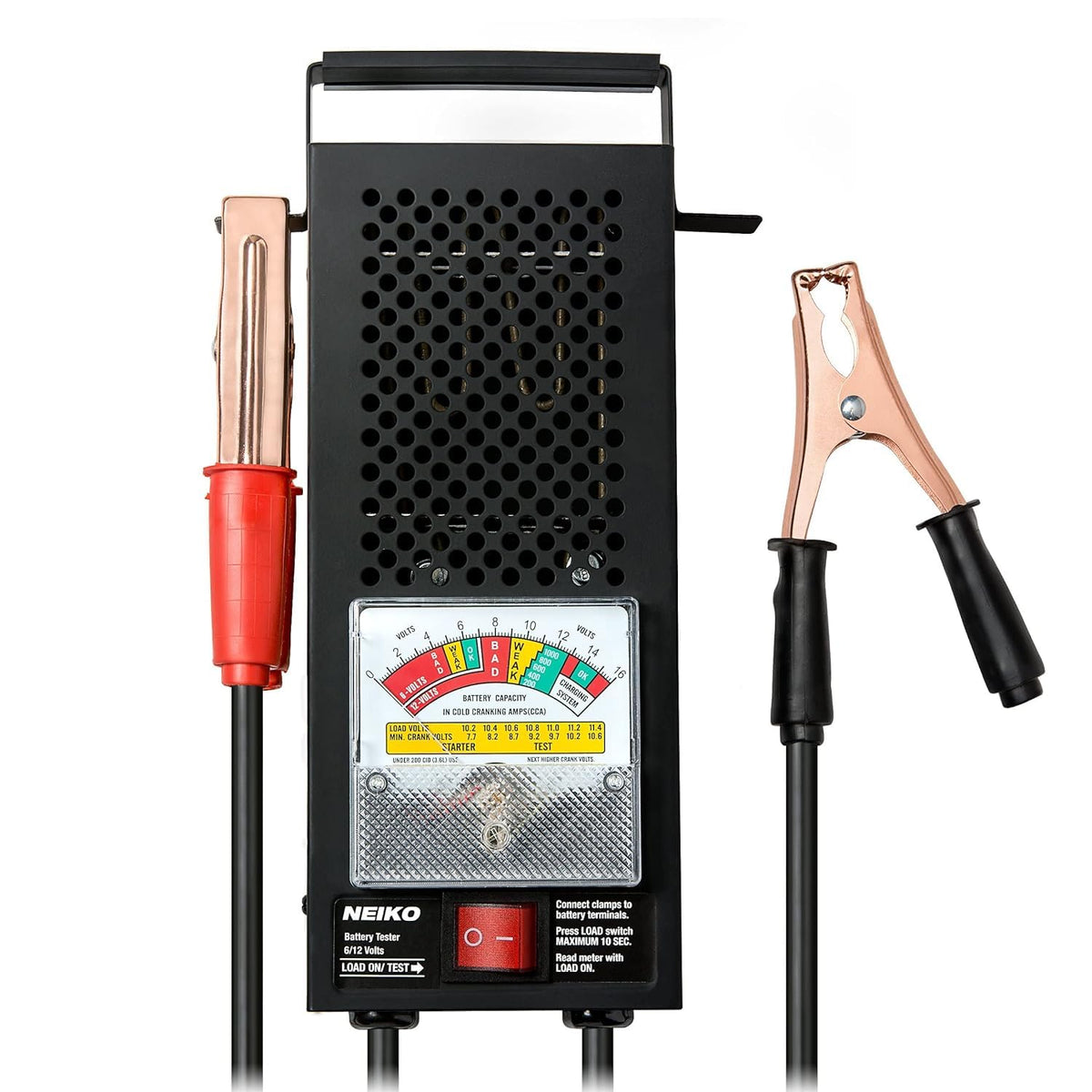

The unit has internal anti-sparking switchgear and a protective housing around the analog voltmeter to reduce risk during testing. Sturdy copper connectors with red and black insulated grips help ensure solid contact with terminals, while the top carry handle and compact form make it easier to move between vehicles.

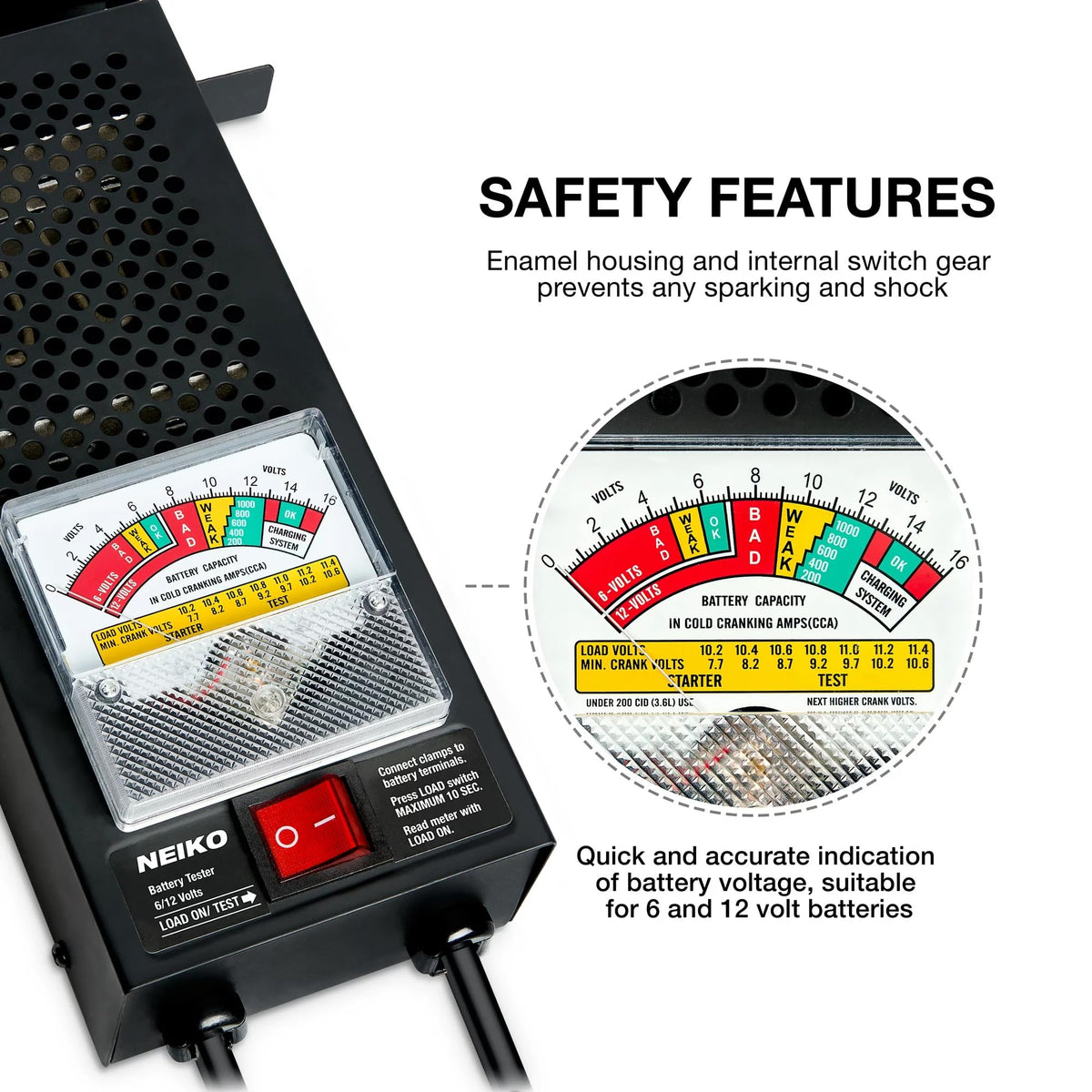

• Anti-spark internal switch reduces arcing at connection.
• Protection-encased analog display resists impact damage.

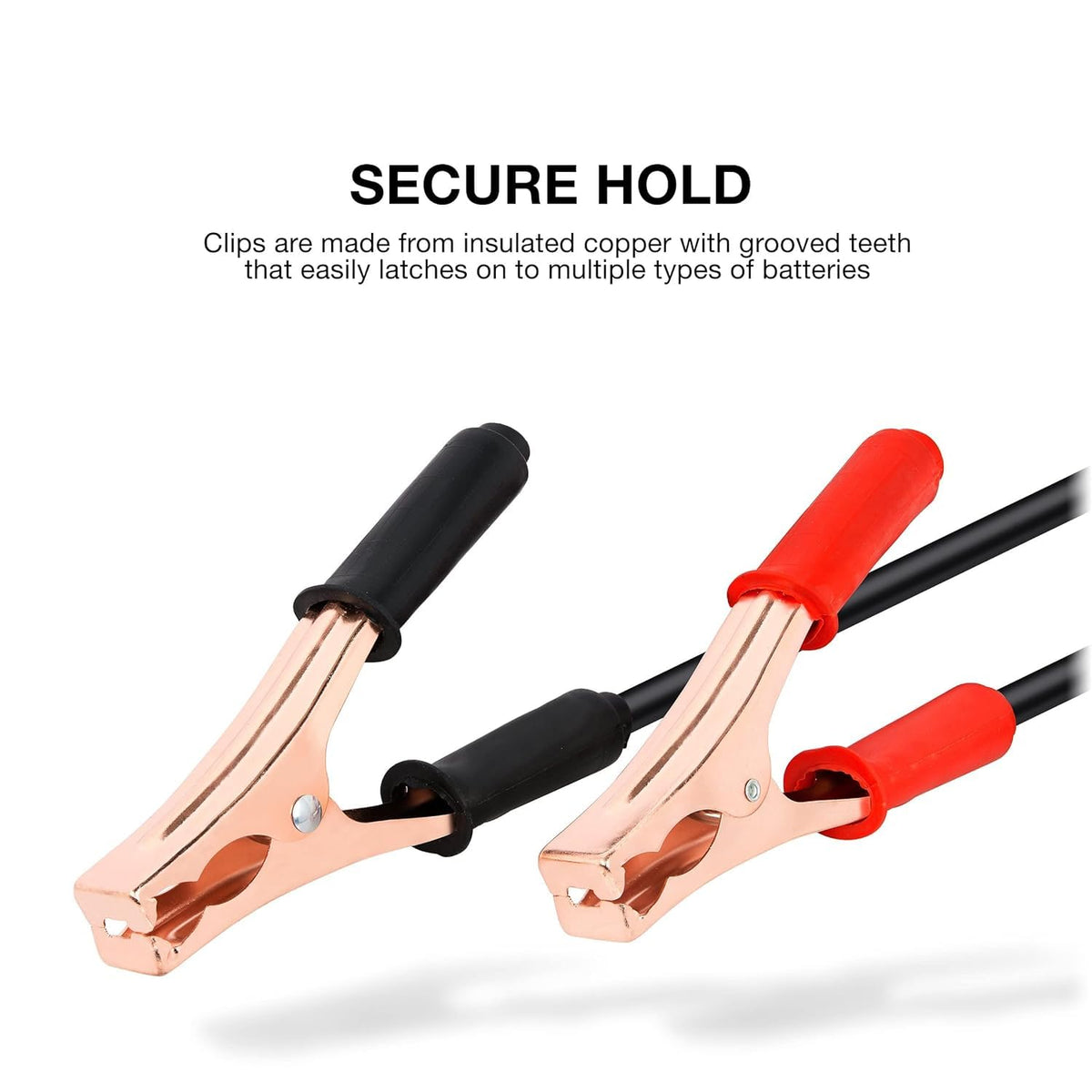

• Copper clamp connectors with rubber grips for clear polarity and firm grip.

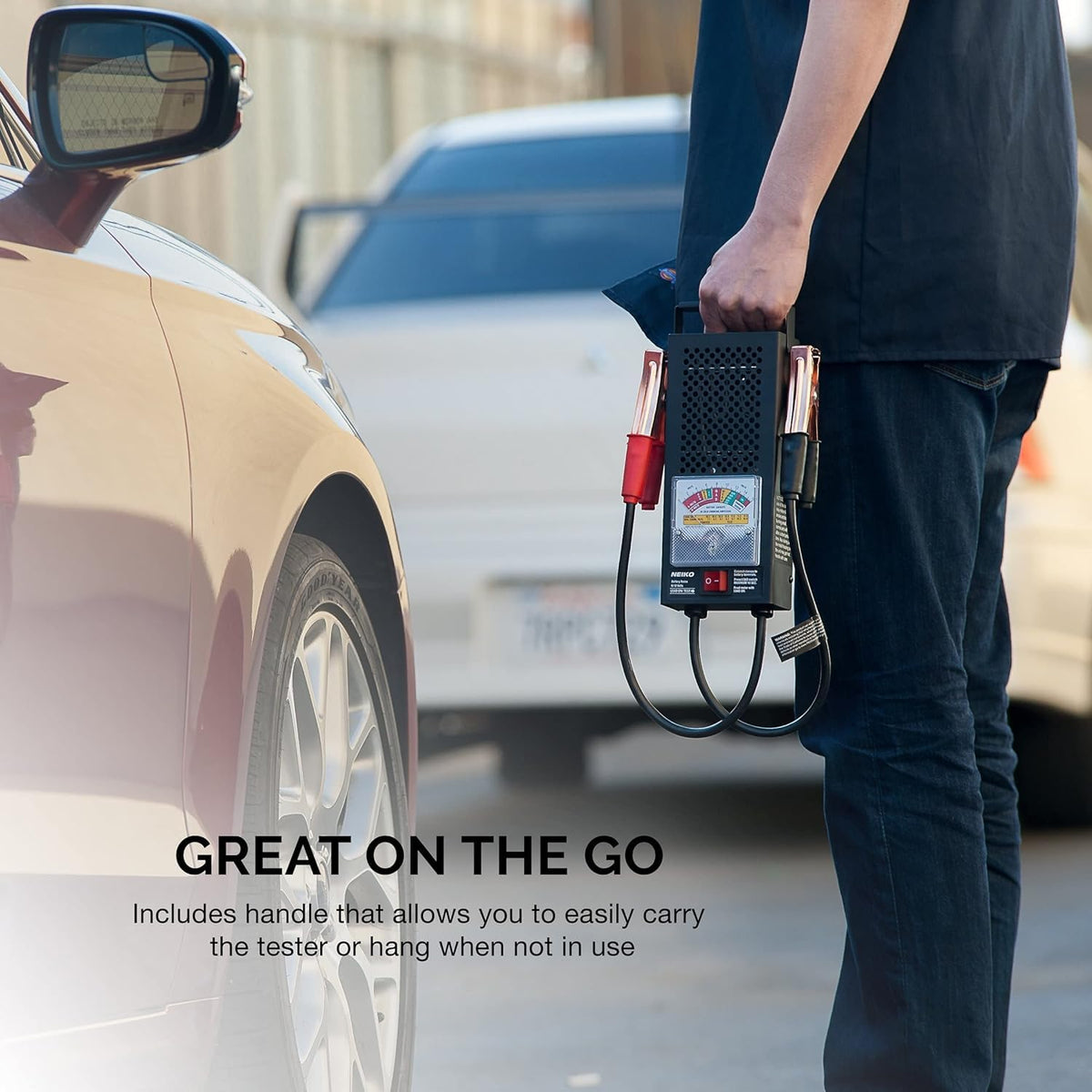

• External handle for safe transport and storage.

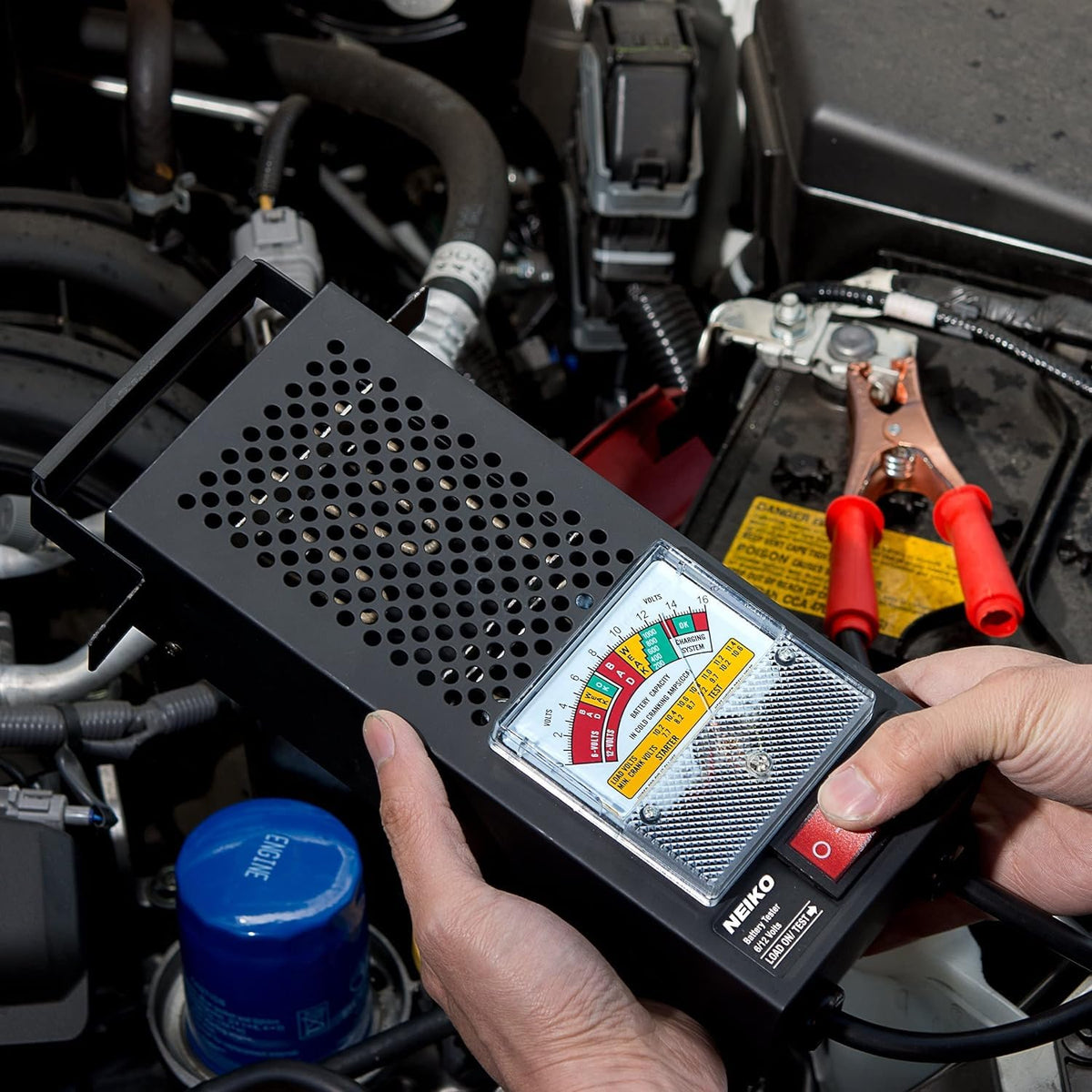

How should I operate the tester for repeatable results?

Connect the red clamp to positive and black to negative, confirm meter reads battery voltage, then press and hold the load switch for up to 10 seconds. Observe the meter during the load period, allow a one-minute cool-down, and do no more than three tests within five minutes to avoid overheating the unit or the battery.

• Verify correct polarity before applying load.
• Hold load for 10 seconds max; follow 1-minute cooldown between tests.
• Limit to three tests in a five-minute window to protect equipment.
• Use on 6V or 12V batteries only, up to 1,000 CCA rating.

Will this tester work for cars, motorcycles, RVs, and boats?

Yes—its dual-voltage capability and high fixed-load output make it useful across many vehicle types and battery applications. It’s designed for small vehicles like motorcycles and cars as well as larger systems in trucks, RVs, and marine craft, provided the battery conforms to the supported voltage and CCA ranges.

• Suitable for cars, trucks, SUVs, motorcycles, RVs, boats, and more.
• Works with both 6V and 12V battery systems.
• Supports batteries up to 1,000 CCA rating for reliable evaluation.
• Portable format for garage, roadside, or shop use.

Who is this for: The NEIKO 40510A is aimed at home mechanics, professional technicians, and fleet maintenance personnel who need a straightforward, robust tool to diagnose battery starting performance without complex electronics. If you need a portable, analog load tester that simulates starter draw and gives quick, repeatable voltage feedback for 6V and 12V batteries, this unit fits workshop and field use.
