NGK BPR5ES-11 Spark Plugs 8-Pack — V-Power Nickel/Copper, 5,000Ω Resistor, OE Fit

The NGK BPR5ES-11 (stock #7634) is an 8-pack of V-Power nickel/copper replacement spark plugs built for dependable ignitability and OE-style fitment.

This set of eight NGK BPR5ES-11 spark plugs is manufactured to the specifications many original equipment makers use for nickel-alloy plug applications. Each plug uses a copper core center electrode with a nickel tip and a single J-gap ground electrode, and includes a crush washer and non-removable nut terminal for straightforward installation. The parts are resistor-equipped (5,000 ohms) to reduce radio-frequency interference and use NGK’s proven alumina-silicate ceramic insulator for thermal and dielectric stability.

How do these BPR5ES-11 plugs improve starting and idle?

NGK’s V-Power design concentrates the spark by combining a V-cut center electrode and a concave ground electrode, which enhances ignitability compared with a plain nickel tip. That focused spark can lead to quicker starts and a more stable idle in engines that are designed for nickel-alloy plugs.

• V-cut nickel alloy center electrode for concentrated spark
• Concave ground electrode to improve flame kernel formation
• Copper core for good thermal conductivity
• Resistor 5,000 ohms to minimize electrical interference

What are the physical specifications and fitment details?

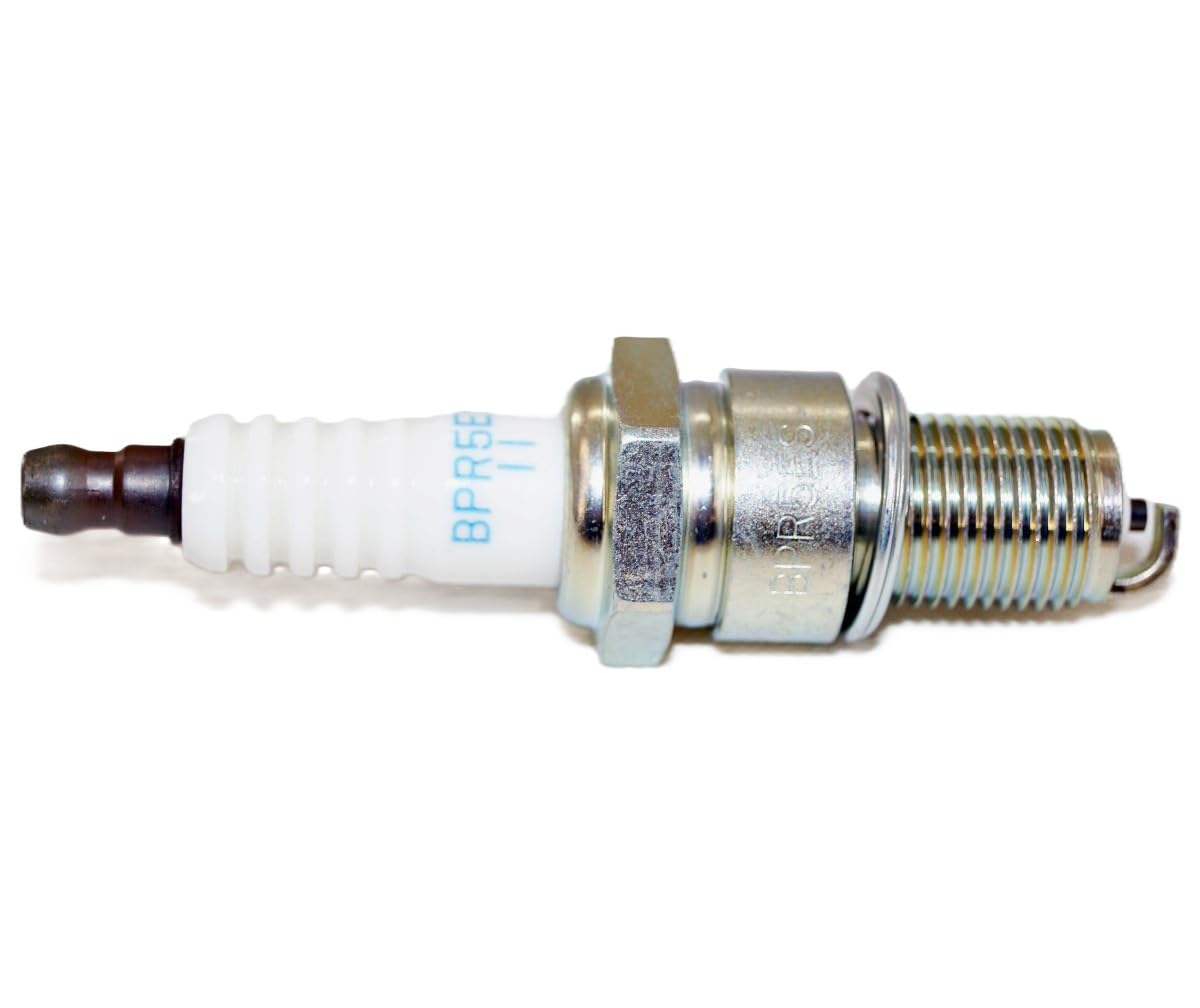

These plugs have a 14.0 mm thread diameter, 0.750 in (19.0 mm) reach, and a 13/16" hex for socket use. The insulator height is 54.0 mm, and the pre-gap is set to 0.044 in (1.1 mm) with a center electrode tip projection of 0.12 in (3.0 mm).

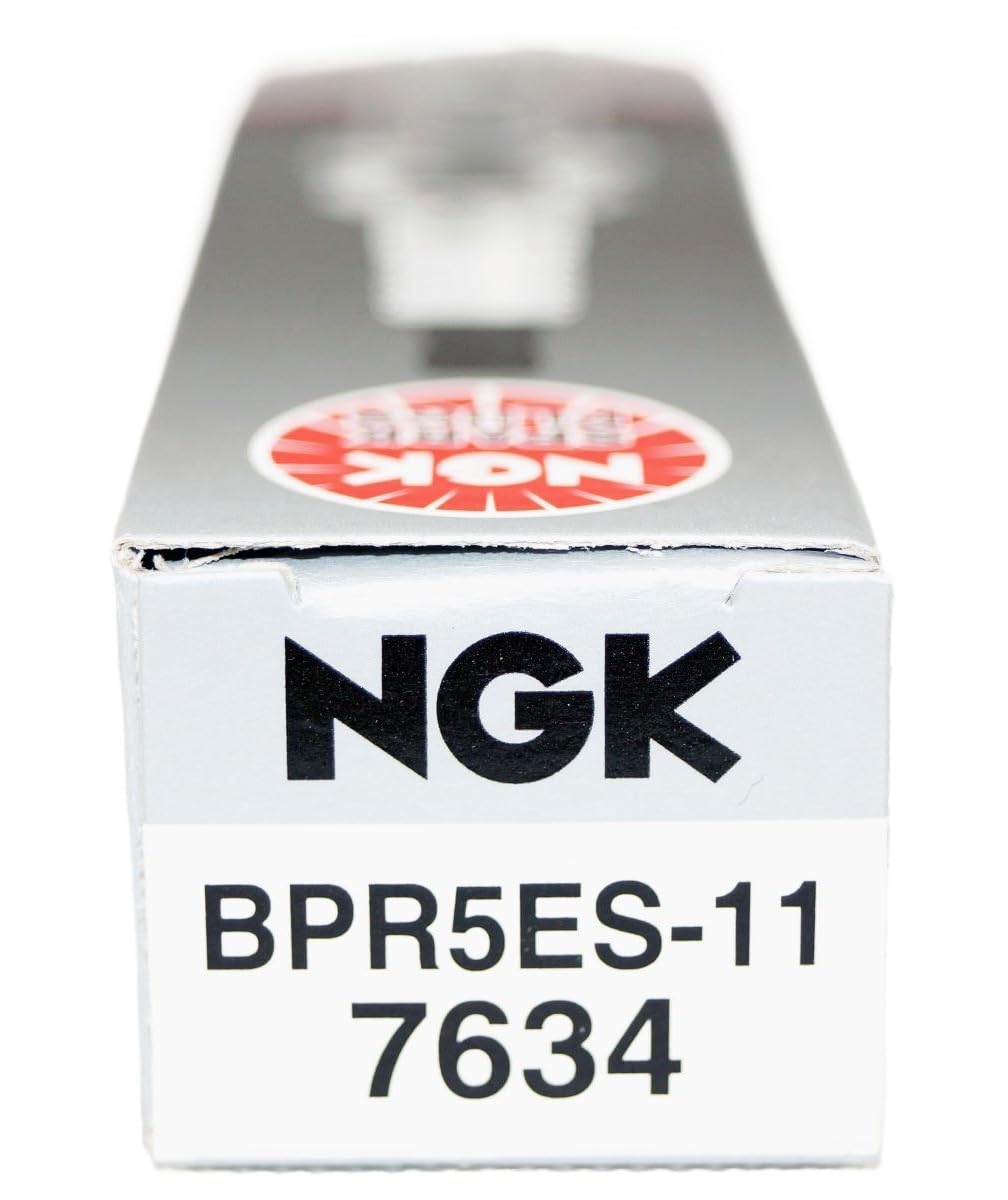

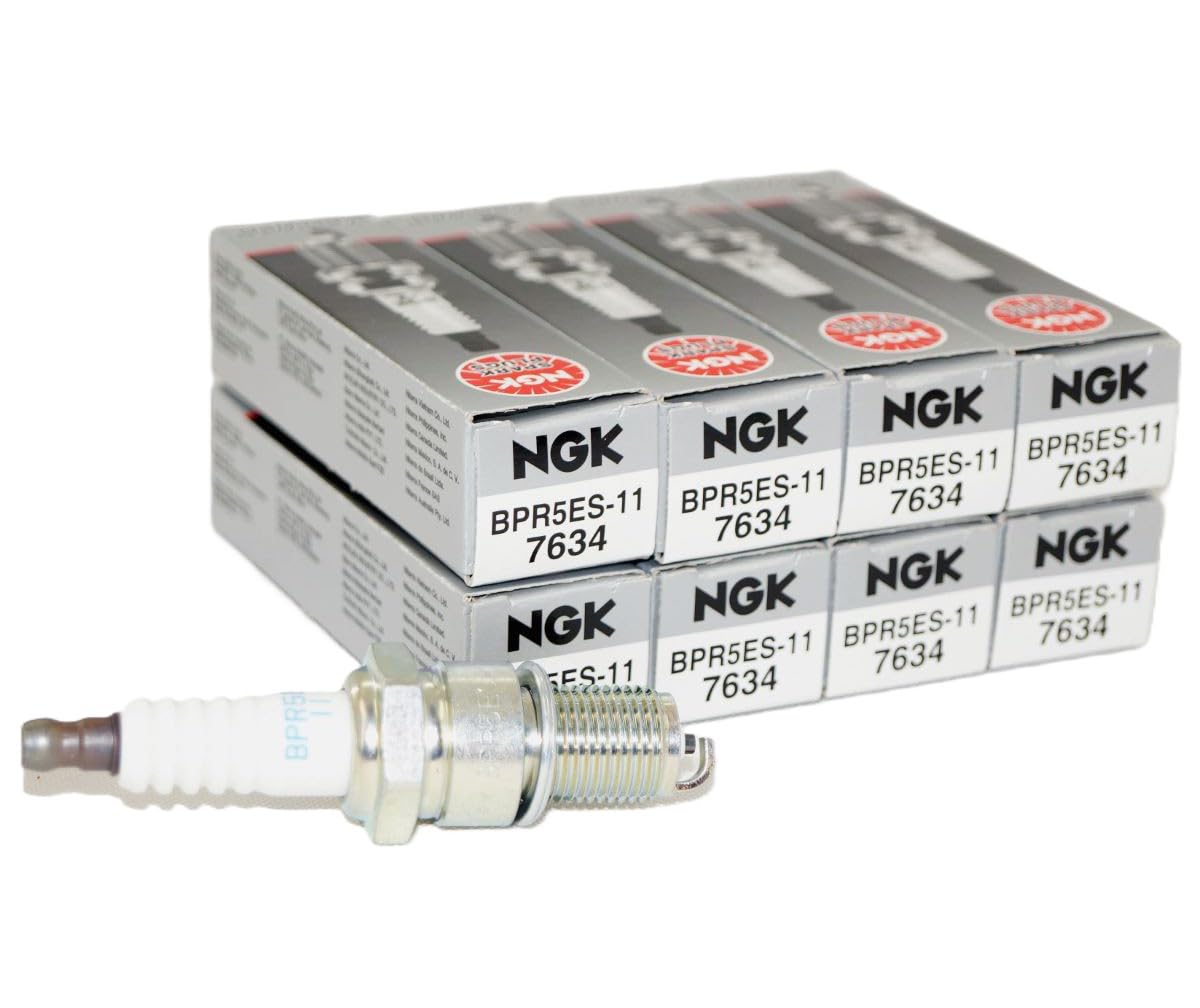

• Part number: BPR5ES-11, stock #7634 — eight plugs per pack
• Thread: 14.0 mm; reach: 0.750 in (19.0 mm); seat: flat
• Hex size: 13/16"; insulator: ceramic, height 54.0 mm

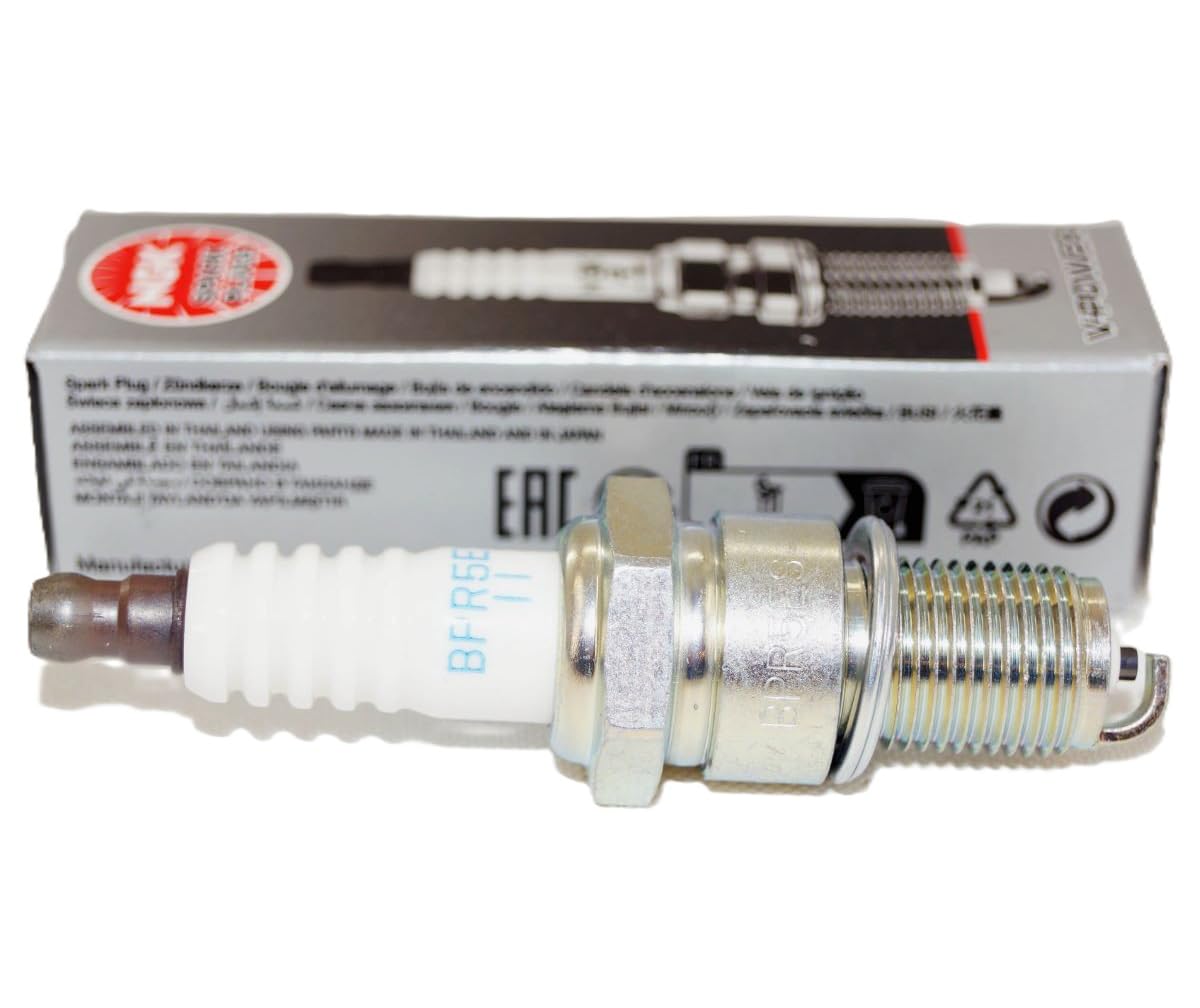

• Pre-set gap: 0.044 in (1.1 mm); mid projection center electrode

Are these plugs compatible with my vehicle and what should I verify?

These BPR5ES-11 plugs are engineered as standard replacement nickel-alloy plugs and are intended for vehicles originally equipped with nickel center electrodes. They are not recommended for engines that require factory precious-metal plugs (platinum/iridium).

• Verify OEM part number or owner’s manual for correct plug type
• Not recommended for engines specifying precious metal plugs
• Confirm thread, reach, and seat type match your engine’s cylinder head
• Use correct torque and gap specifications during installation

What materials and durability features are included?

The BPR5ES-11 uses a copper-core center electrode with a nickel tip and nickel ground electrode for standard replacement durability. NGK applies trivalent metal plating to resist corrosion and seizure and molds a high-grade alumina-silicate ceramic insulator for reliable voltage handling and mechanical strength.

• Copper core center electrode for heat conduction and durability
• Nickel tip and nickel ground electrode — standard replacement grade
• Trivalent plating for corrosion and seizure resistance
• Ceramic insulator designed for consistent dielectric performance

Who is this for? These NGK BPR5ES-11 (stock #7634) spark plugs are suited to owners and technicians replacing OEM nickel-alloy spark plugs in compatible engines who want OE-style fitment, reliable ignitability, and the ease of an eight-plug pack. They are a practical choice for routine maintenance and repairs where nickel replacement plugs are recommended — verify vehicle specifications before purchase to ensure correct application.
