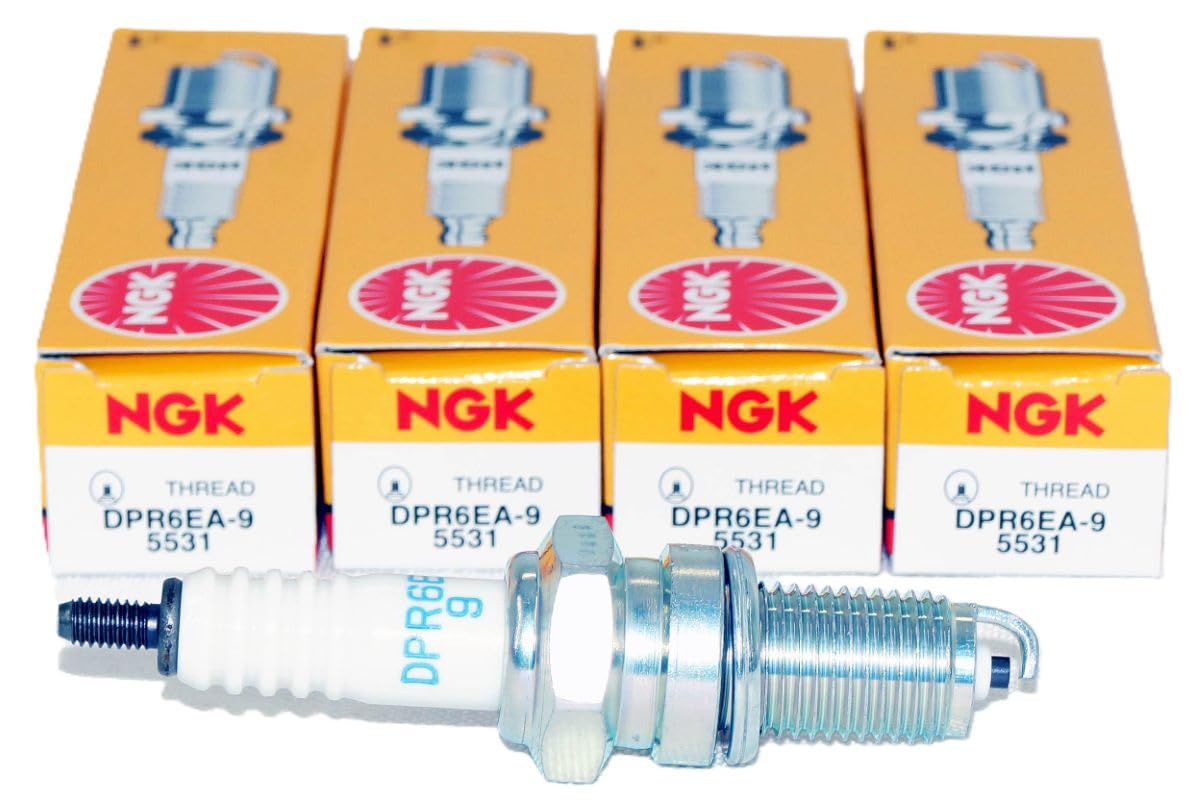

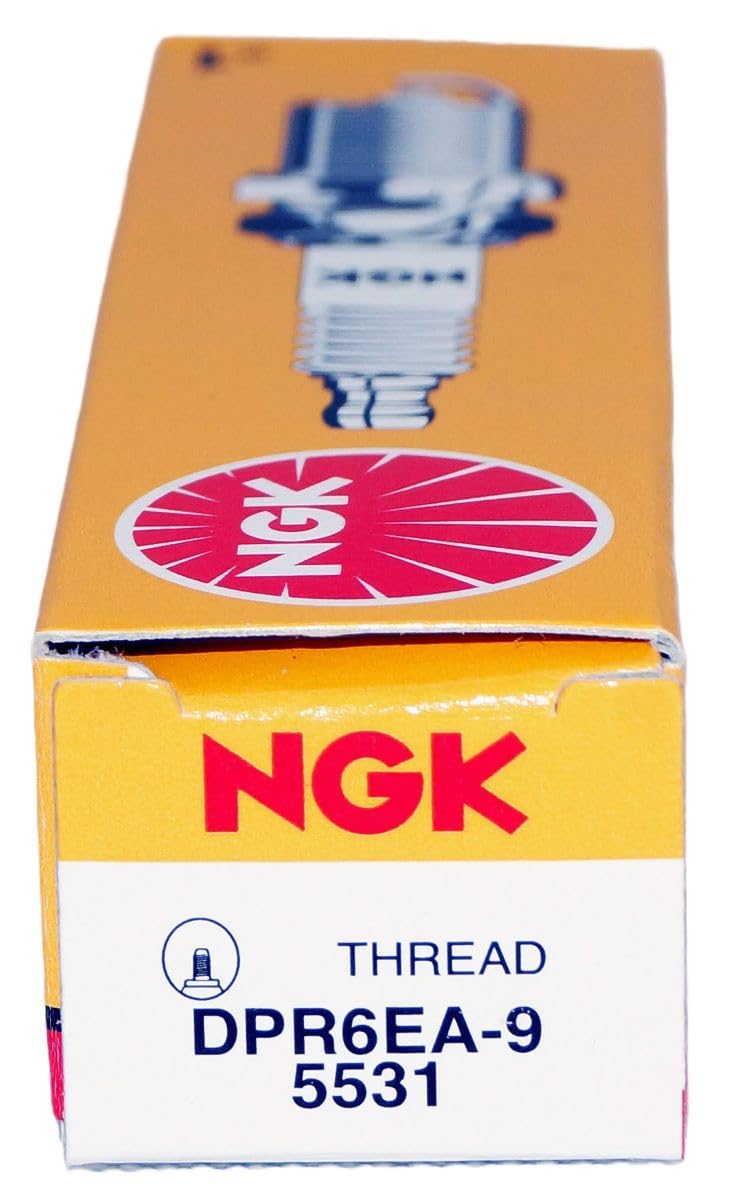

NGK DPR6EA-9 Spark Plugs Set of 4 — Nickel/Copper OE-Style, 0.036 in Gap, 5000Ω Resistor

The NGK DPR6EA-9 is a four-pack of OE-style nickel/copper spark plugs engineered for reliable ignition performance in compatible Kawasaki and Triumph V‑twin and cruiser engines.

These DPR6EA-9 (part number 5531) spark plugs combine a copper core with nickel alloy tips and a 5,000‑ohm resistor to deliver consistent, OEM-grade conductivity and suppression of electrical interference. Built with a high‑grade alumina-silicate ceramic insulator, triple gasket sealing, and a crush washer seat, they’re intended as direct replacement plugs for many Kawasaki Vulcan and several Triumph Thunderbird models requiring a 0.036 in (0.9 mm) gap and 0.750 in (19 mm) reach.

Which engines and models are these NGK DPR6EA-9 plugs compatible with?

These plugs match a range of Kawasaki 1471cc Vulcan 1500 variants (including Classic, Drifter, Nomad FI, Mean Streak, and related OE numbers) produced around 1999–2008, and several Triumph Thunderbird models from 2010–2017 with 1597–1700cc engines. Always confirm fitment with your vehicle’s manual or parts database before installing.

• Kawasaki VN1500E/ J/R/L/N/P models (Vulcan 1500 series) listed in product compatibility.
• Triumph Thunderbird family (including Thunderbird Storm, Commander, LT, Nightstorm SE) model years noted above.
• Required gap: 0.036 in (0.9 mm); thread diameter: 12.0 mm; reach: 19.0 mm (0.750 in).

What are the key construction and electrical features of these plugs?

The DPR6EA-9 uses a solid copper core for heat transfer and conductivity, a nickel alloy center electrode tip, and a single nickel ground electrode in a J-gap arrangement. The 5,000‑ohm resistor helps suppress radio-frequency interference while the ceramic insulator and multiple gaskets protect against combustion leakage.

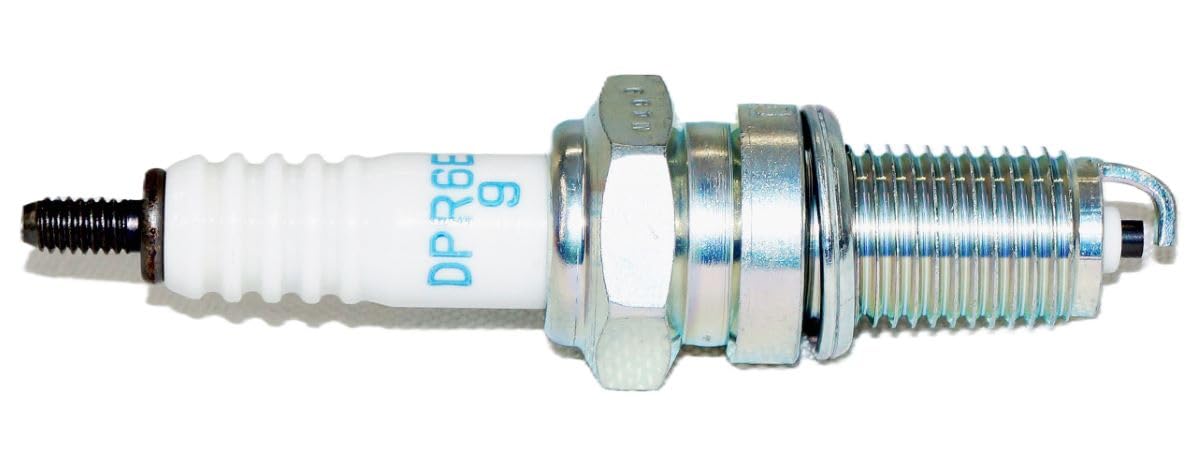

• Center electrode: copper core with nickel tip; ground electrode: nickel.
• Resistor type: yes — 5000 ohms to reduce EMI/RFI interference.

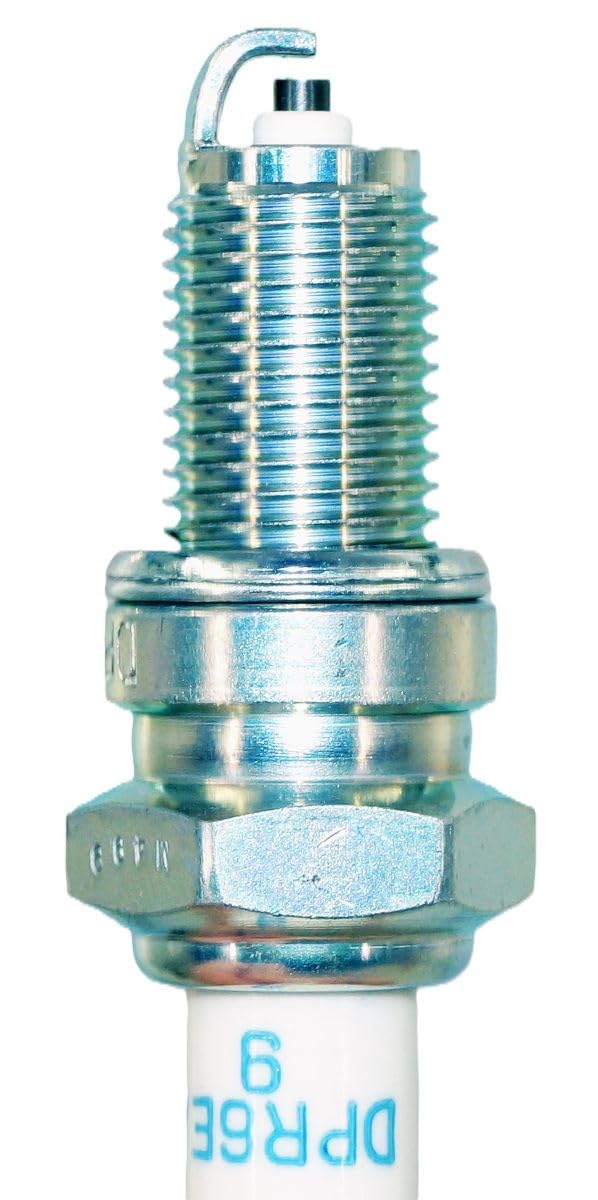

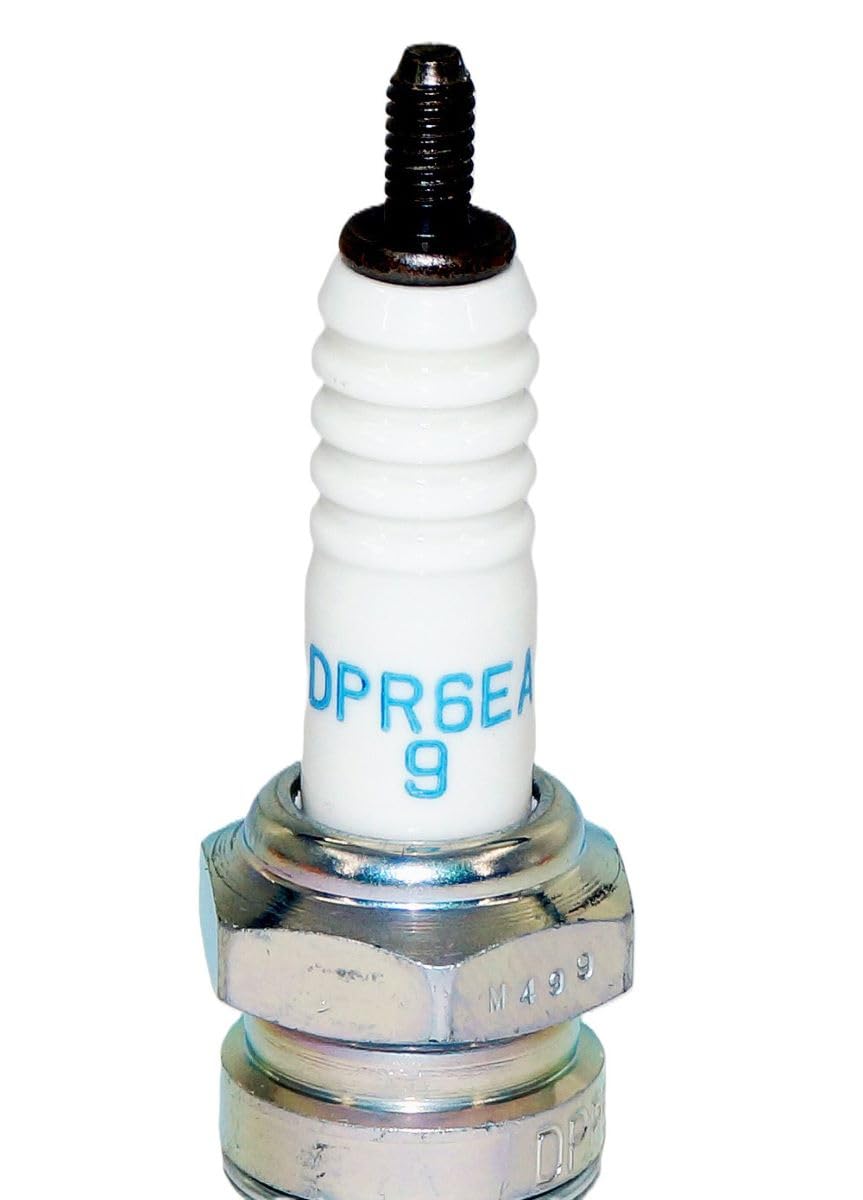

• Insulator: high‑grade alumina silicate ceramic; triple gasket sealing and crush washer seat.
• Hex size: 18 mm; insulator height: 50.0 mm; pre‑gap: 0.036 in (0.9 mm).

How do these plugs compare to precious-metal or long‑life alternatives?

NGK DPR6EA-9 plugs are standard nickel‑alloy replacements designed to match original equipment nickel plugs. They offer dependable performance at a lower cost than iridium or platinum plugs, but they do not provide the extended service life or high‑temperature wear resistance of precious‑metal types.

• Best when replacing factory nickel alloy plugs in compatible engines.
• Not recommended to substitute where factory precious‑metal plugs were installed.
• Ideal for owners seeking OEM-style performance and straightforward service intervals.

Who is this for? Motorcyclists and mechanics looking for OEM-equivalent replacement spark plugs for select Kawasaki Vulcan 1500 and Triumph Thunderbird variants will find the NGK DPR6EA-9 set an economical, trustworthy option. If your bike’s factory specification calls for nickel alloy plugs with a 0.036 in gap and a 19 mm reach, this four-pack delivers standard-replacement construction, EMI suppression, and the physical dimensions necessary for a direct fit. Always verify part number 5531 (DPR6EA-9) against your motorcycle’s recommended part list or owner’s manual before purchase or installation.

Features summary:

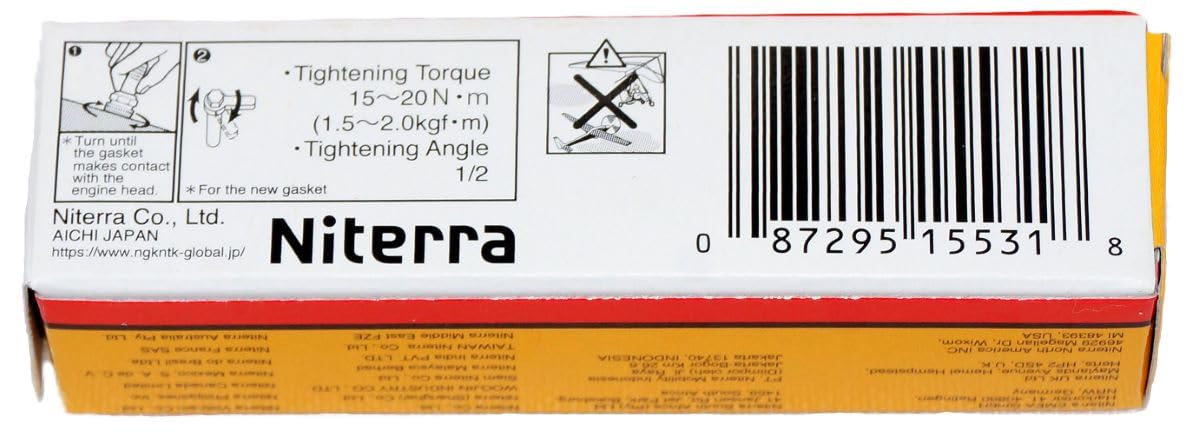

• Pack of 4 NGK DPR6EA-9 spark plugs (part #5531)
• Nickel/copper construction, 5000 ohm resistor, ceramic insulator

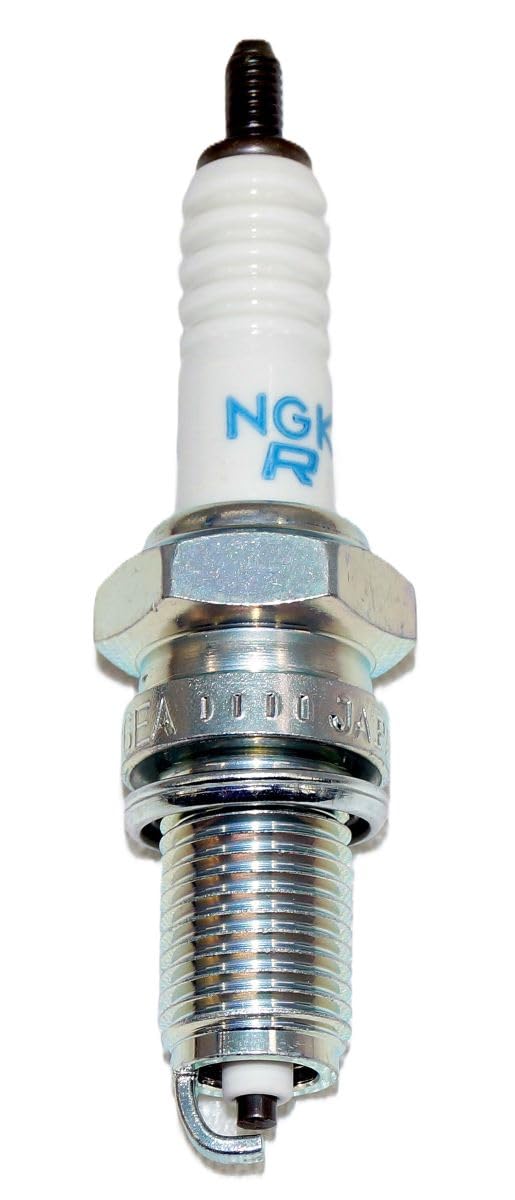

• Pre‑gap 0.036 in (0.9 mm), reach 0.750 in (19.0 mm), thread 12.0 mm

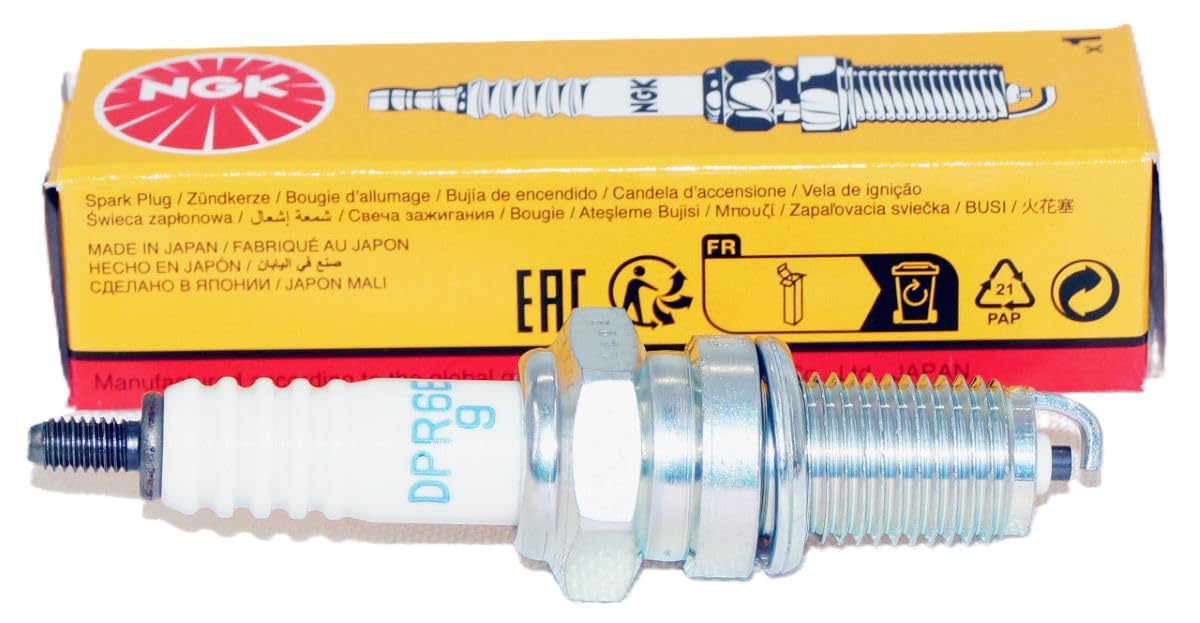

• Flat seat with crush washer; hex 18 mm; manufacturer heat range 6
