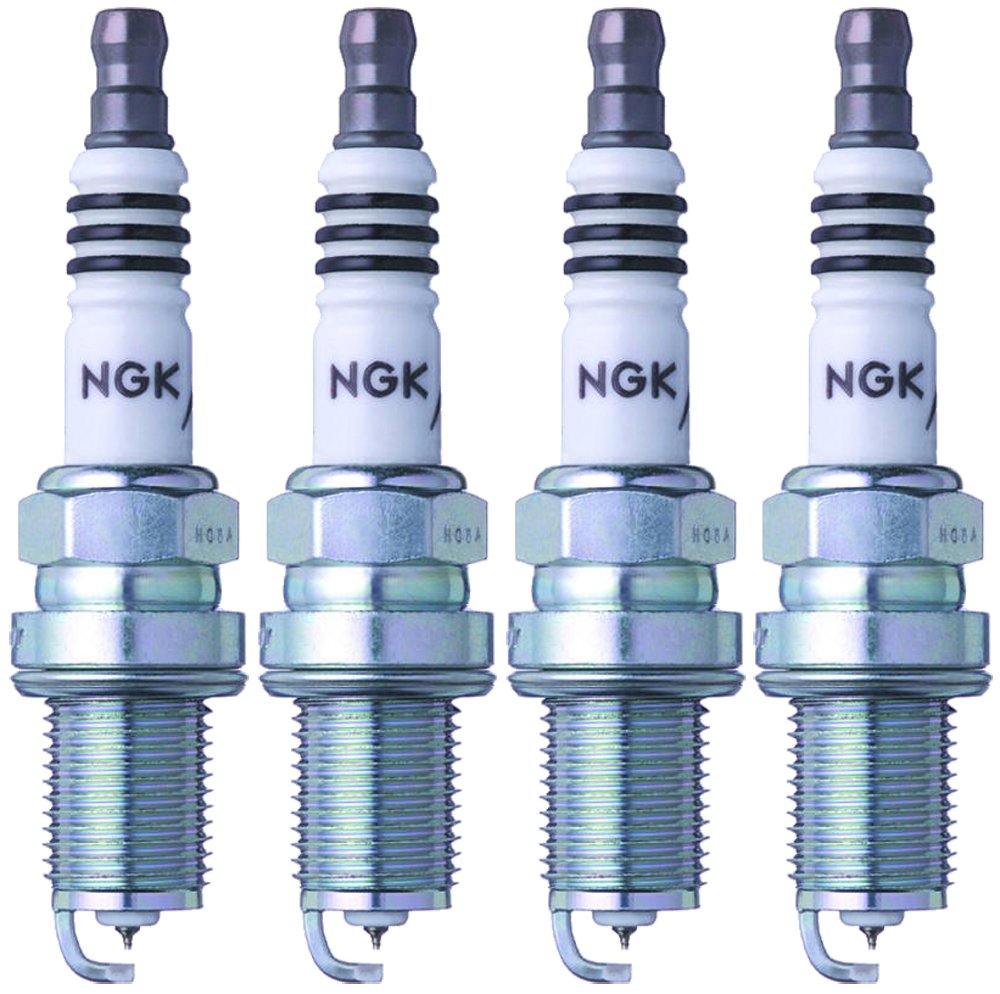

NGK Iridium IX Spark Plugs BKR6EIX-11 4-Pack — 0.6mm Iridium, 14mm Thread Reach

NGK BKR6EIX-11 Iridium IX spark plugs are high-performance replacement plugs with a 0.6mm iridium fine-wire center electrode, designed to deliver reliable ignition and long service life in compatible engines.

This four-pack of NGK Iridium IX plugs combines a projected 0.6mm iridium center electrode with a taper-cut nickel ground electrode and a gasket-seat design to provide consistent spark, improved throttle response, and extended durability compared with conventional plugs. Engineered with a 14mm thread, 19mm reach and a 1.25mm pitch, these plugs suit vehicles specified for the BKR6EIX-11 fit and heat range 6. Each plug includes a built-in resistor and a solid terminal for stable electrical connections.

What makes the NGK Iridium IX different from standard plugs?

The Iridium IX line uses a very fine 0.6mm iridium center electrode that requires less voltage to fire and resists wear longer than larger copper or nickel cores. Projection of the center electrode helps create a more concentrated flame kernel, improving combustion stability across the RPM range. The taper-cut ground electrode supports a predictable spark gap over time.

• Fine-wire 0.6mm iridium center electrode for lower firing voltage
• Projected electrode design for concentrated ignition
• Taper-cut nickel ground electrode for consistent gap geometry
• Integrated resistor to reduce ignition noise and protect electronics

How do these plugs fit and install on my vehicle?

These plugs have a 14mm thread diameter, 19mm (3/4") reach and a 5/8" (16mm) hex for installation with standard sockets. They use a gasket seat and a 1.25mm thread pitch, so confirm your vehicle’s specifications or OEM part references before purchase. The solid terminal is compatible with most ignition leads or coil-on-plug boots that accept a conventional terminal.

• Thread size: 14mm, reach: 19mm (3/4")
• Hex size: 5/8" (16mm) for standard socket fit
• Seat type: gasket; thread pitch: 1.25mm
• Factory gap: 0.044" (1.1mm) — check vehicle service manual before final adjustment

What performance and maintenance benefits can I expect?

Because iridium is harder and more erosion-resistant than other electrode materials, these plugs tend to maintain their gap and performance longer, which helps with consistent starts and stable idle. The fine-wire center electrode lowers the voltage required to produce a spark, improving combustion efficiency in many applications. Periodic inspection is still recommended to confirm condition and gap over the life of the plug.

• Extended service life compared with conventional plugs
• Lower required firing voltage for reliable ignition
• Stable gap retention reduces misfire risk over time
• Easier throttle response and smoother idling in compatible engines

Are there any precautions or compatibility notes?

Always cross-check your vehicle’s required plug type before installation; heat range 6 and the BKR6EIX-11 designation must match manufacturer recommendations. Use proper torque when installing to avoid thread or sealing issues and verify the factory gap of 0.044" (1.1mm) — re-gap only if your vehicle’s service manual specifies a different setting. When replacing plugs in high-mileage or modified engines, inspect ignition coils and leads for wear to ensure optimal performance.

• Confirm compatibility with OEM part numbers and heat range
• Torque to manufacturer specs to prevent damage
• Inspect coils and leads during plug change
• One order contains four plugs — replace in sets for best results

Who is this for: The NGK BKR6EIX-11 Iridium IX four-pack is ideal for drivers and mechanics seeking a durable, high-quality replacement spark plug for engines that specify a 14mm, 19mm reach, gasket-seat design and heat range 6. It suits routine maintenance, performance-minded owners who want improved ignition stability, and shops that value consistent, long-lasting spark plugs for compatible vehicles. Always verify fitment for your specific make, model and engine before installing.
