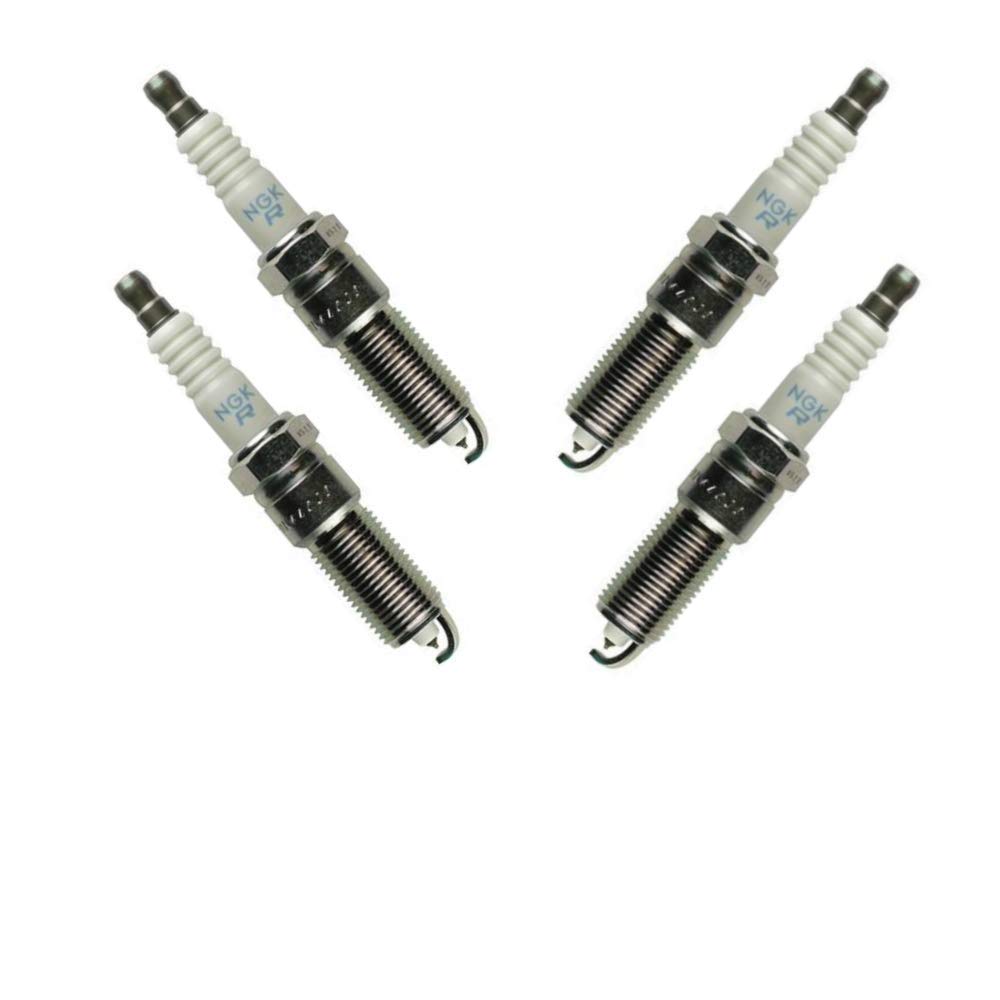

NGK Laser Platinum Spark Plugs FR5AP-11 4-Pack for Subaru Forester 2.5L (2003–2010) — Double Platinum, 14mm 0.750" Reach

NGK Laser Platinum FR5AP-11 is a four-pack of double-platinum spark plugs engineered for long-lasting, stable ignition in 2.5L Subaru Forester X engines (2003–2010).

This set of NGK FR5AP-11 spark plugs uses precision laser-welded platinum on both the center and ground electrodes to minimize electrode wear and reduce the voltage needed to jump the spark gap. Built to OE-acceptable tolerances, these plugs fit 14mm threads with a 0.750" reach and gasket seat, and they include an internal resistor for radio-noise suppression. The construction combines a platinum-tipped electrode and a copper core for reliable heat transfer and consistent performance across normal driving conditions.

How do these NGK spark plugs differ from standard copper plugs?

Double platinum electrodes slow gap erosion compared with conventional copper-only tips, which helps maintain a consistent spark over a longer service interval. Laser-welded platinum discs on both electrodes create a precise, clean weld that reduces debris at the weld site and lowers the voltage required to initiate a spark.

• Platinum on both center and ground electrodes reduces wear.
• Laser-welded joints limit excess weld material and contamination.
• Copper core improves heat conduction from the firing tip.
• Resistor built in to minimize electromagnetic interference.

Will these plugs fit my Subaru Forester X 2.5L (2003–2010)?

Yes — the FR5AP-11 spark plugs are specified for 2.5L (2458cc) 4-cylinder applications in the Subaru Forester X model years listed. They use a 14mm thread, 0.750" reach, and a gasket seat style matching the factory geometry for those engines.

• Engine compatibility: Subaru Forester X 2003–2010, 2.5L/2458cc, 4-cylinder.
• Thread size: 14mm with 0.750" reach to match factory seats.
• Seat type: gasket; wrench diameter: 5/8" for installation.
• Sold as a 4-pack to service an entire inline-four cylinder bank.

How long do NGK laser platinum plugs typically last and what maintenance is needed?

Platinum electrodes generally offer longer service life than copper plugs because they resist erosion at the firing tip. Inspection intervals depend on driving conditions, but many users follow intervals recommended by vehicle manufacturers for platinum types and check spark plug condition during routine tune-ups.

• Double-platinum design reduces gap widening over time.
• Inspect for fouling, electrode wear, or improper gap during maintenance.
• Follow Subaru’s recommended replacement interval for platinum plugs where specified.
• Use correct torque and a 5/8" socket for installation to protect the gasket seat.

Are these NGK plugs easy to install and what tools are required?

Installation is straightforward for anyone familiar with basic spark plug service: reach spark plug wells, remove ignition coils or wires, and install with the correct torque. Use a 5/8" spark plug socket and a torque wrench to ensure the gasket seat compresses properly and avoid overtightening.

• Required socket: 5/8" spark plug socket fits wrench diameter.
• Use a torque wrench to achieve manufacturer torque specs.
• Clean spark plug wells before removal to prevent debris entering the cylinder.
• Replace all four plugs at once for consistent ignition across cylinders.

Who is this for: Drivers and DIY mechanics who own a Subaru Forester X (2003–2010) with the 2.5L 4-cylinder engine and want OE-compatible replacements that prioritize electrode longevity and stable spark performance. These NGK FR5AP-11 plugs suit routine maintenance, tune-ups, and anyone seeking a longer-lasting alternative to plain-copper spark plugs while retaining factory fit and function.
