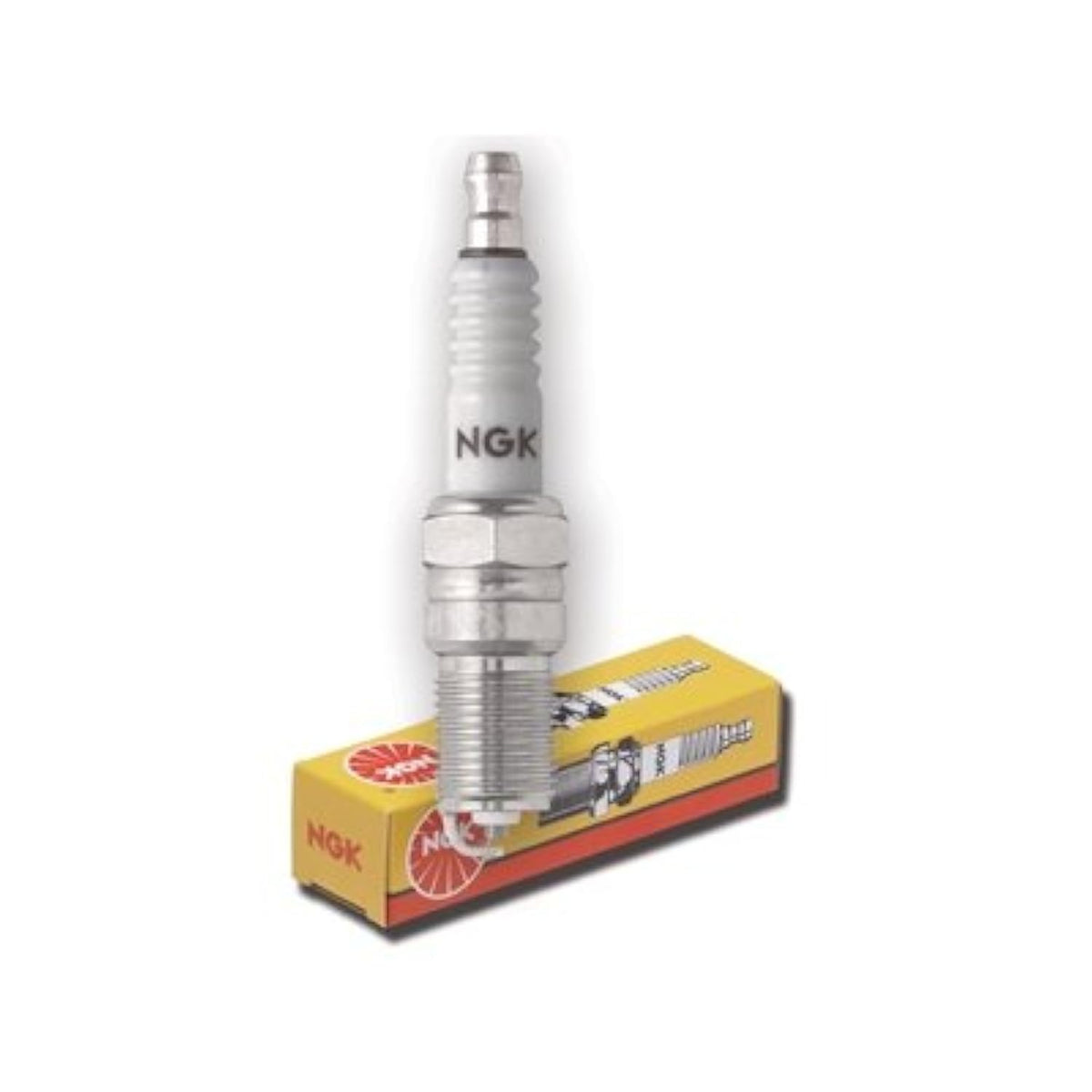

NGK LKR6E-9N Spark Plug 4-Pack — 12mm Thread, 26.5mm Reach, Copper Core for Small Engines

NGK 90410 LKR6E-9N spark plug 4-pack is a standard OEM-style ignition plug built with a copper core, alumina-silicate insulator, and trivalent metal plating for dependable performance and corrosion resistance.

This four-pack of NGK 90410 (LKR6E-9N) plugs is designed to deliver consistent ignition and long life in compatible engines. Each plug combines materials and engineering features—corrugated ribs, triple seals, and a copper heat-sinking core—to reduce misfires, prevent leakage, and help maintain stable combustion behavior across normal operating conditions. The plugs use a 12mm thread with a gasket seat, a 26.5mm reach, and a factory-set 0.035" (0.9mm) gap, making them a straightforward replacement in many small-displacement engines and OEM applications.

How does this spark plug improve reliability during daily driving?

The NGK 90410 focuses on durability and consistent spark delivery rather than exotic tip materials. Trivalent metal plating resists corrosion and seizing, while a copper core helps move heat away from the firing end to stabilize temperature. Corrugated ribs on the ceramic reduce the chance of flashover along the insulator surface.

• Trivalent plating minimizes thread corrosion and makes removal easier.
• Copper core promotes steady heat dissipation under varied loads.
• Corrugated insulator ribs lower flashover risk in damp or fouled conditions.

Will these plugs fit my vehicle and what are their key specs?

These plugs use a 12mm thread diameter, a 26.5mm (1.04") reach, and a gasket (seated) configuration—common in many motorcycles, ATVs, small engines, and some older cars. They have a 5 kΩ resistor to reduce radio interference and a standard hex size for typical socket tools.

• Thread size: 12mm; seat type: gasket (seated).
• Reach: 26.5mm (1.04"); hex: 5/8" (16mm).
• Resistance: 5 kΩ; factory gap: 0.035" (0.9mm); terminal: solid.

How do the materials and construction affect maintenance and lifespan?

Materials and construction choices prioritize serviceability and steady performance. The alumina-silicate ceramic insulator offers mechanical strength and effective heat transfer, while triple sealing prevents combustion gases or moisture from entering the plug body. These design elements collectively reduce the frequency of issues like fouling and make removal and reinstallation simpler.

• Pure alumina-silicate ceramic for thermal stability and durability.
• Triple seals protect internal components from leakage and contaminants.
• Trivalent plating reduces galling on the threads for easier servicing.

How should I use and gap these plugs for best results?

NGK ships these plugs with a 0.035" (0.9mm) plug gap suitable for a wide range of compatible engines. Always confirm the correct gap and thread reach against your vehicle’s service manual—adjust or replace only as recommended. Tighten to the manufacturer torque spec and inspect threads and seat surfaces during installation.

• Factory gap: 0.035" (0.9mm); verify and adjust if your engine requires a different setting.
• Confirm thread reach and seat type before installation to avoid engine damage.
• Use proper torque and inspect seals and threads during replacement.

Who is this for: The NGK 90410 LKR6E-9N 4-pack is aimed at technicians, DIY mechanics, and riders who need a reliable, service-friendly standard plug for motorcycles, scooters, small-displacement engines, and certain OEM applications. Choose these plugs if you want proven materials—copper core, robust ceramic insulator, and anti-corrosion plating—designed for steady ignition, straightforward maintenance, and compatibility with engines that require a 12mm, 26.5mm-reach gasket-seat spark plug.
