nibbi PE22mm Carburetor Kit for 110–130cc Dirt Bikes ATV – Aluminum Body, Spare Jets Included

Nibbi PE22mm carburetor kit is a direct-fit replacement carburetor and jet set engineered to restore throttle response and fuel control for 110–130cc dirt bikes, pit bikes and ATVs.

If your small-displacement motorcycle or four-wheeler is running rough, hard to start, leaking fuel, or lacks throttle response, the nibbi PE22mm flange carburetor kit offers a durable aluminum body, a hollow float and a hardened oil needle to improve metering and reduce leaks. The kit ships preinstalled with commonly used jets and includes extra main and pilot jets, making it easier to tune for altitude, temperature or aftermarket exhaust changes. Before installing, verify the flange two-hole spacing and overall shape match your old carburetor.

How does this carburetor improve throttle response and prevent leaks?

The nibbi kit uses a horn-shaped intake and a high-hardness needle plunger that stabilizes fuel flow across the throttle range. A hollow oil float helps maintain proper fuel level, which reduces the chance of overflow or flooding during cornering or off-road riding.

• High-hardness oil needle plunger for consistent sealing and metering

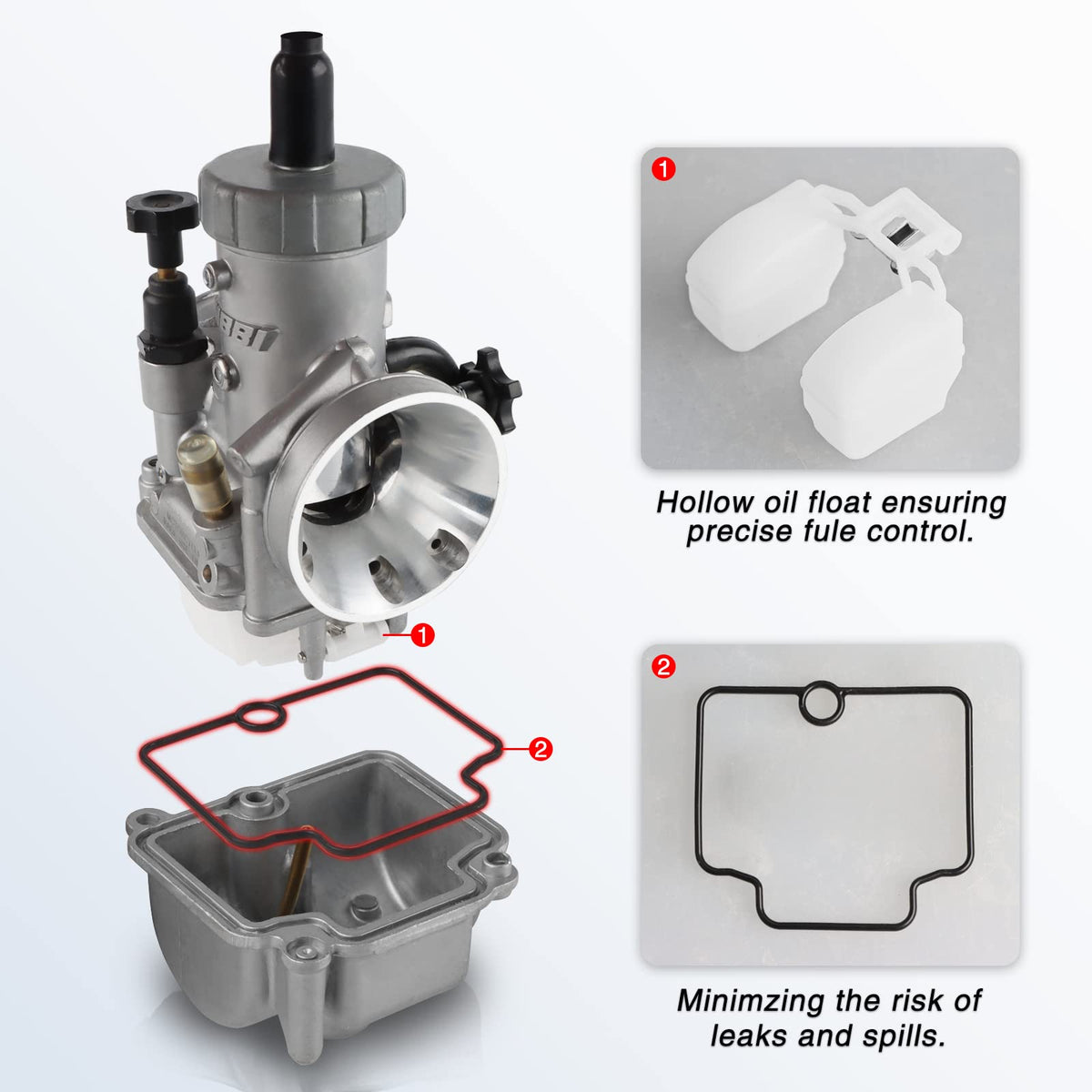

• Hollow float design to control fuel level and reduce spill risk
• Horn-shaped air intake for smoother airflow and improved throttle delivery

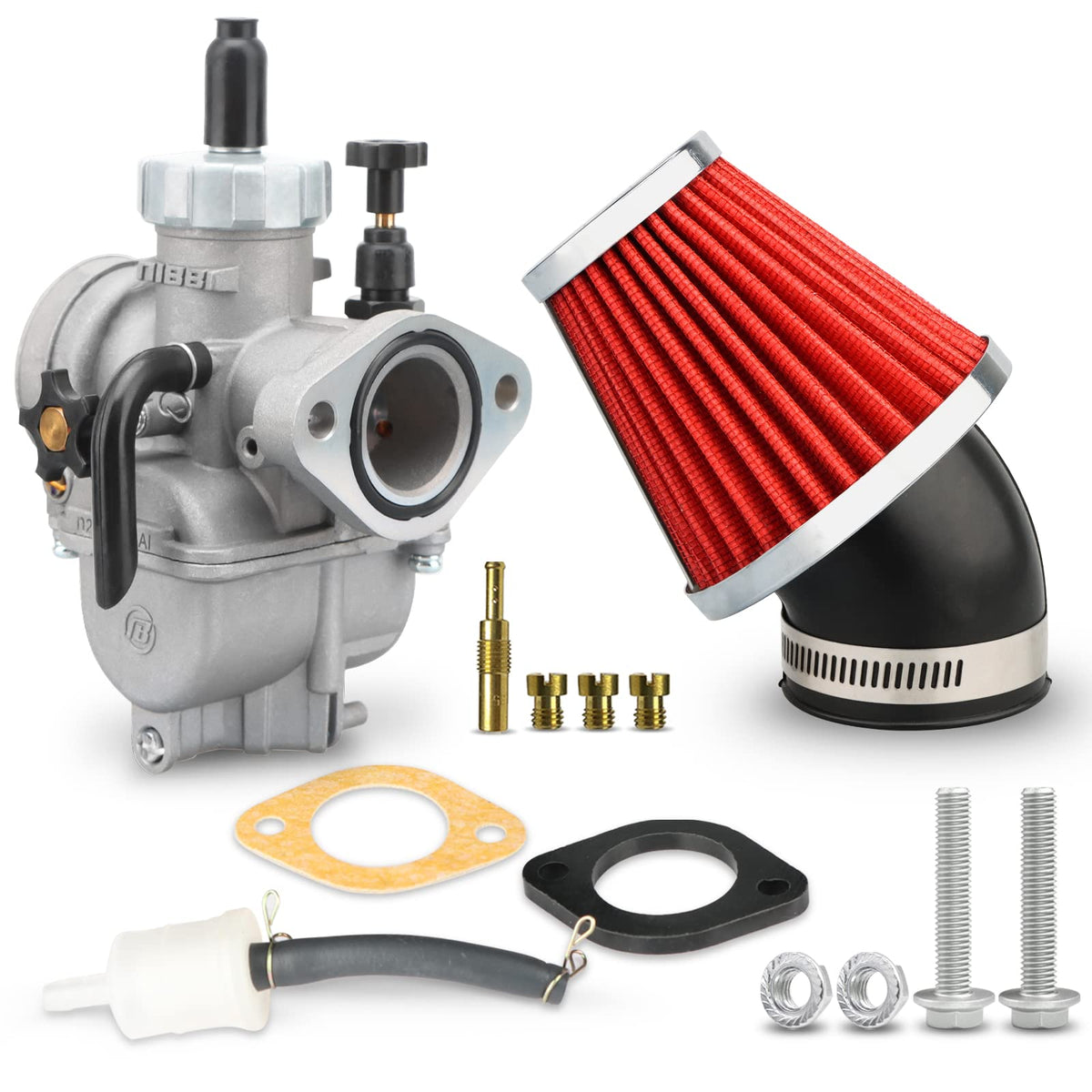

• Precision-machined aluminum body for tight tolerances and durability

What jets and tuning options come with the PE22mm kit?

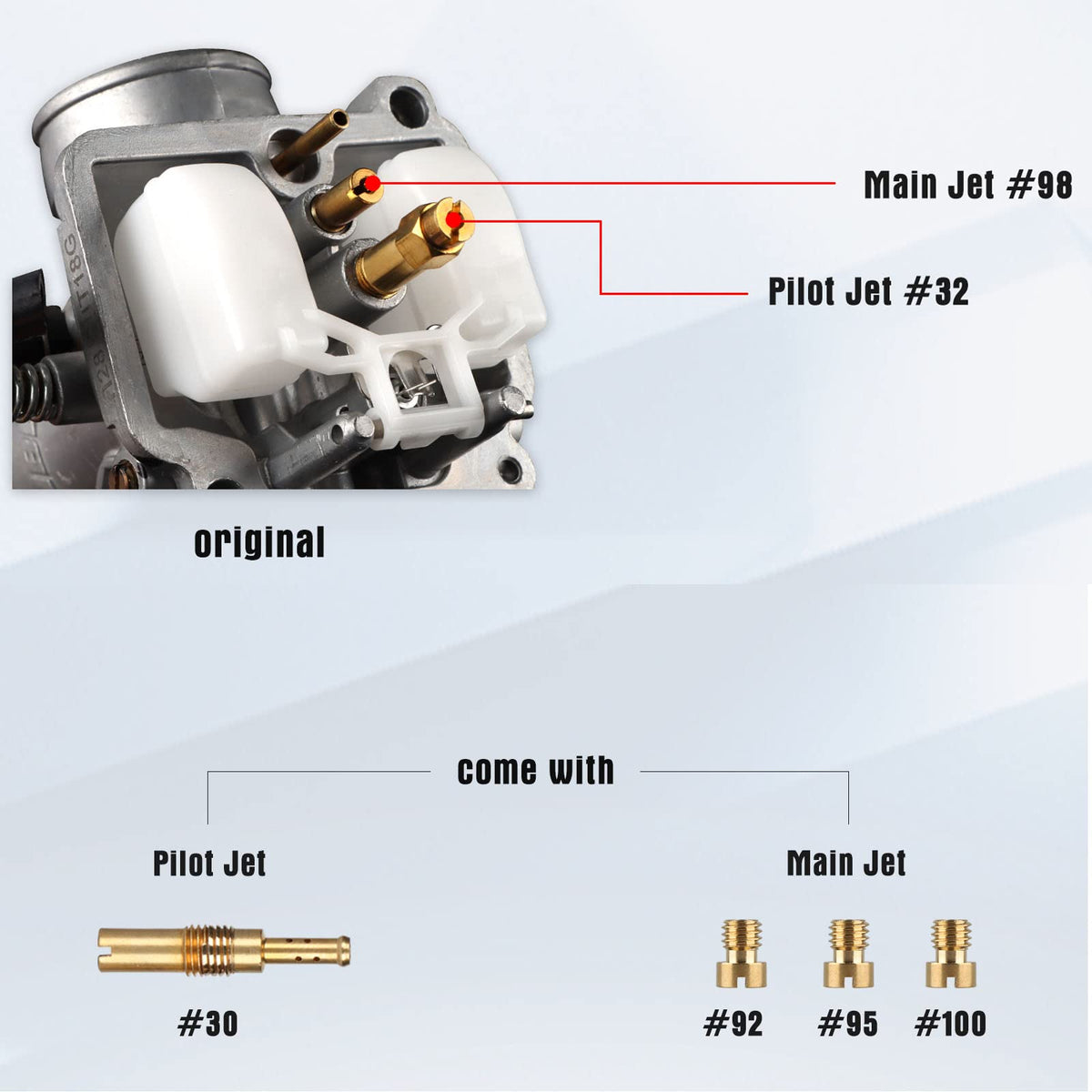

This carburetor arrives with a preinstalled #98 main jet and #32 pilot jet, plus additional main jets (#92, #95, #100) and an extra pilot jet (#30) so you can refine fueling without buying separate parts. Those spare jets cover common needs for elevation, ambient temperature, and aftermarket components like performance exhausts or air filters.

• Preinstalled #98 main jet and #32 pilot jet for baseline settings
• Included spare main jets: #92, #95, #100 for richer/leaner adjustments
• Included spare pilot jet: #30 for fine low-speed running tweaks
• Useful for testing across altitudes, climates, and engine mods

Will this fit my SSR, TaoTao, Yamaha, Honda or Kawasaki 110–130cc engine?

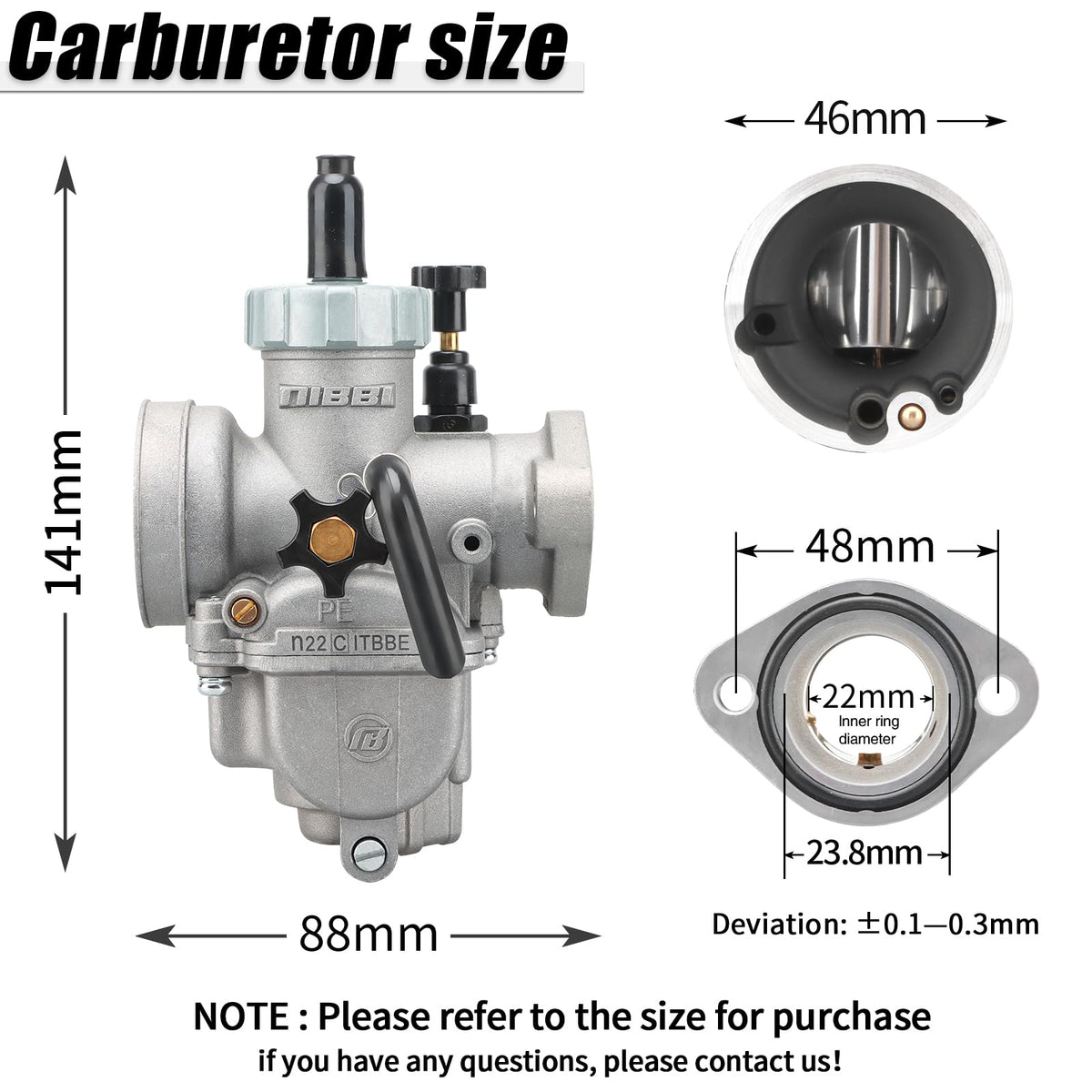

The nibbi PE22mm is designed to fit many small four-stroke engines commonly used in SSR, TaoTao and equivalent 110–130cc dirt bikes, pit bikes and ATVs. The critical fitment measurement is the flange two-hole spacing of 48mm and the overall carburetor profile—confirm your old unit visually matches the photos provided.

• Flange two-hole spacing: 48mm — confirm before ordering
• Compatible with many 110–130cc single-cylinder 4-stroke engines
• Commonly used as a replacement for SSR and TaoTao models
• Also compatible with models from Yamaha, Honda, Suzuki, Kawasaki when shapes match

How difficult is installation and what should I check first?

Installation is straightforward for users familiar with small motorcycle maintenance: remove the old carburetor, transfer throttle and choke linkages, bolt the nibbi unit to the intake flange and reconnect fuel and vacuum lines. Double-check gasket condition, flange spacing and hose routing, then use the supplied jets to achieve a safe running mixture during break-in and testing.

• Remove old carburetor and compare dimensions and mounting holes
• Transfer throttle/choke cables or replace if worn
• Use clean gaskets and tighten flange bolts evenly to avoid leaks
• Start with preinstalled jets and adjust using included spares as needed

Who this is for: riders and DIY mechanics who need a reliable, serviceable replacement carburetor for small off-road motorcycles, pit bikes and utility ATVs from 110cc to 130cc. The nibbi PE22mm kit is suited for owners who want a durable aluminum body, preventative features against leaks, and a selection of jets for quick tuning after modifications or altitude changes. Make sure the physical shape and 48mm flange hole spacing match your existing carburetor before purchase to ensure proper fitment and avoid installation delays.
