nibbi PZ20 Carburetor Kit for 50–125cc ATVs & Pit Bikes — 20mm Carb with 35mm Foam Air Filter, Tunable Jets

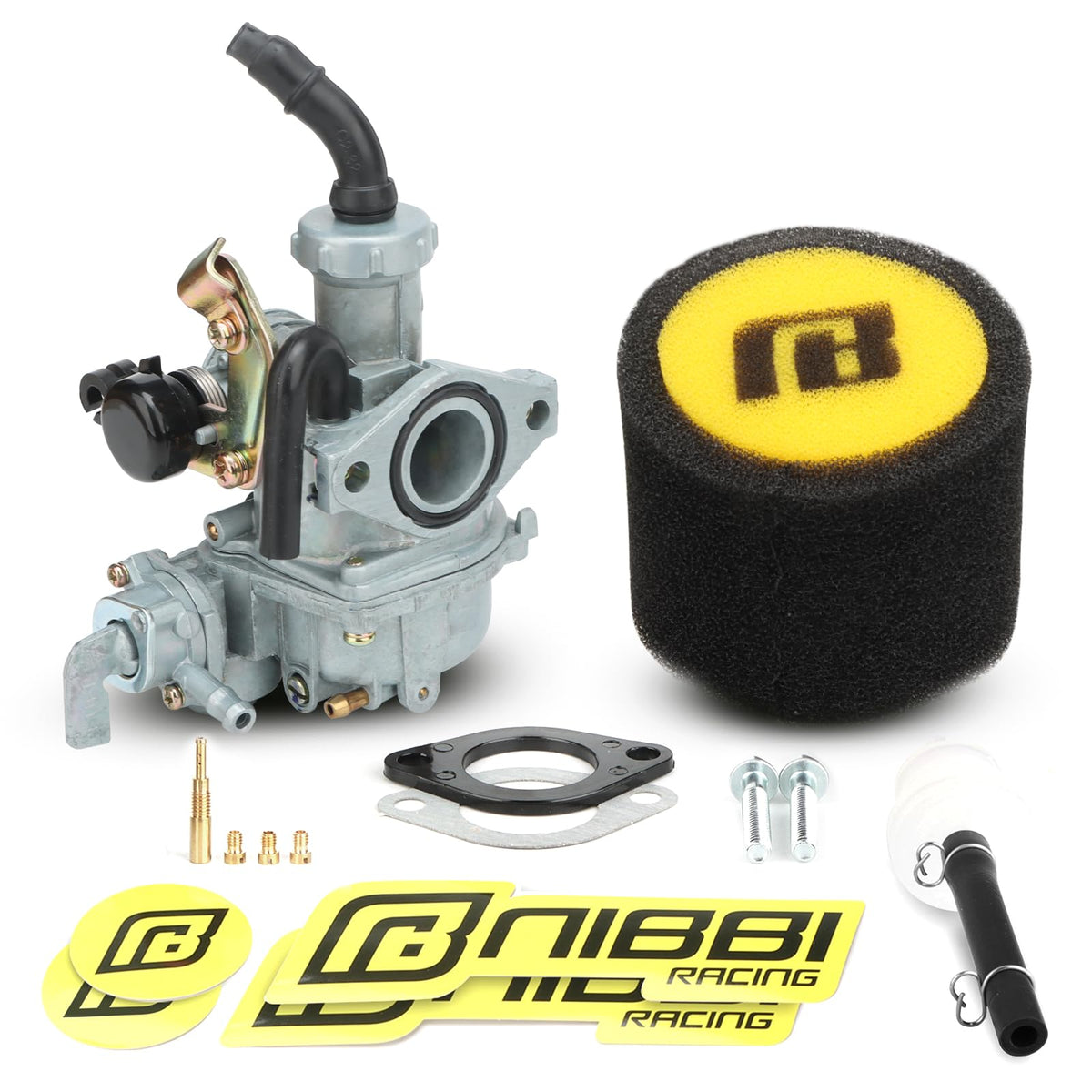

This complete replacement carburetor and air filter kit is engineered for Chinese-made quads and mini bikes—models like TaoTao, SSR, Coolster and equivalents—offering a middle-ground tuning option that balances throttle response and fuel economy. The assembly arrives with multiple main and pilot jets for quick tuning, a cable-operated choke for simple starting, and a washable foam filter to protect the engine from dust and debris during off-road use.

How will this carburetor affect my ATV or pit bike performance?

The Nibbi PZ20 is designed as a performance-oriented alternative to the smaller PZ19 and the larger PZ22, giving improved throttle responsiveness without sacrificing fuel efficiency. It optimizes the air–fuel mixture for many 50–125cc 4-stroke engines and includes jets to adapt to varying conditions and modifications.

• 20mm (0.79") intake diameter for balanced airflow and fuel atomization

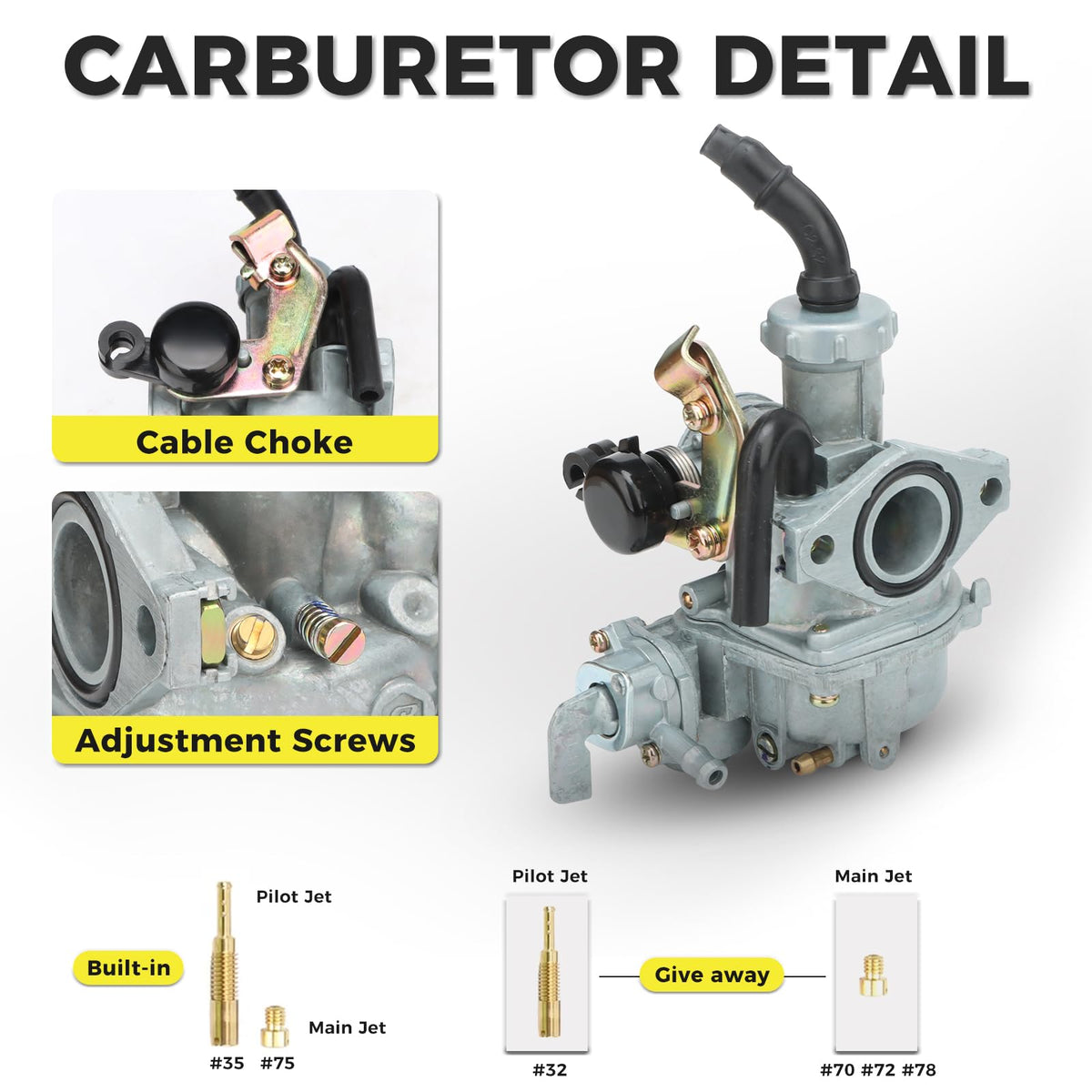

• Comes with main jets #70, #72, #75, #78 for tuning
• Pilot jets include #32 and #35 to refine idle and low-throttle behavior
• Cable choke enables easy cold starts and simple operation

What makes the included 35mm air filter useful off-road?

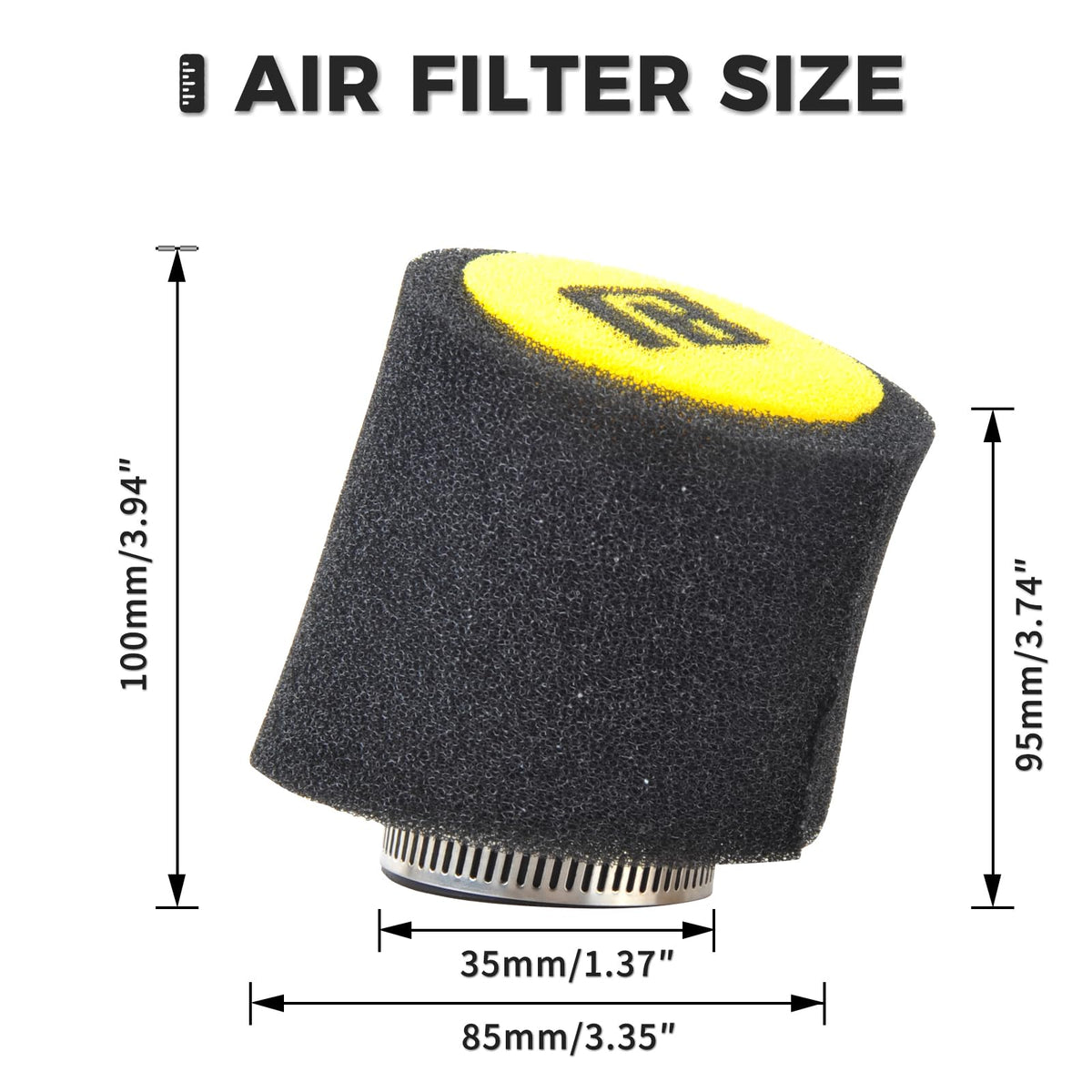

The included 35mm double-layer foam air filter traps dirt and grit while allowing ample airflow, helping engines maintain consistent combustion in dusty conditions. It’s washable and reusable, which keeps maintenance simple and reduces long-term filter replacement cost.

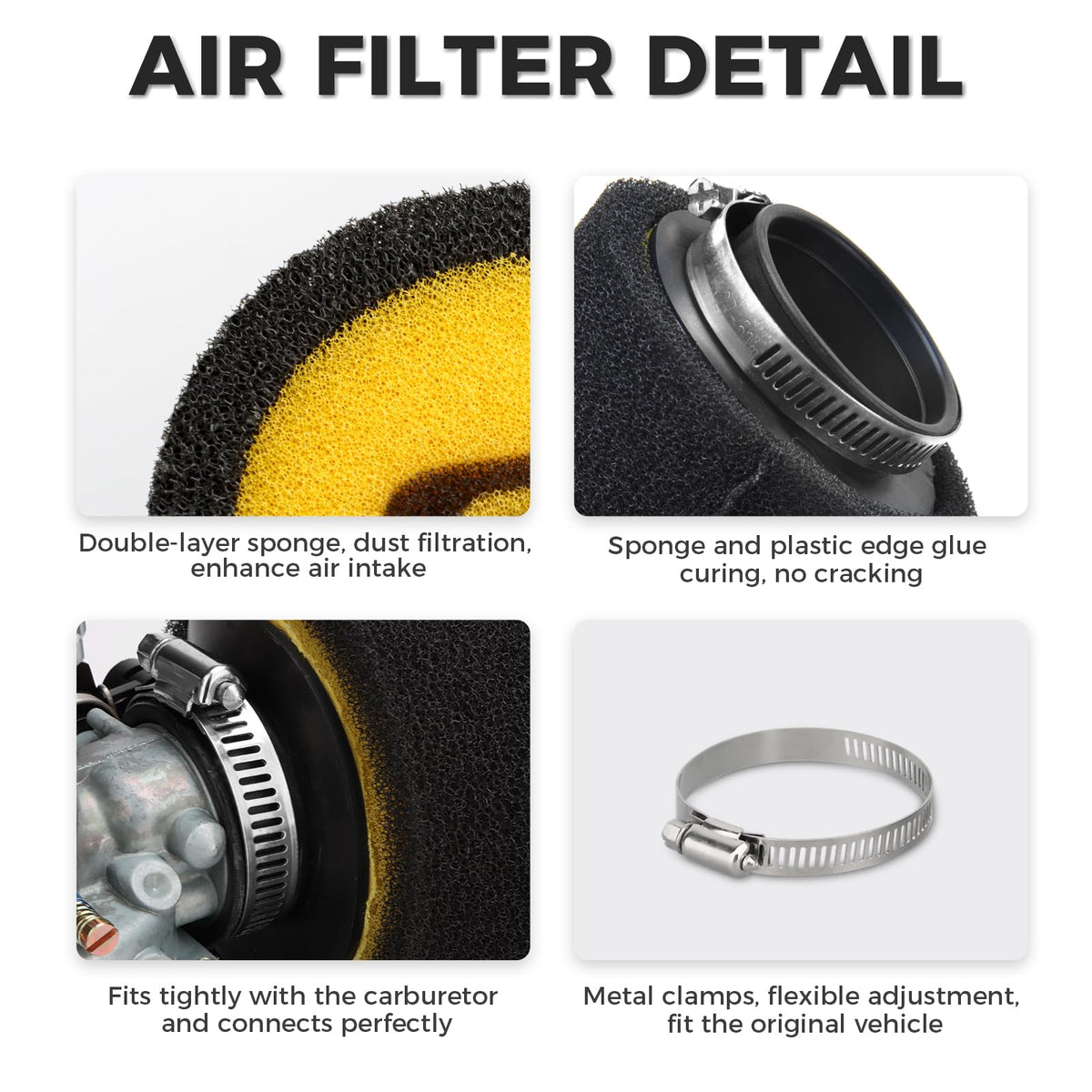

• Double-layer foam construction for higher dirt-holding capacity
• Washable and reusable to lower maintenance cost
• 35mm opening matched to the carburetor for secure fit and airflow
• Helps prevent abrasive particles from entering the intake tract

How do I know if this PZ20 kit fits my vehicle?

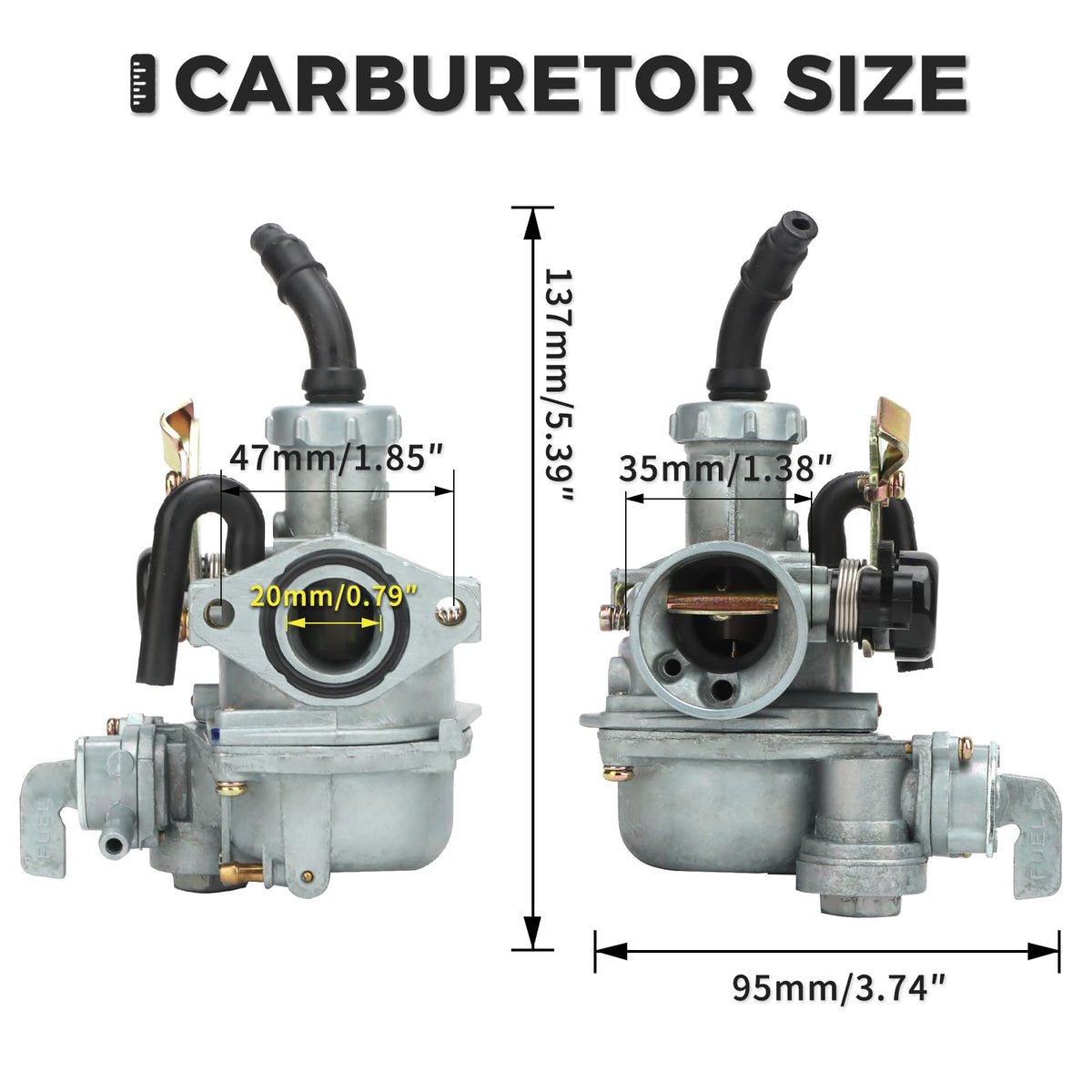

Verify compatibility by measuring your intake and mounting pattern: the carb flange spacing is approximately 47mm center-to-center and the intake bore is 20mm. This kit targets 50cc–125cc 4-stroke Chinese and similar small-displacement engines used in ATVs, pit bikes, dirt bikes, go-karts and scooters.

• Intake diameter: 20mm (0.79")
• Bolt hole spacing: 47mm center-to-center
• Engine size compatibility: 50cc, 70cc, 90cc, 110cc, 125cc 4-stroke
• Common compatible makes: TaoTao, SSR, Coolster, Apollo, Baja, Sunl, and more

What tools or adjustments are needed after installation?

Basic hand tools are sufficient to swap the carb and filter; once installed, you’ll likely need to fine-tune the idle screw and test different jets to match altitude, fuel quality, and modifications. The kit includes extra jets to simplify tuning so you can dial in smooth idle and throttle response quickly.

• Basic wrench/screwdriver set for mounting and linkages
• Adjust idle and air–fuel mixture screws on the carb body
• Try supplied main and pilot jets to tune for local conditions
• Verify choke cable routing and throttle cable free play

Who this is for: This Nibbi PZ20 35mm carburetor kit is aimed at riders, mechanics and DIY enthusiasts who own small 4-stroke ATVs, pit bikes, dirt bikes, go-karts or scooters (50–125cc) and want a reliable, serviceable upgrade that improves throttle response and filtration without extensive engine modifications. Check the intake diameter and bolt spacing before purchase, and message us if you need help confirming compatibility.
