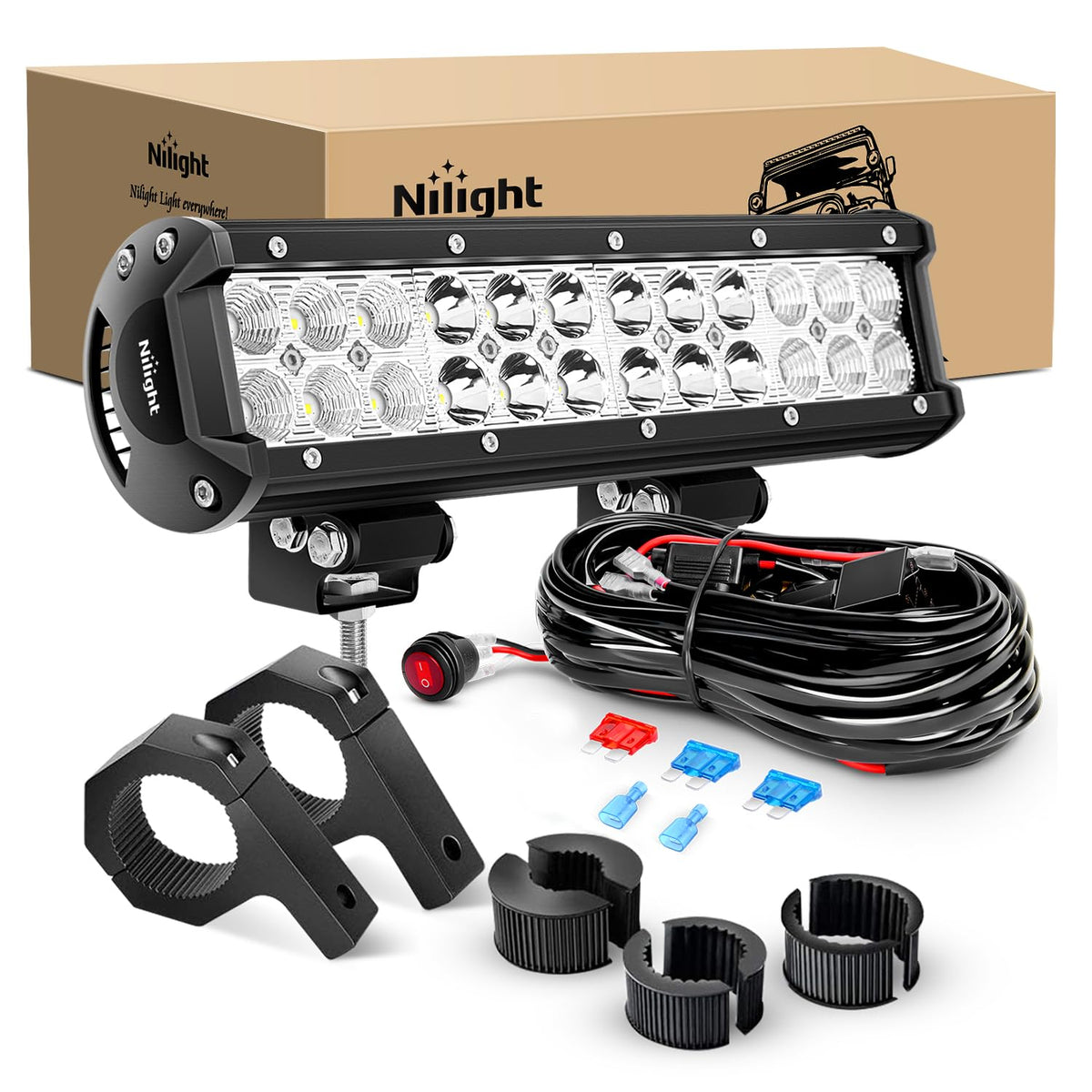

Nilight 12" 72W LED Light Bar Kit — Combo Spot/Flood, Horizontal Tube Clamp & 12 ft Wiring Harness

Nilight's 12-inch, 72W LED light bar kit combines spot-and-flood optics, heavy-duty tube clamps and a complete 12 ft wiring harness to add powerful off-road lighting to 12V/24V vehicles.

Built for rugged outdoor use, this kit pairs a compact 72W LED bar (24 high-intensity 3W LEDs, 6000–6500K pure white) with corrosion-resistant 6063 aluminum housing, a multi-diameter horizontal tube clamp set and a ready-to-install wiring harness. The assembly is IP67-rated for water and dust protection and is rated to perform across wide temperatures, making it suitable for trucks, ATVs, utility vehicles and many industrial applications. Follow local regulations and professional guidance for installation; this product is intended for off-road and non-D.O.T. applications.

How bright is the Nilight 12" 72W bar and what beam pattern does it produce?

The bar uses a combination of spot and flood LEDs to deliver both long-range reach and broad peripheral illumination. Its pure white 6000–6500K output is optimized for crisp contrast at night and in low-visibility conditions, while the combo optics give a versatile beam suitable for trail navigation and worksite lighting.

• 72W total power from 24 × 3W high-intensity LEDs
• Combo beam: focused spot for distance plus wide flood for near-field coverage
• Color temperature 6000–6500K for a bright, neutral white output
• Rated for 30,000+ hours of LED life under normal conditions

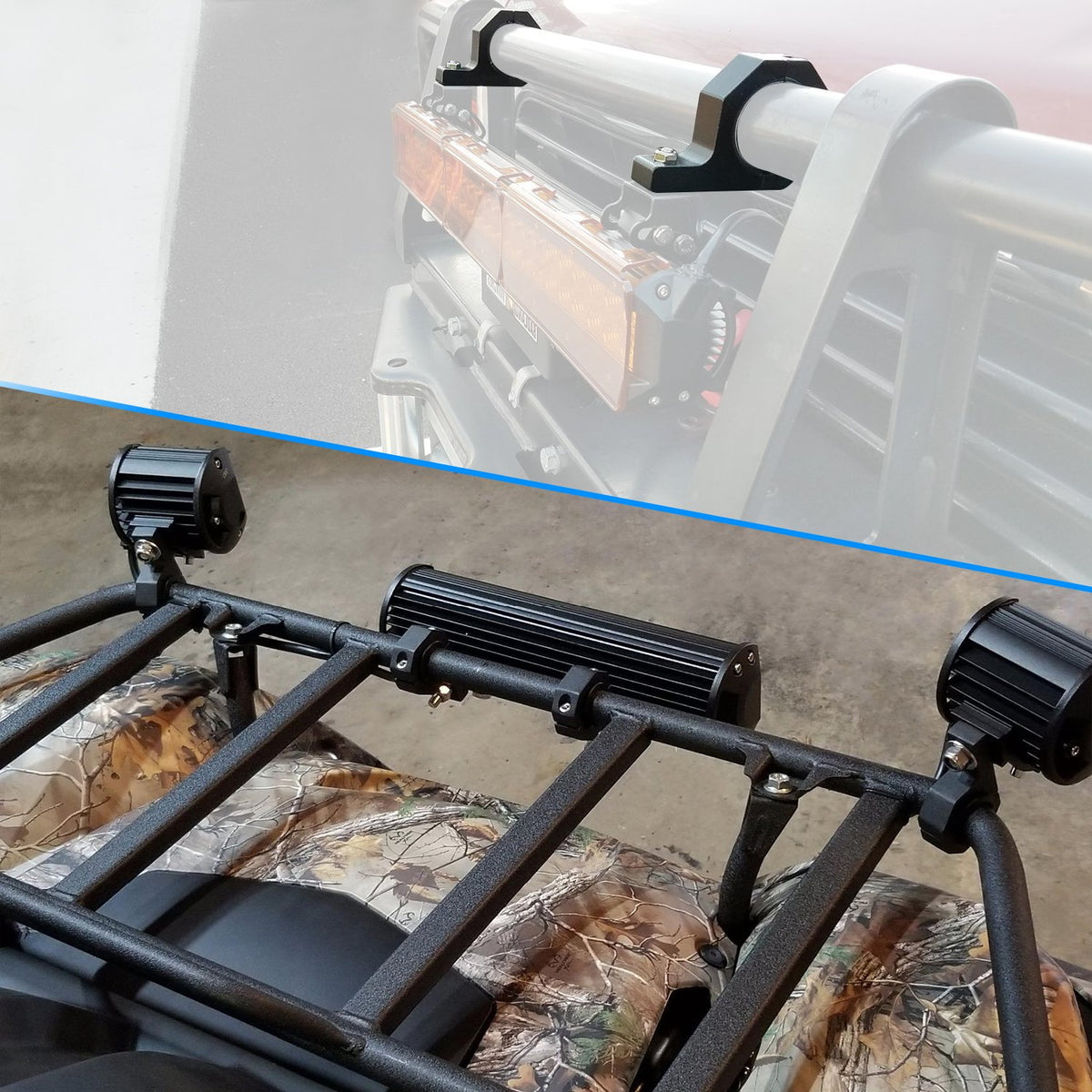

Will the tube clamp kit fit my roof rack or bull bar?

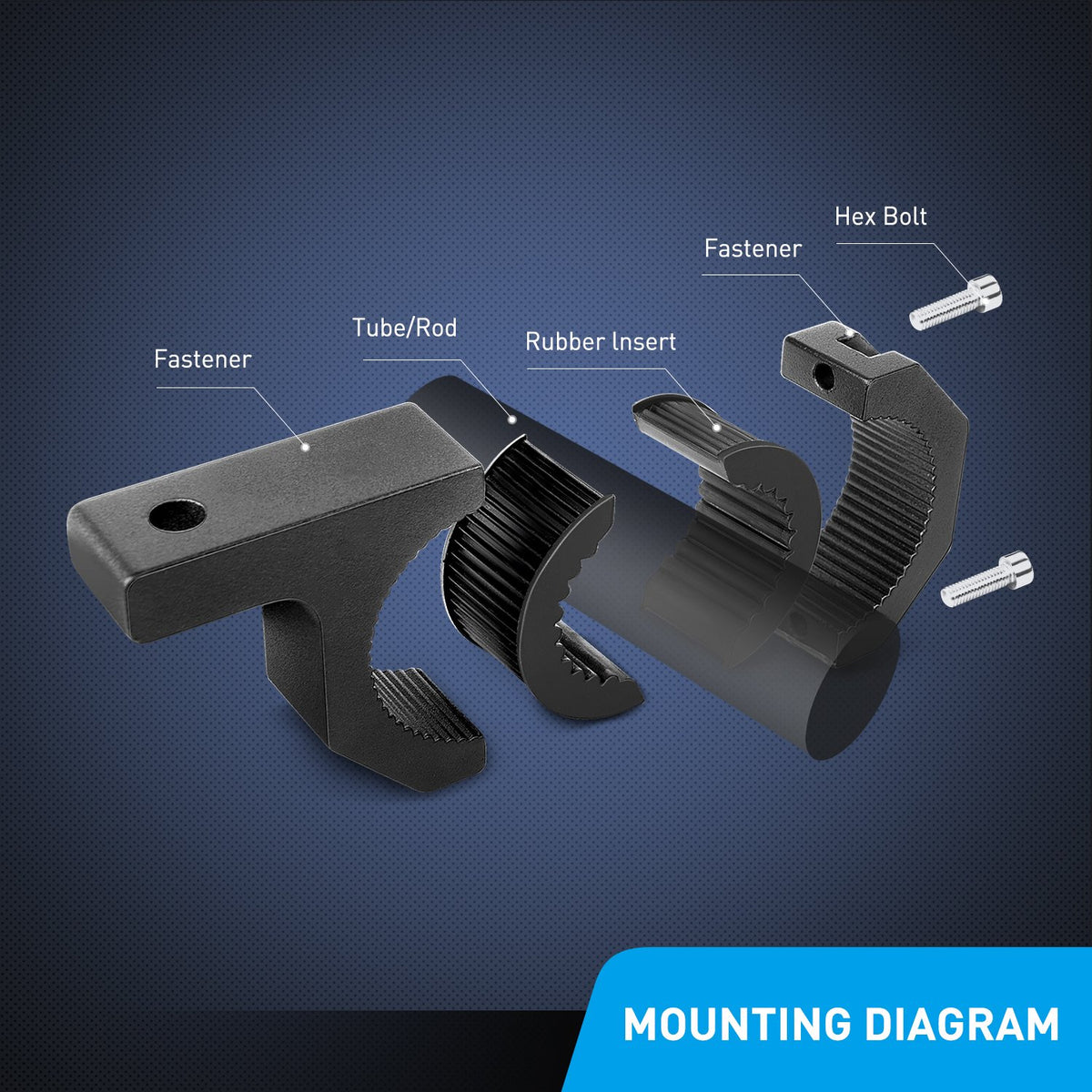

The included horizontal bar clamp mounting kit is engineered to fit several common tube diameters without extra drilling or modification. Constructed from aluminum alloy with rubber inserts, the clamps protect vehicle tubing, reduce vibration transfer and allow secure fastening of the light bar to round bars and racks.

• Compatible with tube diameters: 1", 1-1/2", 1-3/4" and 2"
• Pre-drilled bracket design enables adding additional lights easily
• Rubber inserts damp vibration and prevent metal-to-metal abrasion
• Durable black finish resists weathering and corrosion

What does the wiring harness include and how does it support installation?

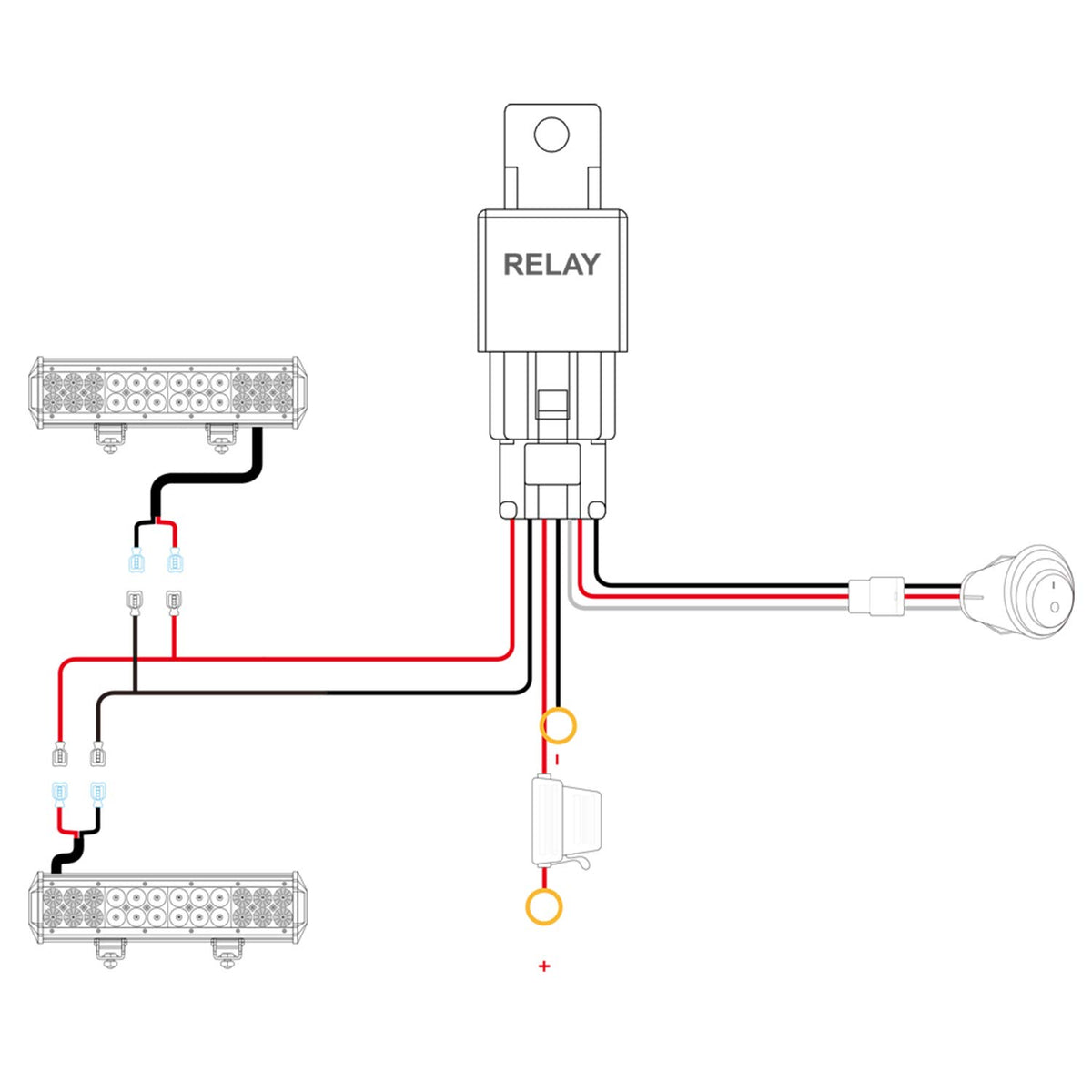

The harness provides a ready-made electrical solution tailored for typical 12V vehicle systems and streamlines safe hookup of the light bar. It includes a relay, inline fuse, switch and power connector sized for the kit’s electrical load, helping to protect the vehicle’s wiring and enable reliable operation up to the harness limits.

• 12 ft wiring length for flexible routing on most vehicles
• Max supported wattage 180W, max current 15A, designed for 12V DC

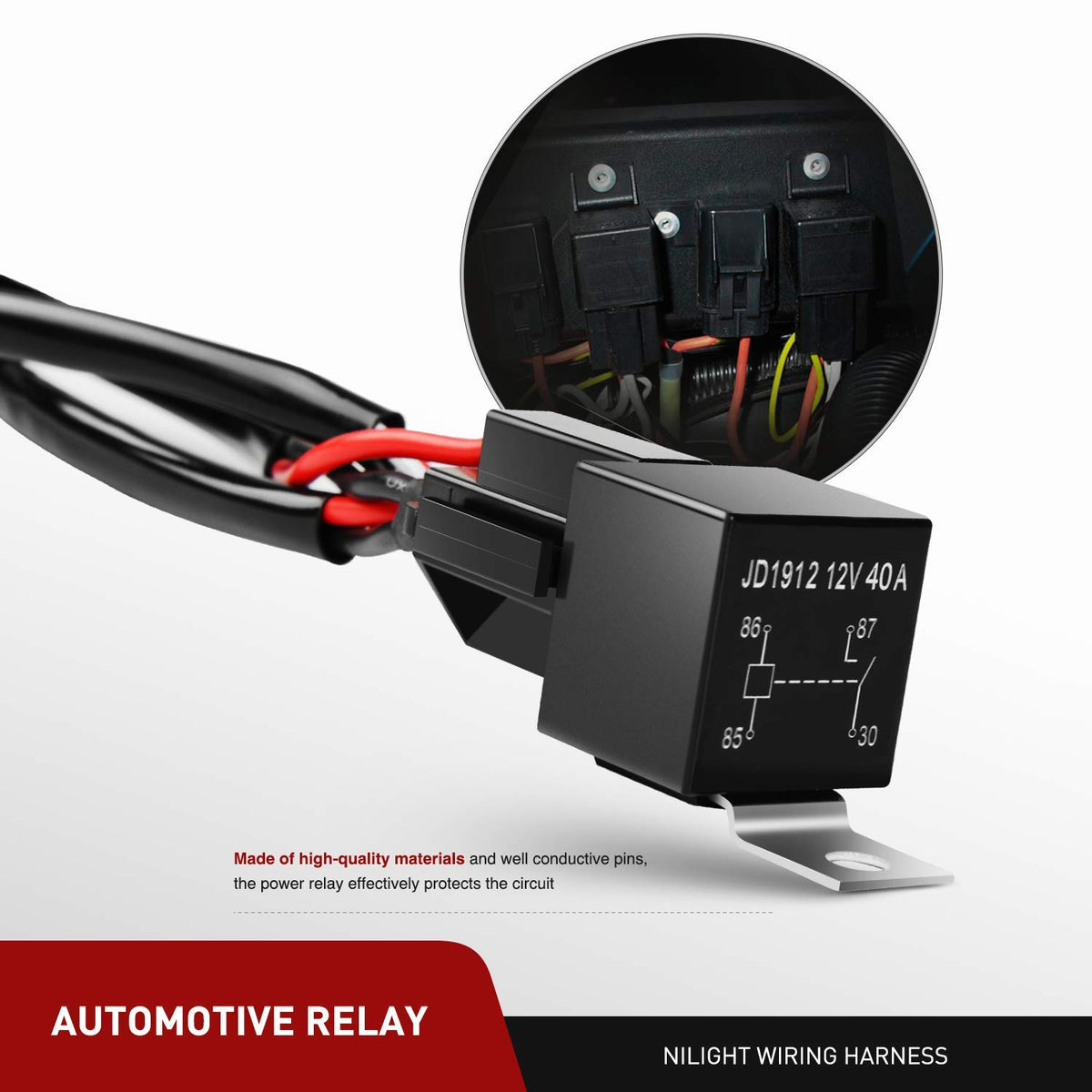

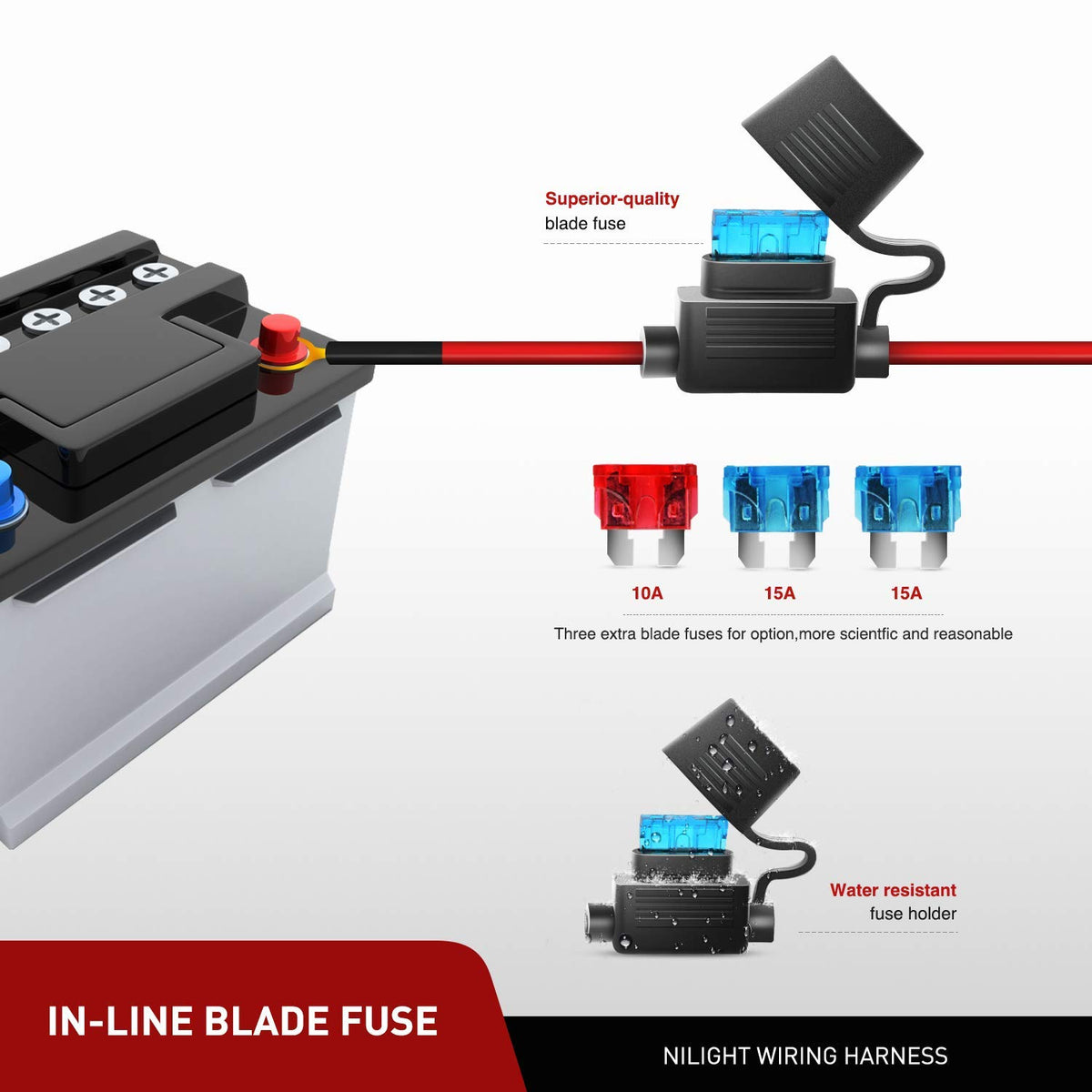

• Three-pin on-off rocker switch, automotive relay and inline blade fuse
• Power connector prewired to fit the light fixture for simpler assembly

How rugged and weatherproof is this light bar for off-road use?

The Nilight bar is constructed with a 6063 aluminum alloy profile and PC lens to resist impact, heat and corrosion during heavy-duty use. An IP67 enclosure rating ensures temporary immersion and dust resistance, while the operating temperature range supports both cold and hot-climate deployments.

• IP67 waterproof and dustproof rating for harsh environments
• Operating temperature: -40 to 85°C for wide climate tolerance
• Shock-resistant design with durable housing and lens materials
• Rubber inserts and robust brackets protect mounting points from vibration

Who is this for: Owners of Jeeps, trucks, SUVs, ATVs, UTVs, trailers and work machines who need a compact, combo-beam auxiliary light with easy tube-mount capability and a complete wiring solution. Also useful for agricultural, construction, and recreational setups where off-road-rated illumination and a preassembled harness save installation time. Note: not D.O.T. approved—check local laws before roadway use and have installation performed or guided by a qualified technician.
