Nilight 20-inch 420W LED Light Bar — Triple-Row Flood/Spot Combo, 42,000LM, IP67

Nilight's 20-inch 420W LED light bar is a high-output triple-row flood/spot combo that delivers up to 42,000 lumens for driving, off-road and marine illumination while including a 12V wiring harness and 5-pin rocker switch.

This heavy-duty LED bar pairs nested reflector cups and a triple-row LED layout to balance long-range spot beams with wide flood coverage, giving bright, efficient light for boats, trucks, ATVs and work sites. Built with die-cast aluminum, IP67 sealing and an efficient cooling design, it’s meant to withstand wet conditions and prolonged use with an expected service life over 30,000 hours. The kit comes ready to install with a 12-foot extendable wiring harness, dual connectors for splitting output, and a backlit rocker switch to locate controls in the dark.

How does this light bar mix flood and spot beams for practical use?

The Nilight bar uses a combo beam pattern: wide-angle flood LEDs flank a center section of nested reflector cups that concentrate light into a long-reaching spot. That combination provides clear peripheral illumination for nearby obstacles while pushing a tight beam down the road or across water.

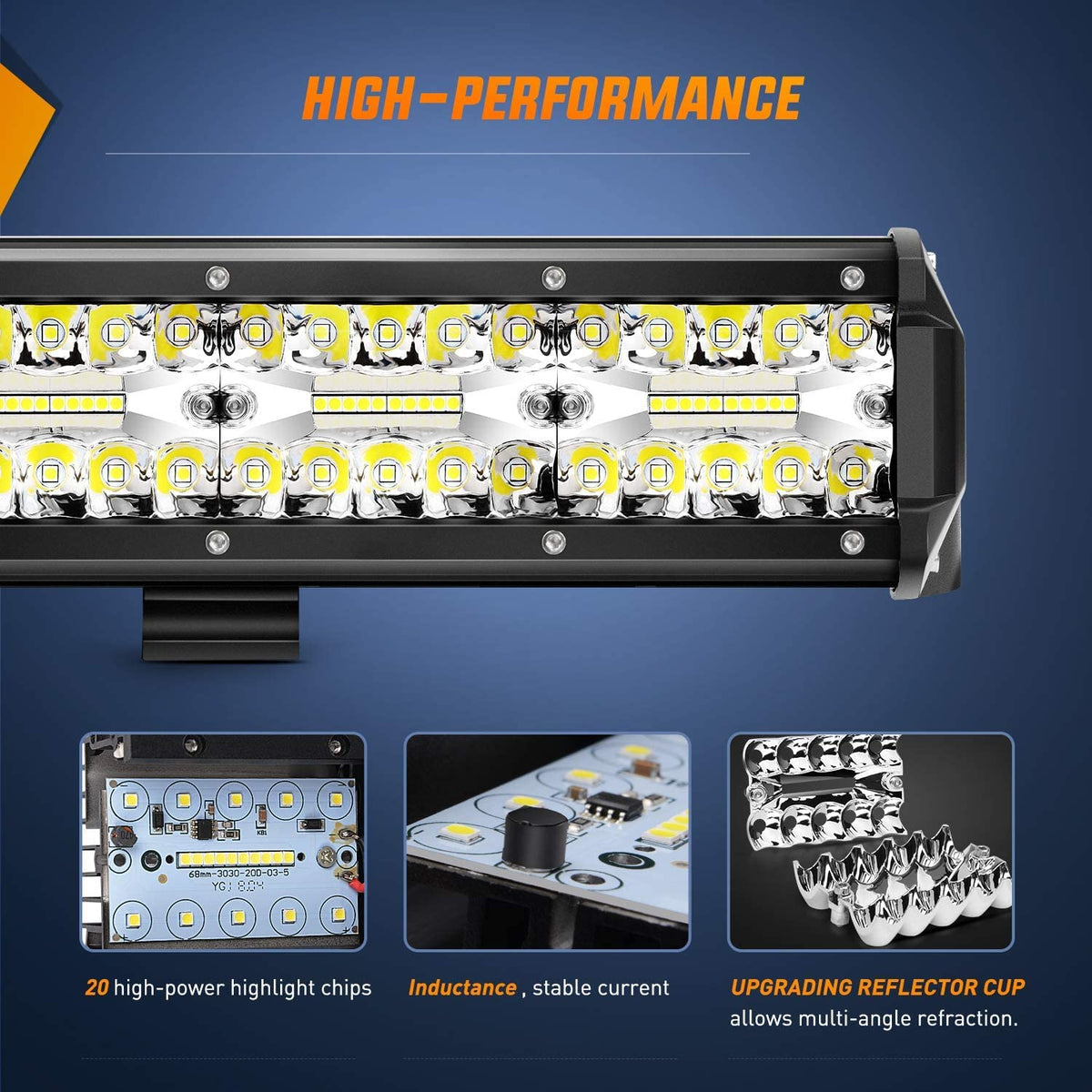

• Triple-row LED array for increased lumen output and even coverage
• Center nested reflectors focused for long-distance visibility
• Side flood LEDs broaden peripheral illumination for safe maneuvering

Is this unit durable and suitable for wet or rough environments?

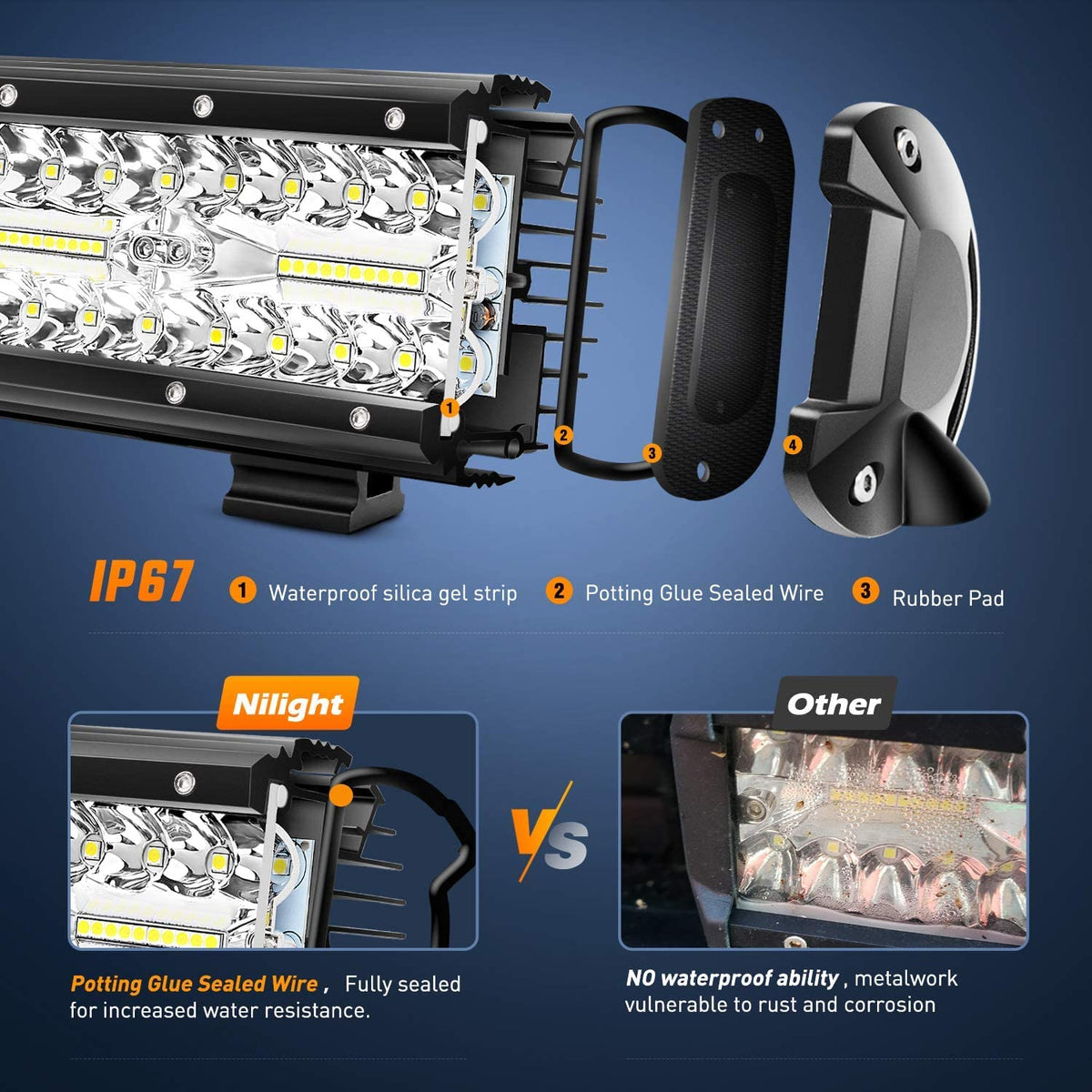

The housing is die-cast aluminum with an efficient cooling path designed to dissipate heat during extended runs. The IP67 waterproof rating protects the LEDs and internal wiring from dust and immersion, making it suitable for rain, splashes, and dusty off-road conditions.

• IP67 protection against dust and temporary immersion
• Robust aluminum housing resists impacts and corrosion
• Thermal design and long-life LEDs rated over 30,000 hours

What comes with the light bar and how easy is installation?

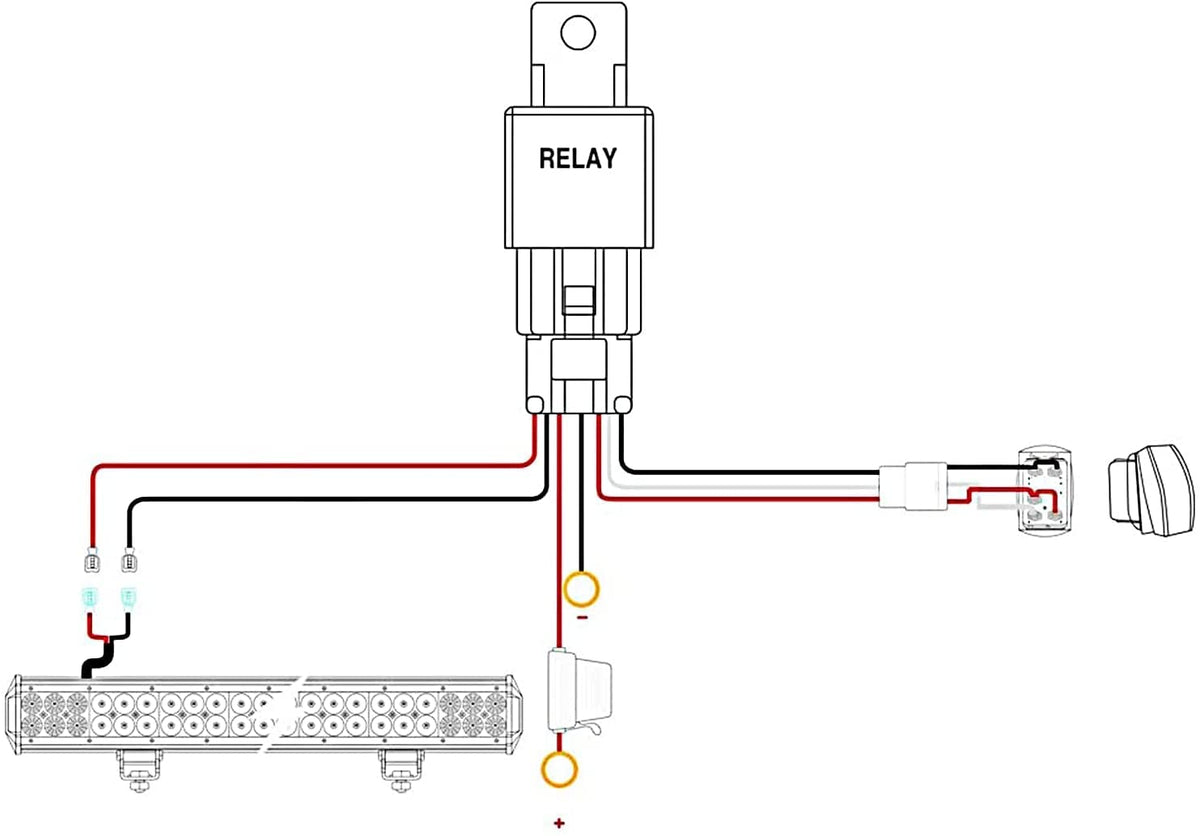

The package includes the 420W LED light bar, a complete wiring harness kit with a 12-foot extendable lead, and a 5-pin backlit rocker switch. The harness provides two sets of light output connectors so you can power dual fixtures under 180W each or use the single bar approach, and the illuminated switch helps locate controls in low light.

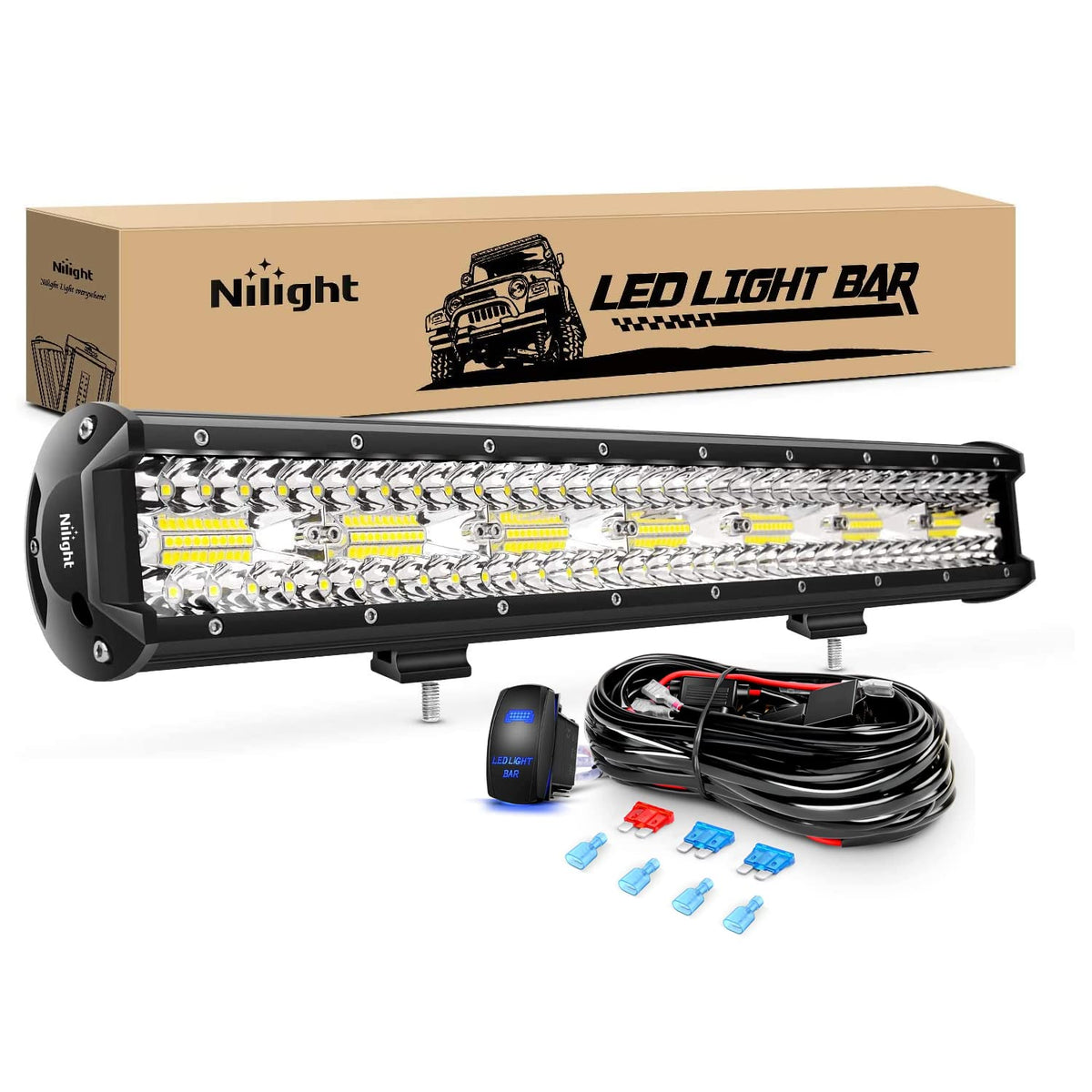

• 1 x 420W Nilight LED light bar with triple-row combo beam

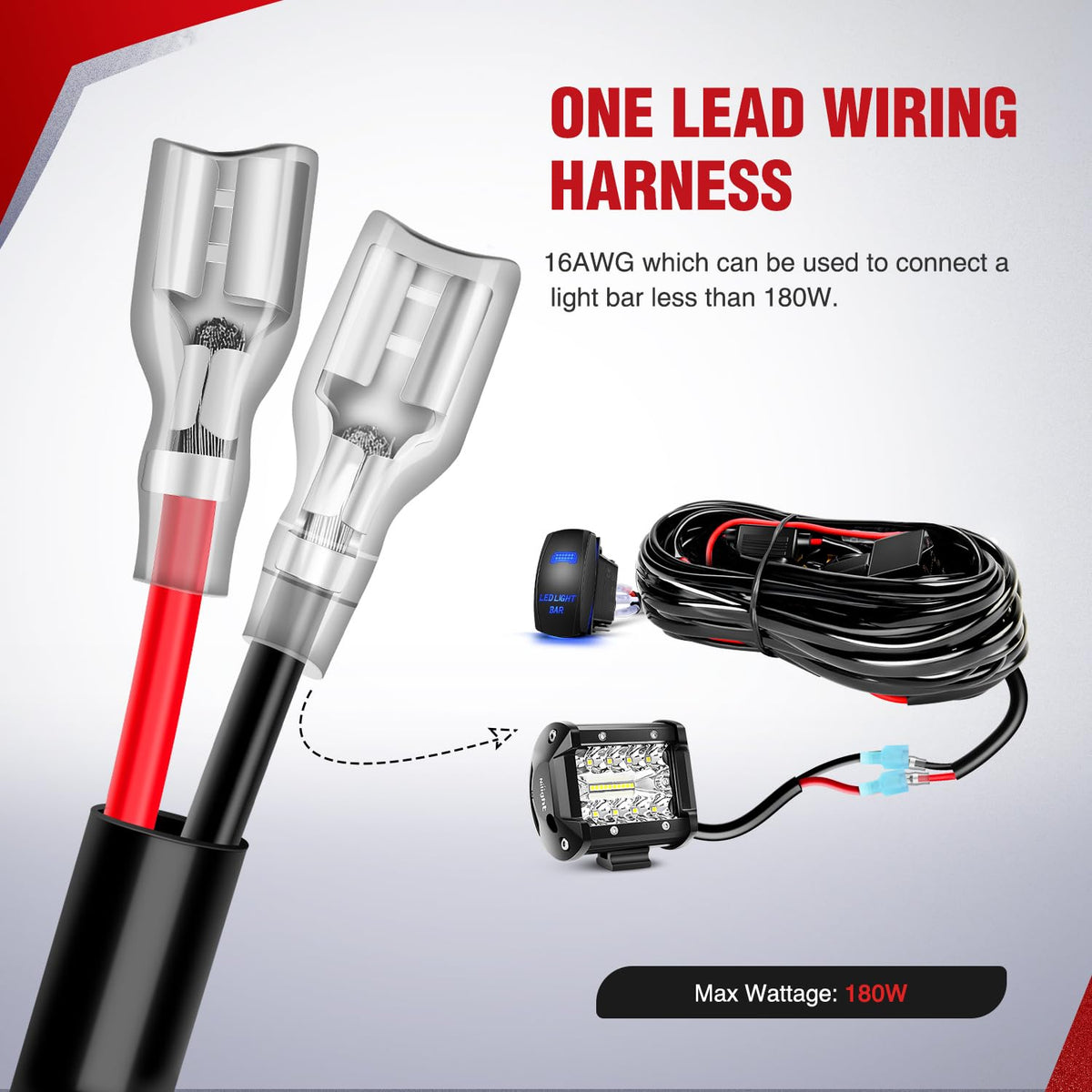

• 12-ft extendable 16AWG wiring harness with dual connectors
• 5-pin 12V illuminated rocker switch for easy control

How does this bar perform on vehicles and boats?

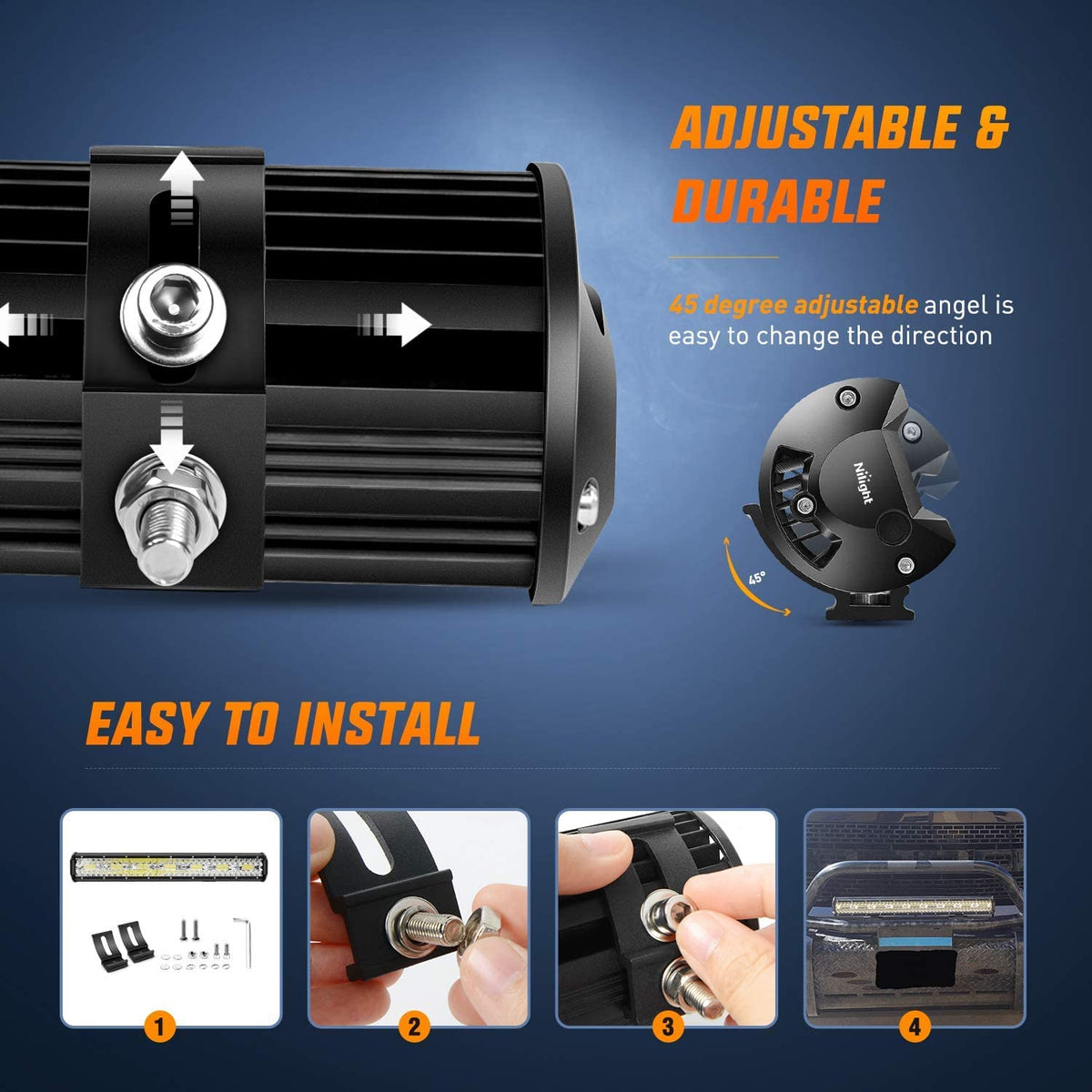

The tight spot center aids high-speed driving or open-water sight lines, while the floods give clear close-range visibility when navigating trails, docks, or work zones. Its wiring kit and split connectors simplify mounting on a bumper, roof rack, roll cage, or marine bow with reliable power delivery from a 12V source.

• Powerful center spot beam for distance at higher speeds
• Flood sections improve visibility for nearby obstacles and shorelines
• Compatible with standard 12V vehicle and marine electrical systems

Who is this for: drivers, off-road enthusiasts, commercial operators and boat owners who need a robust, high-lumen lighting solution that combines far-reaching spot capability with broad flood illumination. It’s well-suited for those who want a complete kit—light, wiring harness and switch—rated for harsh conditions and extended runtimes without specialty wiring or separate accessories.
