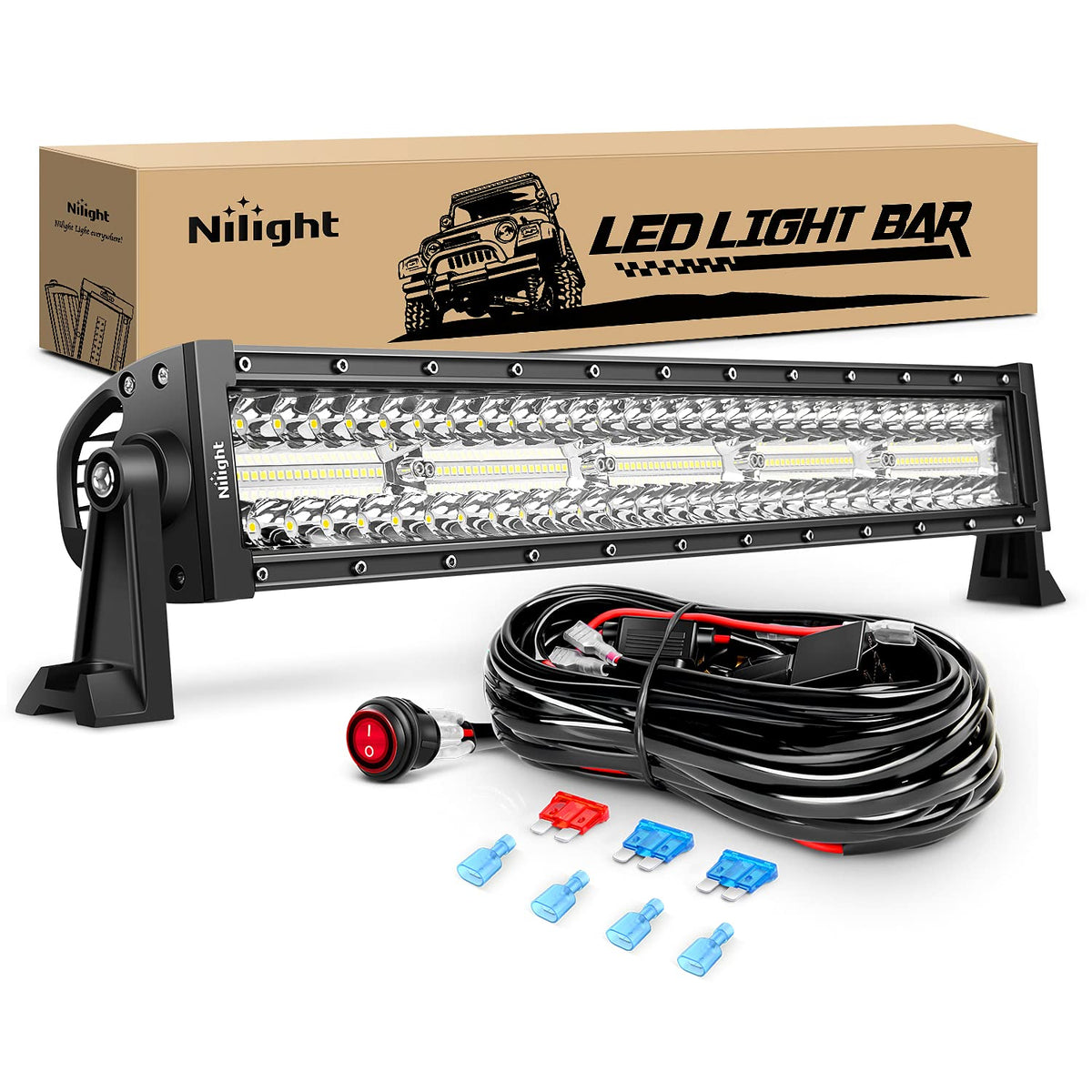

Nilight 22-inch 480W LED Light Bar — Triple-Row Flood+Spot, IP67 Waterproof with 12ft Wiring Harness

The Nilight 22-inch 480W triple-row LED light bar delivers ultra-bright combo flood-and-spot illumination for trucks, SUVs, ATVs, UTVs and boats with a durable IP67 waterproof build and included 12ft wiring harness.

If you need a compact, high-output auxiliary lamp for nighttime driving, trail runs, or marine tasks, this Nilight light bar pairs a nested reflector design with triple LED rows to push a broad, long-reaching beam. It runs on 9–30V DC, resists dust, water and corrosion, and ships with an adjustable mounting bracket and a complete off-road wiring harness so you can install it on 12V or 24V vehicles.

How bright is this Nilight light bar and what beam pattern does it use?

The 480W total output comes from triple rows of high-efficiency LED chips plus a center reflector cluster, producing a combo beam that blends wide-area flood lighting with long-distance spot projection. The color temperature is a pure white 6000K–6500K for crisp visibility and accurate contrast at night.

• Power: 480 watts across triple LED rows
• Beam: Flood + Spot combo for both peripheral and long-range illumination
• Color temperature: 6000K–6500K pure white
• Reflector: upgraded nested reflector cups for better light dispersion

Will this light bar fit my vehicle and how is it wired?

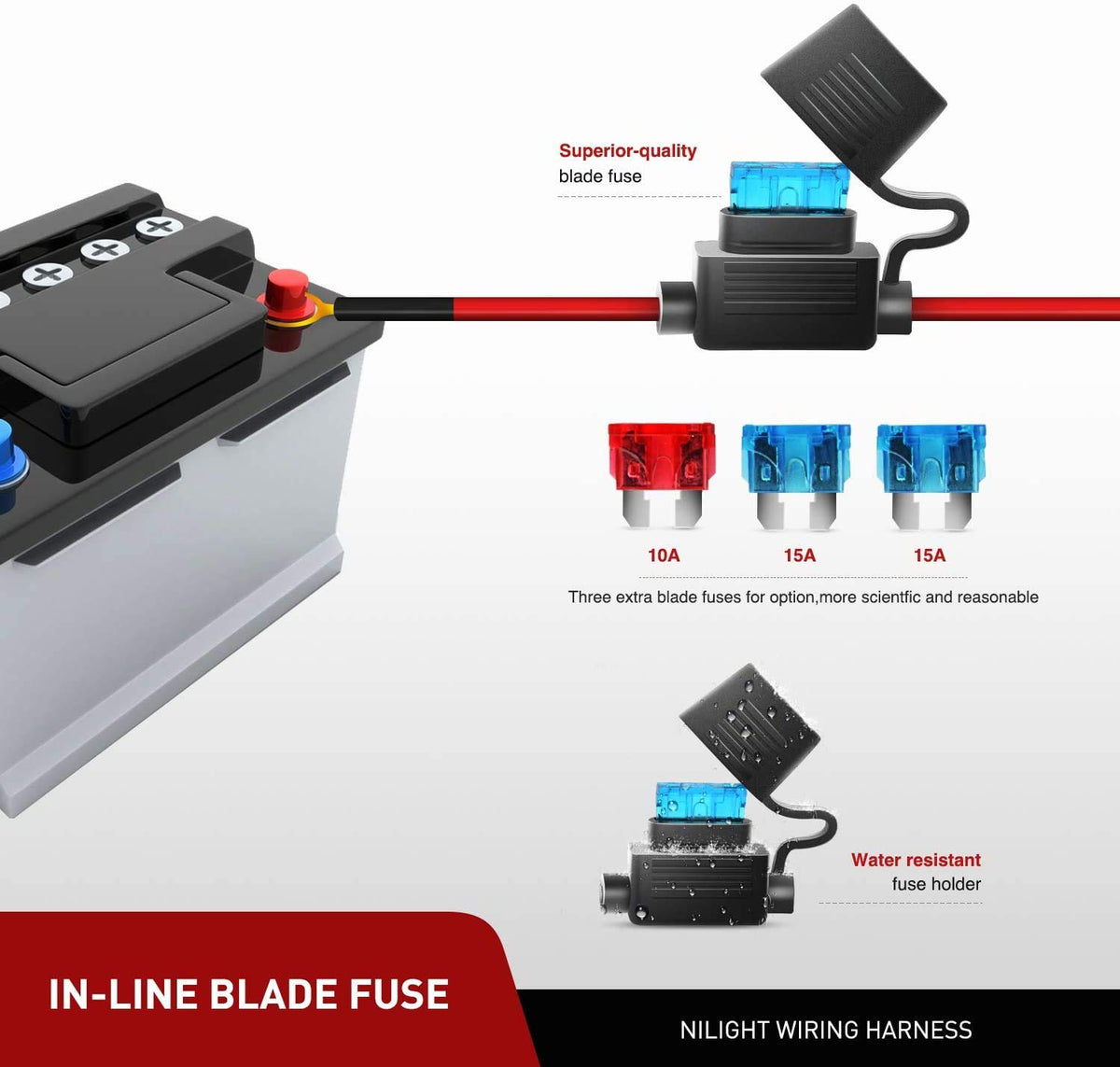

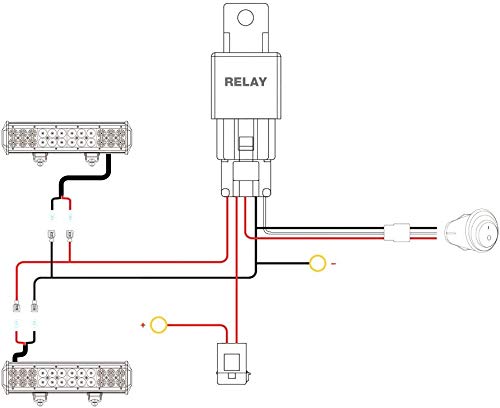

The bar accepts 9–30V DC input, so it’s compatible with common 12V and 24V electrical systems used in trucks, SUVs, ATVs, UTVs and many boats. Nilight includes a full off-road wiring harness longer than 12 feet with a switch and relay, which simplifies routing and protects your vehicle’s electrical system.

• Input voltage: 9–30V DC (works with 12V and 24V systems)

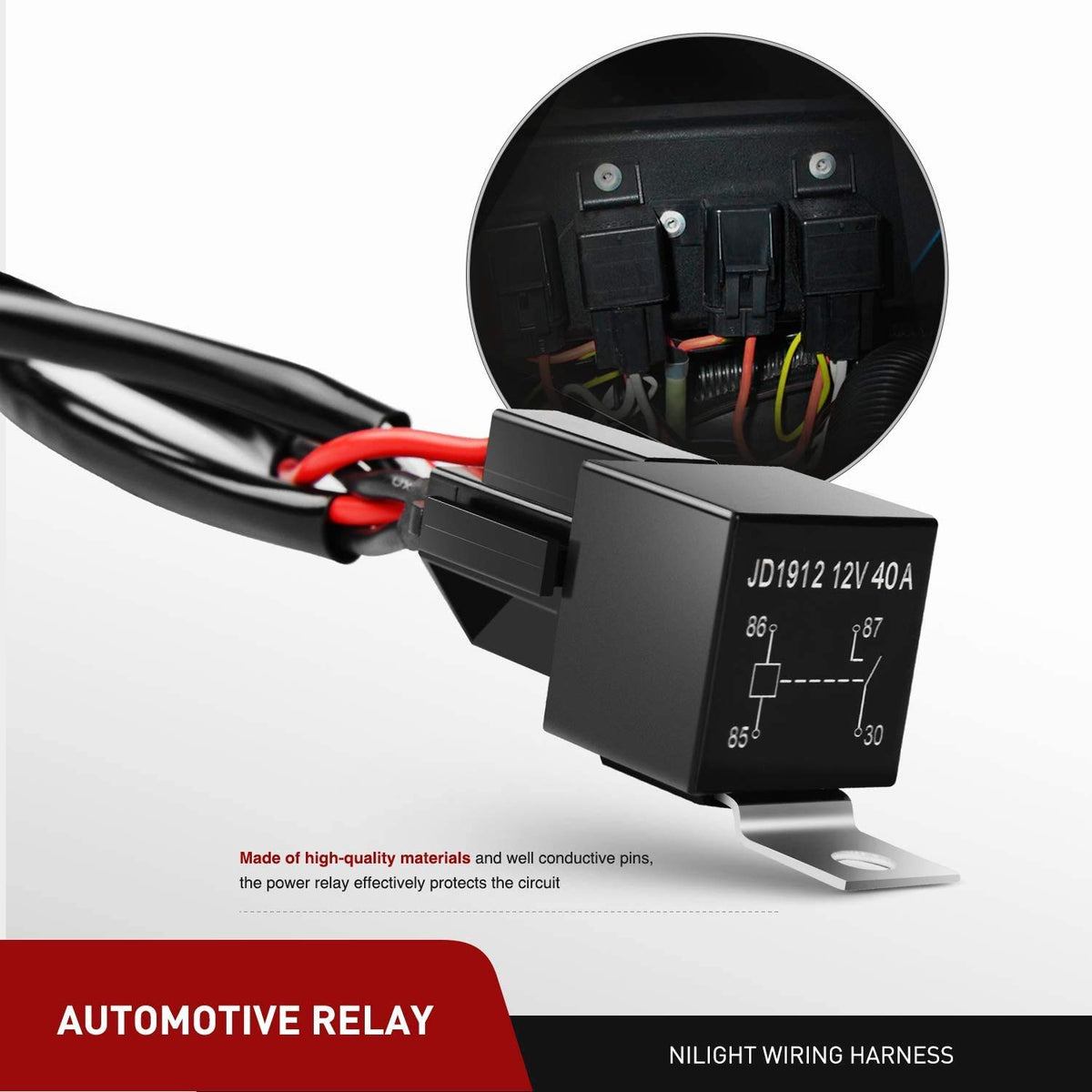

• Included harness: >12ft wiring with switch and relay for easy installation

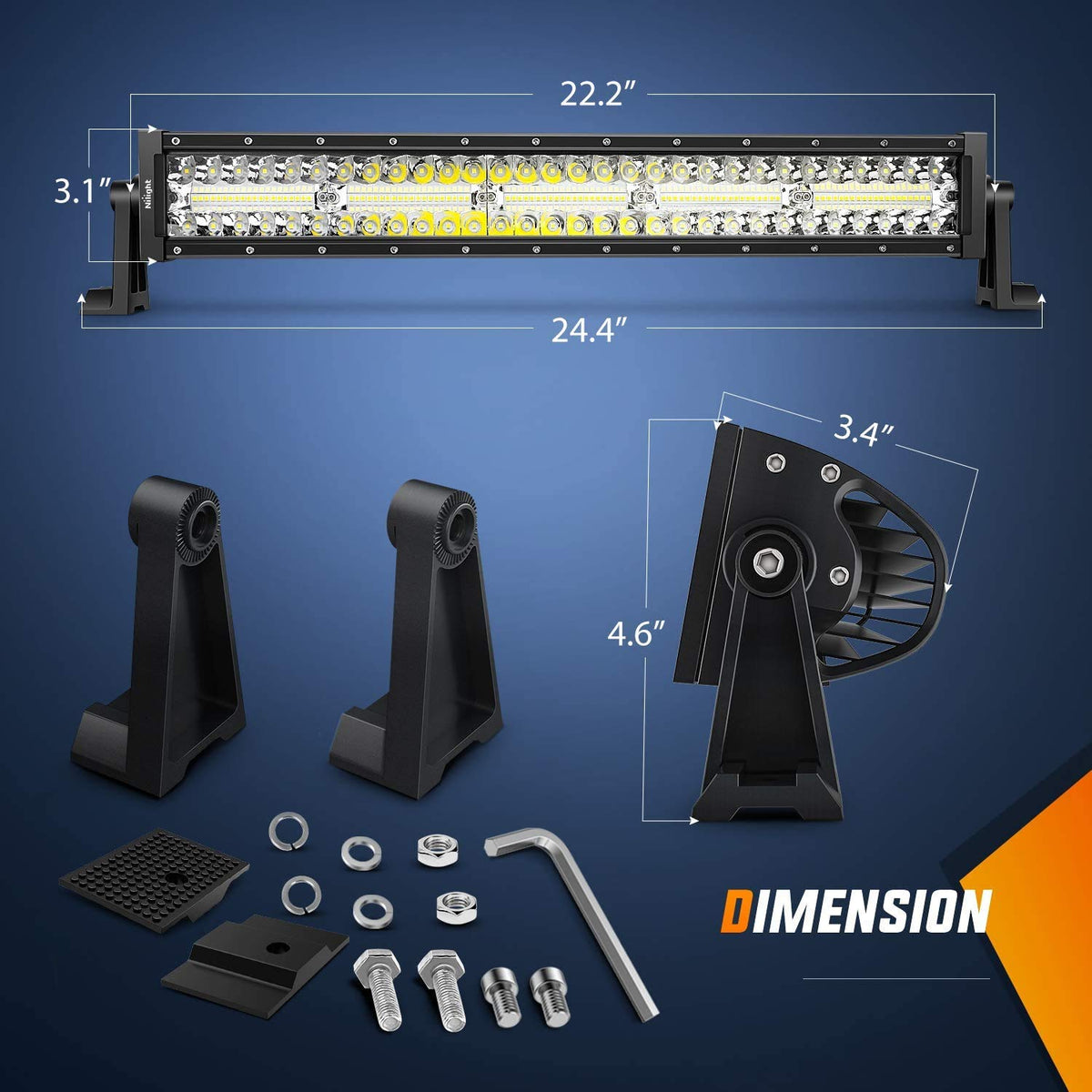

• Mounting: adjustable sliding brackets for angle and position tuning

How durable is the light bar for off-road and marine use?

Built from 6063 aluminum alloy and protected by a PC lens, the Nilight light bar is engineered to withstand harsh outdoor conditions. It carries an IP67 rating for dust and water resistance, a wide operating temperature range, and a design meant to resist vibration and corrosion.

• Enclosure: 6063 aluminum alloy profile for heat dissipation and strength
• Lens: polycarbonate (PC) for impact resistance and clarity

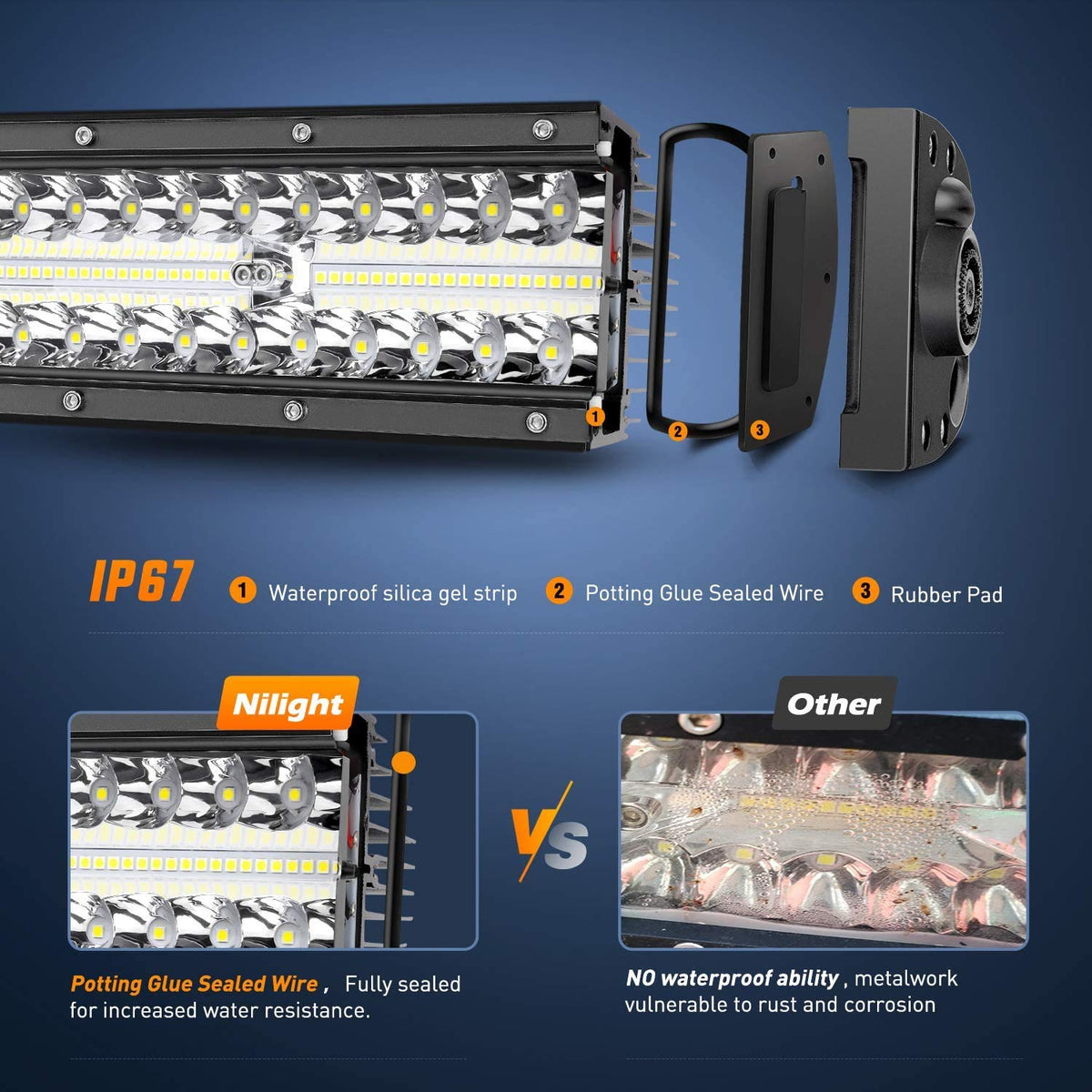

• Protection: IP67 waterproof, dustproof, and anti-corrosive
• Temperature/lifespan: -40°C to 85°C operating range; >30,000-hour LED life

Who is this for? If you want a reliable, high-output auxiliary light that mounts flexibly and works across multiple vehicle voltages—whether for night trail driving, utility work, or marine tasks—the Nilight 22" 480W triple-row combo bar is designed for technicians, off-road enthusiasts, fleet owners and boaters who need rugged, long-lasting illumination. The included wiring harness and adjustable bracket speed up installation, and a 2-year warranty by Nilight covers factory defects.
