Nilight 52-Inch Curved LED Light Bar ZH408 — 78,000LM Triple-Row Flood/Spot with 12AWG Wiring Harness

This high-output driving light combines a curved housing, nested reflector cups and a three-row LED layout to balance long-range throw with wide-area illumination. Built from die-cast 6063 aluminum and a PC lens, the assembly is engineered for off-road and utility use with IP67-rated protection against water, dust and corrosion. The included heavy-duty 12AWG wiring harness, 5-pin rocker switch and relay simplify installation into most trucks, SUVs and 4x4s designed for auxiliary lighting.

How bright and what pattern does this LED bar produce?

The ZH408 uses a flood/spot combo beam across a triple-row array to give both focused distance and broad peripheral light. Central nested reflector cups concentrate the spot output while wider reflective plates at the sides scatter flood light for ambient coverage.

• Maximum rated output: approximately 78,000 lumens
• Beam arrangement: center spot for distance, side floods for spread
• LED color: pure white, ~6000–6500K for clear visibility

Will this fit my vehicle and electrical system?

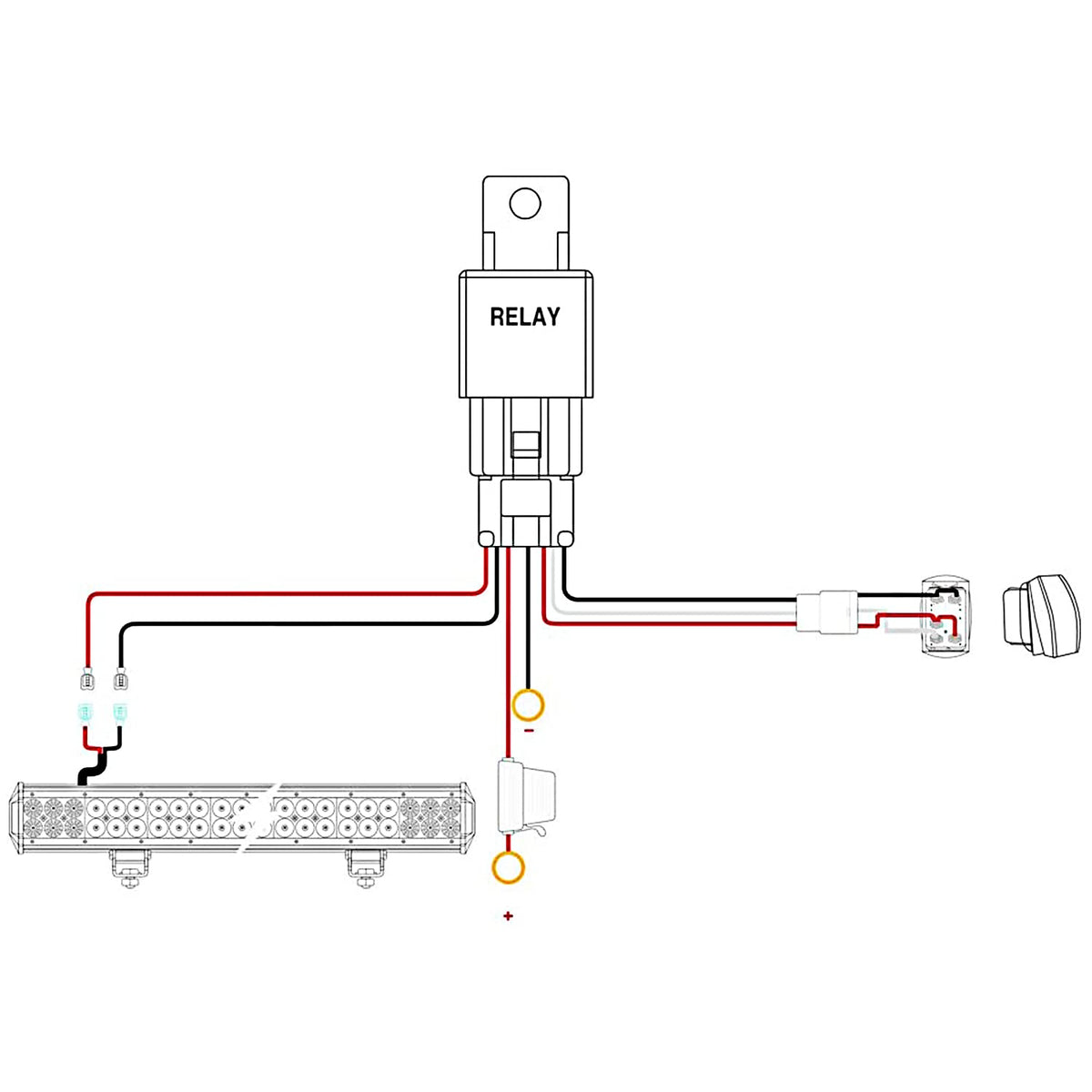

The light bar supports 9–30V DC input, so it works with both 12V and 24V systems common in cars, trucks and off-road rigs. The kit includes a 12AWG wiring loom, inline blade fuse(s), relay and a 5-pin on/off rocker switch to help integrate the bar with factory or aftermarket electrical setups.

• Voltage compatibility: 9–30V DC (12V/24V ready)
• Wiring: heavy-duty 12AWG harness with relay and fuse protection

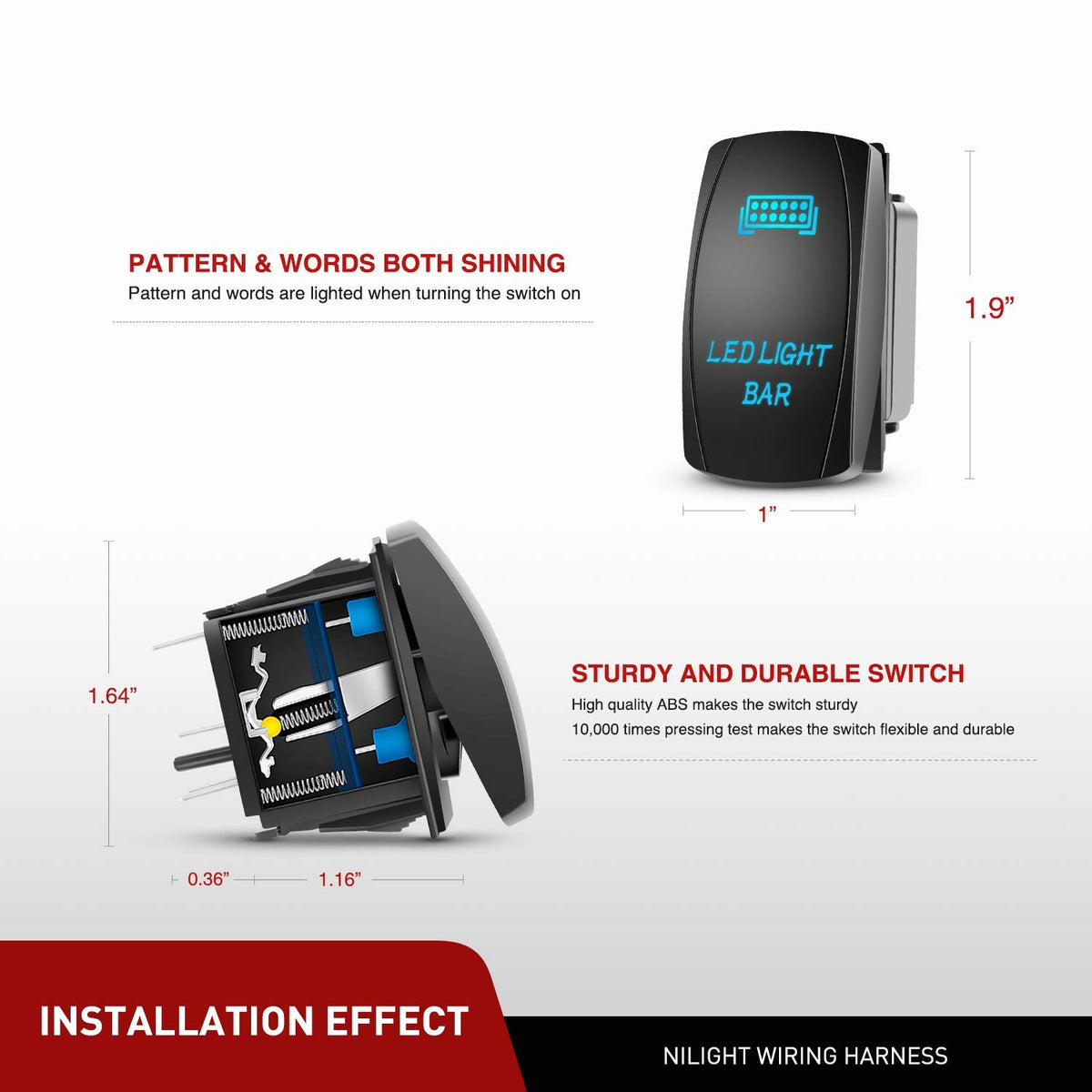

• Switch: 5-pin rocker switch included for dash mounting

How durable is the Nilight ZH408 in rough conditions?

Constructed from 6063 aluminum with efficient cooling features and a polycarbonate lens, the ZH408 is built to withstand off-road vibration, splashes and dust. An IP67 rating confirms protection against temporary immersion and ingress of particles, while quality components aim for a long service life.

• Housing: die-cast 6063 aluminum for heat dissipation
• Protection: IP67 waterproof, dustproof and corrosion-resistant
• Lifetime: engineered LED lifespan over 30,000 hours under normal use

What should I know about installation and safety?

Nilight supplies a comprehensive wiring harness, but proper installation is important to ensure reliable operation and to protect your vehicle’s electrical system. Professional installation is recommended if you lack experience with automotive wiring; following correct grounding, fuse sizing and switch placement helps prevent faults.

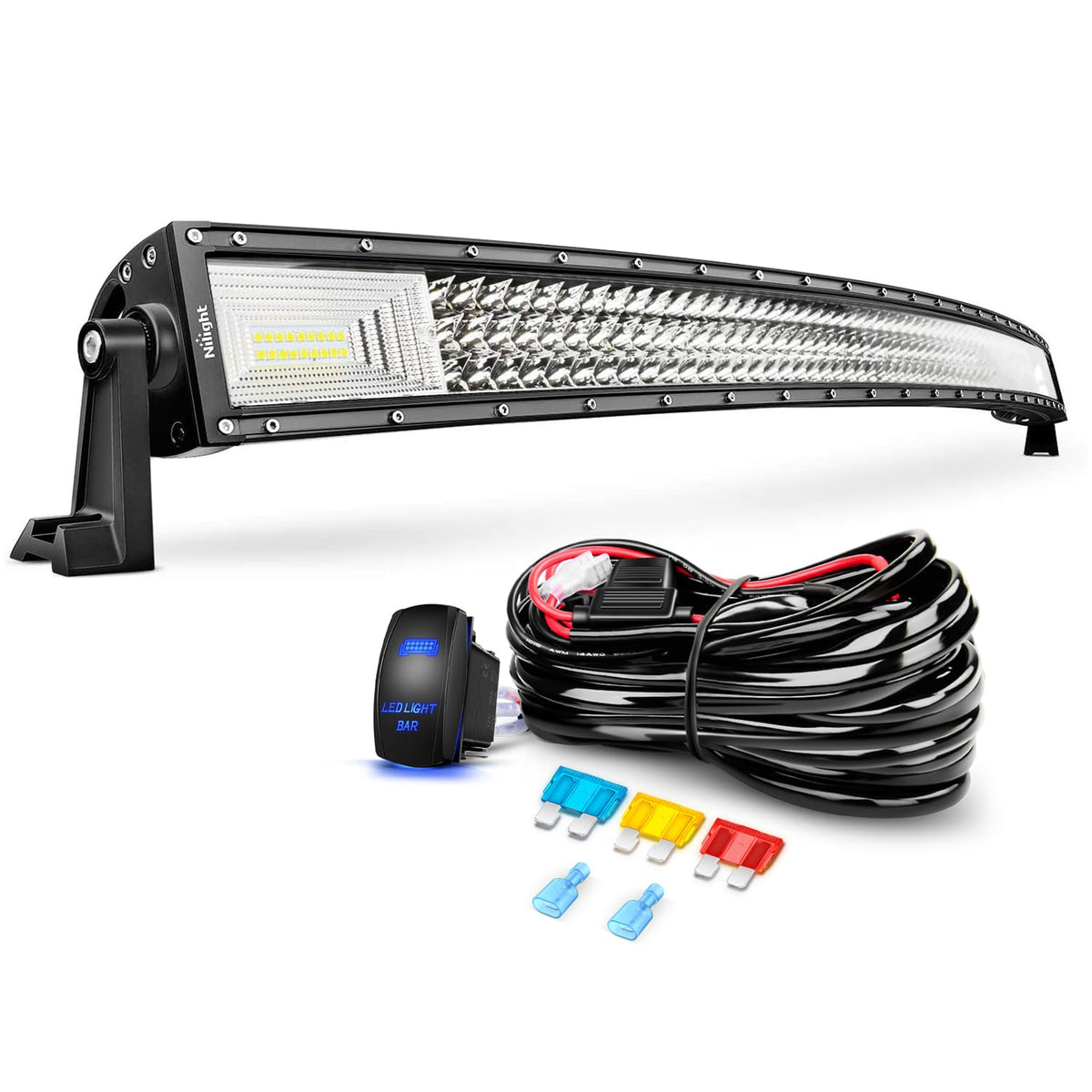

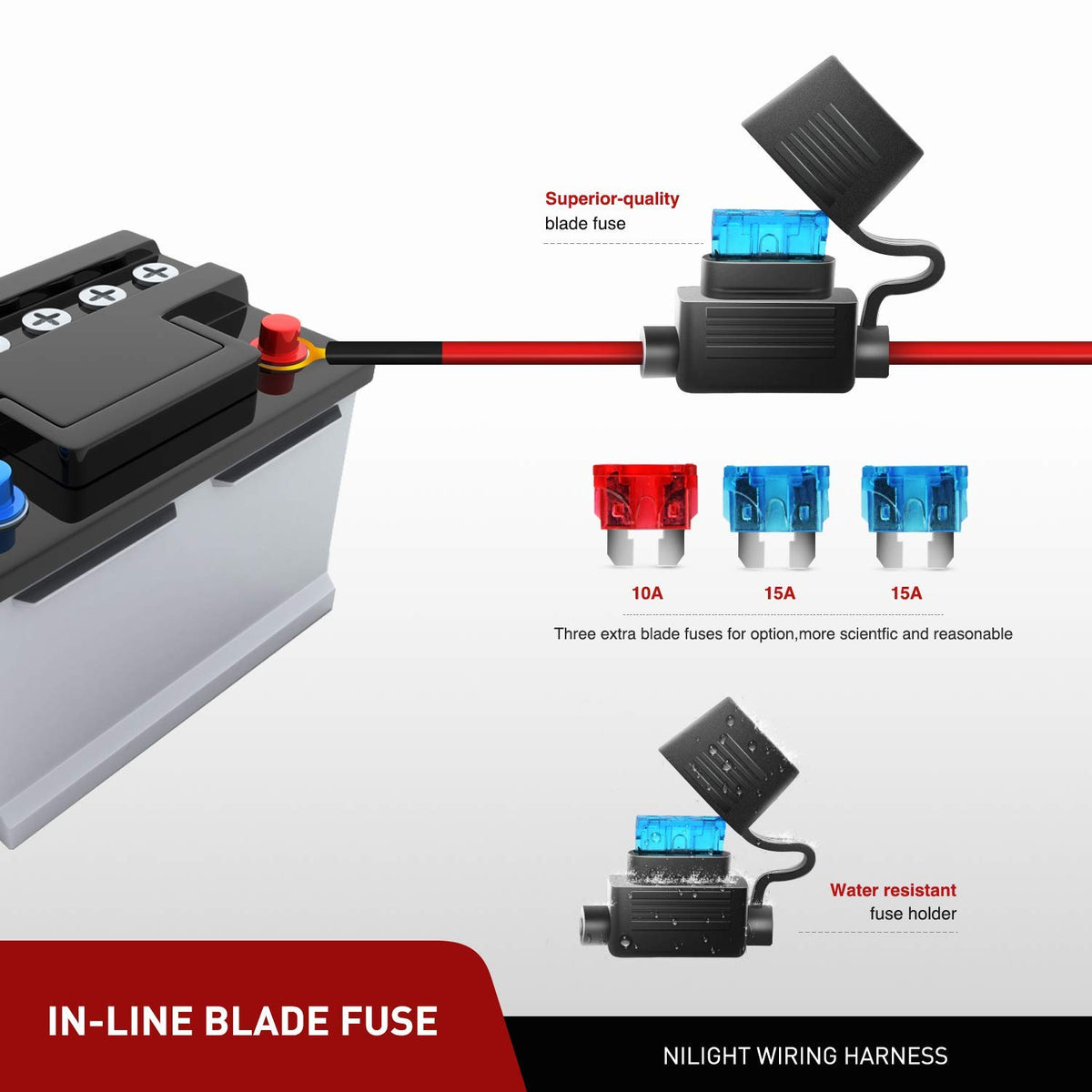

• Includes 12AWG wiring harness, relay and inline blade fuses
• Rocker switch provided for dashboard control
• Manufacturer note: installation best completed or supervised by a professional

Who is this for: The Nilight ZH408 is aimed at drivers who need a powerful auxiliary lighting solution—overlanders, off-road enthusiasts, work truck operators and anyone who requires high-intensity, wide-coverage illumination. It suits vehicles with sufficient roof or bumper mounting space, and buyers who want a ready-to-connect kit with robust wiring and protective components. If you want a curved, high-output LED bar combining distance and area light with hardy construction and a full accessory harness, the ZH408 is designed to fill that role.
