Nilight Copper LED Light Bar Wiring Harness Kit

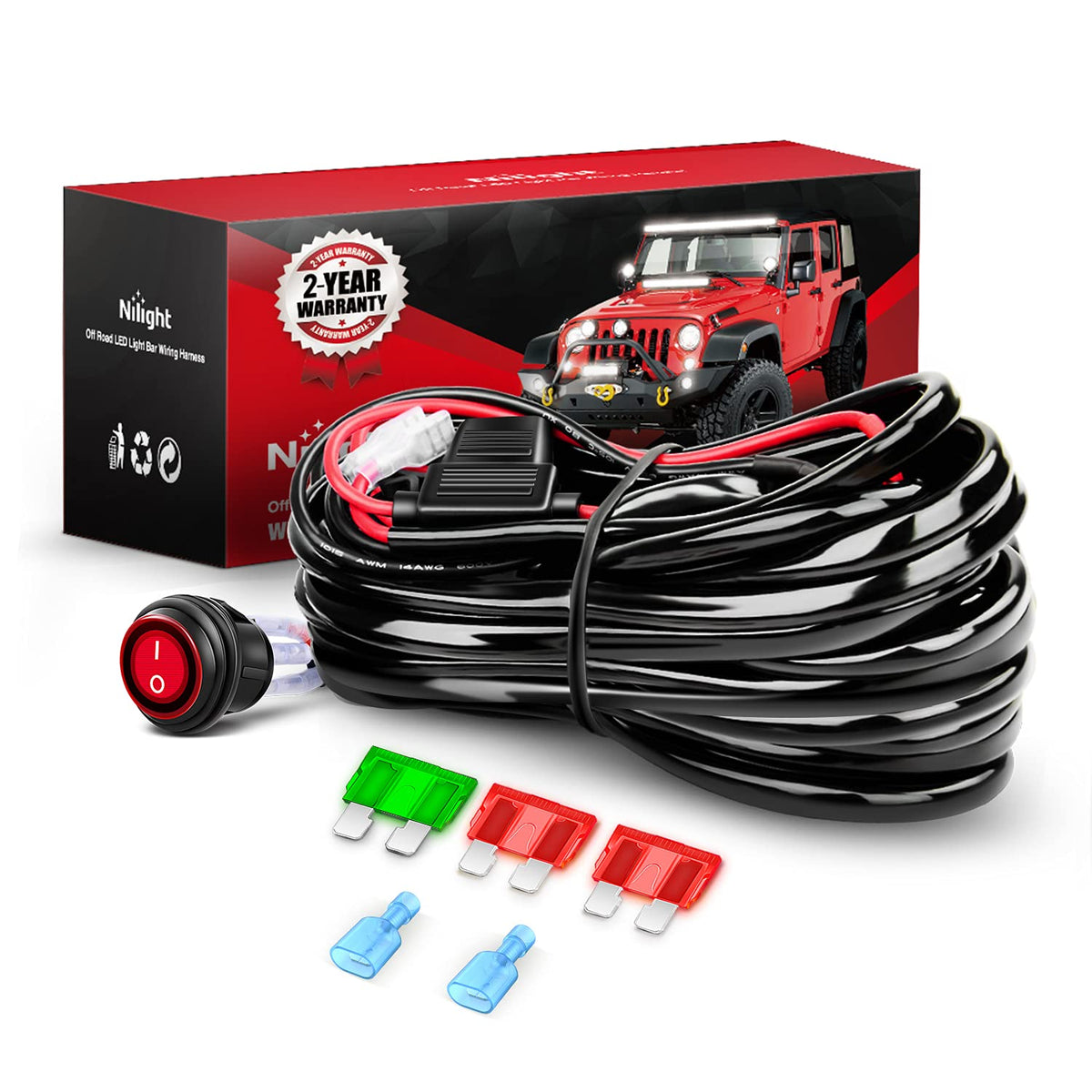

Nilight's Copper LED Light Bar Wiring Harness Kit is a complete 10-foot, 12AWG heavy-duty wiring set with an illuminated on/off switch, power relay, and blade fuse designed to safely power 12V off-road LED lights.

This harness is built to simplify installation and protect your lighting circuit on jeeps, ATVs, UTVs, trucks, boats and other 12V vehicles. It combines a durable, flexible 12-gauge copper-stranded lead with a pre-wired relay and inline blade fuse, plus a red-illuminated rocker switch rated for thousands of operations. The kit arrives ready to connect a single LED light or light bar and is sized to handle high-current LED loads while keeping wiring neat and secure.

How does the 12AWG copper wire improve performance and safety?

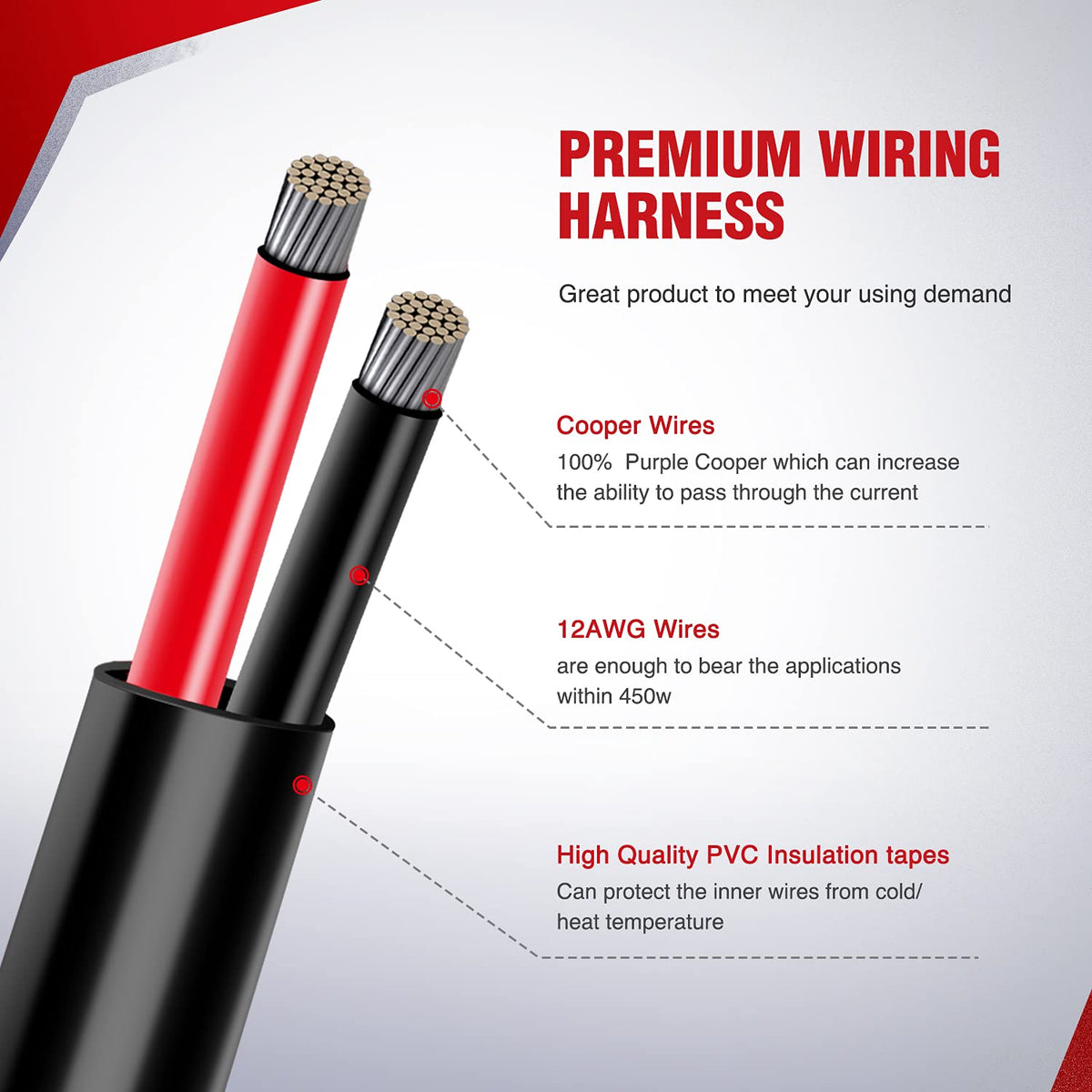

The 12AWG stranded copper wire provides lower resistance and better heat dissipation than thinner wires, reducing voltage drop at high currents. That helps LEDs run at stable brightness and minimizes risk of overheating under heavy load.

• 10-foot main harness for flexible routing from battery to dash

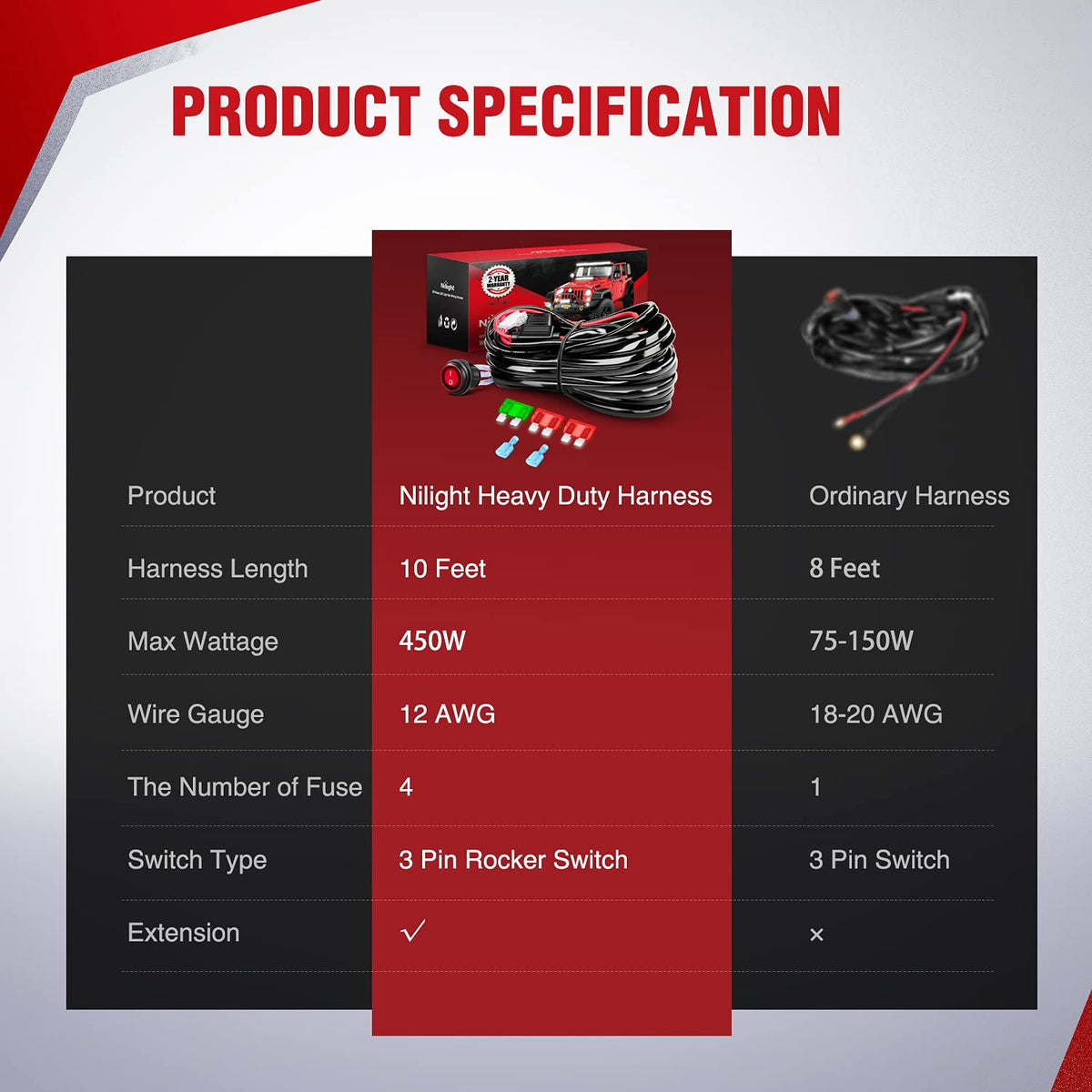

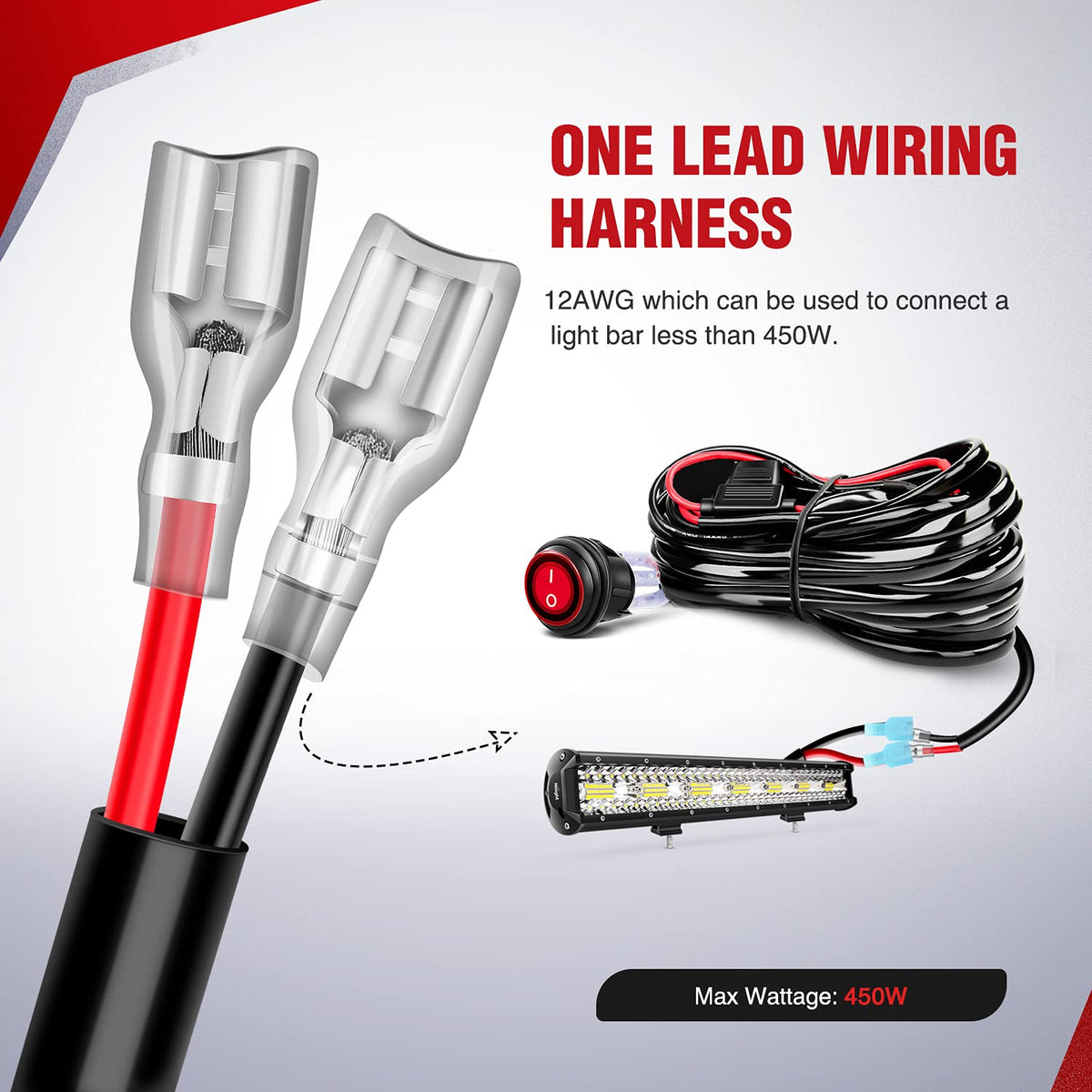

• 12AWG stranded copper supports up to approximately 450W load capacity
• Thicker gauge reduces voltage drop over long runs
• Flexible strand construction eases bends and mounting in cramped spaces

What protection features prevent electrical damage or shorts?

The harness uses a power relay to switch high current loads away from the dash switch, plus an inline blade fuse to interrupt the circuit in case of overcurrent or short. Together these components reduce the chance of switch failure, wiring damage, or battery drainage when faults occur.

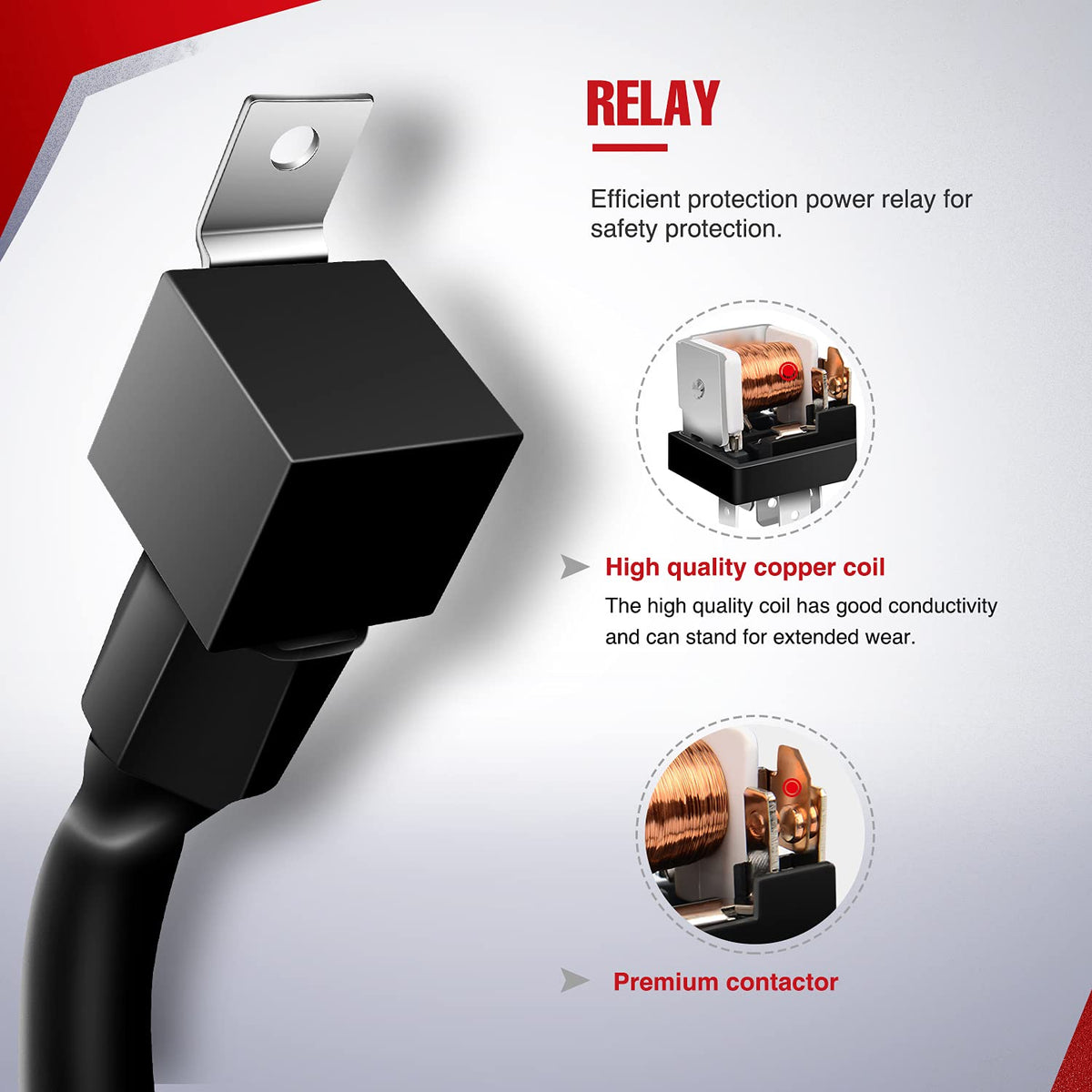

• Automotive-grade relay handles high-current switching safely

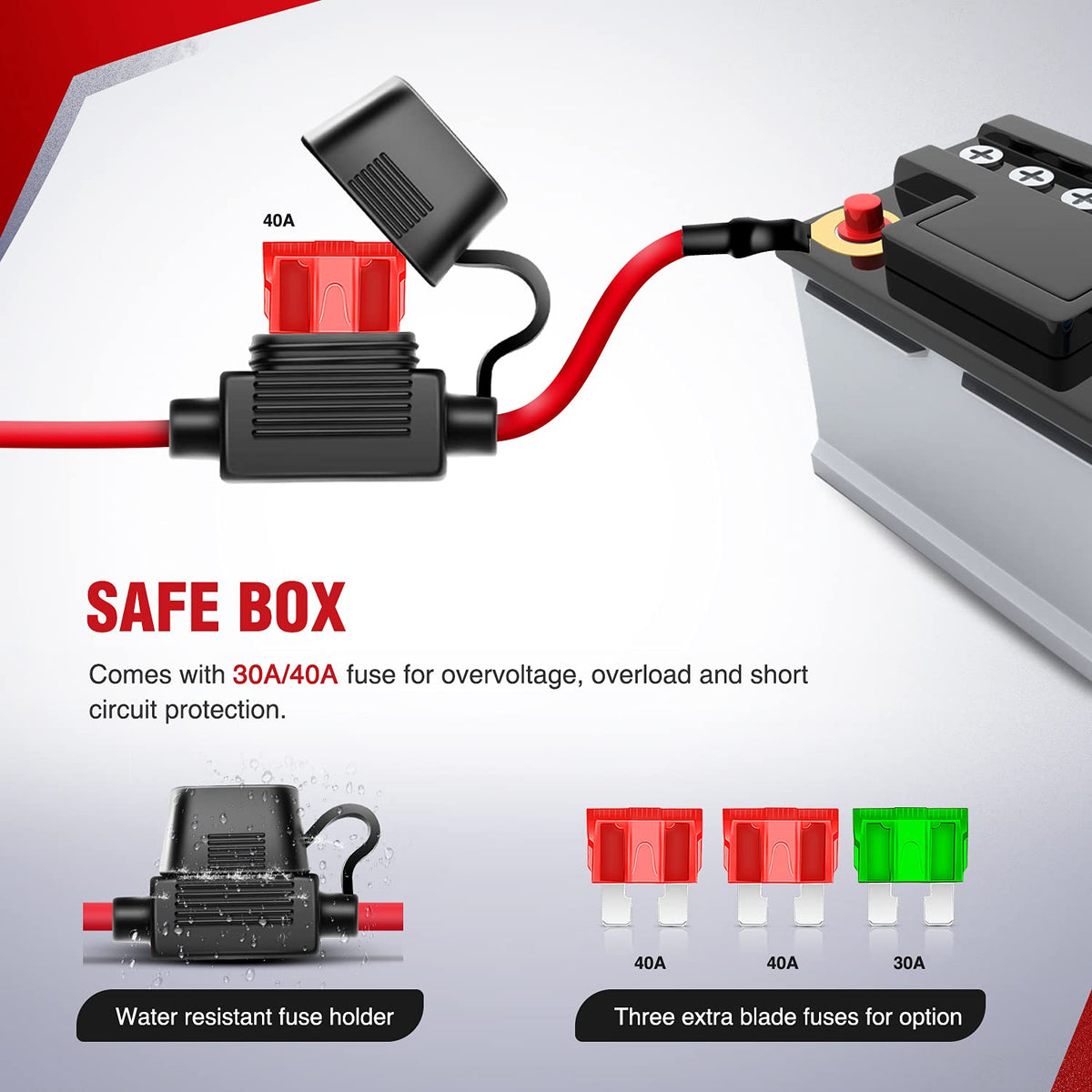

• Inline blade fuse protects against overloads and short circuits
• Wiring connections are insulated to limit exposure and corrosion
• Switch is designed for reliable on/off control without carrying full load current

How easy is installation for common vehicles and LED lights?

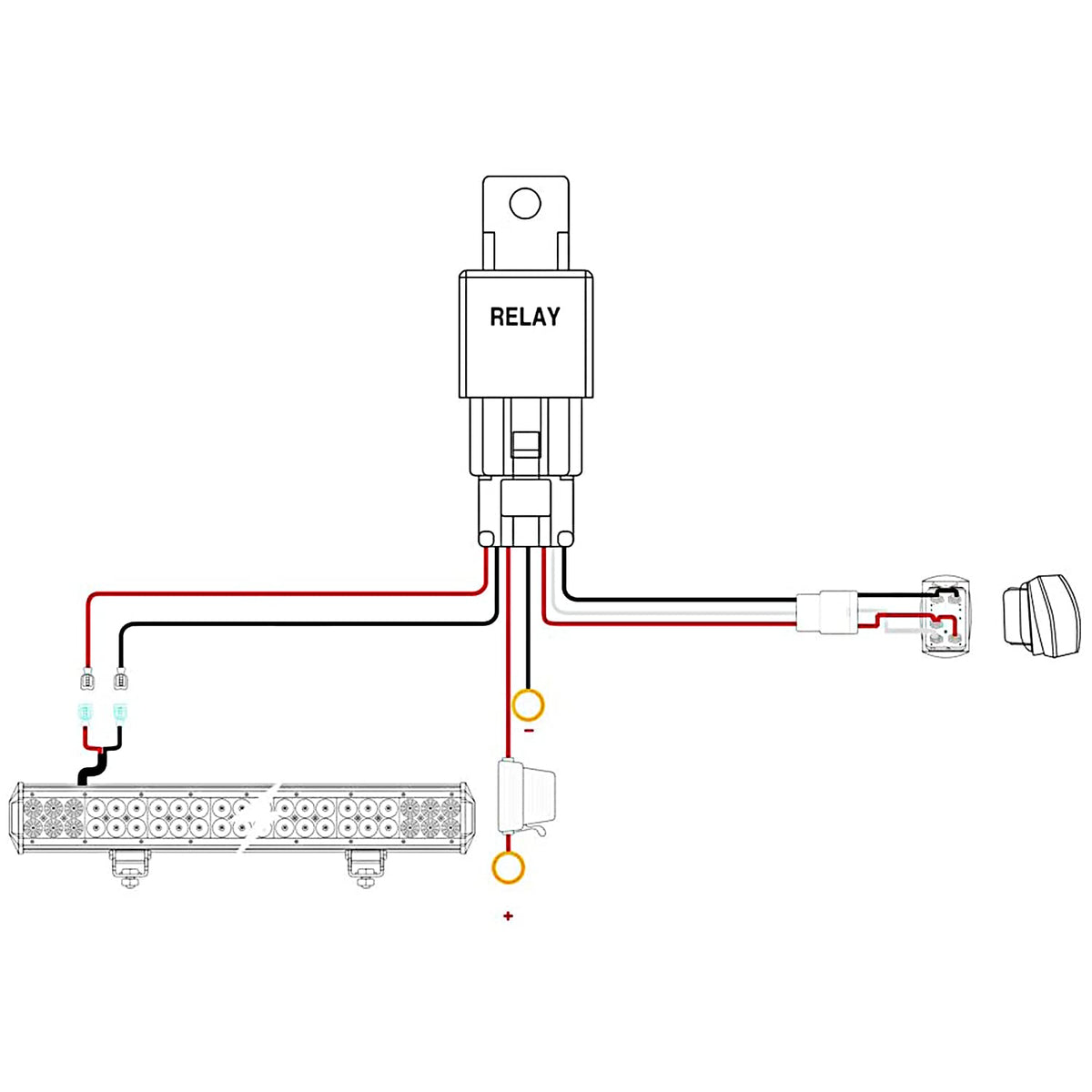

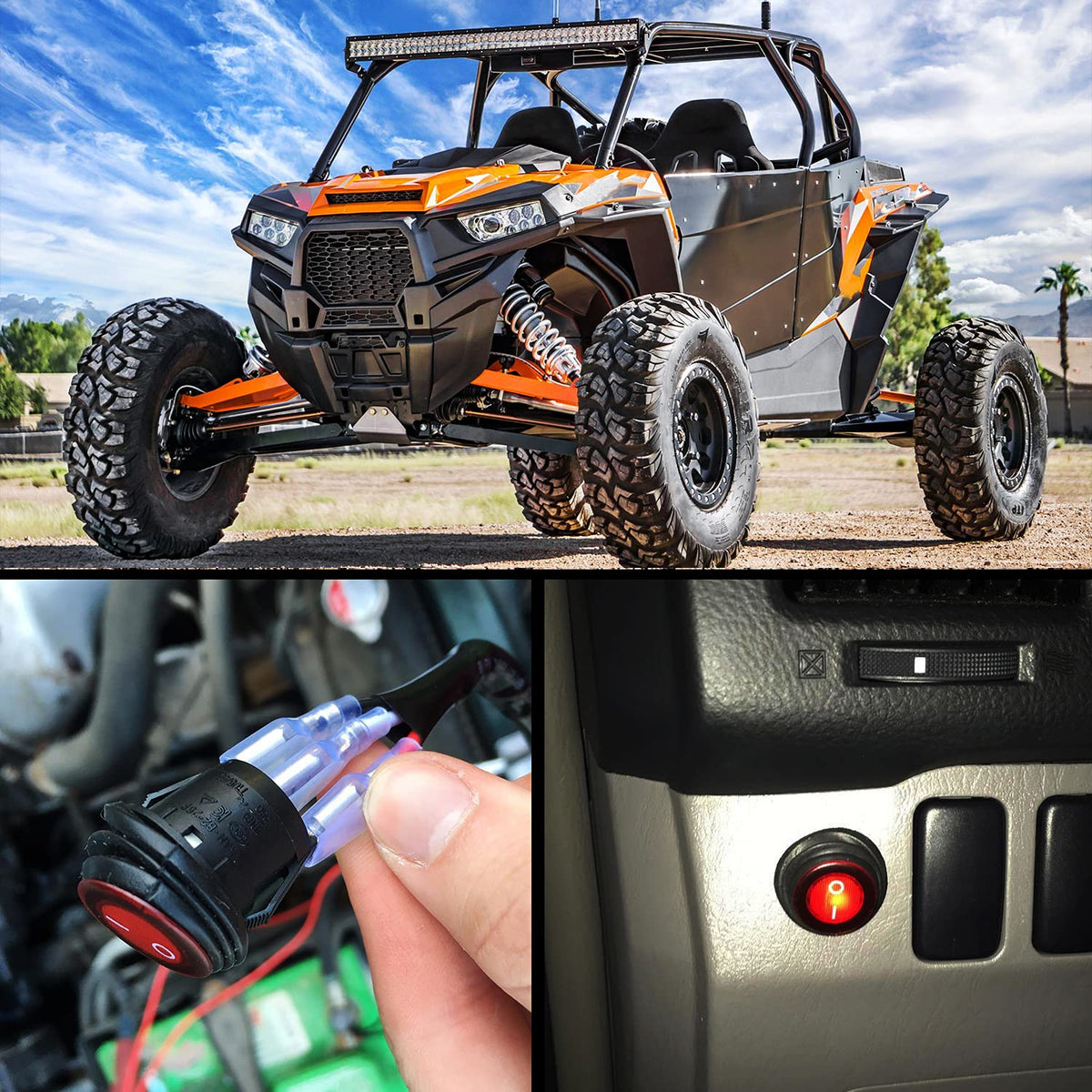

The harness is pre-assembled to speed installation: one end connects to the battery, the relay sits near the power source, and the illuminated rocker switch mounts to the dash. Minimal cutting or splicing is required for most single-light or light-bar setups, and the 10-foot length gives plenty of slack for routing.

• Plug-and-play style connectors for typical LED light bars
• 10ft length gives room to reach battery and dashboard locations
• Clear wiring paths reduce the need for additional extensions
• Includes basic instructions to guide common installs

What should I expect from the illuminated rocker switch and durability?

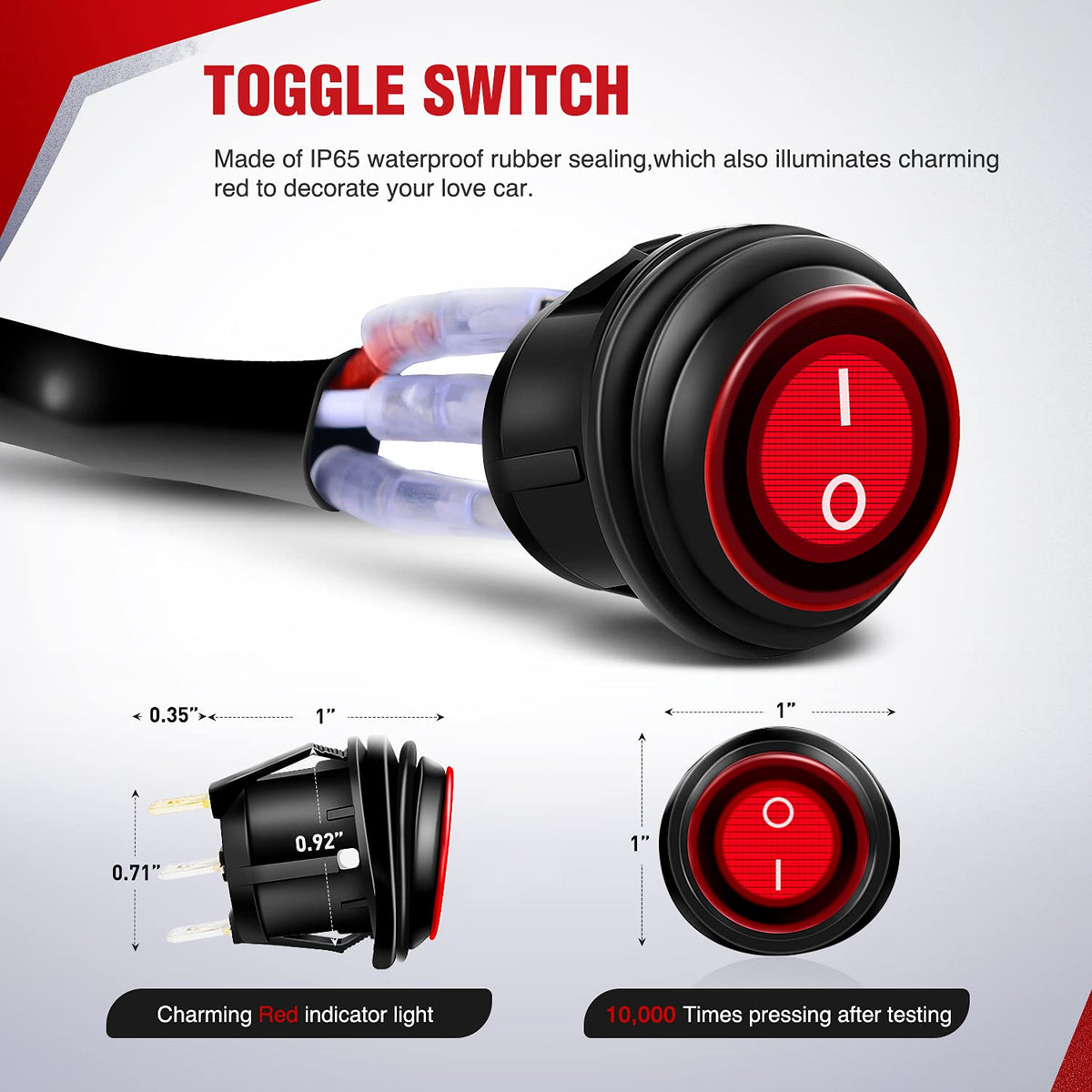

The switch is a 3-pin on/off rocker with a red indicator light that illuminates when active, providing clear visual feedback at night. It is rated for repeated use and has passed extensive press testing to ensure long-term reliability in daily off-road conditions.

• Illuminated red rocker gives visible on/off status in low light
• 3-pin switch layout simplifies wiring and mounting options
• Tested to thousands of presses for dependable operation
• Compact dash profile blends with vehicle interiors

Who is this for? The Nilight Copper LED Light Bar Wiring Harness Kit is aimed at DIY vehicle owners, off-road enthusiasts, and small fleet managers who need a reliable, ready-made wiring solution for a single 12V LED light or light bar. If you want a heavy-gauge harness that reduces voltage drop, provides relay-driven switching, and includes overcurrent protection for jeeps, ATVs, UTVs, trucks, trailers or marine 12V systems, this kit delivers a straightforward, durable option with enough length to accommodate most installations.
