Nilight LED Third Brake Light for Ford F-150 2009-2014 — Smoked Lens, 18-LED Brightness & IP67 Weatherproof

Nilight's smoked-lens LED third brake light is a direct-fit replacement for 2009–2014 Ford F-150 (non-Raptor) trucks that delivers brighter, faster, and weatherproof rear signaling with simple plug-and-play installation.

Replace the factory halogen center brake/cargo light with a modern LED assembly designed to match OEM mounting points and wiring on the 2009–2014 Ford F-150 (excluding Raptor). This Nilight unit uses eighteen integrated LEDs—nine dedicated for brake illumination and nine for cargo/utility lighting—installed behind a smoked lens for a sleek, low-profile look. Built with OE-grade materials and a sealed housing, it increases visibility while resisting moisture and road debris when installed correctly.

Will this brake light fit my Ford F-150 and require drilling?

Yes—this Nilight third brake light is engineered to fit 2009 through 2014 Ford F-150 models (not compatible with Raptor versions) using the truck's existing mounting points. The design preserves factory alignment and uses original screw locations so drilling is unnecessary.

• Compatible years: 2009, 2010, 2011, 2012, 2013, 2014 (non-Raptor)
• Uses factory screws and OEM mounting locations
• Plug-and-play wiring harness for direct connection
• Installation tip: hand-driver recommended to avoid over-tightening

How bright and responsive are the LEDs compared with the stock light?

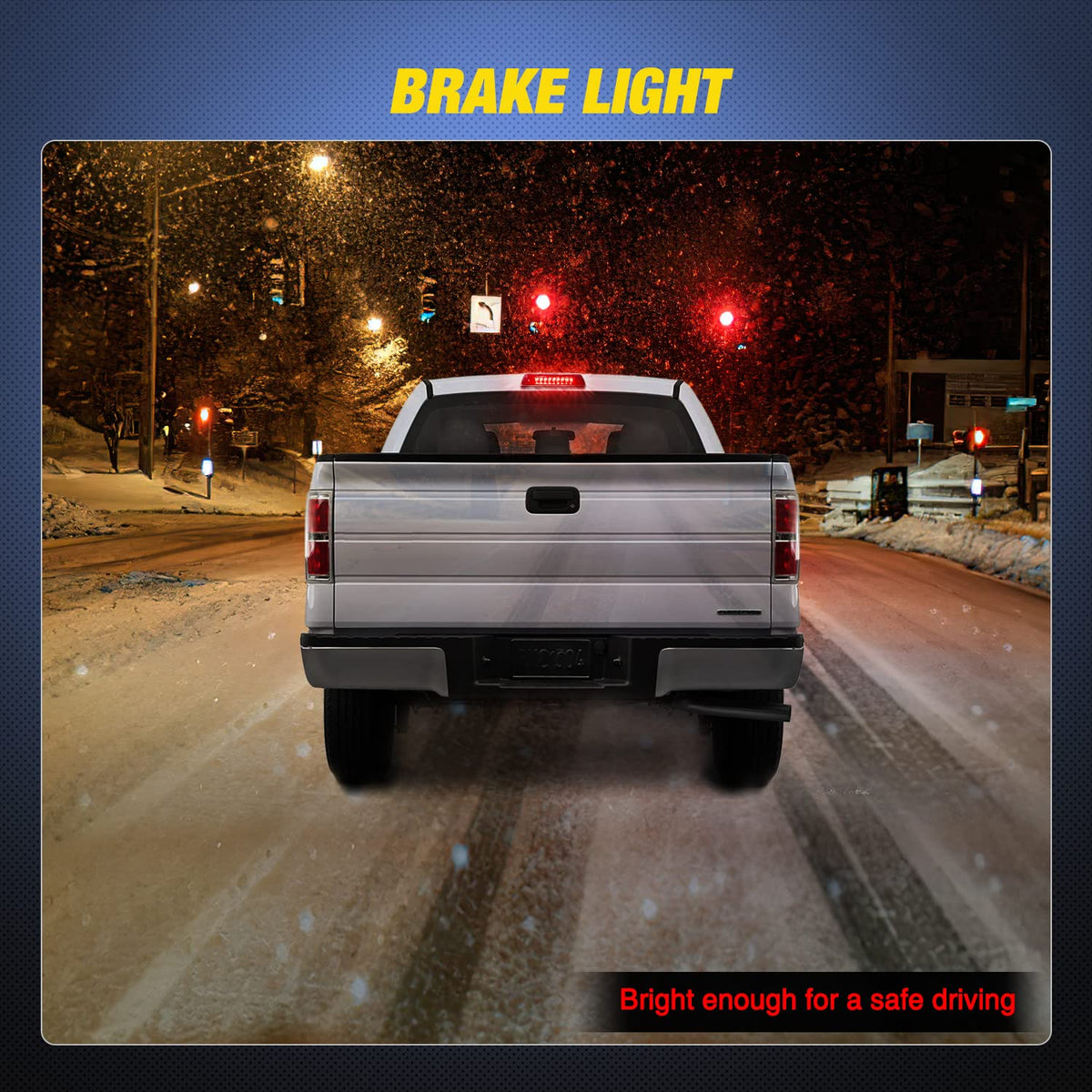

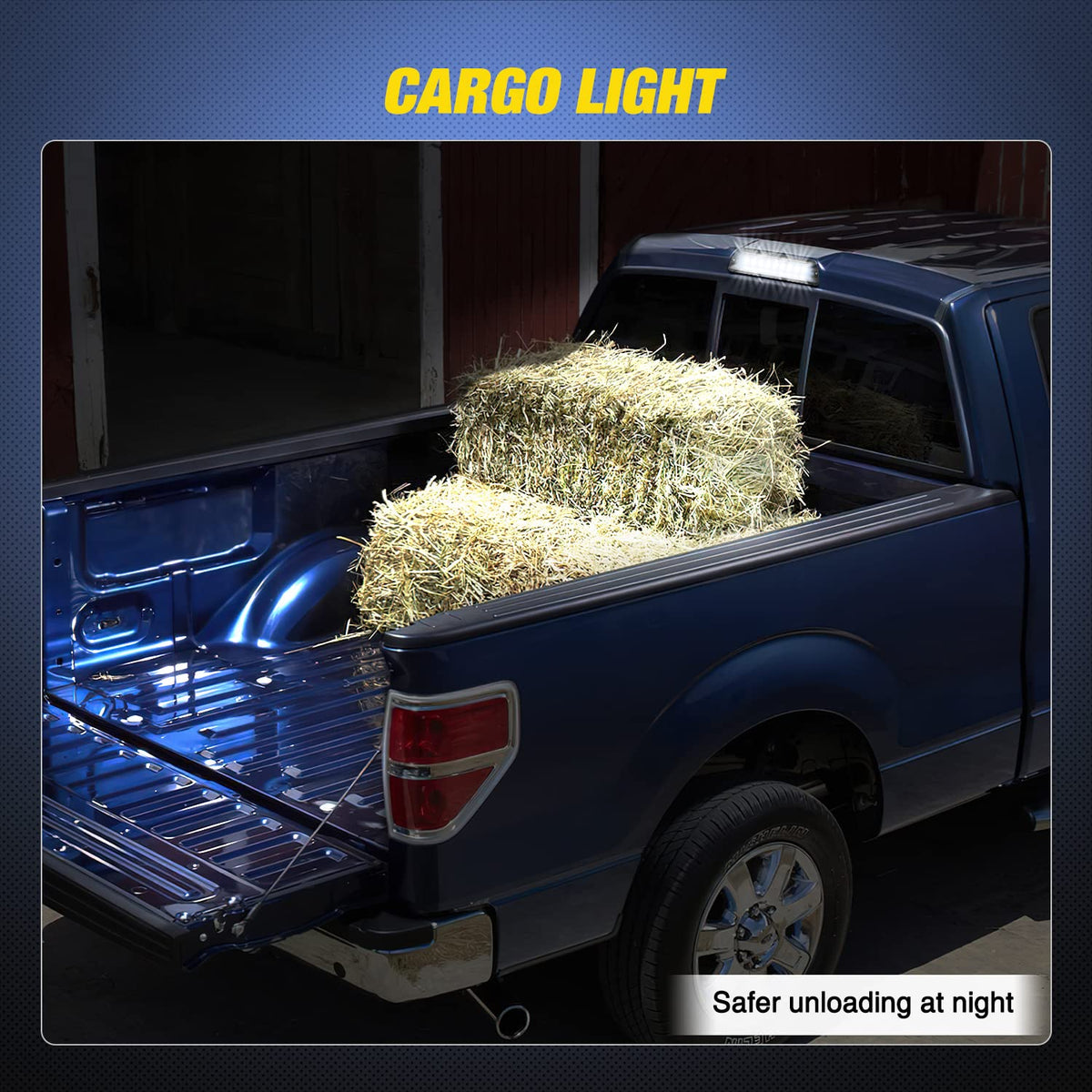

The Nilight assembly uses 18 built-in LEDs—9 for brake output and 9 for cargo illumination—producing significantly higher lumen output and quicker on/off response than typical halogen bulbs. Faster illumination gives clearer communication to drivers behind your truck, while the increased brightness improves visibility for cargo-area work at night.

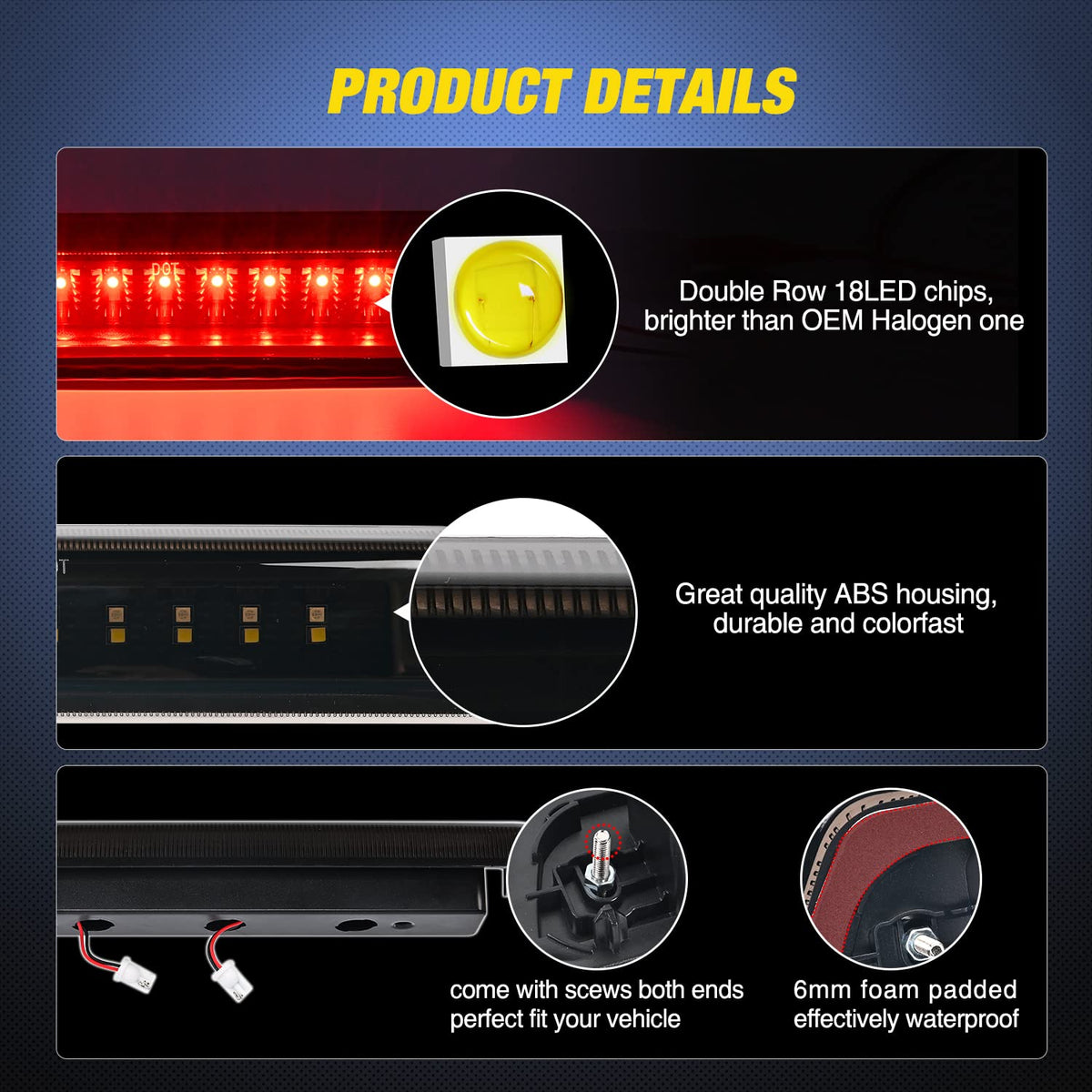

• 18 total LEDs: separate brake and cargo circuits
• Much brighter than OEM halogen; faster light-up time
• Efficient, long-life LED source reduces maintenance

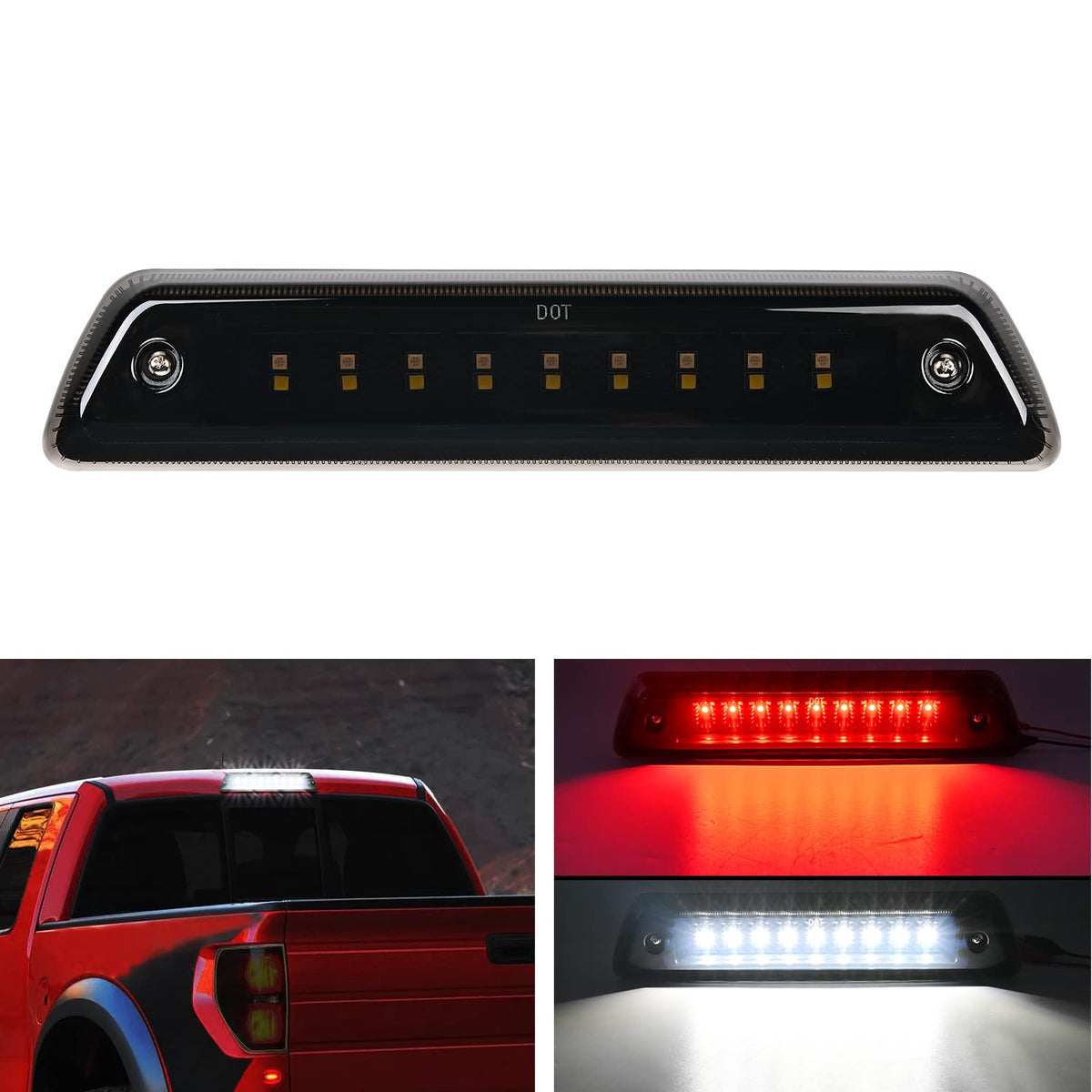

• Smoked lens provides a subdued visual style without sacrificing light output

Is the light weatherproof and durable for regular driving conditions?

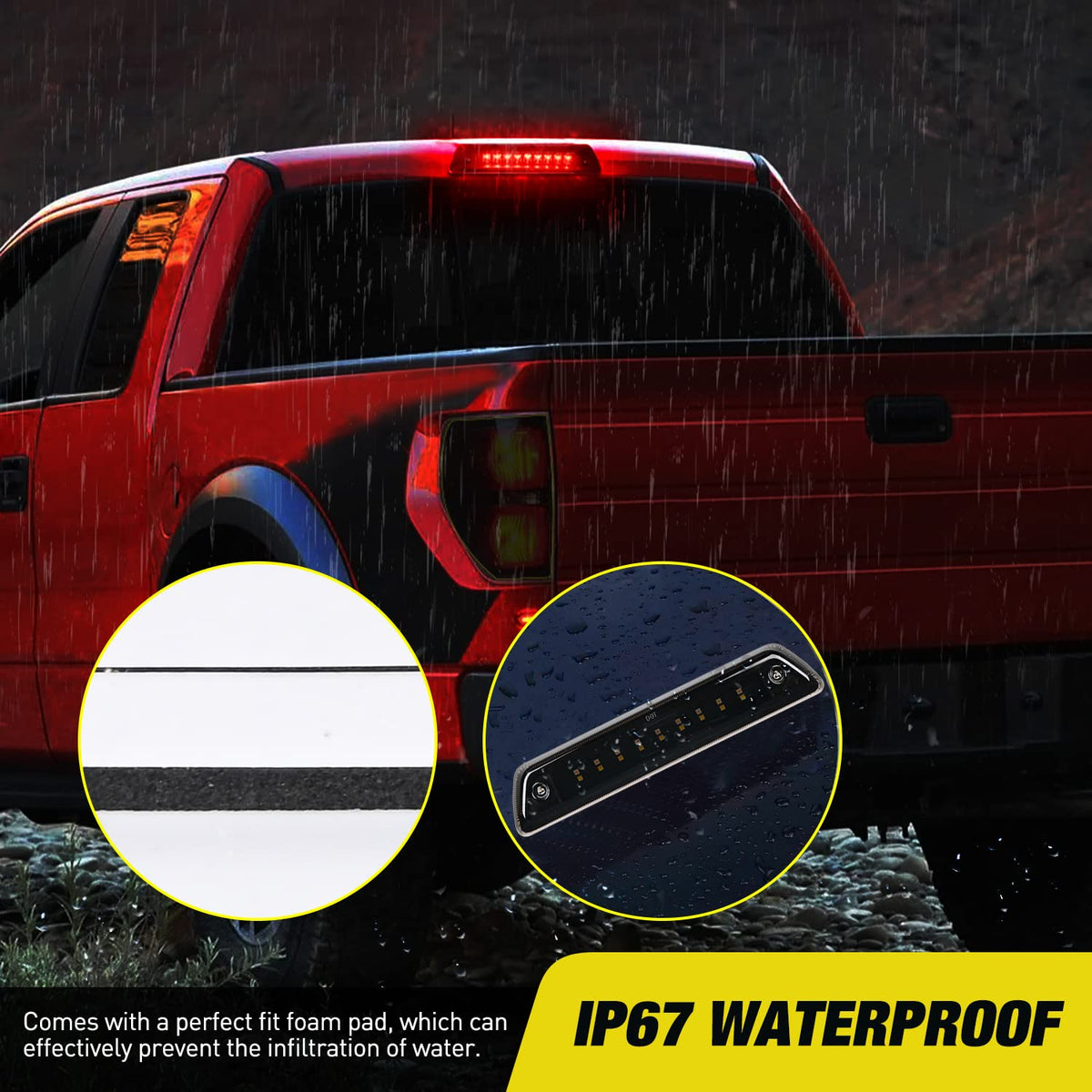

The housing includes a high-density foam pad and thorough sealing to reach an IP67-level waterproofing standard, which protects the internal LEDs from water ingress, snow, and road spray when properly installed. To ensure maximum longevity, apply butyl sealant around the fixture after installation for a reinforced seal.

• IP67-rated sealing for dust and water resistance
• High-density foam pad included for secure mounting
• Recommendation: use butyl sealant post-install to improve waterproofing
• Constructed from OE-grade materials for reliable performance

What comes in the package and what tools will I need?

The package contains one Nilight LED third brake light and one high-density foam pad for mounting. The unit is designed for plug-and-play operation; you should be able to reuse your factory screws and wiring. Keep a hand screwdriver handy and avoid power drivers to prevent cracking the housing from overtightening.

• Includes: 1 LED third brake light, 1 foam mounting pad
• Use factory screws for best fit—no new hardware required
• Hand screwdriver recommended; avoid heavy power tools
• After mounting, apply butyl sealant to complete the waterproof barrier

Who is this for: This Nilight smoked-lens LED third brake light is aimed at Ford F-150 owners (2009–2014, non-Raptor) who want a straightforward, OEM-friendly upgrade to brighter, longer-lasting rear signaling and cargo-area illumination. It’s ideal for drivers who value improved visibility, a modernized appearance, and a weather-resistant, maintenance-light solution that installs with minimal effort.
